Remote Wired* LED Display Kit #1603

Remote Wired* LED Display Kit (P/N 1603). Our wired remote LED display and connected power module replaces the standard controller on the cooling unit, and allows the LED display to separated from the cooling unit, attached via low thermostat wiring and located inside or outside the cellar.

Features include:

• Connected via 10 feet of 18-gauge low voltage wiring**
• Can be installed anywhere that's convenient for you, inside or outside the wine cellar
• Provides all features and functionality of the standard controller
• Perfect for cooling units that will be installed in remote or hard-to-reach locations
• Kit requires both components - the LED display and the power module
• This kit must be ordered with the cooling unit and factory installed

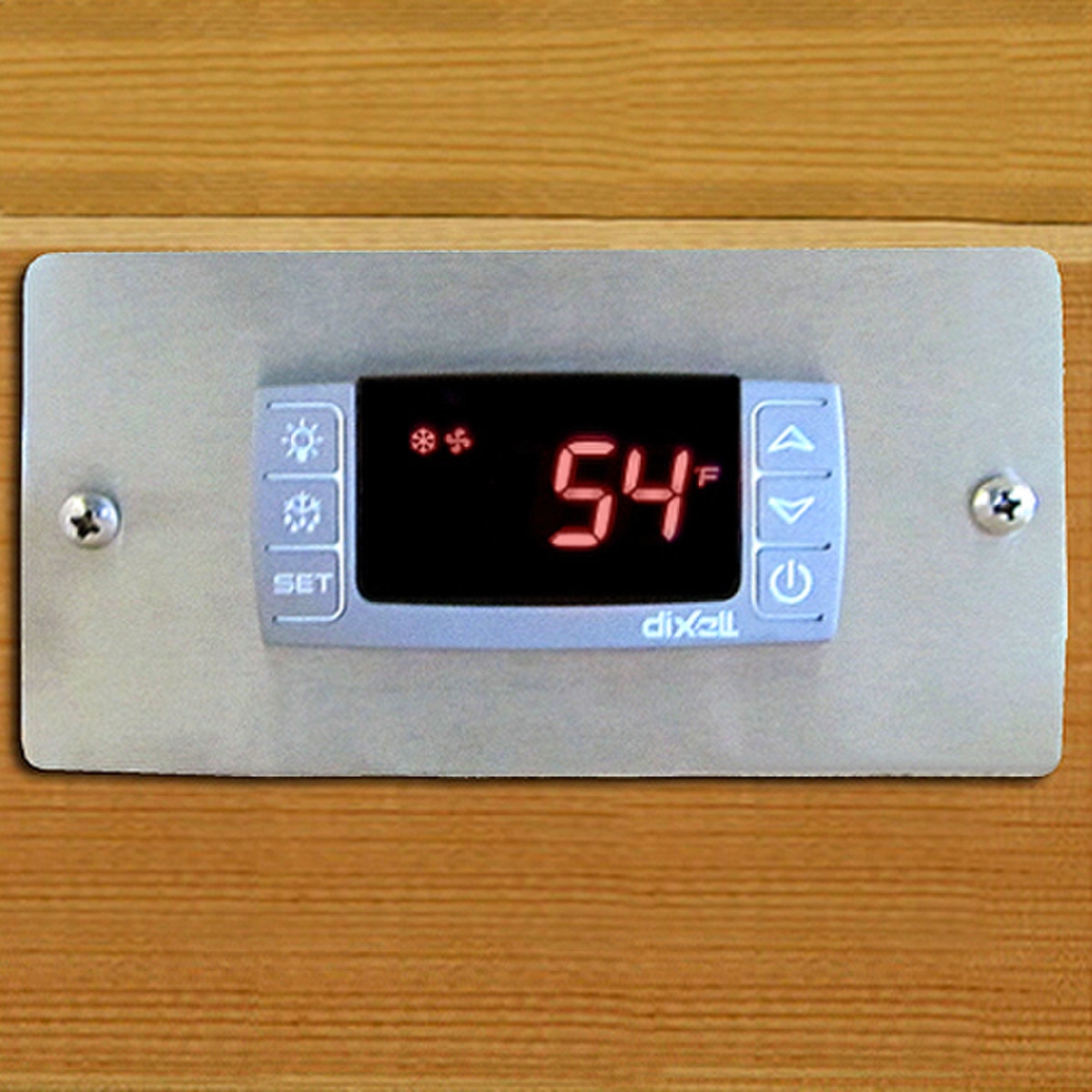

• Includes a stainless steel wall mounting plate and screws

*On all units except 1800XTSr, wiring will exit from the front (note that for 1800QT, 1800XT, 1800XTS and 1800XTSx cooling units, "front" means the left side towards the front of the unit). Some units offer wiring that exits from the rear or sides. To change where the wire exits, select from the options provided.

**If you'd like more than 10 feet of wire, let us know when you checkout in the "special instructions" field. We charge $0.50 per foot after the first 10 feet.

Please note:

• Neither variable speed fans nor the condensate evaporator (not available on all units) are controlled by the standard controller and the remote display/control kit
• The LED display panel has a red (not blue) display
• The Remote LED Display Kit replaces the standard controller of the cooling unit
• This item must be purchased at the same time as the cooling unit because it must be installed in the factory***
• Front wiring exits on the left side towards the front (near the convenience outlet) on the following cooling units: 1800QT, 1800XT, 1800XTS and 1800XTSx

***If your cooling unit has already shipped, one of the retrofit kits must be purchased instead.

Refer to the Resources tab (below) for drawings and installation guides.
