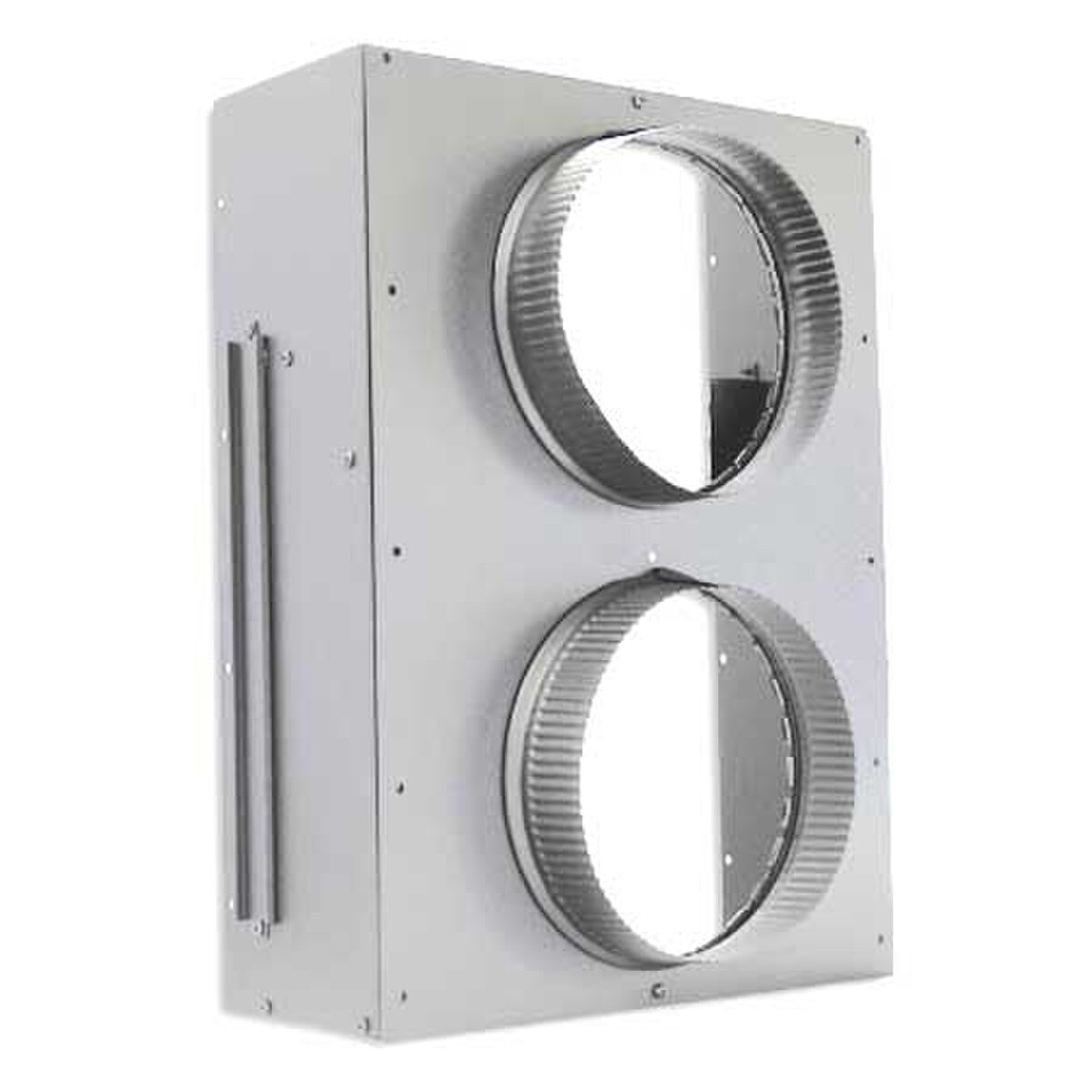

CellarPro VS Duct HOOD (Hot Side) #7407
CellarPro 3200/4200 Duct HOOD (Rear) (P/N 7407). Duct openings are designed to attach to two 8" ducts (not included) for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Custom duct hood for CellarPro 3200 and 4200 Series wine cooling units. With this hood and a minimum of 8-inch ducting from start to finish (not included), the hot air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8" ducting (not included)
- One or both openings may be ducted (total of 100 equivalent feet)
- Powdercoated, cold-rolled, thick-gauge steel
Brand: CellarPro
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 13 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 13 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Rear Duct Hood Cut Sheet
- 3200 / 4200 + Combined Cut Sheets (As Ducted)
- Framing Diagram
- Installation Diagrams
- Ducting Installation Best Practices
