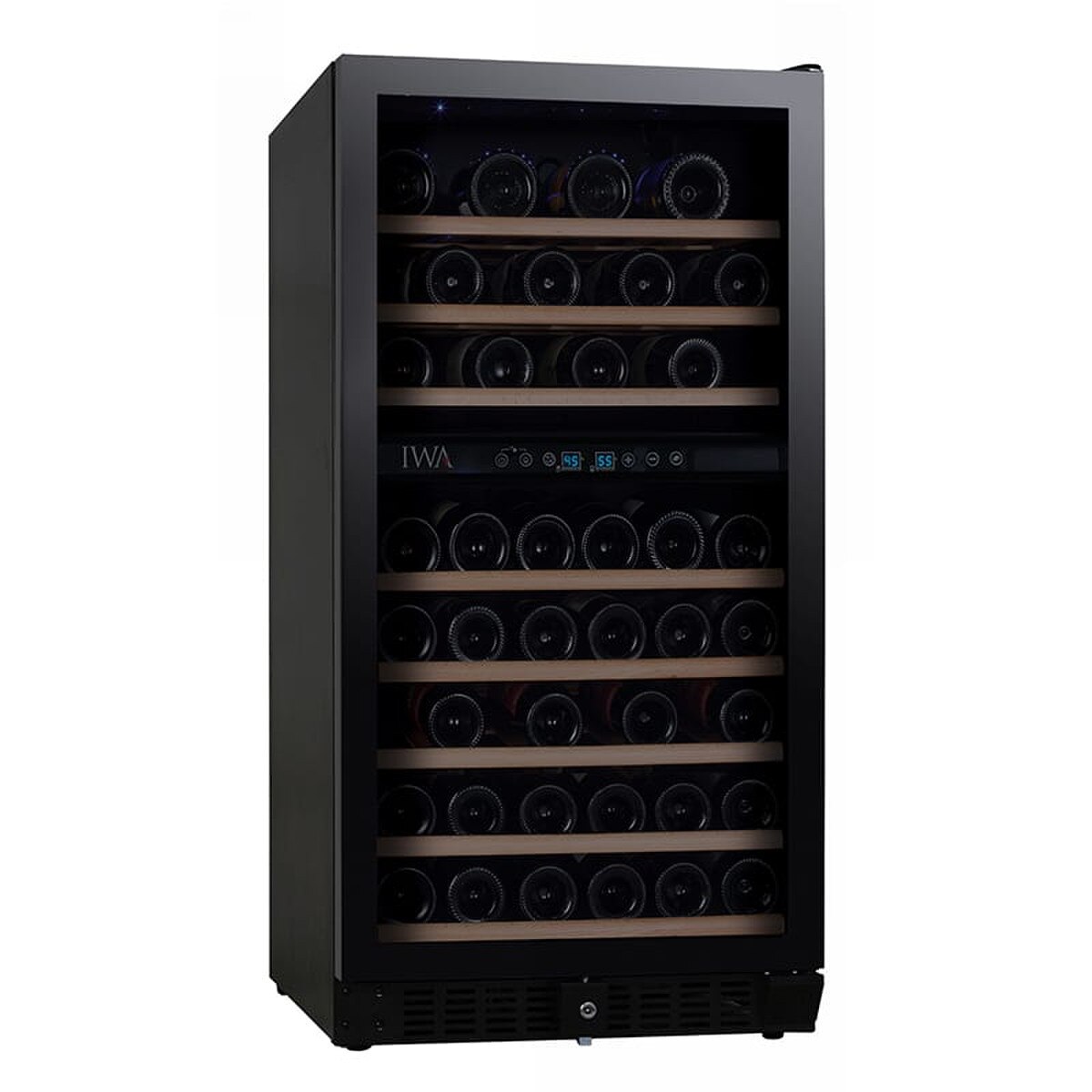

Loft 800 Wine Cooler 94 Bottle Frameless #19319

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 27d x 48h (in)

Shelving: 8 pull-out shelves (6 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp

• Independent dual-zone temperature control: The upper zone is adjustable from 41–54°F for whites and sparkling wines; the lower zone runs 54–66°F for reds. Both zones display simultaneously on the blue LED panel mounted inside the cabinet, not behind the glass.

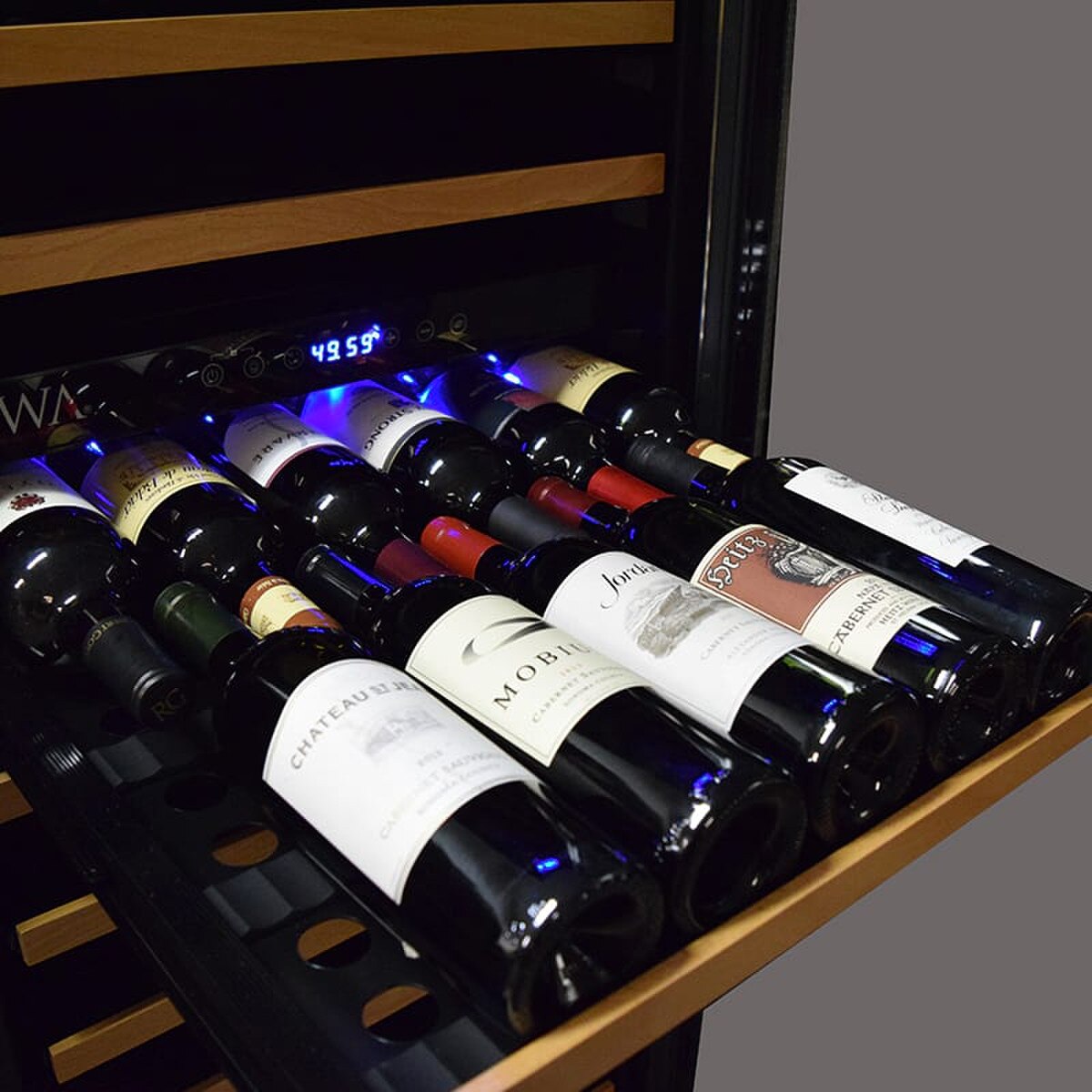

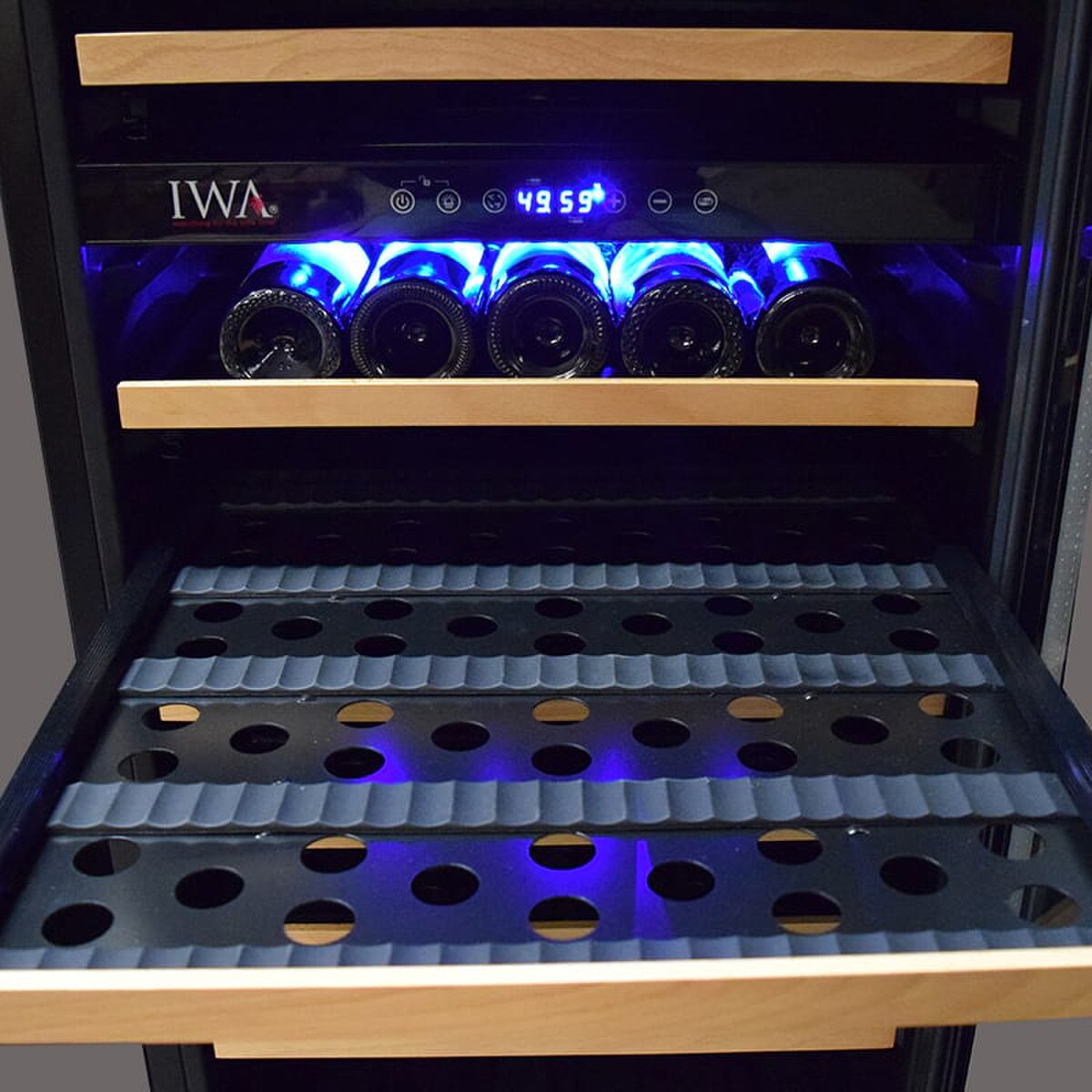

• Rolling metal plate shelves with Burgundy-format accommodation: The molded plate shelves seat wider Burgundy bottles alongside standard Bordeaux. The rated 94-bottle capacity applies to Bordeaux format only — mixed or Burgundy-format loads will reduce that number.
• Front-vented ventilation: All airflow runs through the front grille, which means the unit can be flush-installed inside cabinetry without side or rear clearance. The same unit works freestanding if placement changes.
• Requires a dedicated 15-amp circuit: 115V / 60Hz. A shared circuit is not supported — relevant if you are planning a built-in installation as part of a remodel.
• 5-year compressor warranty plus a 1-year warranty covering parts and labor.
• R600a refrigerant system
• Temperature display switchable between Fahrenheit and Celsius

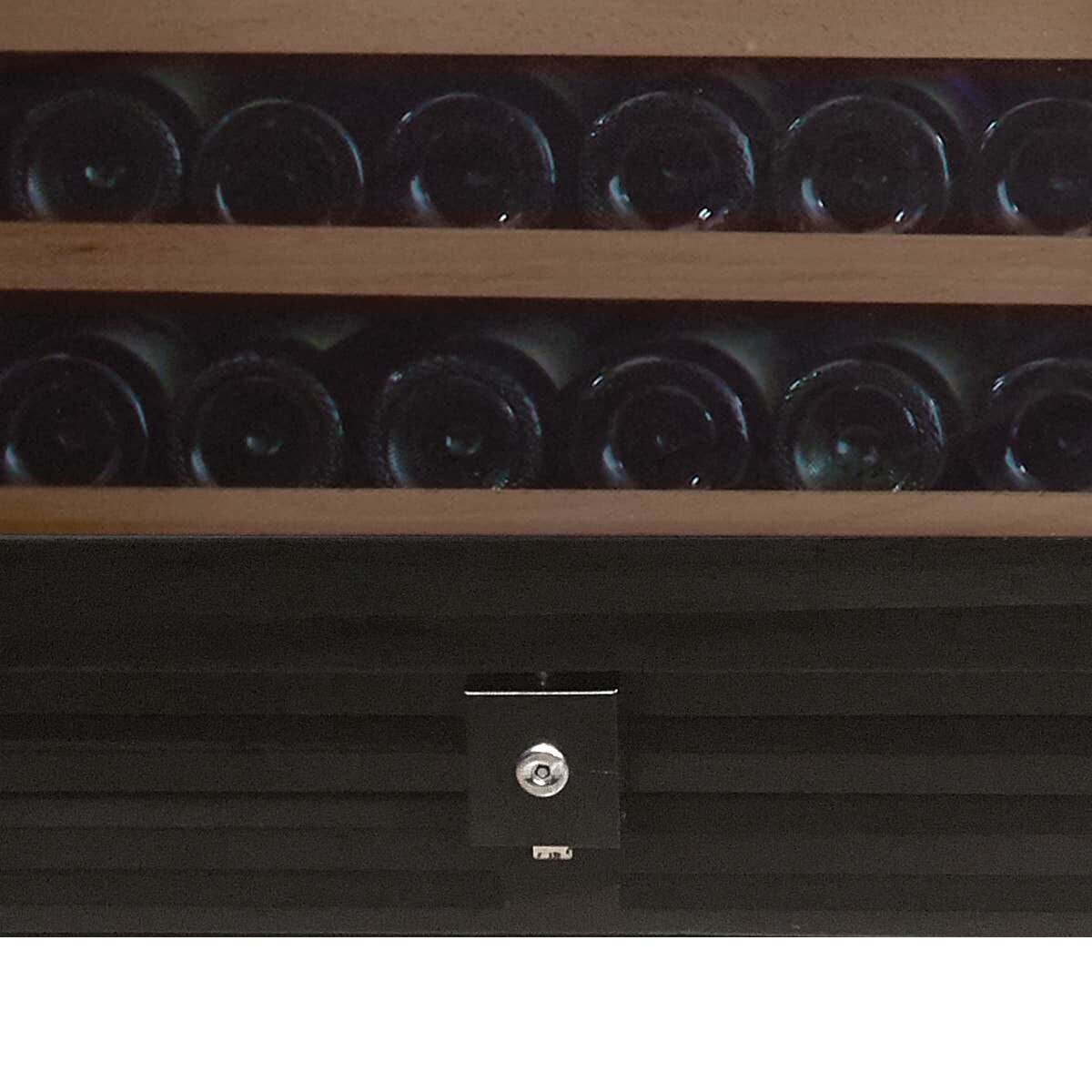

• Security door lock with keys included; UL / ETL certified

Brand: Loft

UPC: 077757193194

Size: 23 3/4w x 27d x 48h (in)

Weight: 243 lbs

Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit

Capacity: Up to 94 bottles

Material: Metal

Warranty:
1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• 15-Amp Dedicated Circuit: The unit must run on its own breaker and cannot share a circuit with other appliances — verify your installation location meets this requirement before ordering.
• R600a Refrigerant: A hydrocarbon refrigerant that operates at lower pressures than conventional refrigerant types, contributing to quieter running and reduced energy draw.

Loft 800 Manual

PLACEMENT REQUIREMENTS

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

• Total capacity for up to 94 Bordeaux-size bottles, as follows:
• 46 Bottles in the top (colder) zone -
• 22 Bottles on the top rolling shelf (double-stacked and double-deep)
• 12 Bottles each on 2 rolling shelves (double-deep)
• 48 Bottles in the bottom (warmer) zone -
• 12 Bottles each on 3 rolling shelves (double-deep)

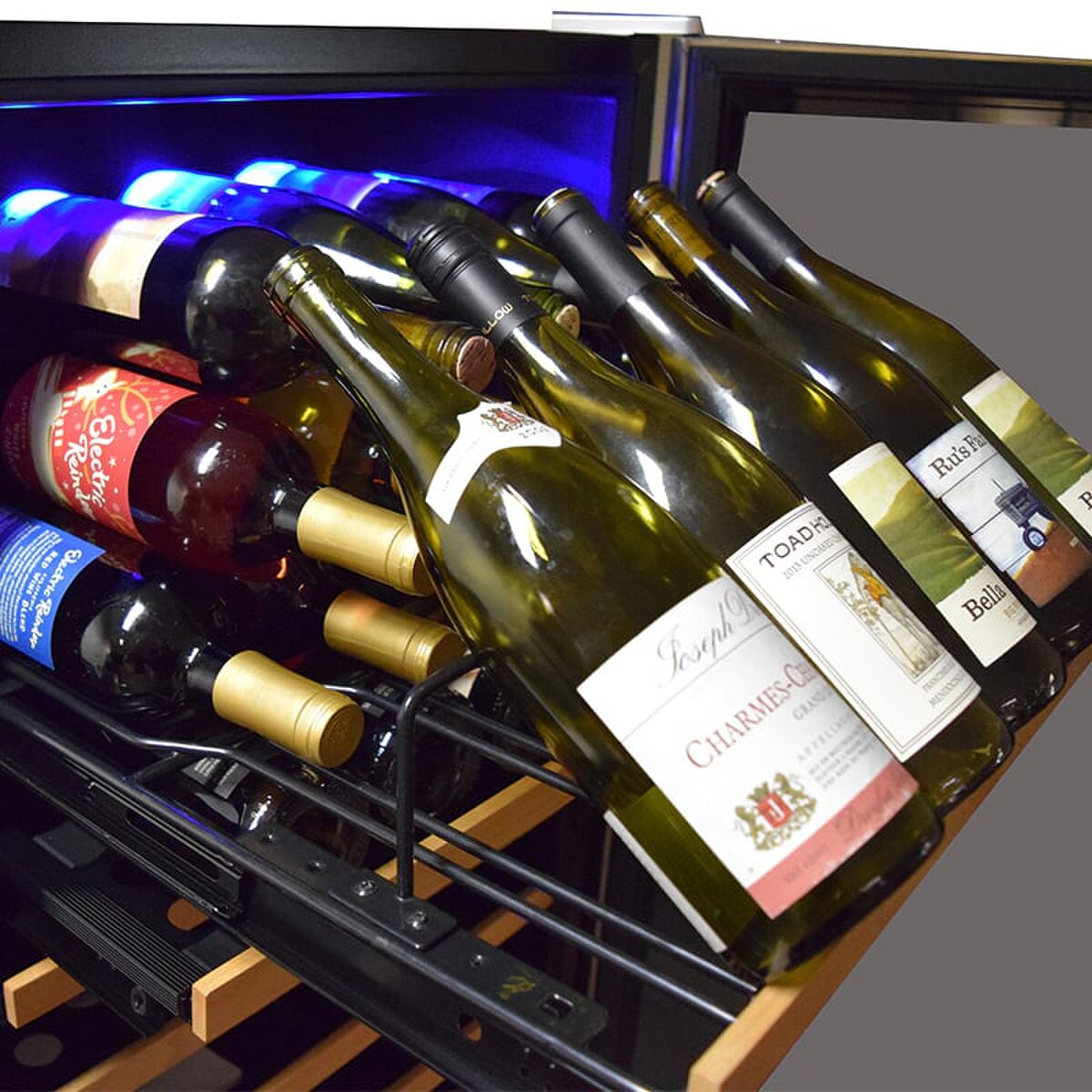

• 6 Bottles each on 2 pull-out wire shelves (single deep)

Can the Loft 800 be installed built-in, or does it require clearance around it?

A: The Loft 800 is front-vented, so it can be installed either freestanding or fully built-in with no side or rear clearance required. The vent runs along the bottom front of the unit, which means it works in a cabinet cutout or under a counter just as well as it does standing alone. At 23¾"W x 27"D x 48"H, it fits a standard 24" cabinet opening with minimal trim work, making it a practical choice for dining room cabinetry or a kitchen remodel.

What are the actual temperature ranges for each zone?

A: The upper zone is calibrated for whites and sparkling wines and can be set between 41°F and 54°F. The lower zone handles reds and can be set between 54°F and 66°F. Both zone temperatures are shown simultaneously on the blue LED display panel mounted inside the cooler. For best performance, the unit should be placed in an ambient environment between 60°F and 80°F — pushing outside that range will affect the cooler’s ability to hold target temperatures.

Does the 94-bottle capacity hold if I’m storing Burgundy or Rhône bottles?

A: The 94-bottle rating is based on standard Bordeaux-size bottles. The rolling metal plate shelves are designed to accommodate wider Burgundy-format bottles, but when you mix in Burgundy, Rhône or Champagne shapes, real-world capacity will be reduced. Plan for something closer to 70–80 bottles if your cellar leans heavily on wider formats. The plate shelves do give you flexibility to configure rows for different bottle diameters rather than being locked into a single rack pitch.

What are the electrical requirements, and does it need a dedicated circuit?

A: The Loft 800 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. It cannot share a circuit with other appliances. If you’re planning a built-in installation during a remodel, factor in running a dedicated line to the cabinet location before the walls close up. The unit uses an R600a refrigerant system, which is more energy-efficient than older refrigerants and produces less heat rejection — relevant if the unit is going into an enclosed cabinetry space.

What does the warranty actually cover, and for how long?

A: The Loft 800 carries a 1-year warranty covering parts and labor and a separate 5-year warranty on the compressor. The compressor is the most expensive component to replace in any wine cooler, so the extended coverage is meaningful. The unit is also UL / ETL compliant, which matters for built-in installations where local electrical inspections may require listed appliances.

How is the frameless door different from a standard framed wine cooler door?

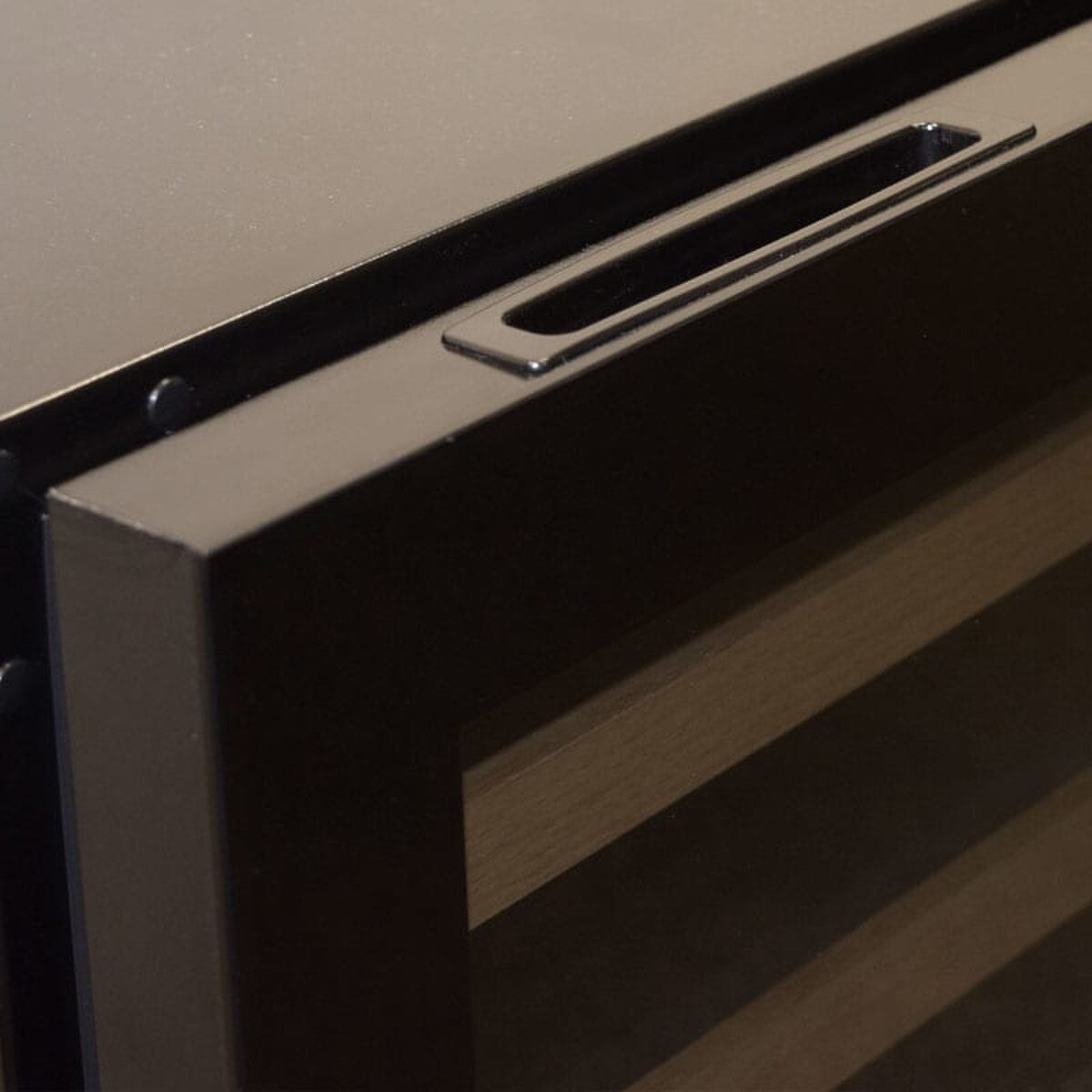

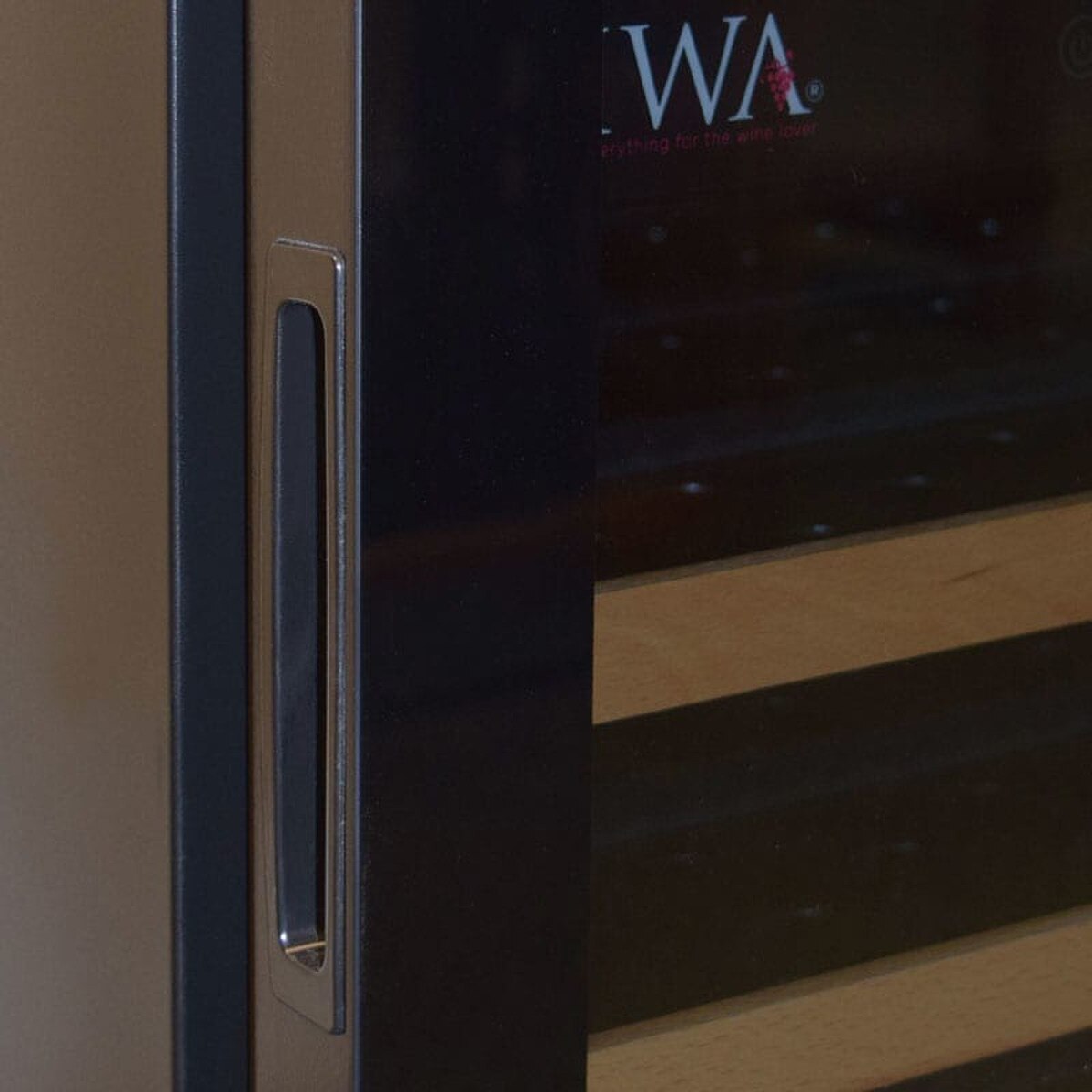

A: On a framed cooler, a visible metal border wraps the perimeter of the glass panel. The Loft 800’s infinity frameless door sits on a single flat plane with no protruding frame, so the glass runs edge to edge for a flush, architectural look. The glass itself is double-pane, tinted and tempered, which blocks UV light and insulates against temperature transfer. Door hinges are reversible, so the swing direction can be changed to suit the installation. A recessed pull handle is integrated into the door edge rather than mounted as a separate hardware piece.
