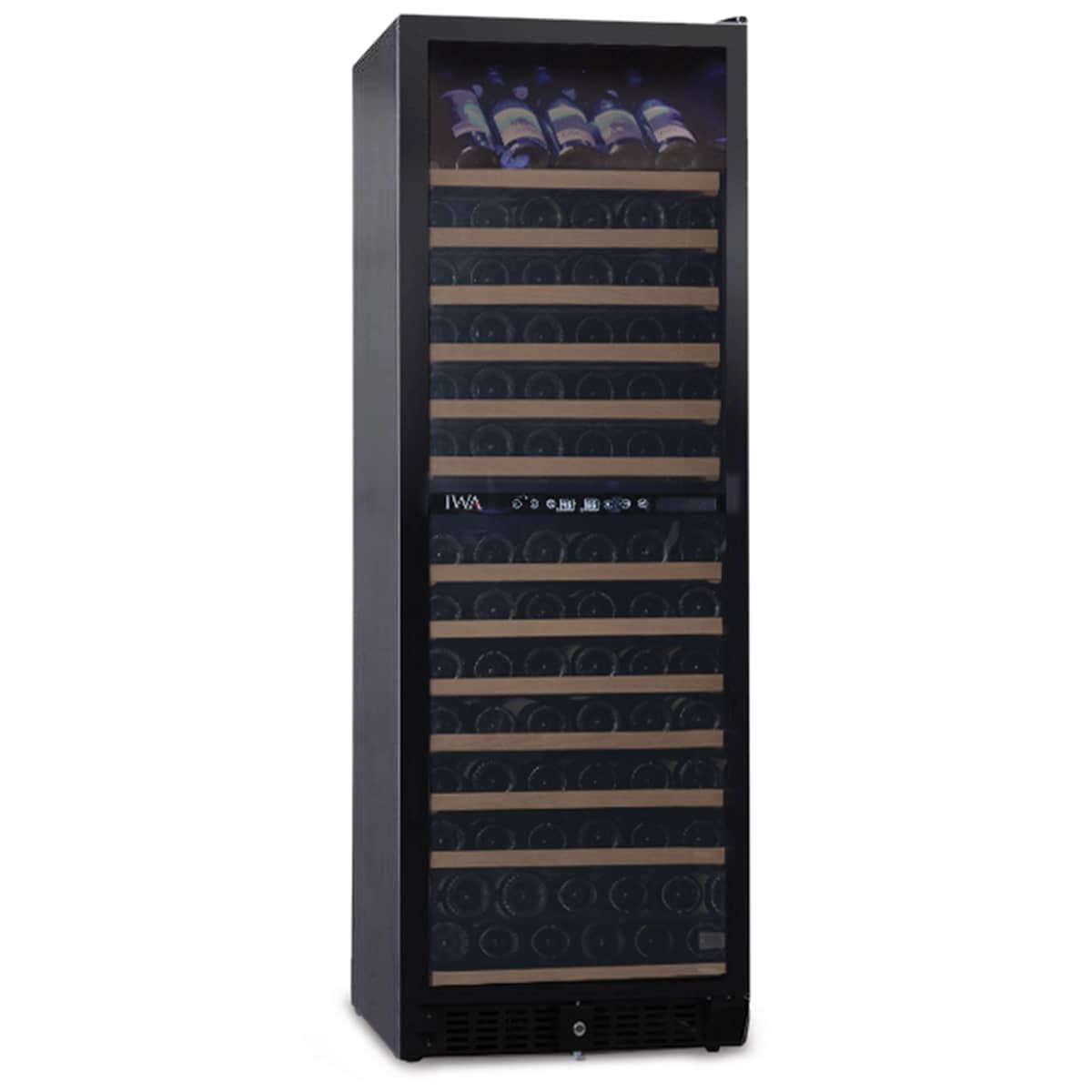

Loft 1200 166-Bottle 2-Zone Frameless #19191

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 27d x 69 3/4h (in)

Shelving: 14 pull-out shelves (13 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp

• Separate temperature ranges per zone: The upper zone runs 41–54°F for whites and sparkling; the lower zone runs 54–66°F for reds. The upper zone must stay at least 4°F colder than the lower zone — a hard constraint worth knowing before you plan how you’ll split the cabinet.

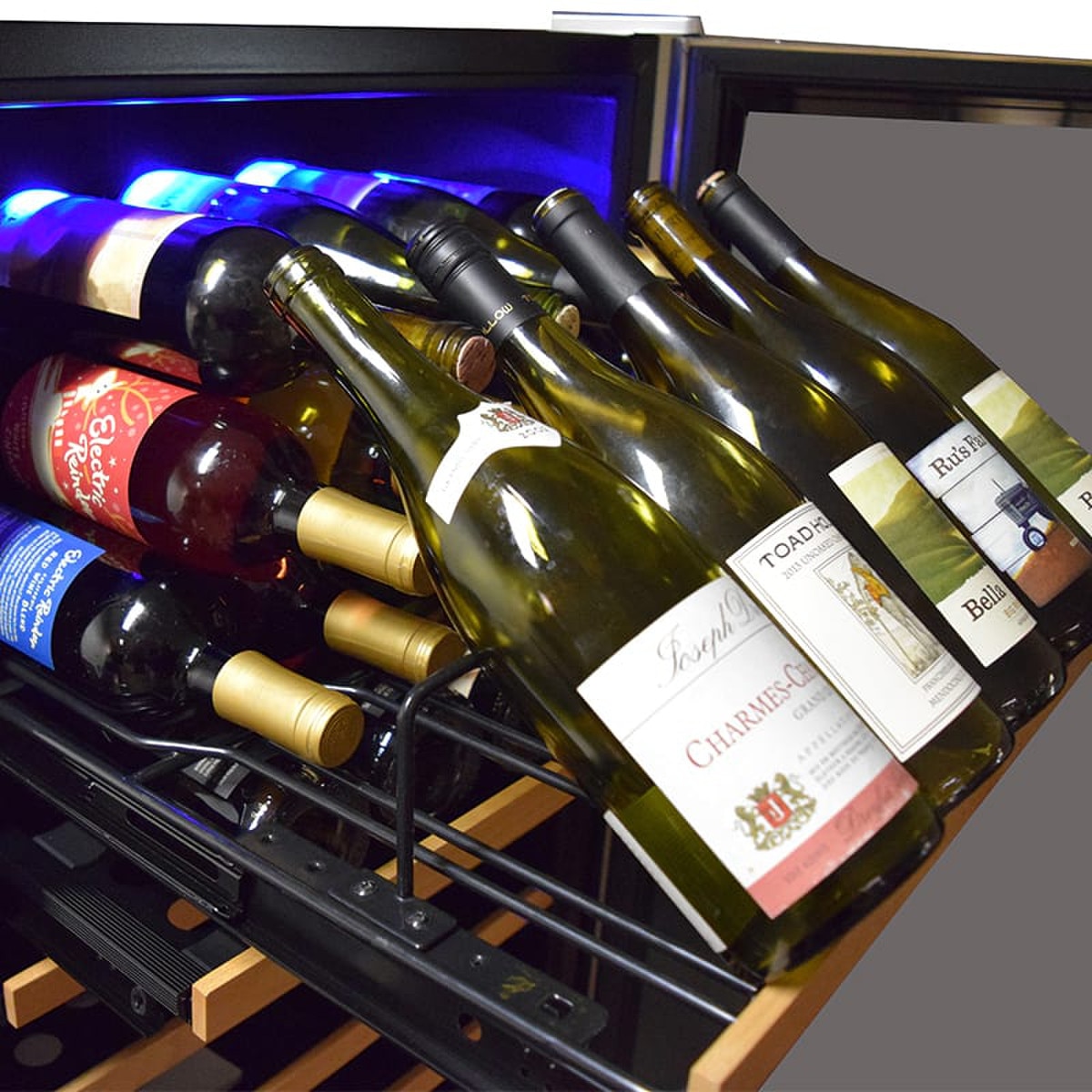

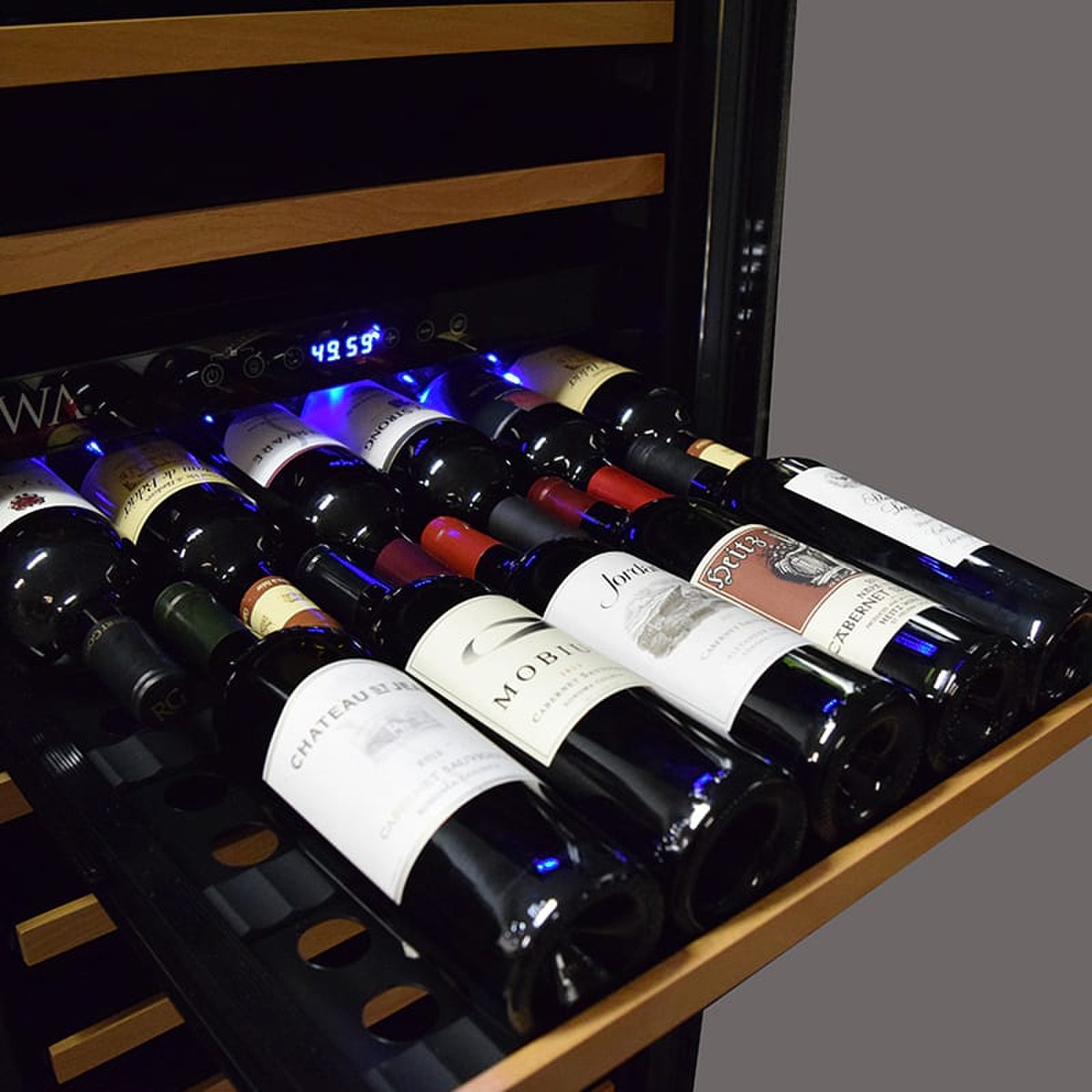

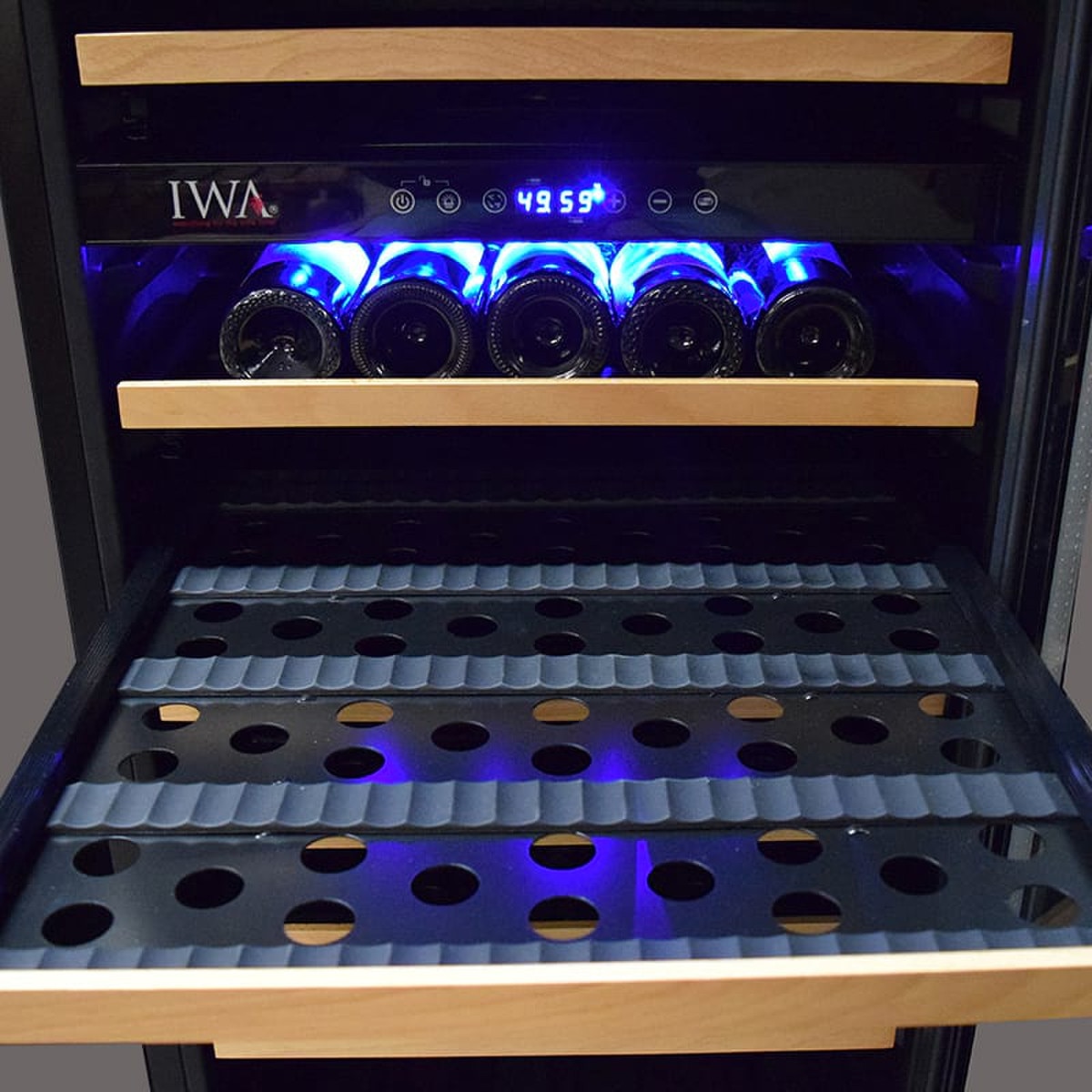

• 14 pull-out shelves (13 rolling metal plate): Low-profile plate shelves accommodate Bordeaux bottles at rated capacity; switching to Burgundy-format bottles will reduce total count. One fixed presentation shelf position is also available.
• Front-vented cabinet: The compressor exhausts through the front grille, so the unit can be recessed flush into cabinetry without clearance gaps on the sides or rear. Works equally as a freestanding column.
• Reversible door hinge — swing direction can be changed to fit your installation without calling a technician.
• Dedicated circuit required: 115V / 60Hz on a 15-amp dedicated circuit. Factor this into any built-in or basement installation plan before ordering.
• R600a compressor: A lower global-warming-potential refrigerant that also runs more efficiently than older R134a systems. Relevant if the unit will operate continuously in a conditioned basement or living space.
• Warranty split: 1 year on parts and labor, 5 years on the compressor specifically — the component most likely to need attention after the first year.

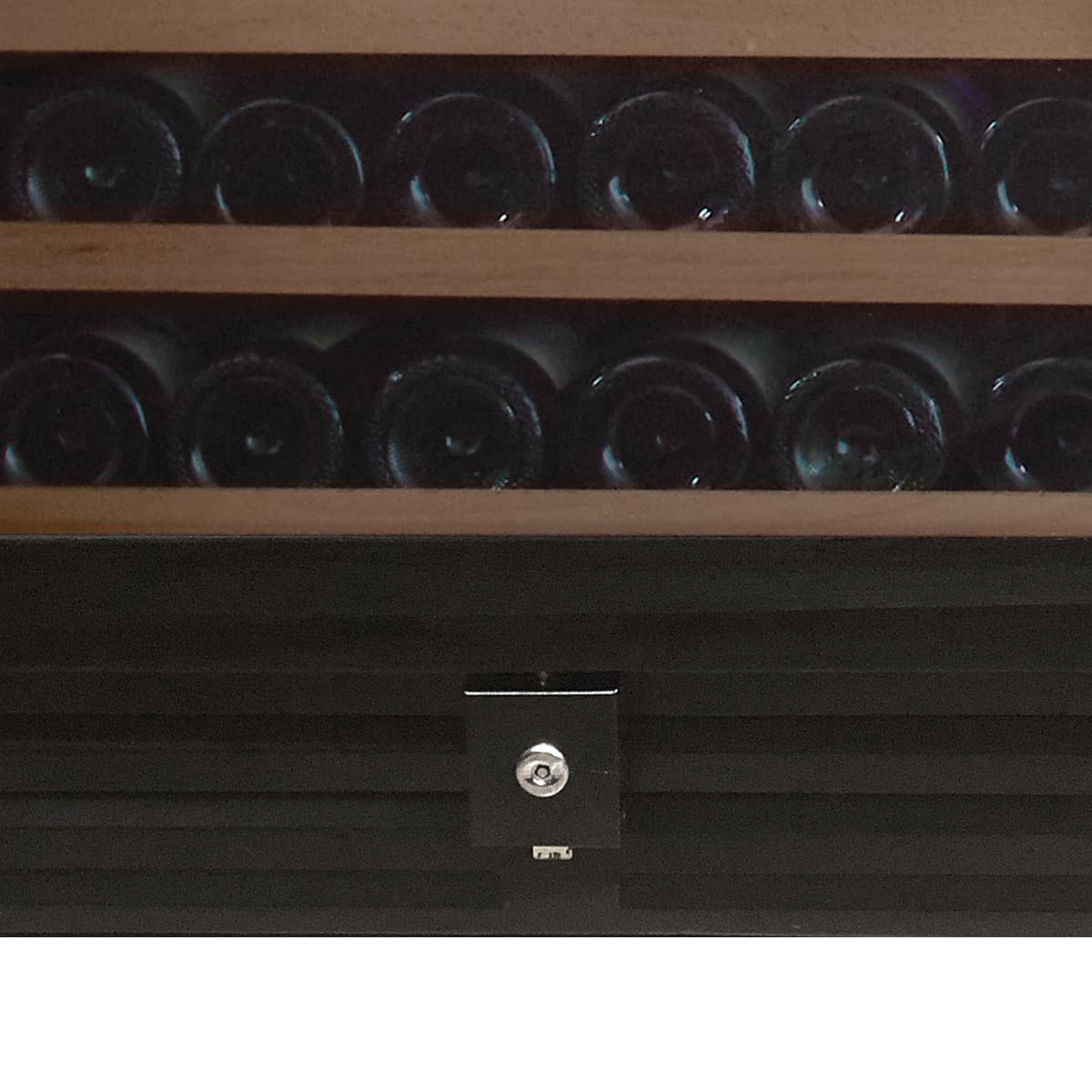

• Security lock with keys included; blue LED interior lighting; Fahrenheit/Celsius display toggle; charcoal air filter; UL / ETL compliant

Pairs Well With

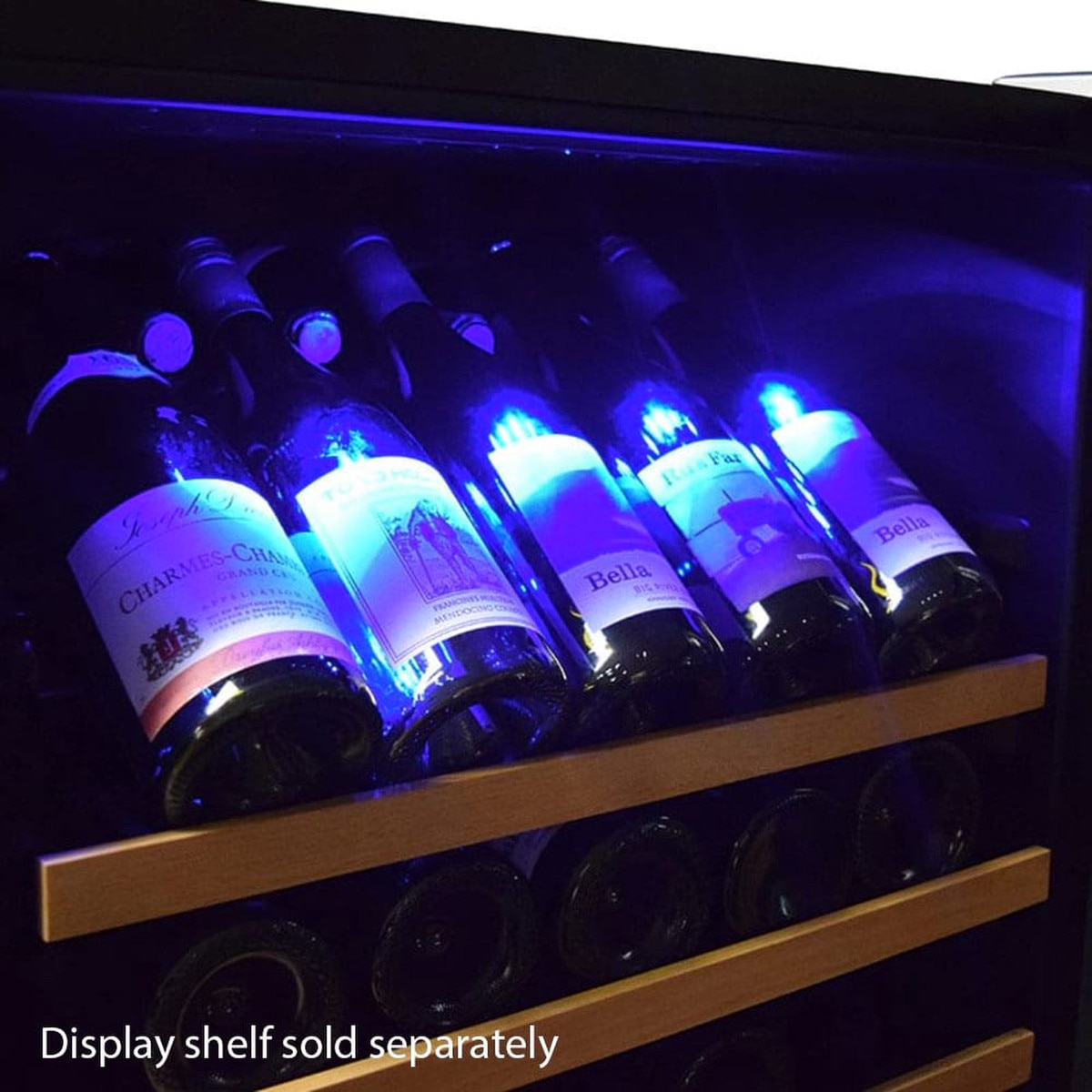

• The optional rolling presentation shelf (sold separately) — it converts one shelf position into a label-forward display row, shown in the product images. The manual covers installation.

Brand: Loft

UPC: 077757191916

Size: 23 3/4w x 27d x 69 3/4h (in)

Weight: 296 lbs

Material: Metal

Capacity: Up to 166 bottles

Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit

Warranty:
1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• 15-Amp Dedicated Circuit: The unit must be on its own circuit breaker with no other appliances sharing the line — plan for an electrician visit if your installation location does not already have one.
• 115V / 60Hz: Standard North American household current; this unit is not compatible with 220–240V international outlets without a converter.

Loft 1200 Manual

PLACEMENT REQUIREMENTS

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

• Total capacity of 166 Bordeaux-size bottles
• 88 bottles can be stored in the upper (colder) zone
• 1 rolling plate shelf with stacked capacity for 22 bottles
• 6 rolling plate shelves with capacity for up to 11 Bordeaux bottles per shelf
• Optional presentation shelf (sold separately) with capacity for 20 bottles; can be used to replace 2 rolling shelves (bottle capacity will decline by 13 bottles)
• 78 bottles can be stored in the lower (warmer) zone
• 1 half-depth shelf at the bottom with stacked capacity for 12 bottles
• 6 rolling plate shelves with capacity for up to 11 Bordeaux bottles per shelf

Can the Loft 1200 be installed flush with cabinetry, or does it have to stand free?

A: It works either way. The unit is front-vented, which means all intake and exhaust happen through the front grille — there is no clearance required on the sides or rear. You can recess it into a cabinet run or a built-in niche and get a flush result, or simply roll it into position as a freestanding unit. The door also has reversible hinges, so swing direction can be matched to the installation.

What are the actual temperature ranges for each zone, and can I run both zones at the same temperature?

A: The upper zone is designed for whites and sparkling wines and can be set anywhere from 41°F to 54°F. The lower zone is designed for reds and runs from 54°F to 66°F. The system requires the upper zone to be set at least 4°F colder than the lower zone at all times — so you cannot equalize the two zones. Temperatures are visible on the blue LED display panel mounted inside the cooler, and the unit supports both Fahrenheit and Celsius readouts.

Does the 166-bottle capacity hold for Burgundy and Rhône bottles, or only Bordeaux-sized bottles?

A: The 166-bottle figure is rated for standard Bordeaux bottles. The shelves are designed to accommodate Burgundy-size bottles as well, but the wider shoulder on those bottles means fewer will fit per shelf, and overall capacity will be reduced. If your cellar runs heavy on Burgundy or oversized Rhône bottles, plan for a meaningfully lower working count than 166.

What electrical circuit does this unit require?

A: The Loft 1200 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. It should not share a circuit with other appliances. The unit also has an ambient temperature requirement — the room where it is installed should stay between 60°F and 85°F; performance will be affected outside that range, which is worth factoring into basement or garage placements.

What does the warranty actually cover, and for how long?

A: The Loft 1200 carries a 1-year warranty on parts and labor, plus a 5-year warranty on the compressor. The compressor used is the energy-efficient R600a system. The unit is UL / ETL compliant.

What shelving is included, and what is the optional presentation shelf?

A: The unit ships with 14 pull-out shelves (13 rolling metal plate shelves plus 1 fixed). The rolling plate shelves are low-profile and designed to slide out fully for easy access. An optional rolling presentation shelf is available separately — it holds bottles label-up and face-forward for display rather than horizontal storage. That shelf is shown in some product images but is not included with the standard unit.
