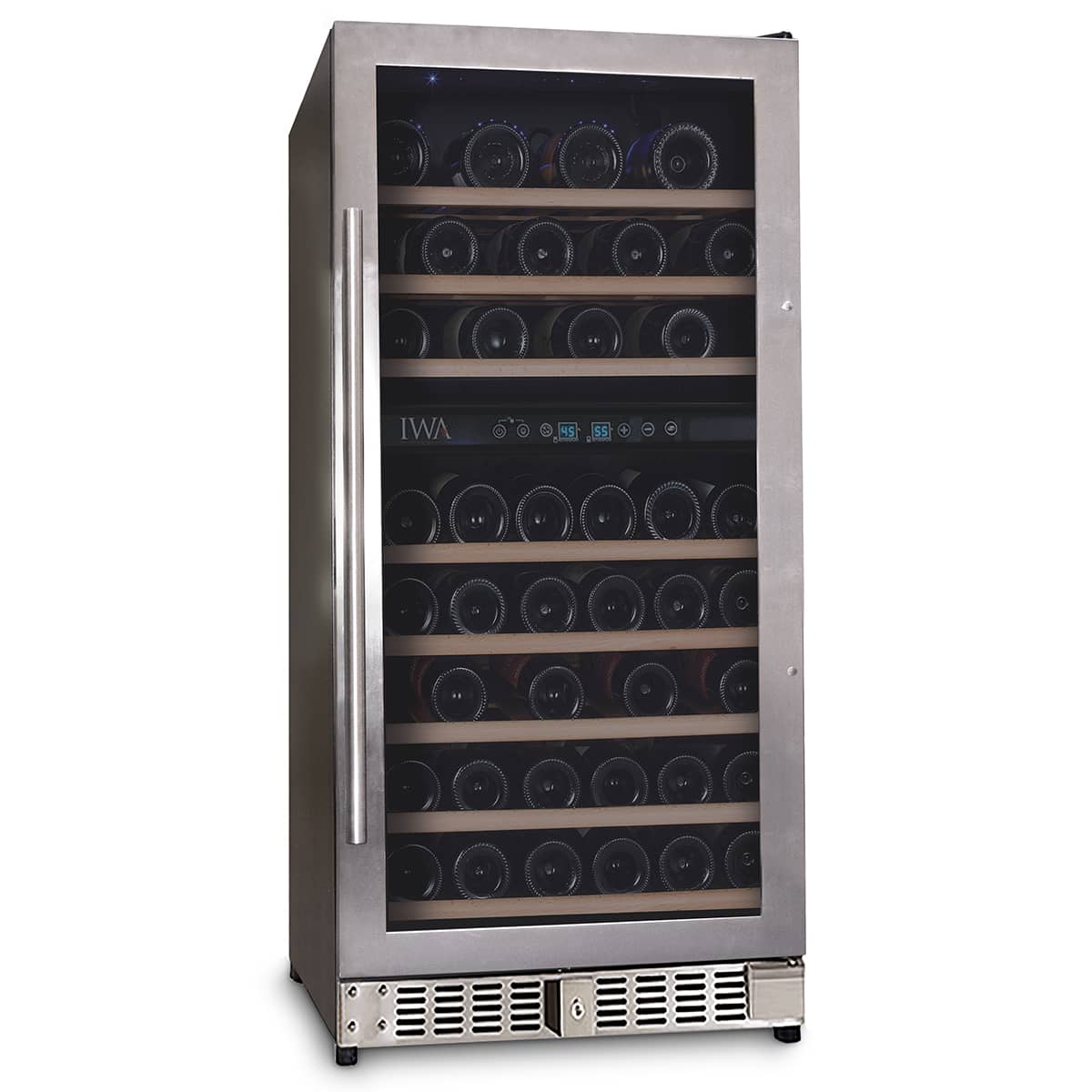

Loft 800 Dual Zone Wine Cooler 94-Bottle #19315

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

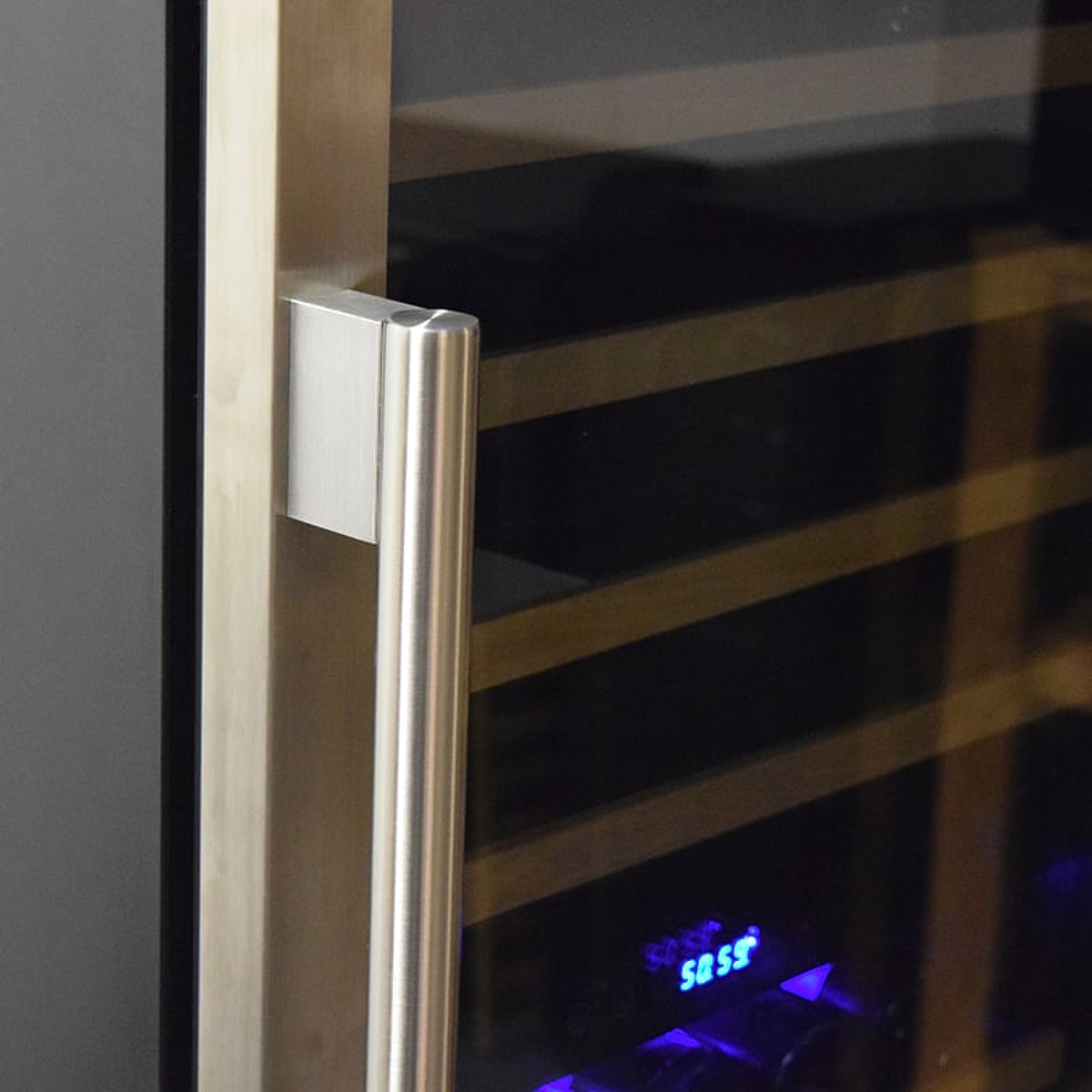

Size: 23 3/4w x 27d (without handle) 29 1/2d (with handle) x 48h (in)

Shelving: 8 pull-out shelves (6 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp

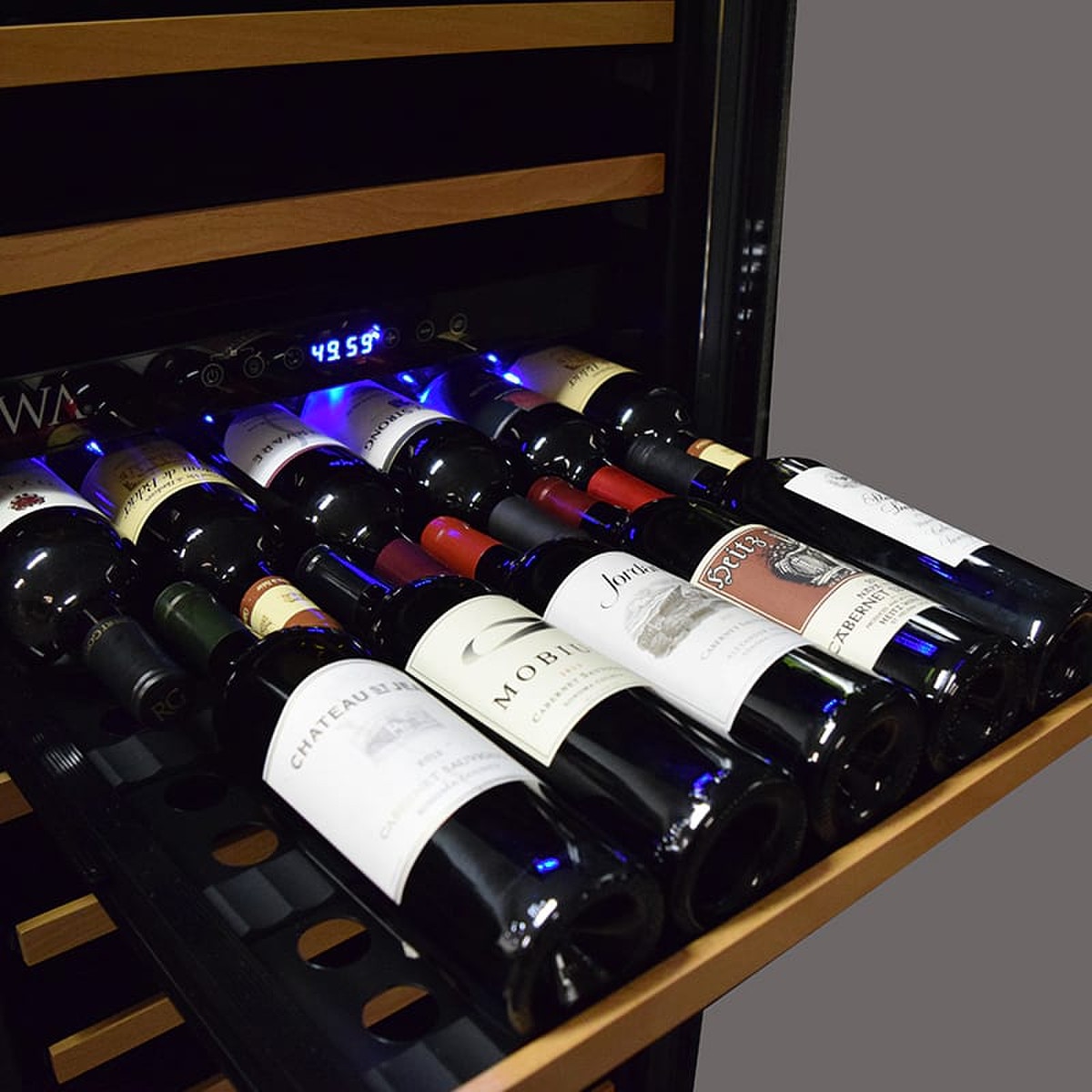

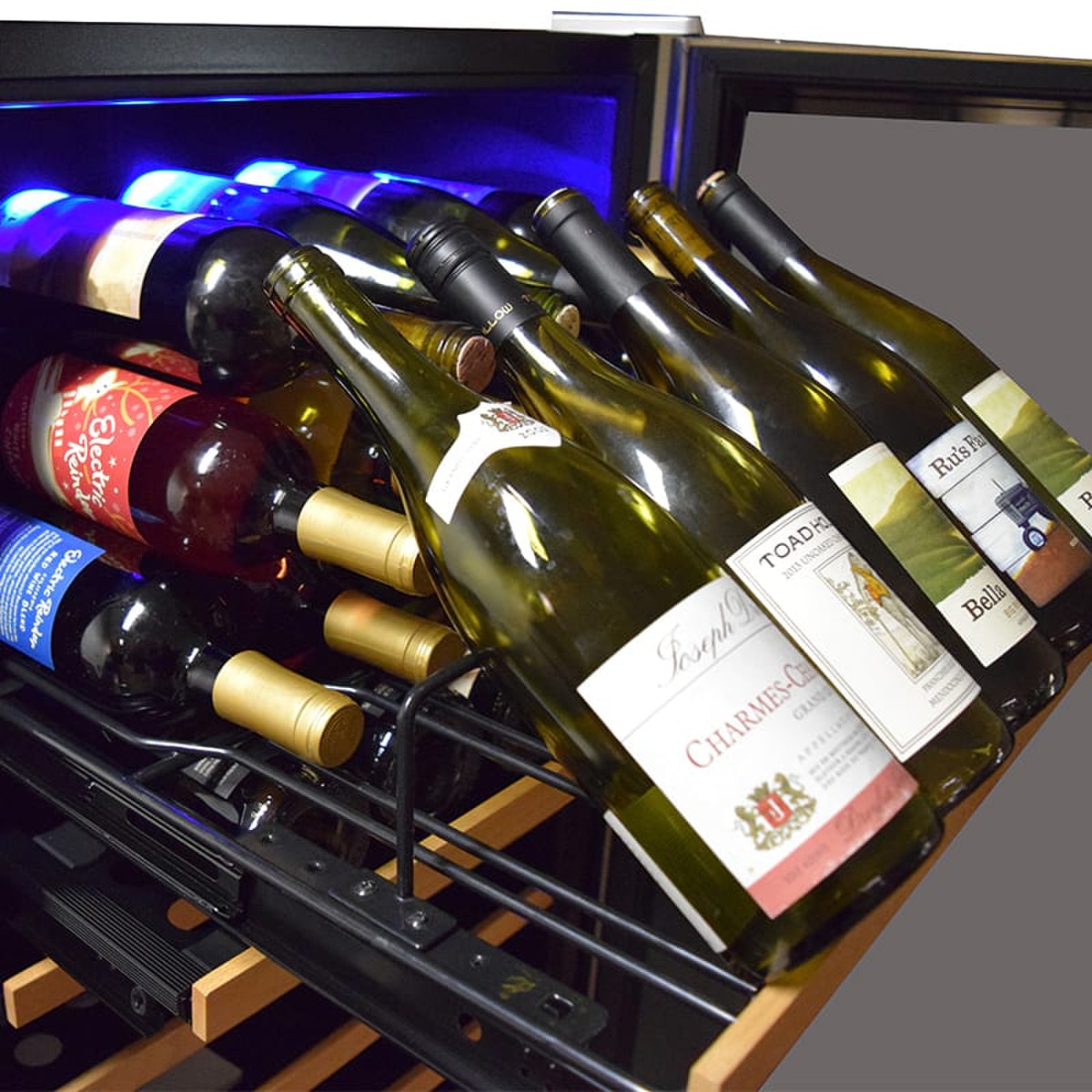

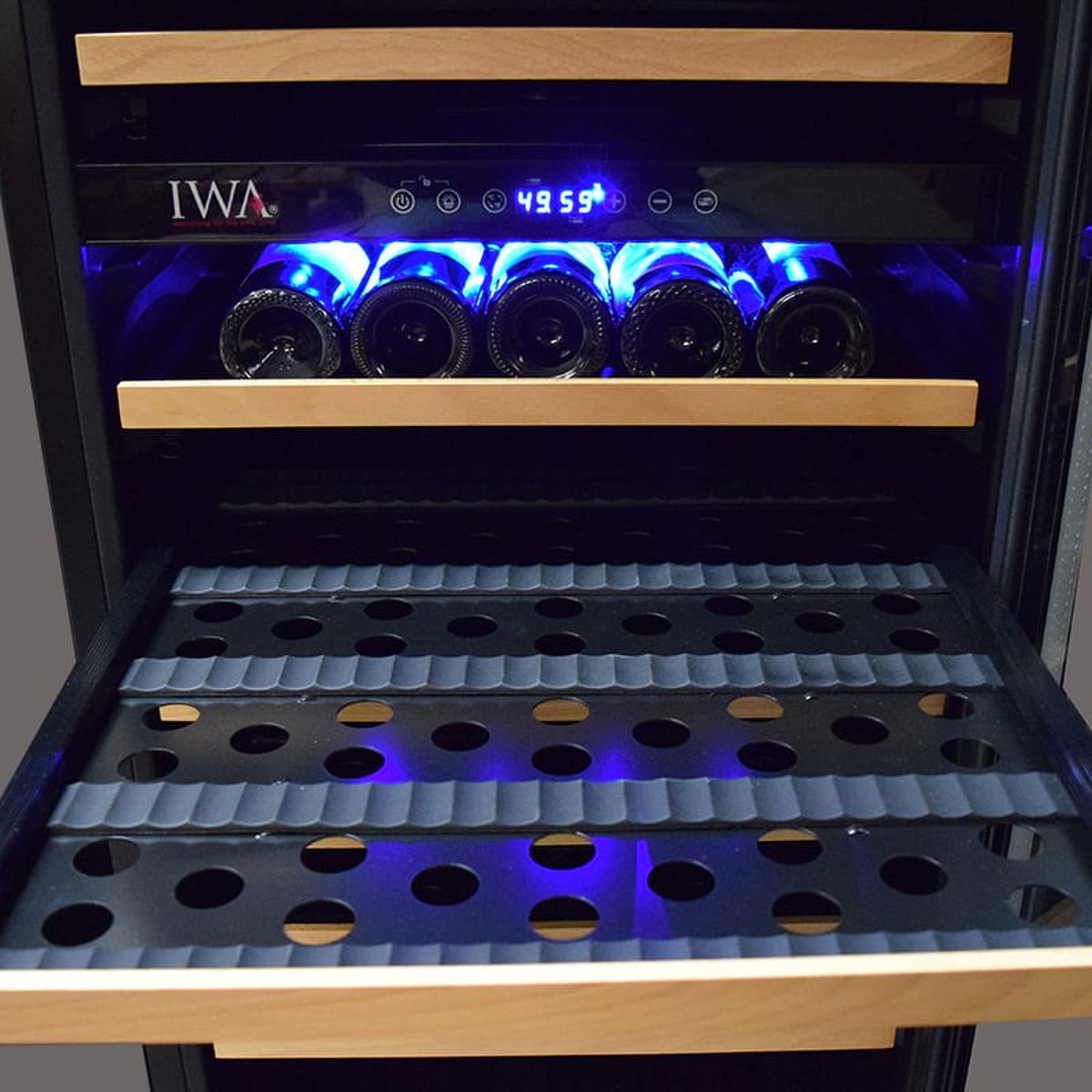

• Rolling metal plate shelves with Burgundy compatibility: The perforated metal plate shelves roll out for full bottle access and are sized to fit wider Burgundy and Rhône bottles. Rated capacity of 94 applies to standard Bordeaux bottles — expect a lower count when mixing in larger formats.
• Rolling presentation shelf included: One shelf positions bottles label-forward for easy identification without pulling them out.
• Independent zone ranges — upper 41–54°F, lower 54–66°F: Each zone is set and monitored separately via the digital display panel. The upper zone covers whites and sparkling; the lower covers reds. Neither zone crosses into long-term aging temperatures, so this unit is best suited for service-ready storage rather than decade-long cellaring.
• Dedicated 15-amp circuit required: Plan for a dedicated 115V/60Hz outlet before installation — this is a firm electrical requirement, not a recommendation.
• 5-year compressor warranty, 1-year parts and labor: The extended compressor coverage is the more meaningful figure for long-term reliability planning.
• Security door lock with two keys included
• UL / ETL listed
• F° / C° display toggle; blue LED interior lighting

Brand: Loft

UPC: 077757193156

Size: 23 3/4w x 27d* x 48h (in)
*Not including the handle (2 1/2" D)

Weight: 190 lbs

Capacity: Up to 94 bottles

Material: Stainless-Steel

Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit

Warranty:
1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• 15-Amp Dedicated Circuit: The unit cannot share an outlet with other appliances — a dedicated breaker circuit is required, which may mean having an electrician add one if your installation location does not already have one.
• 115V / 60Hz: Standard North American household current; no transformer or voltage converter is needed for installations in the U.S. or Canada.

Loft 800 Manual

PLACEMENT REQUIREMENTS

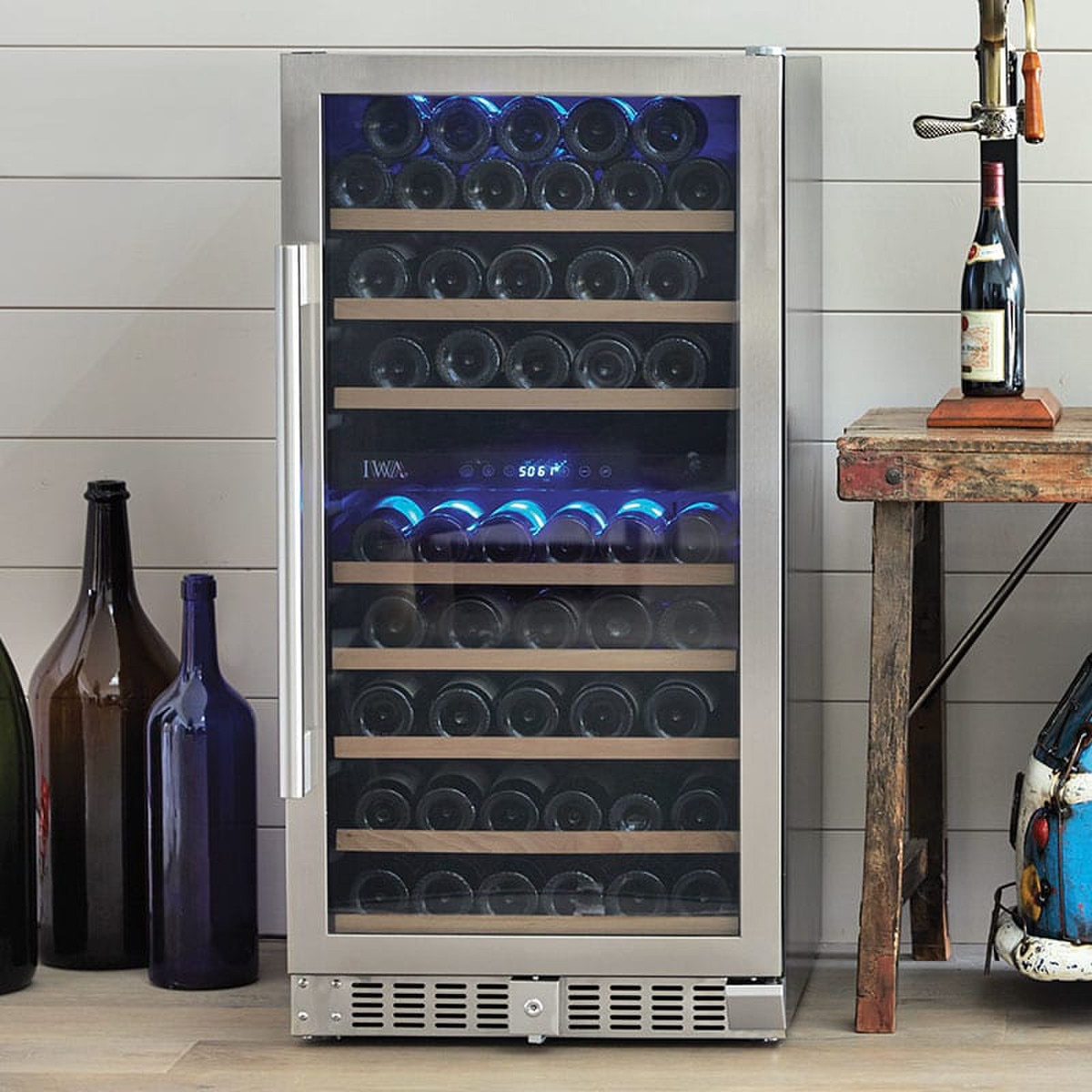

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

• Total capacity for up to 94 Bordeaux-size bottles, as follows:
• 46 Bottles in the top (colder) zone -
• 22 Bottles on the top rolling shelf (double-stacked and double-deep)
• 12 Bottles each on 2 rolling shelves (double-deep)
• 48 Bottles in the bottom (warmer) zone -
• 12 Bottles each on 3 rolling shelves (double-deep)
• 6 Bottles each on 2 pull-out wire shelves (single deep)

Can the Loft 800 be installed as a built-in, or is it freestanding only?

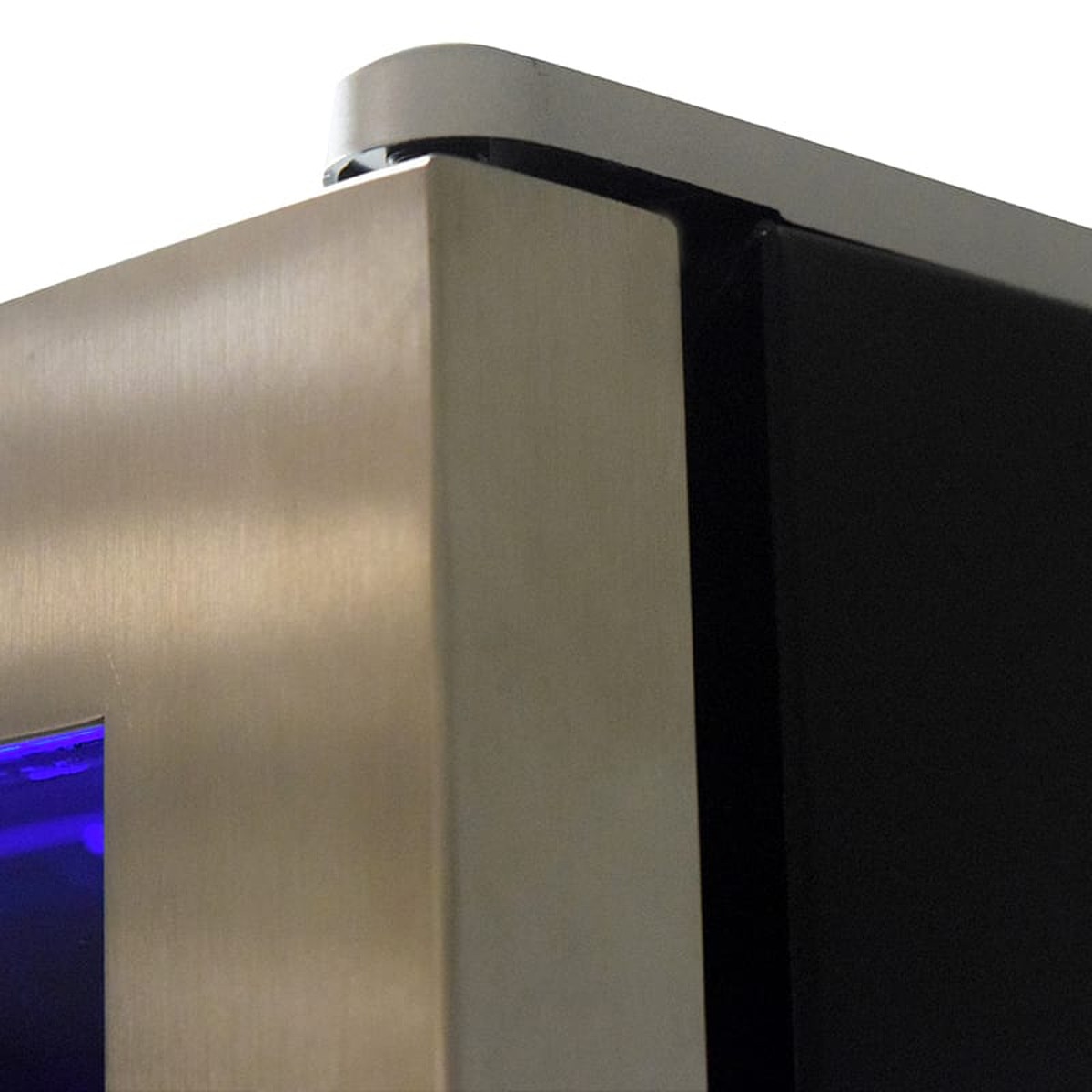

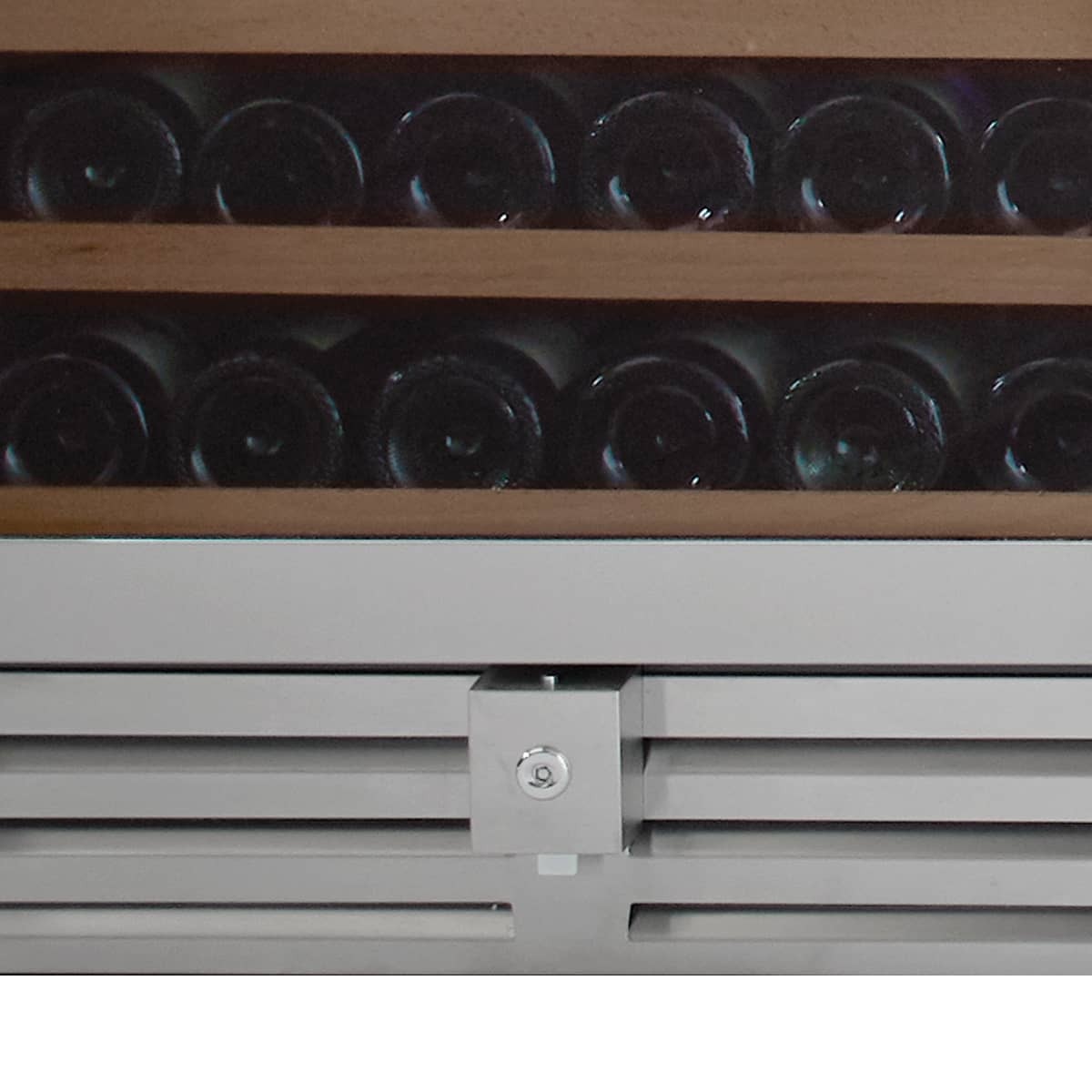

A: The Loft 800 supports both installation types. It is front-vented, which means the compressor exhausts through the front grille rather than the sides or rear — a requirement for any true built-in installation. It can be recessed flush into cabinetry or used as a freestanding unit without modification. The door hinges are also reversible, so swing direction can be configured to suit the installation.

What are the exact temperature ranges for each zone, and which zone is on top?

A: The upper zone runs from 41–54°F and is intended for white wines and sparkling wines. The lower zone runs from 54–66°F for red wine storage and service. Both zones are independently controlled and temperatures are displayed on a blue LED panel inside the cooler, with a choice of Fahrenheit or Celsius readout.

Does the 94-bottle capacity hold if I store Burgundy or Rhône bottles?

A: The 94-bottle rating is based on standard Bordeaux-size bottles. The shelves are designed to accommodate wider Burgundy-format bottles, but doing so will reduce the total count. The rolling metal plate shelves offer flexibility in how bottles are arranged, so collectors with a mix of Bordeaux, Burgundy and other formats can configure the shelving to fit their actual inventory — just plan for a realistic capacity closer to 70–80 bottles if your collection skews toward wider formats.

What are the electrical requirements for the Loft 800?

A: The unit runs on 115V / 60Hz and requires a dedicated 15-amp circuit. A shared circuit is not sufficient — this is a hard requirement, not a recommendation. If you are installing the unit in a finished space such as a dining room remodel or basement build-out, confirm the dedicated circuit is in place before the unit arrives. The unit weighs 190 lbs, so finalize the installation location before delivery.

What does the warranty cover, and for how long?

A: The Loft 800 carries a 1-year warranty on parts and labor and a separate 5-year warranty on the compressor. The compressor is the most expensive component to replace in any refrigeration unit, so the extended coverage on that specific part is meaningful for long-term cost of ownership.

What refrigerant does the Loft 800 use, and why does it matter?

A: The unit uses an R600a (isobutane) refrigerant system. R600a operates at lower pressures than older refrigerants, which reduces the mechanical load on the compressor and contributes to quieter, more energy-efficient operation over time. It is also free of the ozone-depleting properties associated with legacy refrigerants. For a unit running continuously in a living space, lower operating noise and long-term compressor reliability are the practical benefits.
