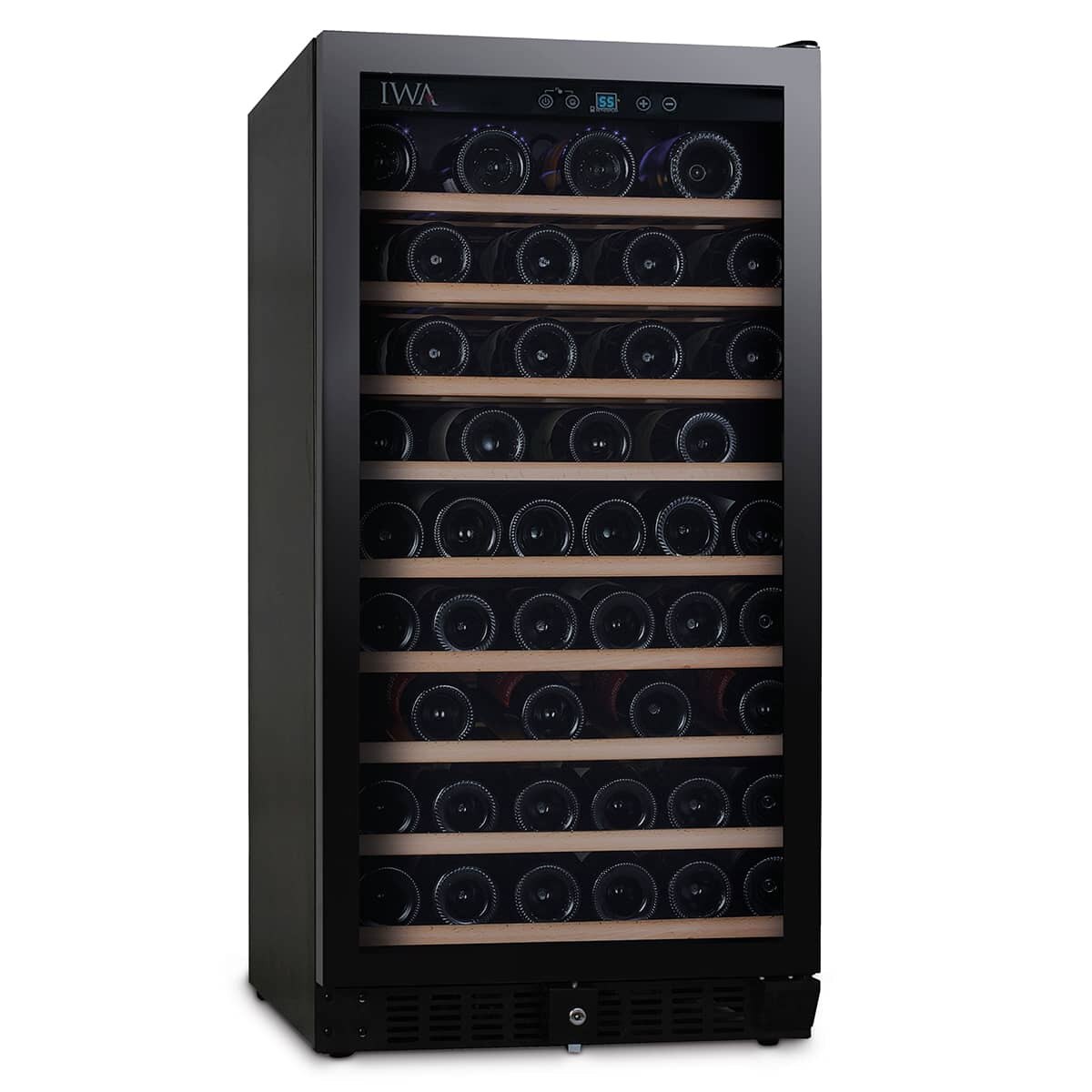

Studio 800 Wine Cooler 94 Bottle Frameless #36654

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 27d x 48h (in)

Shelving: 9 pull-out shelves (7 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

• Single temperature zone: One set point governs the entire 94-bottle interior. If your collection includes both reds and whites that you want held at different serving temperatures simultaneously, this unit won't accommodate that — you'd need a dual-zone cabinet.
• R600a compressor-based cooling: Unlike thermoelectric units, a refrigerant compressor maintains tighter temperature consistency across a cabinet this size and handles ambient heat fluctuations more reliably — relevant if the unit is going into a basement, garage or room without stable climate control.
• Front-vented exhaust: Heat exits through the front grille, not the rear, so the unit installs flush into cabinetry or under a counter without rear clearance. No modification to existing millwork required for a built-in fit.

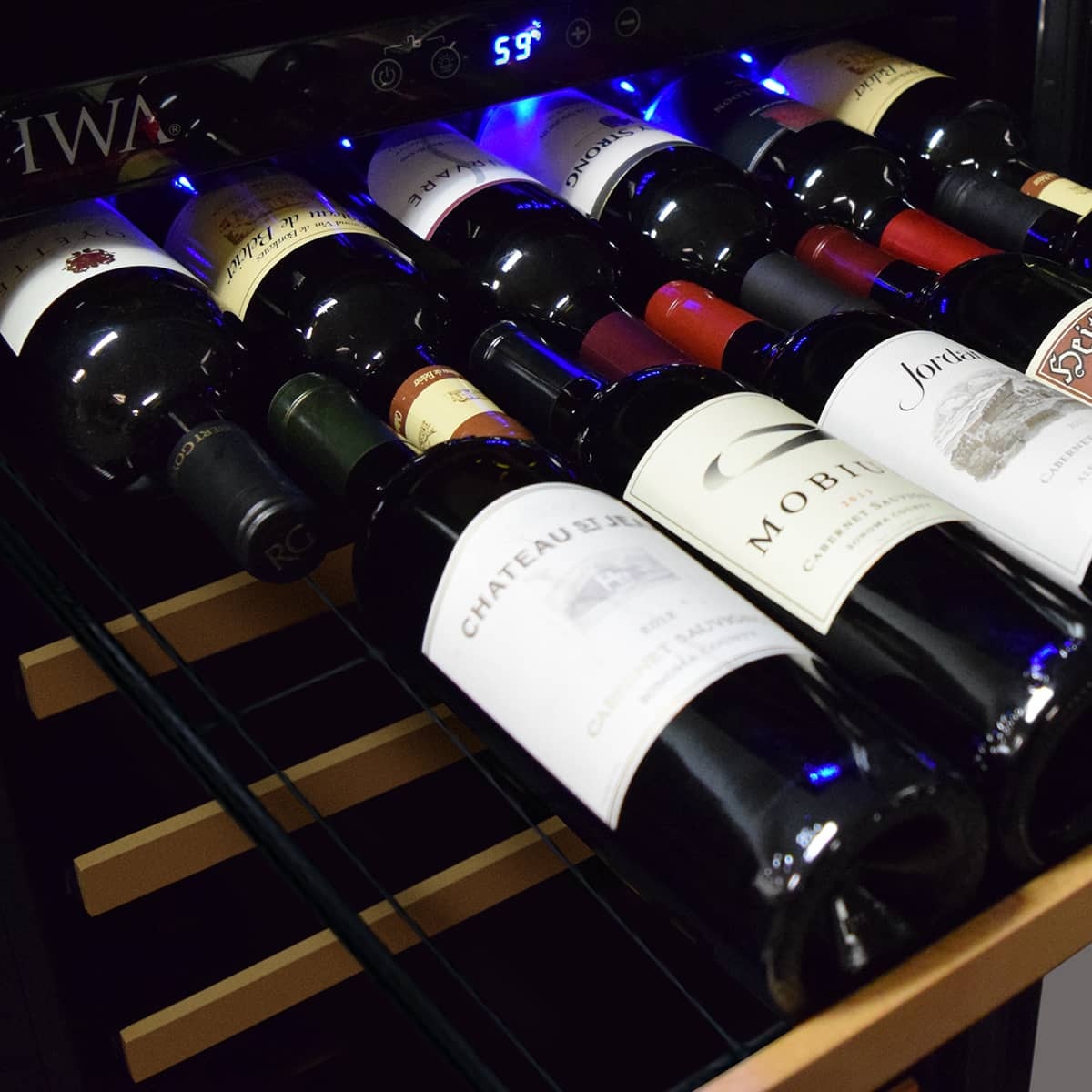

• 9 pull-out shelves (7 rolling) with wood-trimmed wire construction — bottles load horizontally and slide forward individually without disturbing adjacent rows.
• Double-pane tinted tempered glass door: The tint blocks UV exposure that degrades wine during long-term aging. Double-pane construction also reduces condensation and improves thermal insulation at the door face.
• Dedicated 15-amp circuit required: The unit runs on 115V / 60Hz and cannot share a circuit. If you're planning a remodel or new installation, factor this into your electrical rough-in before the unit arrives.
• Replaceable charcoal filter maintains interior air quality — plan for periodic replacement as part of routine maintenance.

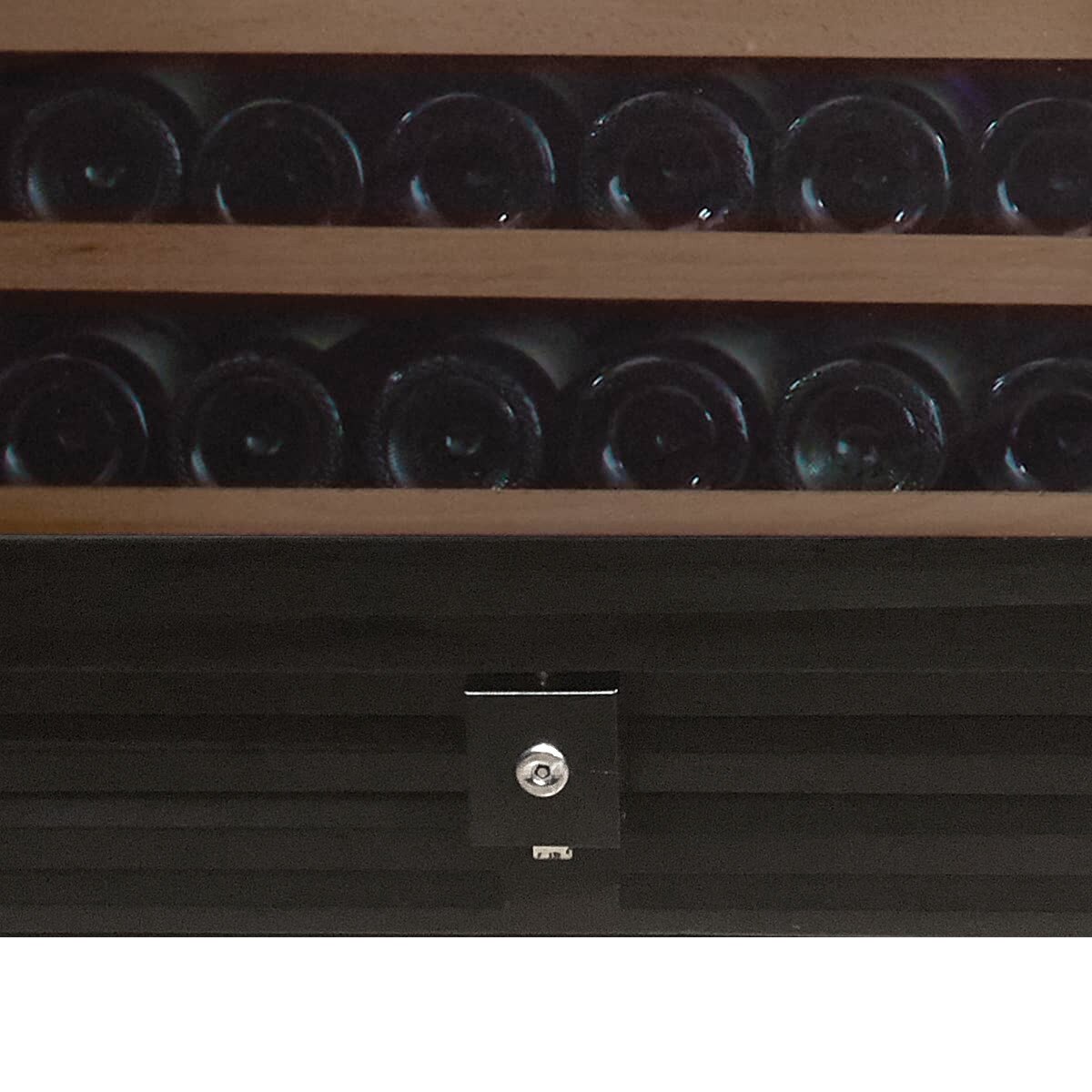

• Security door lock and key included; reversible hinges accommodate left- or right-side swing depending on your installation layout.
• UL / ETL listed; CEC and DOE energy compliant. Warranty covers parts and labor for 1 year and the compressor for 5 years.

Pairs Well With

• A replacement charcoal filter for this unit — the filter is a consumable and should be swapped out periodically to maintain clean interior air circulation.

Brand: Studio

UPC: 077757366543

Size: 23 3/4w x 27d x 48h (in)

Weight: 190 lbs

Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit

Capacity: Up to 94 bottles

Warranty:
1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• R600a Refrigerant: A hydrocarbon-based refrigerant that runs more efficiently and quietly than older refrigerant types, producing less heat and drawing less power over time.
• 15-Amp Dedicated Circuit: This unit requires its own circuit and cannot share one with other appliances. If a dedicated 15-amp outlet is not already present at the installation location, a licensed electrician will need to run one before the unit can be installed.

Studio 800 Manual

PLACEMENT REQUIREMENTS

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

Can the Studio 800 be installed as a built-in under-counter unit, or is it freestanding only?

A: It works both ways. The front-vented design means the unit exhausts heat through the front grille, so it doesn't need rear or side clearance to breathe — which is what makes flush cabinet installation possible. The unit measures 23¾"W × 27"D × 48"H and weighs 190 lbs, so confirm your rough opening and floor load before installation. Hinges are reversible, which gives you flexibility on door swing direction in tighter spaces.

What electrical circuit does the Studio 800 require?

A: The Studio 800 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. “Dedicated” means it cannot share a circuit with other appliances — a standard shared kitchen or bar outlet won't meet this requirement. If you're planning a built-in installation during a remodel, rough in that dedicated circuit before closing the walls.

The spec says 94 bottles — how many can I realistically fit if my cellar leans toward Burgundy and Napa Cab?

A: The 94-bottle rating is based on standard Bordeaux bottles, which have a straight-sided profile. Burgundy, Champagne and many Napa Cabernets use a wider, more tapered bottle shape that takes up more horizontal space on the shelf. Expect real-world capacity to drop by roughly 15–25% with a mixed collection of those formats — plan on roughly 70–80 bottles if most of what you store is wider-shouldered. The sliding wire shelves do accommodate a range of shapes, but capacity math is still driven by bottle diameter.

Is the Studio 800 single zone or dual zone, and what temperature range does it cover?

A: The Studio 800 is a single temperature zone unit — one set point for the entire cabinet. It's best suited for collectors storing one category at a time (long-term red storage, or a serve-ready setup for whites and rosé) rather than running reds and whites simultaneously at different temperatures. Temperature is displayed on a blue LCD panel inside the cooler and can be set in either Fahrenheit or Celsius.

What does the shelving system look like, and can I pull bottles from the back without unloading the front?

A: The unit includes 9 pull-out shelves (7 of which are rolling) with a sliding wire-and-wood construction. The pull-out design means you can slide a shelf forward to reach bottles stored behind others without disturbing the rest of the rack — a practical detail for a deeper collection where you're rotating stock regularly. The wire frame accommodates varying bottle diameters, so odd-shaped bottles from Burgundy or Alsace won't get stuck.

What is the warranty on the Studio 800, and what does it cover?

A: The Studio 800 carries a 1-year warranty on parts and labor and a 5-year warranty on the compressor. The compressor coverage matters because compressor replacement is the most expensive repair scenario on a unit like this — five years of that protection provides meaningful long-term coverage. The unit uses an R600a compressor, which is the current standard for energy-efficient refrigeration and is UL / ETL listed and CEC and DOE energy compliant.
