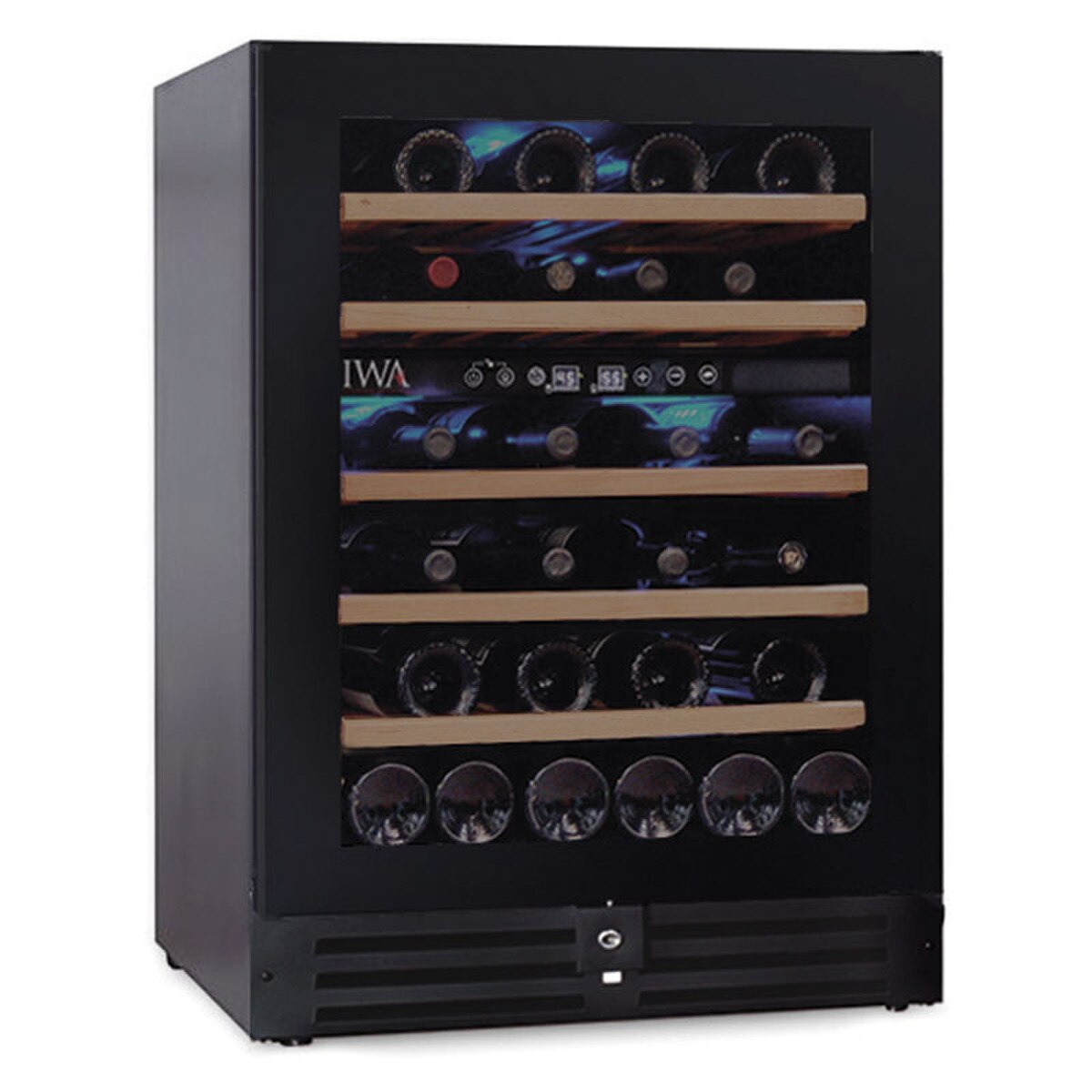

Loft 400 Wine Cooler 46 Bottle Frameless #19192

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 22 1/2d x 34 1/4h (in)

Shelving: 6 pull-out shelves (5 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp

• Zone temperature ranges and differential rule: Upper zone adjusts from 41–54°F (whites and sparkling); lower zone from 54–66°F (reds). The upper zone must be set at least 4°F colder than the lower at all times — a real constraint when both zones are running near their shared boundary.

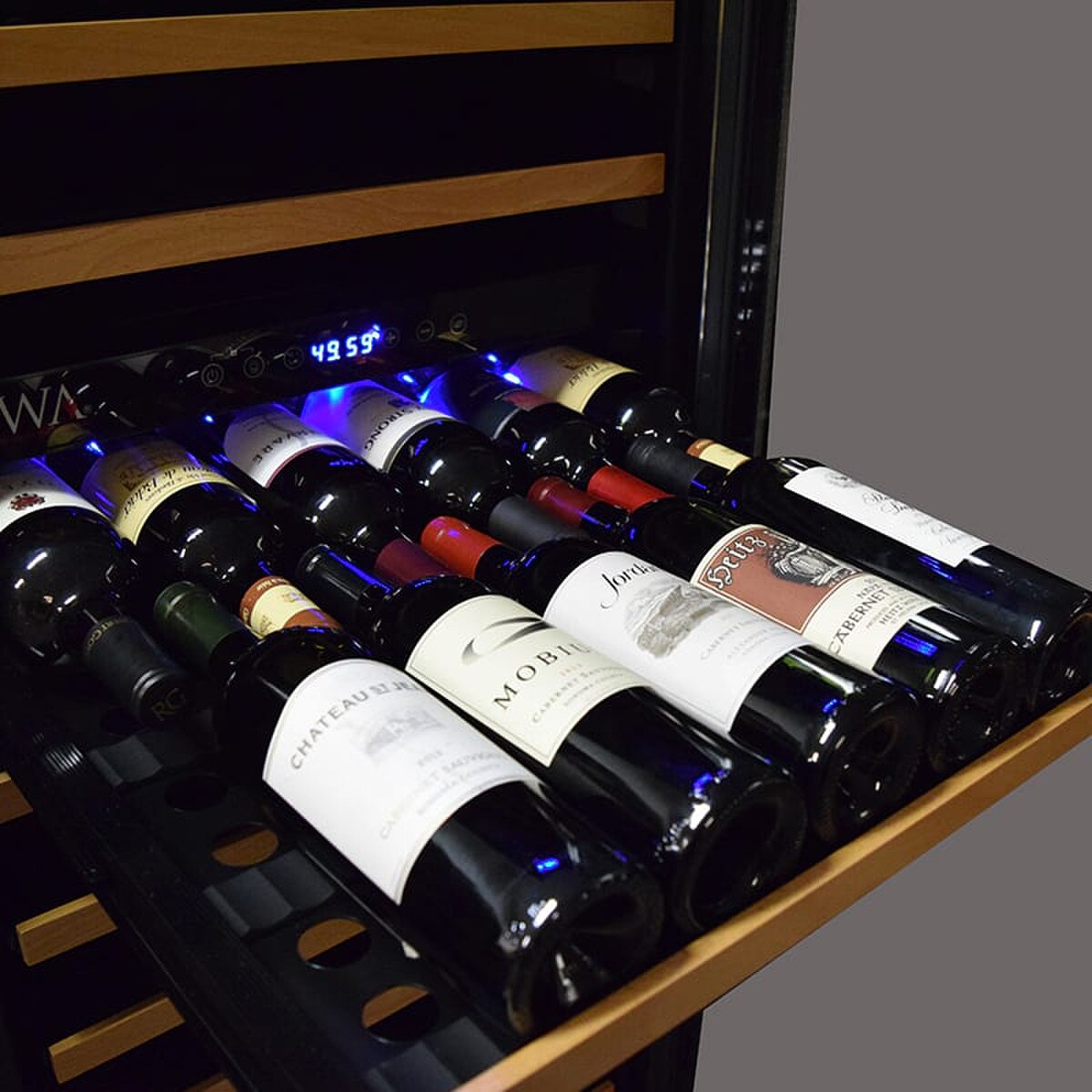

• Bottle capacity is format-dependent: The 46-bottle rating is based on standard Bordeaux bottles. The rolling metal plate shelves accommodate wider Burgundy-format bottles, but capacity drops below the stated maximum when those are stored.

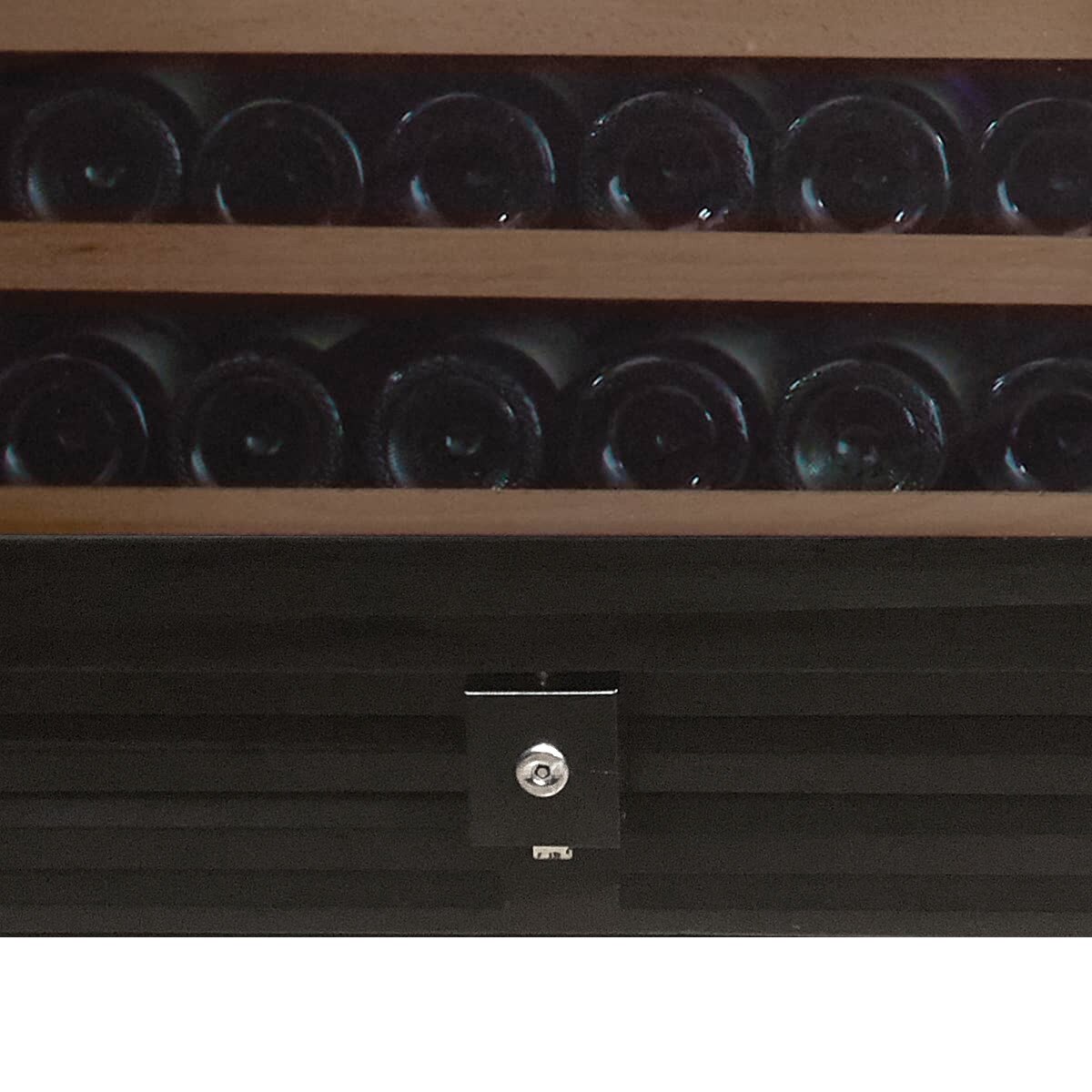

• Front-vented for true built-in use: Air exhausts from the front grille, so the unit can be recessed flush into cabinetry without rear or side clearance. Works equally as a freestanding unit.
• R600a compressor: Isobutane refrigerant with a lower global warming potential than older refrigerants; meets CEC and DOE energy efficiency standards.
• Dedicated 15-amp circuit required: 115V / 60Hz. This is a hard electrical requirement — factor it into any remodel or installation plan before the unit arrives.
• Warranty structure: 1 year covering parts and labor; compressor warranty extends separately to 5 years.
• Reversible door hinges for left- or right-hand swing; security lock with keys included
• Interior blue LED display panel; temperature readout switchable between Fahrenheit and Celsius

Pairs Well With

• A replacement charcoal air filter — the unit ships with one installed, and periodic replacement maintains proper air quality inside the cabinet.

Brand: Loft

UPC: 077757191923

Size: 23¾w x 22½d x 34¼h (in)

Weight: 180 lbs

Material: Metal

Capacity: Up to 46 bottles

Power/Rating: 115V / 60Hz; Requires 15-Amp Dedicated Circuit

Warranty: 1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• 15-Amp Dedicated Circuit: The unit cannot share a breaker with other appliances — a dedicated circuit prevents voltage fluctuations that can destabilize temperature control and cause nuisance trips.

Loft 400 Manual

PLACEMENT REQUIREMENTS

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

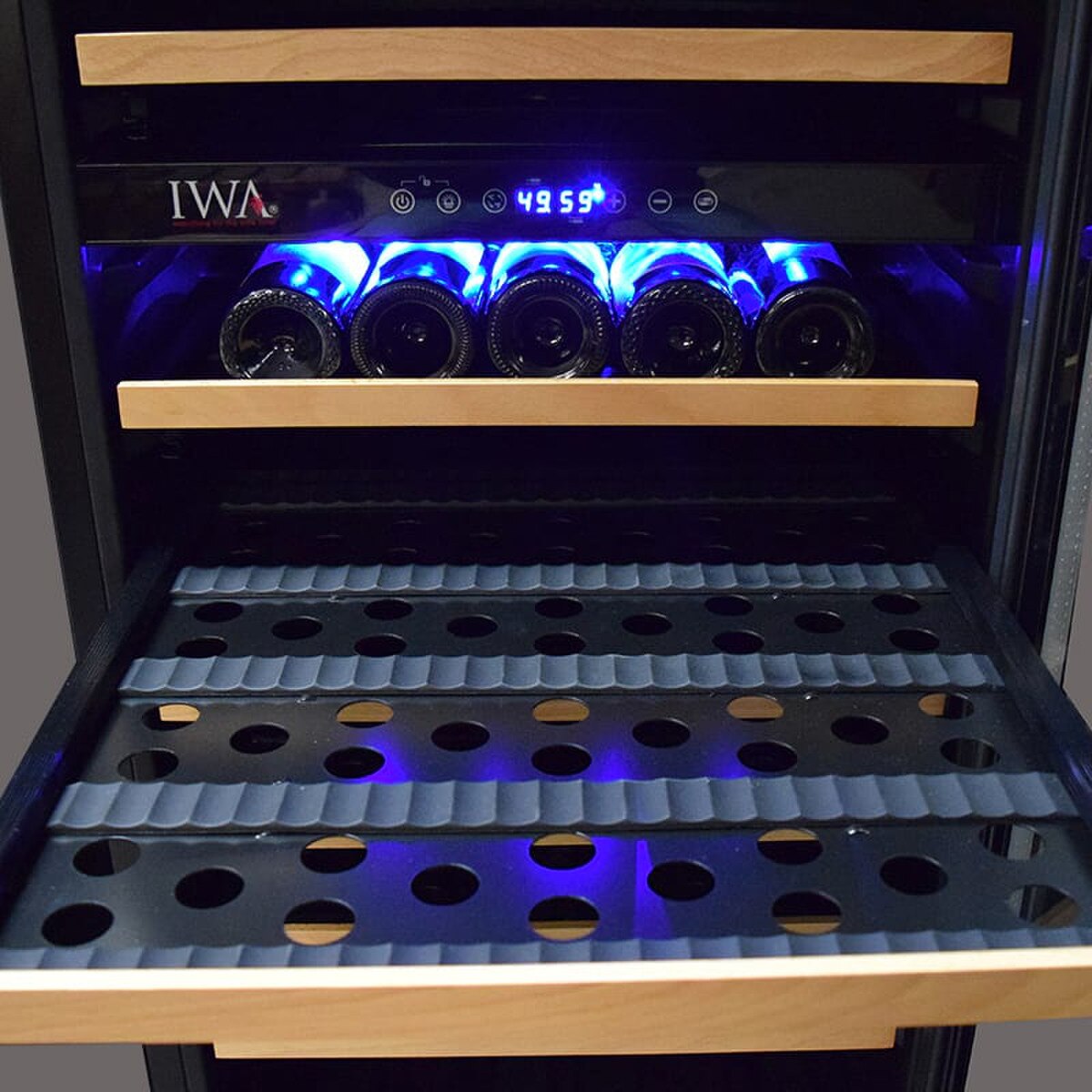

• 5 rolling plate shelves with capacity for up to 8 Bordeaux bottles per shelf
• 1 wire shelf at the bottom with capacity for 6 bottles
• Total capacity for up to 46 Bordeaux-size bottles
• 16 bottles can be stored in the upper zone, and 30 bottles can be stored in the lower zone

Can the Loft 400 be installed built-in under a counter or does it have to be freestanding?

A: The Loft 400 is front-vented, which means it works in both configurations without modification. You can recess it into cabinetry for a flush built-in look or place it freestanding — the venting does not require side or rear clearance. The dimensions are 23¾" W x 22½" D x 34¼" H, so verify your cutout before ordering. Reversible hinges give you flexibility on door swing direction for either install.

What are the temperature ranges for each zone, and can I set them independently?

A: Yes, the two zones are fully independent. The upper zone runs from 41–54°F, designed for white and sparkling wines. The lower zone runs from 54–66°F, designed for reds. One constraint worth knowing: the upper zone must be set at least 4°F colder than the lower zone at all times. Both zones display on a blue LED panel inside the cabinet, with a choice of Fahrenheit or Celsius readout.

The spec says 46 bottles — does that hold if I’m storing Burgundy or Pinot Noir bottles?

A: The 46-bottle rating is based on standard Bordeaux-sized bottles. The rolling metal plate shelves are designed to accommodate larger Burgundy-format bottles, but doing so reduces total capacity. If your cellar skews toward Burgundy, Pinot or other wide-shouldered bottles, plan for a meaningfully lower count than 46. The plate shelf design does give you the flexibility to mix formats across shelves.

What electrical circuit does the Loft 400 require?

A: The unit runs on 115V / 60Hz and requires a dedicated 15-amp circuit. It cannot share a circuit with other appliances. If you’re planning a built-in installation in a dining room or finished basement, confirm the dedicated circuit is in place before the unit arrives. The R600a compressor is energy-efficient and CEC and DOE compliant.

What does the warranty actually cover and for how long?

A: The Loft 400 carries a 1-year warranty on parts and labor and a 5-year warranty on the compressor. The compressor is the most expensive component to replace, so the extended coverage there is the more meaningful term. Parts and labor coverage handles defects in the first year of ownership.

What ambient temperature range does the room need to be in for the unit to perform correctly?

A: The Loft 400 is rated to operate correctly when the surrounding room temperature stays between 60–85°F. Installations in spaces that regularly drop below 60°F (an unheated garage in winter, for example) or exceed 85°F can degrade cooling performance. For a dining room, finished basement or climate-controlled second home, this range is easily met under normal conditions.
