Studio 1200 Wine Cooler 166 Frameless #36656
When a collection reaches the point where a closet conversion or secondary refrigerator no longer cuts it, the Studio 1200 is where serious storage begins. This full-column, single-zone refrigerator holds up to 166 Bordeaux-format bottles across 15 pull-out shelves and is front-vented so it can go flush into cabinetry or stand freely without modification. The frameless black glass door with infinity edges keeps it clean against built-in millwork — no visible frame interrupting the face of your install.

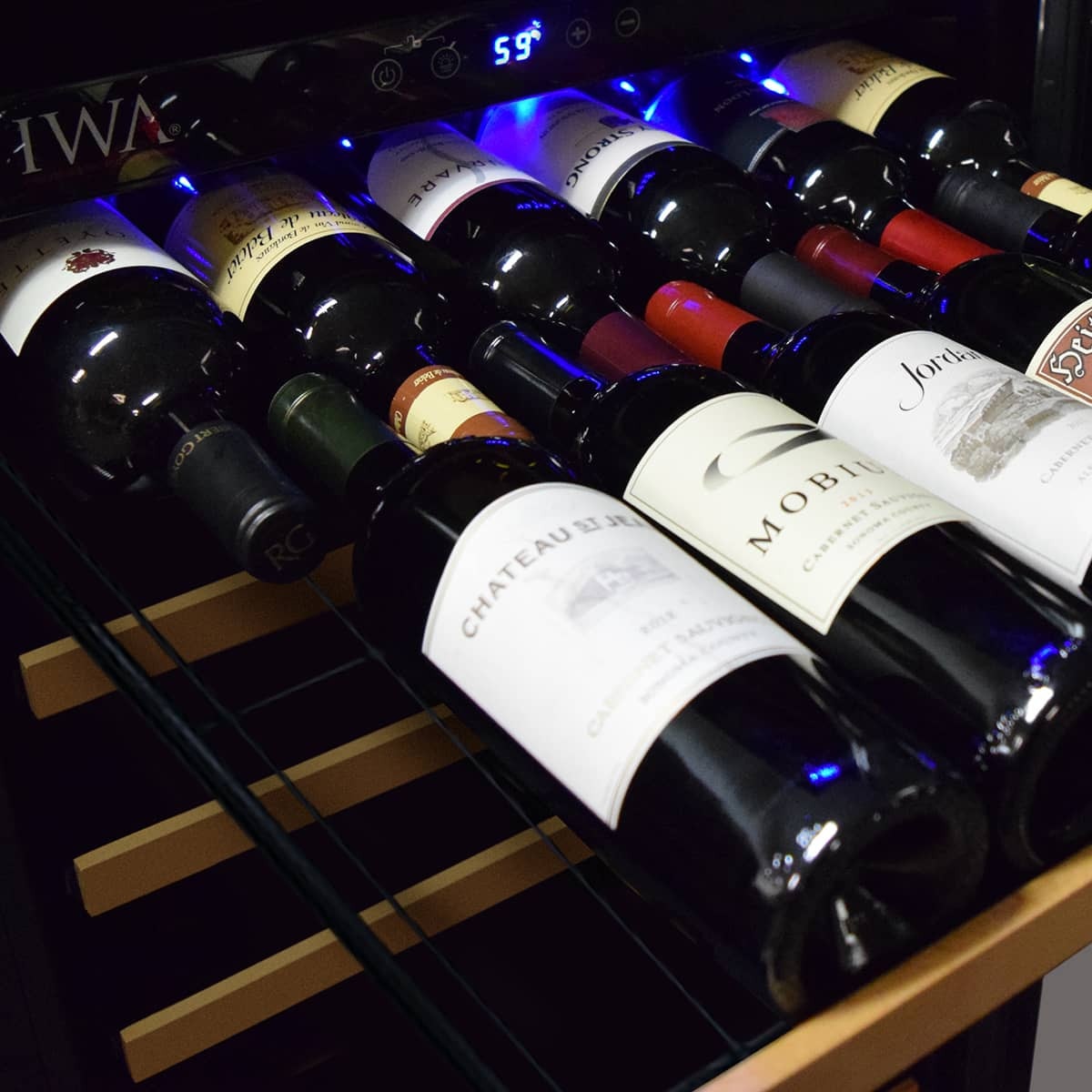

The single temperature zone covers the entire cabinet, which suits collectors who age one style of wine at a time or who want a dedicated red storage unit while a separate cooler handles whites. An R600a compressor handles the cooling efficiently and quietly, the interior blue LED lighting makes label reading easy without generating heat and the double-pane tinted tempered glass handles UV and insulation in one. A replaceable charcoal filter keeps air circulating clean, the door lock is keyed and reversible hinges give you flexibility in tight spaces. Temperature reads on a blue LCD display inside the unit and toggles between Fahrenheit and Celsius.
Best For
- Finishing a basement or remodeling a dining room where a full-column built-in unit needs to disappear into cabinetry
- Consolidating a Bordeaux, Napa or Rhône collection of 100–160 bottles into a single temperature-controlled environment
- Replacing an overtaxed kitchen cooler or repurposed closet when the collection has clearly outgrown it
- Outfitting a second home where a freestanding, front-vented unit gives placement flexibility without sacrificing a finished look
Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.
Size: 23 3/4w x 27d x 69 3/4h (in)
Shelving: 15 pull-out shelves (13 rolling)
Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."
Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp
- Single temperature zone only: The cabinet maintains one consistent setpoint throughout. If you plan to store both long-term reds and whites in the same unit, this is a meaningful constraint versus a dual-zone model.
- 166-bottle capacity is rated for standard Bordeaux bottles — Burgundy, Champagne and larger-format bottles will reduce usable capacity. Plan accordingly if your cellar skews toward Pinot or Champagne.
- 15 pull-out shelves (13 rolling): Rolling shelves slide forward on rails so you can access bottles at the back of a row without shifting everything in front.
- Front-vented compressor: Exhaust exits through the front grille, meaning the unit requires no rear or side clearance. It can be recessed flush into cabinetry for a true built-in installation or placed freestanding without modification.
- R600a compressor: This refrigerant operates at lower pressure than older R134a systems, which typically results in quieter running and lower energy consumption — relevant if the unit will be installed in a dining room or living space.
- Dedicated circuit required: 115V / 60Hz, 15-amp dedicated circuit. Factor this into any remodel or retrofit plan before ordering.
- Dimensions and weight: 23¾"W × 27"D × 69¾"H, 296 lbs. The 24"-class footprint fits standard column openings, but verify your rough opening and floor load before a built-in installation.
- Warranty: 1 year on parts and labor; 5 years on the compressor.
Pairs Well With
- A replacement charcoal filter — the internal filter that maintains clean air circulation inside the cabinet is designed to be replaced periodically. Stock a spare when you purchase the unit.
Brand: Studio
UPC: 077757366567
Size: 23 3/4w x 27d x 69 3/4h (in)
Weight: 296 lbs
Capacity: Up to 166 bottles
Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit
Warranty:
1-year warranty on parts and labor, and 5 years on the compressor
What These Specs Mean
- 115V / 60Hz; Requires 15-Amp Dedicated Circuit: This unit must run on its own circuit and cannot share a breaker with other appliances — a wiring requirement to confirm before installation, particularly in a remodel or finish-out.
- R600a Compressor: R600a (isobutane) is a modern refrigerant that runs more efficiently and at lower noise levels than older refrigerants, which matters for units installed in living spaces or dining rooms.
PLACEMENT REQUIREMENTS
- This appliance is designed for free standing installation or can be recessed into cabinetry.
- The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
- Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
- When moving your wine cellar, please do not incline it more than 45 degrees.
- Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
- Avoid locating the unit in damp areas.
- Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.
Can the Studio 1200 be installed as a built-in under-counter unit, or does it require freestanding use only?
A: It supports both. The unit is front-vented, which means it can be recessed into cabinetry as a built-in or placed as a freestanding column. At 23¾" wide × 27" deep × 69¾" tall, verify your cabinetry rough-in dimensions before ordering — the 27" depth in particular can be a constraint in shallower under-counter openings.
The 166-bottle rating is based on Bordeaux bottles — how much does capacity drop with Burgundy or Champagne bottles?
A: The 166-bottle figure is calibrated to standard Bordeaux-shaped bottles, which are among the slimmest common formats. Wider-shouldered bottles like Burgundy, Pinot Noir or Champagne will reduce usable capacity, sometimes by 20–30% depending on how many you mix in. The 15 pull-out shelves (13 of which are rolling) do accommodate varied bottle shapes, but if your collection skews heavily toward Burgundy or large-format bottles, plan for a realistic working capacity closer to 130–140.
Is the Studio 1200 single zone or dual zone, and can it store both reds and whites simultaneously?
A: This is a single-zone unit — one temperature throughout the entire cabinet. You can store reds and whites together, but at a single set point. If you need separate zones for long-term cellaring of reds at 55°F while keeping whites ready to serve at 45°F, you’ll want a dual-zone model. The Studio 1200 is best suited for collectors who cellar at a single temperature or want a dedicated red or white storage column.
What are the electrical requirements, and does it need a dedicated circuit?
A: The Studio 1200 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. This is a hard requirement — not a recommendation. If you’re planning a built-in installation as part of a remodel, make sure your electrician runs a dedicated line to the location before the unit arrives. The R600a compressor is energy-efficient and CEC/DOE compliant, so operating costs are low, but the dedicated circuit is non-negotiable.
What does the warranty actually cover, and how long does it last?
A: The warranty is 1 year on parts and labor, plus a separate 5-year warranty on the compressor. The compressor is the most expensive component to replace on any refrigeration unit, so the extended coverage there is meaningful. The R600a compressor used here is a current-generation refrigerant platform with a proven track record in wine storage applications.
What UV and light protection does the door glass provide?
A: The door glass is double-pane, tinted and tempered. The tinting filters UV light, which is the primary cause of premature aging in wines exposed to ambient room light. Interior illumination is handled by LED lighting, which generates negligible heat and no UV. The frameless black door design also eliminates the metal frame that can act as a thermal bridge in lesser-built units.
