CellarPro VS Duct KIT (Hot Side) #1113

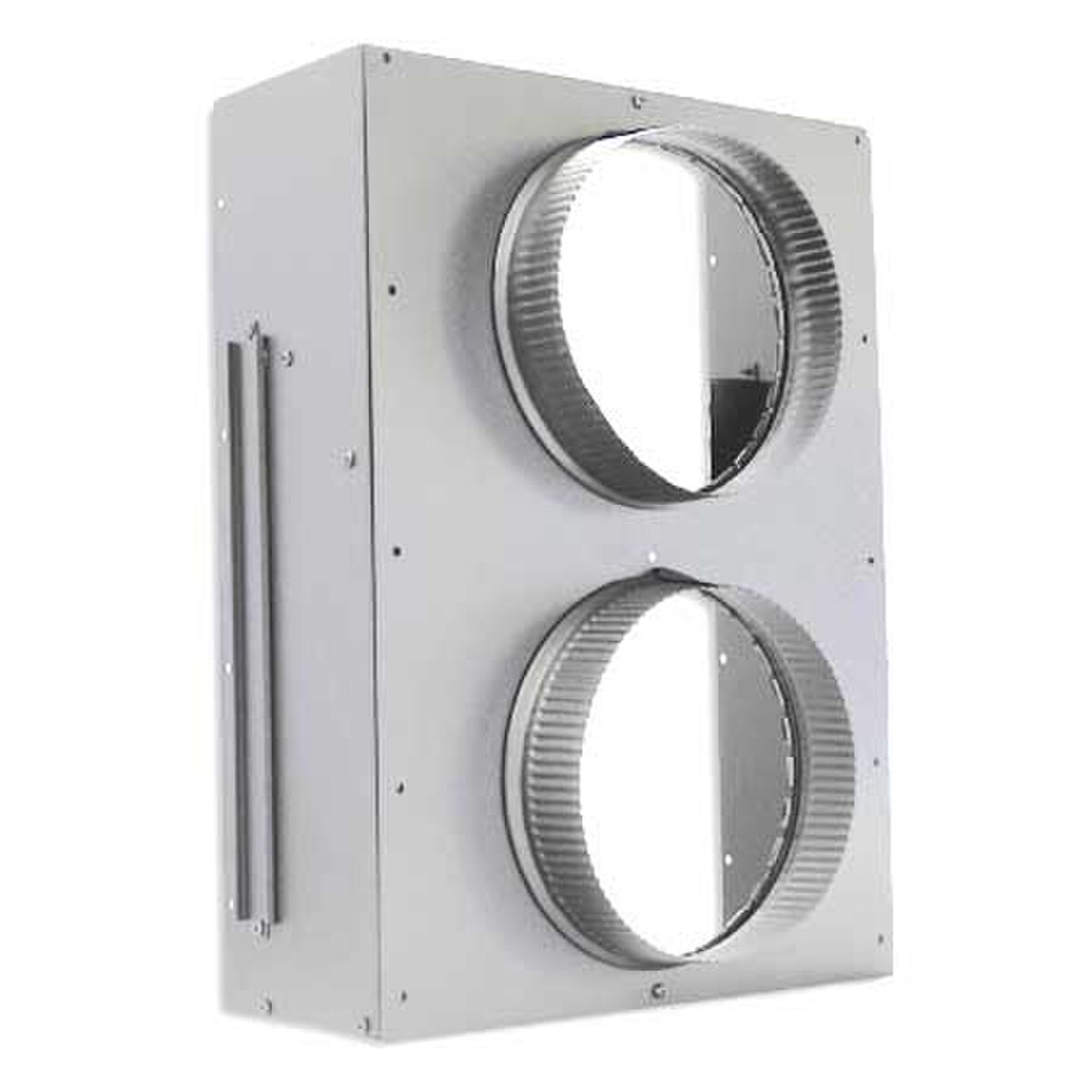

CellarPro 3200/4200 Duct Kit (Rear) (P/N 1113). Duct openings are designed to attach to two 8" ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter.

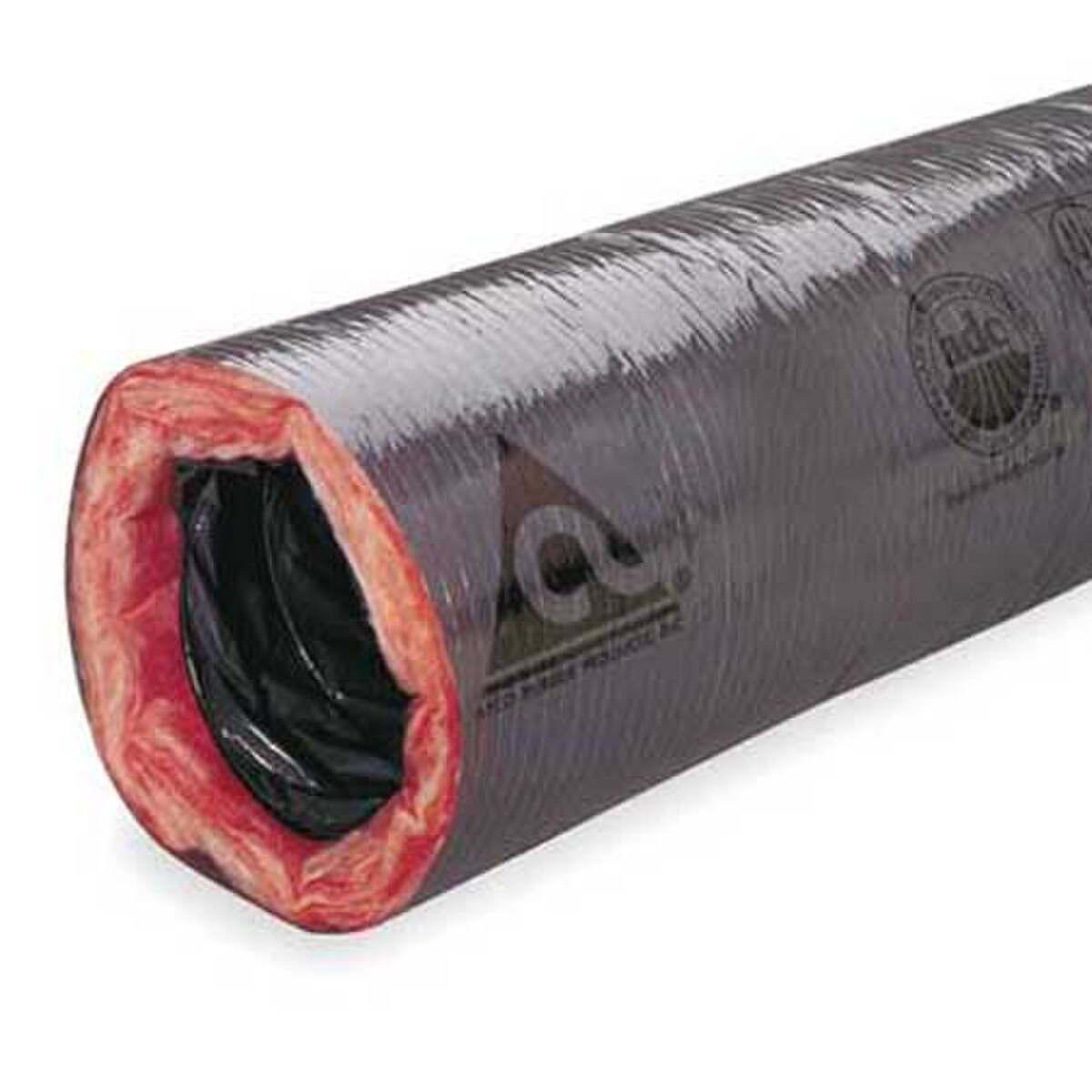

Kit includes: Duct hood and 50 feet (2x25) of 8-inch insulated (R-6) ducting.
Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8- inches or greater from start to finish, and must not be reduced.
Custom duct hood for CellarPro 3200 and 4200 Series wine cooling units. With this kit, the hot air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
- Attaches easily to the rear of 3200 and 4200 wine cooling units
- Provides quick access to removable air filter
- Designed for easy hook-up to 8" ducting
- One or both openings may be ducted (total of 100 equivalent feet)
- Powdercoated, cold-rolled, thick-gauge steel
Brand: CellarPro
UPC: 077757011139
Size: 14 1/2w x 8d x 19 3/4h (in)
Weight: 42 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Rear Duct Hood Cut Sheet
- 3200 / 4200 + Combined Cut Sheets (As Ducted)
- Framing Diagram
- Installation Diagrams
- Ducting Installation Best Practices
The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
