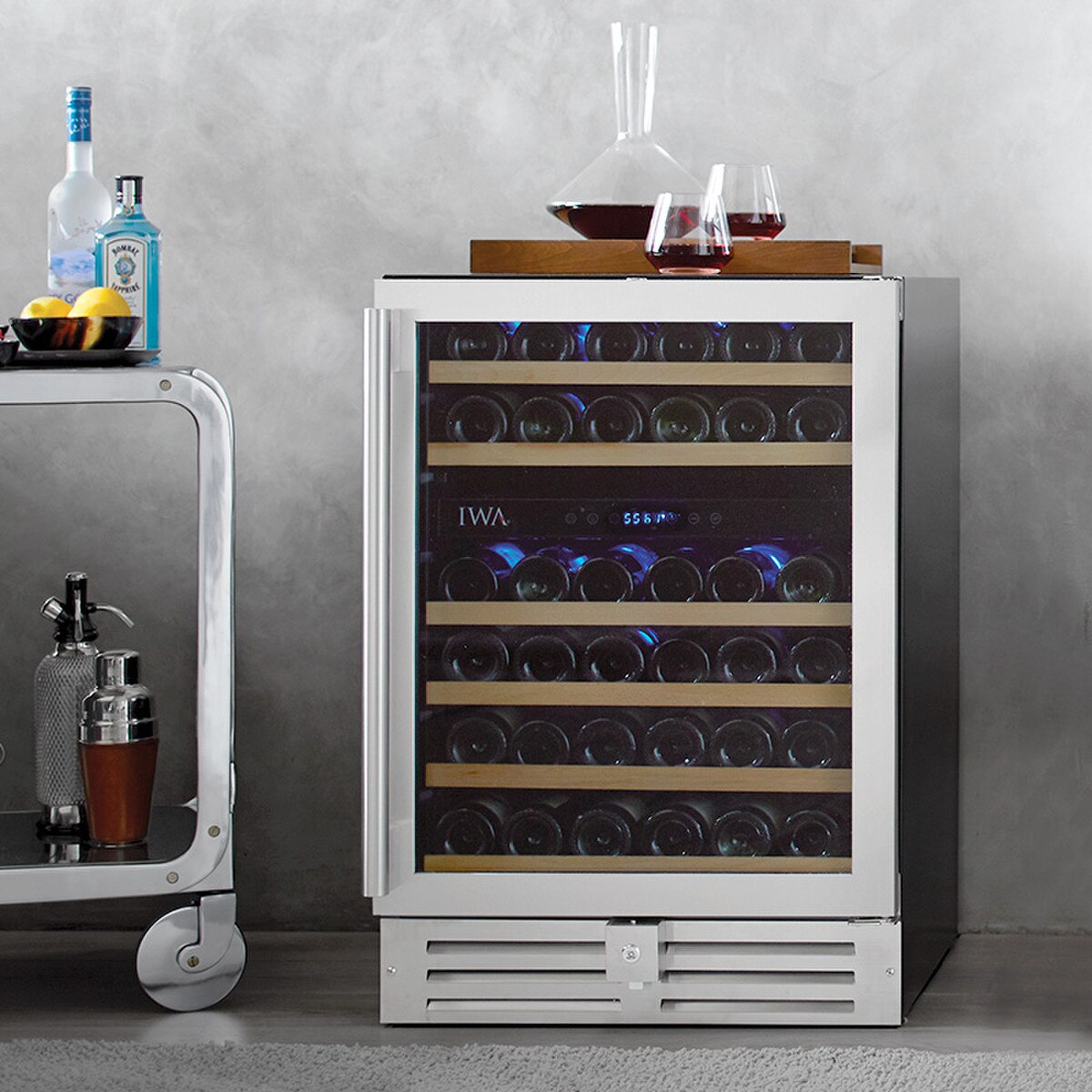

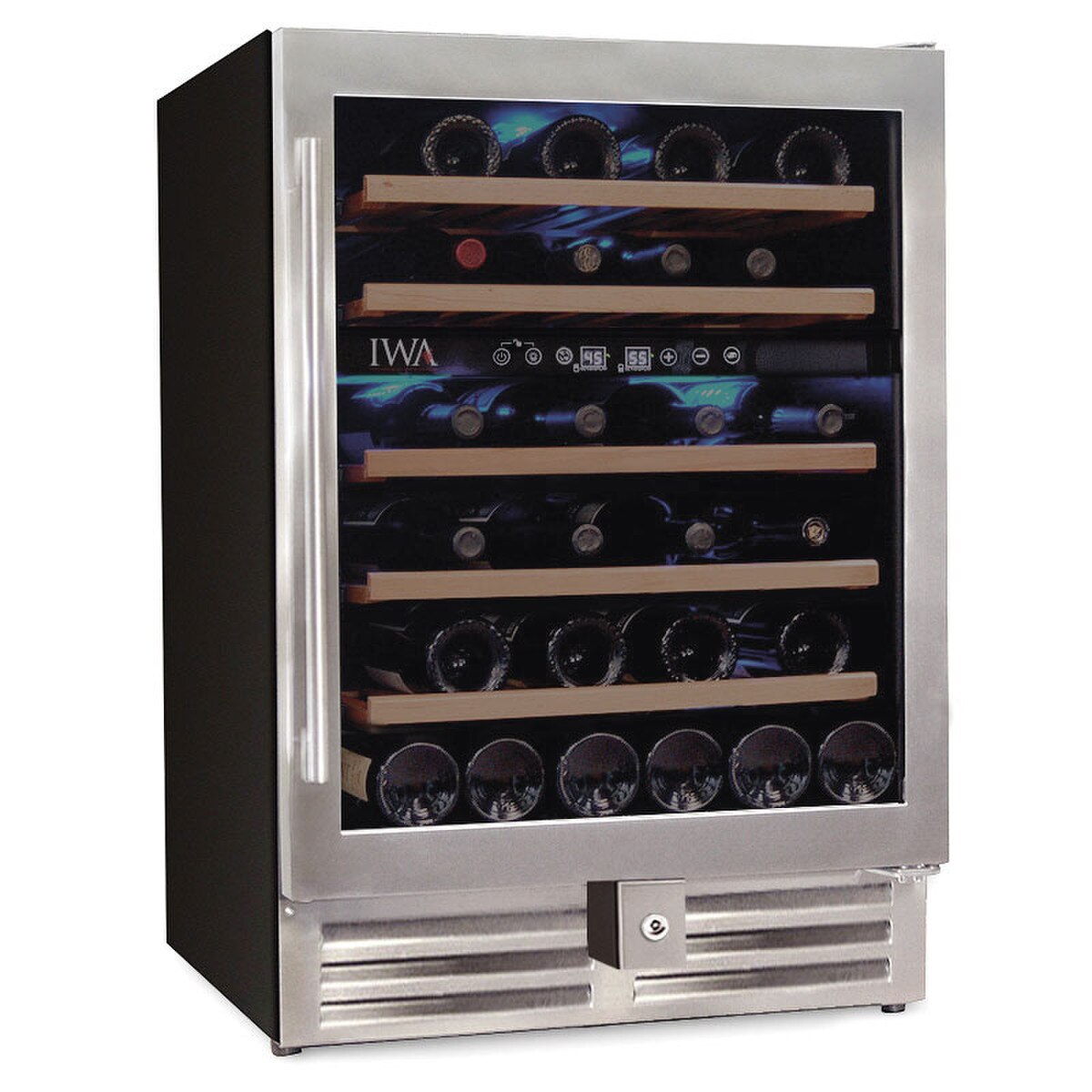

Loft 400 Wine Cooler Dual Zone #19190

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 25d (with handle) 22 1/2d (without handle) x 34 1/4h (in)

Shelving: 6 pull-out shelves (5 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

Compare Upright Wine Coolers - Loft, Avanti, Danby, N'Finity, Vinotemp

• Bottle capacity and format compatibility: Rated at 46 Bordeaux-size bottles. The rolling plate shelves are sized to accept wider Burgundy bottles, but total capacity will be reduced when mixing formats — worth accounting for if your cellar runs heavy on Burgundy or Pinot Noir.
• Zone temperature constraint: The upper (white) zone must always be set at least 4°F colder than the lower (red) zone. This is a hardware limitation to keep in mind when dialing in both zones simultaneously.

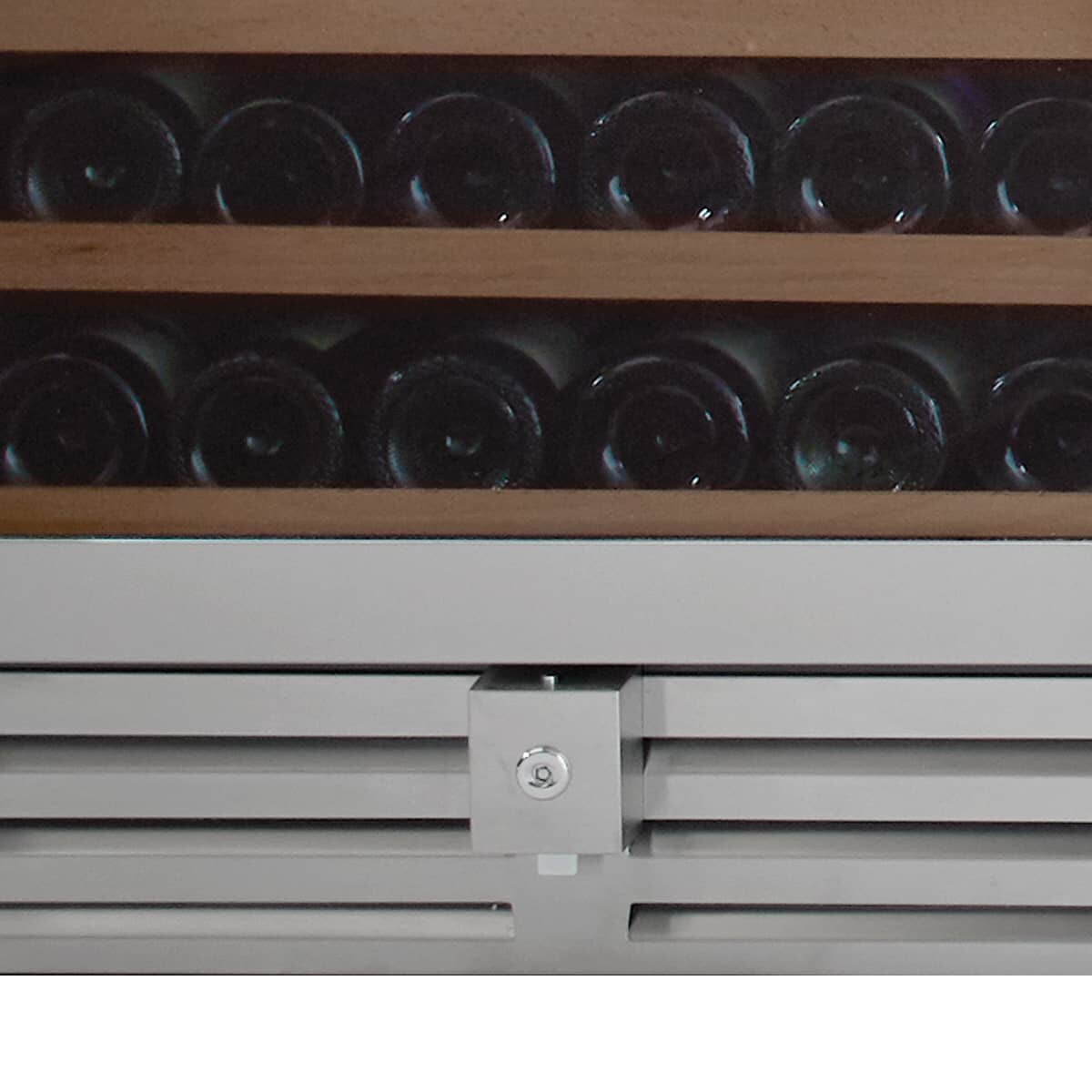

• Front-vented for true built-in installation: All exhaust exits through the front grille, so the unit can be recessed flush into cabinetry with no side or rear clearance required. Works equally well freestanding.

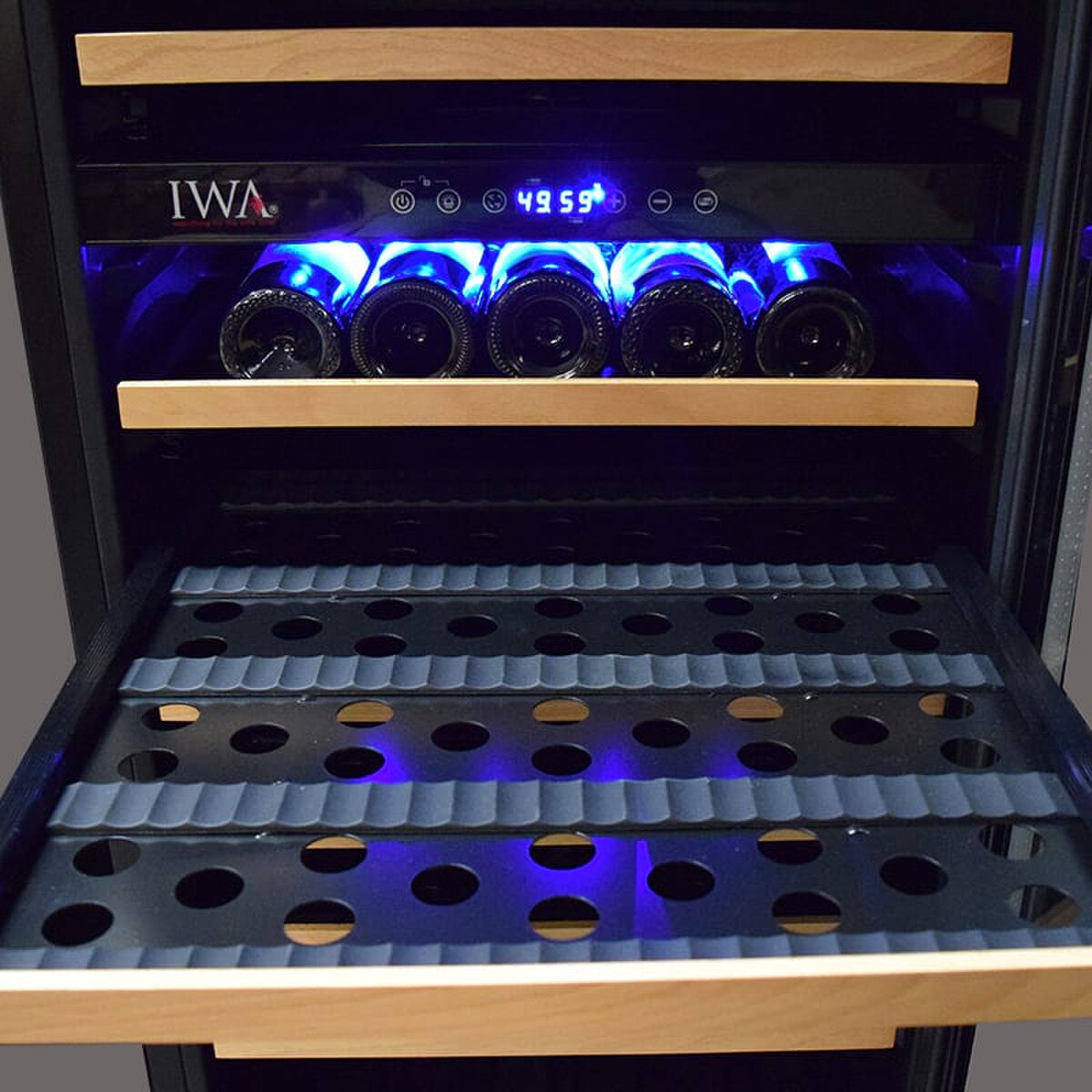

• Shelf configuration: 6 pull-out shelves total (5 rolling), using low-profile metal plate construction rather than wire. Plates hold bottles more securely on the roll-out and allow better stacking density than open-wire alternatives.
• Electrical requirement: 115V / 60Hz on a dedicated 15-amp circuit. Plan for a separate circuit if installing in a finished kitchen, wet bar or cabinet run that is already loaded.
• Warranty breakdown: 1-year coverage on parts and labor; 5 years on the compressor specifically — the component most likely to drive a costly repair call.
• Security door lock with keys included — useful in shared spaces or second homes
• Temperature display toggles between °F and °C

Brand: Loft

UPC: 077757191909

Size: 23 3/4w x 22 1/2d* x 34 1/4h (in)
*Not including the handle (2 1/2" D)

Weight: 180 lbs

Power/Rating: 115V / 60Hz; Requires 15-Amp Dedicated Circuit

Capacity: Up to 46 bottles

Material: Stainless-Steel

Warranty: 1-year warranty on parts and labor, and 5 years on the compressor

Loft 400 Manual

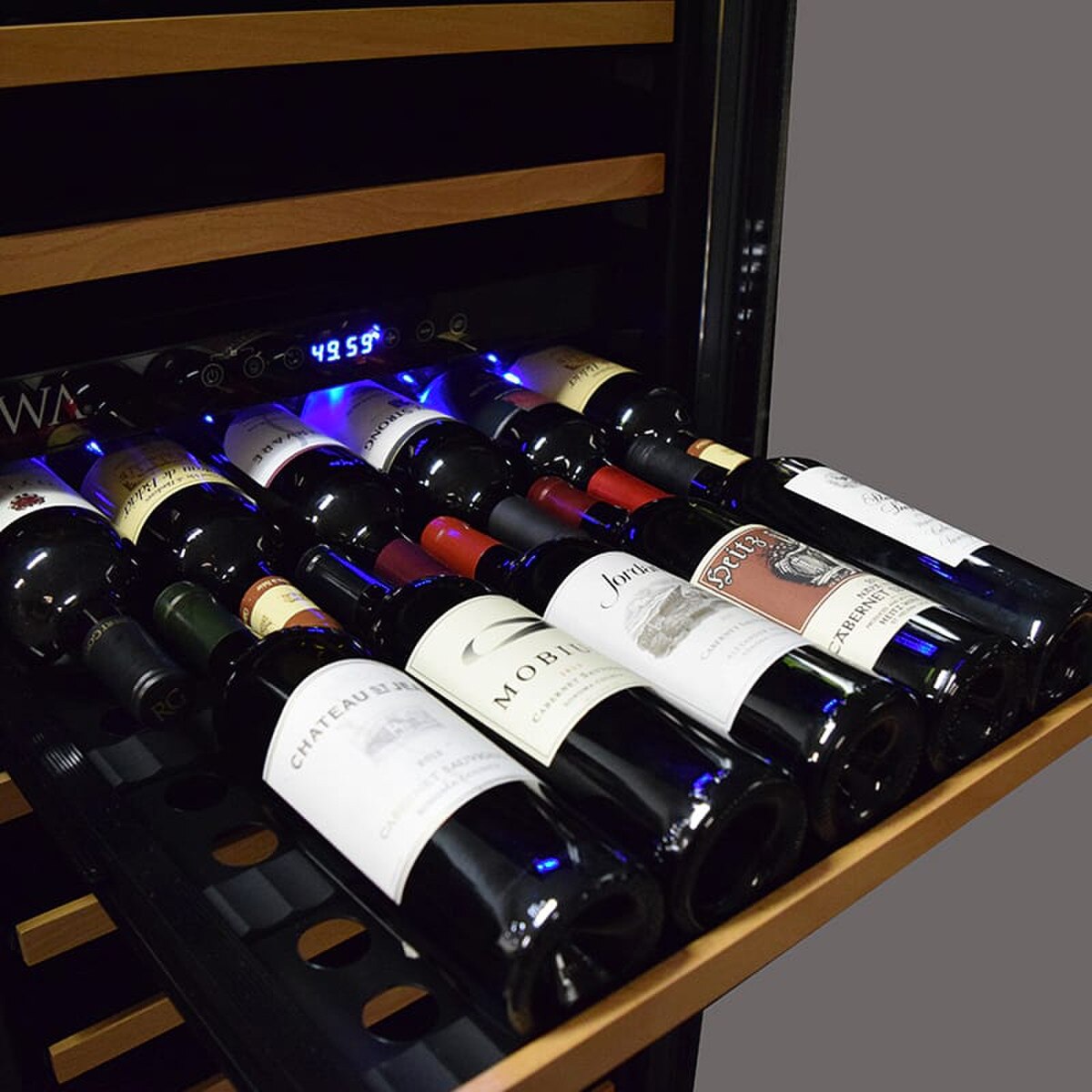

• 5 rolling plate shelves with capacity for up to 8 Bordeaux bottles per shelf
• 1 wire shelf at the bottom with capacity for 6 bottles
• Total capacity for up to 46 Bordeaux-size bottles
• 16 bottles can be stored in the upper zone, and 30 bottles can be stored in the lower zone

What are the actual temperature ranges for each zone, and can they be set independently?

A: Yes, the two zones are fully independent. The upper zone is dedicated to white and sparkling wines and can be set between 41°F and 54°F. The lower zone is for red wines and can be set between 54°F and 66°F. The one constraint: the upper zone must be set at least 4°F colder than the lower zone at all times. Both zones display on a blue LED panel inside the unit, and you can toggle between Fahrenheit and Celsius readouts.

Can the Loft 400 be installed as a built-in under a counter, or does it need to be freestanding?

A: It supports both. The unit is front-vented, which means it can be recessed into cabinetry or installed under a counter without any rear or side clearance requirements. It also works equally well as a freestanding unit. The door has reversible hinges, so you can configure the swing direction to suit your layout. Dimensions are 23¾" wide x 22½" deep x 34¼" tall (not including the 2½" door handle depth).

The listing says 46 bottles — is that realistic for Burgundy or larger-format bottles?

A: The 46-bottle capacity is rated for standard Bordeaux-size bottles. The shelves are specifically designed to accommodate Burgundy-size bottles, but switching to Burgundy format will reduce the total count. If your collection skews toward wider-shouldered Burgundy, Rhône or New World bottles, plan on a meaningfully lower number than 46. The rolling metal plate shelves do give you flexibility to reconfigure spacing, which helps when mixing bottle shapes.

What are the electrical requirements, and does it need a dedicated circuit?

A: The Loft 400 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. It cannot share a circuit with other appliances. If you’re planning a built-in installation in a kitchen renovation or bar area, confirm a dedicated outlet is part of the rough-in before the unit arrives. The unit uses an R600a compressor, which is energy-efficient and CEC and DOE energy compliant.

What does the warranty actually cover, and for how long?

A: The Loft 400 carries a 1-year warranty covering parts and labor, plus a 5-year warranty specifically on the compressor. The compressor is typically the most expensive component to replace in a wine cooler, so the extended 5-year coverage on that part is the more meaningful protection. Parts and labor coverage is limited to the first year.

What ambient temperature range does the room need to be in for the unit to function properly?

A: The Loft 400 is rated to perform correctly when the surrounding ambient temperature stays between 60°F and 85°F. If you’re placing the unit in an unconditioned space — a garage, unfinished basement or seasonal home — and temperatures regularly fall outside that range, performance will be affected and the unit may not hold target temperatures reliably. For a finished dining room, kitchen or climate-controlled basement, it will operate as specified.
