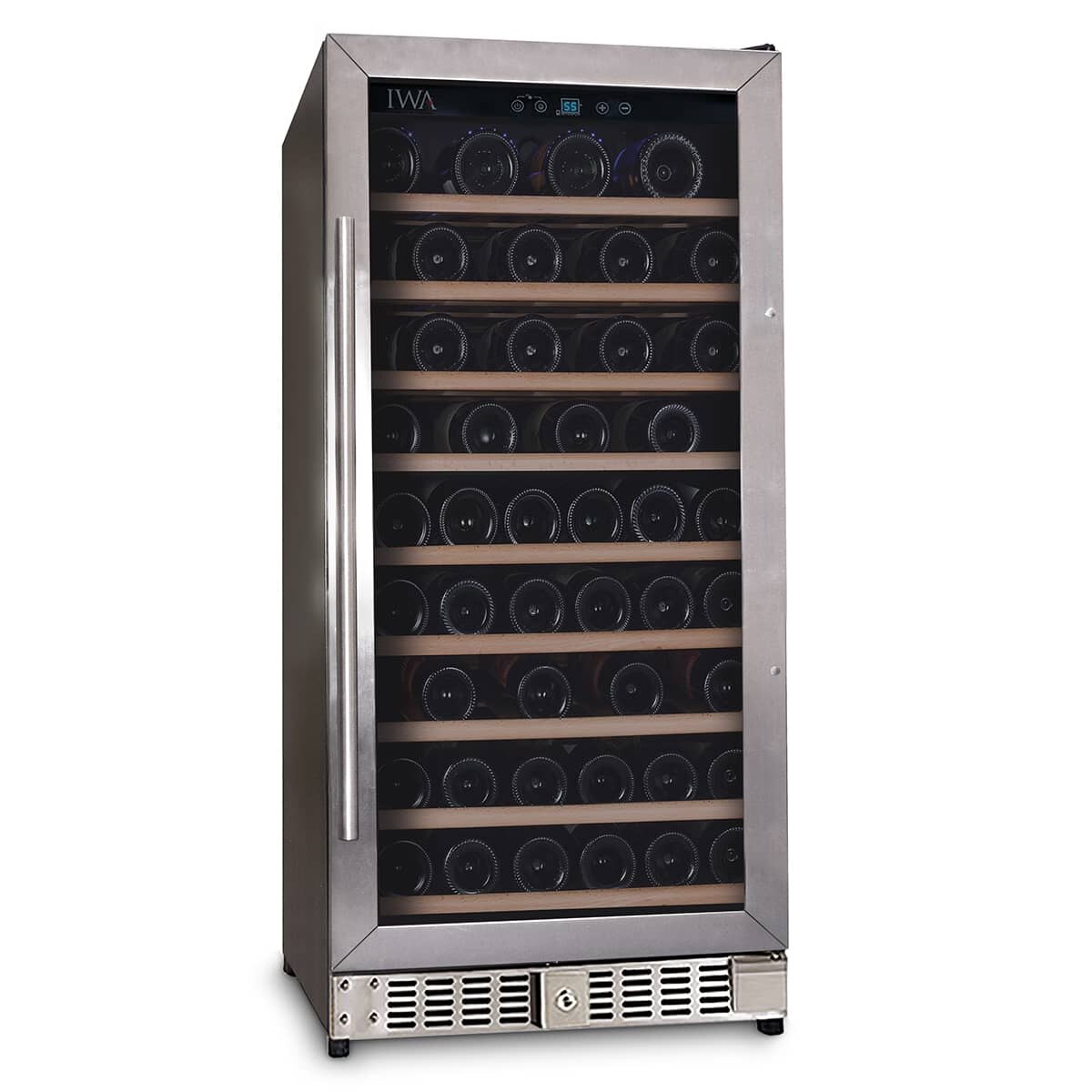

Studio 800 Wine Cooler 94 Bottle #36653

Placement requirements: 60-85F ambient temperature. If the ambient temperature is outside this range, the performance of the unit will be affected.

Size: 23 3/4w x 29 1/2d (with handle) 27d (without handle) x 48h (in)

Shelving: 9 pull-out shelves (7 rolling)

Quiet Mode The wine cooler can be put into "quiet mode", which reduces the fan speed by 20-25% and reduces the amount of noise produced by the fans, by pressing and holding the light button (while the display panel is locked from not being touched for 15 seconds) for about 3-5 seconds. The C/F indicator will flash when the unit is in "quiet mode."

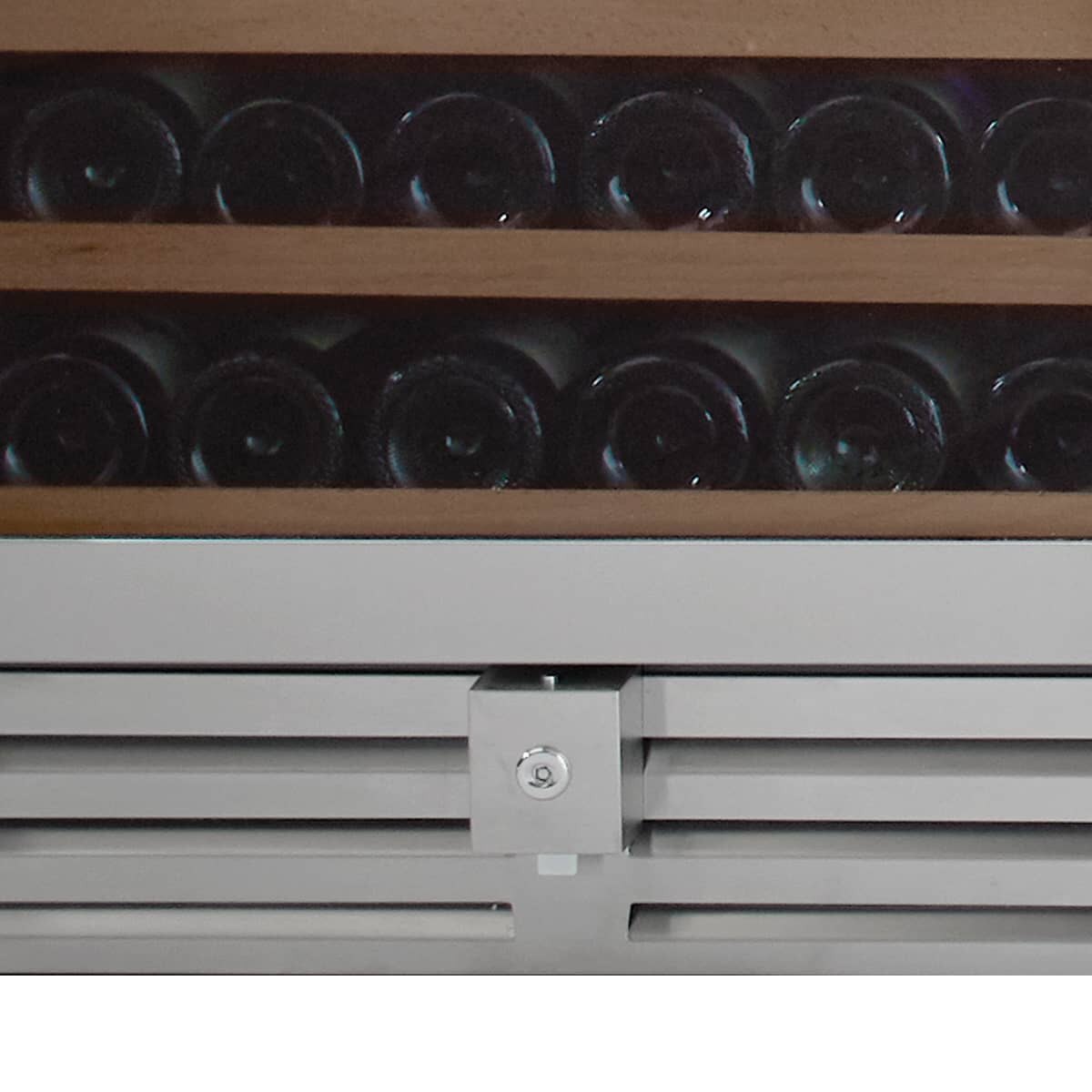

• Front-vented compressor system: Heat exhausts through the front grille, not the sides or back, so the unit can be installed flush in cabinetry or under a counter without clearance gaps. Freestanding use is equally supported.
• 94-bottle capacity is rated on standard Bordeaux bottles. Burgundy, Pinot and other wide-shouldered formats will reduce the count. Plan accordingly if your cellar skews toward those shapes.

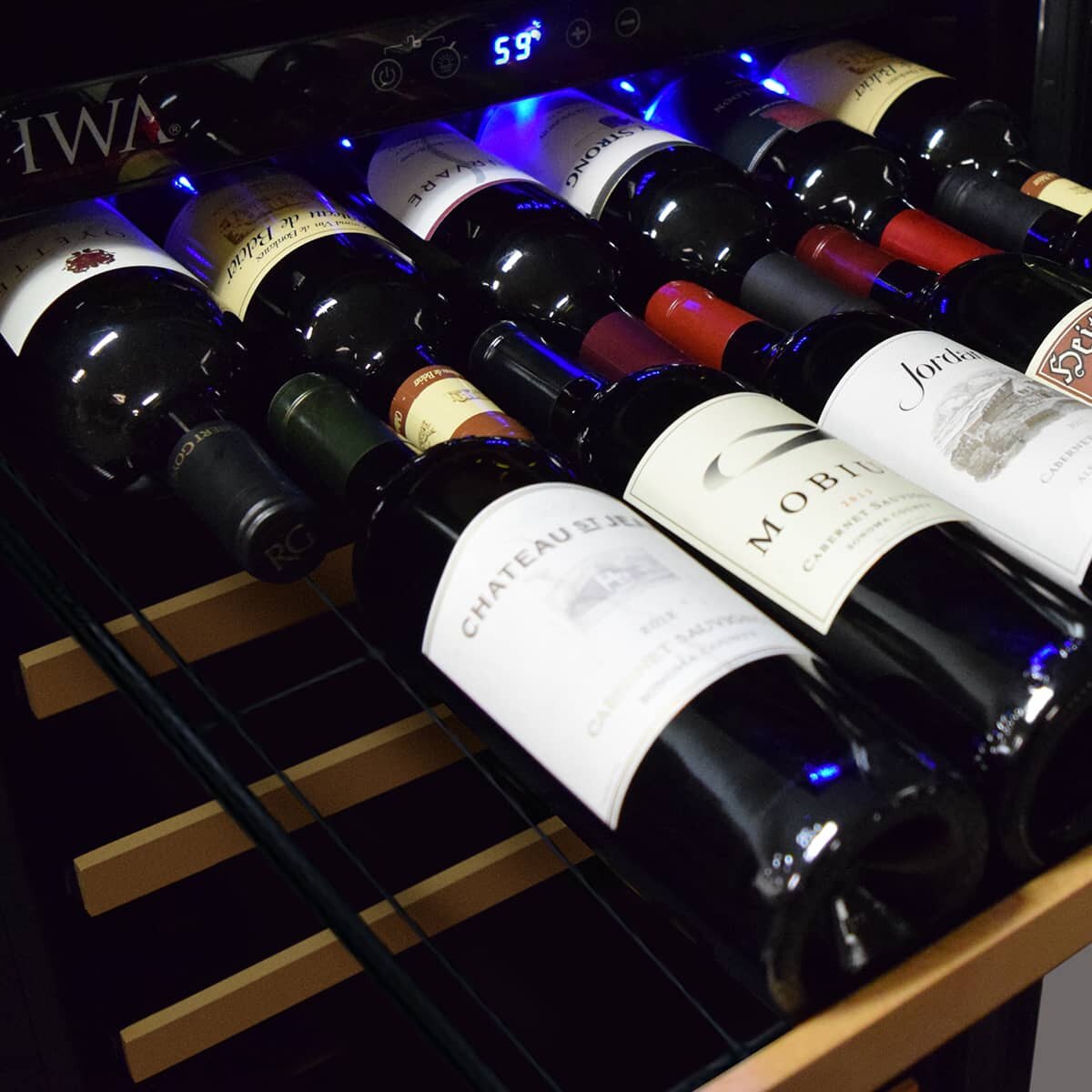

• 9 pull-out shelves (7 rolling): The rolling shelves slide out for access without disturbing bottles behind them. Shelf configuration accommodates mixed bottle sizes, not just Bordeaux-format.
• R600a compressor: A low-vibration, low global-warming-potential refrigerant. Compressor vibration is a real concern for long-term aging; R600a systems run quieter and with less mechanical agitation than older refrigerants.
• Requires a 15-amp dedicated circuit (115V / 60Hz). Confirm your installation location has one before ordering, particularly for built-in remodel scenarios.
• Stainless door frame with fingerprint-proof coating and reversible hinges — hinge side can be switched to fit either a left- or right-hand opening depending on placement.
• Double-pane tinted tempered glass blocks UV and provides a thermal buffer; the tint limits light transmission without eliminating visibility.
• Replaceable charcoal filter, security door lock with key and interior blue LED lighting are all included.

Pairs Well With

• A replacement charcoal filter for this unit — the filter maintains clean interior air and should be changed periodically per the Studio 800 owner's manual.

Brand: Studio

UPC: 077757366536

Size: 23 3/4w x 27d x 48h (in)
*Not including the handle (2 1/2" D)

Weight: 190 lbs

Material: Stainless-Steel

Capacity: Up to 94 bottles

Power/Rating:
115V / 60Hz; Requires 15-Amp Dedicated Circuit

Warranty:
1-year warranty on parts and labor, and 5 years on the compressor

What These Specs Mean

• R600a Compressor: A hydrocarbon refrigerant used in the cooling system; it runs more efficiently and generates less waste heat than older refrigerant types, which reduces energy consumption over the life of the unit.
• 15-Amp Dedicated Circuit: The cooler cannot share a breaker with other appliances — your installation space must have a dedicated 15-amp outlet, which is a key electrical planning detail for built-in configurations.

Studio 800 Manual

PLACEMENT REQUIREMENTS

• This appliance is designed for free standing installation or can be recessed into cabinetry.
• The wine cellar should be placed in a location where the ambient temperature is between 60-85°F. If the ambient temperature is outside this range, the performance of the unit may be affected.
• Place your wine cellar on a flat, solid floor that is strong enough to support it when it is fully loaded. To level your wine cellar, adjust the front leveling leg at the bottom of the wine cellar.
• When moving your wine cellar, please do not incline it more than 45 degrees.
• Locate the wine cellar away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Avoid locating the unit in damp areas.
• Plug the wine cellar into a dedicated (for this appliance only), properly installed and grounded wall outlet. Do not under any circumstances cut or remove the third (grounding) prong from the power cord. Any questions concerning power and/or electrical grounding should be directed to a certified electrician or authorized product service center.

Can the Studio 800 be installed as a built-in under a counter?

A: Yes. The Studio 800 is front-vented, which means it can be installed either freestanding or fully recessed under a counter without needing rear or side clearance for airflow. At 23¾" wide x 27" deep x 48" tall, it fits a standard under-counter opening, though you should confirm the full depth including the handle (+2½") when planning a flush-front installation.

The 94-bottle rating is based on Bordeaux bottles — how does that change with Burgundy or Champagne bottles?

A: The 94-bottle figure assumes standard Bordeaux-shaped 750ml bottles, which are the slimmest common format. Burgundy and Pinot Noir bottles are noticeably wider at the shoulder, and Champagne bottles are both wider and heavier. A realistic mixed collection with Burgundy and Champagne will reduce usable capacity meaningfully — expect something closer to 70–80 bottles in a typical mixed cellar. The 9 pull-out shelves (7 rolling) do accommodate varying shapes, but capacity math changes with bottle girth.

What are the electrical requirements, and does it need a dedicated circuit?

A: The Studio 800 runs on 115V / 60Hz and requires a dedicated 15-amp circuit. If you’re planning a built-in installation in a dining room remodel or finished basement, this circuit needs to be spec’d in advance — sharing a circuit with other appliances is not recommended and can cause compressor issues over time.

What is the warranty on the Studio 800?

A: The Studio 800 carries a 1-year warranty on parts and labor and a separate 5-year warranty on the compressor. The compressor coverage is meaningful here because the unit uses an R600a compressor — the same refrigerant class used in higher-end European appliances — and the extended compressor warranty reflects confidence in its longevity.

Is this a single-zone or dual-zone cooler, and can it serve both reds and whites at different temperatures simultaneously?

A: The Studio 800 is a single-zone unit, meaning the entire cabinet holds one temperature throughout. It does not support simultaneous storage of reds at 55°F and whites at 45°F at the same time. If your collection requires separate temperature zones for active service — keeping whites chilled while reds age at cellar temp — you would need a dual-zone model. The Studio 800 is best suited to collectors who want one consistent aging or serving temperature across their full inventory.

What security and lighting features are included?

A: Every Studio 800 ships with a keyed security door lock, a key and interior LED lighting. The door glass is double-pane, tinted and tempered, which blocks UV light — a practical consideration for installations in rooms with ambient light exposure. The stainless steel door also has a fingerprint-proof coating and reversible hinges, so you can configure the swing direction to suit your space.
