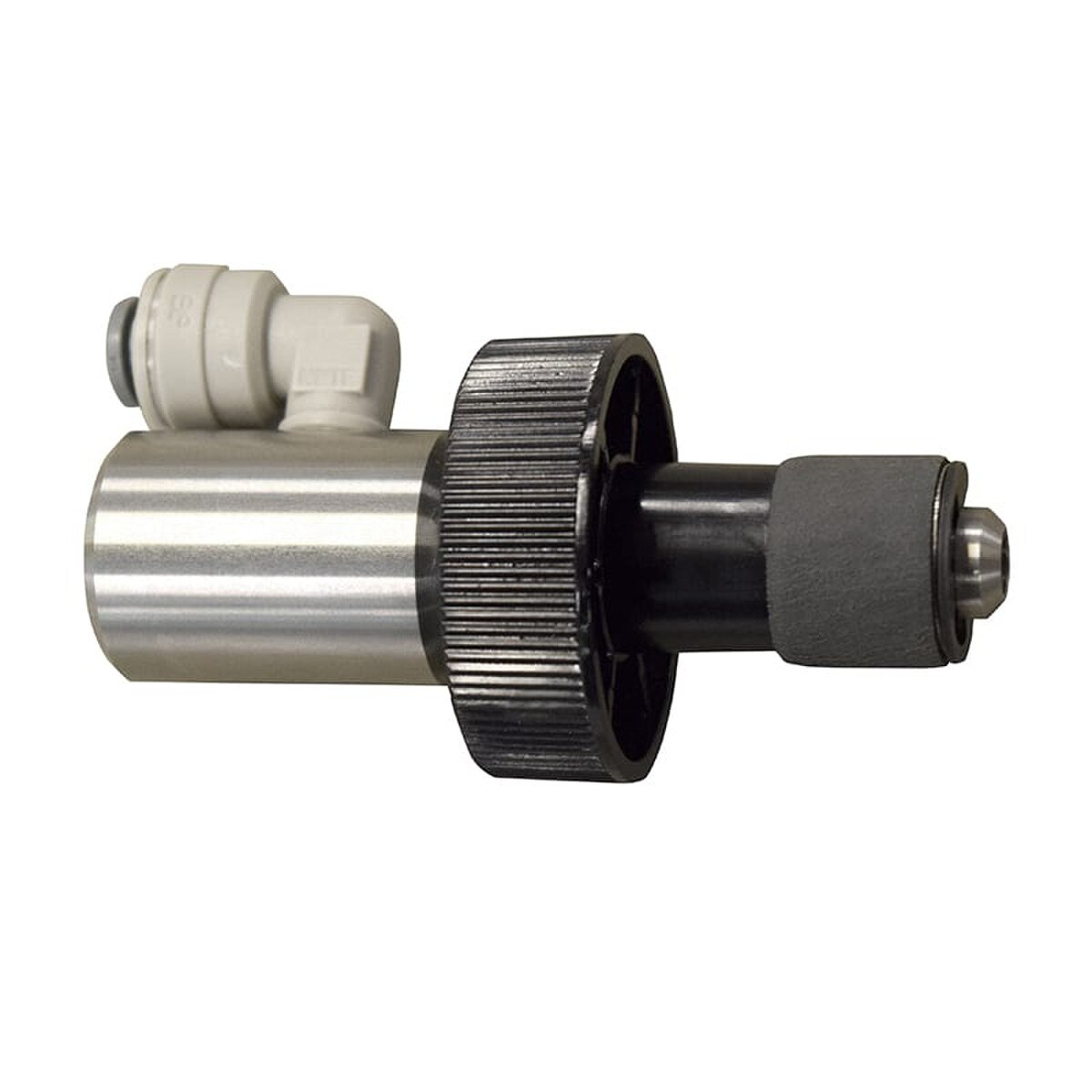

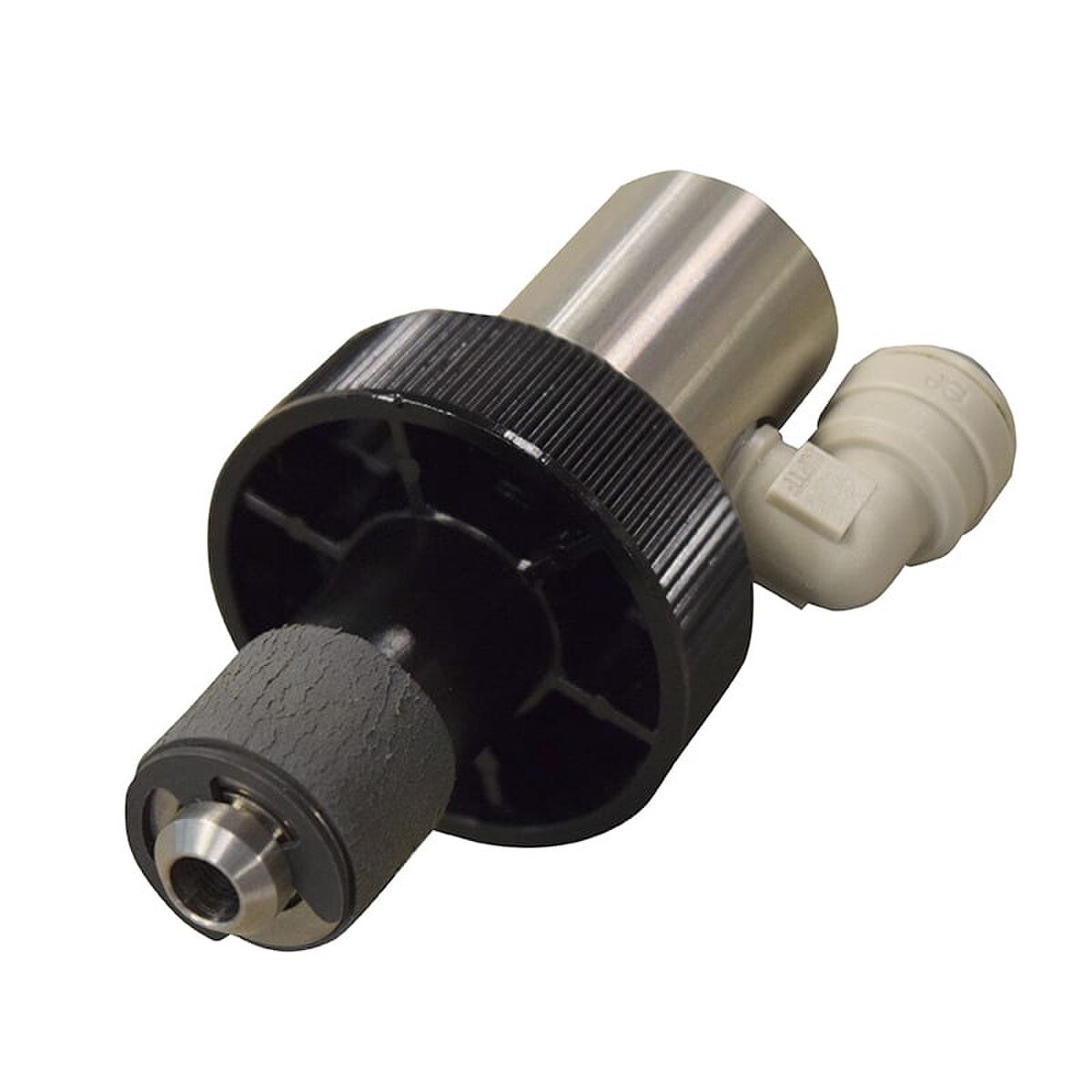

WineKeeper S/S Stopper Assembly No Tube #17914
New! Stainless Steel body stopper assembly without tube for refrigerated WineKeeper units. Totally compatible with existing systems.
New! Stainless Steel body stopper assembly without tube for refrigerated WineKeeper units. Totally compatible with existing systems.
- Designed for use with refrigerated WineKeeper units
- Stainless Steel stopper assembly with no tubing
- Connects bottles with tubing to the faucets
WineKeeper S/S Stopper Assembly No Tube (P/N 17914). It is crucial not to over tighten the stopper assembly to avoid breakage. If using the older plastic stopper assembly, original tubing can still be used with this replacement.

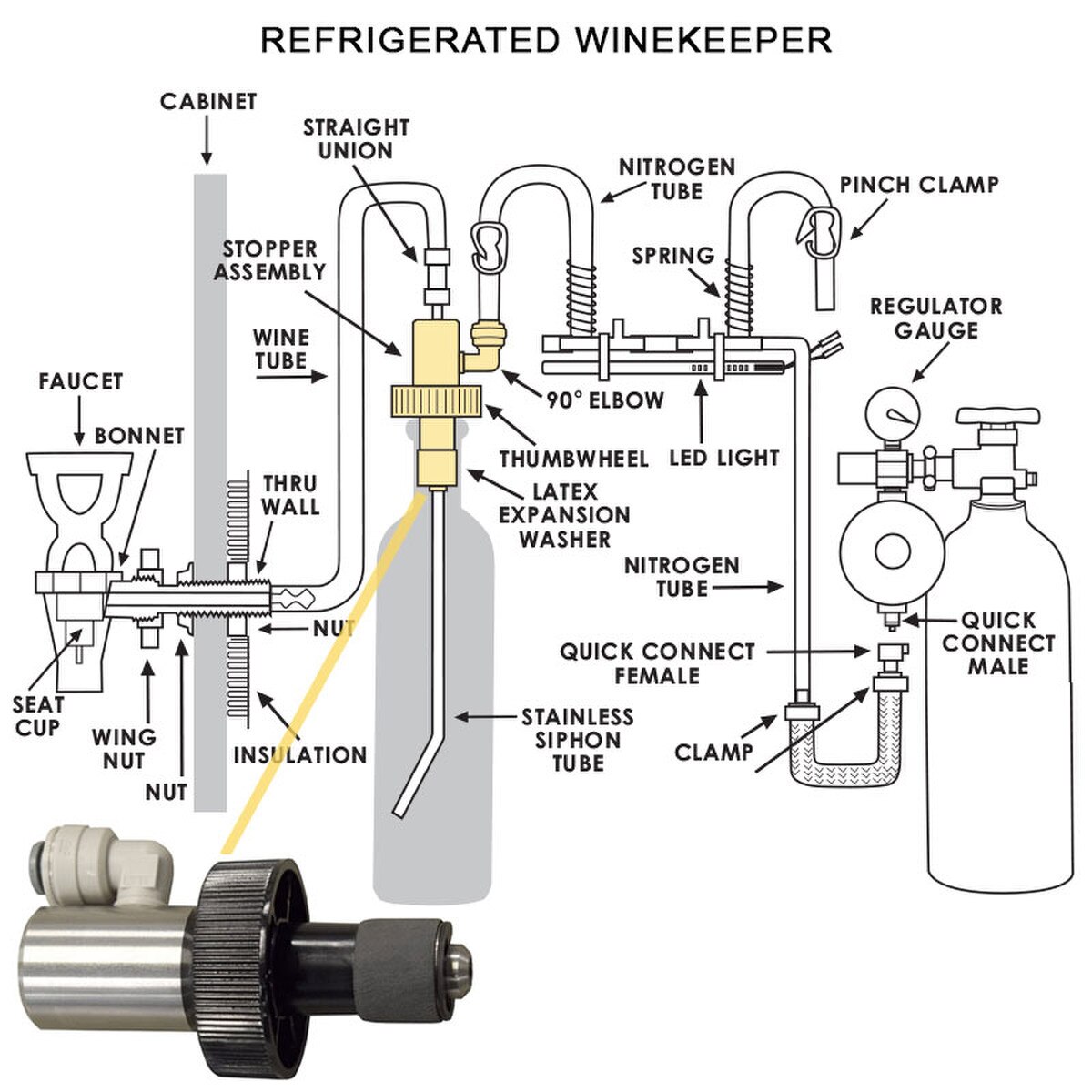

Process for replacement:
- remove wine and nitrogen supply tubes from the assembly
- remove wine stainless steel tube that goes into the bottles - it should just pull out from the bottom of the assembly
- trim the stretched tubing with scissors and push deeply into the hose fitting which reconnects the nitrogen supply
- slide stainless wine tube into bottom of stopper assembly. trim off the stretched end of the wine tube and insert deeply into the gray fitting
Process for replacement:
- remove wine and nitrogen supply tubes from the assembly
- remove wine stainless steel tube that goes into the bottles - it should just pull out from the bottom of the assembly
- trim the stretched tubing with scissors and push deeply into the hose fitting which reconnects the nitrogen supply
- slide stainless wine tube into bottom of stopper assembly. trim off the stretched end of the wine tube and insert deeply into the gray fitting
Brand: WineKeeper
Size: 18 1/4w x 6 3/4d x 10 1/4h (in)
Weight: 0.5 lbs
Material: Plastic
Size: 18 1/4w x 6 3/4d x 10 1/4h (in)
Weight: 0.5 lbs
Material: Plastic
The new stainless body offers a number of advantages over the plastic assembly (#15161).
- at key stress points the the piece can not break
- replacement latex washers can just slid on after removing a clip
- cleaner look with push on fittings for the tubing
Offered for a variety of bottle types:
Port
Standard wine bottle
- at key stress points the the piece can not break
- replacement latex washers can just slid on after removing a clip
- cleaner look with push on fittings for the tubing
Offered for a variety of bottle types:
Port
Standard wine bottle
