CellarPro Large VS Duct KIT Cold Insulated #15088
Details
CellarPro Large VS Duct KIT Cold Insulated #15088 (P/N 15088. This insulated duct kit is recommended for installations when the evaporator will be located in an unconditioned environment, and is compatible with the following cooling units:
- CellarPro 6200VSi / 6200VSx
- CellarPro 8200VSi / 8200VSx

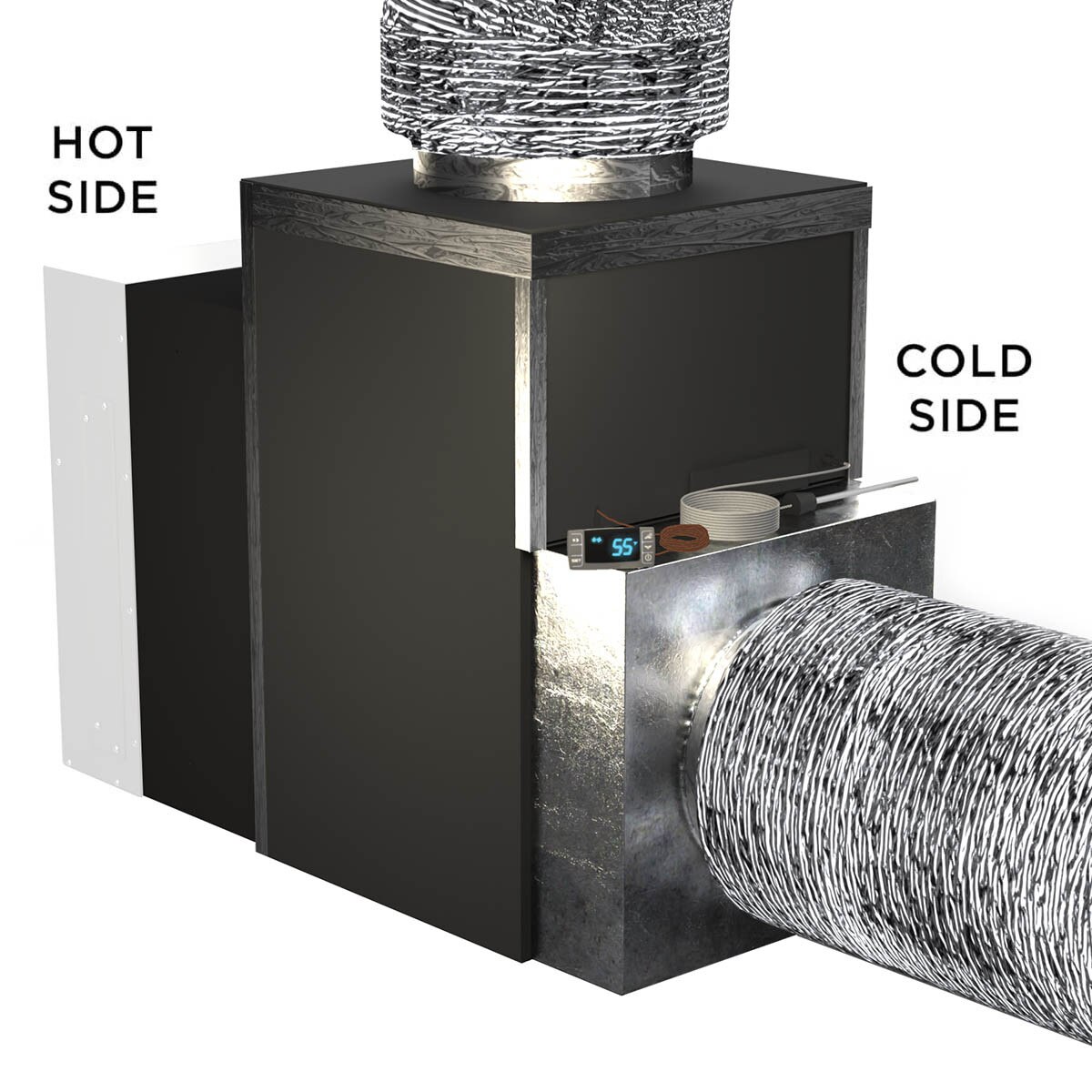

Each duct is designed to attach to insulated 10-inch ducting (included) for cold air exhaust to, and return air from, the wine cellar, up to 100 equivalent feet (50 feet per opening) while providing access to controls and switches on the face of the cooling unit. The exhaust exits from the top, and the intake returns from the cold side.
Kit includes:
- Insulated cold-side intake and exhaust duct hoods

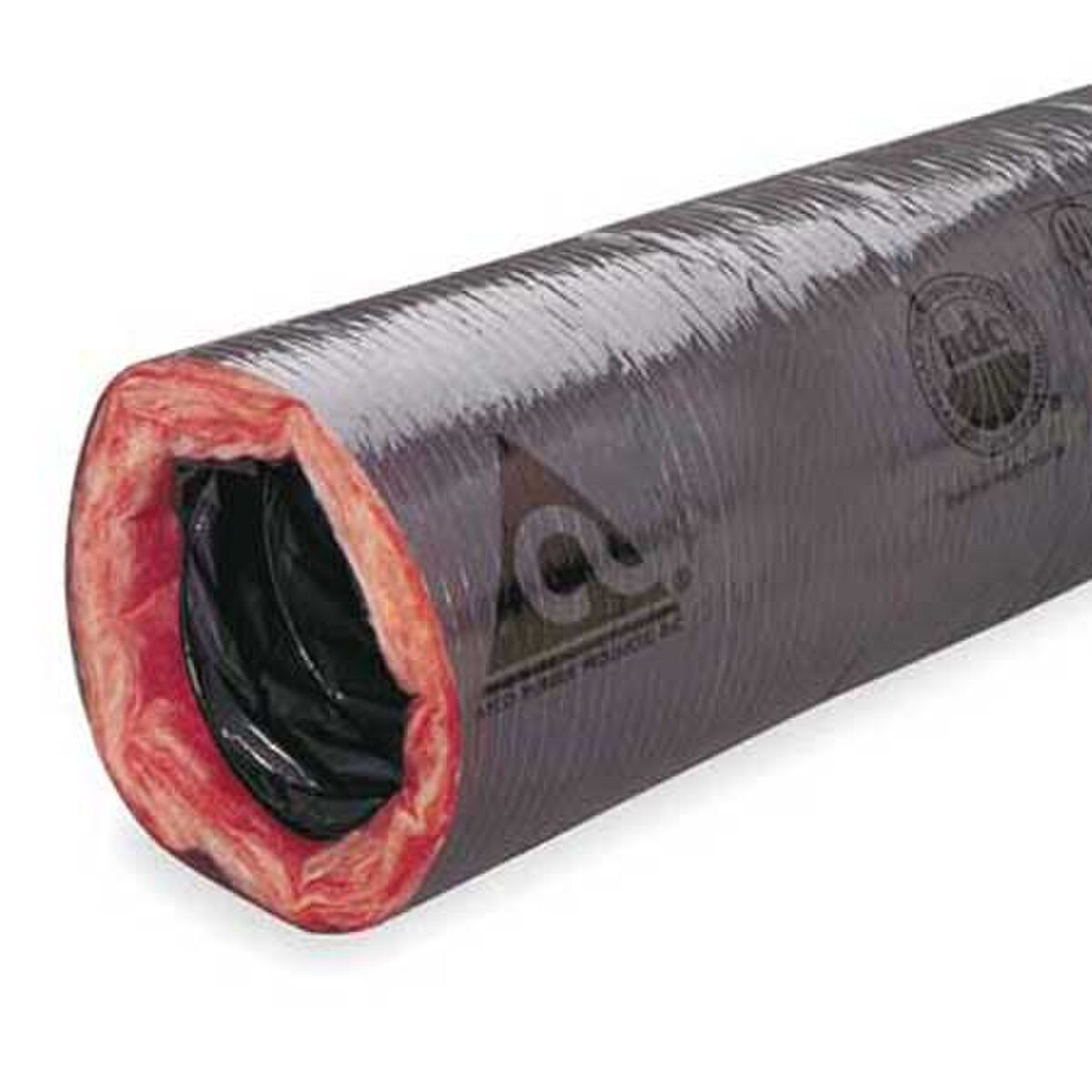

- 50 feet (2 x 25 feet) of 10-inch insulated R-6 ducting
- Additional insulation for unconditioned environments
- Bottle probe with 10-foot cord
- Remote control display kit
Important notes:
- The high fan speed setting MUST be used anytime the cooling unit is ducted
- The size of the ducting must not be reduced or restricted
- Use of a custom duct hood will void the manufacturer's warranty
Configuration
Please refer to the following resources before purchasing this kit:
- This duct kit is required when the cooling unit will be installed in unconditioned environments, subject to the limitations listed in our Low RH vs High RH Duct Kit Chart. In some cases, the conditions are too extreme for any of our cold-side duct kits.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
- Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe
Features
Custom FRONT duct kit for 6200/8200 VS cooling units. With this kit, the cold air intake and exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).
Required for use in moderate, unconditioned or high humidity environments.
- Attaches easily to the front (intake) and top (exhaust) of 6200/8200 VS refrigeration systems
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to 10" ducting
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Bottle probe with 10' cord plugs into face of the cooling unit
- Maintains accurate temperatures inside the wine cellar
- Includes our remote control display kit
- Appropriate for Unconditioned / High-humidity environments
Specs & Resources
Brand: CellarPro
Size: 16 1/4w x 39 3/4d x 29 h (in)
Weight: 35 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
