CellarPro VS/Split Duct KIT (Cold Side) HIGH RH RETROFIT #7509

(0) Write A Review
Price: $975.00
Availability: In Stock
Usually Ships w/i 2-3 Days
Shipping Information:
FedEx / USPS / Saver

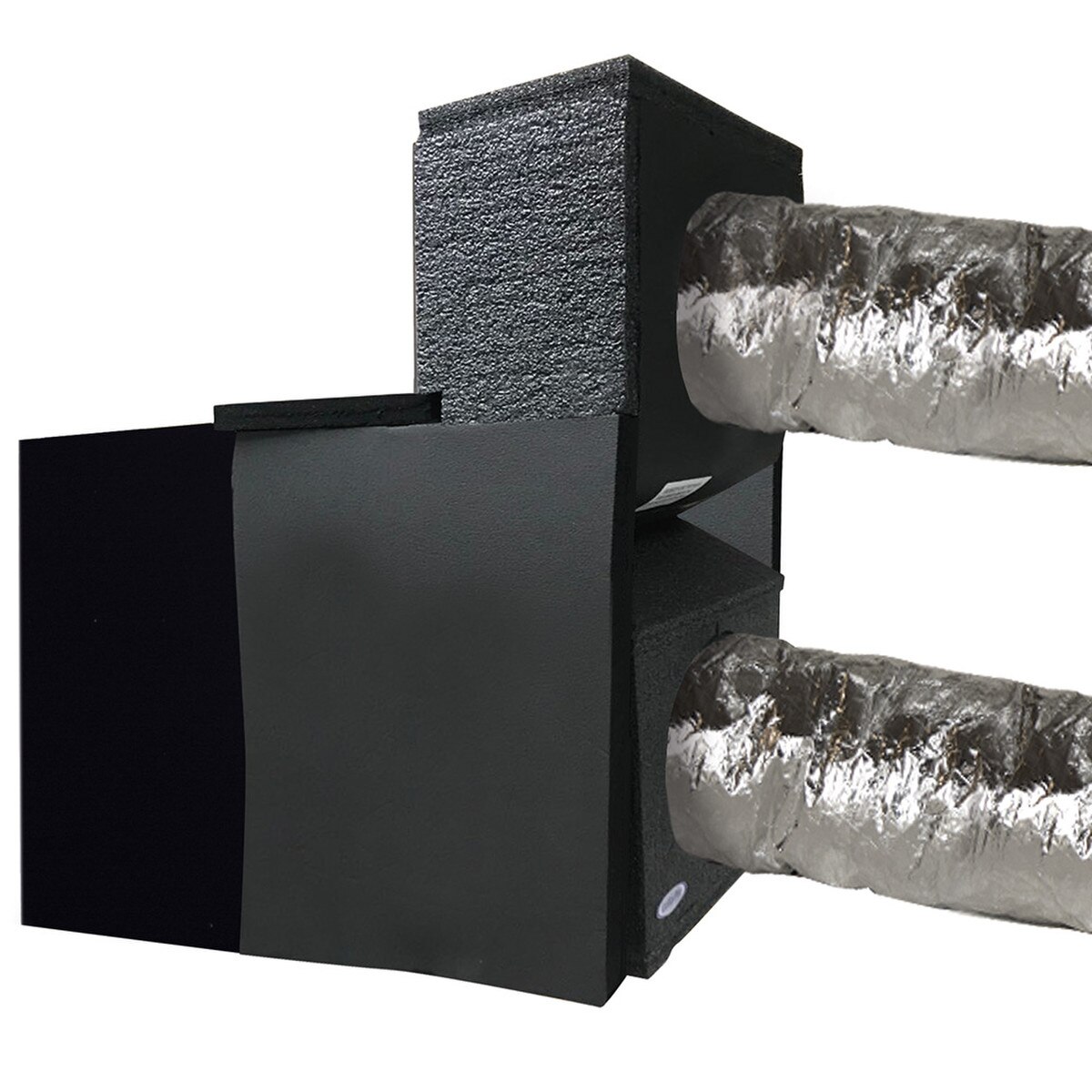

CellarPro VS/Split Duct KIT (Cold Side) HIGH RH RETROFIT (P/N 7509). Duct openings are designed to attach to two 8-inch ducts for evaporator intake and exhaust. Ducting should be 8-inch or greater from start to finish, and must not be reduced. Custom design allows access to controls and switches on the face of the cooling unit.

Requires 9 inches of additional height at the front of the cooling unit.

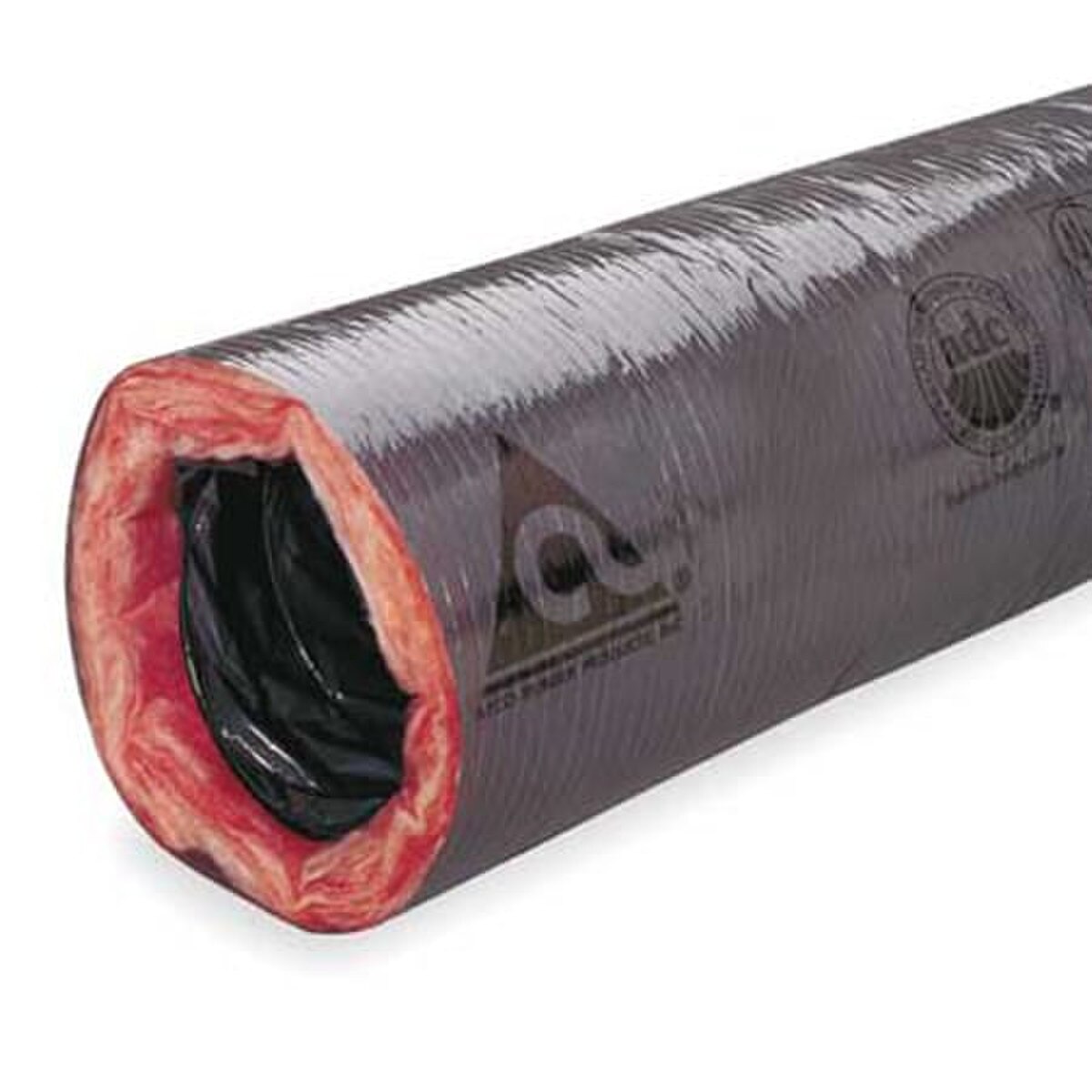

Kit includes: Insulated duct hood, 50 feet (2x25) of 8-inch insulated (R-6) ducting, remote control display retrofit kit and bottle probe.

The high fan speed setting is required when our unit is ducted.

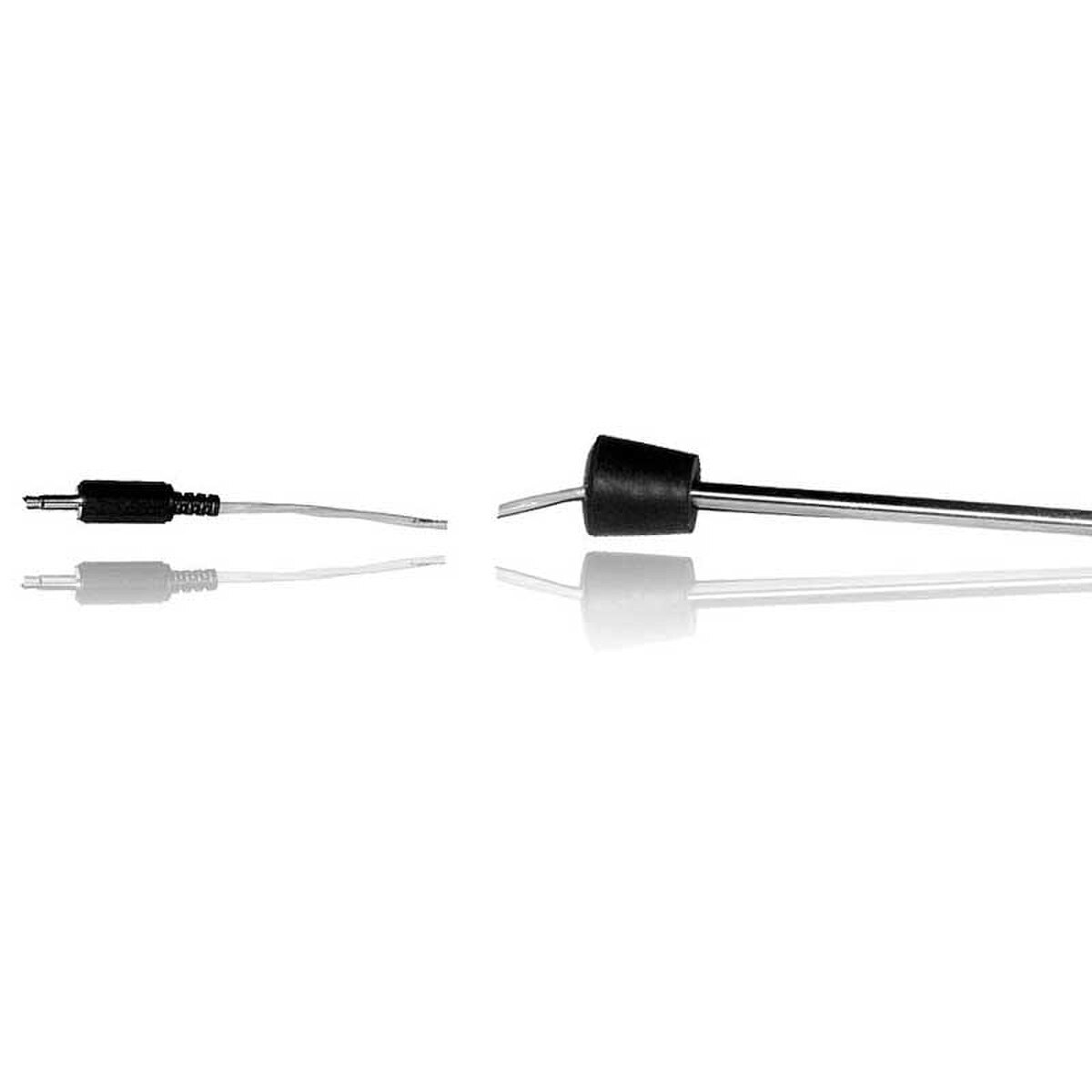

Bottle Probe Operating Instructions:.
  • When measuring liquid temperatures, the (HY) differential should be set at 1 degree (so that the wine liquid doesn't fluctuate more than 1 degree.)
  • When measuring air temperatures, the (HY) differential should be set at 4 degrees (the cooling unit will burn out prematurely if the unit cycles on'off every time the air temperature changes by 1 degree.)
  • The probe or bottle/probe must be located in a location with good air movement in order to correctly register the temperature changes inside the cellar.
  • When measuring air temperature with ducted systems, the ideal location for the bottle probe is in the return air register; when measuring air temperature with through-the-wall systems, the ideal location for the bottle probe is near the return air grill; when measuring liquid temperatures in bottles, the ideal location of the bottle is near the top of the racks with good airflow.
  • In all cases, it is recommended to check the actual cellar temperature against the display temperature when the bottle probe is first setup and subsequently whenever the location moves.
  • Refer to our Owners Manual for instructions how to change the HY differential


Be sure to refer to our ducting heat loss table and our duct correction table when sizing the cooling unit.

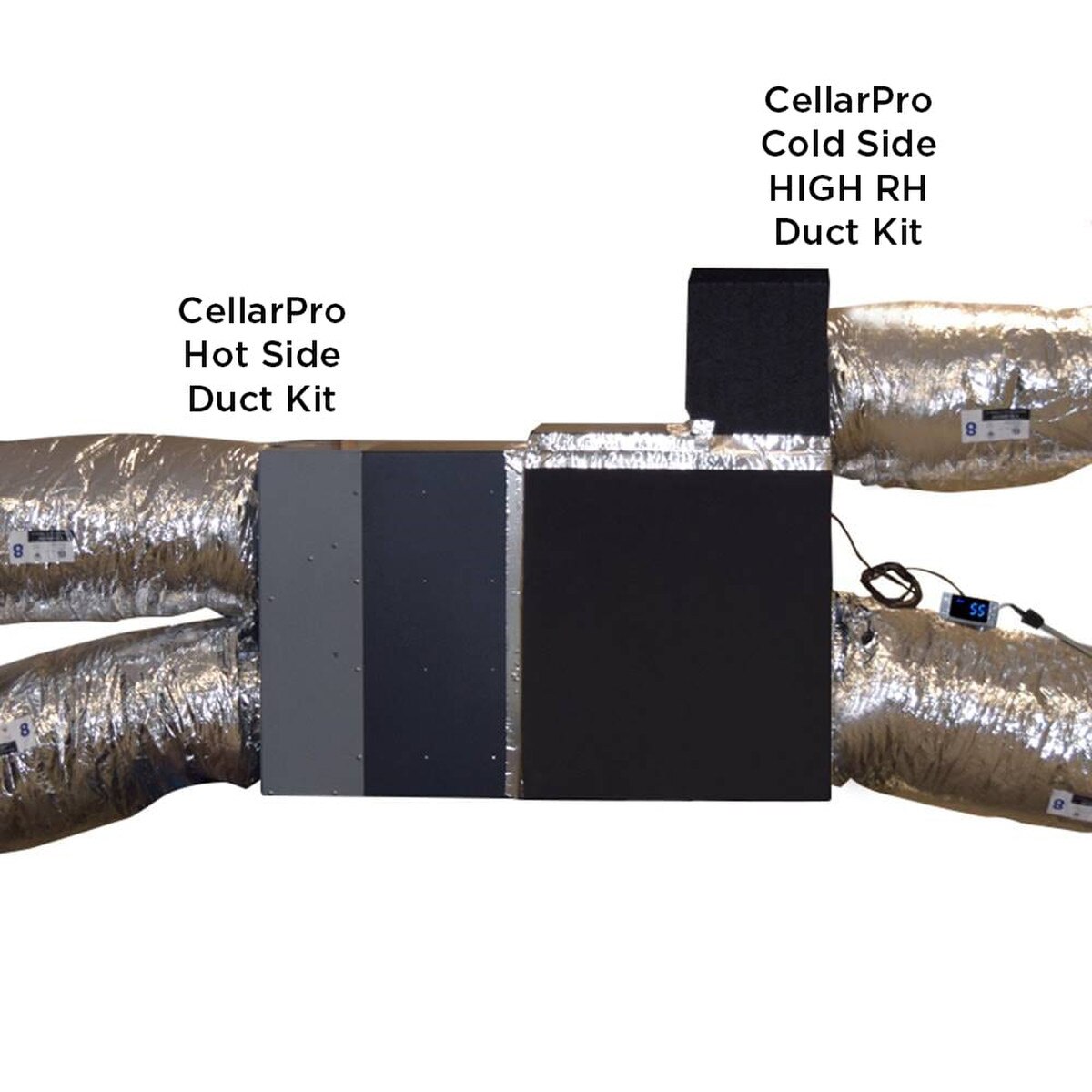

Custom duct KIT for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening). Insulated ducting (2 x 25') is included.
  • Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
  • Appropriate for Unconditioned / High-humidity environments
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to insulated 8" ducting (included)
  • Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
  • Maintains accurate temperatures inside the wine cellar
  • Includes our remote thermostat bottle probe (measures air or liquid temperatures)
  • Includes our remote control display kit
Brand: CellarPro

Size: 14 3/16w x 4 11/16d x 27 1/2h (in)

Weight: 45 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year
