WhisperKOOL Platinum Split 8000 Cooling Unit #7335
WhisperKOOL Platinum Split 8000 Cooling Unit (P/N Platinum Split 8000). WhisperKOOL's Platinum Split 8000 system cools properly insulated wine cellars up to 2000 cubic feet* with the compressor located in a remote location (up to 100 line feet away), in a choice of configurations as follows:

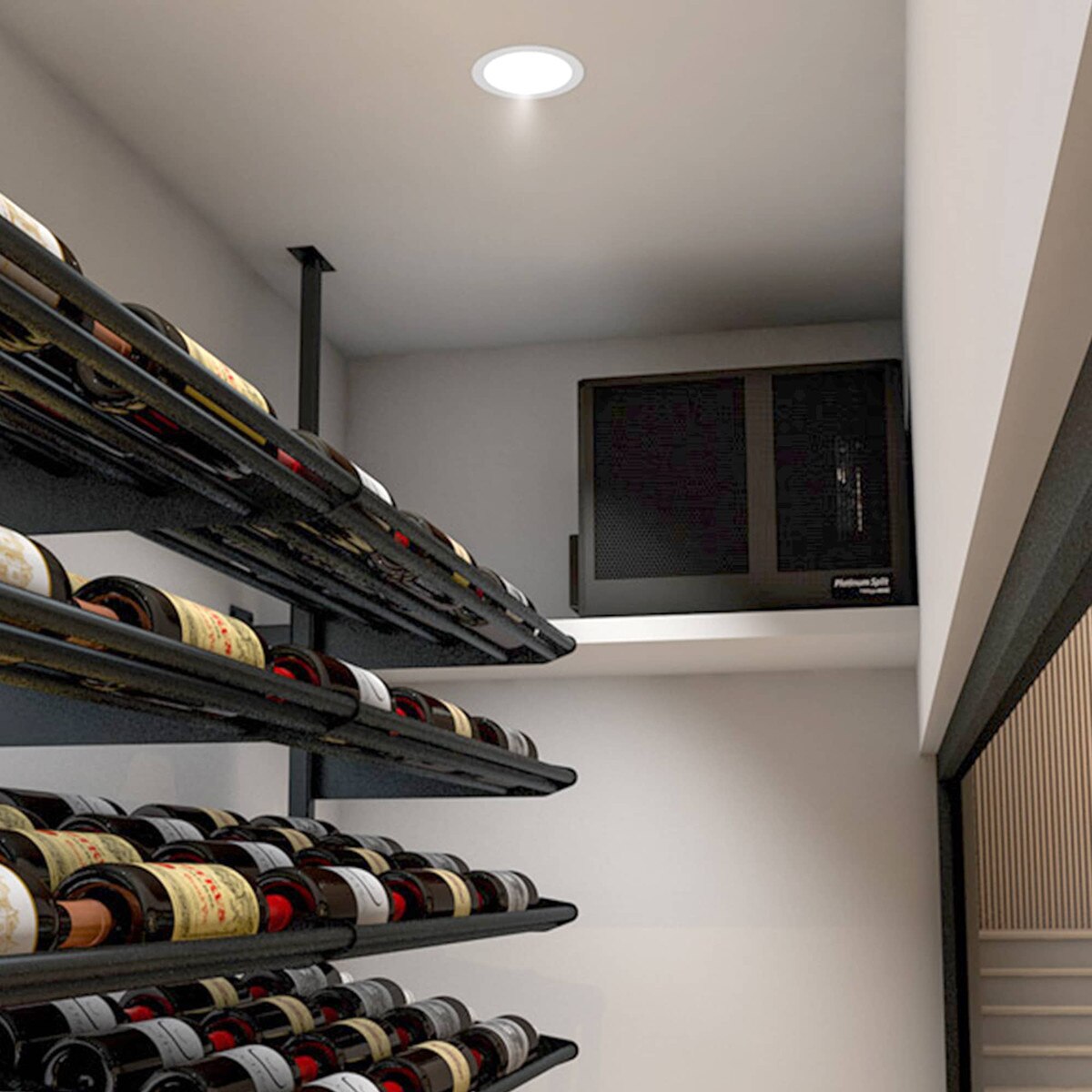

- Evaporator wall-mounted inside the cellar,

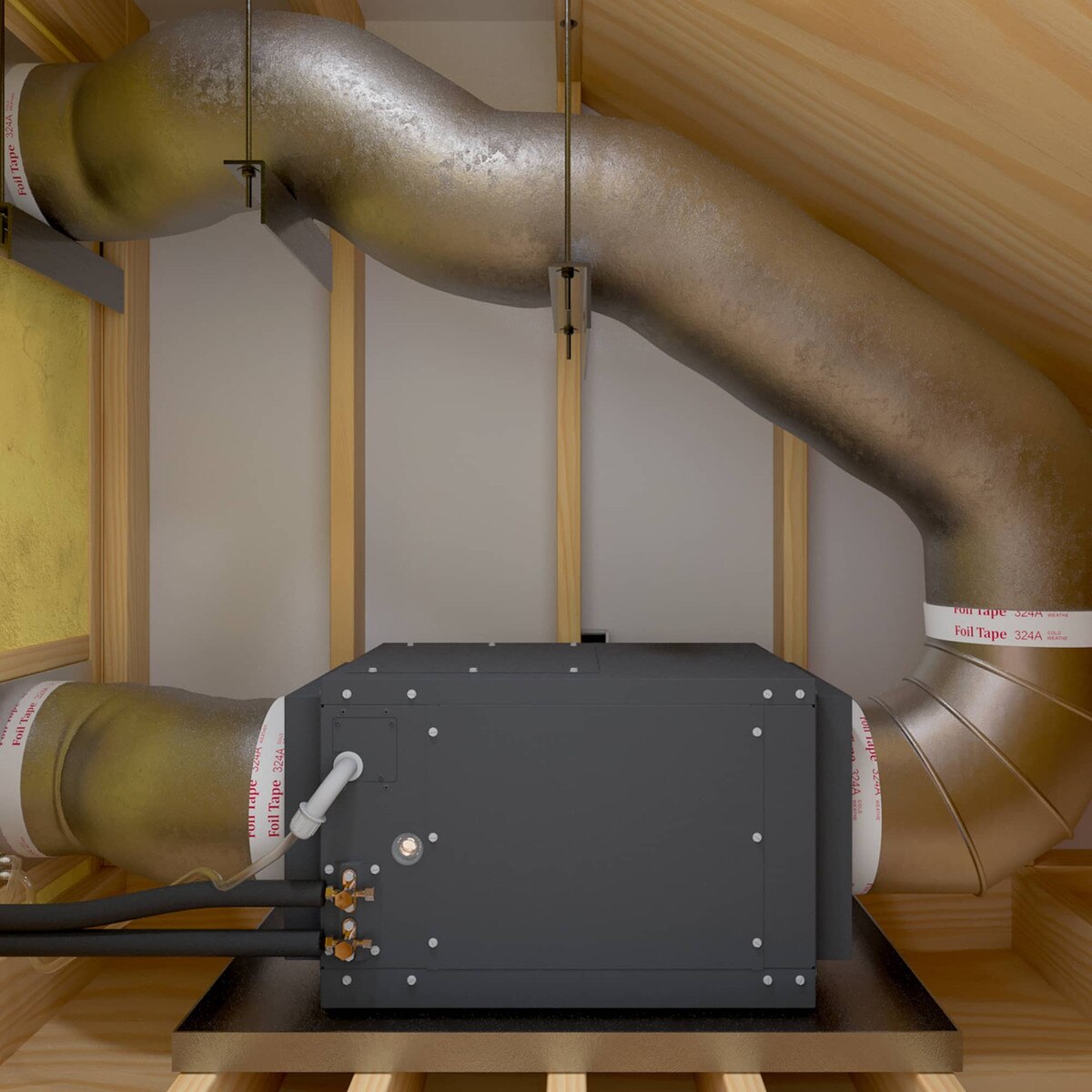

- Evaporator ducted from a remote location
- Evaporator ducted from a remote location, and a water-cooled condensing unit
The Platinum Split 8000 is equipped with WhisperKool's Platinum Series controller utilizing Advanced System Protection Technology. Features include:
- Strategically placed monitoring probes, which ensure efficient performance and long cooling unit life
- Easy to operate
- Adjustable humidity control
- Energy saving modes
- Quick chill mode
- Anti-frost function.
- Can handle up to 55 degree temperature differential
- Optional outdoor hood (available at additional cost)
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
6006 BTUH.

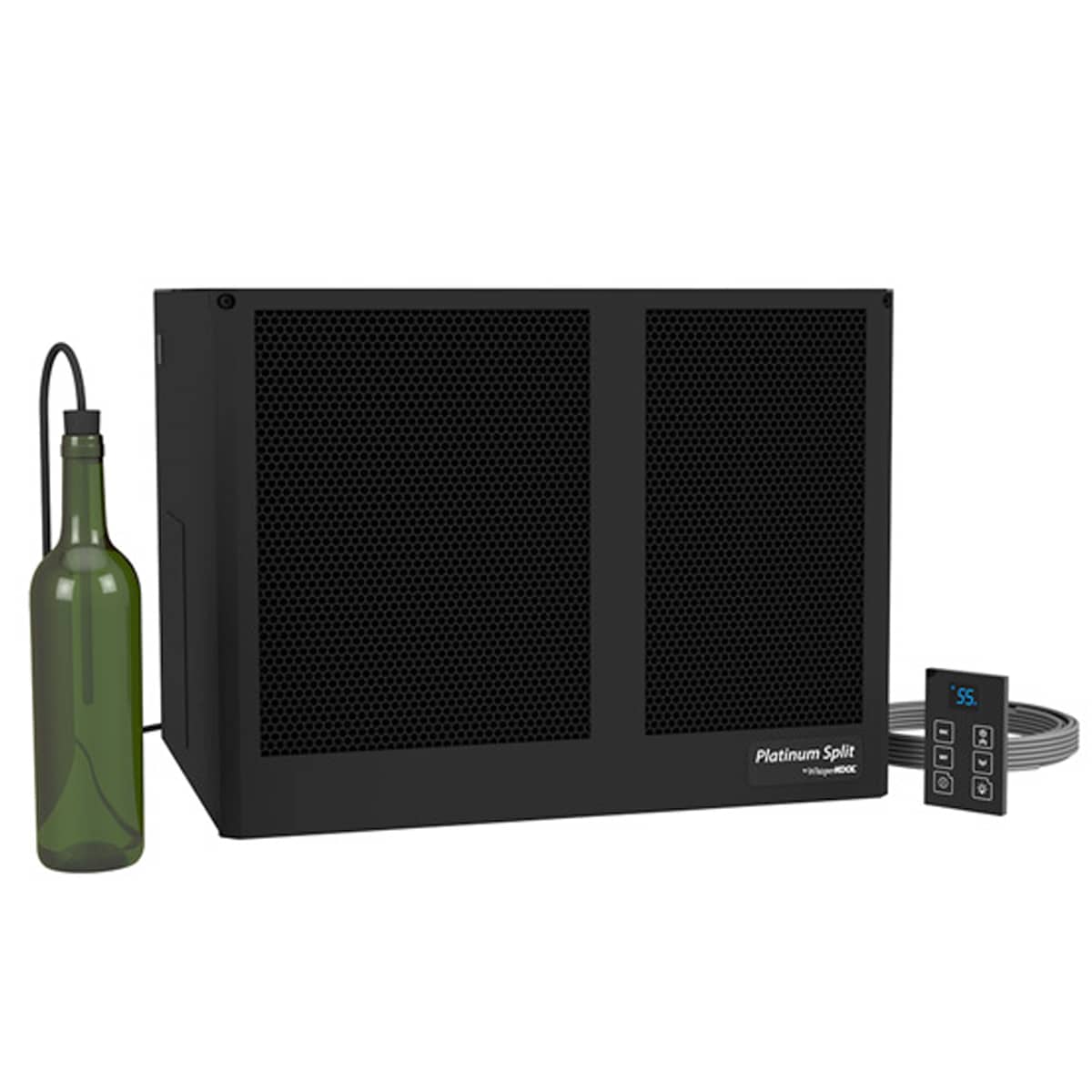

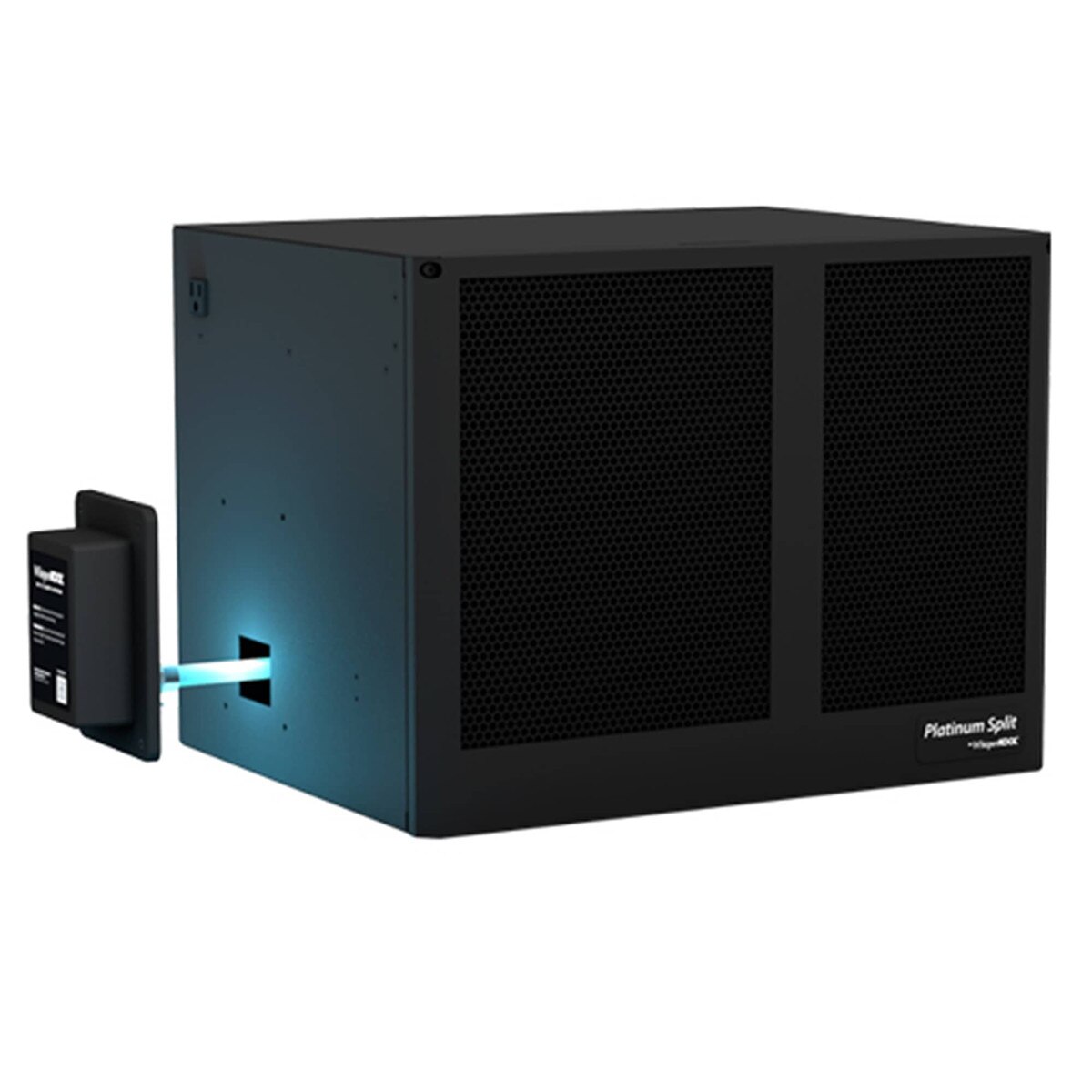

The Platinum Split sets the new standard for in-cellar split systems. This completely new design improves airflow efficiency 25% and operates 10% quieter, all while being 35% smaller than our previous split system evaporator. The system continues to use our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55F.
- Ultra-quiet and efficient operation
- Advanced electronic control system

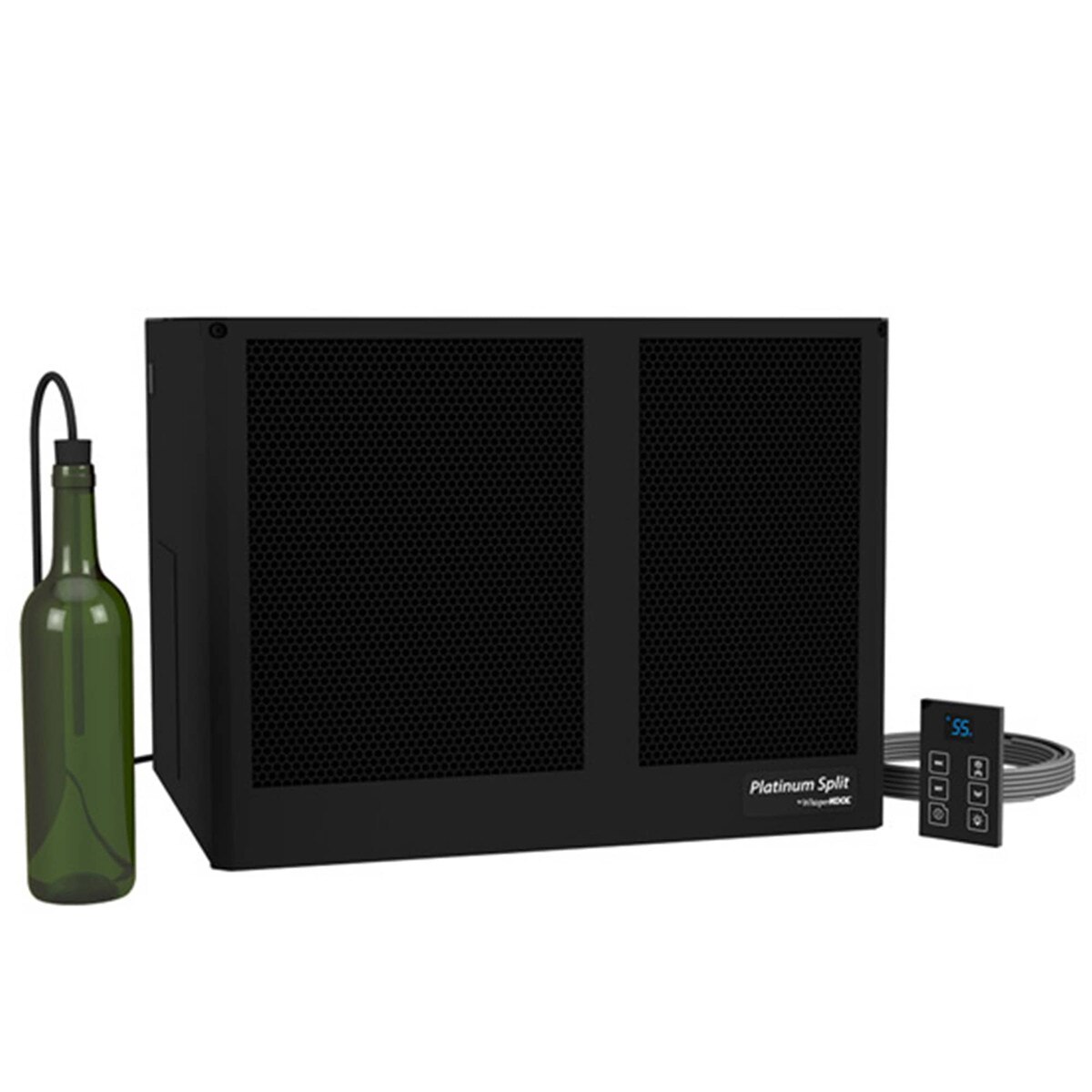

- Liquid bottle probe
- Humidity control
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55F temperature differential

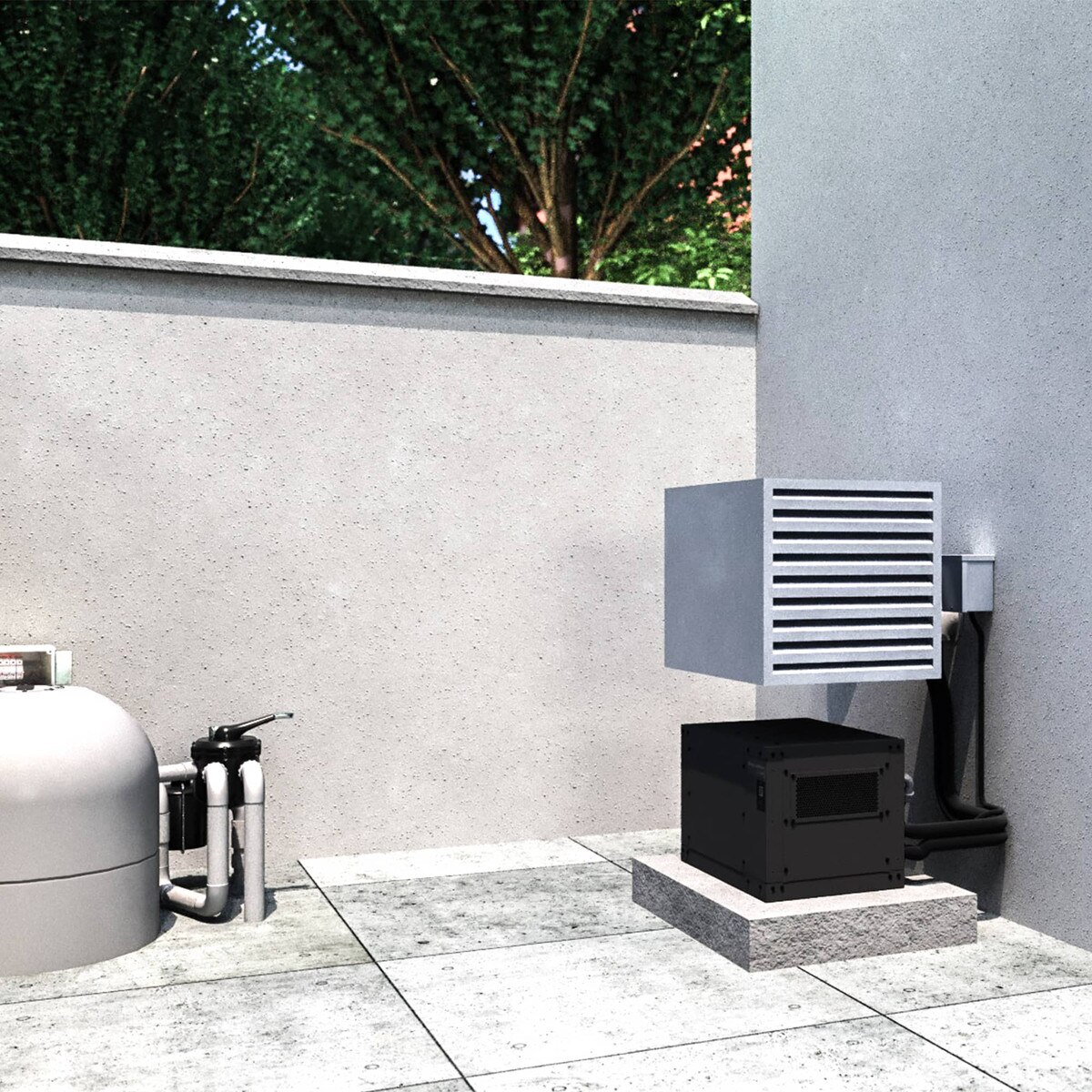

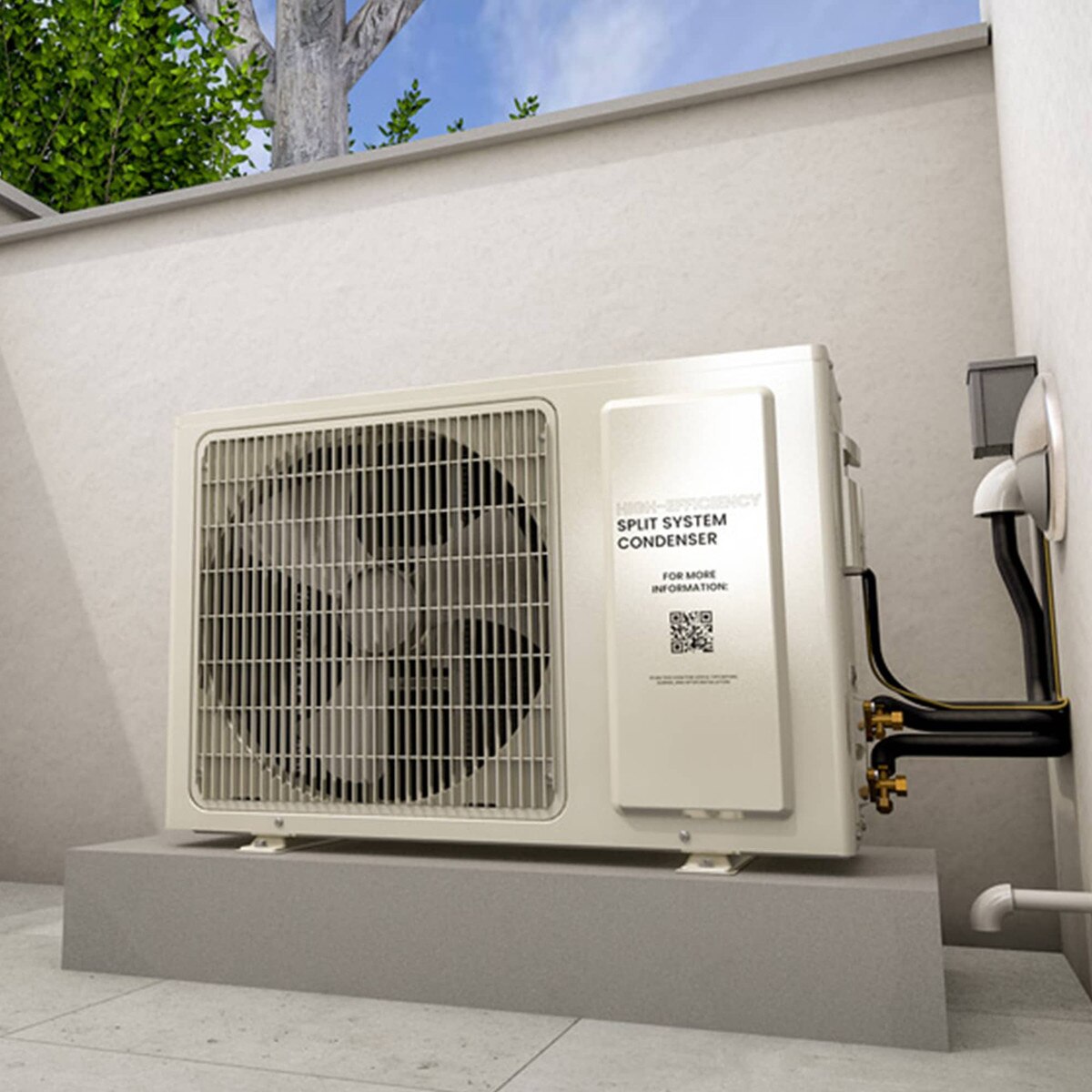

- Condensing unit can be placed outdoors w/optional housing
Brand: WhisperKOOL
Size: 20 1/2w x 14 1/2d x 15 1/2h (in)
Weight: 121 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 18
Running Amps:
- Evaporator: 1
- Condensing Unit: 9
Capacity: 2000 Cu Ft*
Material: Metal
Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Click on one of the following links for more information:
Owners Manual
Installation Checklist
Spec Sheet
Noise level:
- Evaporator: 54 Decibels
- Condensing Unit: 65 Decibels
Dimensions (in):

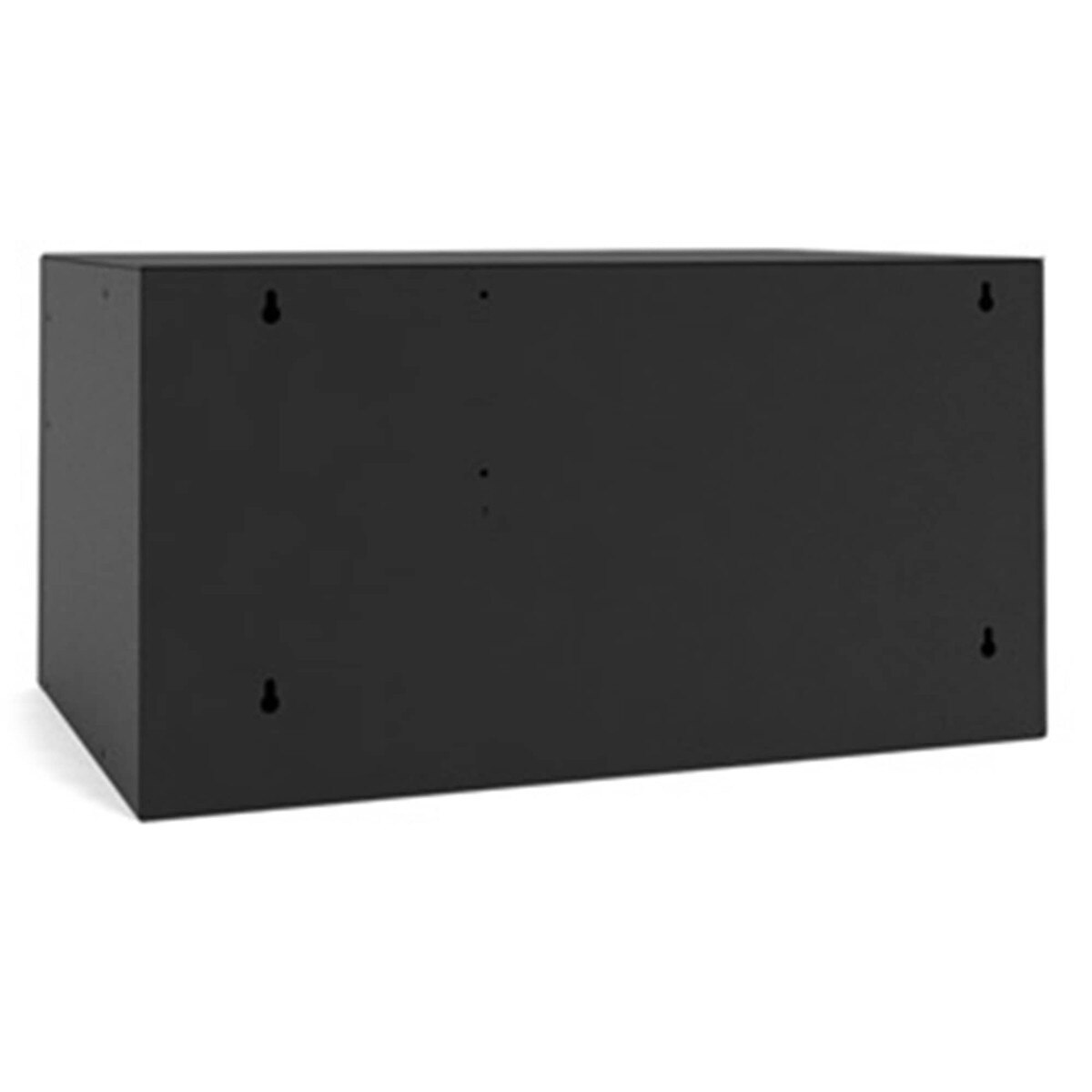

- Evaporator: 20.5w x 14.5d x 15.5h

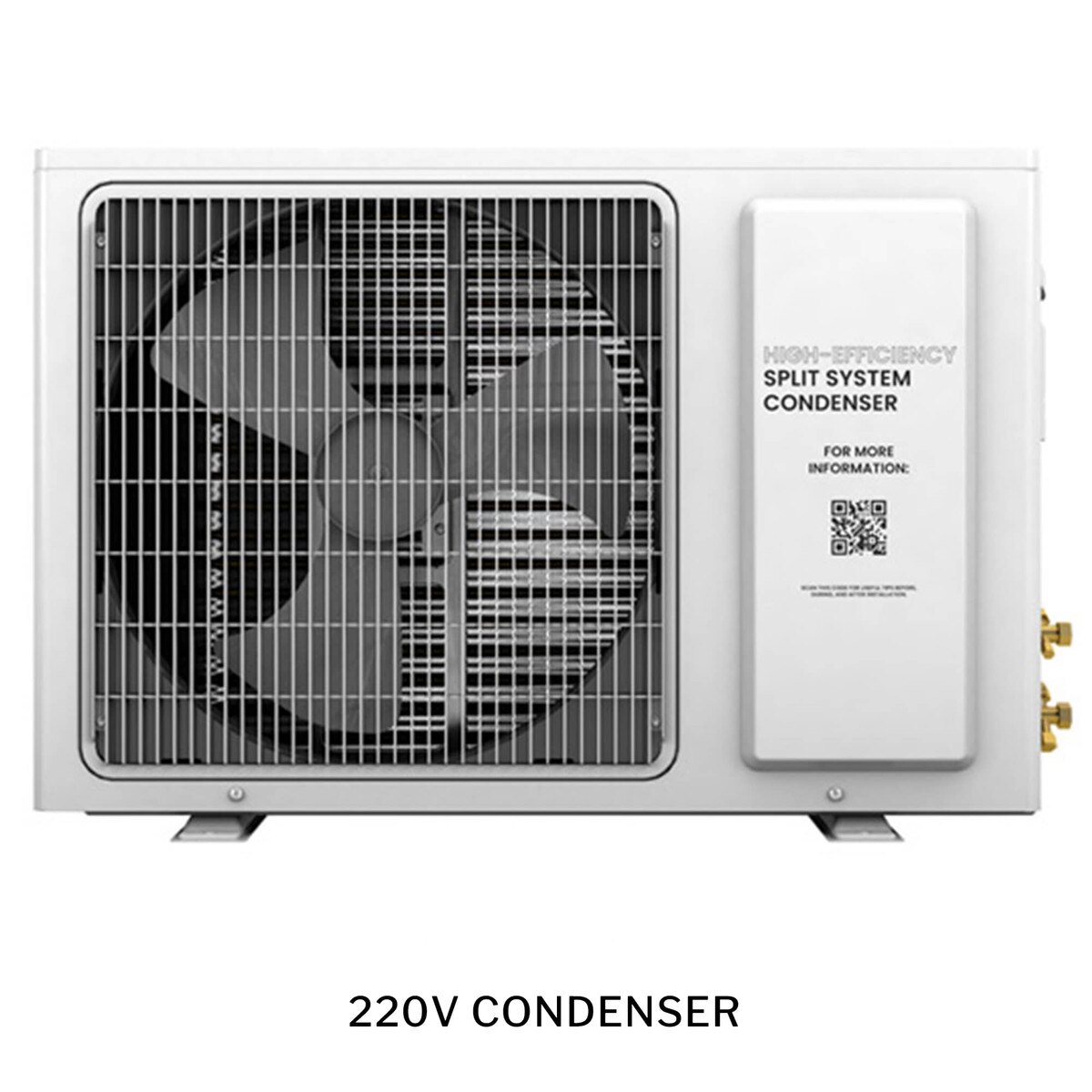

- Condensing Unit: 12w x 18d x 13.5h
Temp Delta: 55 degrees F
Capacity: 6006 BTUH, for wine cellars up to 2000 Cu Ft*
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
