WhisperKOOL Platinum Split 4000 Cooling Unit #7334

SKU: 7334 WKool Platinum Split 4000
Made to Order

Usually Ships w/i 2-3 Days

Shipping Information:

Curbside - $350

WhisperKOOL Platinum Split 4000 Cooling Unit (P/N Platinum Split 4000). WhisperKOOL's Platinum Split 4000 system cools up to 1000 cubic feet with the compressor located in a remote location (up to 100 line feet away), in a choice of configurations as follows:

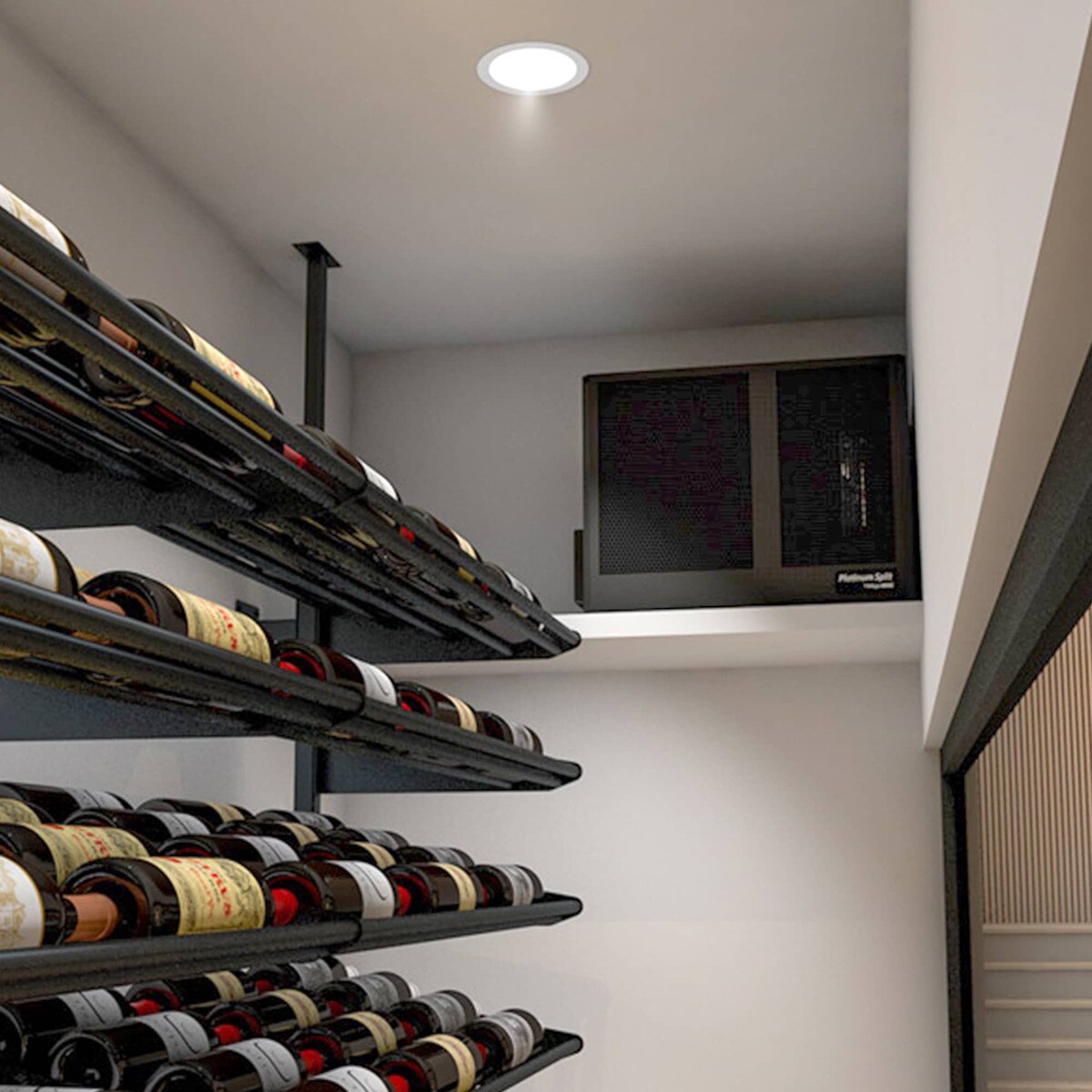

  1. Evaporator wall-mounted inside the cellar,

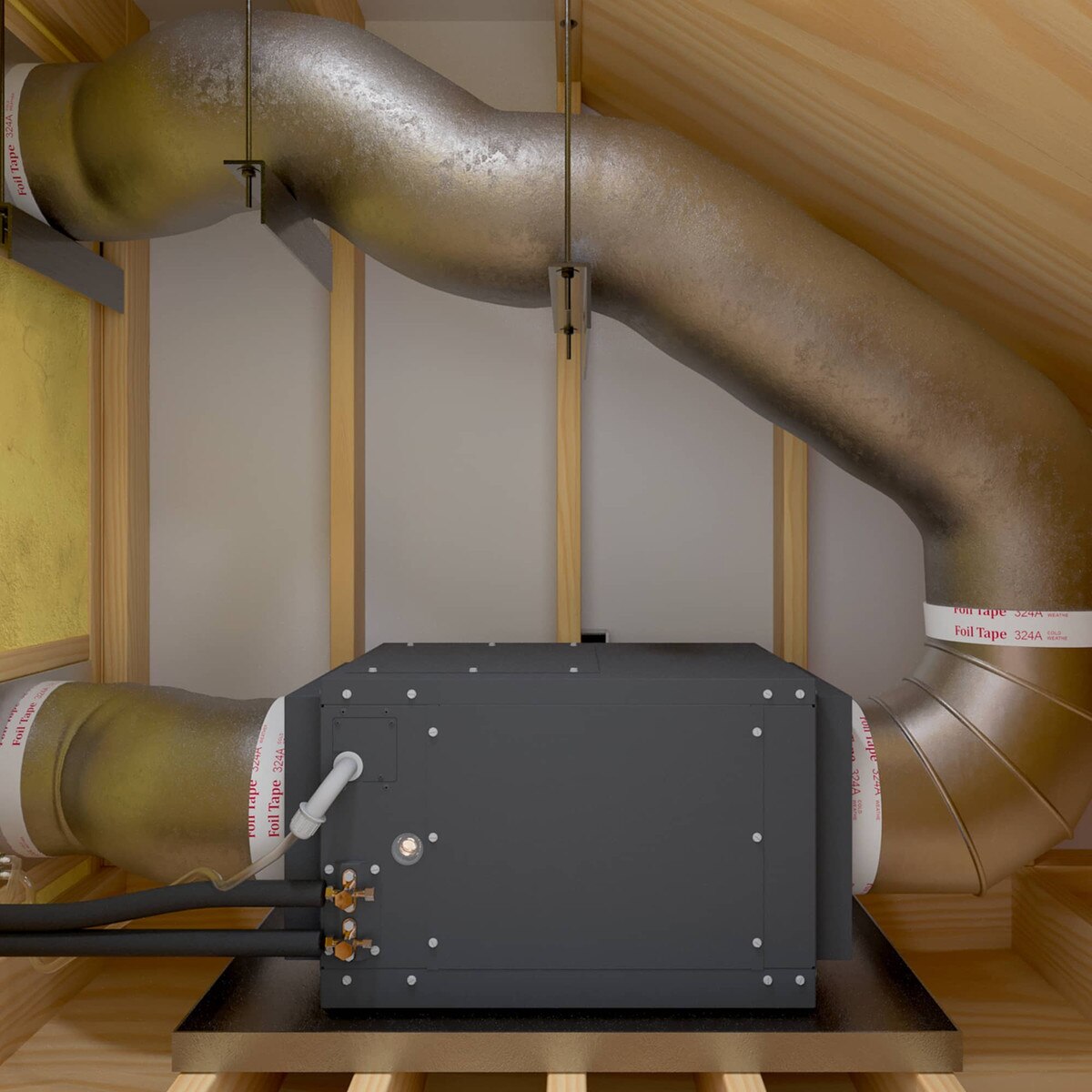

  2. Evaporator ducted from a remote location
  3. Evaporator ducted from a remote location, and a water-cooled condensing unit

    The Platinum Split 4000 is equipped with WhisperKool's Platinum Series controller utilizing Advanced System Protection Technology. Features include:

    • Strategically placed monitoring probes, which ensure efficient performance and long cooling unit life
    • Easy to operate
    • Adjustable humidity control
    • Energy saving modes
    • Quick chill mode
    • Anti-frost function.
    • Can handle up to 55 degree temperature differential

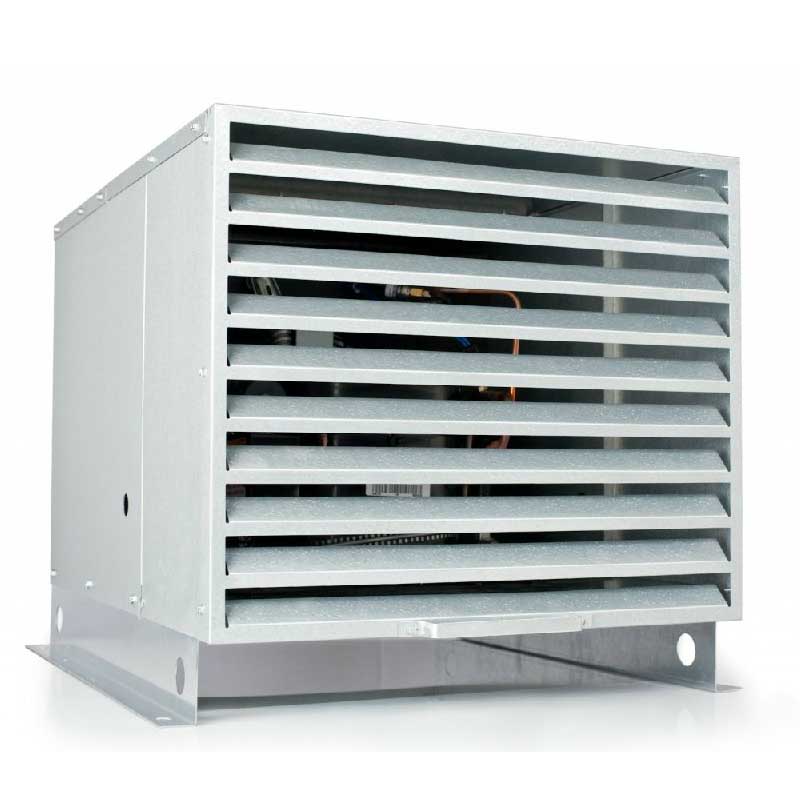

    • Optional outdoor hood (available at additional cost)

    PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

    4715 BTUH.

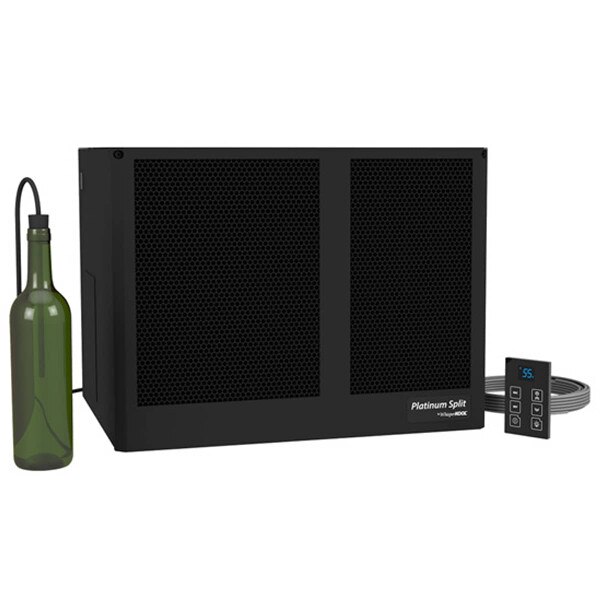

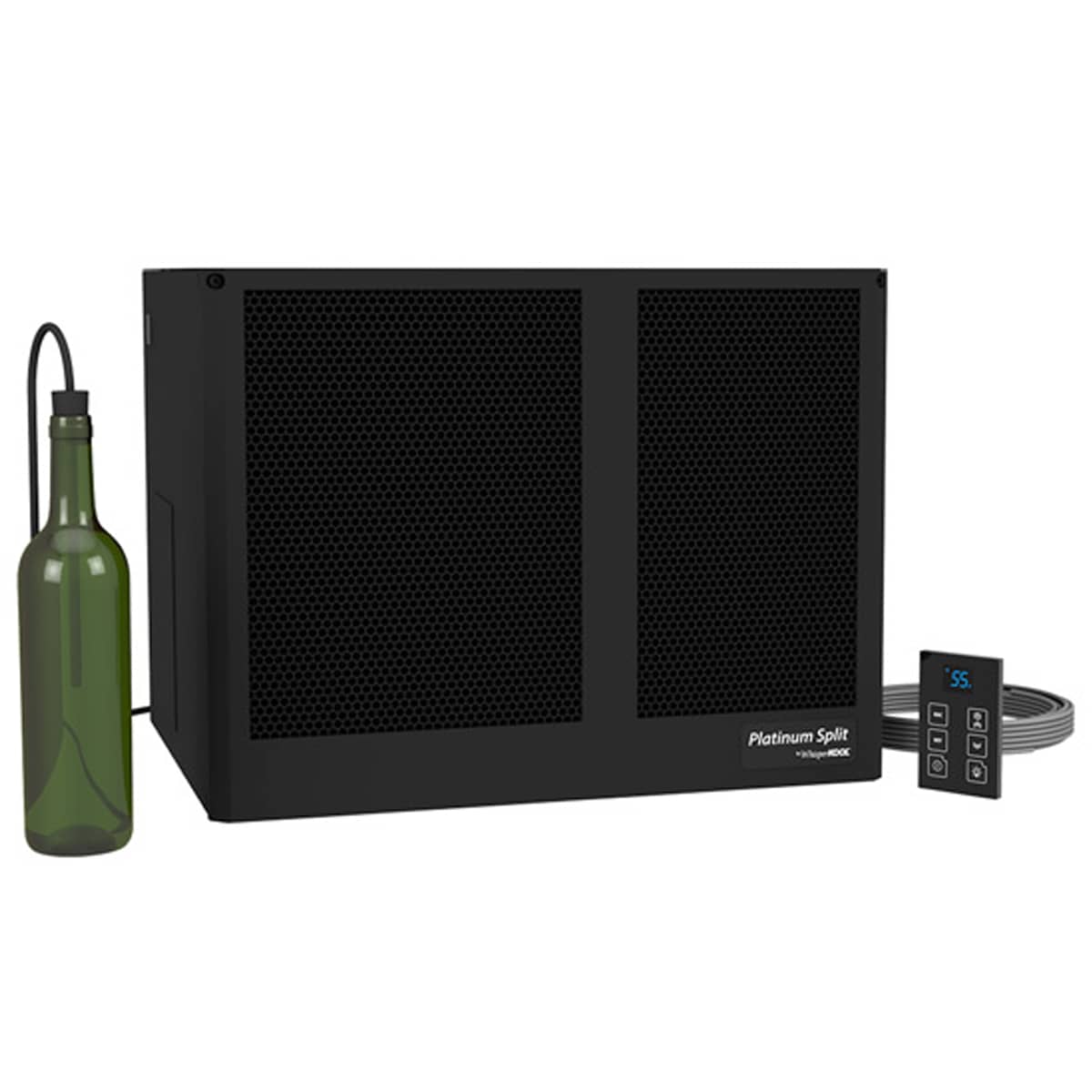

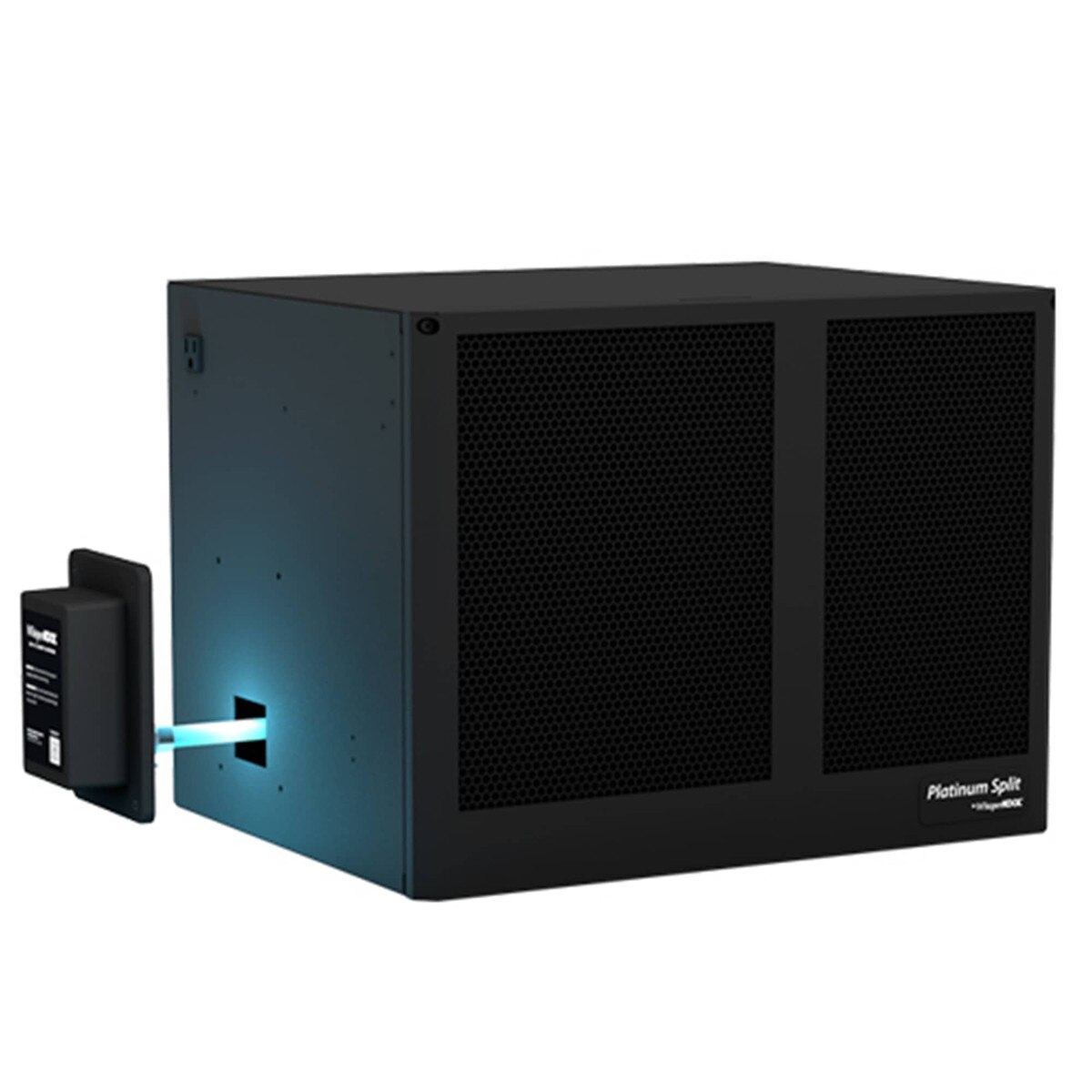

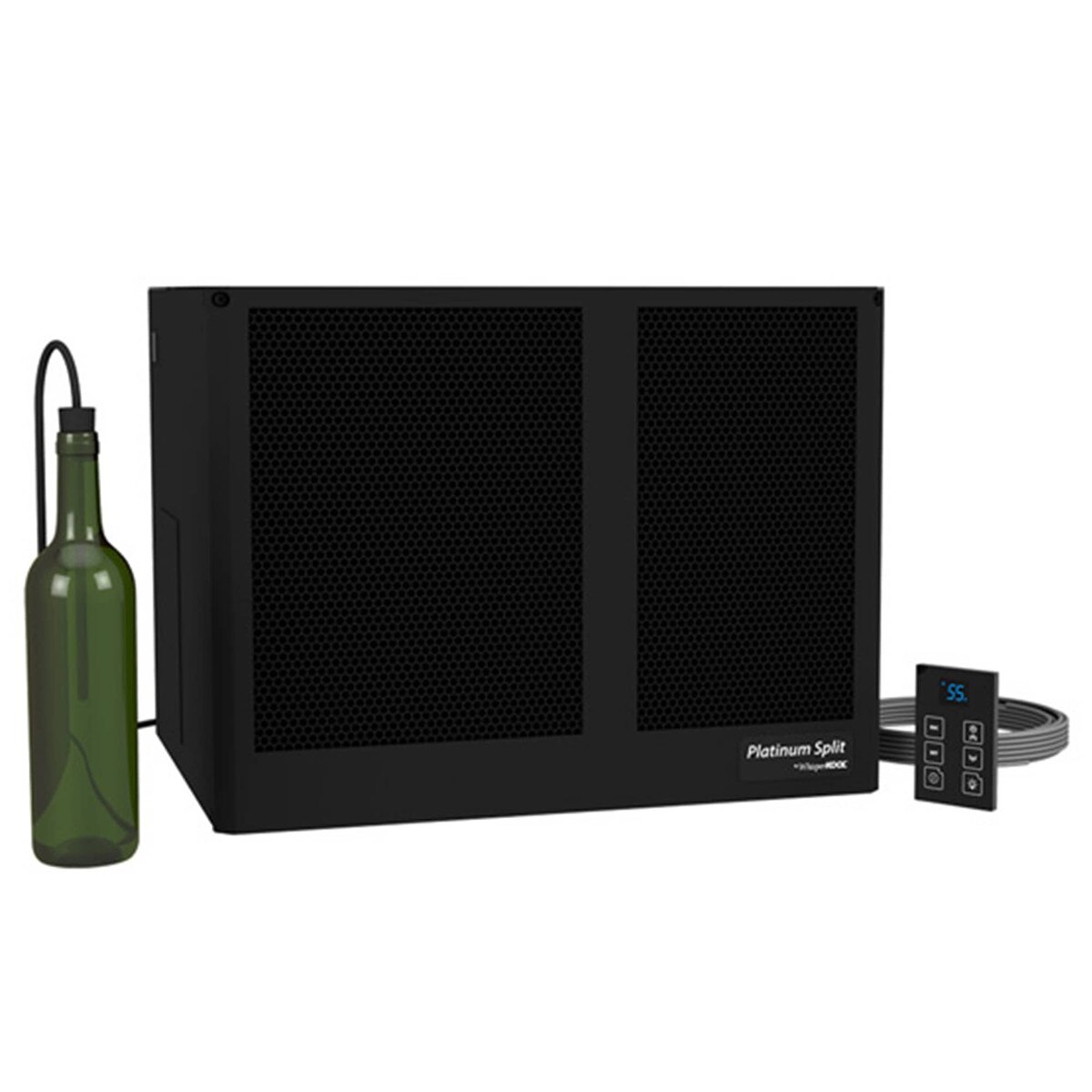

    The Platinum Split sets the new standard for in-cellar split systems. This completely new design improves airflow efficiency 25% and operates 10% quieter, all while being 35% smaller than our previous split system evaporator. The system continues to use our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55°F.

    • Ultra-quiet and efficient operation
    • Advanced electronic control system
    • Liquid bottle probe
    • Humidity control
    • Energy saving mode
    • Alarm capabilities
    • Flexible installation
    • 55F temperature differential

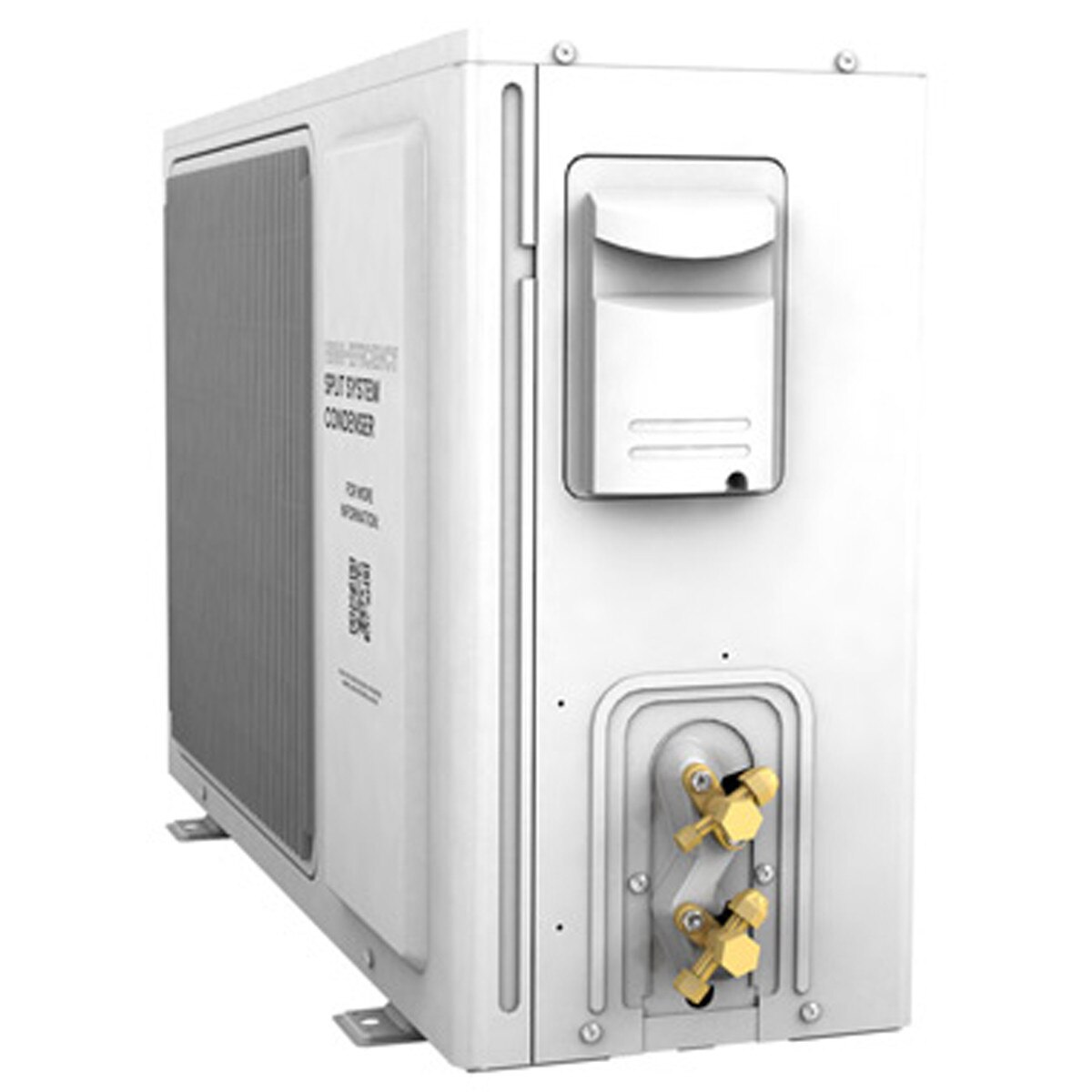

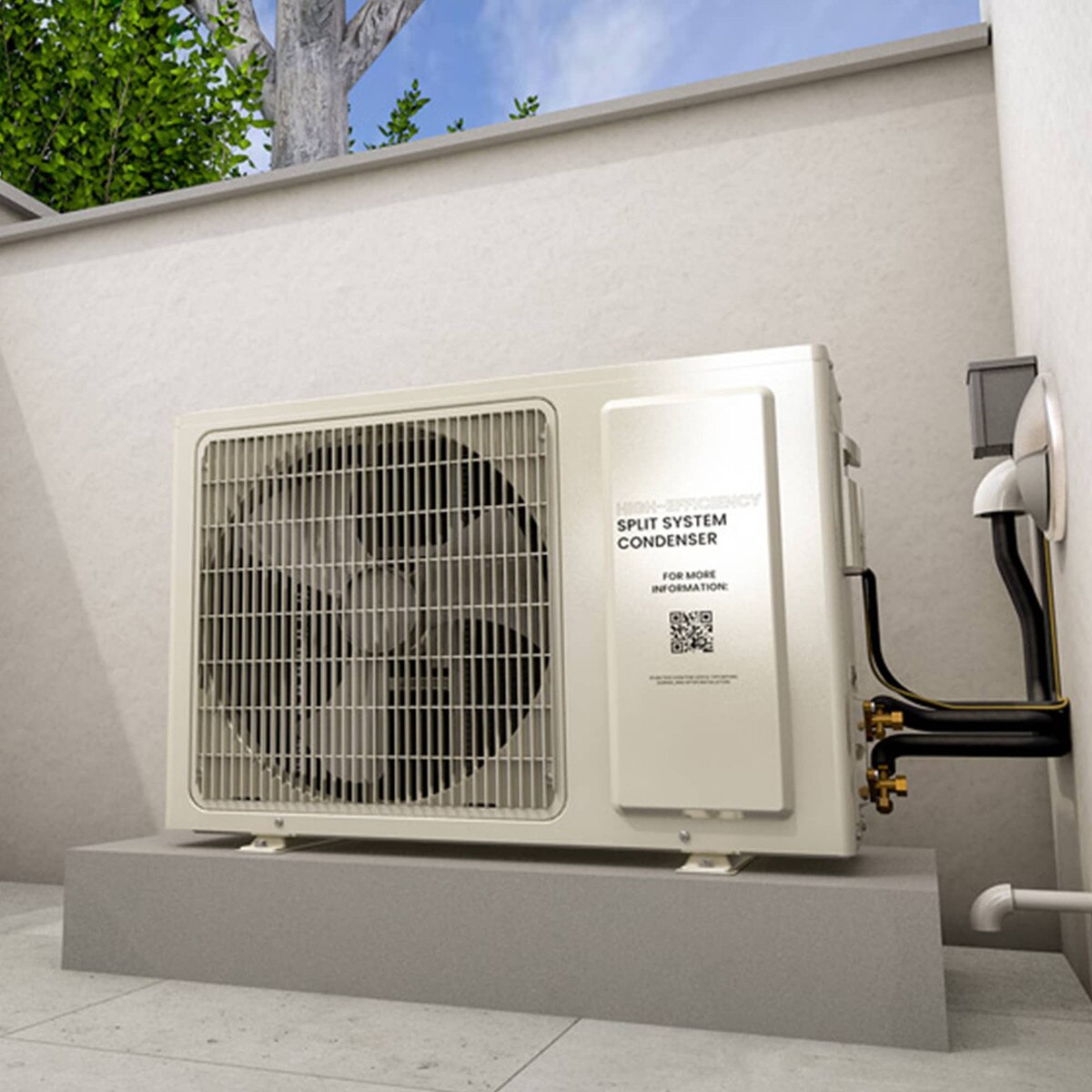

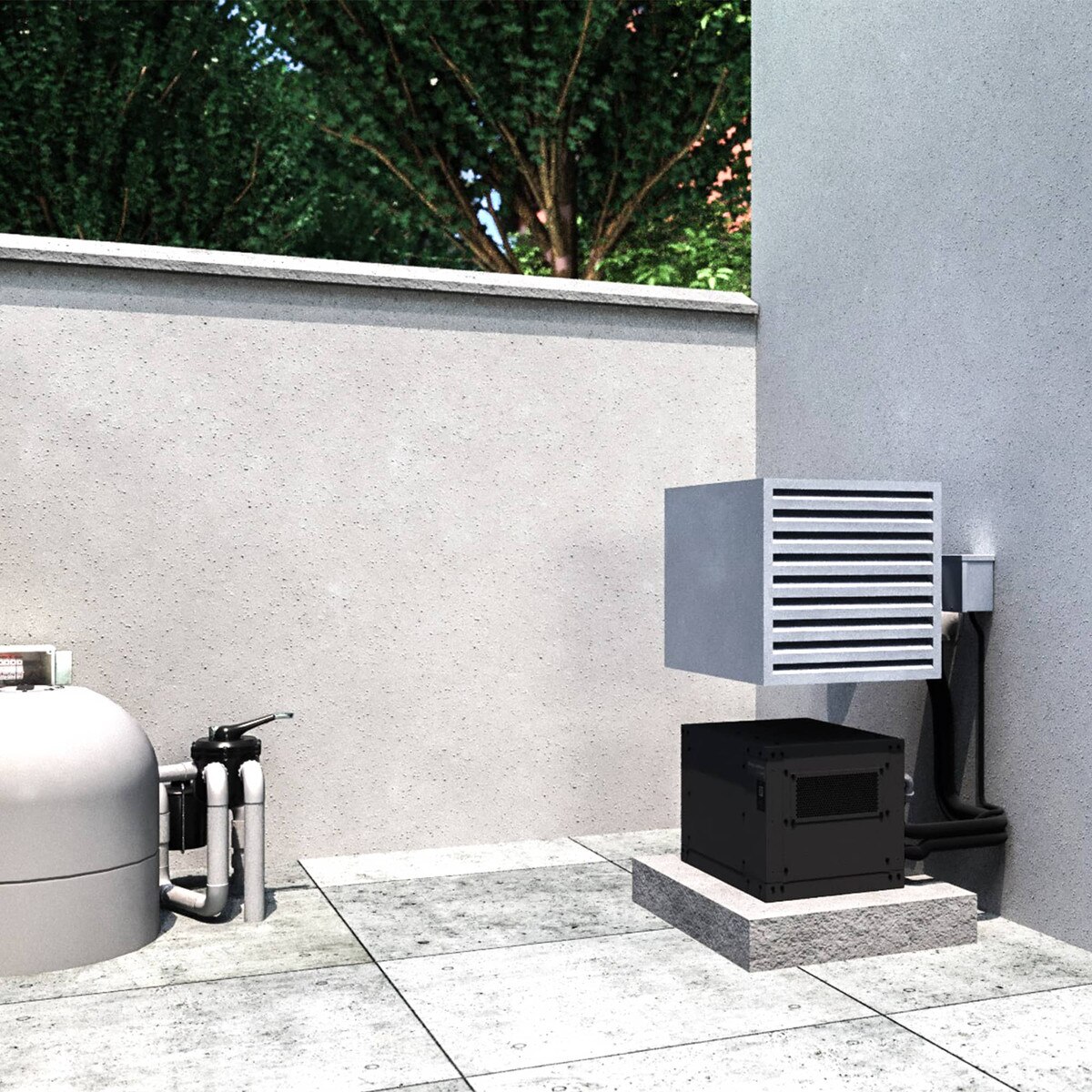

    • Condensing unit can be placed outdoors w/optional housing

    Brand: WhisperKOOL

    Size: 20 1/2w x 14 1/2d x 15 1/2h (in)

    Weight: 121 lbs

    Starting Amps
    - Evaporator: 2
    - Condensing Unit: 18

    Running Amps:
    - Evaporator: 1
    - Condensing Unit: 9

    Capacity: 1000 Cu Ft

    Material: Metal

    WhisperKOOL Warranty
    2 Years - Parts and Labor
    5 Years - Compressor

    Click on one of the following links for more information:
    Owners Manual
    Tech Manual
    Installation Guide
    Spec Sheet

    Noise level:
    - Evaporator: 54 Decibels
    - Condensing Unit: 65 Decibels

    Dimensions (in):
    - Evaporator: 20.5w x 14.5d x 15.5h
    - Condensing Unit: 12w x 18d x 13.5h

    Temp Delta: 55 degrees F
    Capacity: 4715 BTUH, for wine cellars up to 2000 Cu Ft
