WhisperKOOL Platinum Mini Split Cooling Unit #3562

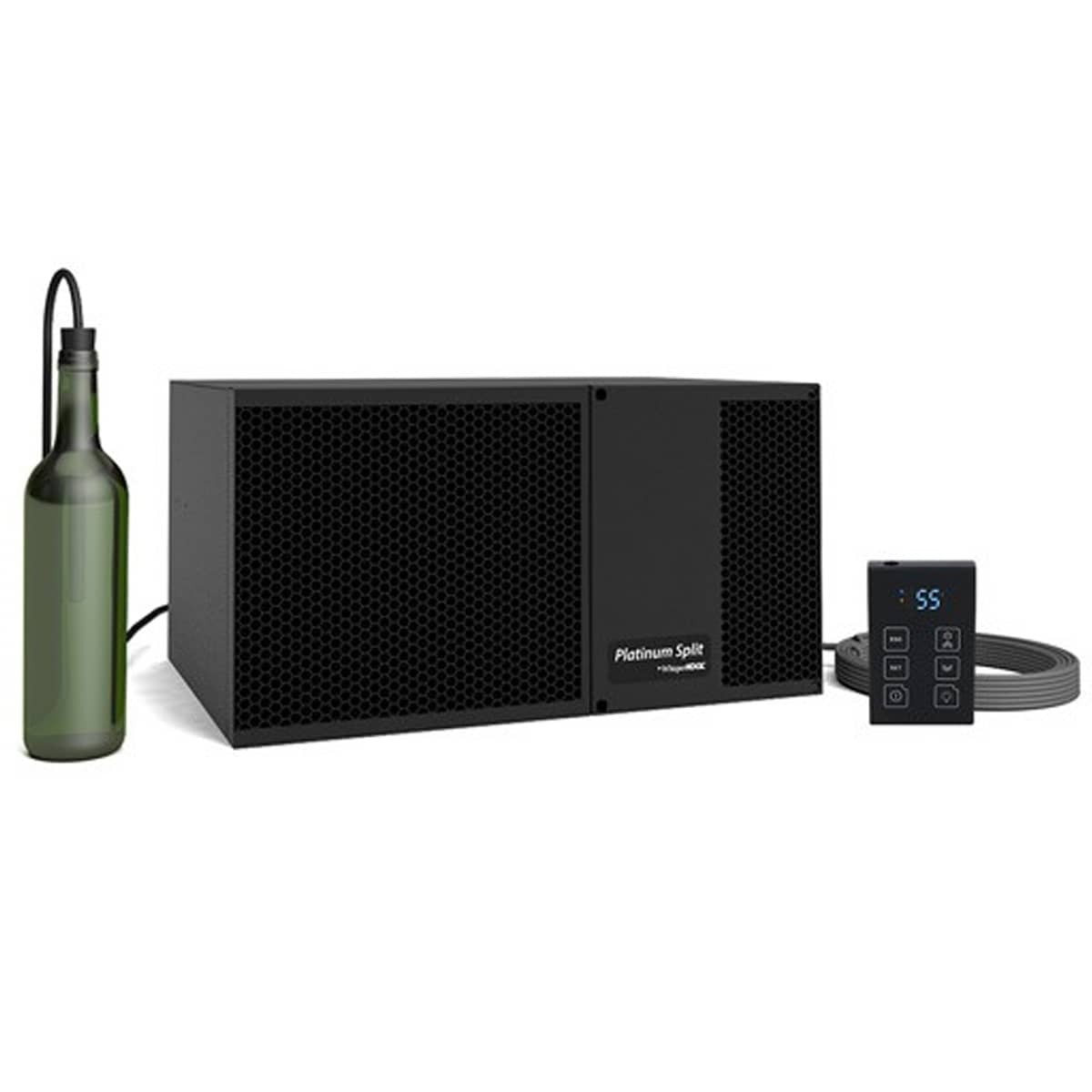

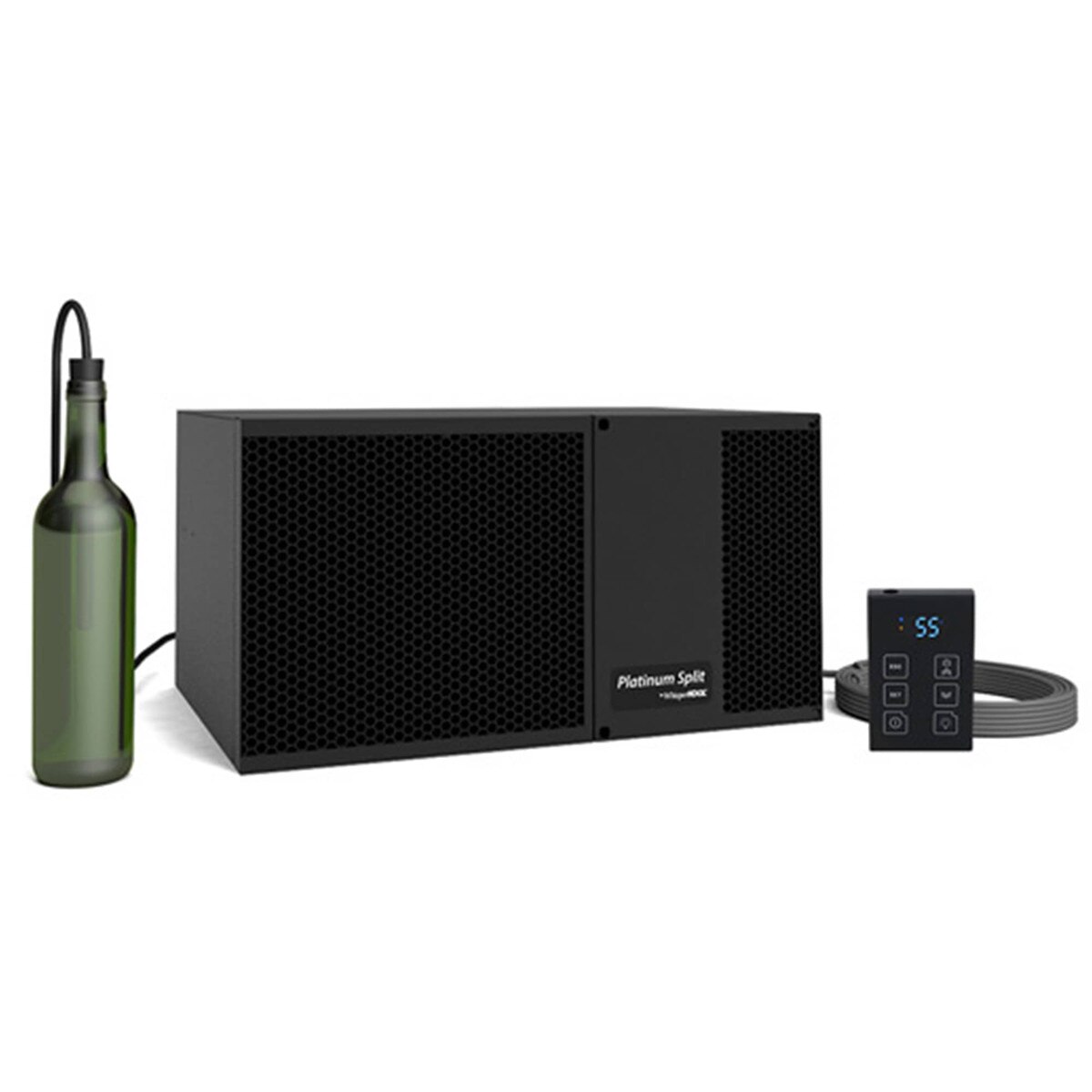

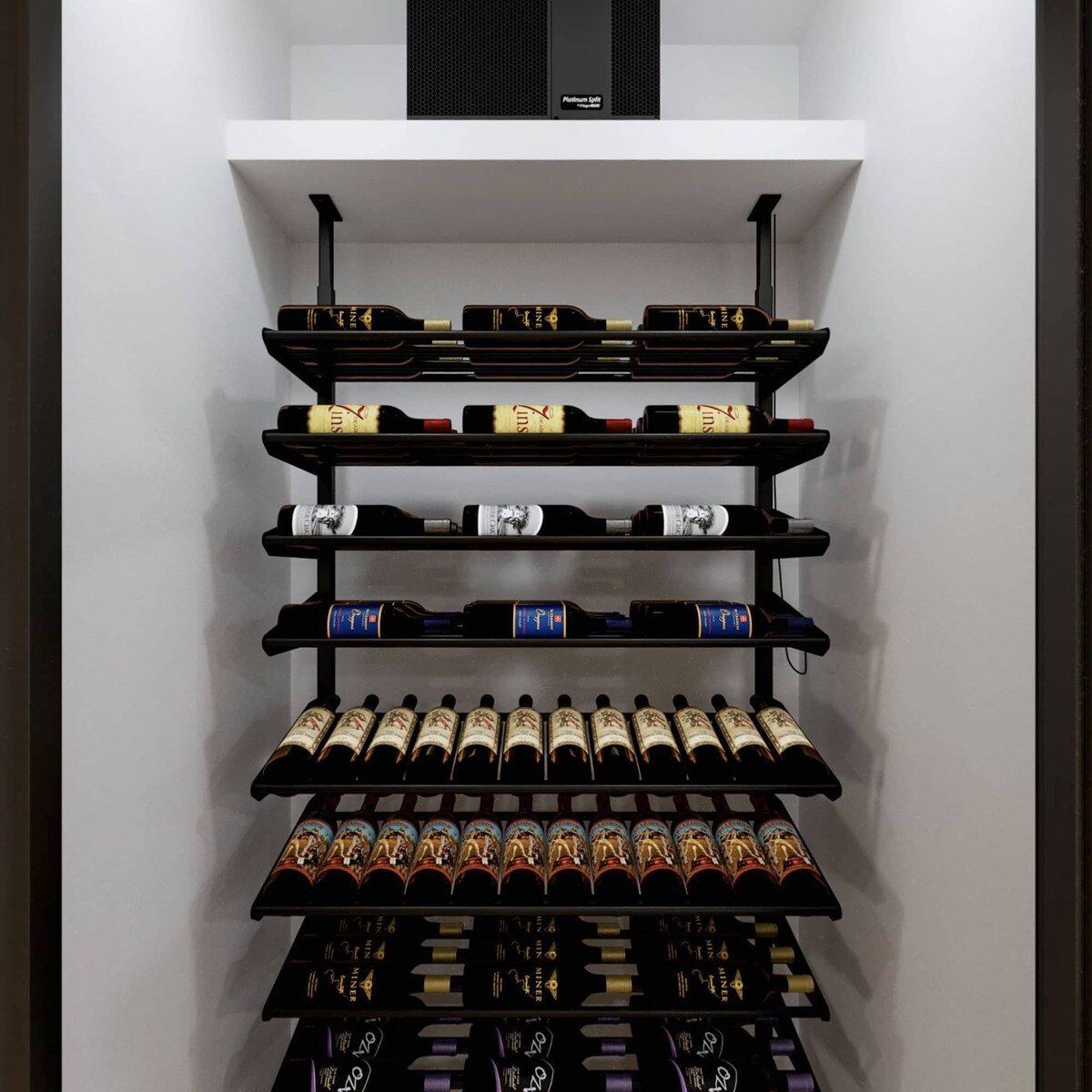

WhisperKOOL Platinum Mini Split Wine Cooling Unit (P/N Platinum Mini Split). WhisperKOOL's Mini Split system cools properly constructed wine cellars up to 500 cubic feet with the compressor located in a remote location and the evaporator (cold side) mounted inside the cellar.
The Mini Split is equipped with WhisperKool's Platinum Series controller utilizing Advanced System Protection Technology. Features include:
- Strategically placed monitoring probes, which ensure efficient performance and long cooling unit life.
- Easy to operate
- Adjustable humidity control
- Energy saving modes
- Quick chill mode
- Anti-frost function.
- Can handle up to 55 degree temperature differential

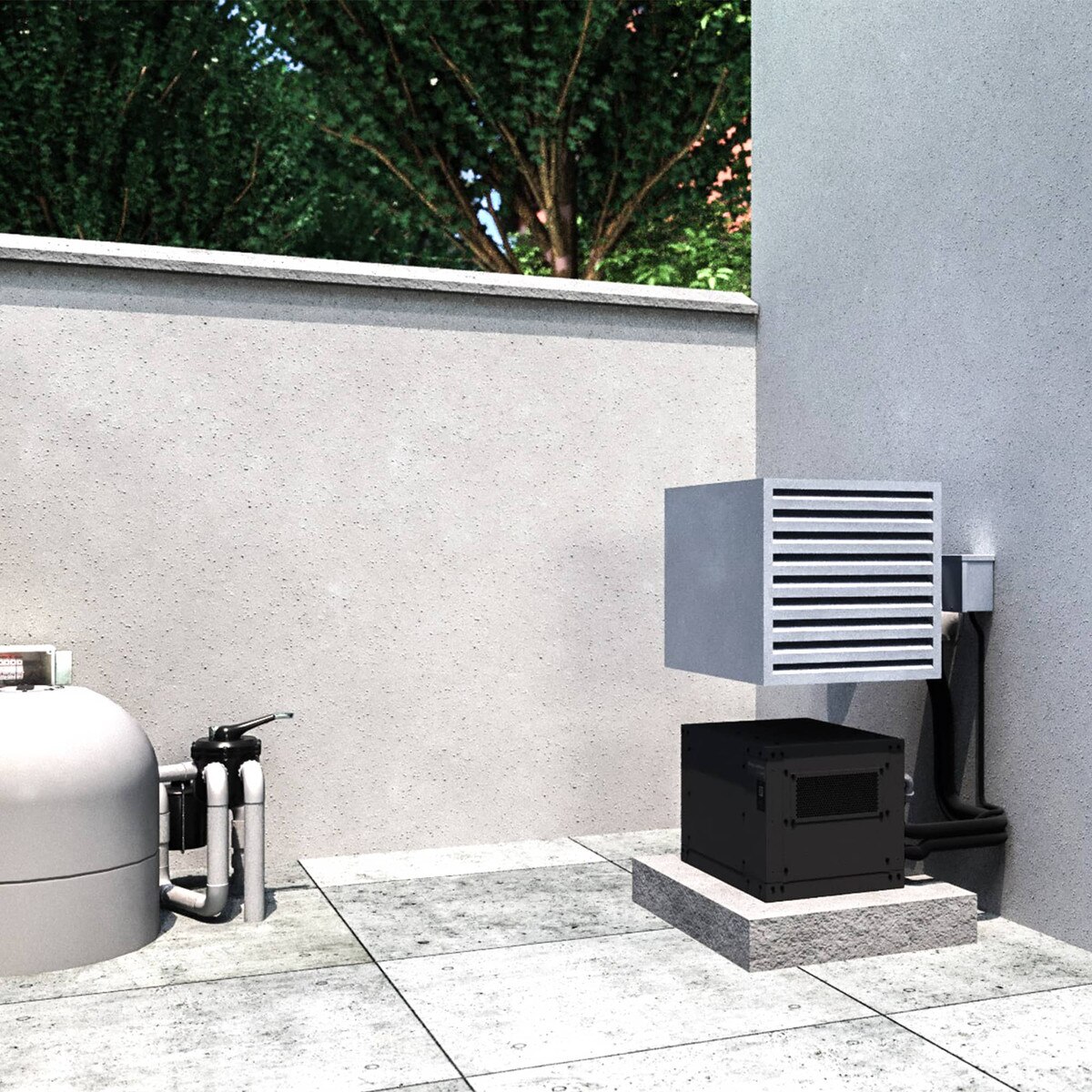

- Optional outdoor hood (available at additional cost)

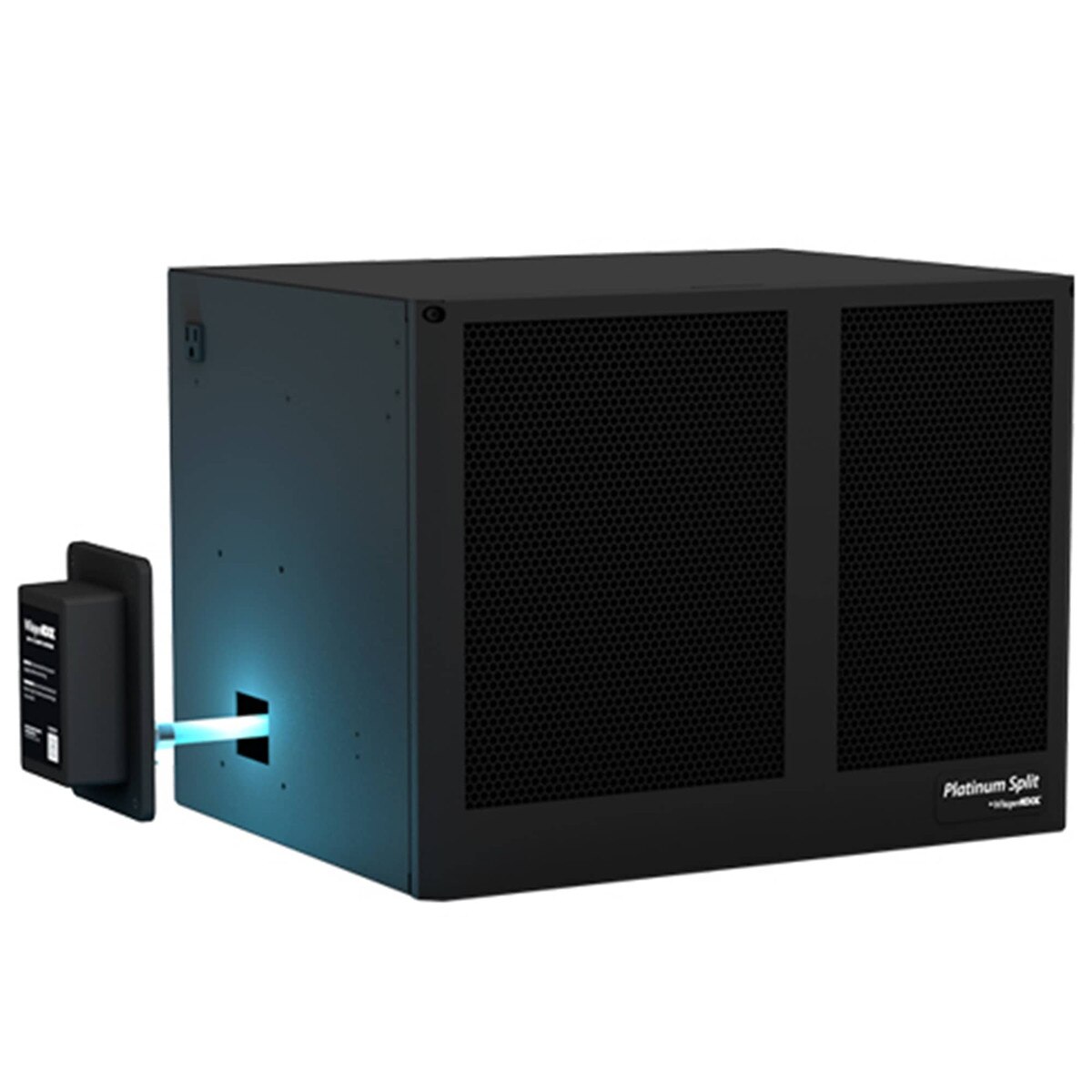

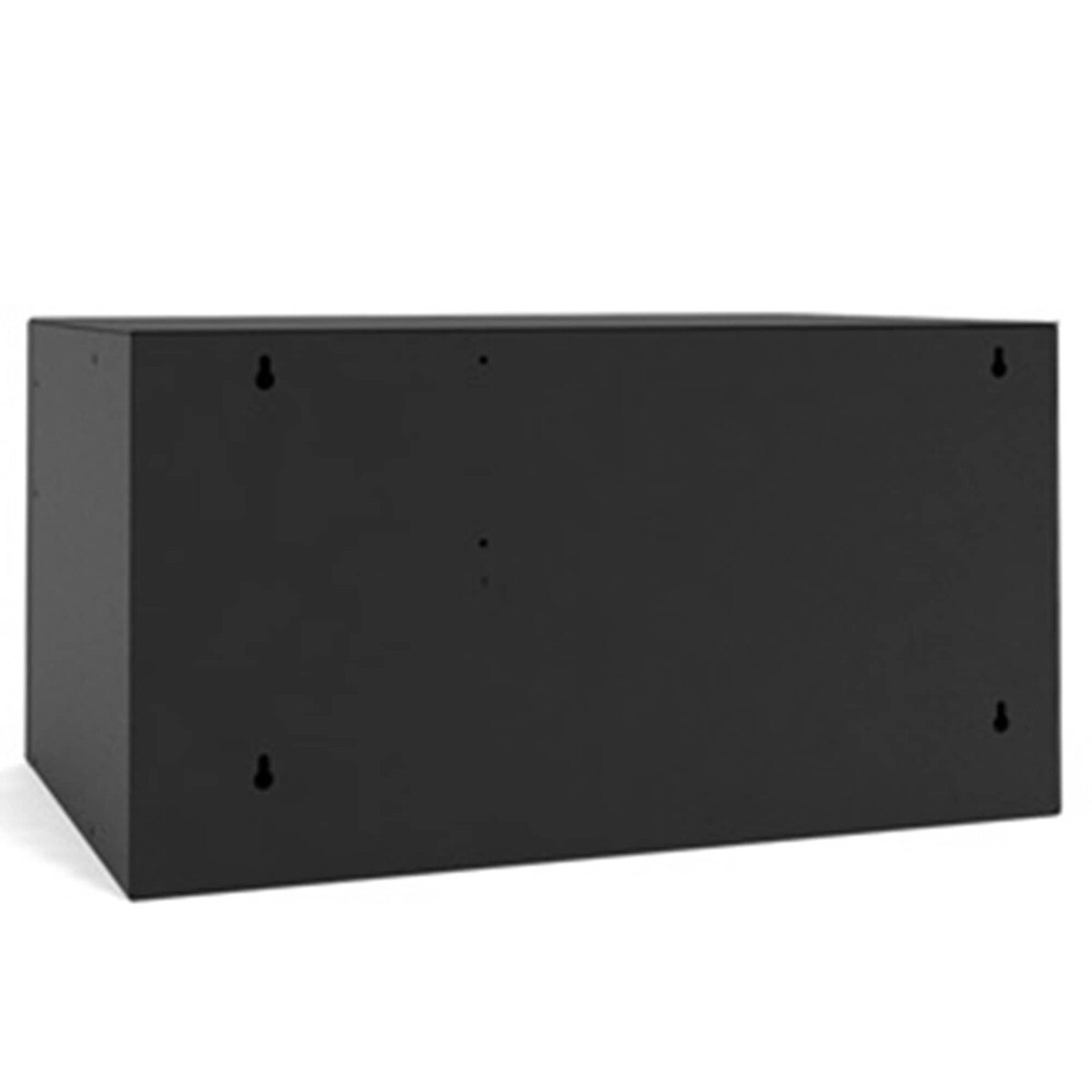

This model is designed for the evaporator to be wall-mounted.
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
1620 BTUH.
WhisperKOOL has a solution to the most stubborn of small cellar cooling roadblocks: the Platinum Mini-Split, which offers a compact size paired with powerful efficiency.
- Ultra-quiet and efficient operation
- Advanced electronic control system
- Liquid bottle probe
- Humidity control
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55F temperature differential

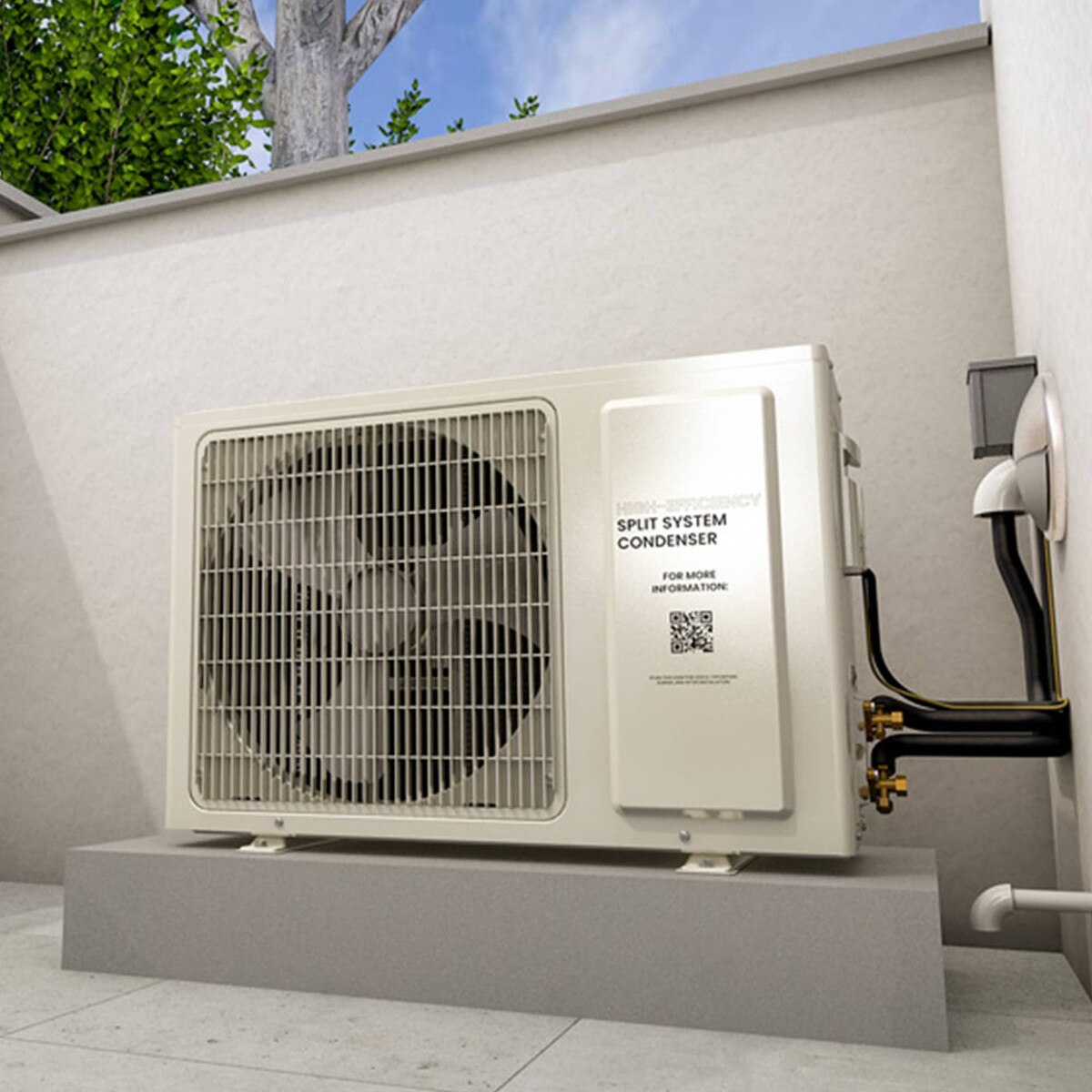

- Condensing unit can be placed outdoors w/optional housing
Brand: WhisperKOOL
Size: 20w x 11 1/4d x 10 1/4h (in)
Weight: 51 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 11
Running Amps:
- Evaporator: 1
- Condensing Unit: 4
Capacity: 500 Cu Ft
Material: Metal
Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Click on one of the following links for more information:
Owners Manual
Technical Manual
Installation Guide
Spec Sheet
Noise level:
- Evaporator: 51 Decibels
- Condensing Unit: 65 Decibels
Dimensions (in):
- Evaporator: 20w x 11.25d x 10.25h

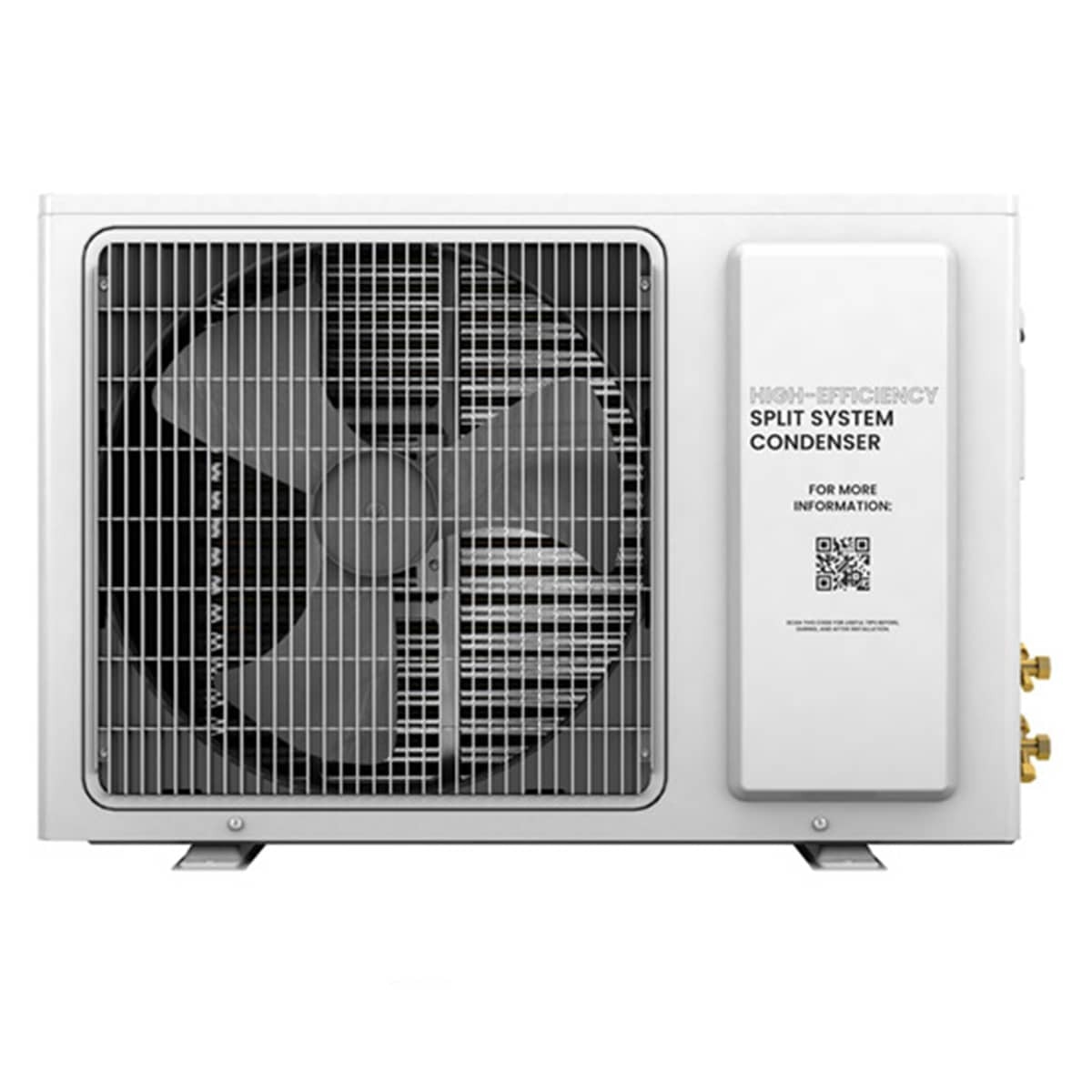

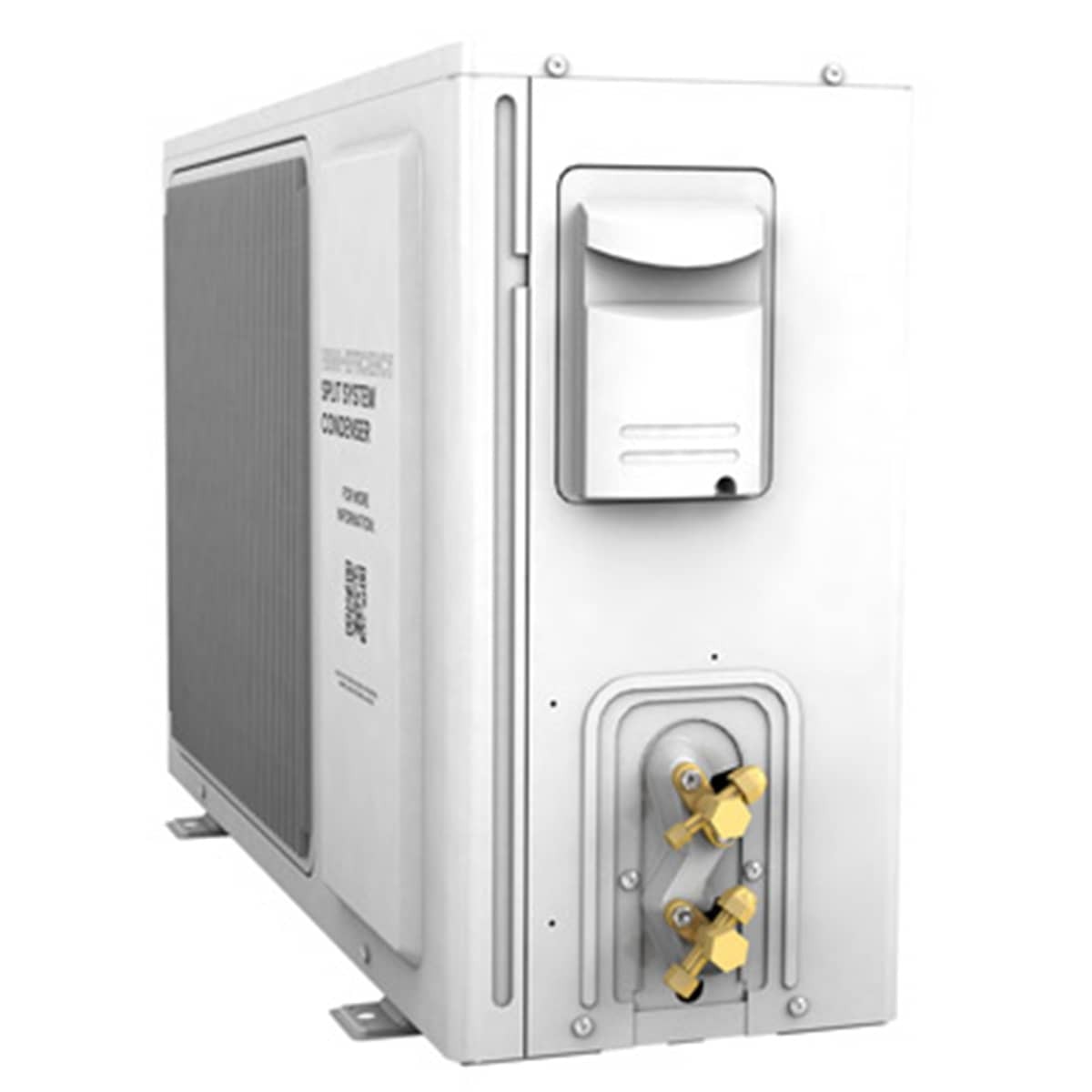

-Condensing Unit: 14w x 10d x 10h
Temp Delta: 55 degrees F
Capacity: 1620 BTUH, for wine cellars up to 500 Cu Ft
