WhisperKOOL Platinum Split 8000 Ducted #7510
6006 BTUH.

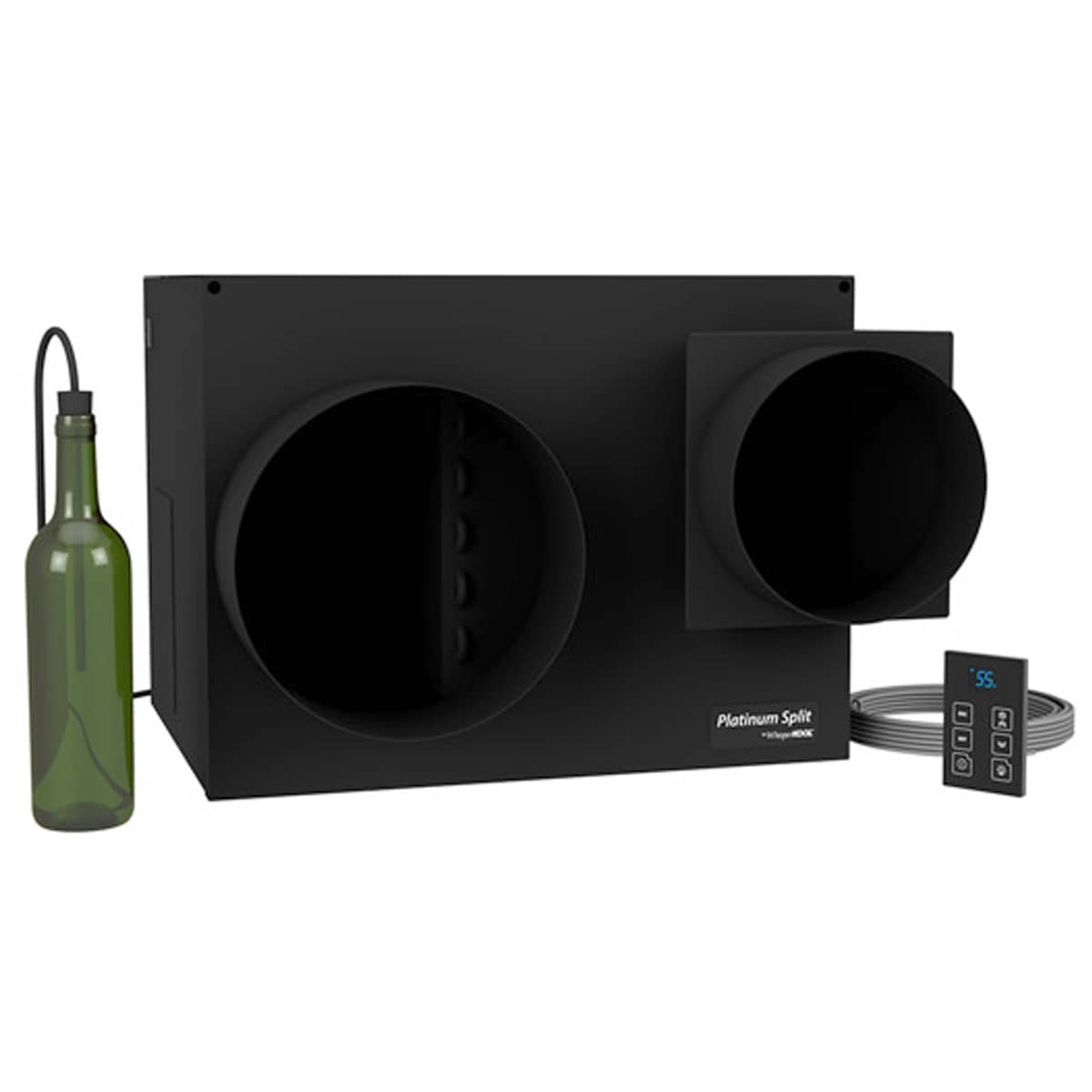

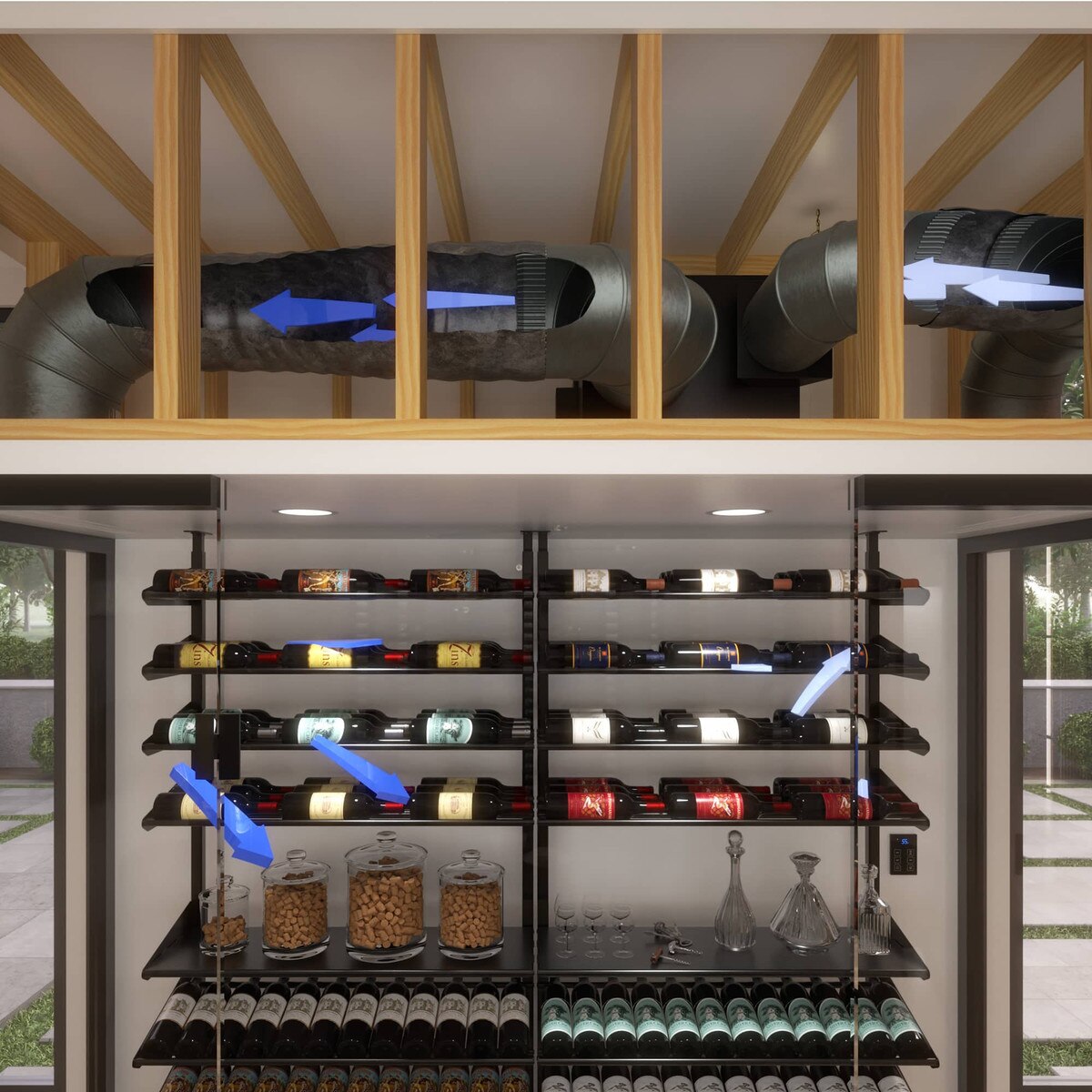

The Fully Ducted Platinum Split is WhisperKool's newest model to the split line-up. Ducting a Split creates a virtually silent cellar environment and allows for maximum installation options. The system uses our liquid bottle probe for monitoring the actual temperature of the wine to ensure the wine is being kept at 55°F. The evaporator portion may be installed up to 25 duct feet from the cellar.
- Ultra-quiet and efficient operation
- Advanced electronic control system

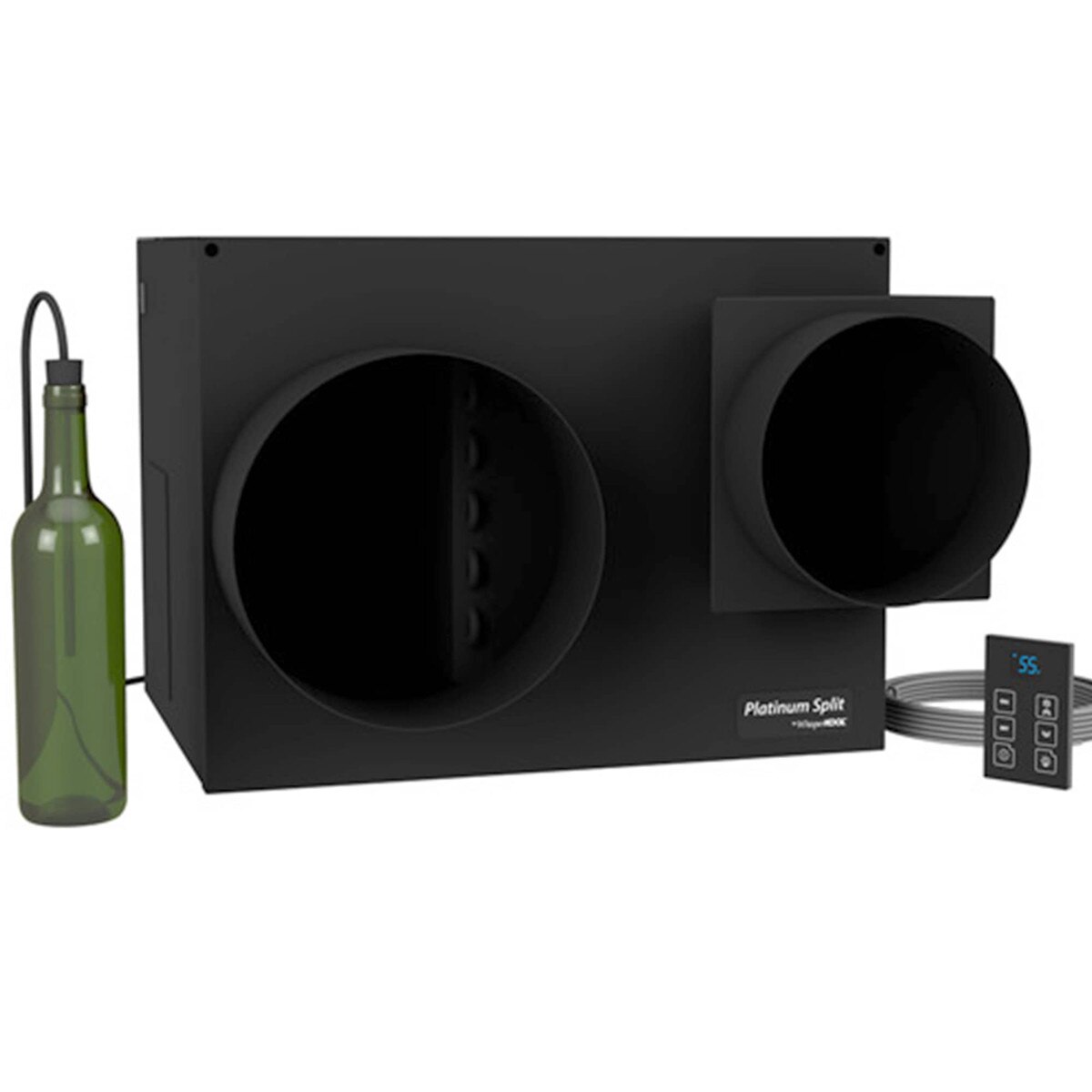

- Liquid bottle probe
- Humidity control
- Energy saving mode
- Alarm capabilities
- Flexible installation
- 55F temperature differential

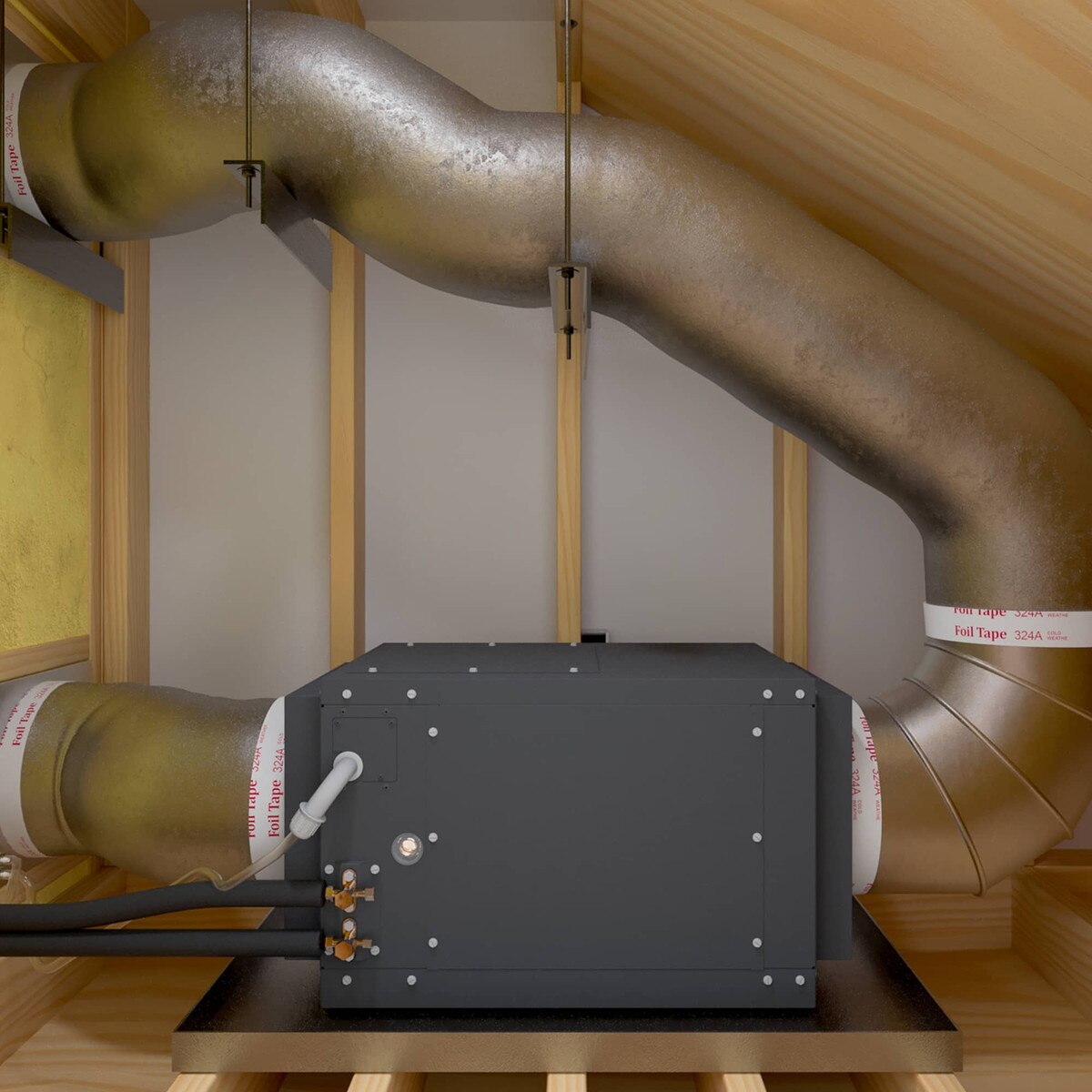

- Evaporator can be located remotely from the cellar

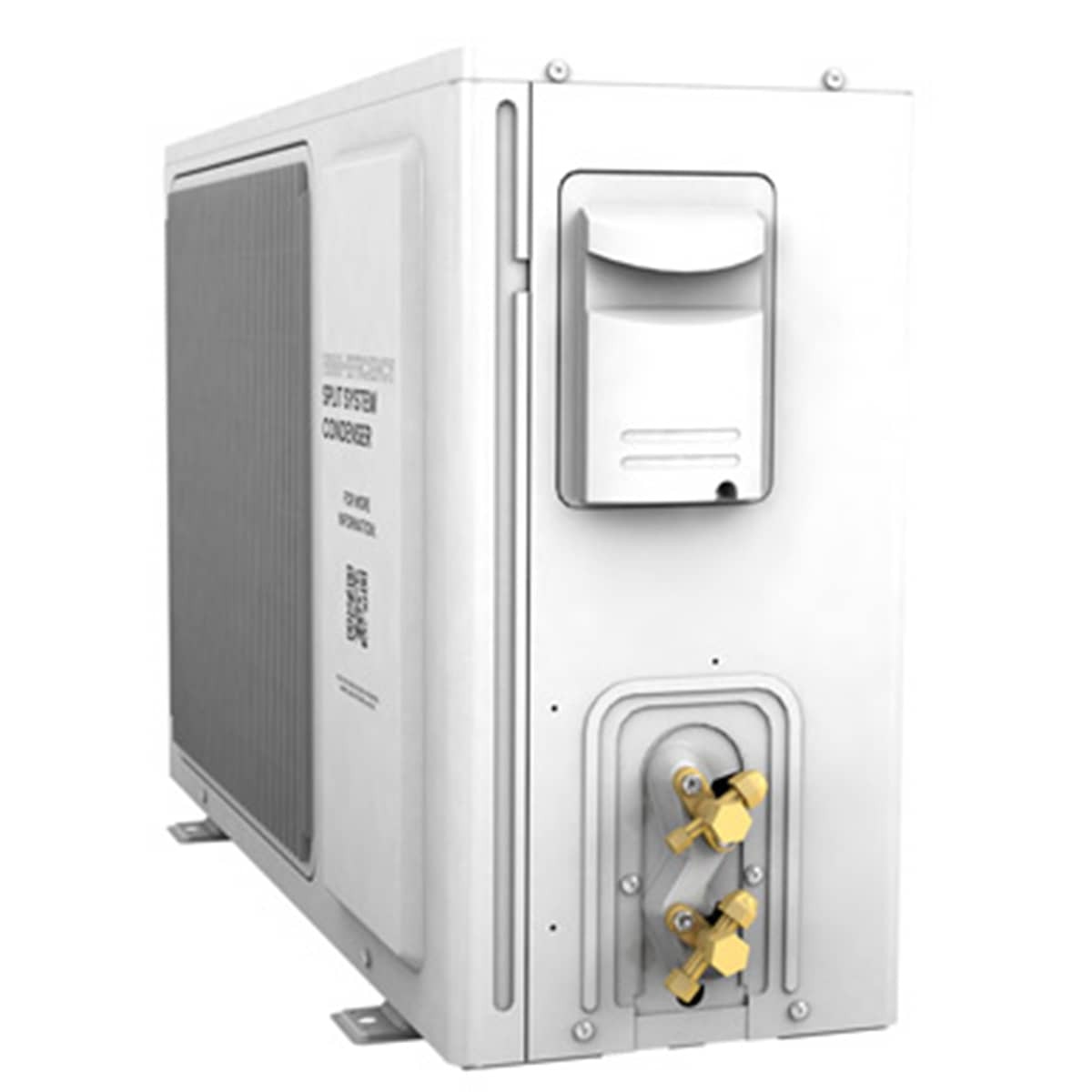

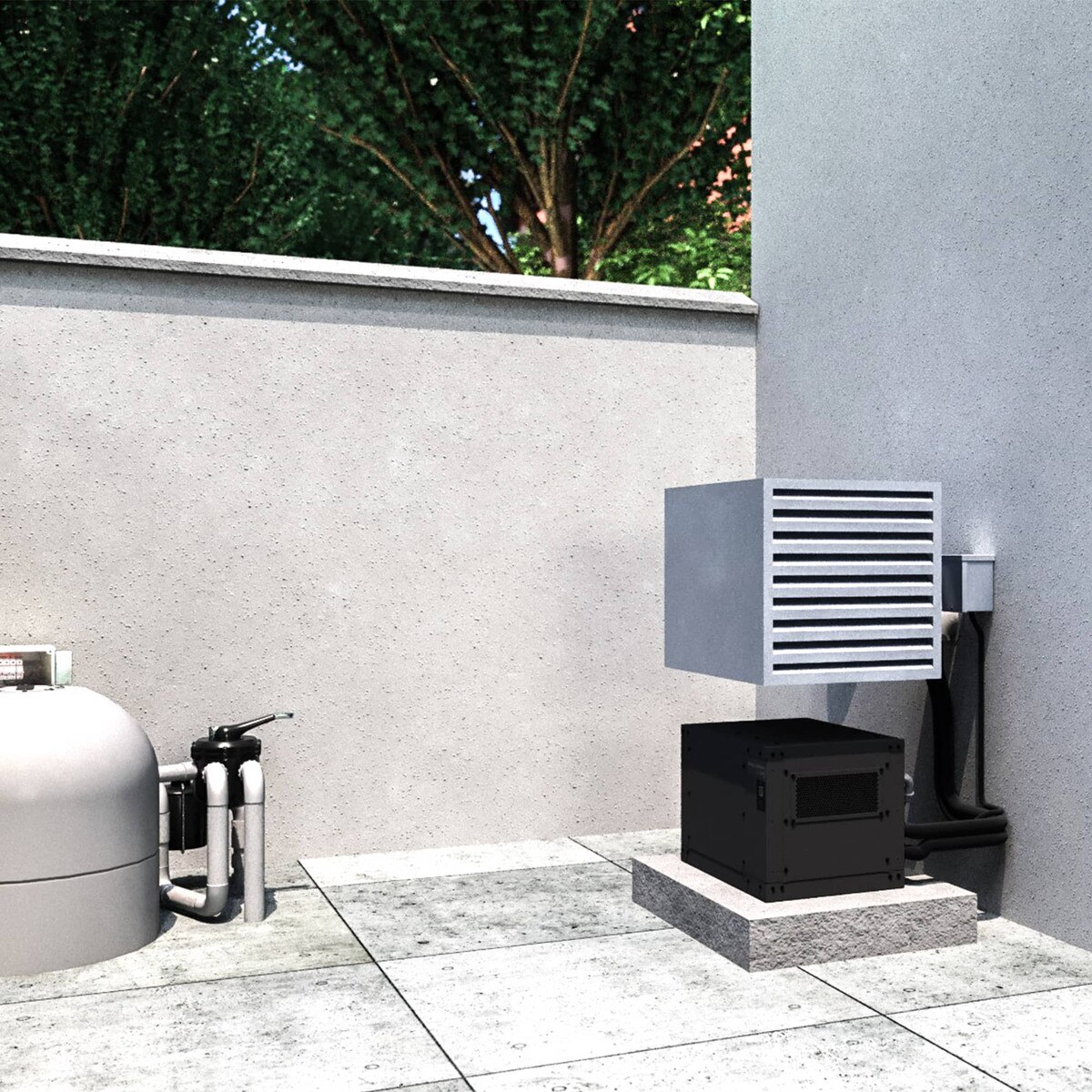

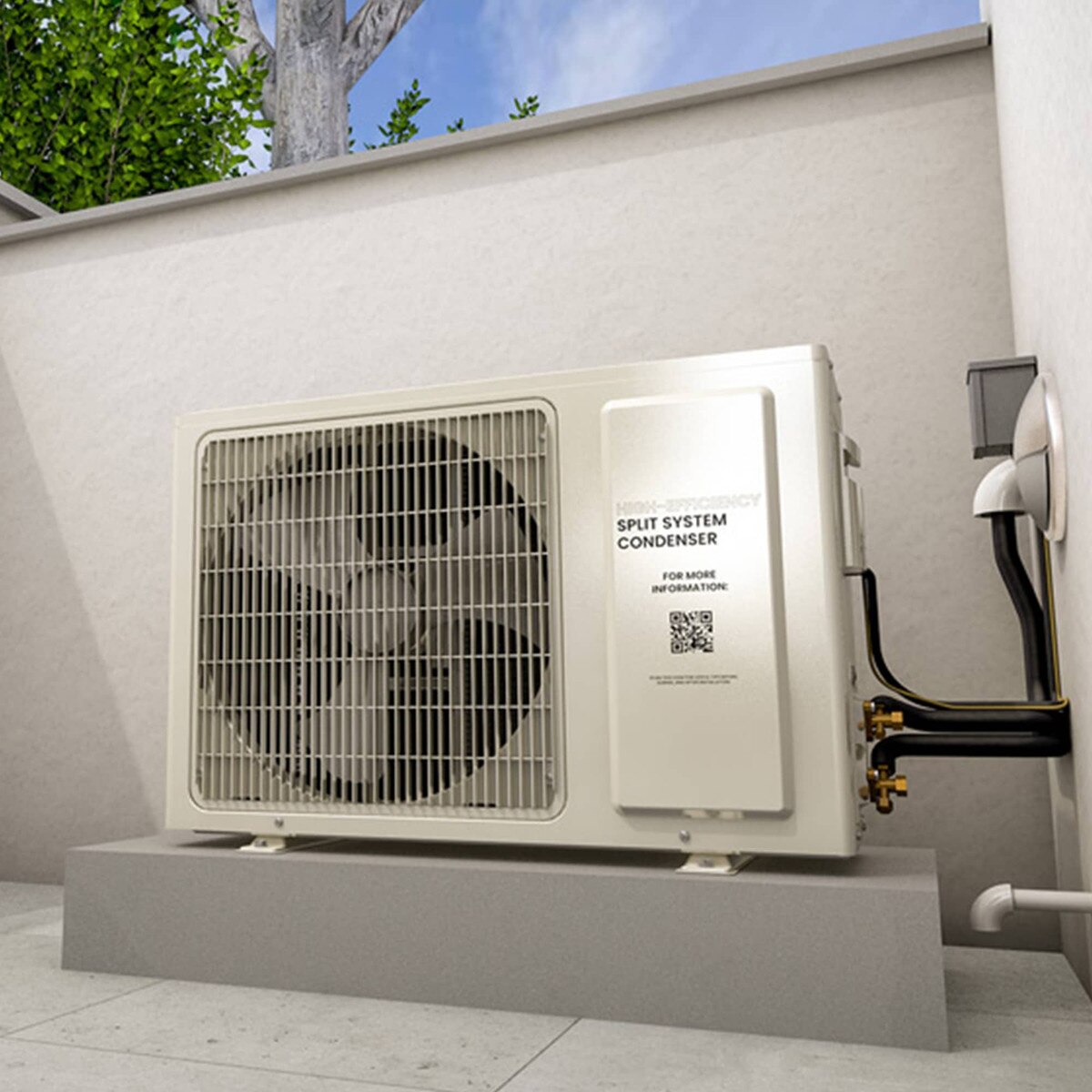

- Condensing unit can be placed indoors or outdoors

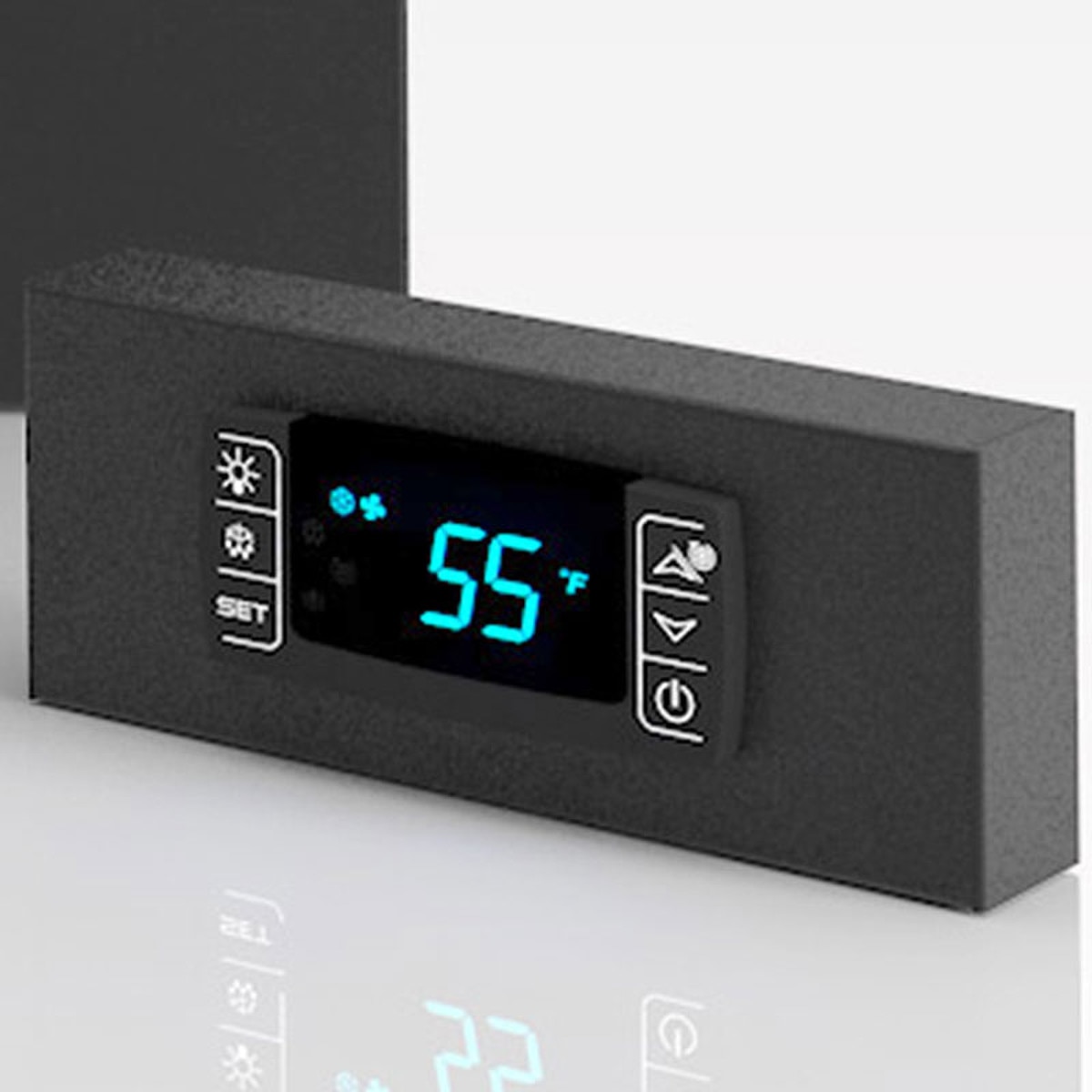

WhisperKOOL Platinum Split 8000 Ducted Cooling Unit (P/N Platinum Split 8000 Ducted). WhisperKOOL's Platinum Split 8000 system cools up to 2000 cubic feet with the compressor located in a remote location (up to 100 line feet away) and the evaporator (cold side) up to 25 ducted feet away from the cellar. The Platinum Split 8000 is equipped with our Platinum Series controller utilizing Advanced System Protection Technology. This features a series of strategically placed monitoring probes, which ensure efficient performance and long cooling unit life. The controller is easy to operate and has features such as adjustable humidity control, energy saving modes, quick chill mode and anti-frost function. The Platinum Split 8000 can handle up to 55 degree temperature differential in properly constructed wine cellars up to 2000 cubic feet. Optional outdoor hood available at an additional cost.
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Brand: WhisperKOOL
Size: 20 1/2w x 14 1/2d x 15 1/2h (in)
Weight: 121 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 18
Running Amps:
- Evaporator: 1
- Condensing Unit: 9
Capacity: 2000 Cu Ft
Material: Metal
Warranty:
WhisperKOOL Warranty
2 Years - Parts and Labor
5 Years - Compressor
Click on one of the following links for more information:
Owners Manual
Tech Manual
Installation Guide
Spec Sheet
Noise level:
- Evaporator: 54 Decibels
- Condensing Unit: 65 Decibels
Dimensions (in):
- Evaporator: 20.5w x 14.5d x 15.5h

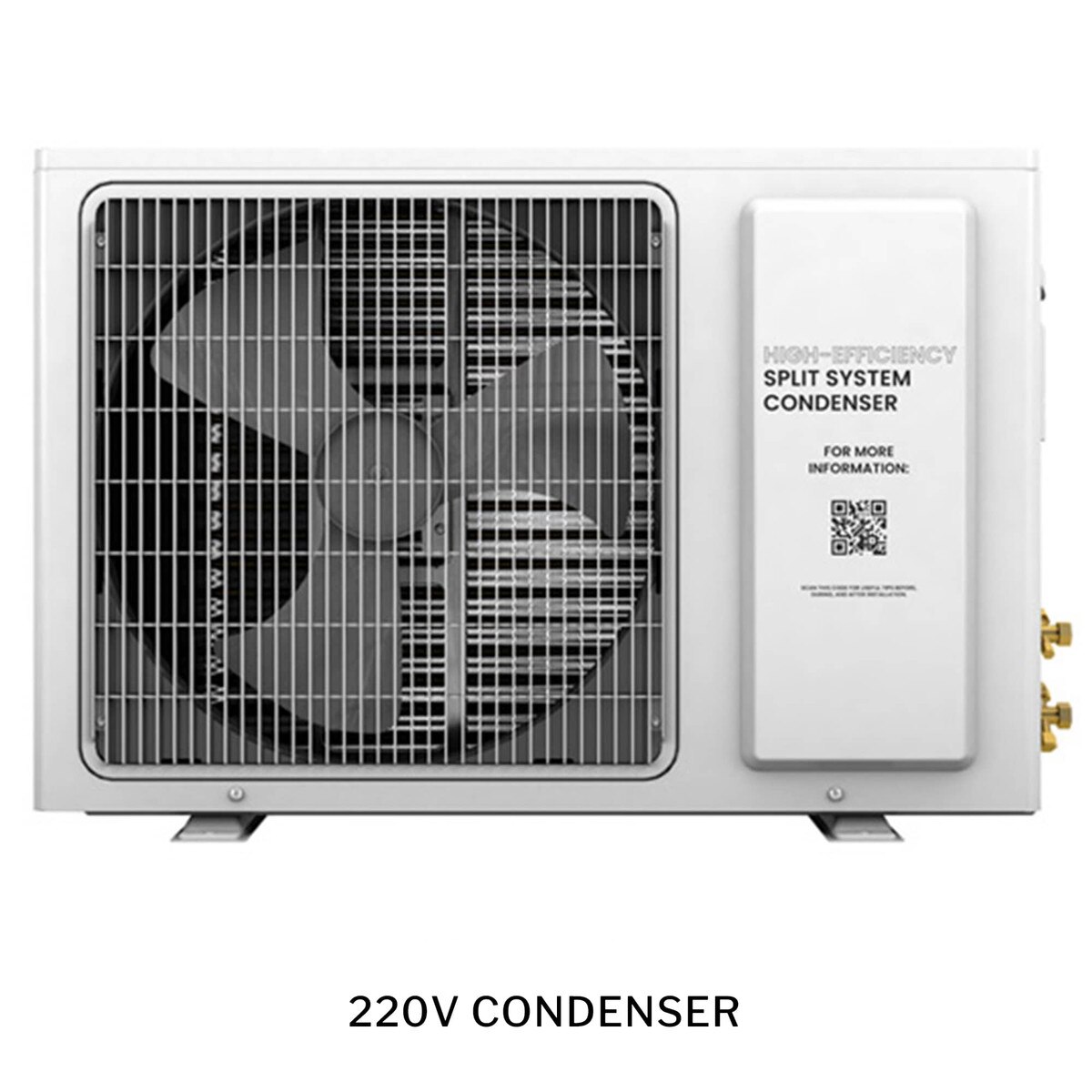

- Condensing Unit: 12w x 18d x 13.5h
Temp Delta: 55 degrees F
Capacity: 6006 BTUH, for wine cellars up to 2000 Cu Ft
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
