WhisperKOOL Ceiling Mount 4000 Cooling Unit #16984
Details
WhisperKOOL Ceiling Mount 4000 Wine Cooling Unit (P/N Ceiling Mount 4000). WhisperKOOL's Ceiling Mount 4000 split system cools up to 1000 cubic feet* in properly insulated wine cellars.

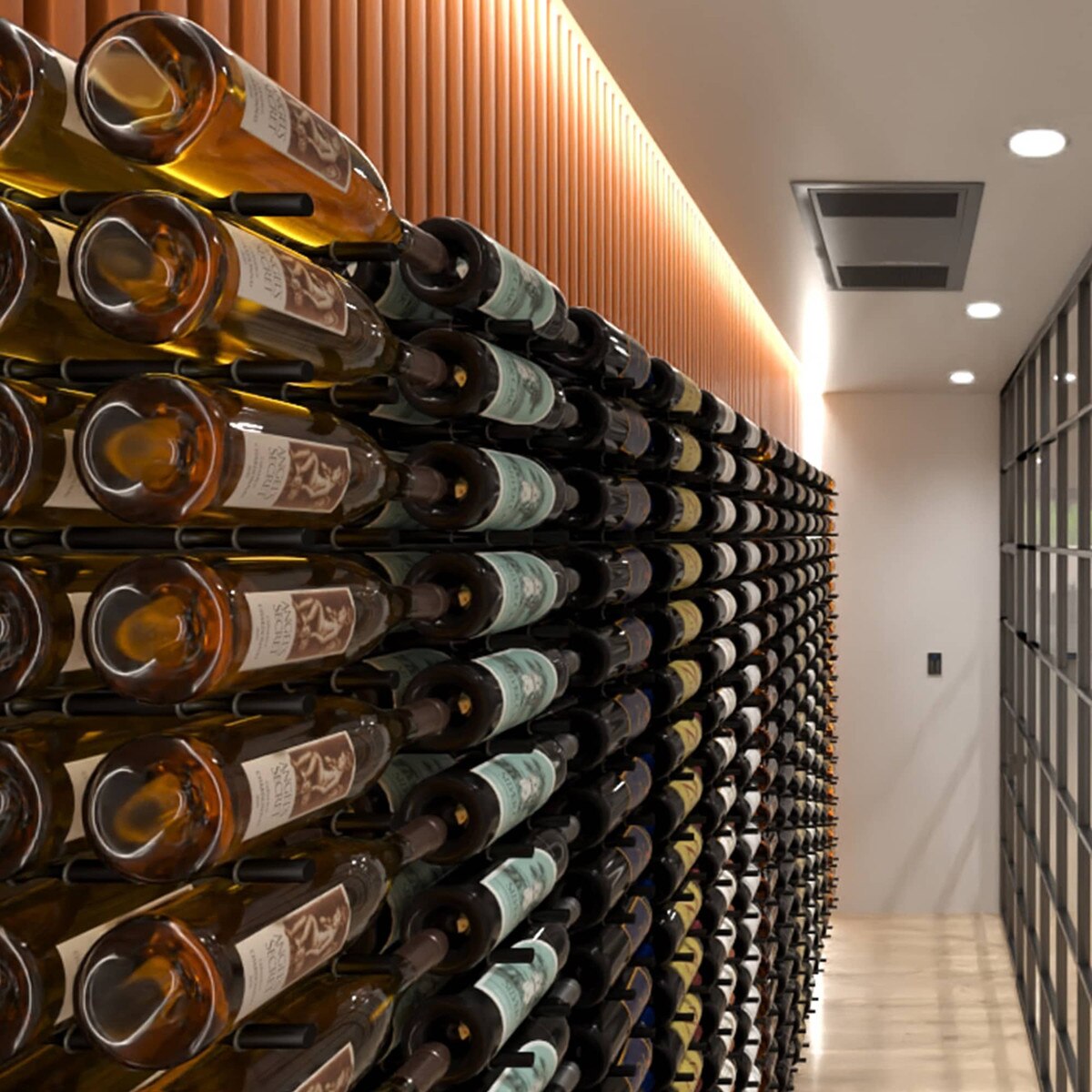

With the compressor located in a remote location (up to 100 line feet away) away from common living areas, and the evaporator (cold side) mounted on the ceiling inside the cellar, this design is nearly invisible with maximum space for bottle storage.
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
Configuration
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Features
3650 BTUH.

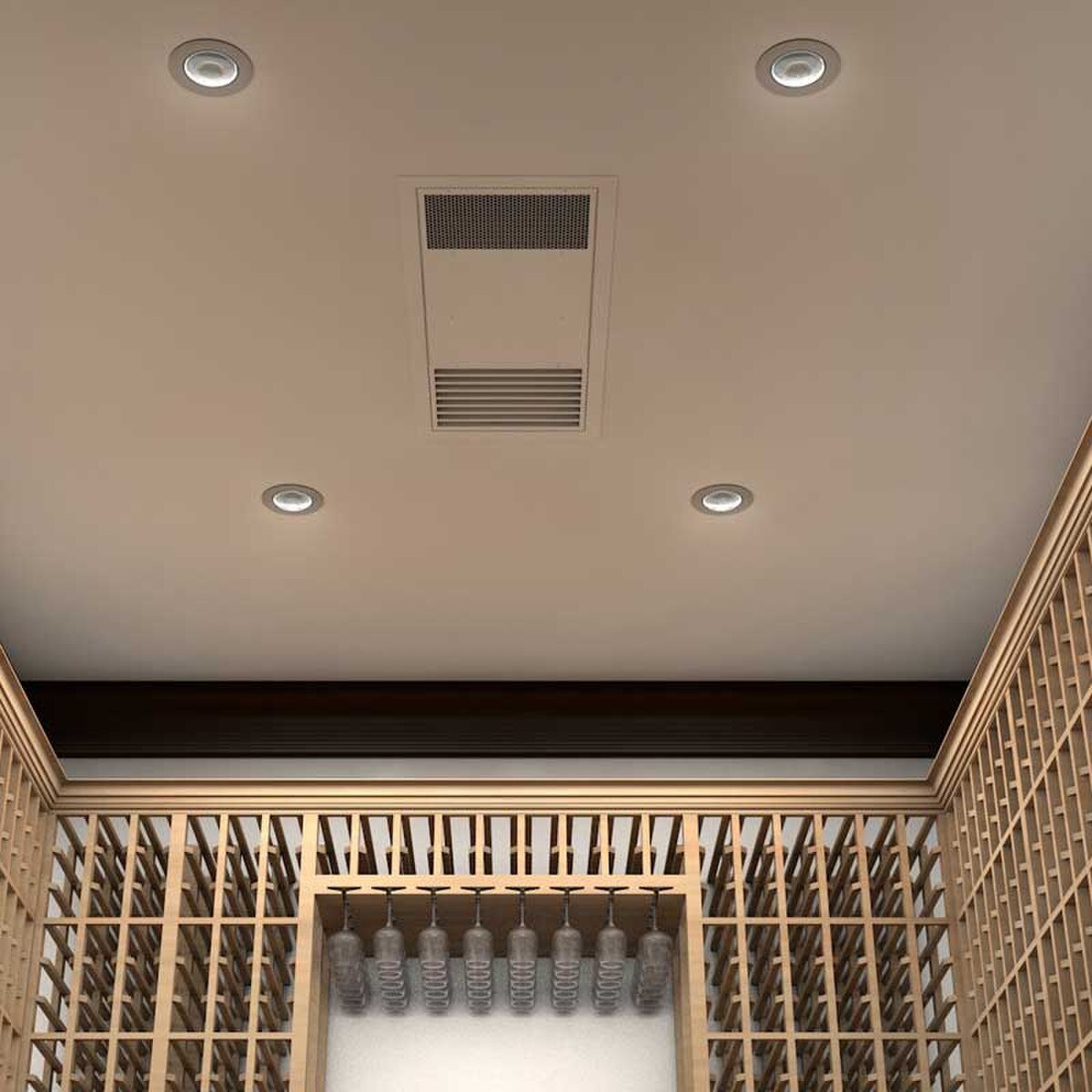

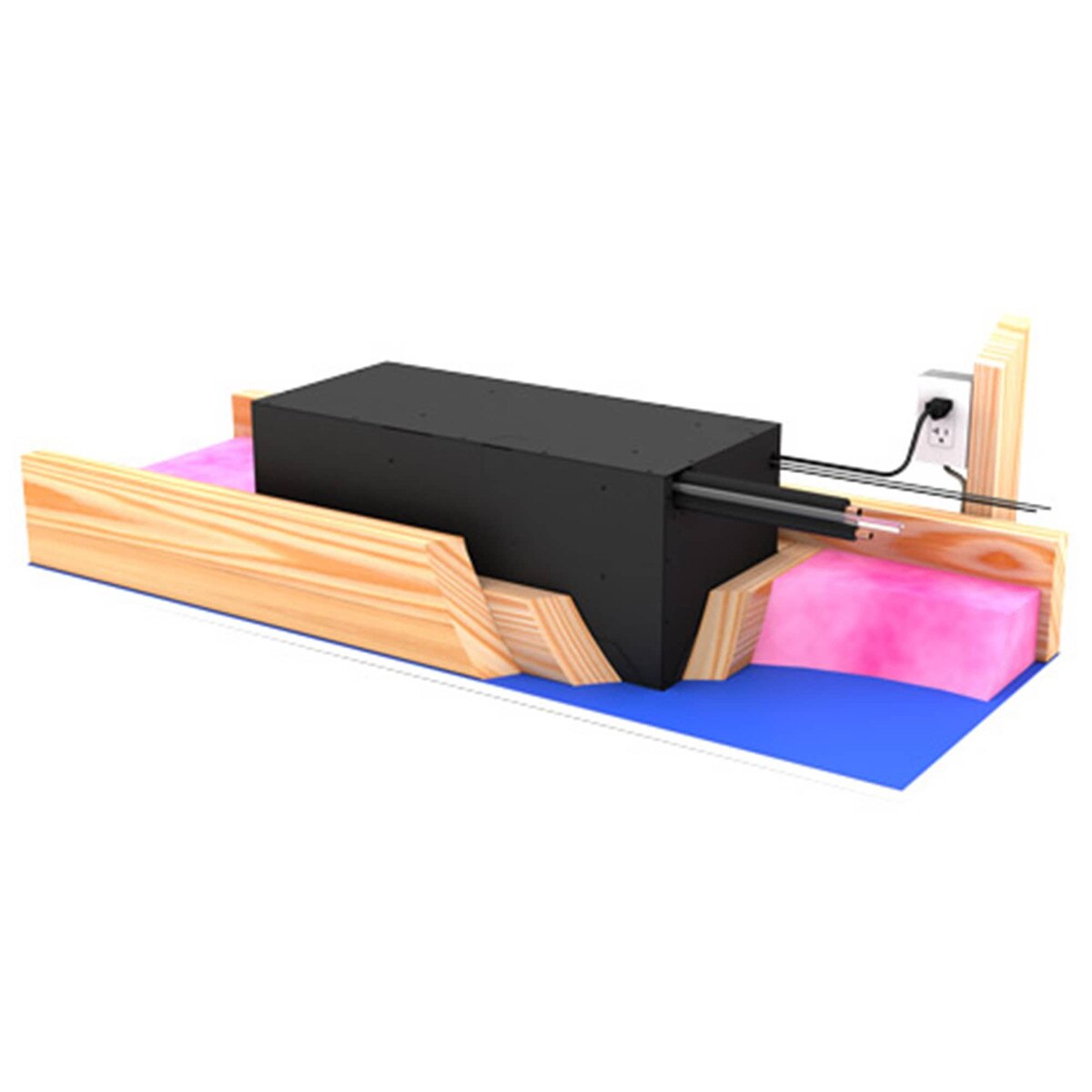

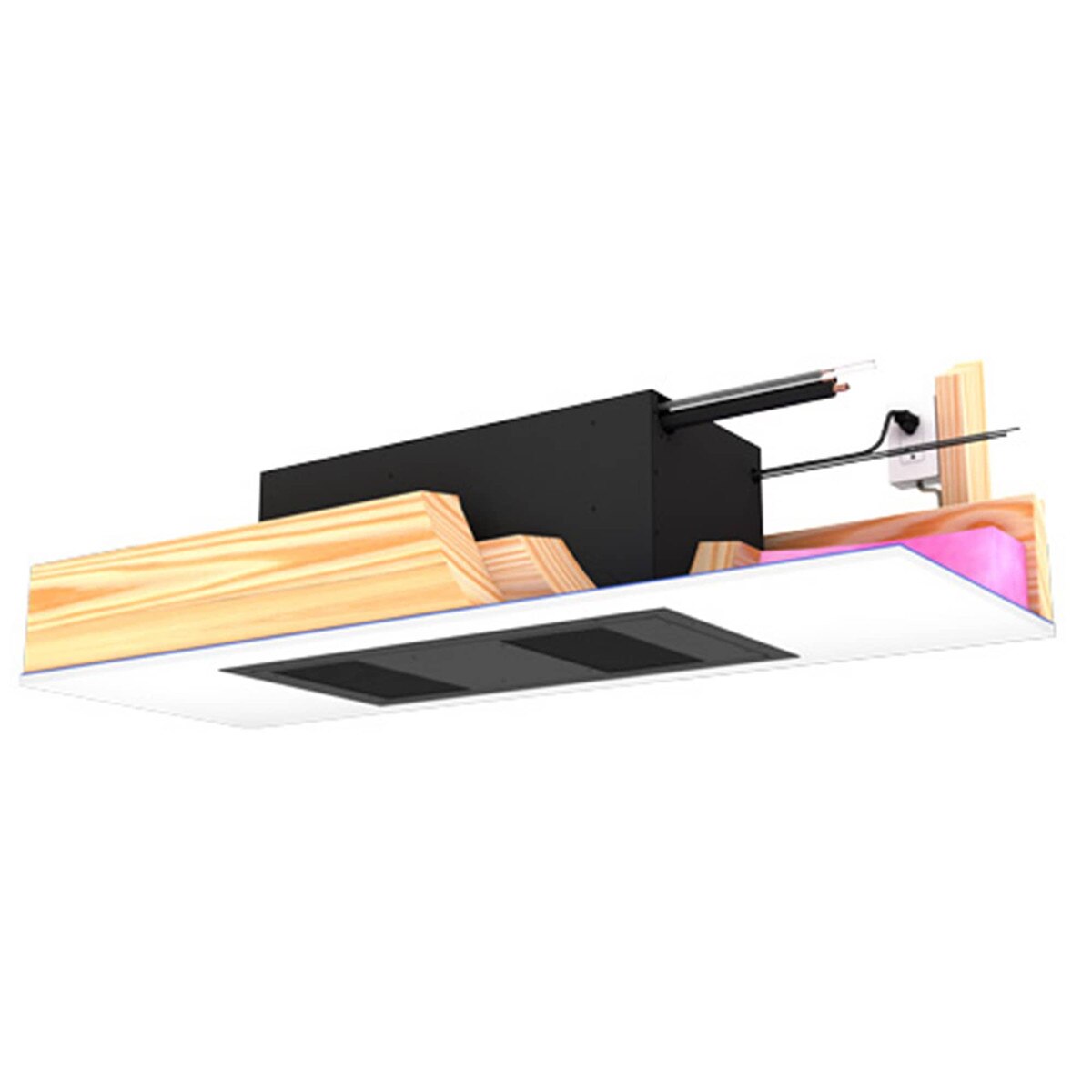

From industry leader WhisperKOOl, this ceiling-mount design allows all wall space inside the cellar to be available for racking, allowing higher bottle capacity with easy installation and accessibility.
- Ceiling mount design allows maximum bottle storage
- Split system allows condensing unit to be located away from living areas
- Advanced electronic control system
- Low ambient control
- Flexible installation
- 55F temperature differential
Specs & Resources
Brand: WhisperKOOL
Size: 35 3/4w x 14 1/2d x 12 3/4h (in)
Weight: 150 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 18
Running Amps:
- Evaporator: 1
- Condensing Unit: 9
Capacity: 1000 Cu Ft*
Material: Metal
Warranty:
Click on one of the following links for more information:
Owners Manual
Installation Checklist
Spec Sheet
Maintenance Checklist
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Noise level: 58.5 dBA

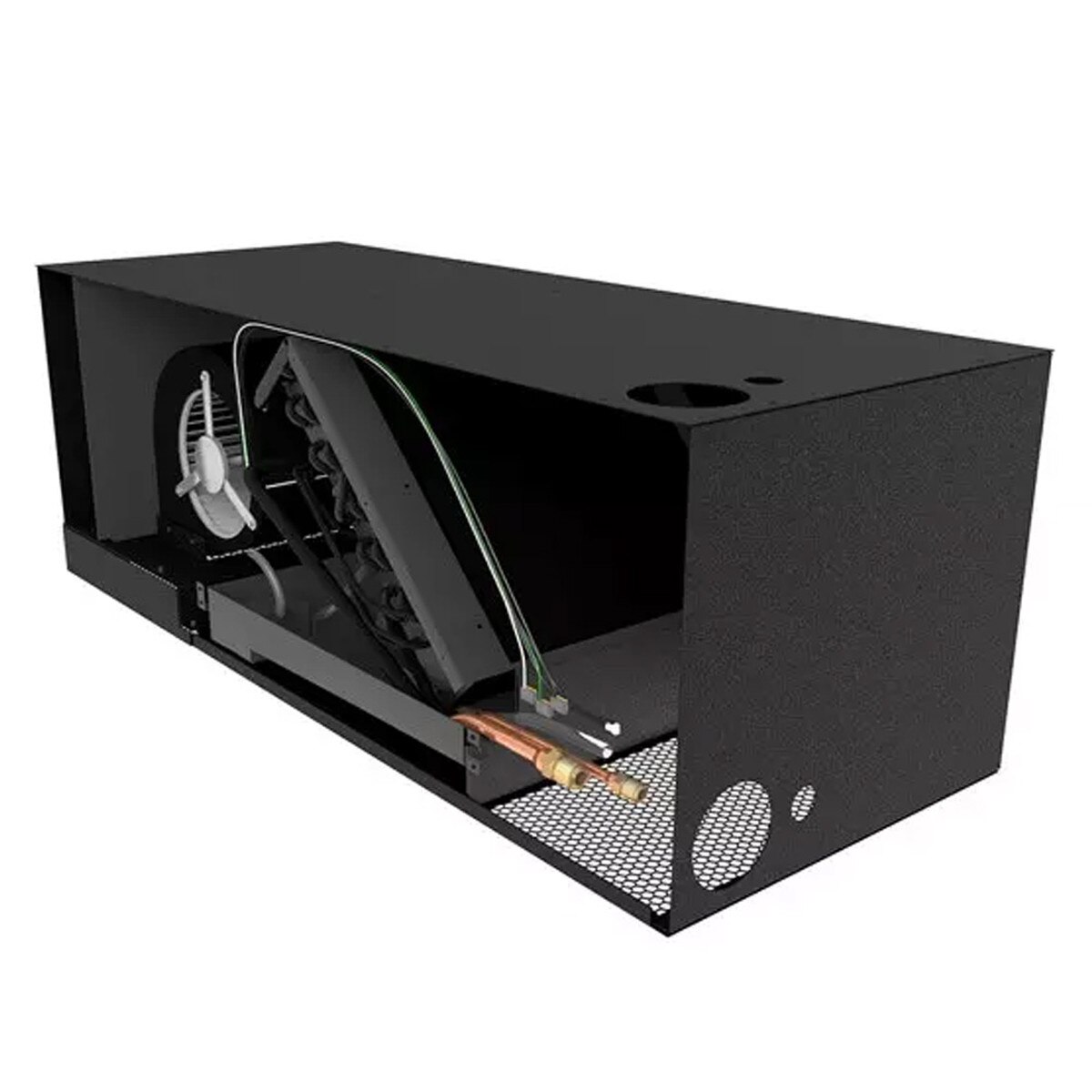

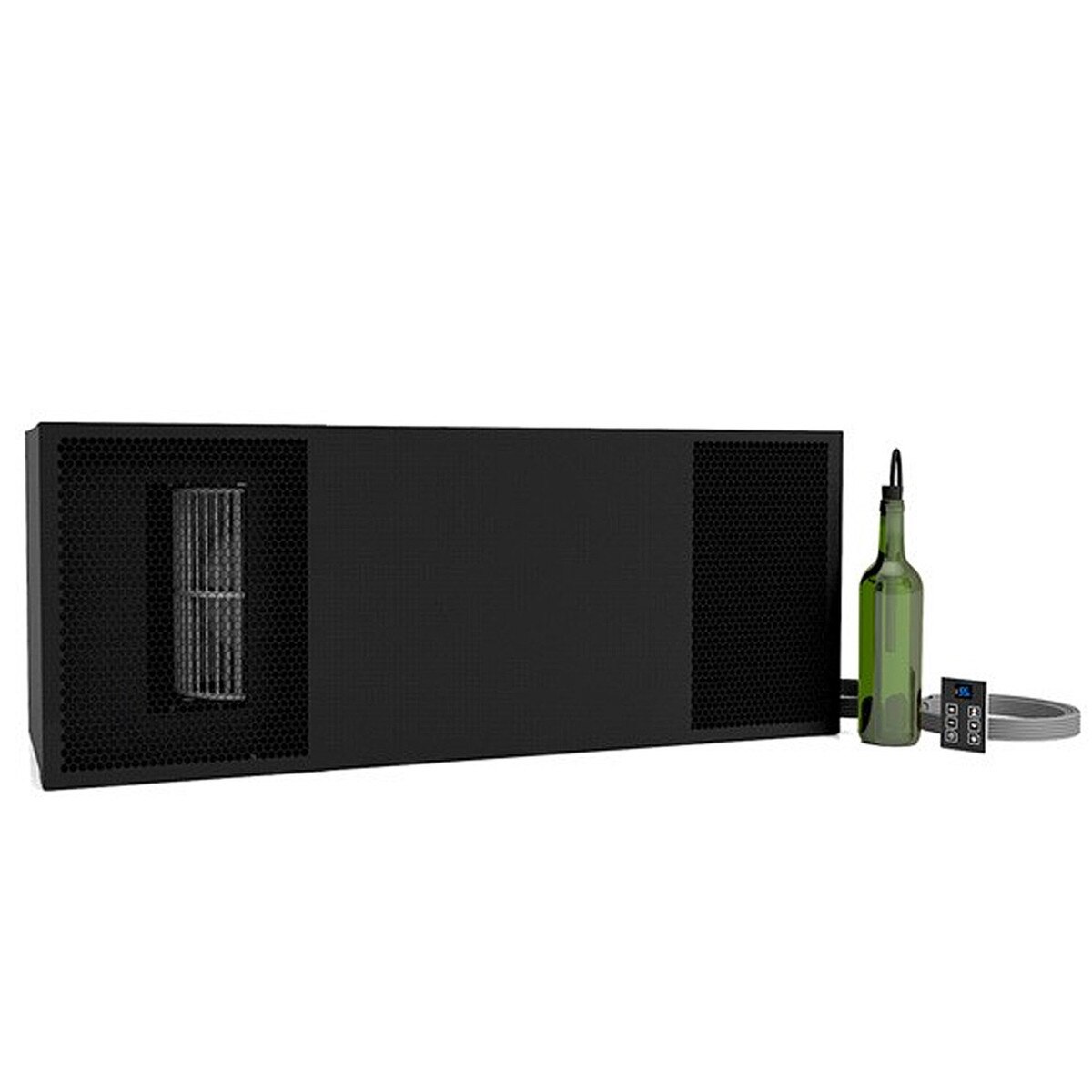

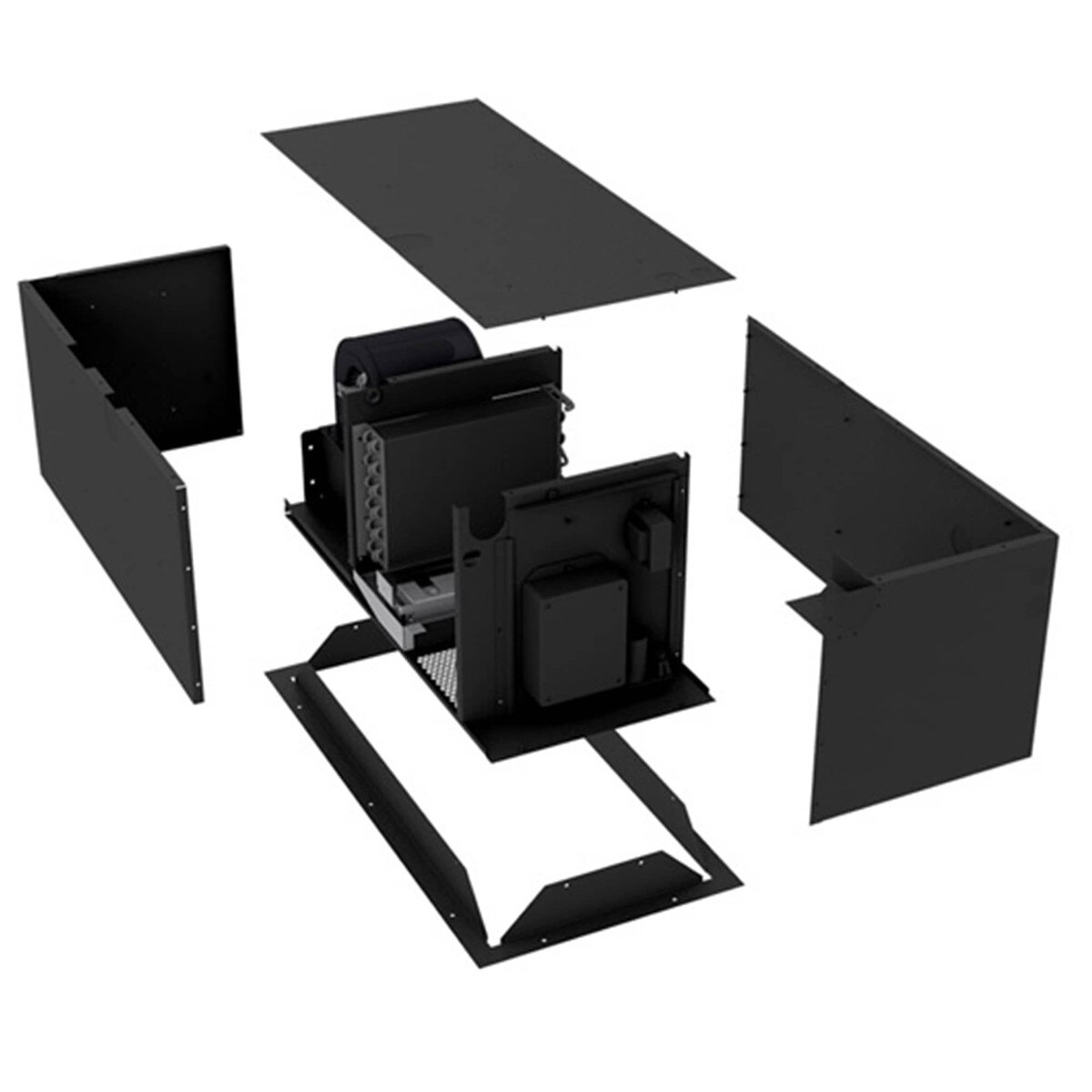

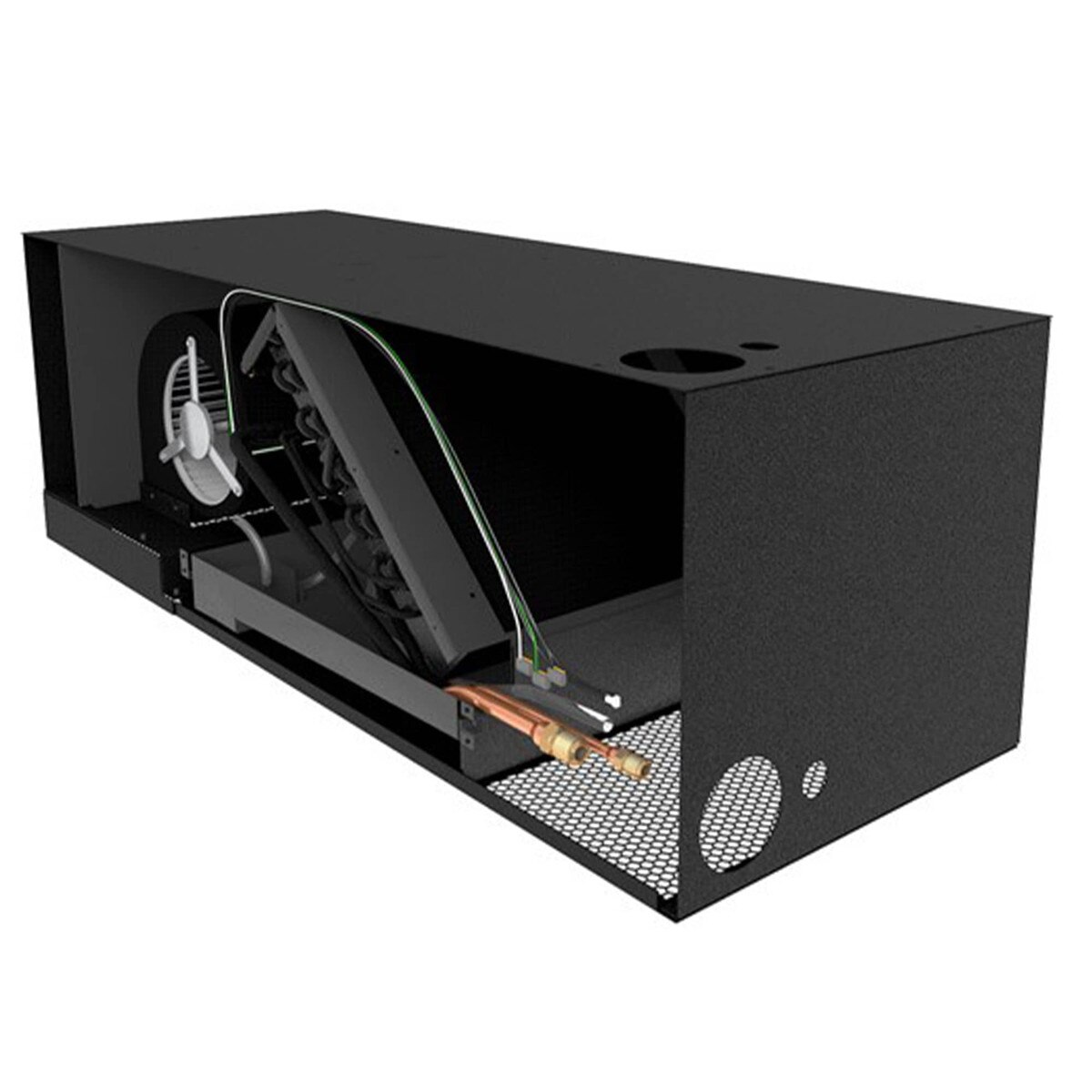

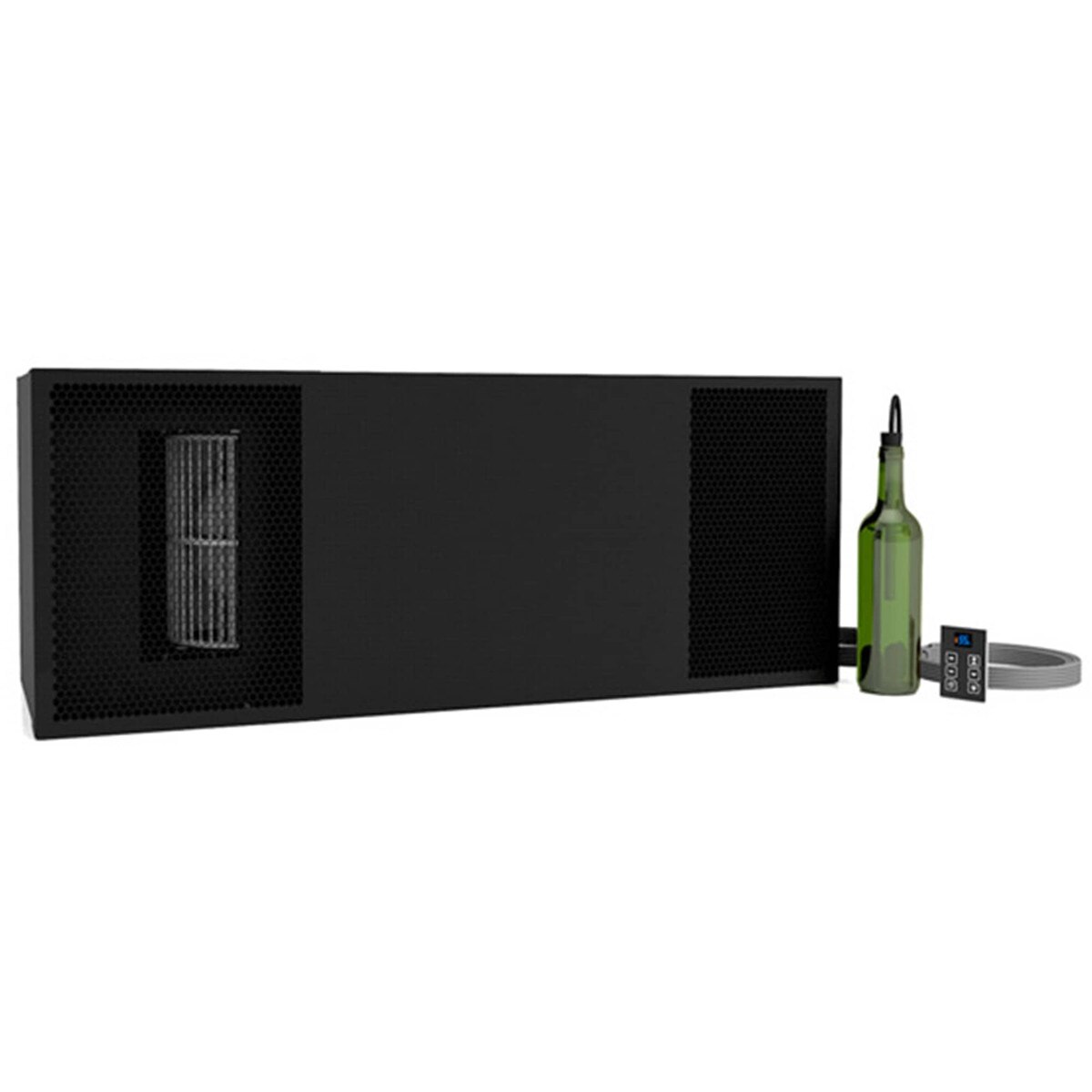

Evaporator:
- 80 lbs
- 1 (starting) 1 (running) Amps

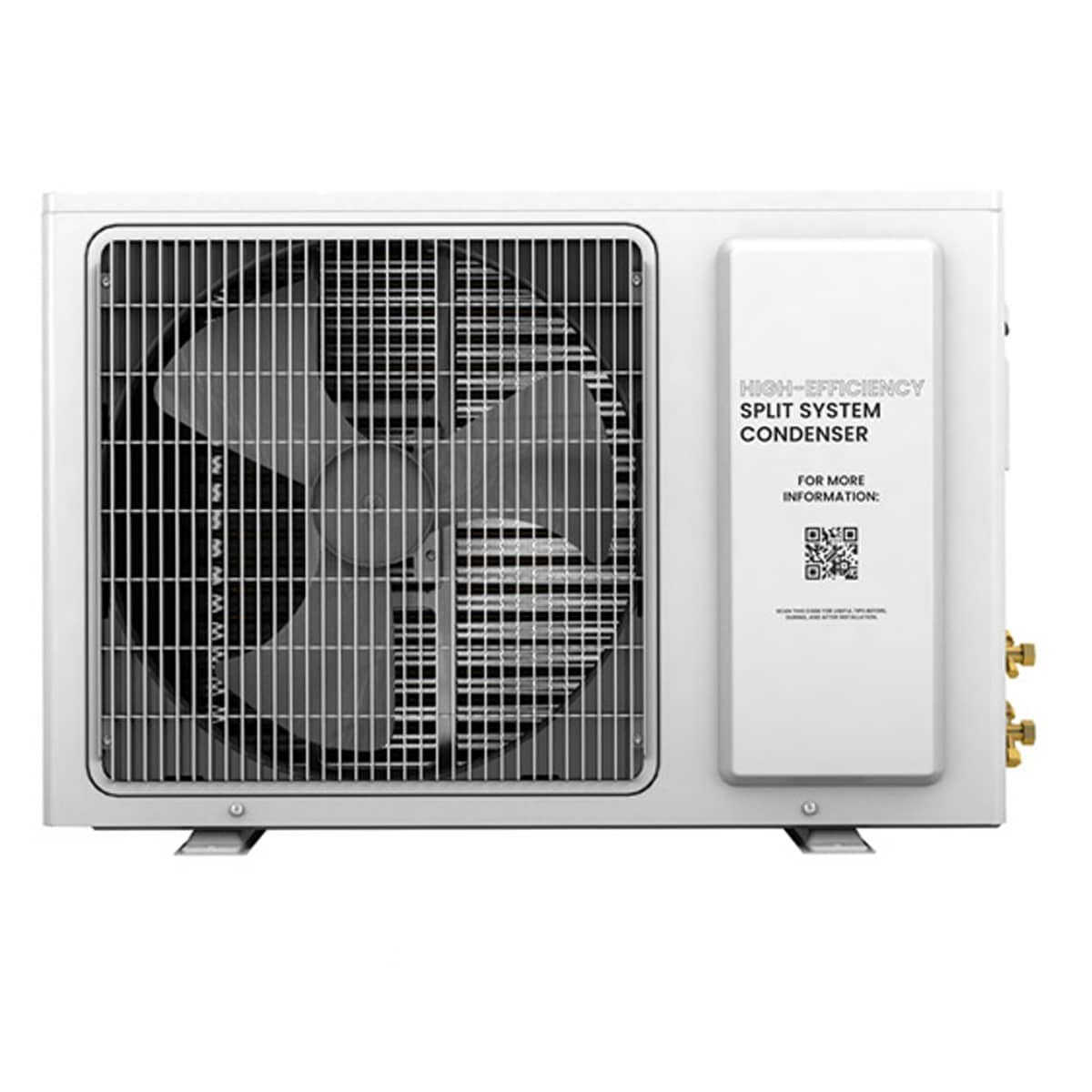

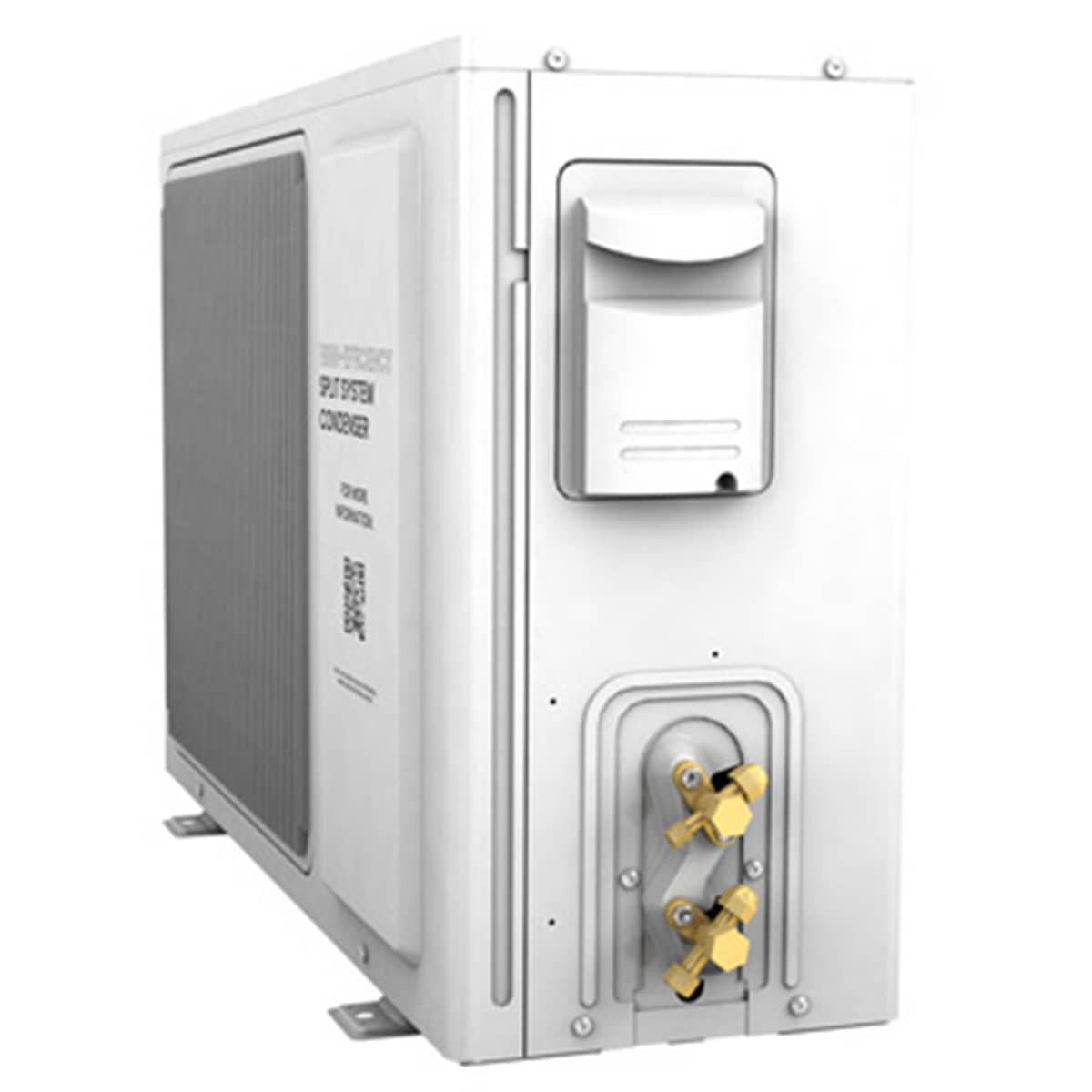

Condenser:
- 56 lbs
- 48 (starting) 9.5 (running) Amps
Temp Delta: 55 degrees F
Capacity: 3650 BTUH, for wine cellars up to 1000 Cu Ft*
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
