WhisperKOOL Ceiling Mount 8000 Cooling Unit #17746

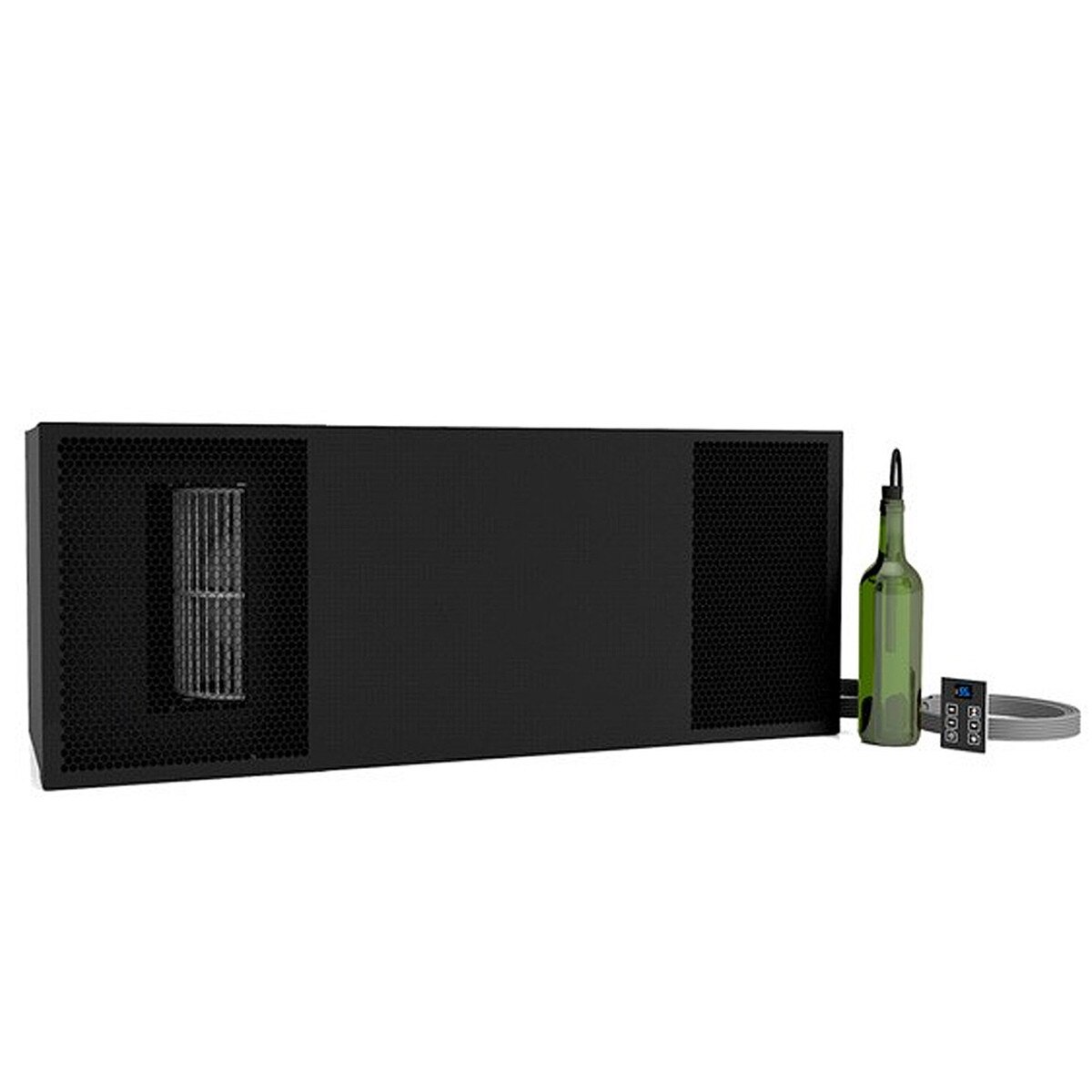

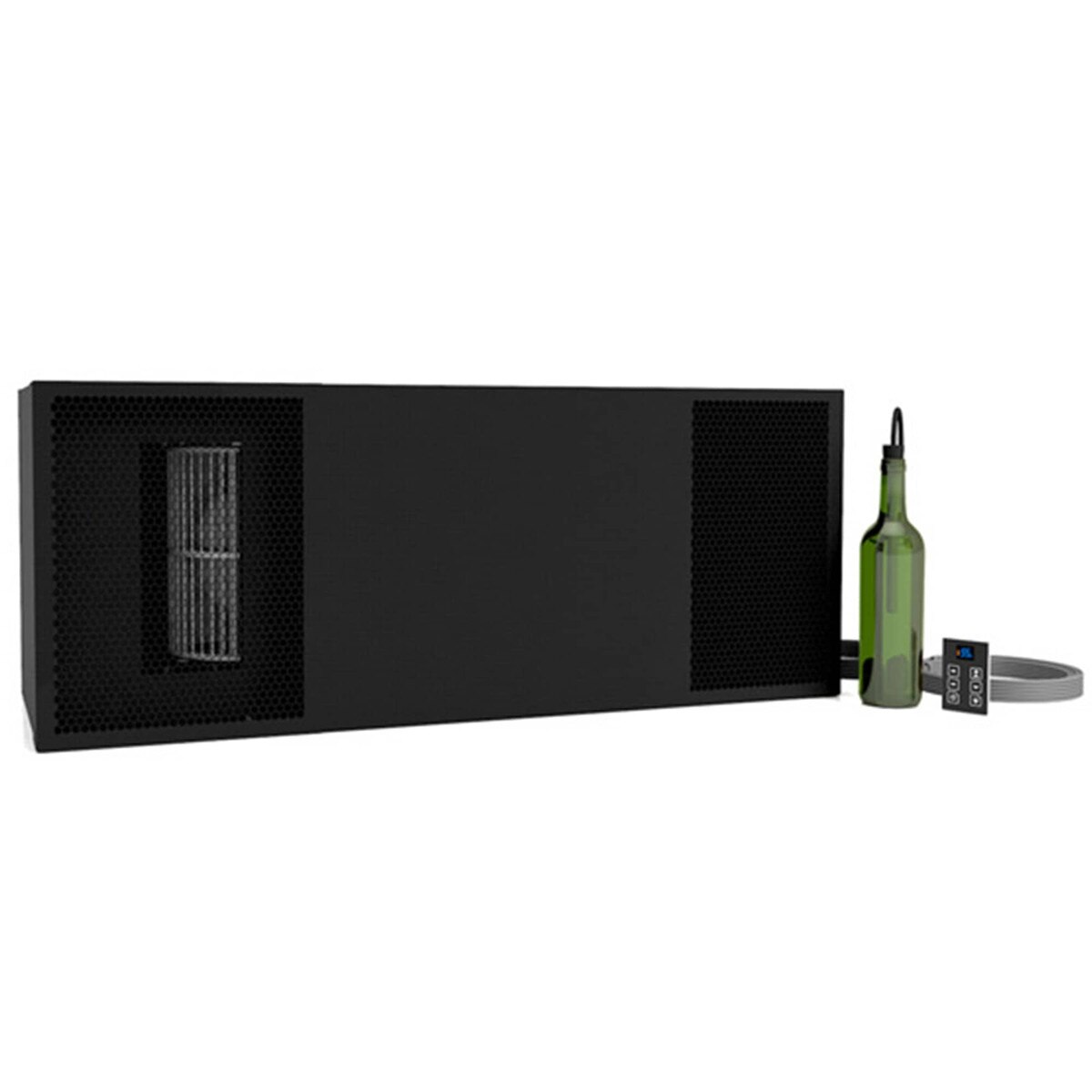

WhisperKOOL Ceiling Mount 8000 Wine Cooling Unit (P/N Ceiling Mount 8000). WhisperKOOL's Ceiling Mount 8000 split system cools up to 2000 cubic feet in properly insulated wine cellars.

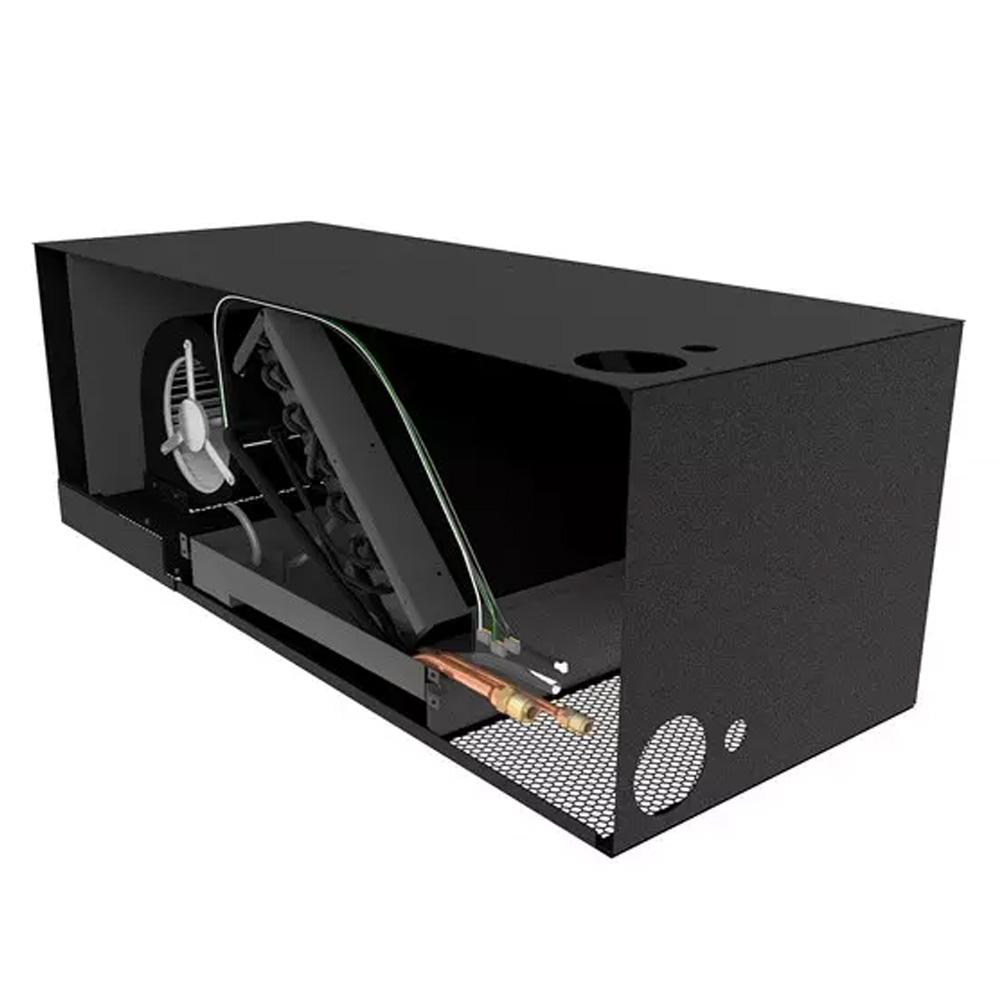

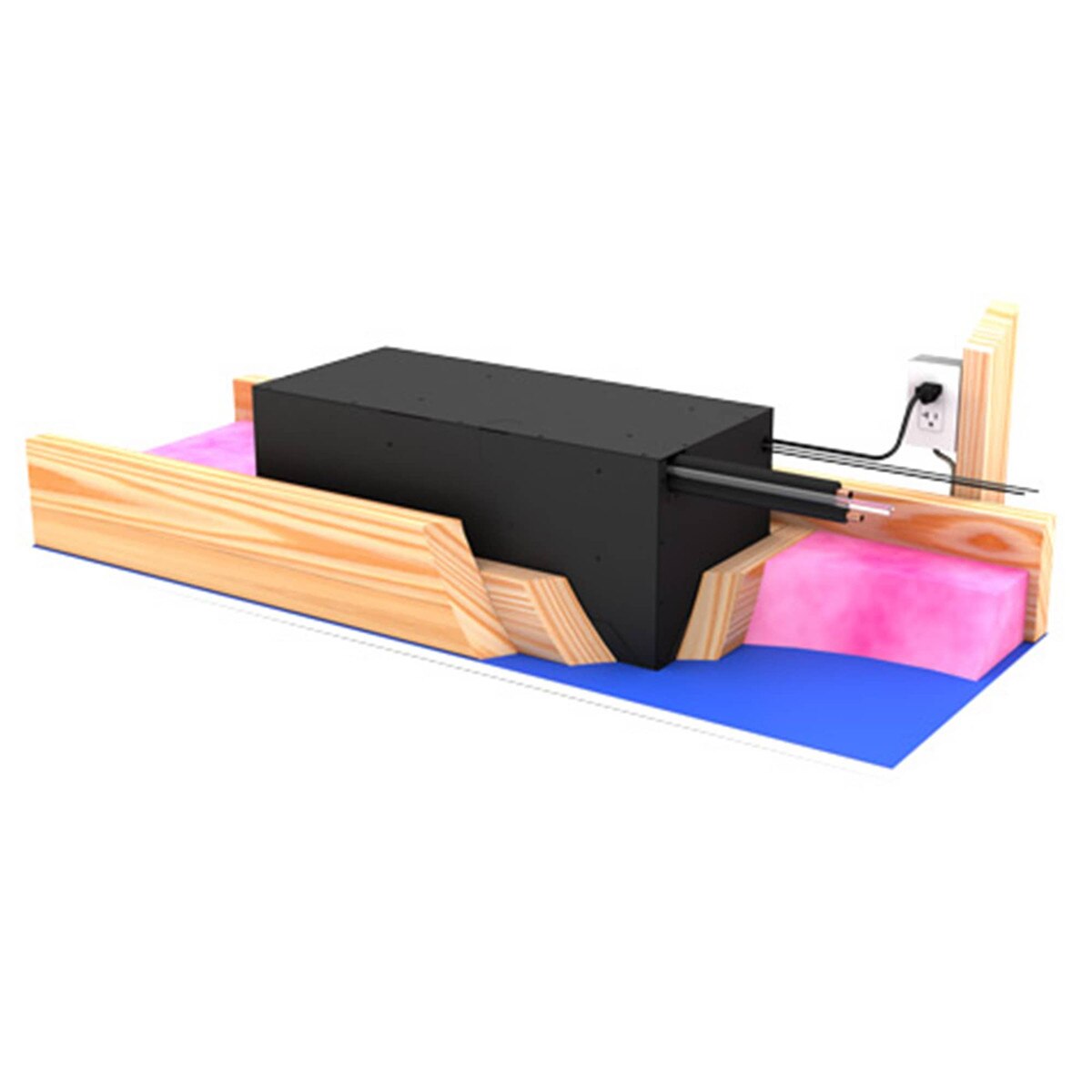

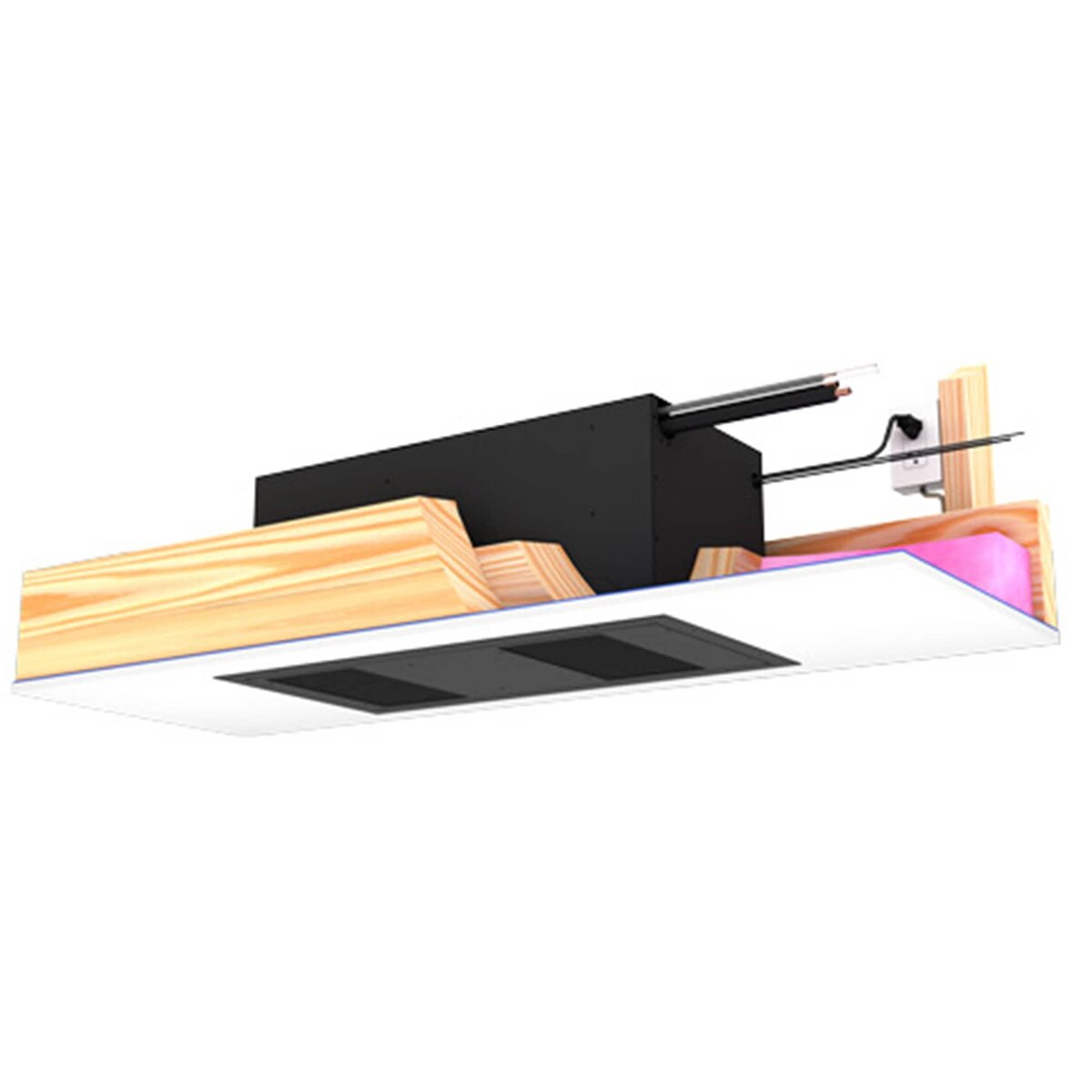

With the compressor located in a remote location (up to 100 line feet away) away from common living areas, and the evaporator (cold side) mounted on the ceiling inside the cellar, this design is nearly invisible with maximum space for bottle storage.
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
4900 BTUH.

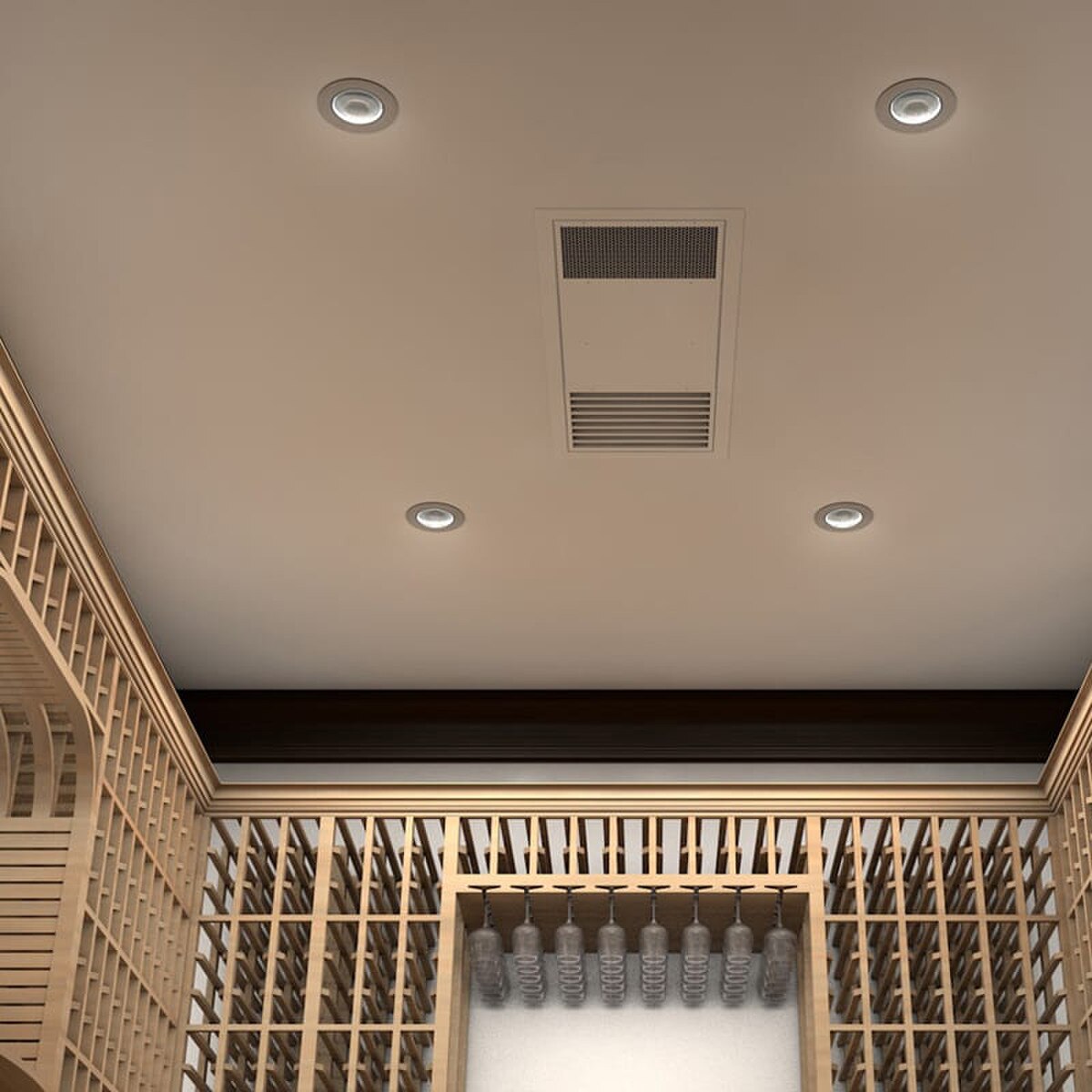

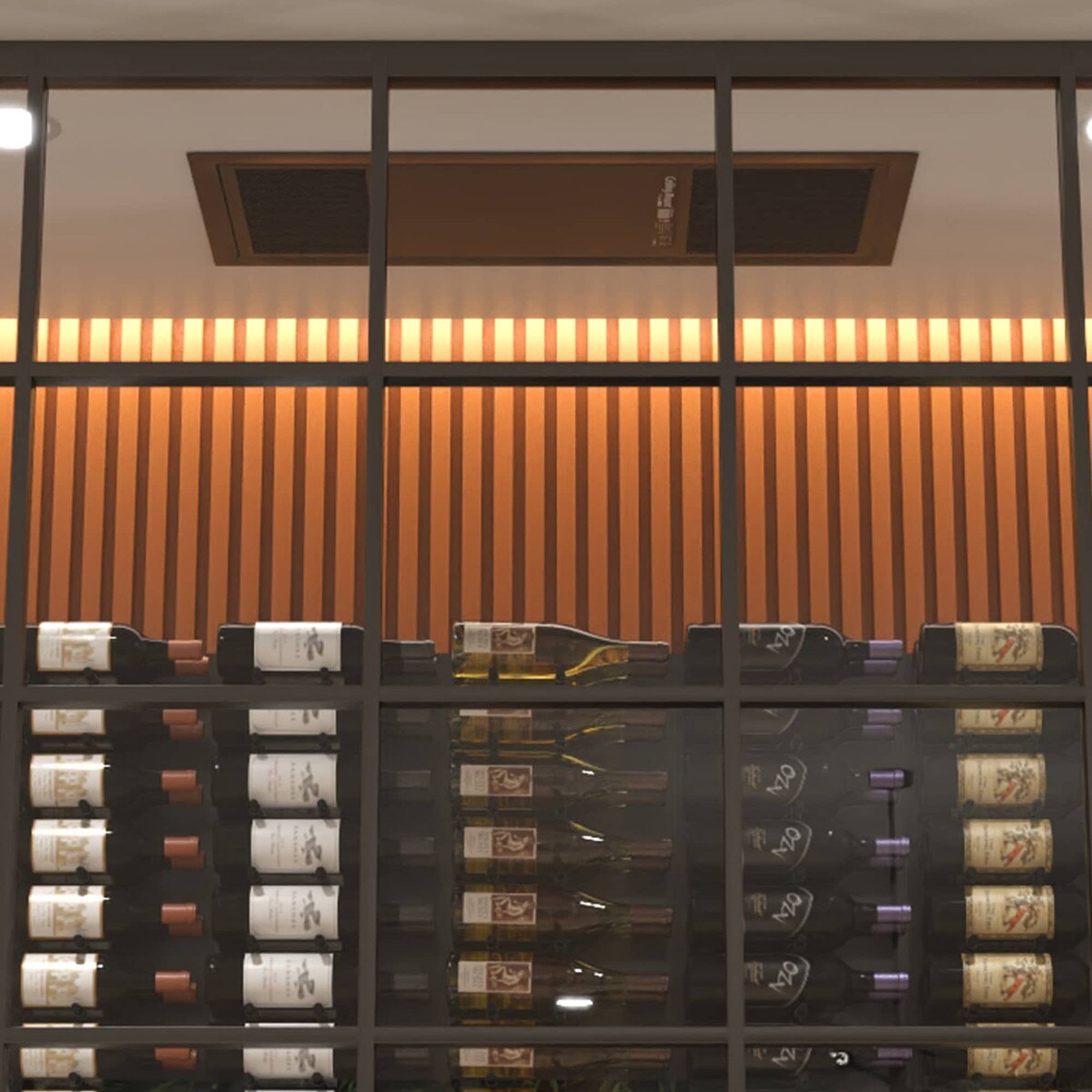

From industry leader WhisperKOOL, this ceiling-mount design allows all wall space inside the cellar to be available for racking, allowing higher bottle capacity with easy installation and accessibility.
- Ceiling mount design allows maximum bottle storage

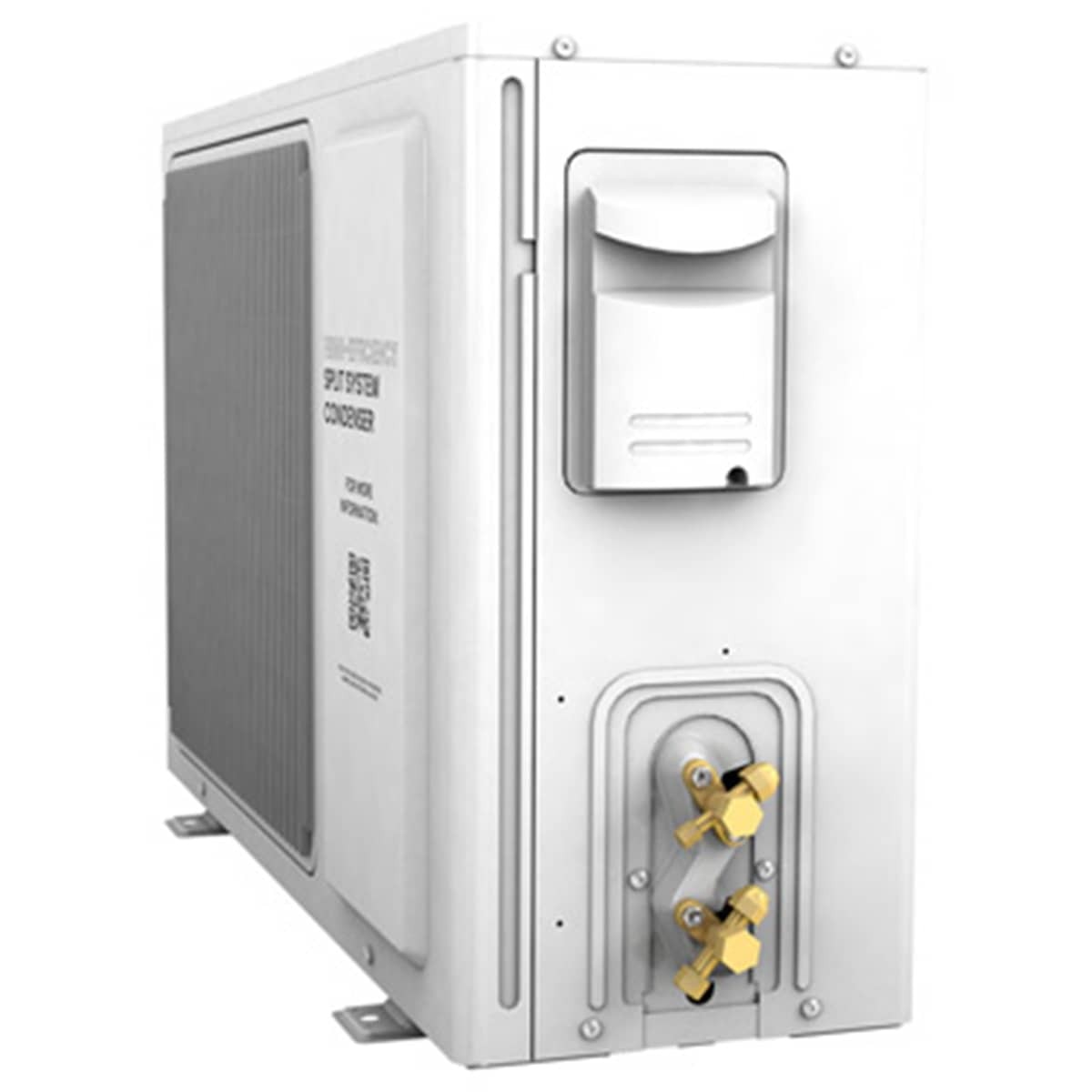

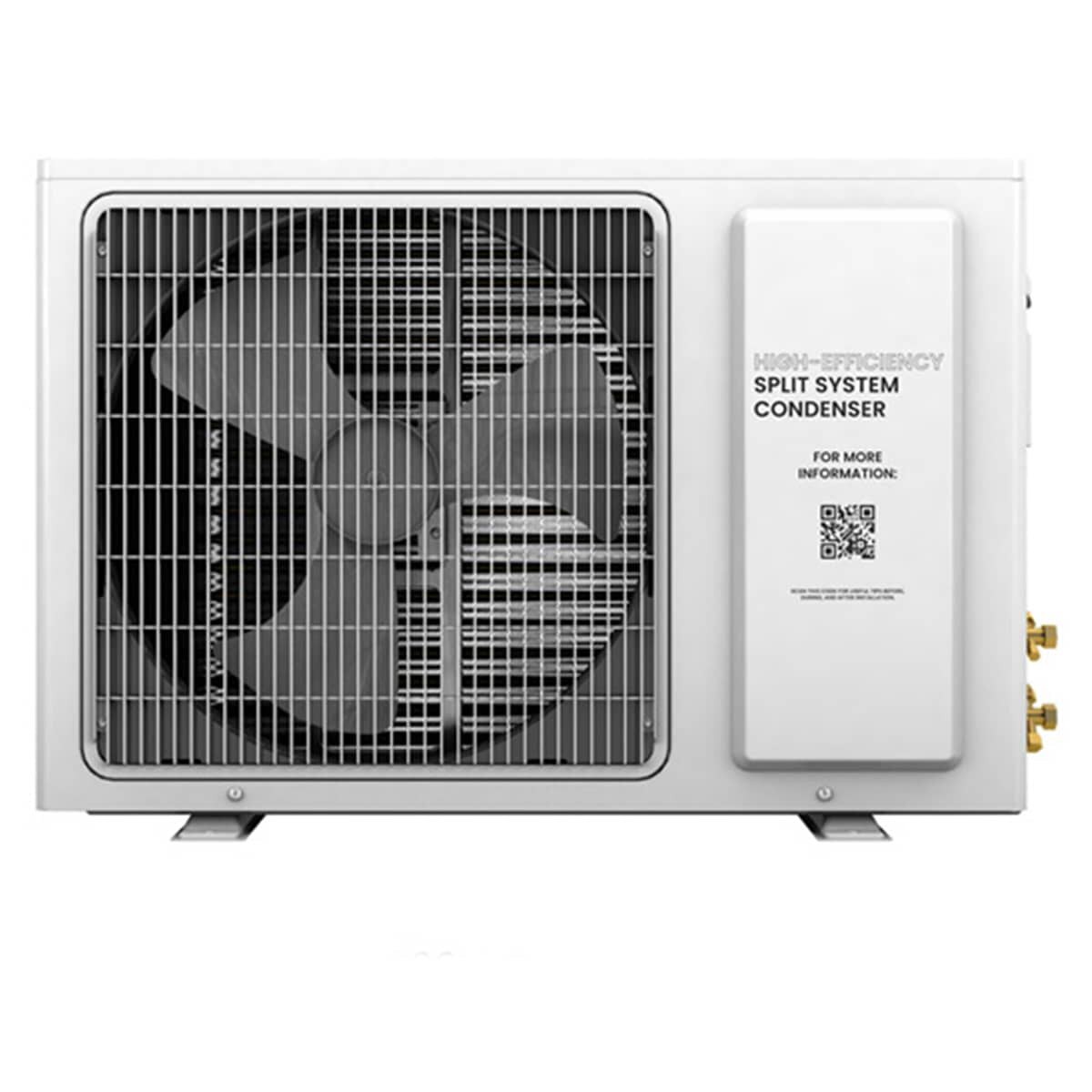

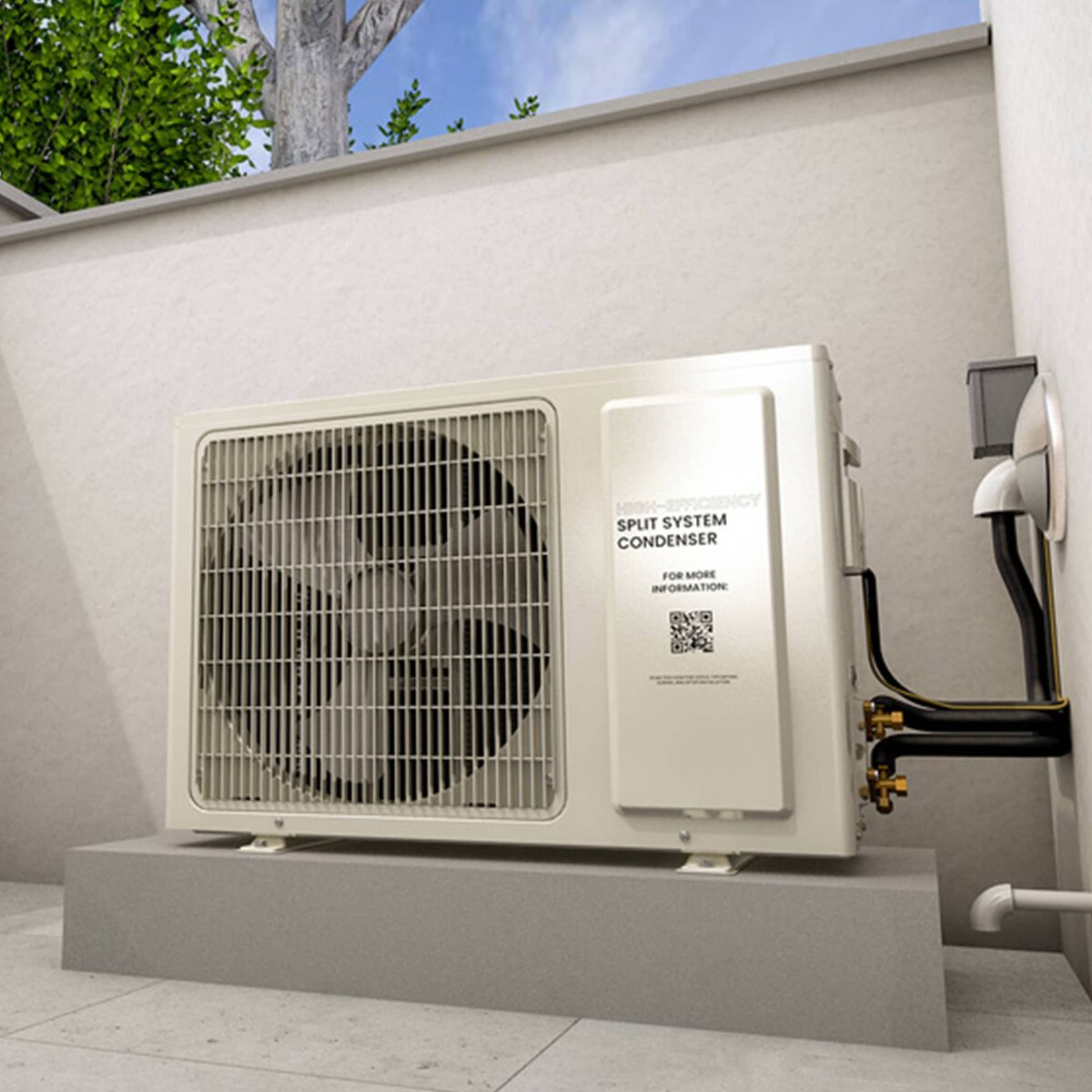

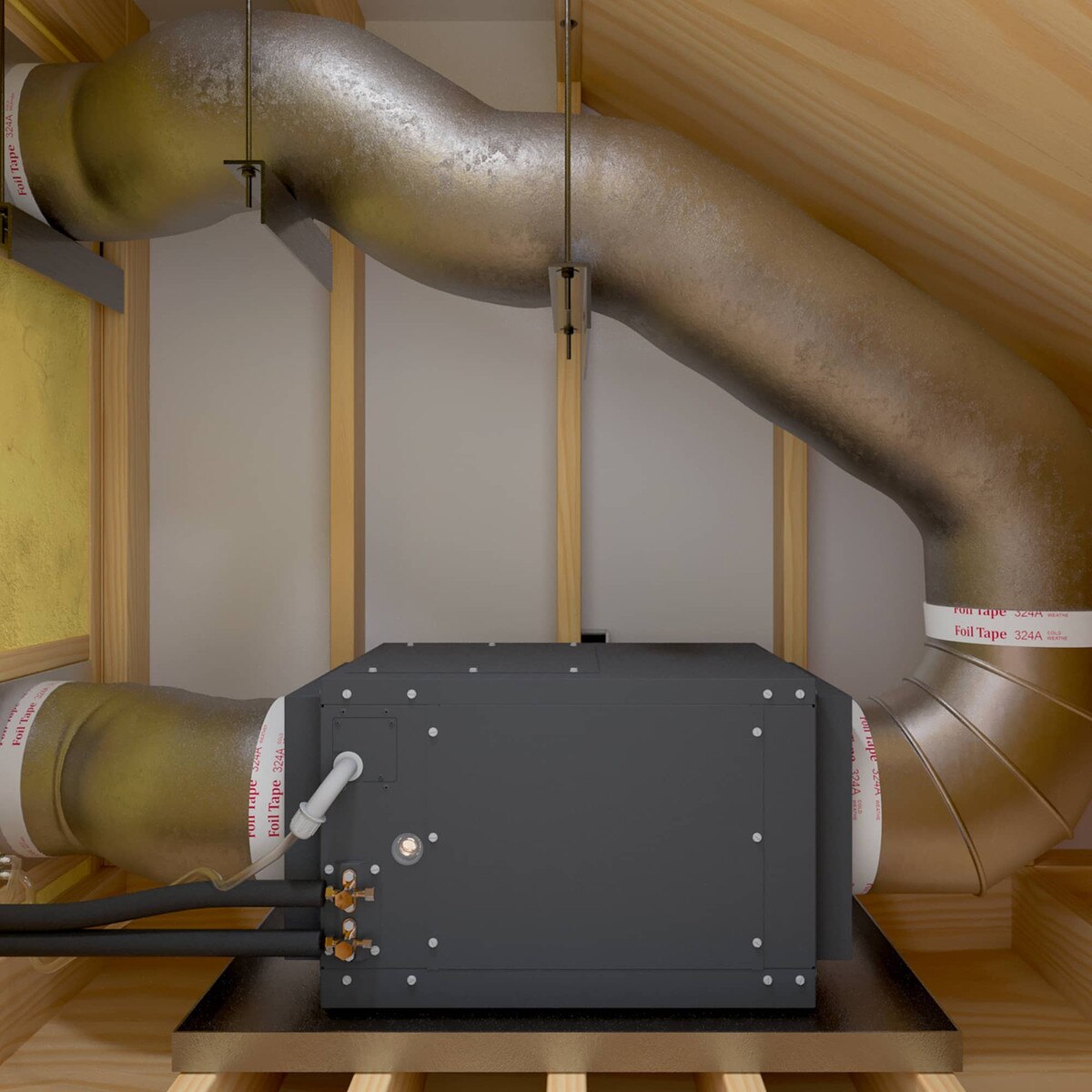

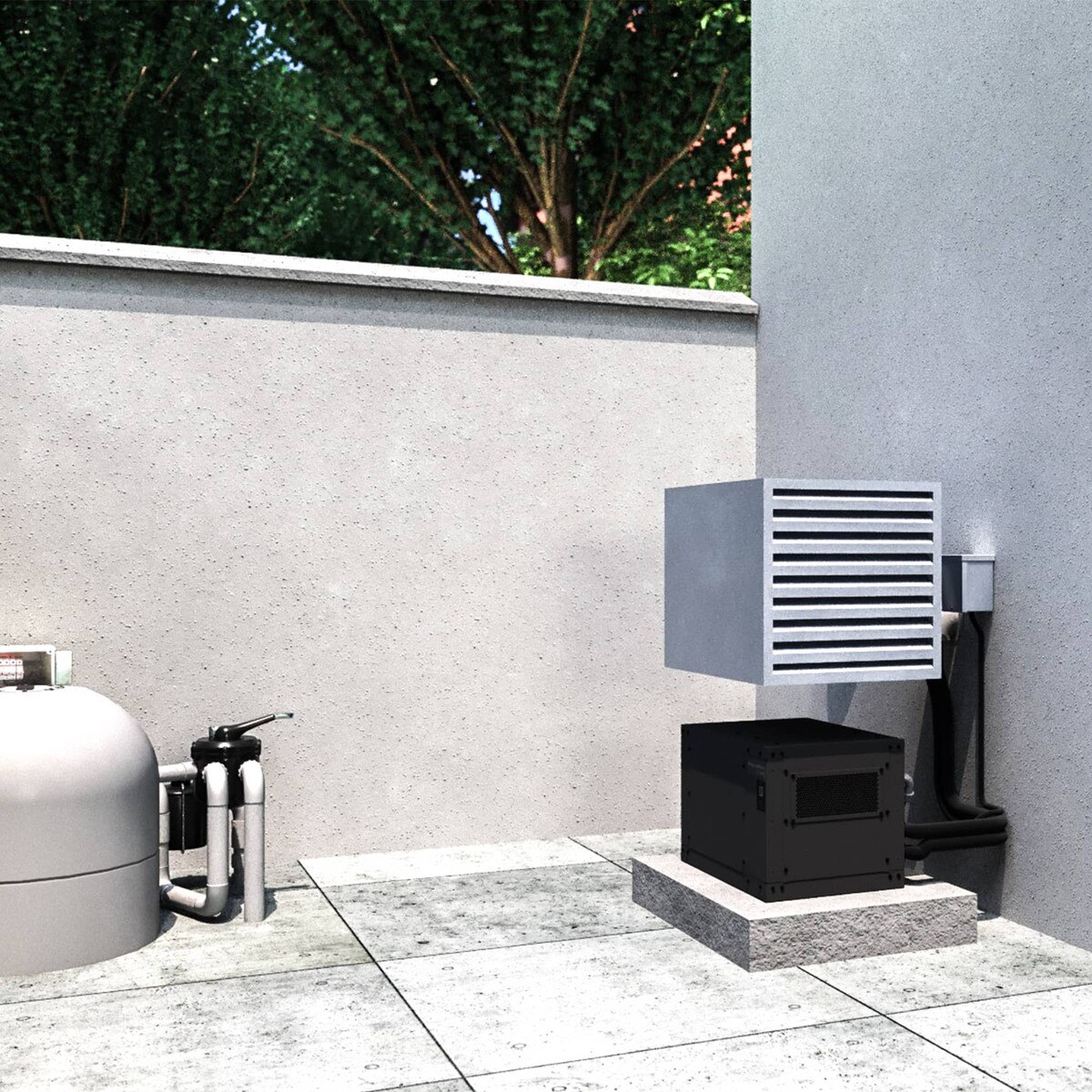

- Split system allows condensing unit to be located away from living areas
- Advanced electronic control system
- Low ambient control
- Flexible installation
- 55F temperature differential
Brand: WhisperKOOL
Size: 37 3/4w x 14 1/2d x 12 3/4h (in)
Weight: 150 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 38.6
Running Amps:
- Evaporator: 1
- Condensing Unit: 8.7
Capacity: 2000 Cu Ft
Material: Metal
Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Click on one of the following links for more information:
Owners Manual
Technical Manual
Installation Checklist
Spec Sheet
Noise level: 58.5 dBA

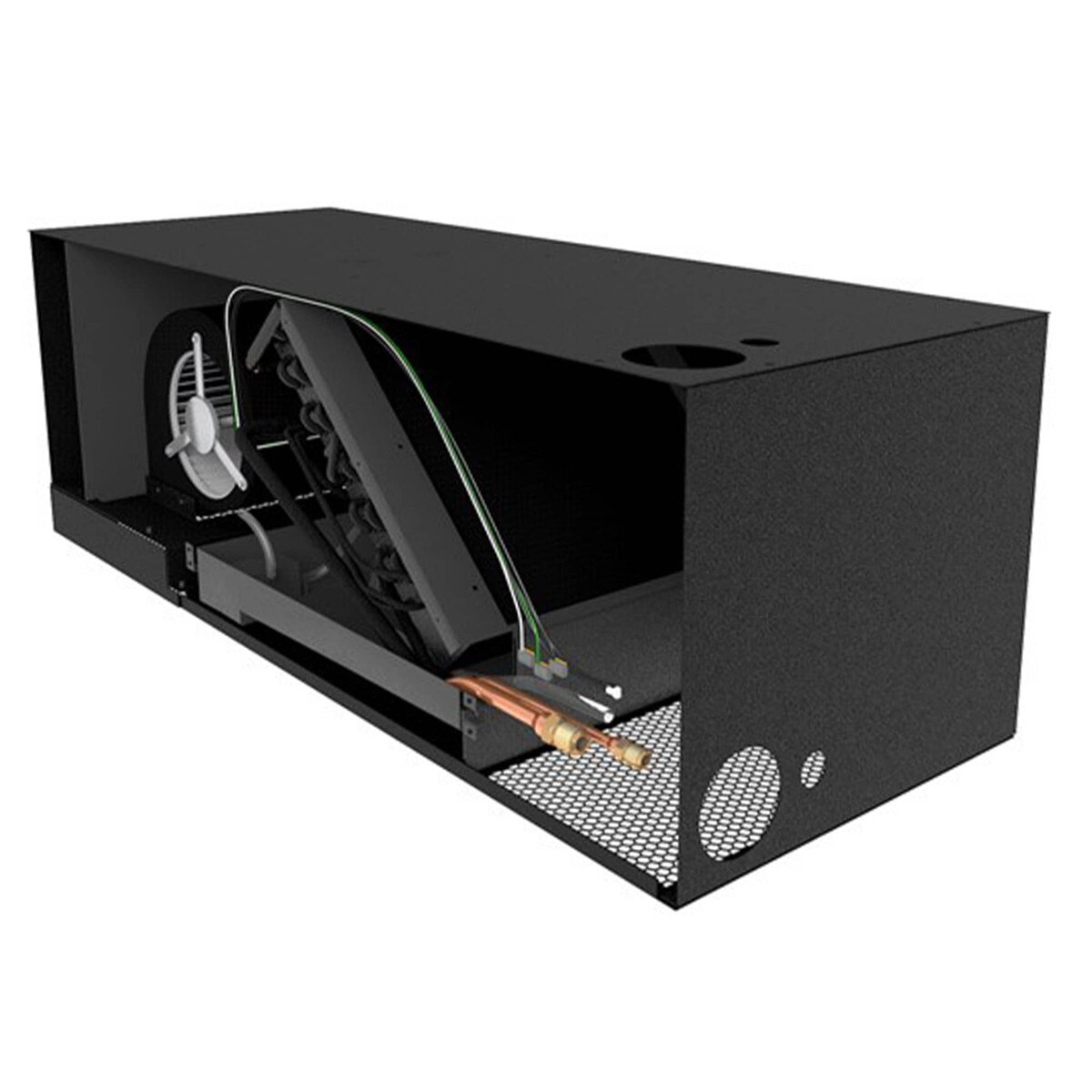

Evaporator:
- 80 lbs
- 2 (starting) 1 (running) Amps

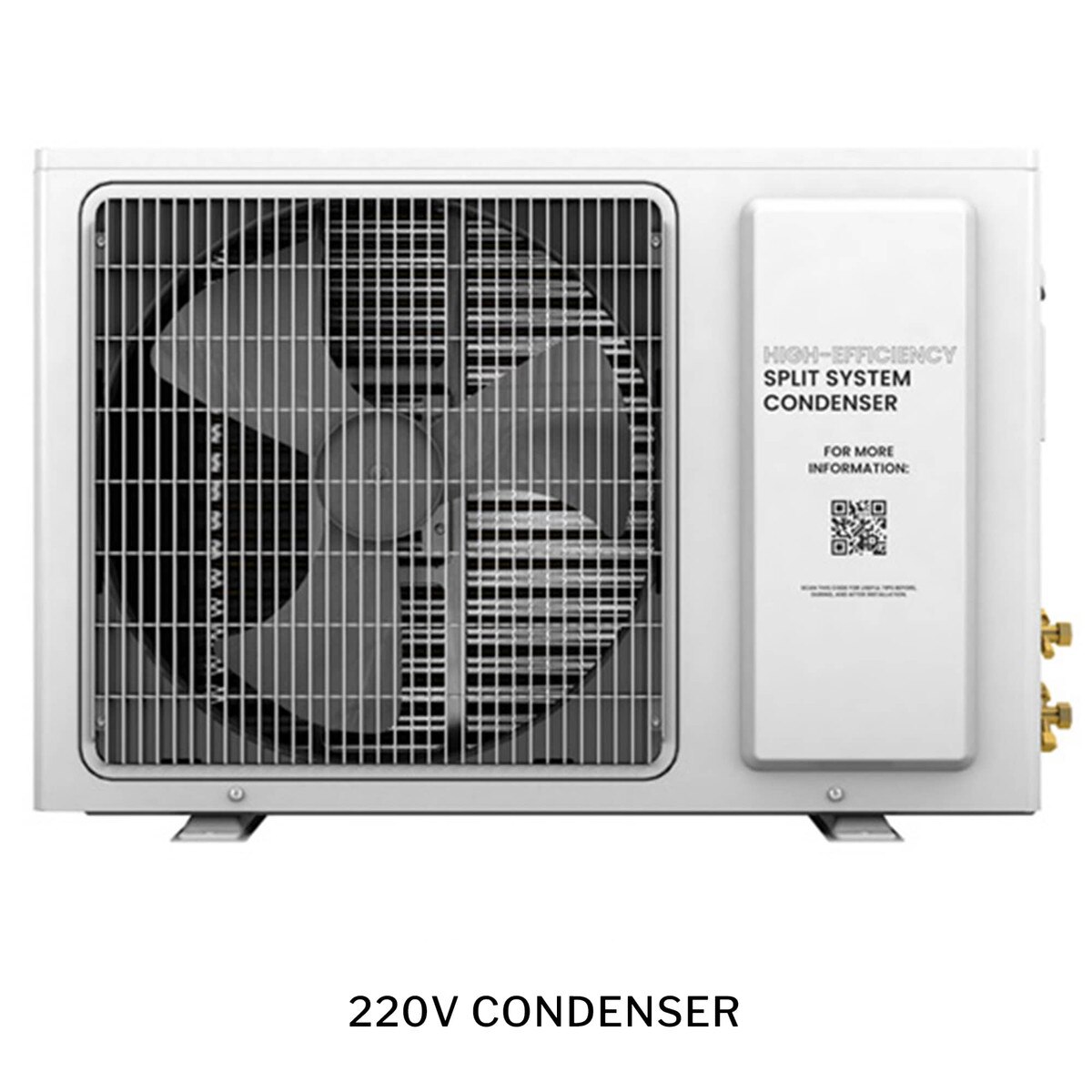

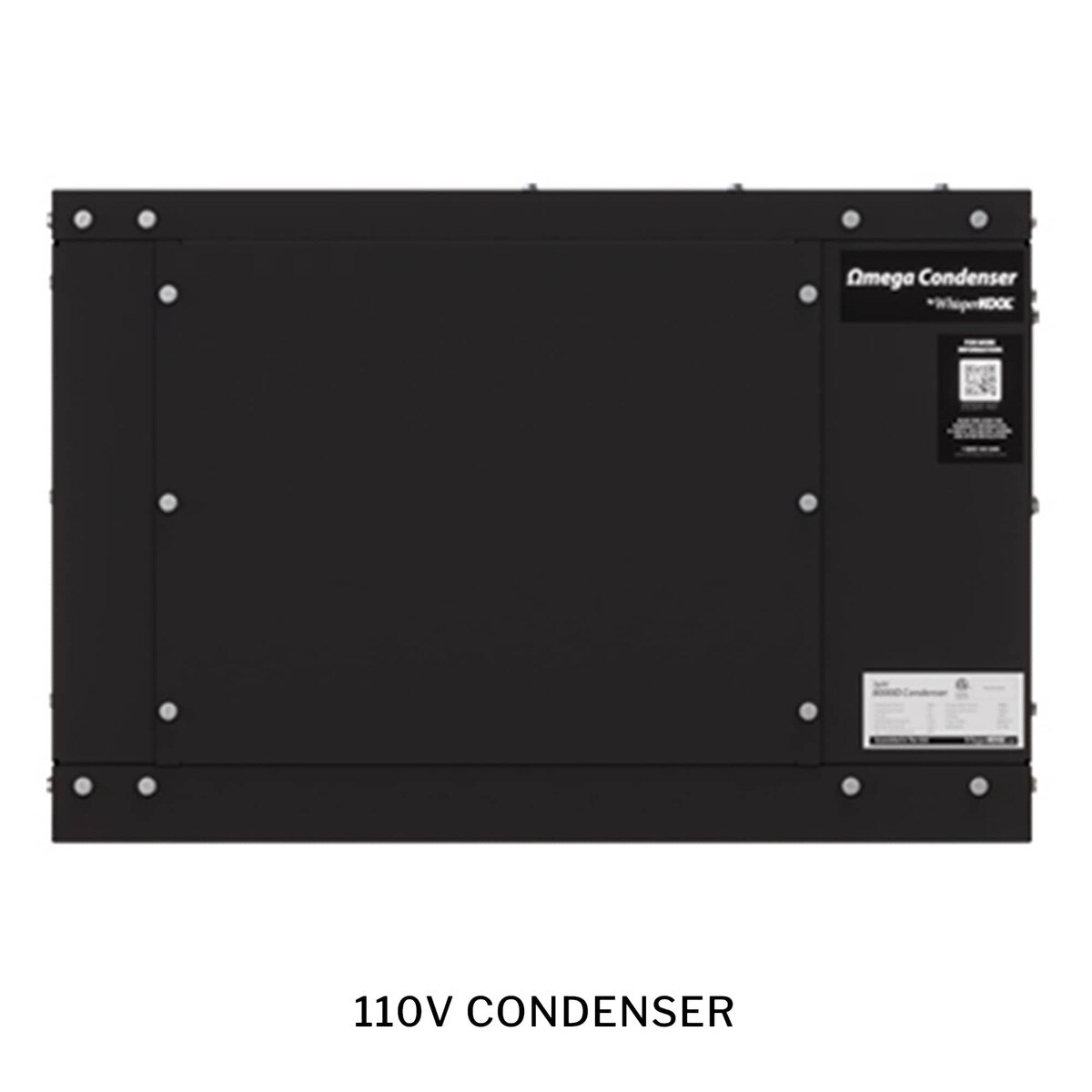

Condenser:
- 69 lbs
- 43.6 (starting) 8.7 (running) Amps
Temp Delta: 55 degrees F
Capacity: 4900 BTUH, for wine cellars up to 2000 Cu Ft
