WhisperKOOL Ceiling Mount Mini Cooling Unit #17747

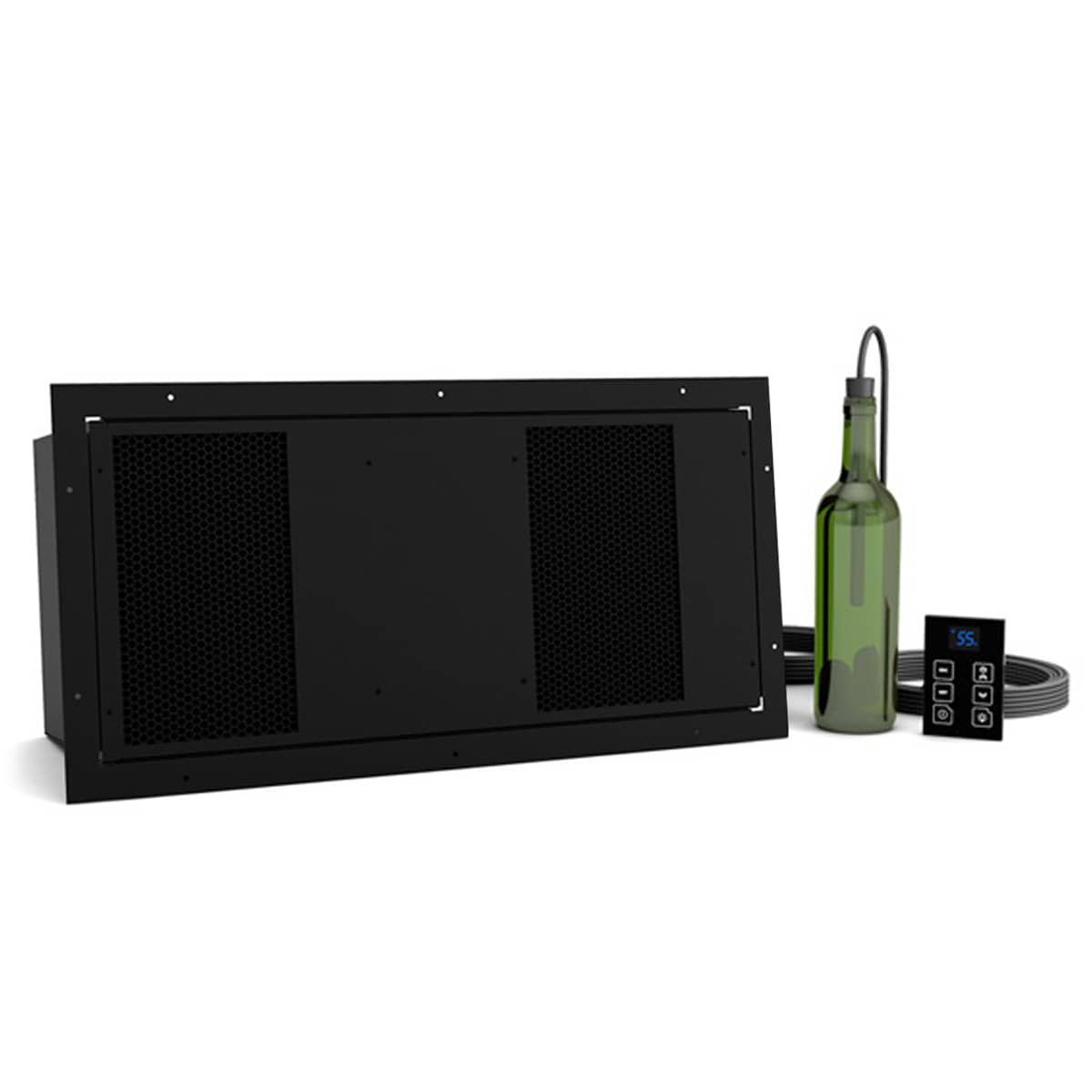

WhisperKOOL Ceiling Mount Mini Wine Cooling Unit (P/N Mini Ceiling Mount). WhisperKOOL's Ceiling Mount 3000 split system cools up to 500 cubic feet* in properly insulated wine cellars.

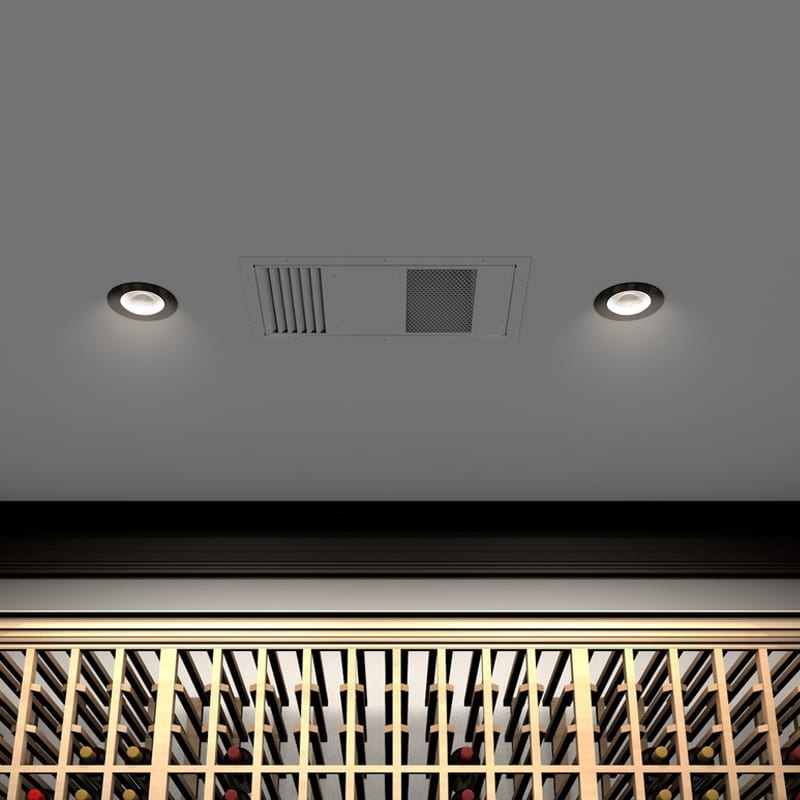

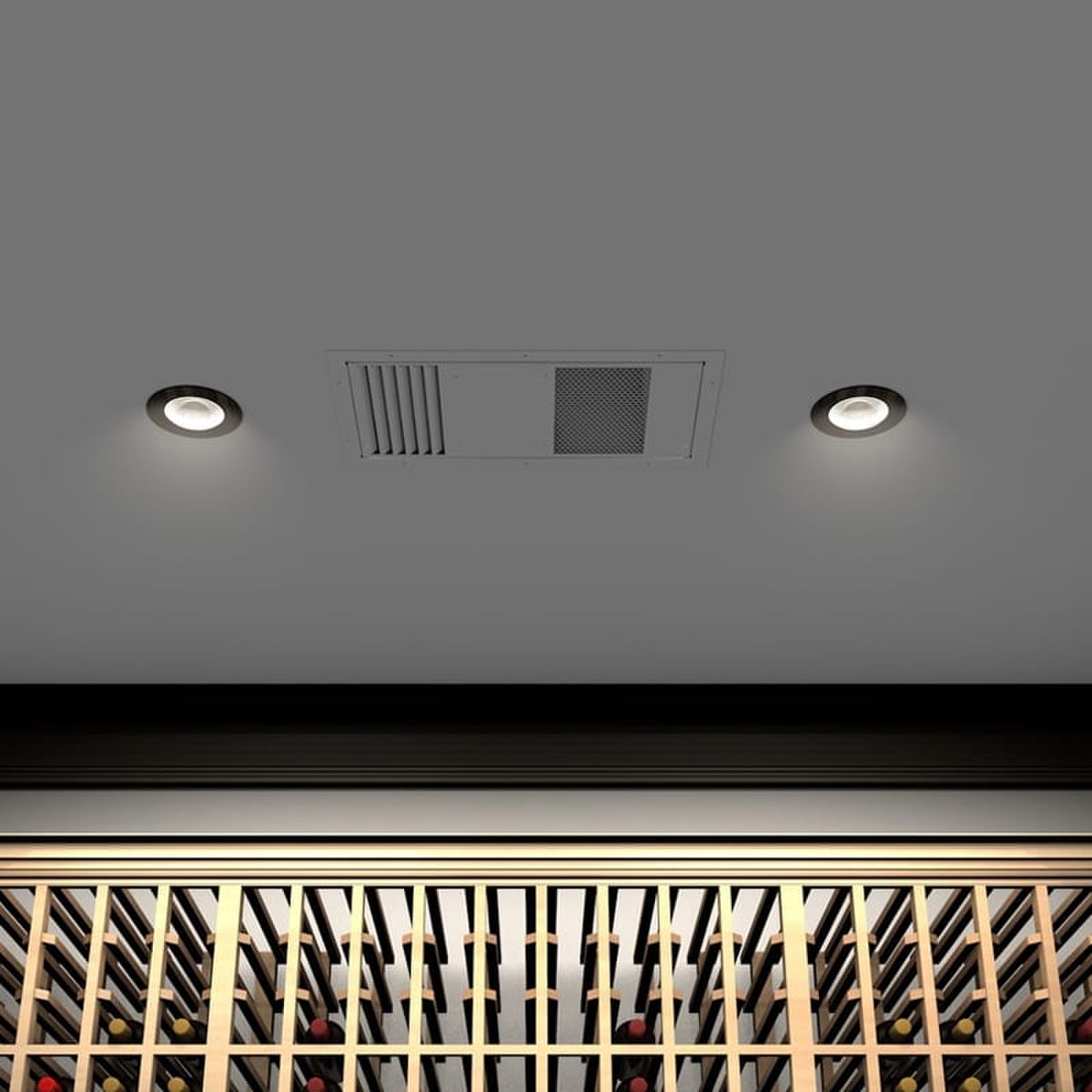

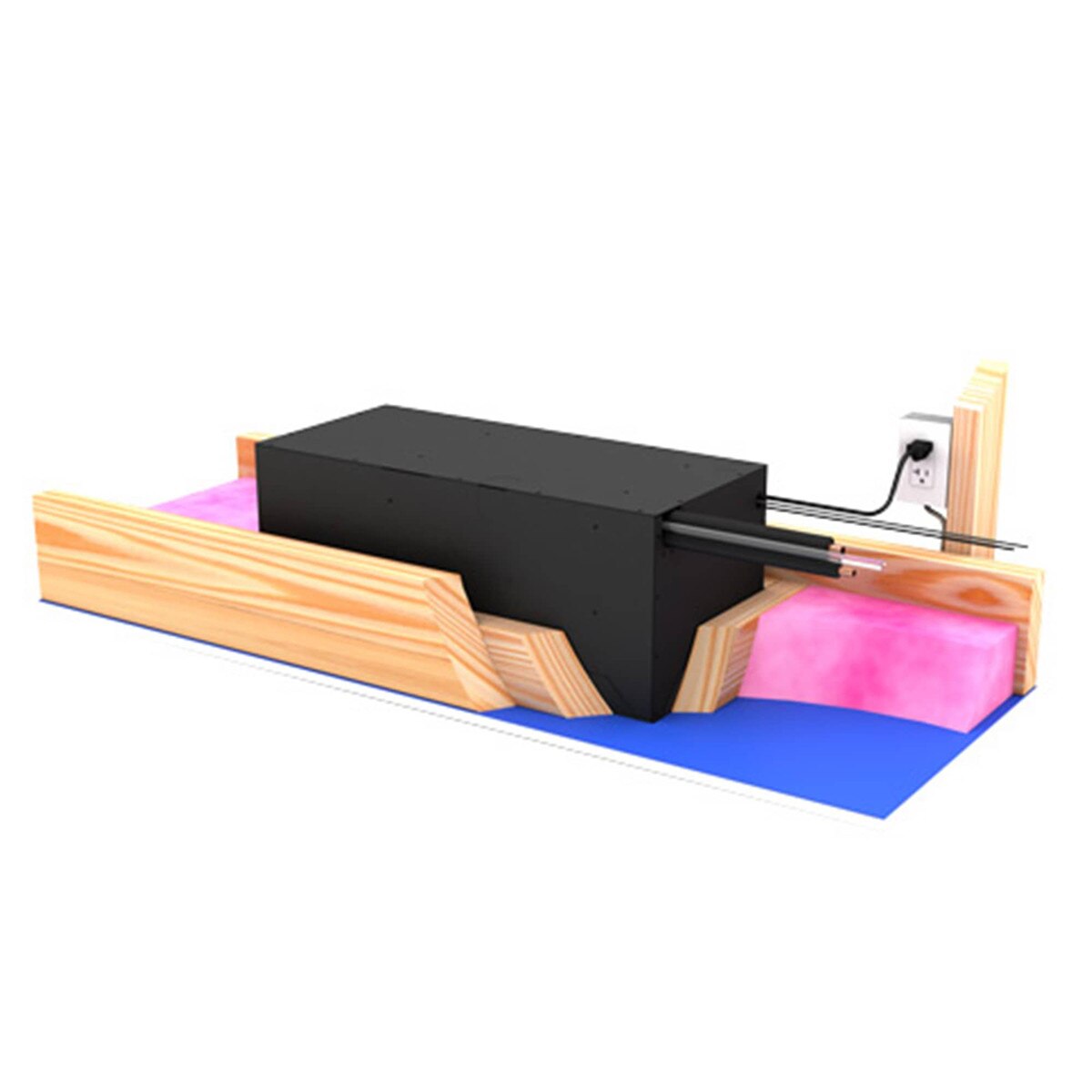

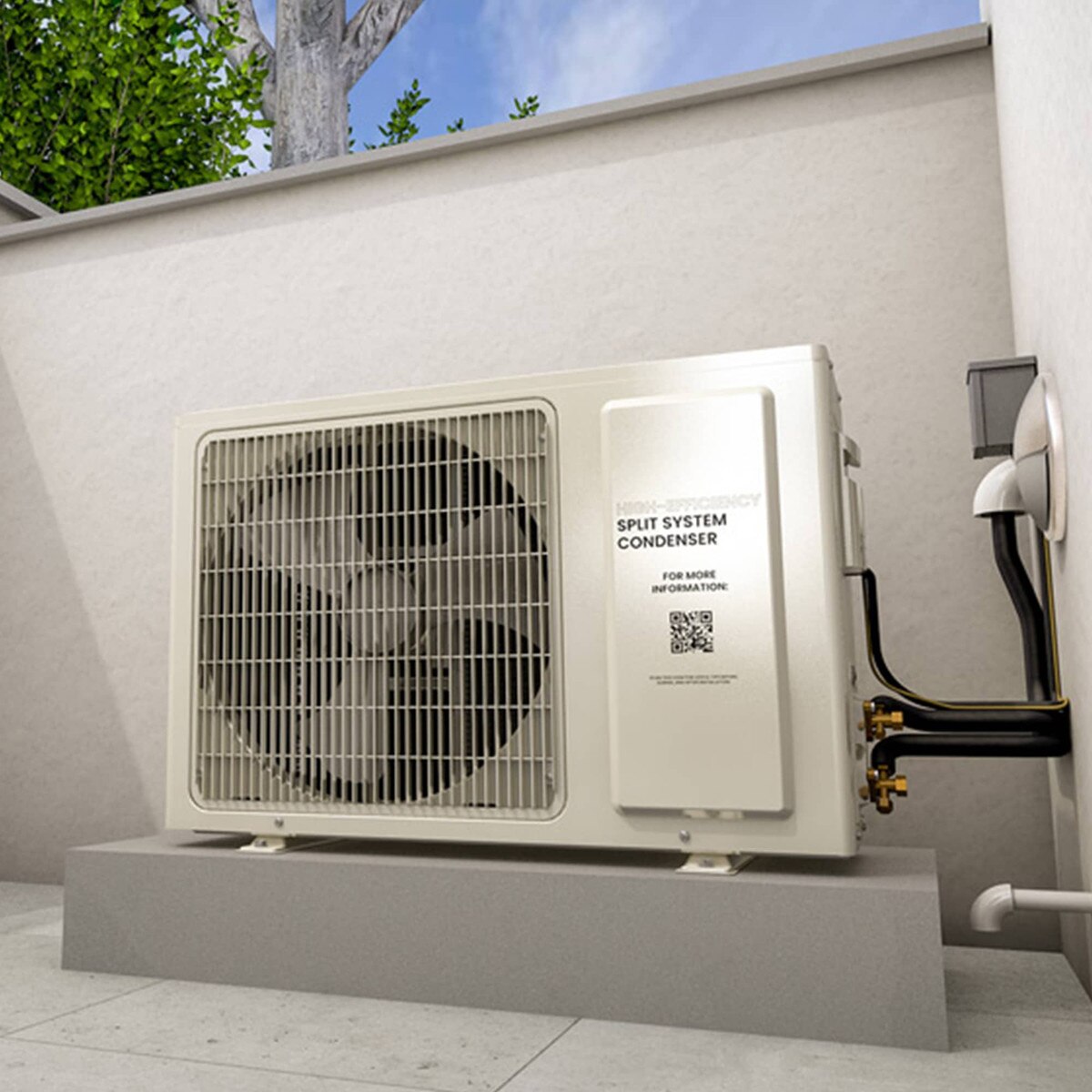

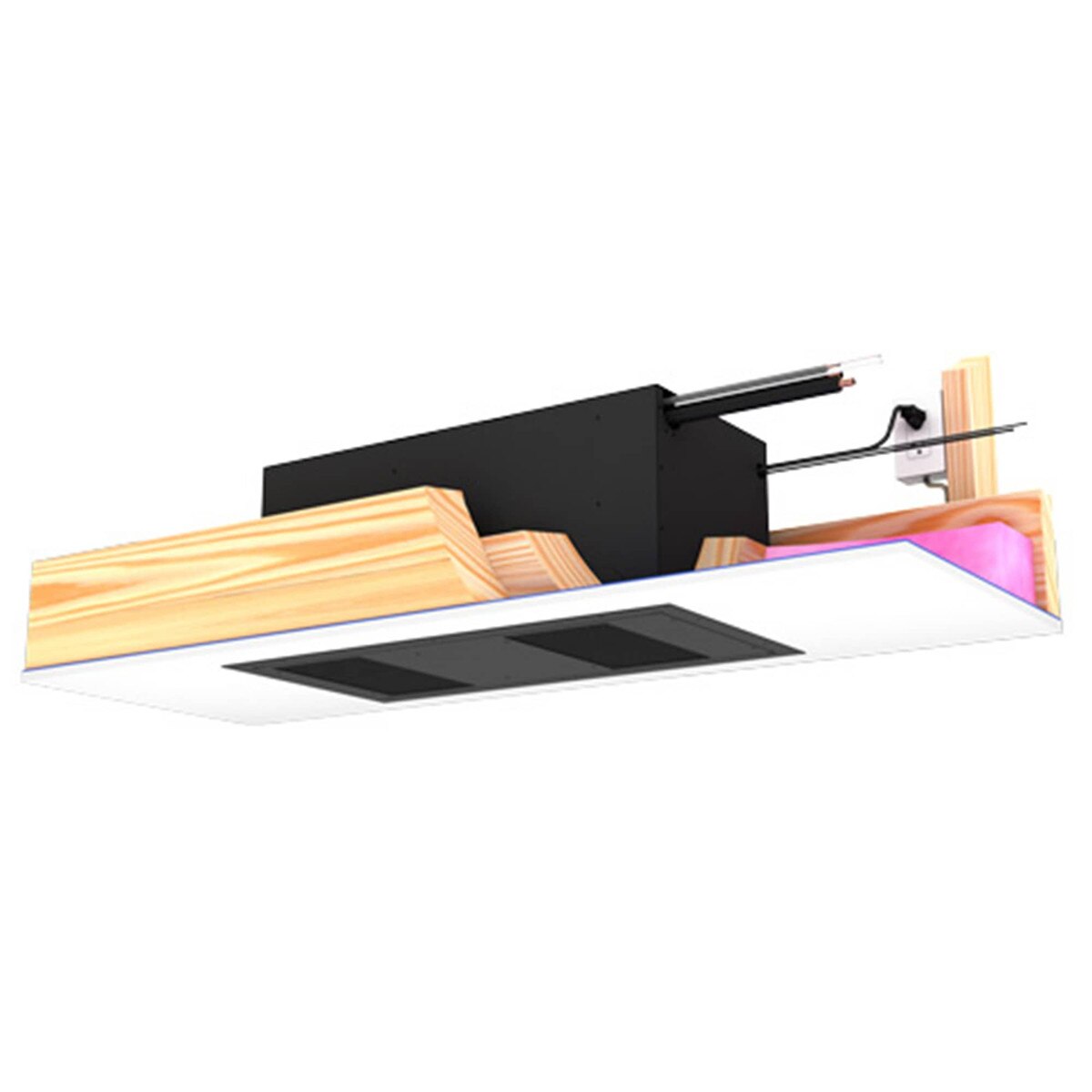

With the compressor located in a remote location (up to 100 line feet away) away from common living areas, and the evaporator (cold side) mounted on the ceiling inside the cellar, this design is nearly invisible with maximum space for bottle storage.
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).

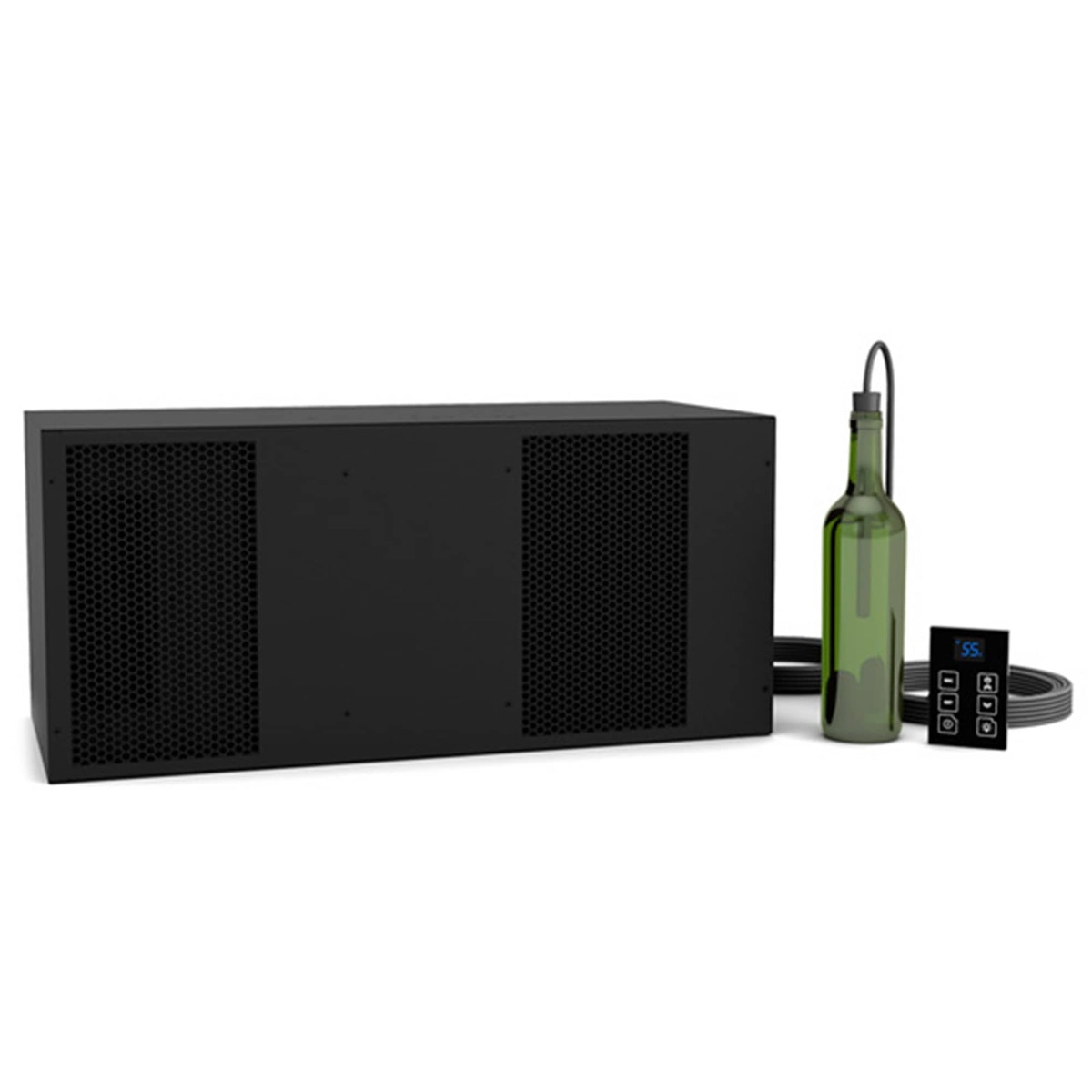

PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
1540 BTUH.

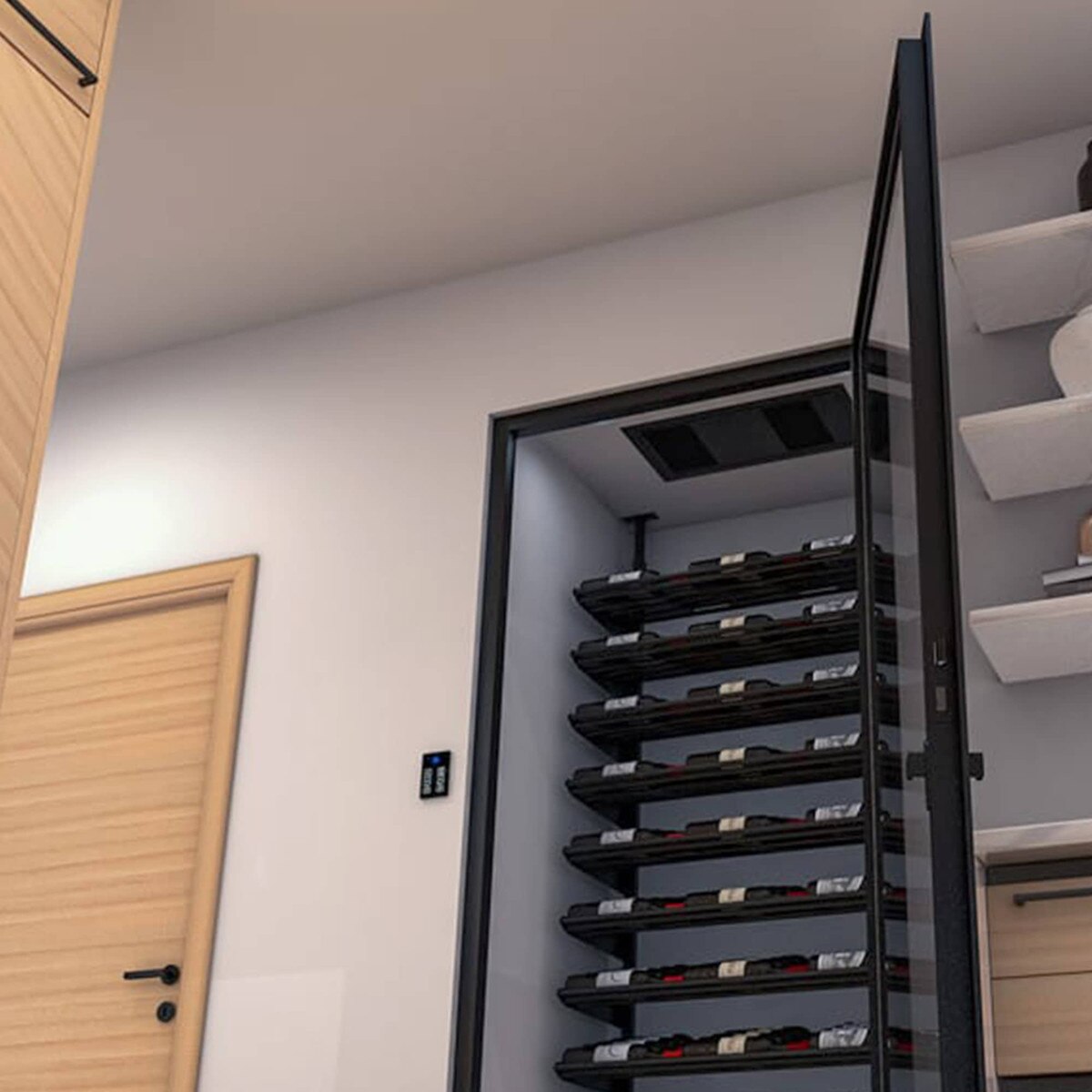

From industry leader WhisperKOOL, this ceiling-mount design allows all wall space inside the cellar to be available for racking, allowing higher bottle capacity with easy installation and accessibility.
- Ceiling mount design allows maximum bottle storage

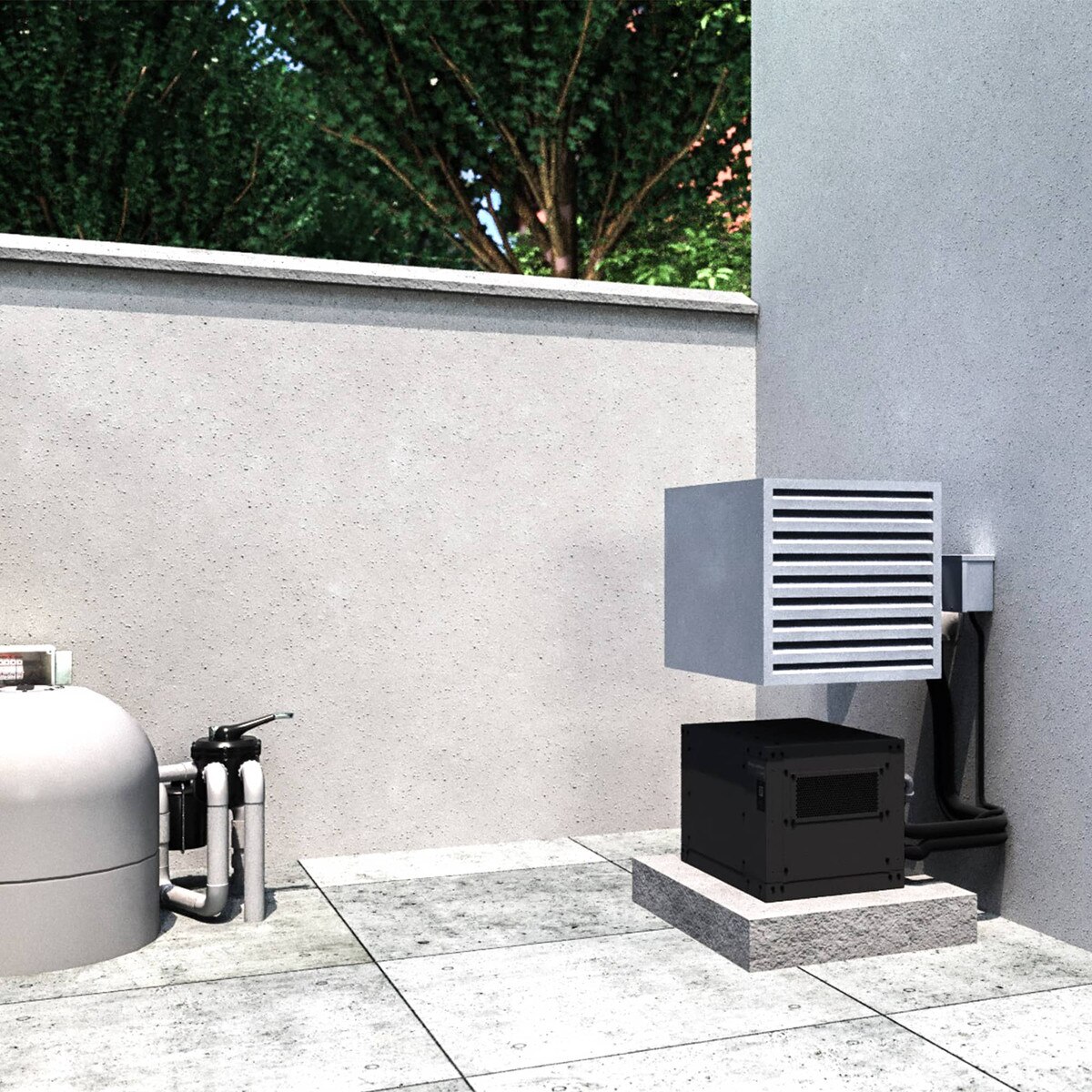

- Split system allows condensing unit to be located away from living areas
- Advanced electronic control system
- Low ambient control
- Flexible installation
- 55F temperature differential
Brand: WhisperKOOL
Size: 22w x 11d x 11 1/4h (in)
Weight: 82 lbs
Power/Rating:
Starting Amps
- Evaporator: 2
- Condensing Unit: 11
Running Amps:
- Evaporator: 1
- Condensing Unit: 3.81
Capacity: 500 Cu Ft*
Material: Metal
Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Click on one of the following links for more information:
Owners Manual
Installation Checklist
Spec Sheet
Noise level: 52 dBA

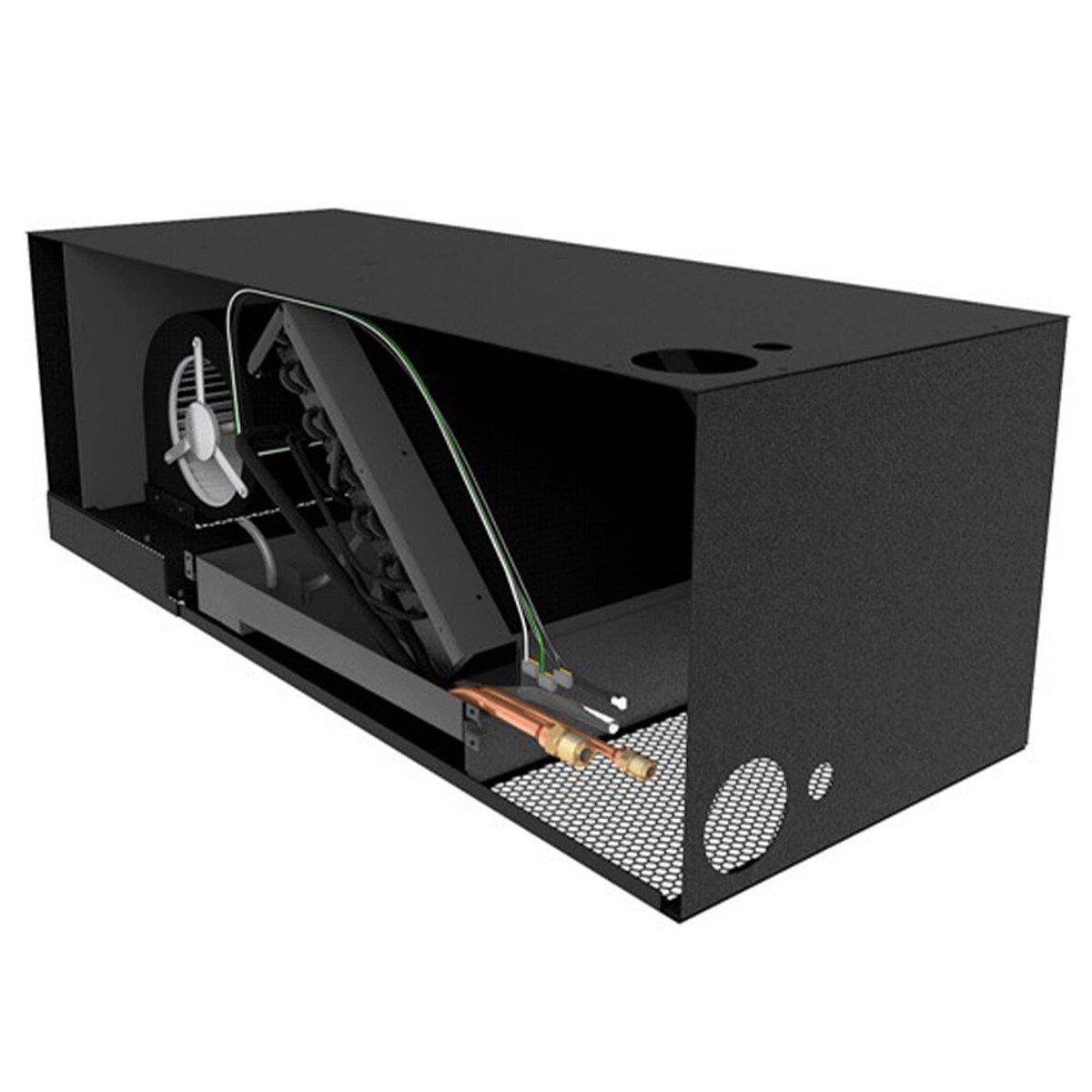

Evaporator:
- 40.6 lbs
- 2 (starting) 1 (running) Amps

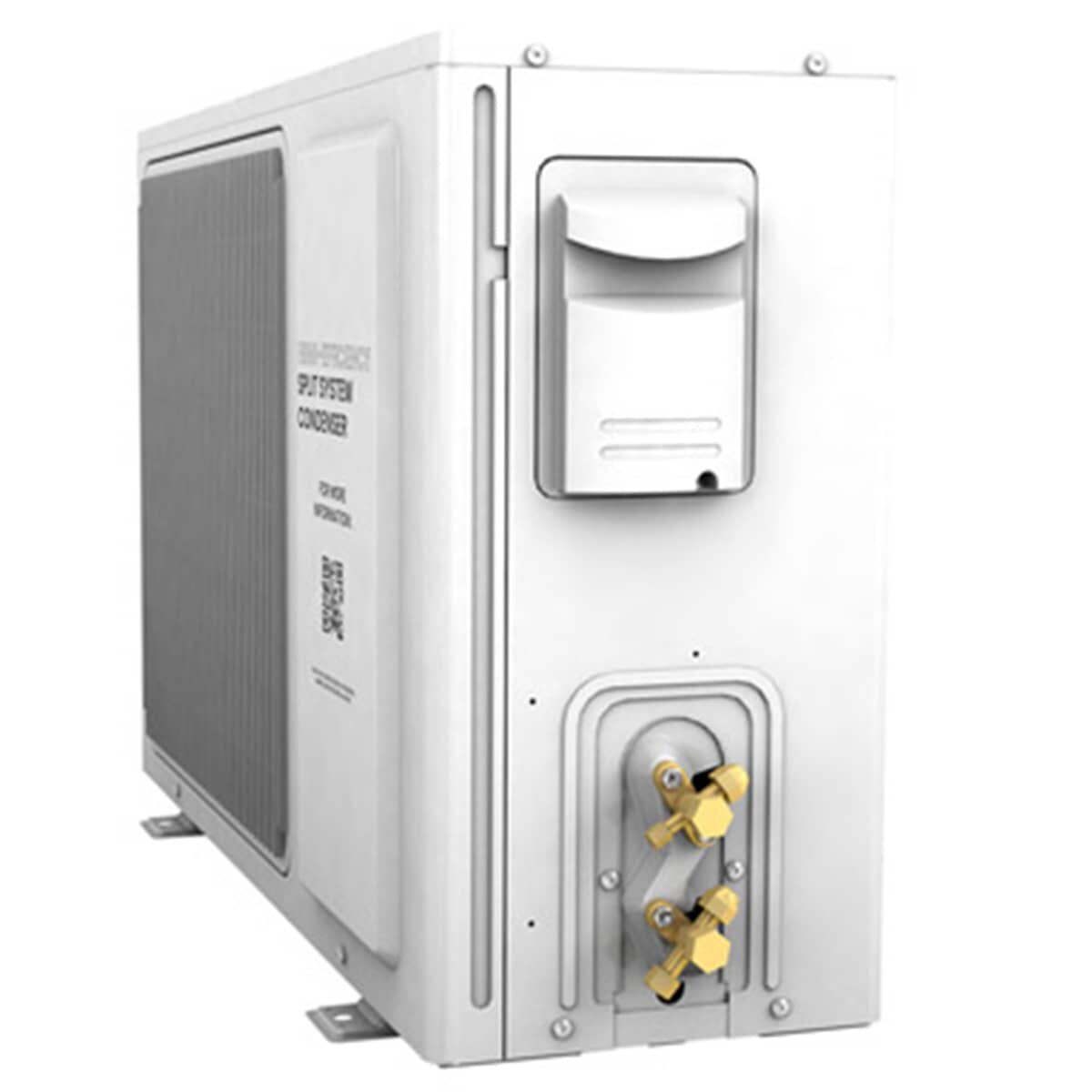

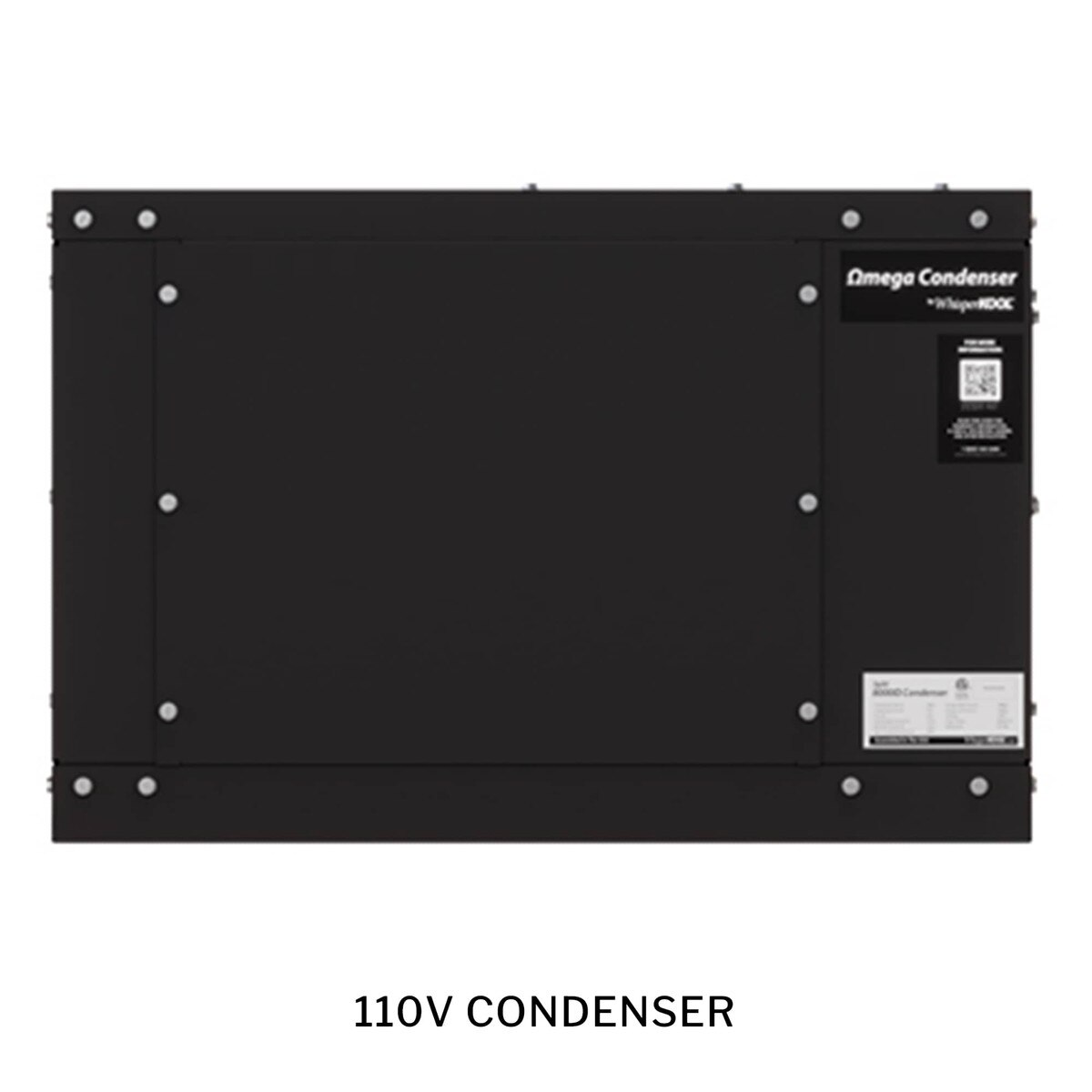

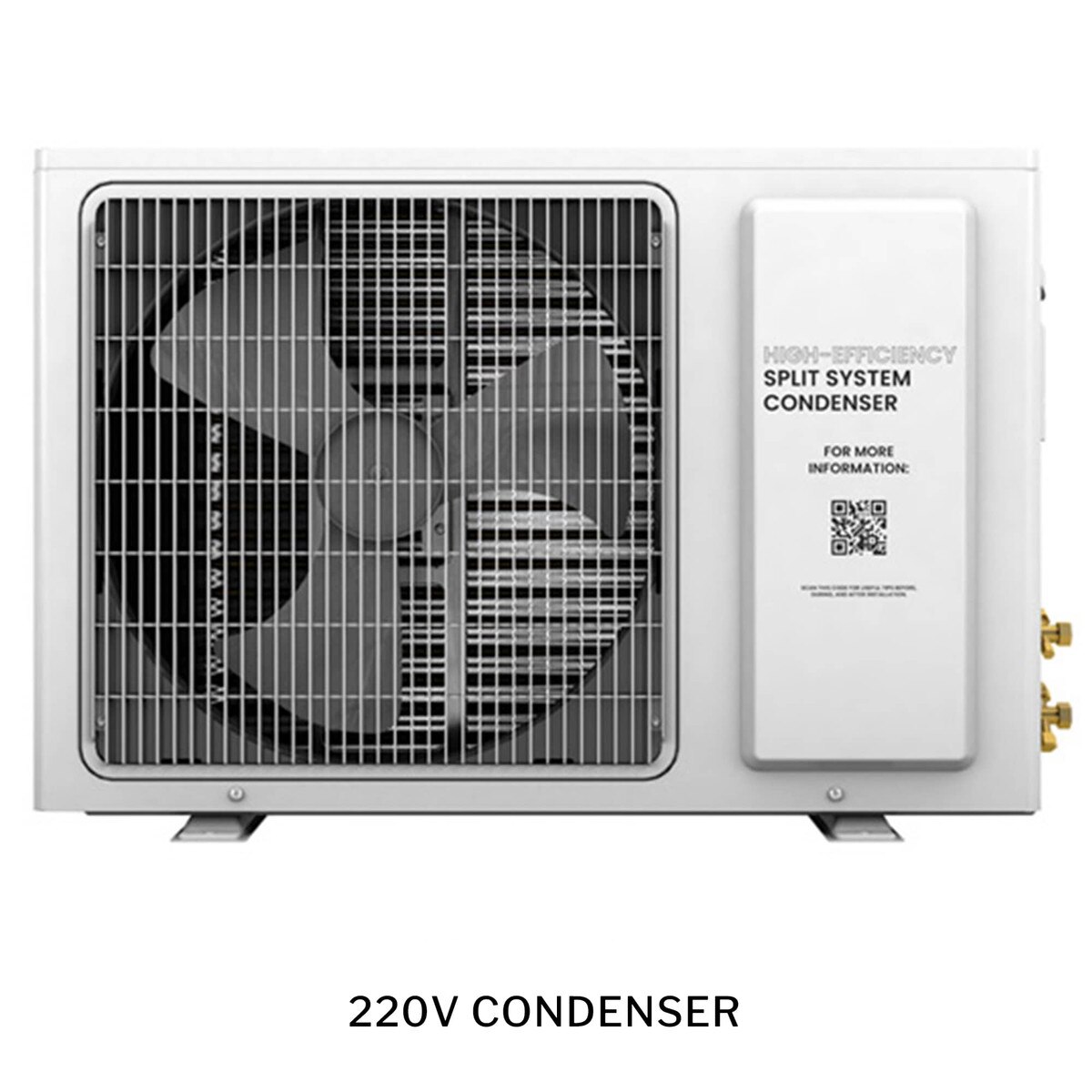

Condenser:
- 40.4 lbs
- 11 (starting) 3.8 (running) Amps
Temp Delta: 55 degrees F
Capacity: 1540 BTUH, for wine cellars up to 500 Cu Ft*
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
