Transtherm Double Castel Wine Cabinet Glass Door Black NEW #16308

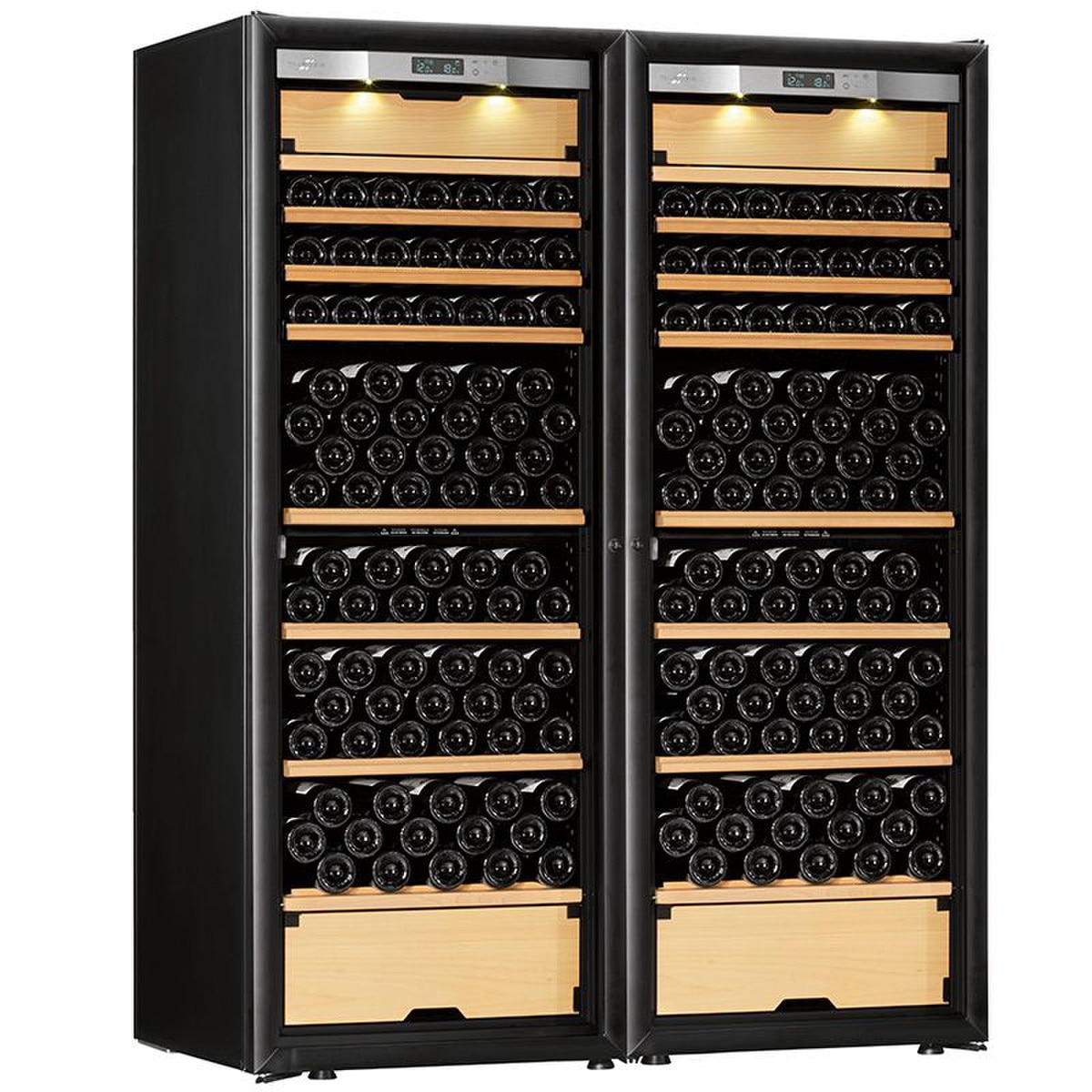

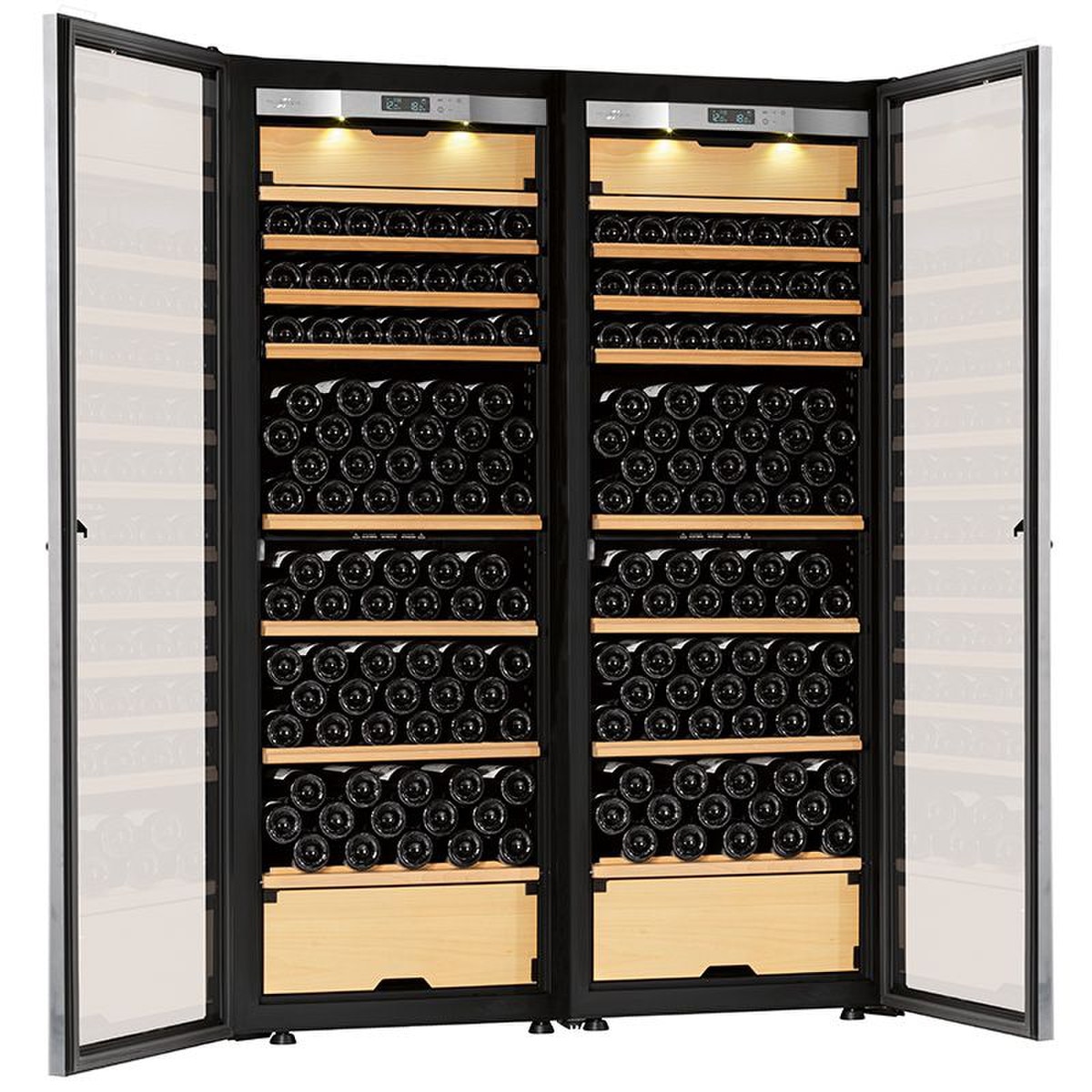

Transtherm Double Castel Wine Cabinet Glass Door Black NEW (#16308). Each side holds 190 bottles as configured (380 total). Max. capacity per side: 209 bottles (418 total). The Double Castel wine cabinet combines 2 individual Castel cabinets side-by-side. Each unit has an independent temperature zone-perfect for storing wine on 1 side, and maintaining proper serving temperatures on the other.

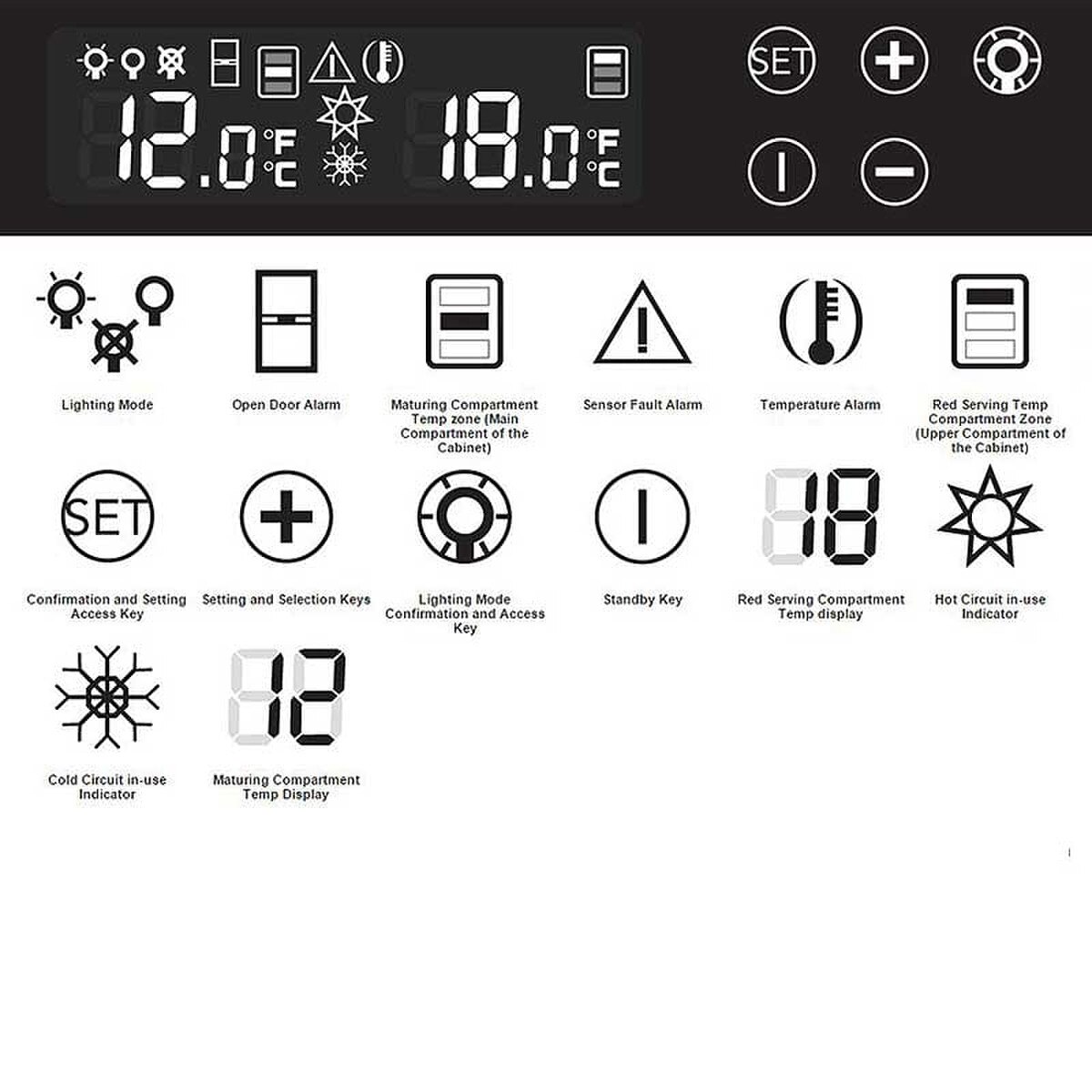

Two digital thermostats allow you to set and monitor your wine collection at the touch of a button. Its humidity control system not only reduces excess humidity, but also allows you to increase the humidity level by adding water to the system. The integrated heater element allows the wine cabinet to be placed in extreme environments ranging from 32 to 95F.

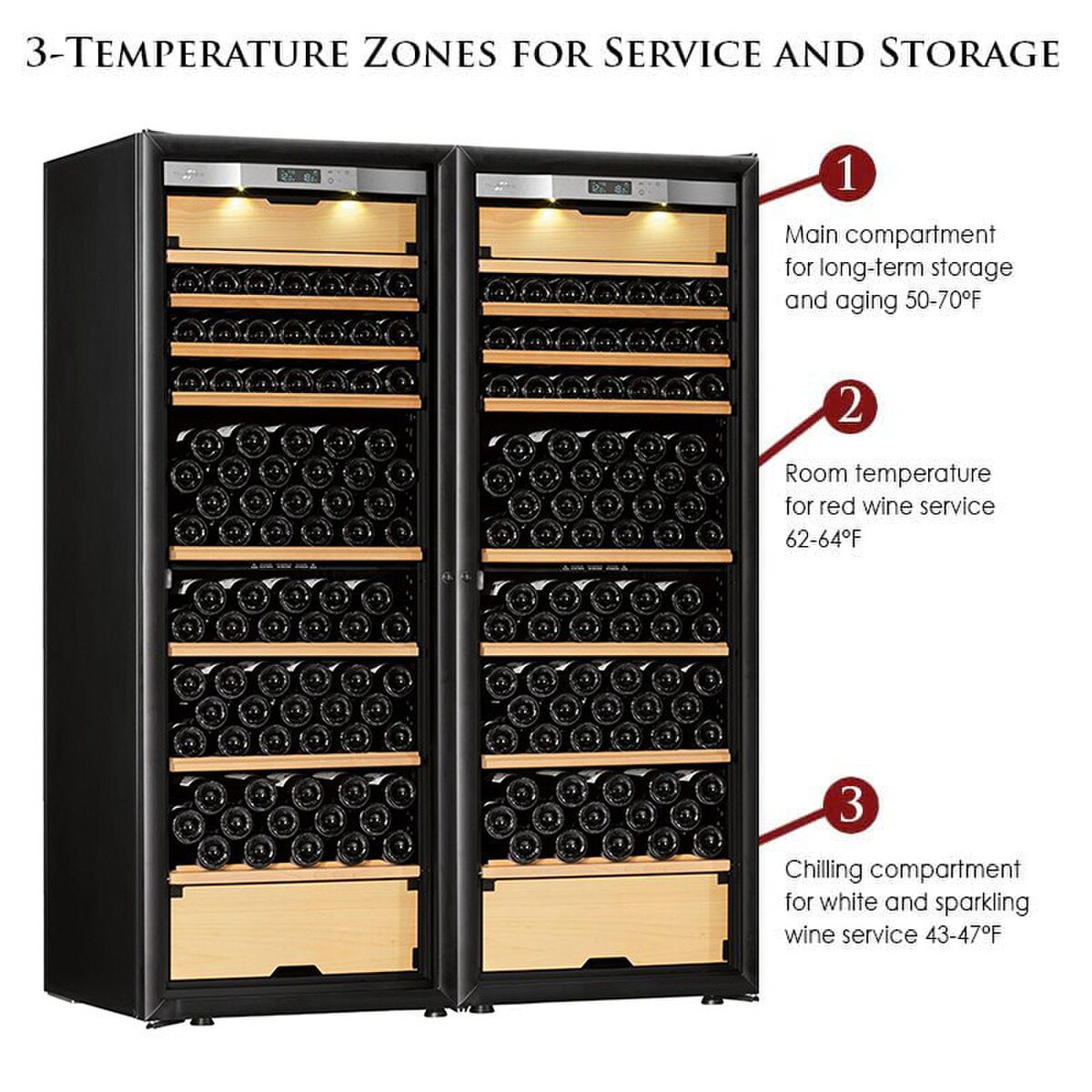

Each side has 3 temperature zones: one large compartment for wine storage, plus two smaller sections for chilling white wine and sparkling wine.

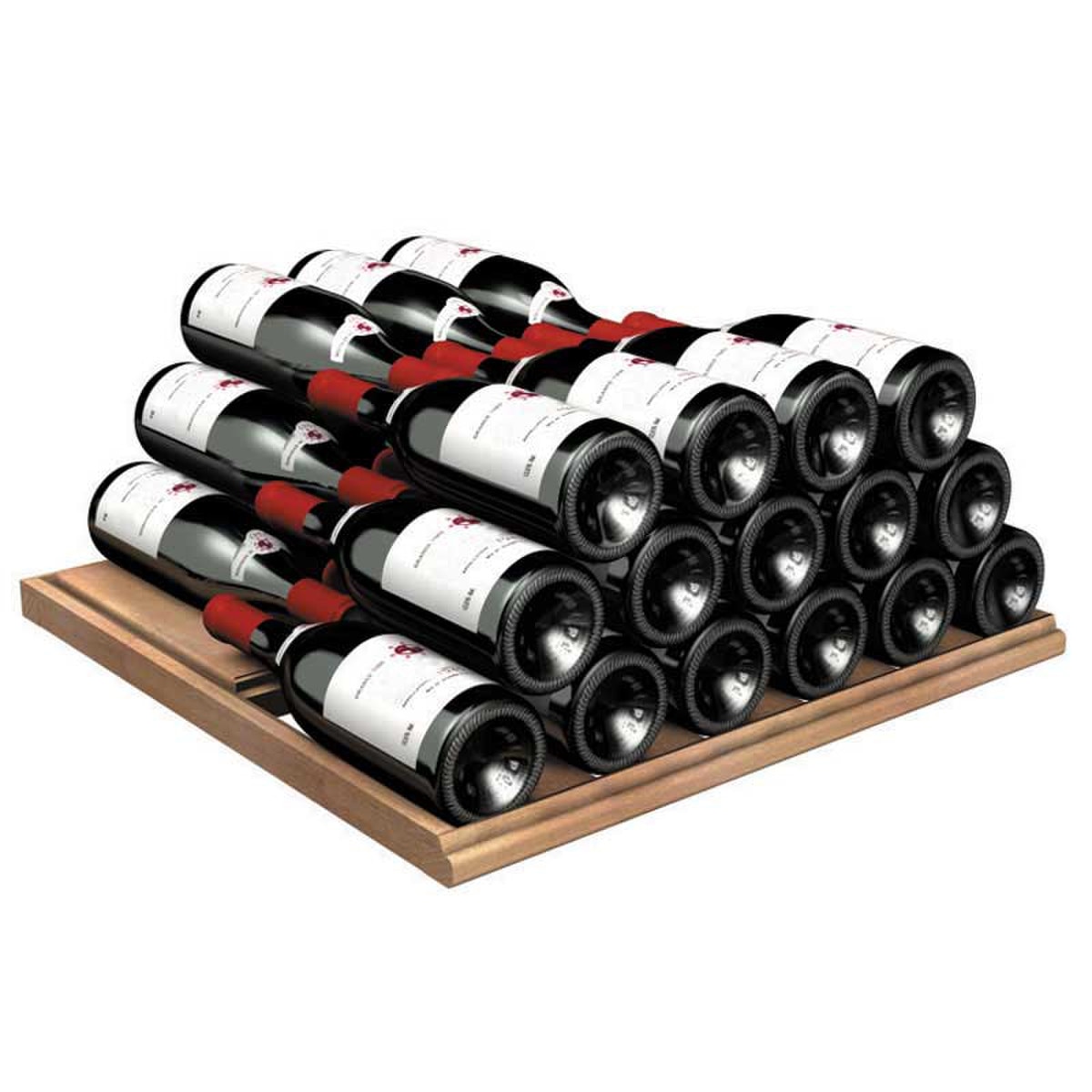

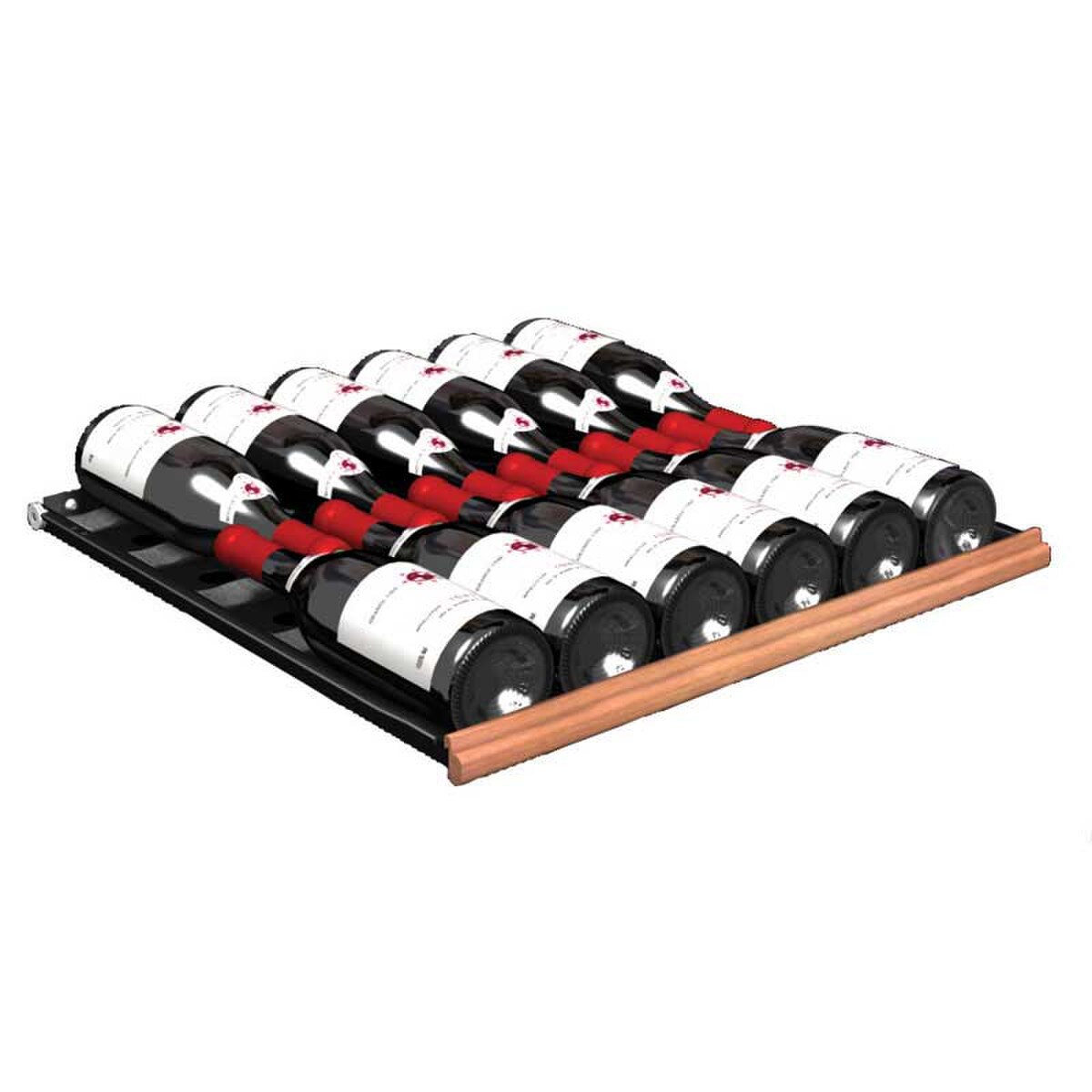

Each side comes with 3 adjustable rolling shelves (12 bottles per shelf) and 3 fixed storage shelves (up to 77 bottles per shelf). Using this configuration, the wine cabinet holds 380 bottles. Additional shelving is available, up to a maximum of 14 rolling shelves per side (capacity will decrease as shelves are added). When using 3 fixed shelves, a maximum of 9 rolling shelves per side can be used.
Placement Requirements: Castel wine cabinets require 4 inches of clearance behind the cabinets, and are designed to operate in environments ranging between 0-35F. A dedicated 15-amp circuit for each cabinet is recommended. Transtherm cabinets use 120V / 60Hz power. Single cabinets require a 15-Amp circuit, while double cabinets require two (2) 15-amp circuits.
- 3 temperature zones for storing red wine and chilling white wine and sparkling wine
- Electronic temperature regulation system maintains a maximum temperature variation of 2-3F inside the wine cabinet
- Integrated lighting control operates in multiple modes
- Multiple alarms include temperature and humidity alerts
- Heating element allows Castel wine cabinets to operate in unconditioned locations from 32 to 95 degrees F
- Inner material has been upgraded from thermoformed polystyrene to aluminum
- New adjustable shelves can be adjusted to achieve the perfect height

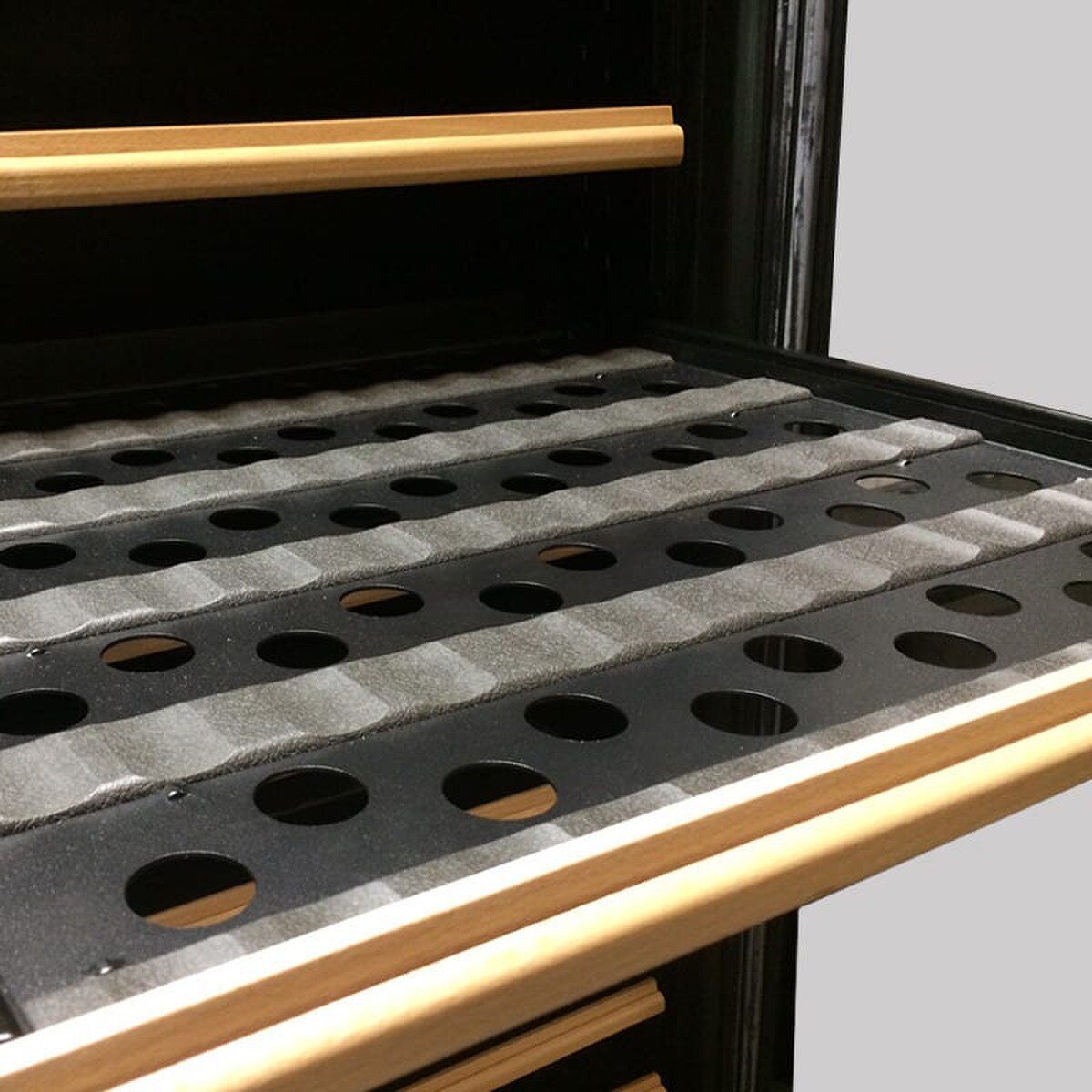

- Transtherm rolling shelves have low-profile grooves designed to easily accommodate all bottle sizes
- Silent operation measured at 37 dBA
- Removable door handle made from steel and aluminum (also reversible on glass doors)
- Premium high-density expanded foam insulation insulation is 4. 5cm thick
- Thermal pump (a Transtherm exclusive) recycles condensation and maintains humidity between 55% - 80%
- Natural ventilation avoids mold and bad odors
- Absence of vibrations through slow and balanced compressors that are disassociated from the cabinet's body
Size: 53 1/2w x 26 1/4d x 72h (in)
Weight: 504 lbs
120V / 60Hz; Requires 2 x 15-Amp Dedicated Circuits
Capacity: Up to 380 bottles
Material: Melamine Laminate
1-Year Limited Warranty - Parts and Labor
5-Year Limited Warranty - Compressor
