CellarPro 3400H Houdini Duct KIT HOT SIDE #36027

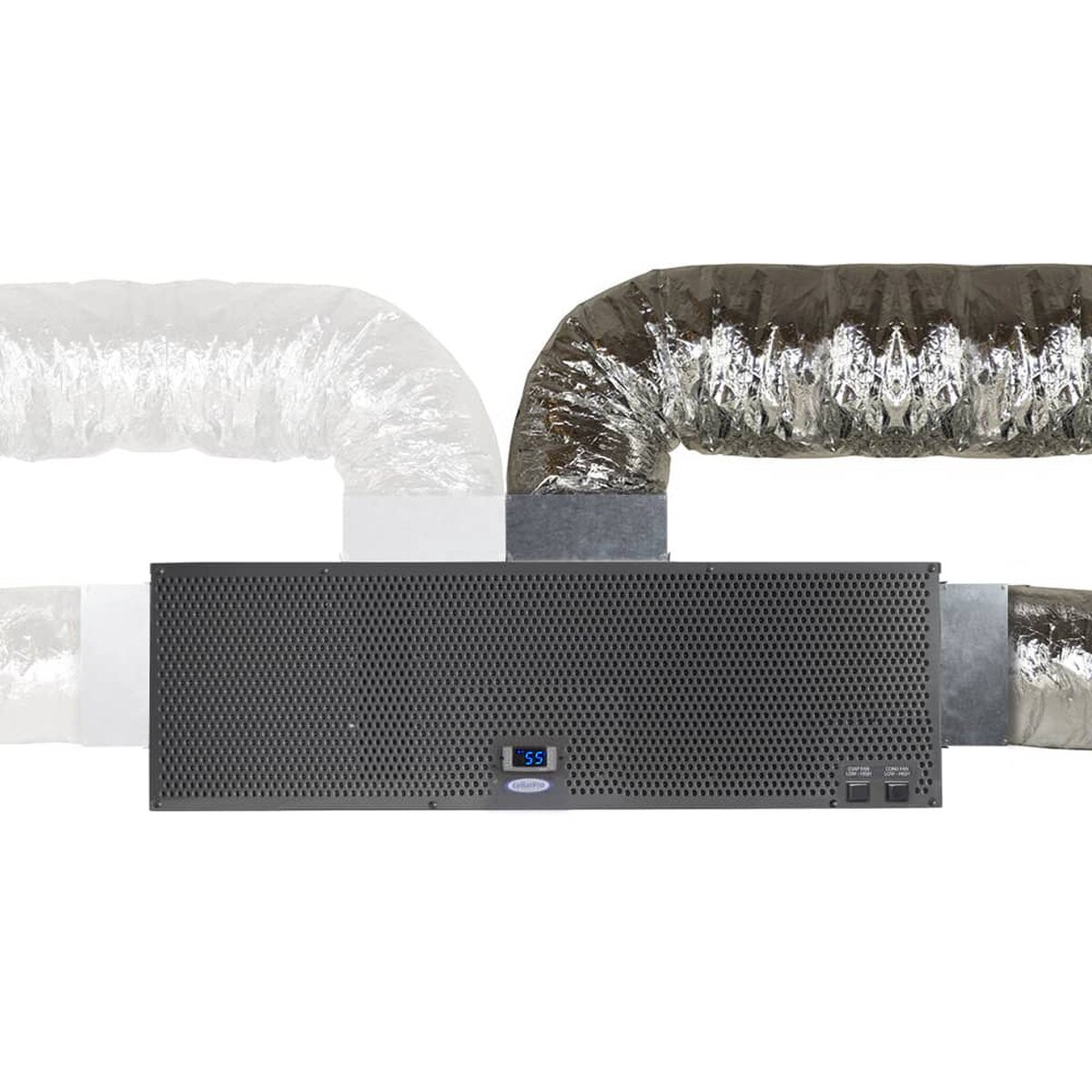

CellarPro 3400H Houdini Duct KIT HOT SIDE (P/N 36027). These duct kits are designed for use with CellarPro's 3400H Houdini cooling unit, as follows:
- Attach to the hot side airflows (intake and exhaust), allowing the cooling unit to push its exhaust and/or pull its fresh air from remote locations (but not from the cellar), mitigating tight installations with insufficient space around the cooling unit, as follows:
- Fresh air intake: can be ducted from the top (shown), the front, or the right side of the cooling unit
- Hot air exhaust: can be ducted from the top (shown), the front, or the rear of the cooling unit
Each bundle includes:
- 2 hoods (1 for intake and 1 for exhaust on the hot side)

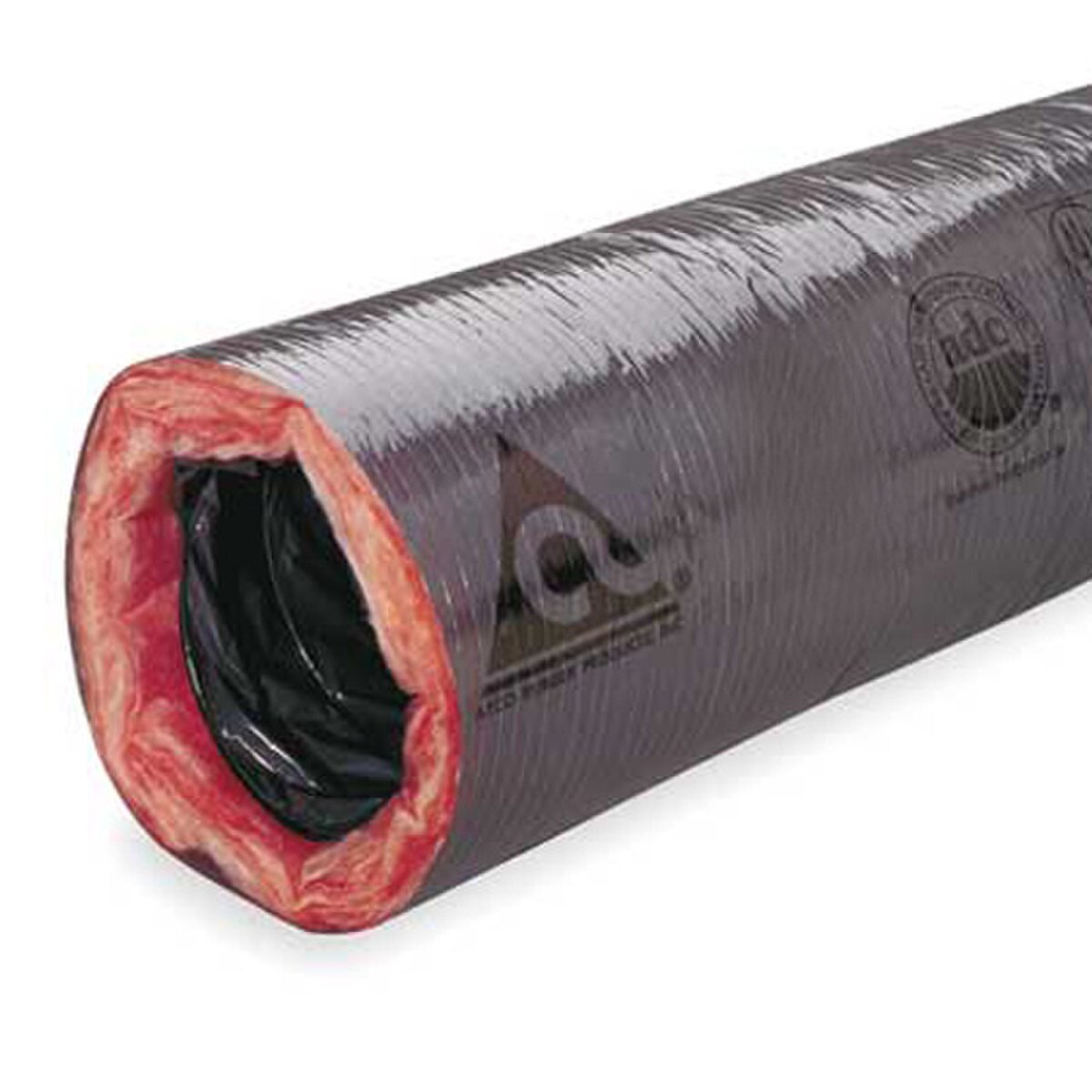

- 2 insulated flex ducts (25' each)
Please note:
- 2 x 25-foot R-6 insulated ducting is included with this bundle
- Ducting must be 8-inch diameter or equivalent from start to finish
- The high fan speed MUST be used when ducting our cooling unit.
The maximum length of ducting is 100 equivalent feet on the hot side and 100 equivalent feet on the cold side. The hot side can be ducted up to 200 equivalent feet with the addition of an inline duct fan (sold as a separate kit.)
Allows CellarPro 3400H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) on the hot side using 8-inch ducting with no reductions from start to finish .
- Includes 50 feet of 8-inch insulated ducting (R-6)
- Designed to work with hot-side airflow openings on the 3400H Houdini cooling unit
Brand: CellarPro
Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)
Weight: 26 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:
Filters & Grills
- Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
