CellarPro 3400H Houdini Duct HOOD HOT SIDE #36026

CellarPro 3400H Houdini Duct HOOD HOT SIDE (P/N 36026). These duct hoods are designed for use with CellarPro's 3400H Houdini cooling unit, as follows:

• Attach to the hot side airflows (intake and exhaust), allowing the cooling unit to push its exhaust and/or pull its fresh air from remote locations (but not from the cellar), mitigating tight installations with insufficient space around the cooling unit, as follows:

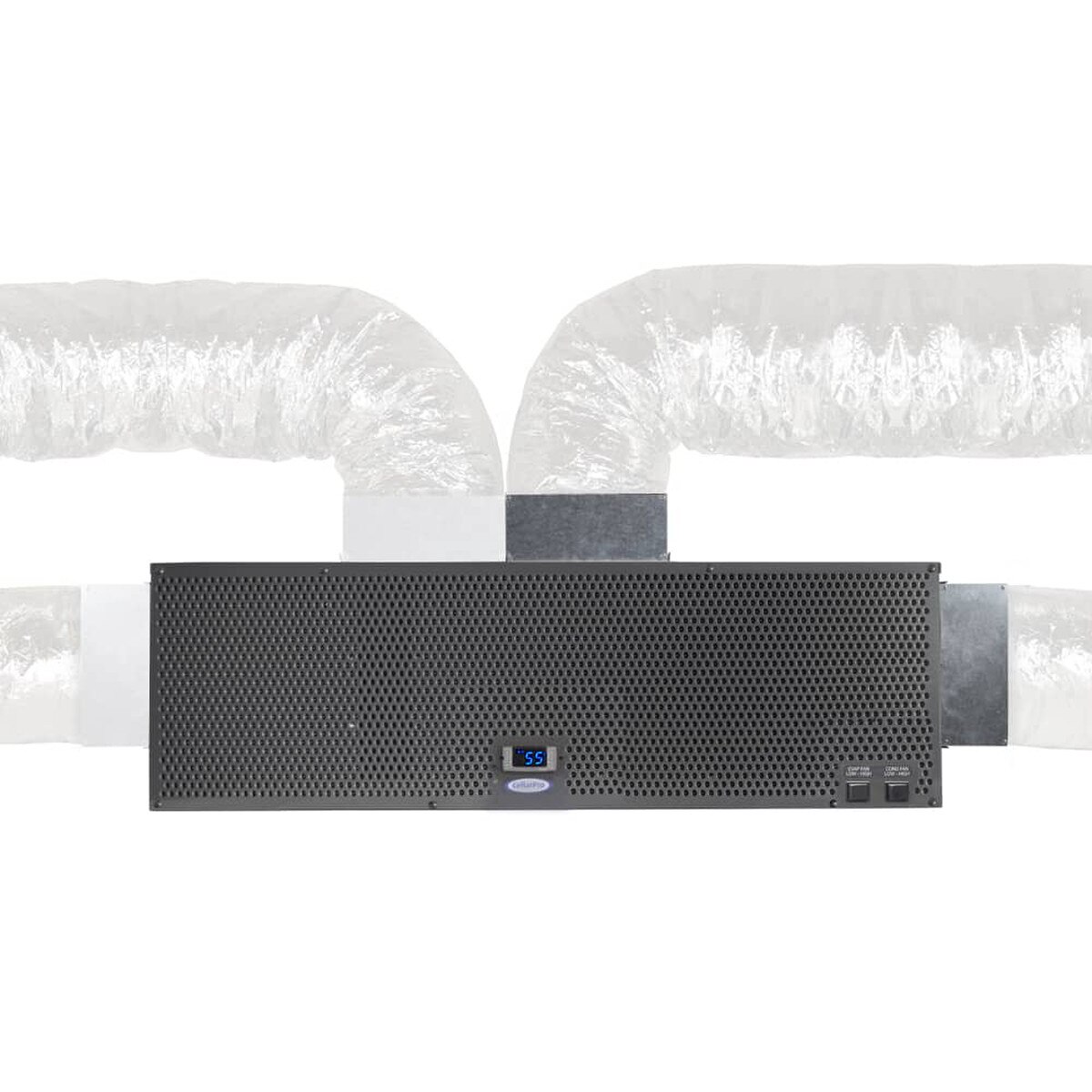

• Fresh air intake: can be ducted from the top (shown), the front, or the right side of the cooling unit
• Hot air exhaust: can be ducted from the top (shown), the front, or the rear of the cooling unit

Each bundle includes:

• 2 hoods (1 for intake and 1 for exhaust)
• Ducting and grills sold separately

Please note:

• Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #36027 instead
• Ducting must be 8-inch diameter or equivalent from start to finish
• The high fan speed must be used when ducting our cooling unit

The maximum length of ducting is 100 equivalent feet on the hot side and 100 equivalent feet on the cold side. The hot side can be ducted an additional 100 equivalent feet (up to 200 equivalent feet) with the addition of an inline duct fan (item #36028)

Brand: CellarPro

Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)

Weight: 4 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year

The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with hot-side airflows. Click on one of the following links for more information:

• Owner's Manual
• Duct Hood Drawings - As Ducted
• Ducting Installation Best Practices
• Configuration Options

Filters & Grills

• Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
