CellarPro 8000Swc Split System Water Cooled #19216

(0) Write A Review
Price: $5,295.00
Availability: In Stock
Usually Ships w/i 2-3 Days
Shipping Information:
LTL Truck / Curbside
Free Shipping! Exclusively for our retail customers, receive free curbside delivery in the lower 48 states for a limited time. Simply add to your cart and checkout.
6600 BTUH @ 55°F.
CellarPro's 8000Swc cooling units (3/4 Ton Nominal) are suitable for wine cellars up to 2,000 cubic feet in both commercial and residential wine cellars. The 2,000 cubic feet cellar size assumes that the cellar is constructed with insulation of R19 or better in all walls and ceiling (ie no glass or uninsulated concrete), the cooling unit is not ducted, a setpoint of 55°F inside the cellar and ambient temperatures up to 85°F outside the cellar.

Performance testing shows that this unit maintains optimal cellar temperature and humidity conditions in extreme conditions up to 110°F more effectively than similar units from competing brands. 8000Swc units also are significantly quieter than comparable units from other brands. Visit our Learning Center for data tables, performance charts and product comparisons among different brands.

Configurations

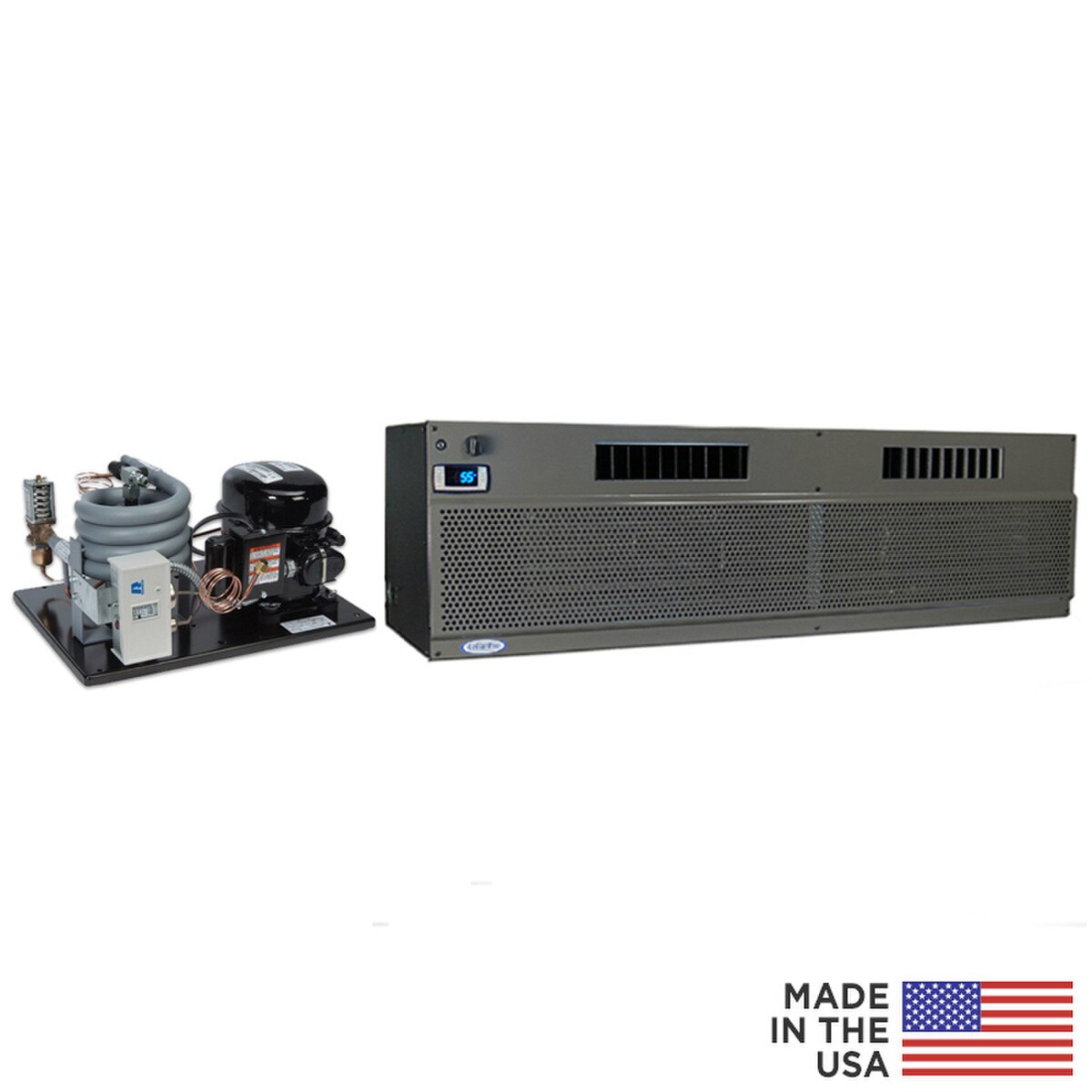

  • CellarPro 8000Swc units are designed to be installed with the evaporator inside the cellar, and the condensing unit in a remote location.
  • Our Split refrigeration systems offer a choice of wiring:
    1. The Condensing unit can be electronically controlled by and wired to the Evaporator (single power source on the Evaporator side). This configuration requires a 20-amp dedicated circuit breaker.
    2. The Condensing unit can be controlled by a Solenoid valve (dual power source, one each to the Evaporator and Condensing units.) This configuration requires the evaporator to be wired to a 15-amp circuit breaker, and the condensing unit to be wired to a dedicated 20-amp circuit breaker.
  • When the control panel is difficult to access, we offer a remote control display kit which is wired to the cooling unit and allows the digital display to be mounted inside or outside the cellar.

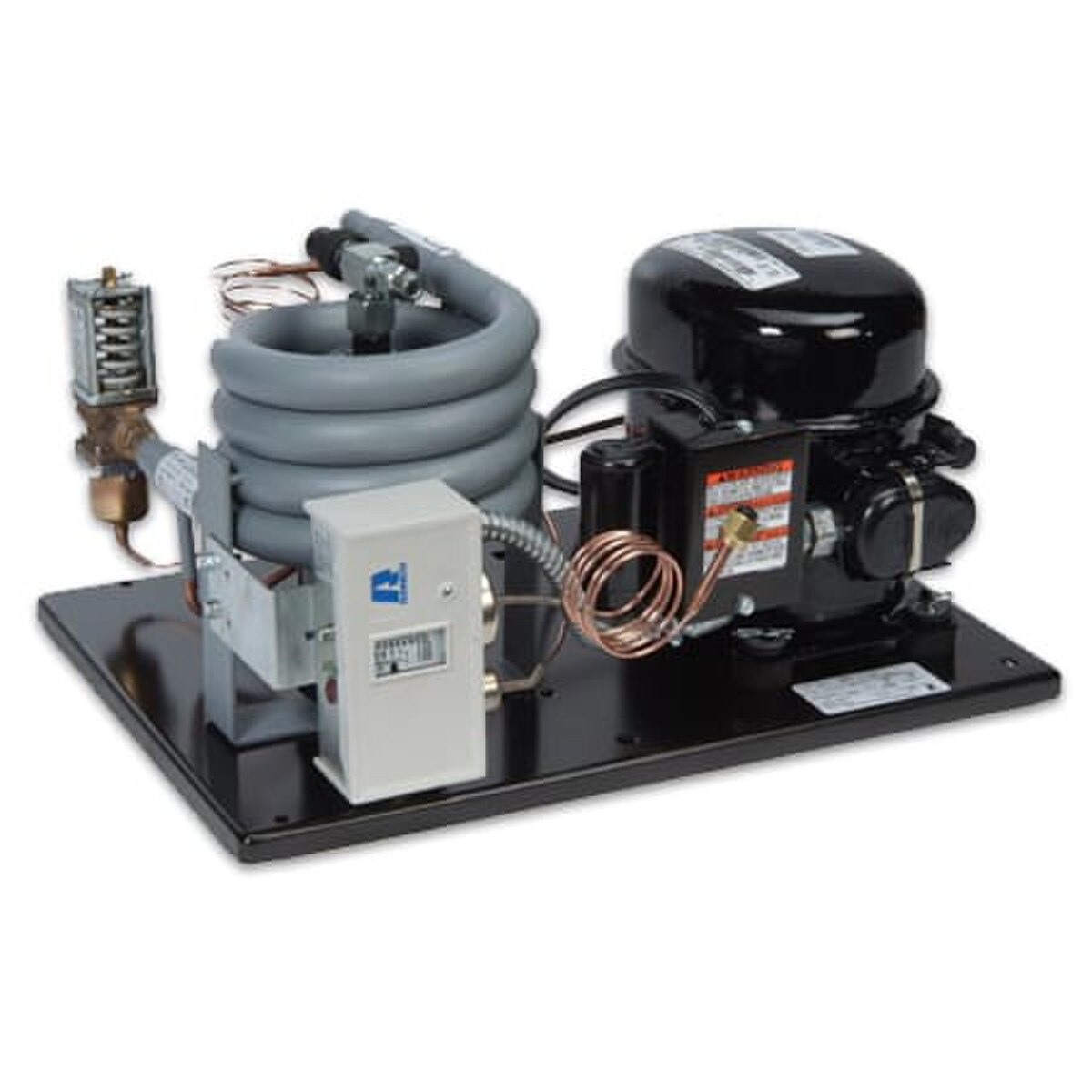

  • The condensing unit requires a continuous flow of water to cool itself.
  • The evaporator and condensing unit should never be exposed to temperatures below 32F.
  • Access to the left and right side of the evaporator unit is required for installation.
  • All split systems must be installed and charged on site by a qualified HVAC professional. Line-set equivalent feet must be calculated in accordance with ASHRAE guidelines; refer to our Line Sizing Chart for more information.
  • A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.
  • We ship these units strapped to a pallet via common carrier with curbside delivery. Inside delivery is available for an additional charge.
  • To activate your warranty, you must complete and return our Installation Checklist.

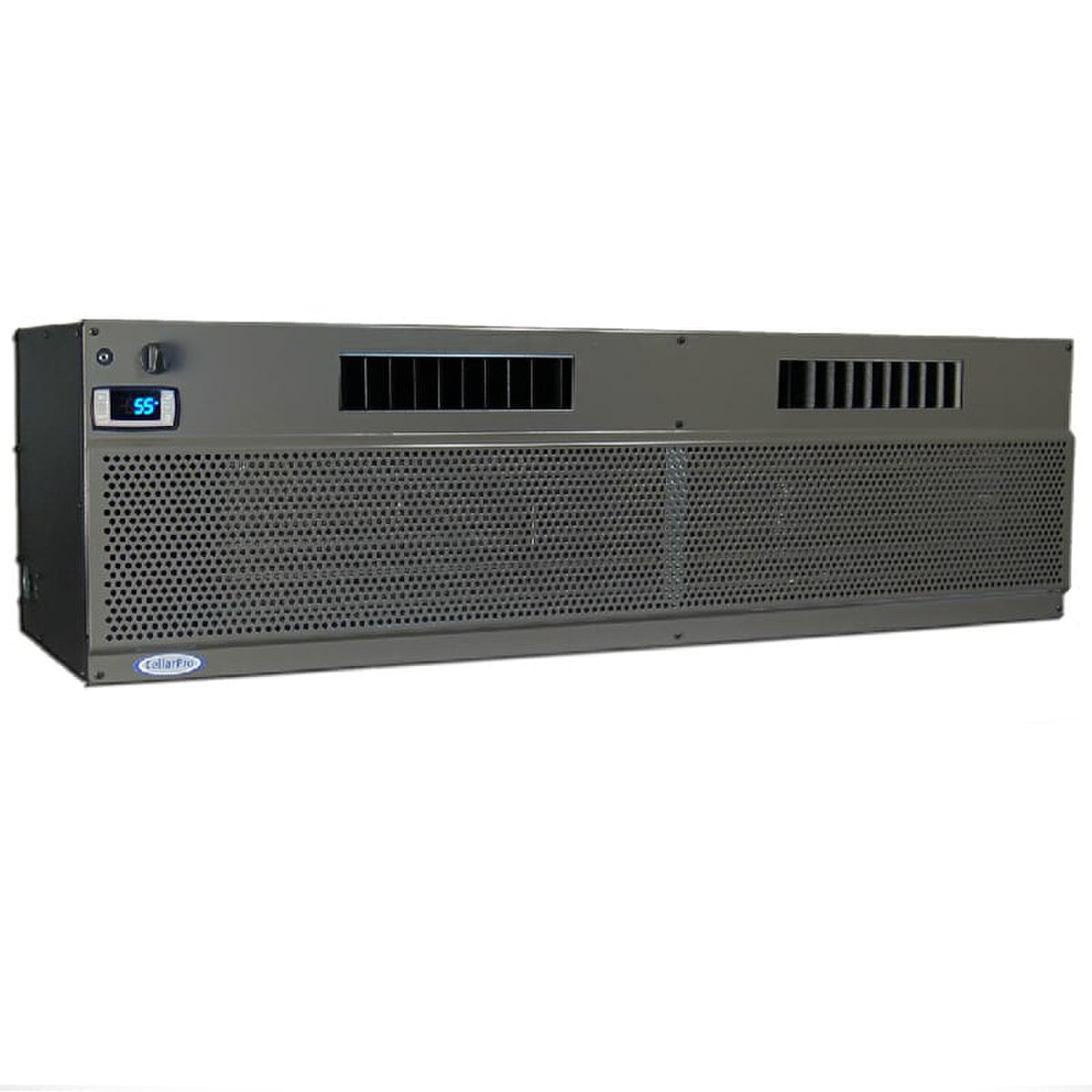

CellarPro 8000Swc Cooling Unit (P/N 7649). CellarPro engineered the 8000Swc cooling system to provide maximum cooling power and adjustable humidity control for cellars up to 2,000 cubic feet. Split refrigeration systems separate the evaporator from the condensing unit, allowing the noise and heat from the condensing unit to be located away from interior living areas. The 8000Swc includes a variable-speed fan on the evaporator with a low setting for quieter operation and a high setting for maximum power. The condensing unit requires a continuous flow of water to cool itself, and does not need ventilation like air-cooled units.
  • This unit is designed to separate the heat and noise from the condensing unit from interior living spaces.
  • Our Evaporators are built with high-output centrifugal fans which include variable speed settings for your choice of maximum cooling power at the high fan speed, or quieter operation (56 decibels) at the low fan speed.
  • Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended level of moisture inside your cellar.
  • Extra-large coils generate maximum cooling power inside the cellar.
  • Excess condensate is managed through a 1/2" drain line that exits from a choice of knockouts in the evaporator.
  • Commercial-grade Electrofin coating protects the evaporator coils from leaks and corrosion.
  • Intuitive LED display panel mounted on the evaporator with digital programmable thermostat is simple and easy to use. Remote thermostat is available as an upgrade.
  • Energy-saver mode, quick-chill mode, and auto-defrost cycle provide convenient solutions to common cellar needs.
  • Temperature set point range is 47F to 62F when the cooling unit is properly sized.
  • Unit operates with minimal vibrations and less noise than comparable units from competitors.
  • Audible and visual alarms and maintenance-needed indicator protect the cooling unit and the wine cellar.
  • Common dedicated 20-amp circuit is required to power the unit.
  • Adjustable mounting brackets are included as standard equipment, and multiple knockouts and access points ensure easy installation.
  • Factory-installed Expansion Valve and Liquid Line Solenoid Valve (optional) ensure maximum operating precision and range.
  • Removable steel case and refrigerant access valve provides access to the internal components for servicing and repair.
  • Sight Glass and Liquid Line Filter/Drier are included for easy installation and maintenance.
  • Oversized Receiver allows for long line sets up to 100 equivalent feet and up to 30 vertical feet.
  • Auto-reset high-pressure switch protects the system by interrupting power to the compressor when system pressure is too high.
  • Evaporator and Condensing Unit are factory-pressurized and shipped with dry nitrogen to ensure leak-free installation.
  • CellarPro's 2-Year/5-Year Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
  • An optional Extended Warranty (P/N 7528) is available for additional protection.
    Brand: CellarPro

    Size: 46 2/5w x 14 2/5d x 13 1/5h

    Weight: 161 lbs

    Power/Rating:
    115V AC / 60 Hz
    Condensing Unit Dimensions:
    - 82 lbs
    - 14w x 21.4d x 10.5h
    Evaporator Unit Dimensions (including mounting brackets):
    - 85 lbs
    - 46.4w x 14.4d x 13.2h

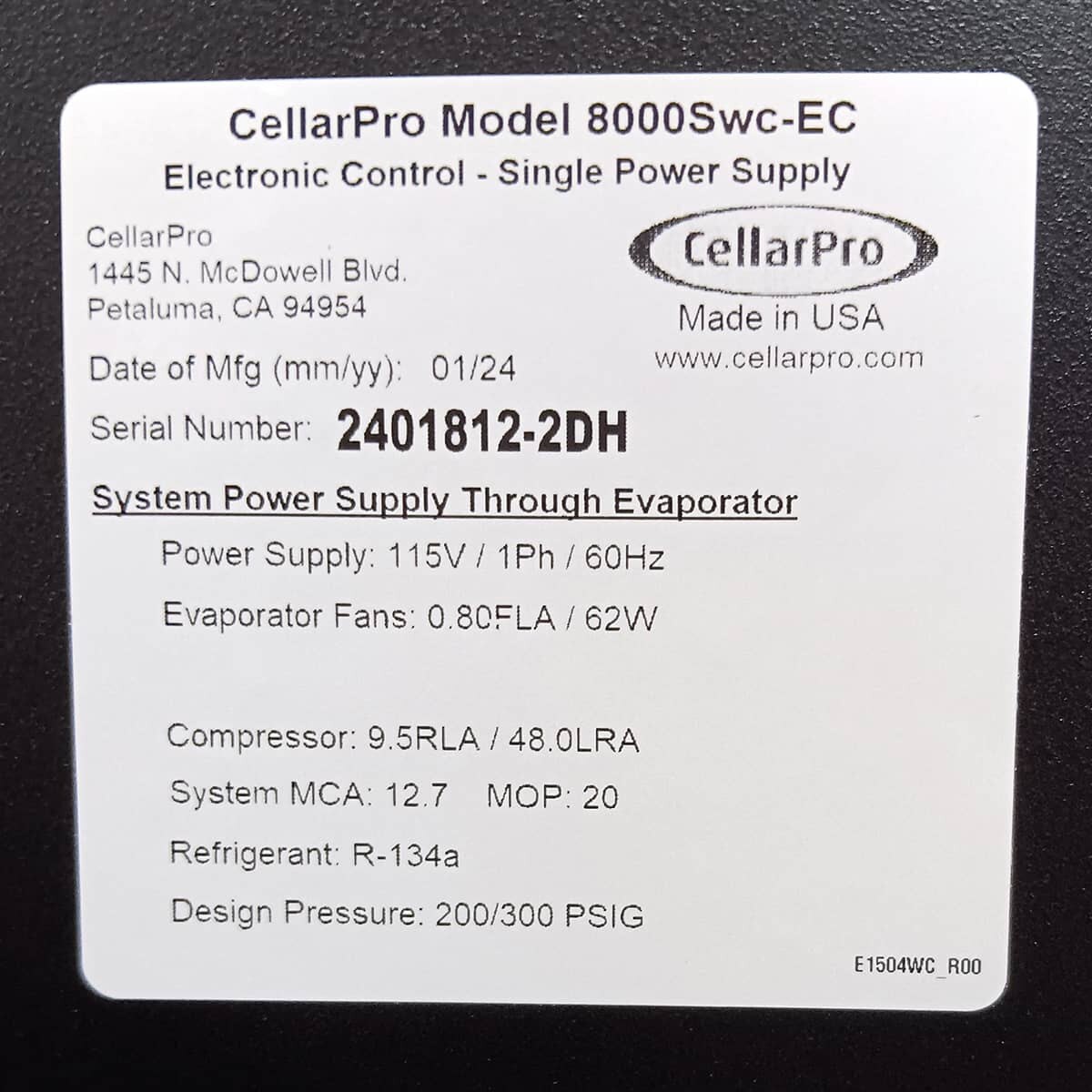

    System Amps:
    - Common dedicated 20-amp circuit is required to power the unit.
    - Startup: 48.0 Amps
    - Unit Amp Rating: 12.3 Amps (high fan speed)
    - Total Watts: 1004 (med fan speed)
    BTUH @ 55F / Evaporator Decibels
    - Low Fan Speed: 5860 / 56 dbA
    - Med Fan Speed: 6230 / 63 dbA
    - High Fan Speed: 6600 / 70 dbA
    - 3/4 Ton Nominal
    Condensing Unit Decibels: 63 dbA

    Capacity: 6600 BTUH @ 55F

    Sizing Table: Click here to view sizing table

    Material: Metal

    Warranty:
    2 Years (Entire System) / 5 Years (Compressor) To activate your warranty, you must complete and return our Installation Checklist, which can be found in the Owner's Manual, under the Resources tab for each item, and in our Learning Center.

    Click on one of the following links for more information:


    Remote Control & Probe
    • Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
    • Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the evaporator, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
    • Extension cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

    DID YOU KNOW?
    Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program

    CellarPro Replacement Unit Program
    If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:
    1. Your cooling unit must be registered at CellarPro
    2. Your cooling unit must have been properly sized, installed and maintained
    3. Your cooling unit may not have been permanently modified, damaged or disfigured

    Please note:
    • Replacement units are factory-refurbished cooling units with a similar build date as your original unit
    • You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
    • In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
    • If the original unit failed due to improper intallation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit
    What's the difference between a split system and "through the wall" or "self-contained" systems?

    A: Split systems are "split" into two parts: the cold side (evaporator) which usually is installed inside the cellar, and the hot side (condensing unit) which is installed away from the cellar. The benefit of having this split is that the heat and noise from the condensing unit can be located far away from living spaces where it won't interfere with day-to-day life.

    Are split systems more difficult to install than self-contained systems?

    A: Yes. Split systems require installation by a licensed HVAC technician, whereas a self-contained unit can be mounted through-the-wall and is shipped fully charged and operational out of the box.

    What's the difference between valve control and electronic control? Which is better?

    A: The biggest difference between valve and electronic control is that, with electronic control, the condensing unit receives power directly from the evaporator, whereas with vavle control, the condensing unit is independently powered, and turns on/off based on the solenoid valve. Valve control is more common in the industry, and benefits from not having to run a power line from the evaporator to the condensing unit, but we do not recommend valve control for installations in temperatures below 30°F. Electronic control offers more precision, and allows the condensing unit to be placed in temperatures down to -20°F (with the addition of a compressor heater and fan cycling switch.)

    Can the evaporator be located in a remote location and ducted to/from the wine cellar?

    A: These evaporators can be ducted up to 50 equivalent feet away from the wine cellar when used with our cold-side (front) duct hoods and kits. Remember that cold-side ducting must be insulated and additional load should be added to properly size the required cooling unit.

    Can I use the low fan speed setting on the cooling unit when the unit is ducted?

    A: Duct hoods and kits create additional static pressure and therefore require the use of the high fan speed to overcome the additional static pressure.

    Can I install the entire unit inside the cellar?

    A: No, the condensing unit must be located outside the cellar.

    If I don't have sufficient space around the condensing unit, is that Ok?

    A: The condensing unit uses water to cool itself, and does not need air ventilation like air-cooled units

    We want to put a wood grill in front of the evaporator, what is the percentage of air flow that grill will need to have?

    A: Our units require 1/2" minimum spacing, as well as a baffle behind the grill to separated the cold air discharge from the coil intake. We have seen problems with custom grills where there is a gap between the unit and the grill and it causes air circulation behind the grill resulting in coil icing. It is also important to note that the evaporator must be mounted to the interior cellar wall, not buried inside the wall. If it is buried inside the wall, the housing will require insulation, otherwise condensation and heat loss issues will occur.

    Does the unit really need a dedicated circuit?

    A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30°F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.
