Self Contained 1/4 Ton 1800XTSr-HE #37401

Configurations

• CellarPro 1800XTSr-HE units are self-enclosed, fully charged units designed to be installed through-the-wall, built into cabinetry or installed above the ceiling relative to the wine cellar.
• This model is designed for applications that require front venting on the hot side and bottom airflow on the cold side.

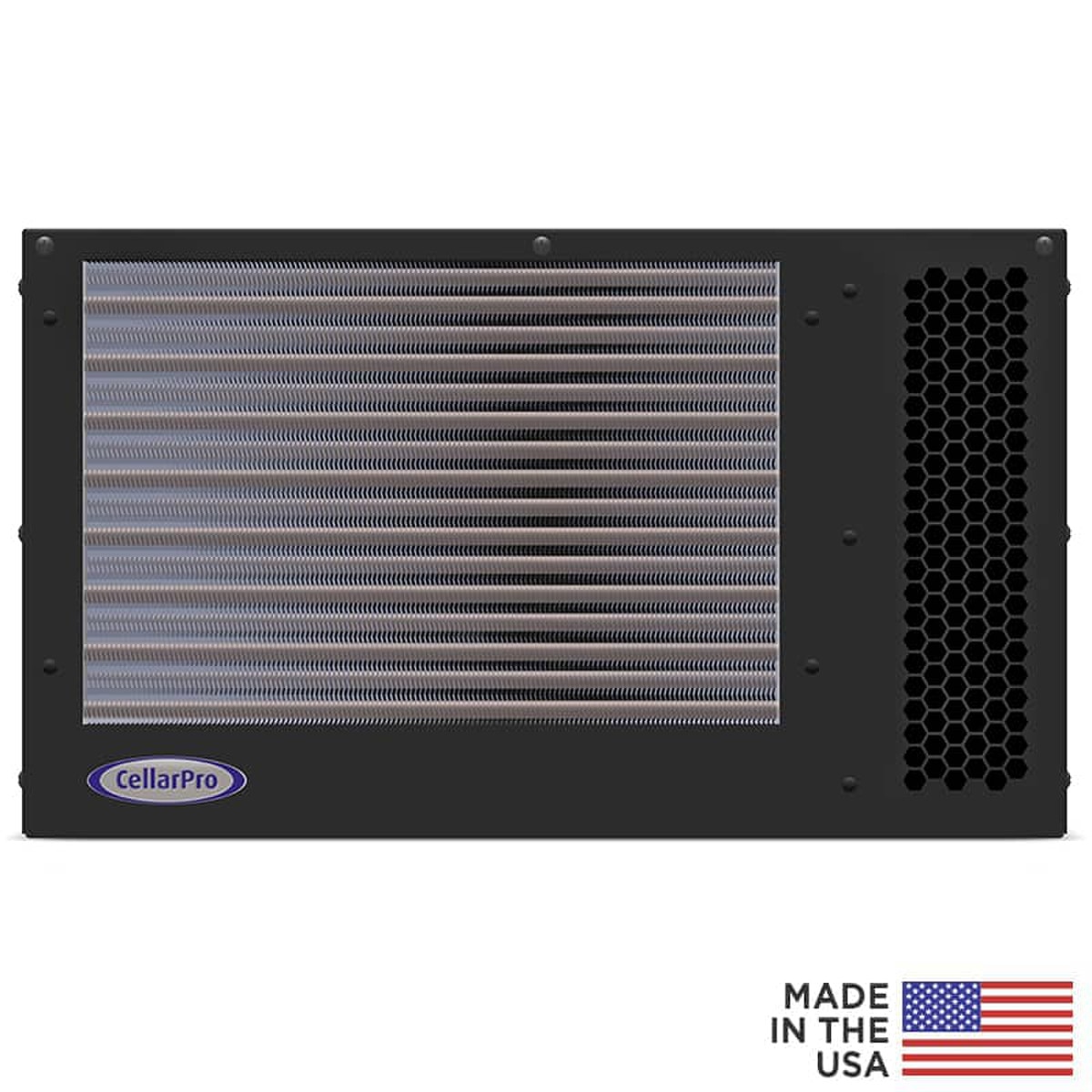

• On the hot side, the 1800XTSr-HE requires fresh air intake at the front of the cooling unit. The hot exhaust also blows out the front of the cooling unit.
• Sufficient space must exist in front of the unit so that hot air can dissipate before mixing with the fresh air intake.

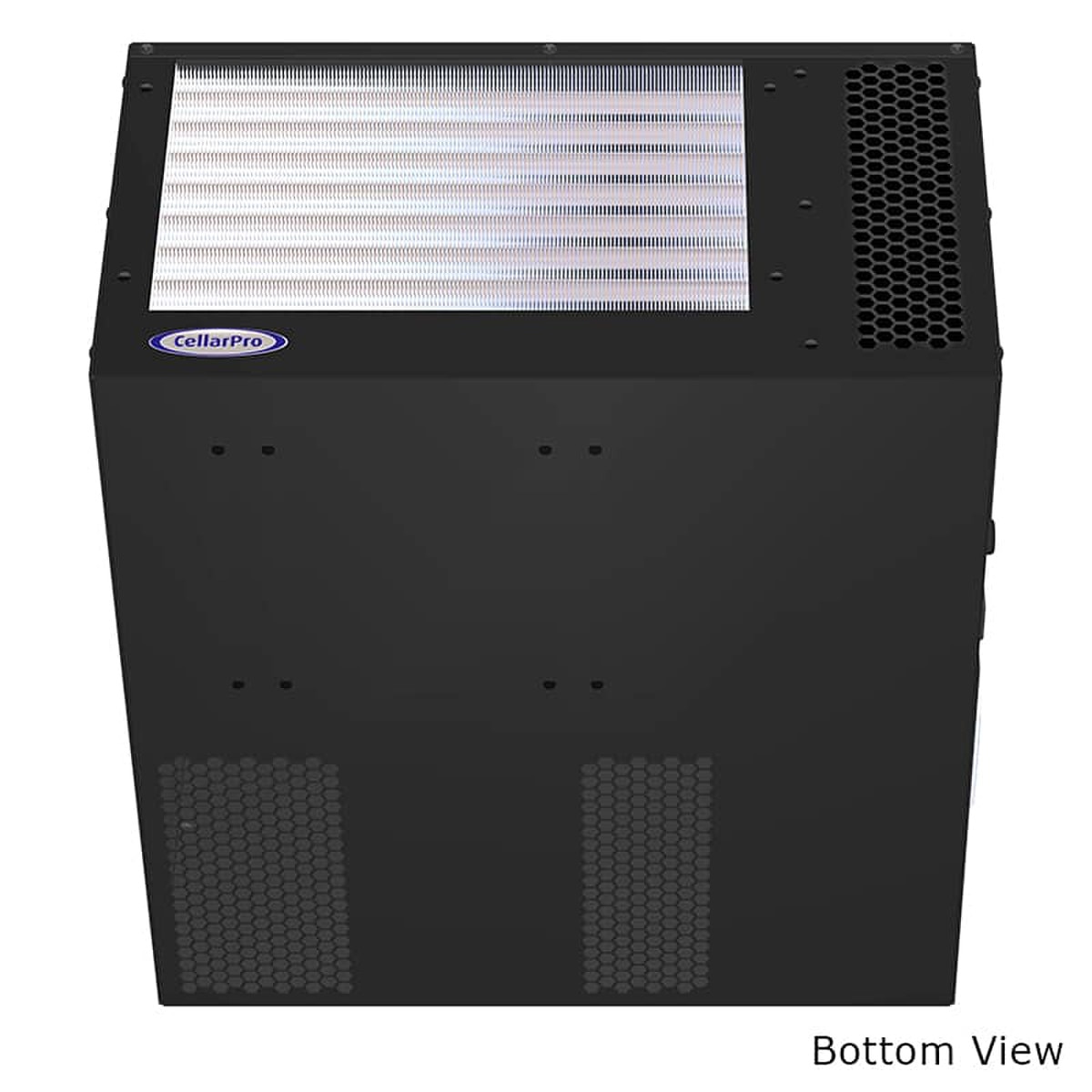

• On the cold side, the unit intakes cellar air from the bottom and exhausts cold air from the bottom, making it ideal for above-the-door and built-in installations.
• Please note: This cooling unit is not designed to handle static pressure, and its airflows should never be ducted or restricted.

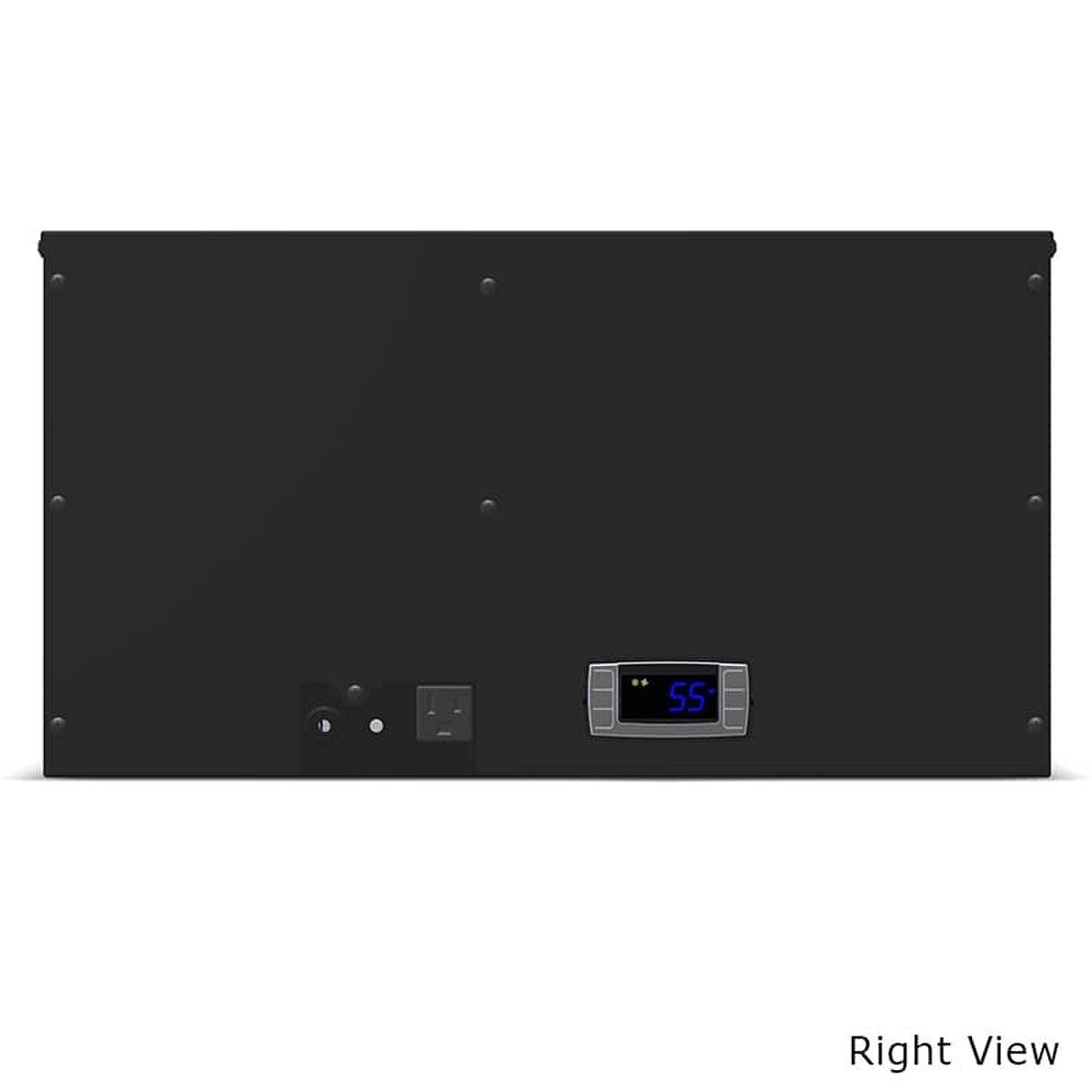

• The control panel and digital display are located on the right side of the cooling unit. If this location will be inaccessible, we offer a remote display kit that can be wired to the cooling unit and mounted inside or outside the cellar.

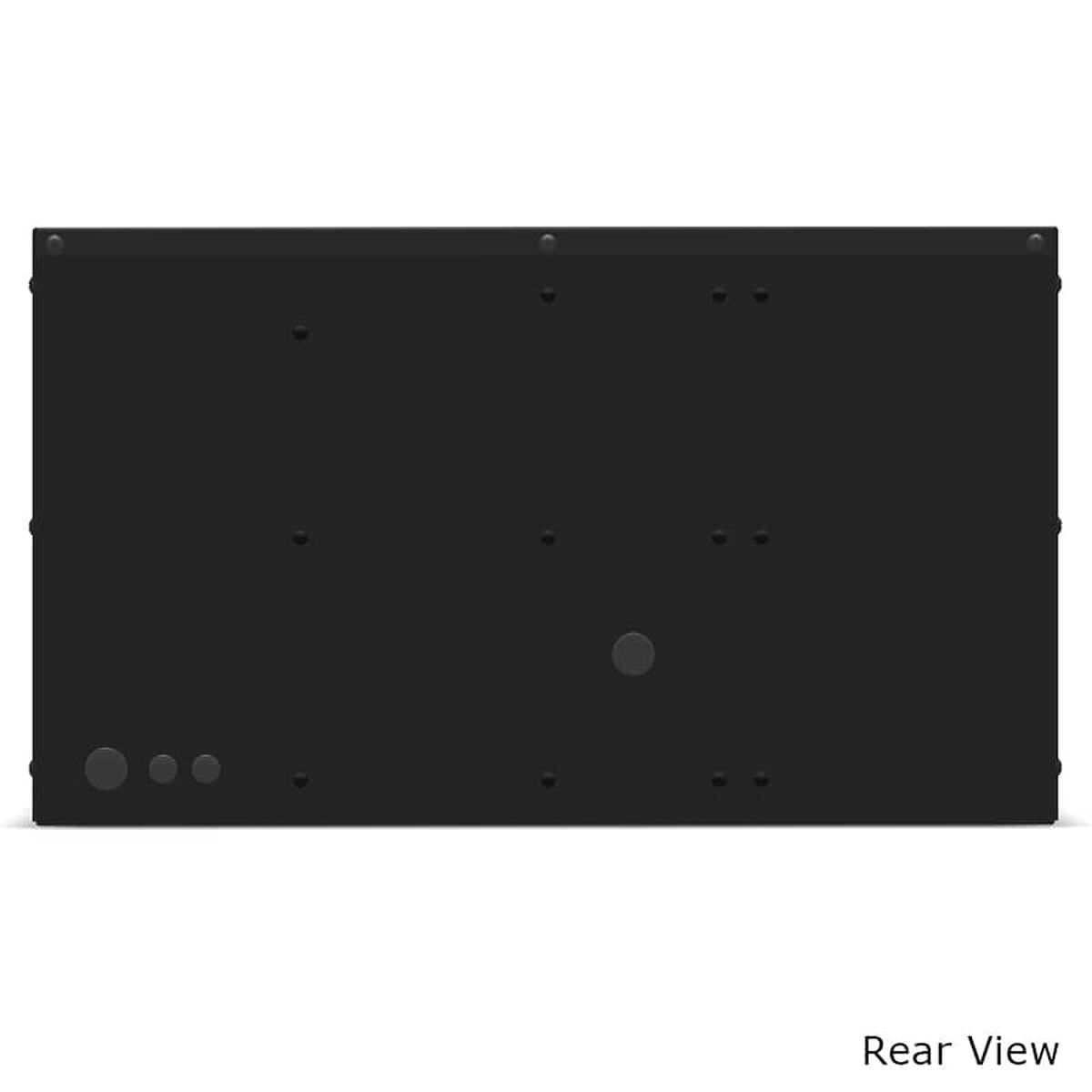

• The power cord can exit from the rear or from the right side of the cooling unit, and must be configured prior to purchase.
• The cooling unit can be configured with or without an optional drain line at no charge.
• Designed for indoor use only, 1800XTSr-HE units can operate in ambient conditions from 40F to 85F out of the box.
• The front of the cooling unit should never be exposed to temperatures below 40F, and the bottom of the cooling unit should never be exposed to temperatures below 32F.
• A CellarPro cooling unit must always be used in the upright position, and should never be operated on its side or upside down.

With the power of our upgraded 1800XTS-HE platform, the 1800XTSr-HE repositions the hot-side airflows to the front of the unit and the cold-side airflows to the bottom of the unit, making it ideal for built-in and above-the-door installations that require front venting.

• R-290 Compressor: delivers higher BTUH with lower energy use and environmentally friendly refrigerant.
• Now with coated aluminum evaporator coils, which are not subject to formicary corrosion, the leading cause of cooling unit failure.
• Energy-efficient components, including EC fans on both the cold and hot sides, reduce energy usage while delivering powerful airflow.
• This unit features a front-vented hot side, with fresh air intake and hot air exhaust located at the front of the cooling unit.
• On the cold side, the unit intakes cellar air from the bottom and exhausts cold air from the bottom, making it ideal for above-the-door and built-in installations.
• Please note: this cooling unit is not designed to handle static pressure, and its airflows should never be ducted or restricted.
• Adjustable humidity control combines a high-output compressor with flexible fan cycles to maintain a recommended moisture level inside your cellar.
• Extra-large coils generate maximum cooling power.

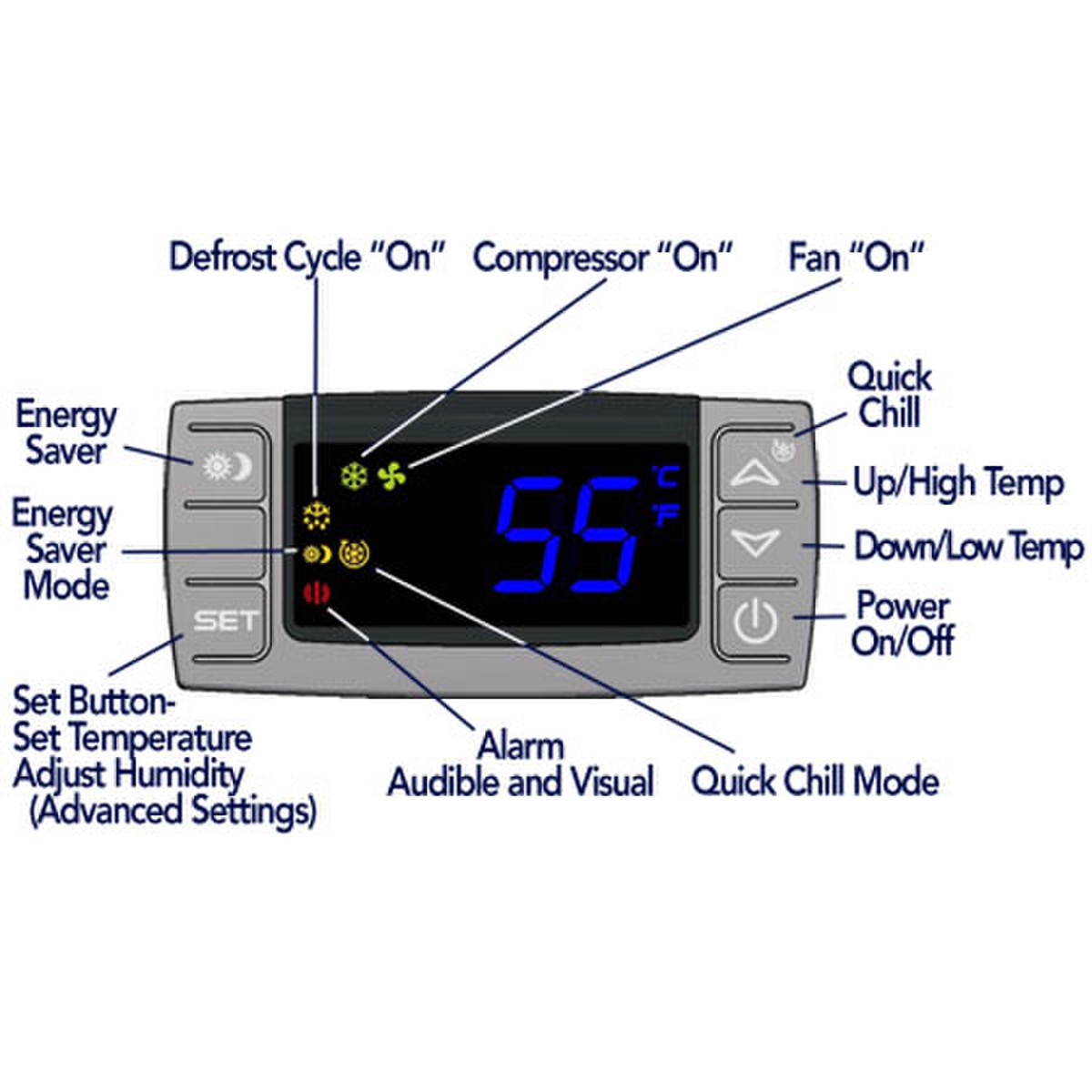

• The intuitive LED display panel with digital programmable thermostat is simple and easy to use. A remote thermostat is available as an upgrade.
• Energy-saver mode, quick-chill mode and auto-defrost cycle provide convenient solutions to common cellar needs.
• Temperature set point range is 47F to 62F when the cooling unit is sized correctly.
• Unit operates with minimal vibrations and less noise than comparable units from competitors.
• Audible and visual alarms and maintenance-needed indicators protect the cooling unit and the wine cellar.

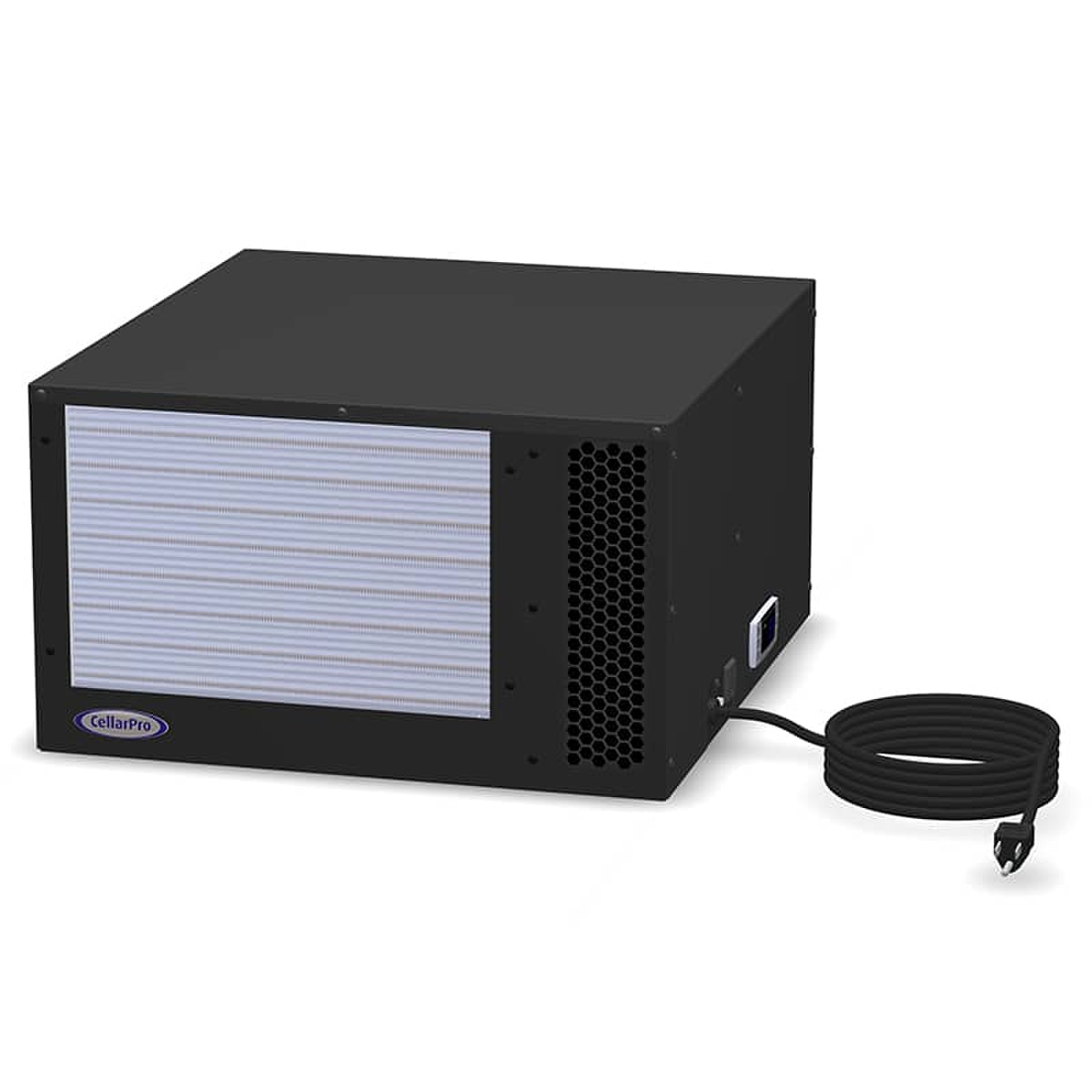

• 8-foot power cord exits from the rear or right side and plugs into standard 110V receptacles.
• A standard dedicated 15-amp circuit is required to power the unit.
• A 3-amp electric receptacle is provided to run a small lamp.
• Removable steel case provides access to the internal components for servicing and repair.
• CellarPro's 5-Year Standard Warranty, the most thorough in the industry, protects the unit against manufacturing defects.
• An optional Enhanced Warranty (#1835) is available for additional protection.
• ETL Tested and Certified to rigorous UL Standards for safety.

Brand: CellarPro

UPC: 077757374012

Size: 18w x 19 1/2d x 10 1/2h (in)

Weight: 62 lbs

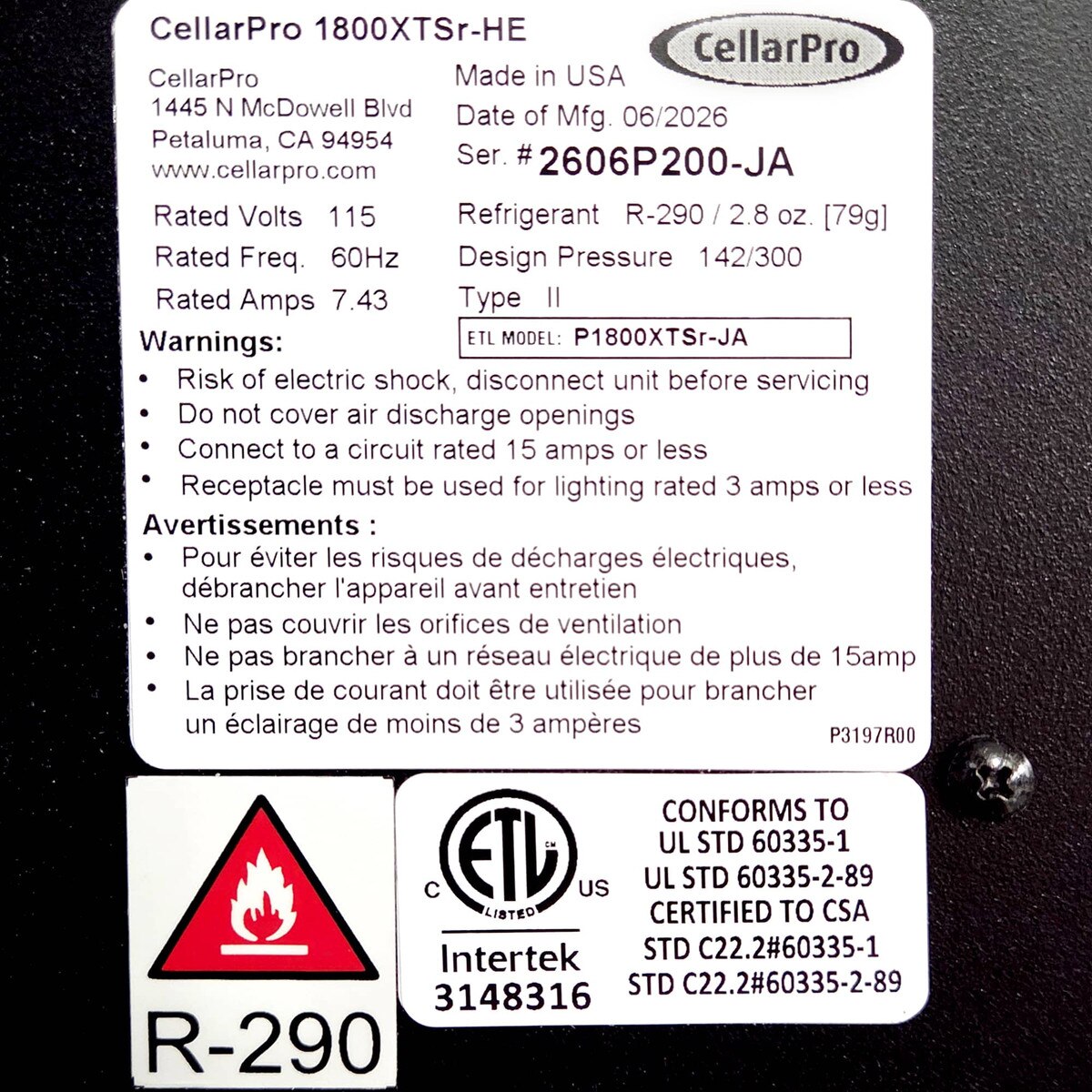

Power/Rating:
115V AC / 60 Hz
Compressor Amps:
- Running: 4.43 Amps
- Startup: 29.8 Amps
- Total Watts: 297
- Required: Dedicated 15-Amp Circuit
- Recommended: Surge Protector
Decibels: 50 dBA

BTUH @ 55F: 1,925

Sizing Table: Click here to view sizing table

Warranty Resources
- Warranty Overview
- Limited Warranty - 2 Years (Entire System) / 5 Years (Compressor)
- Optional Extended Warranty (sold separately)

Click on one of the following links for more information:

• Owner's Manual
• Service Manual
• Spec Sheet
• Installation Diagrams
  • Installation Diagram - Clips
  • Installation Diagram - Shelf
  • Installation Diagram - Above Cellar/Cabinet
• Adjustable Humidity Chart
• Monthly Operating Cost
• Sound Level
• Cut Sheet Dimensions
• 3D CAD (.step)
• Product Brochure

Remote Control & Probe

• Networkable Thermostat Upgrade #27346 and #27310: If you'd like to connect your cooling unit to a networkable, Wi-Fi enabled thermostat (eg Ecobee SmartThermostat Pro #31453 - sold separately), our networkable thermostat upgrade must be ordered at the same time as the equipment. Other limitations apply - read the networkable thermostat description for more information.
• Remote Display #1603: lets you place the digital panel wherever you want, whether inside or outside the cellar. Includes 10 feet of wiring.
• Bottle Probe #1434: this remote thermostat with a 10-foot cord overrides the thermostat on the face of the cooling unit, and allows it to monitor air or liquid temperatures at various locations inside the cellar.
• Bottle Probe Extension Cords available in 25-foot (#1780) and 50-foot (#1781) lengths.

Other Options & Upgrades

• 100W Heating Element #27318: Add a 100W heating element to burn off excess moisture
• Mounting Clips #1095: attached to the front of CellarPro 1800 Series cooling units, these clips are designed to be bolted to the ceiling inside the wine cabinet / cellar.

DID YOU KNOW?
Nobody protects your wine cellar better than CellarPro Cooling Systems! In the event your cooling unit fails and the failed components are covered by our warranty, we'll send a replacement cooling unit to you per the terms of our Replacement Unit Program.

CellarPro Replacement Unit Program
If your CellarPro cooling unit fails and the parts that failed are still covered by warranty, we'll send a replacement cooling unit to you, as follows:

1. Your cooling unit must be registered at CellarPro
2. Your cooling unit must have been properly sized, installed and maintained
3. Your cooling unit may not have been permanently modified, damaged or disfigured

Please note:

• Replacement units are factory-refurbished cooling units with a similar build date as your original unit
• You are responsible for the shipping cost to send the replacement unit to you and return the original unit to us, and the cost (if any) to remove the original unit and install the replacement unit
• In order to send a replacement unit, we require a deposit, which will be refunded minus shipping costs upon the return and pending the inspection of the original unit
• If the original unit failed due to improper installation or use, the failure is not covered by warranty and we will deduct the cost of the repairs from the refund of your deposit

What is "Sensible BTUH"?

A: You should always use Sensible BTUH* when comparing different brands of cooling units, and when sizing a cooling unit for your wine cellar. Every cooling unit produces a certain amount of Total BTUH, which is the sum of Sensible BTUH (lowers the temperature) and Latent BTUH (lowers the relative humidity). Because our goal is to cool wine cellars while preserving humidity, wine cellar cooling units should have high Sensible BTUH and low Latent BTUH. The relationship between Sensible and Latent BTUHs is know as SHR (Sensible Heat Ratio), which is calculated as Sensible BTUH/Total BTUH. The SHR for CellarPro cooling units is greater than 90%, which means that CellarPro units provide maximum cooling power without stripping out humidity from the cellar environment.

*CellarPro Sensible BTUHs are calculated assuming 55F cellar temperature, 60% relative humidity and 85F ambient for all units except 1800 units (85F ambient).

How cold can the temperature be where the cooling unit is installed?

A: For installations in environments below 40F down to 20F, we recommend adding our compressor heater (P/N 1727), which is included as standard equipment on all outdoor units. Below 20F, in addition to the compressor heater, we recommend adding our fan cycling switch (P/N 6972)

Can the cooling unit be located in a remote location and ducted to/from the wine cellar?

A: These cooling units are not designed to be ducted.

Does the unit really need a dedicated circuit?

A: First, the background. Unlike our competitors, we build our cooling units with precision expansion valves, not cap tubes, which means that our cooling units aren't limited to a 30F differential between the desired cellar temperature and the ambient temperature. Cooling systems with expansion valves are much more precise than cap tubes, and much more sensitive to low voltage conditions, which is why our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.

What if I don't have sufficient space in front of the cooling unit for the hot air exhaust to dissipate?

A: The front of the cooling units requires sufficient space so that its exhaust can dissipate without polluting the fresh air that the cooling unit requires to operate. If there isn't sufficient space and ducting is required, it would be best to purchase a different unit.
