WhisperKOOL Phantom 5000 Cooling Unit #35622
5521 BTUH.
The Phantom Series from WhisperKOOL combines flexible installation options with a customizable blower configuration.
- Multiple ducting configurations provide maximum flexibility
- Powerful blowers can be reoriented to the right, left or top of the cooling unit
- Unit can be placed up to 25 duct feet away from the cellar
- Suitable for operation in ambient temperatures as high as 110F
- Display KDT Plus controller can be placed up to 50 feet away from the cooling unit
- Liquid measuring bottle probe (50 ft. cable)
- Corrosion-resistant drip tray catches excess condensate
- Black powder-coated paint scheme
- 1/2 inch drain line (10 feet)

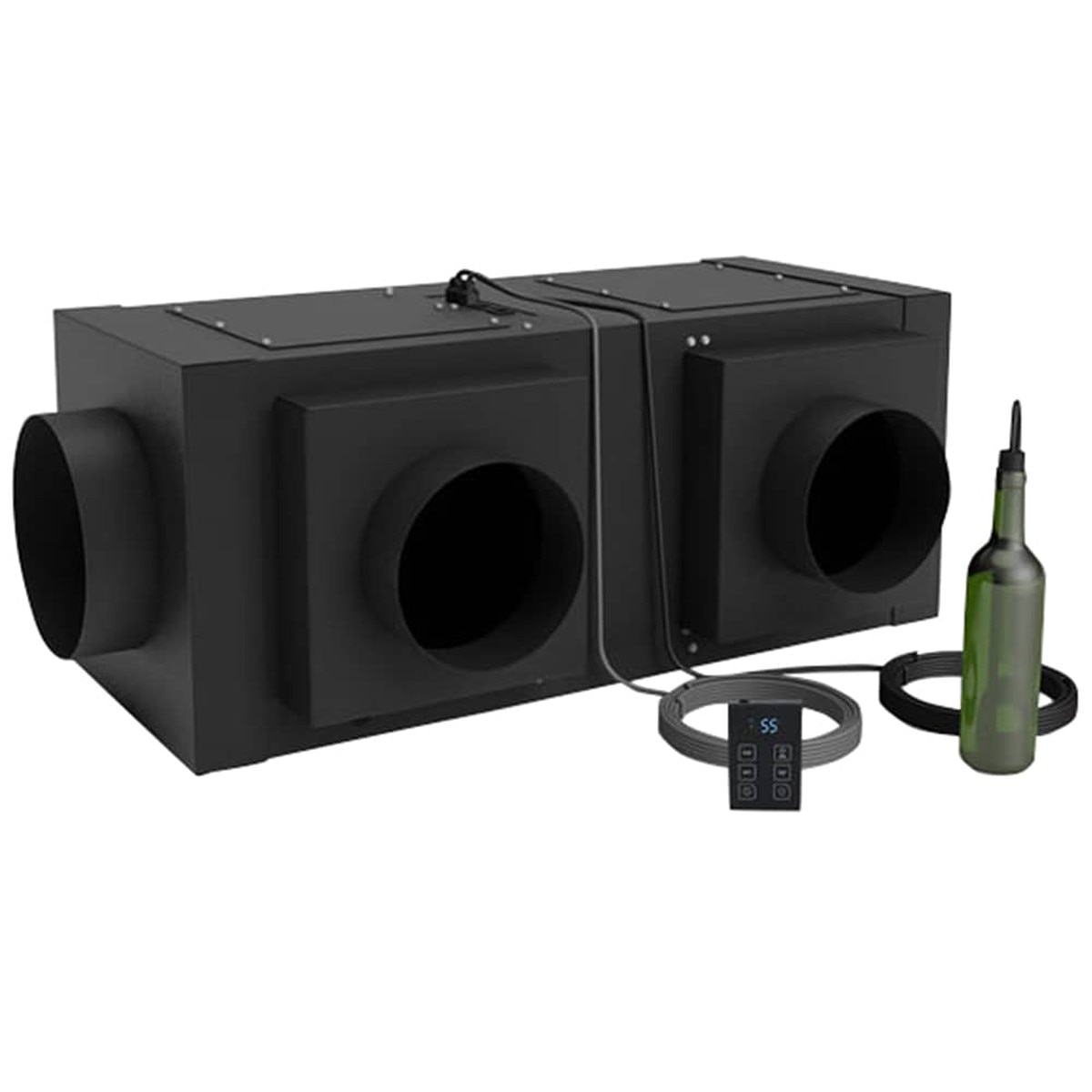

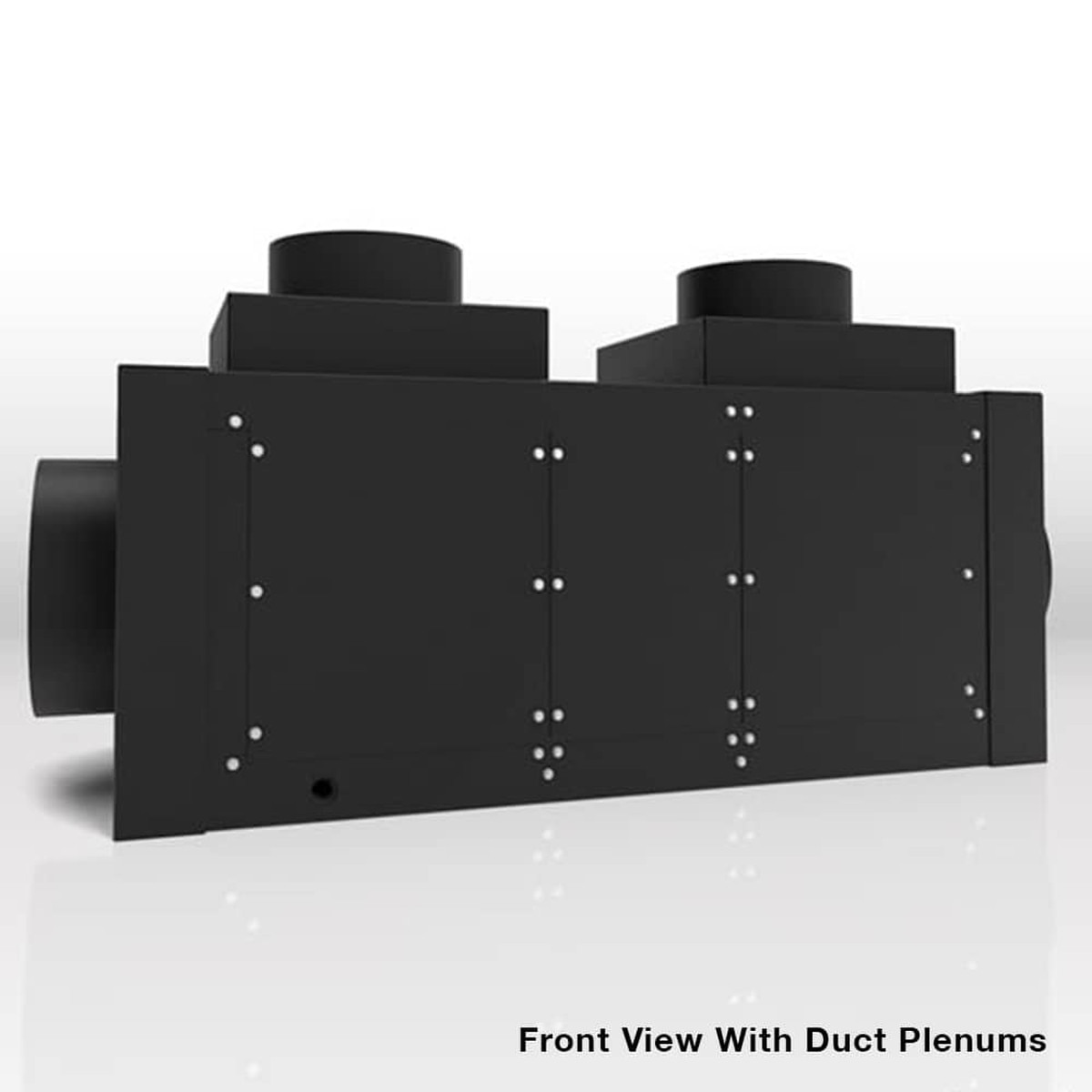

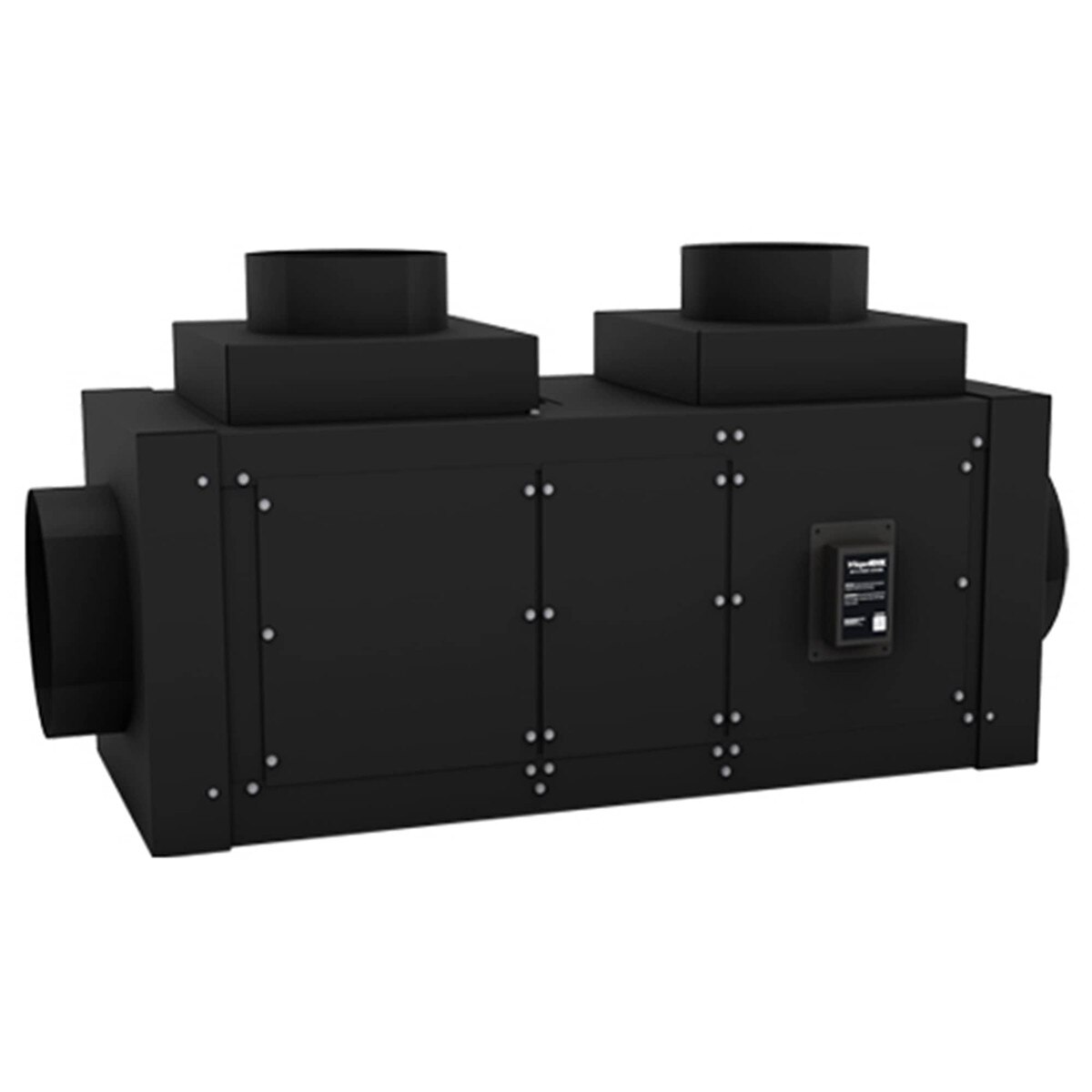

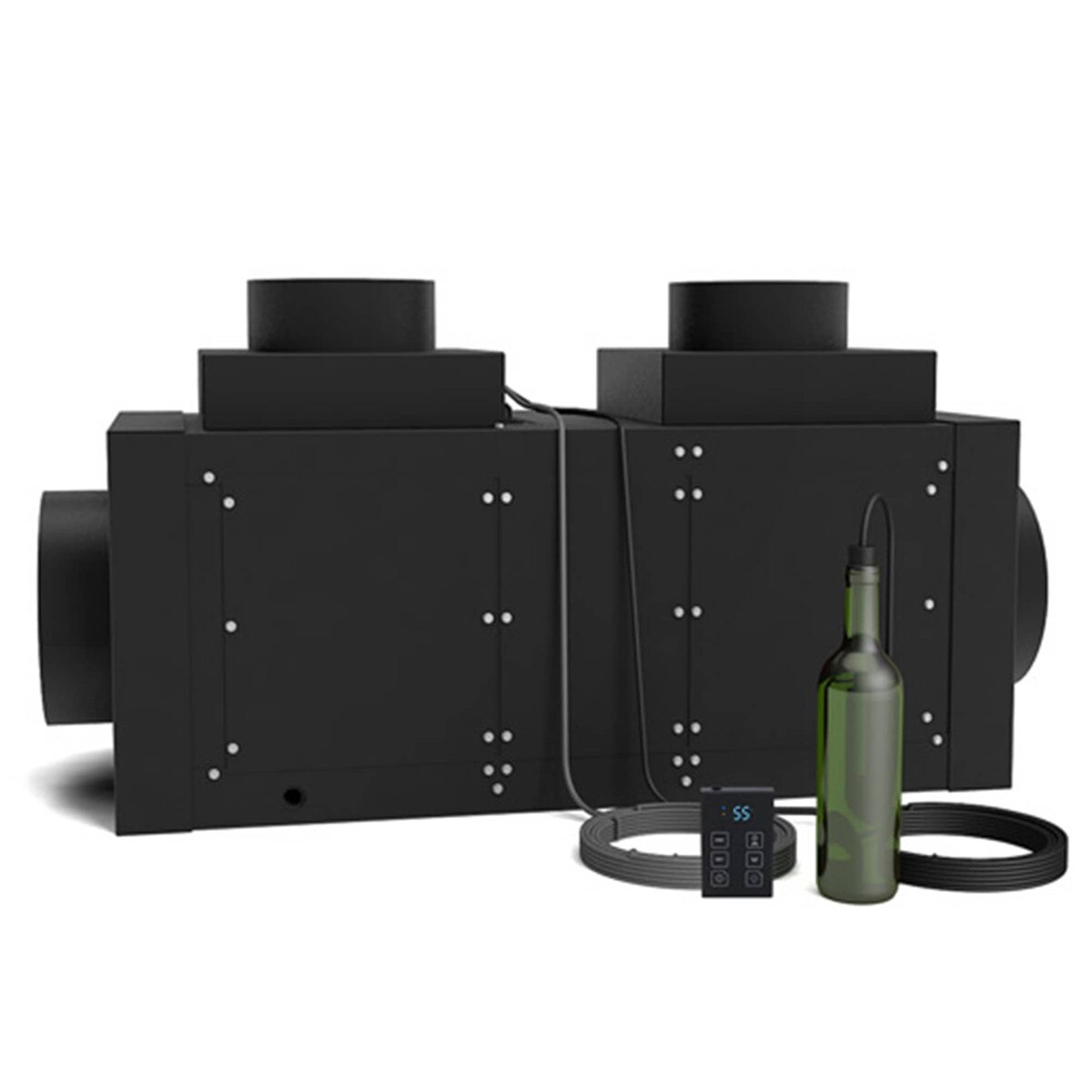

WhisperKOOL Ducted Phantom 5000 Wine Cooling Unit (P/N 35622). 5521 BTUH (assuming 85F condenser air intake temperature.) WhisperKool's Phantom Series wine cooling units combine powerful cooling capacity with flexible installation options. By removing metal panels on the cooling unit, the Phantom's powerful blowers can be reoriented to the right, left or top of the unit, allowing for a variety of ducting configurations (8" supply and 10" return).
Features include:
- Multiple ducting configurations provide maximum flexibility
- Powerful blowers can be reoriented to the right, left or top of the cooling unit

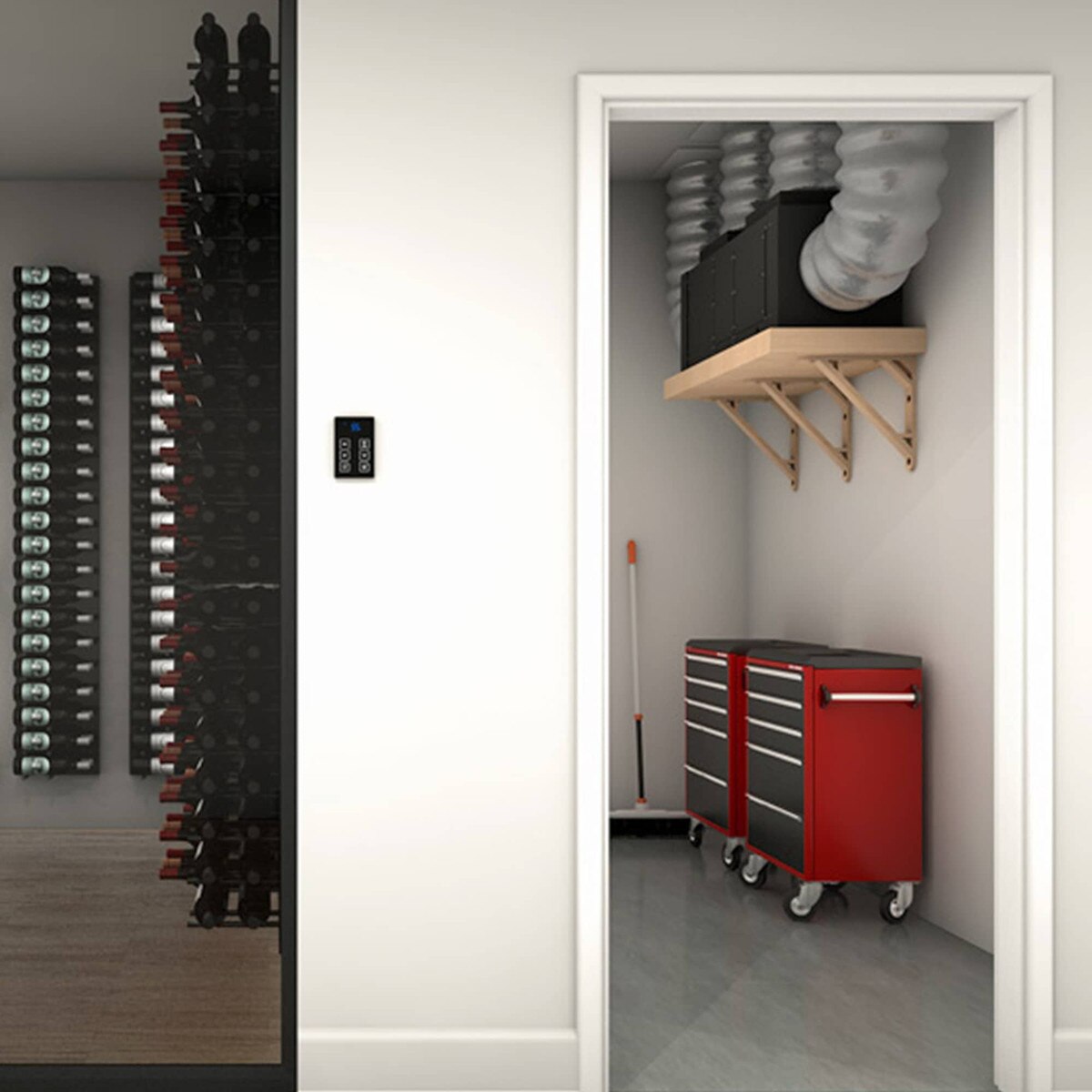

- Unit can be placed up to 25 duct feet away from the cellar
- Suitable for operation in ambient temperatures as high as 110F
- Display KDT Plus controller can be placed up to 50 feet away from the cooling unit
- Liquid measuring bottle probe (50 ft. cable)
- Corrosion-resistant drip tray catches excess condensate
- Black powder-coated paint scheme
- 1/2 inch drain line (10 feet)
Capacity: Maintain 55F and 50-70% relative humidity in a properly-constructed cellars up to 1250 cu. Ft.
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Brand: WhisperKOOL

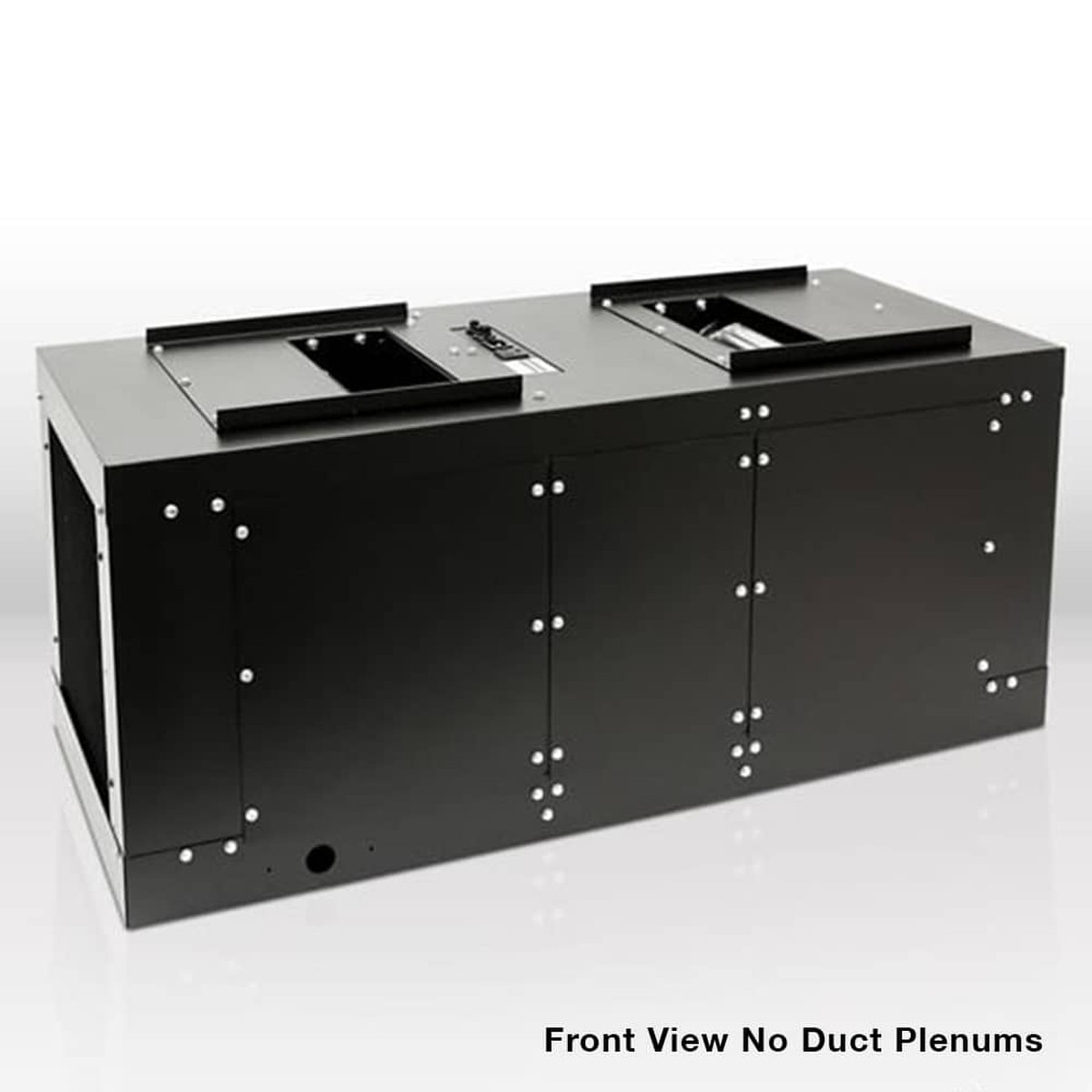

Size: 37w x 15 3/4d x 15 3/4h (in) Without Duct Plenums
Weight: 115 lbs
Power/Rating:
Running Amps: 7.6
Capacity: 1250 Cu Ft
Material: Metal
Warranty:
WhisperKOOL Warranty
2 Years - Parts and Labor
Click on one of the following links for more information:
Owners Manual
Spec Sheet
Capacity: 5521 BTUH, for properly constructed wine cellars up to 1250 Cu Ft
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
