CP 6200/8200 Duct Kit Hot Side + Inline Fan #27351
CellarPro 6200/8200 VS Duct KIT (Hot Side) with Inline Fan (P/N 27351). Duct openings are designed to attach to two 8-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter. Inline fan receives switched power from the cooling unit.

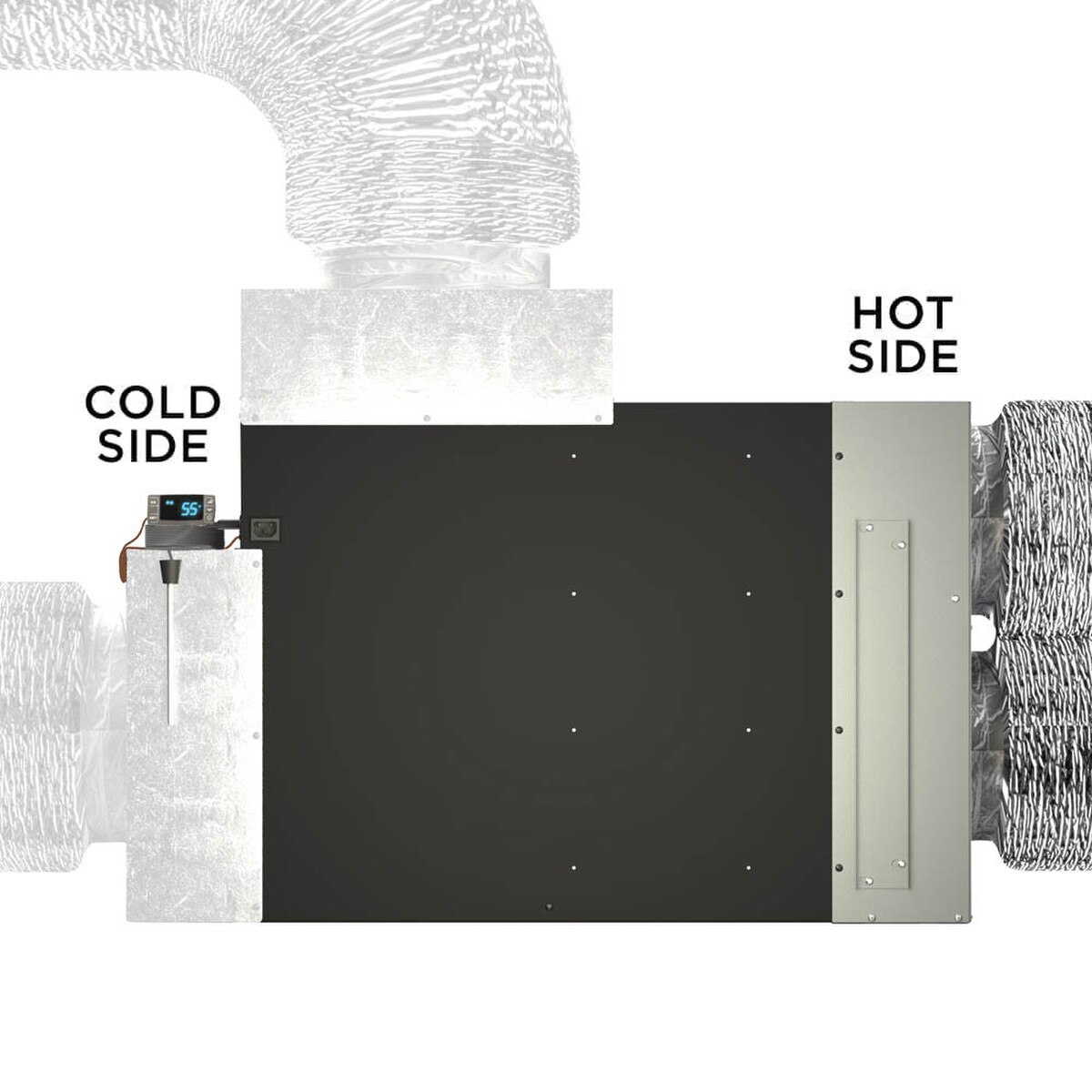

Shown at left: front duct kit (right) AND rear duct kit (left). The front duct kit is sold separately.
Kit includes: Hot side cuct hood, 240 CFM 8-inch inline fan and 50 feet (2 x 25) of 8-inch ducting.
The high fan speed setting is required when using our rear duct hood. The diameter of the ducting must be 8-inches or greater from start to finish, and must not be reduced.
Custom rear duct hood and inline fan with switched power for CellarPro 6200 / 8200 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).
- Attaches easily to the rear of 6200 and 8200 wine cooling units

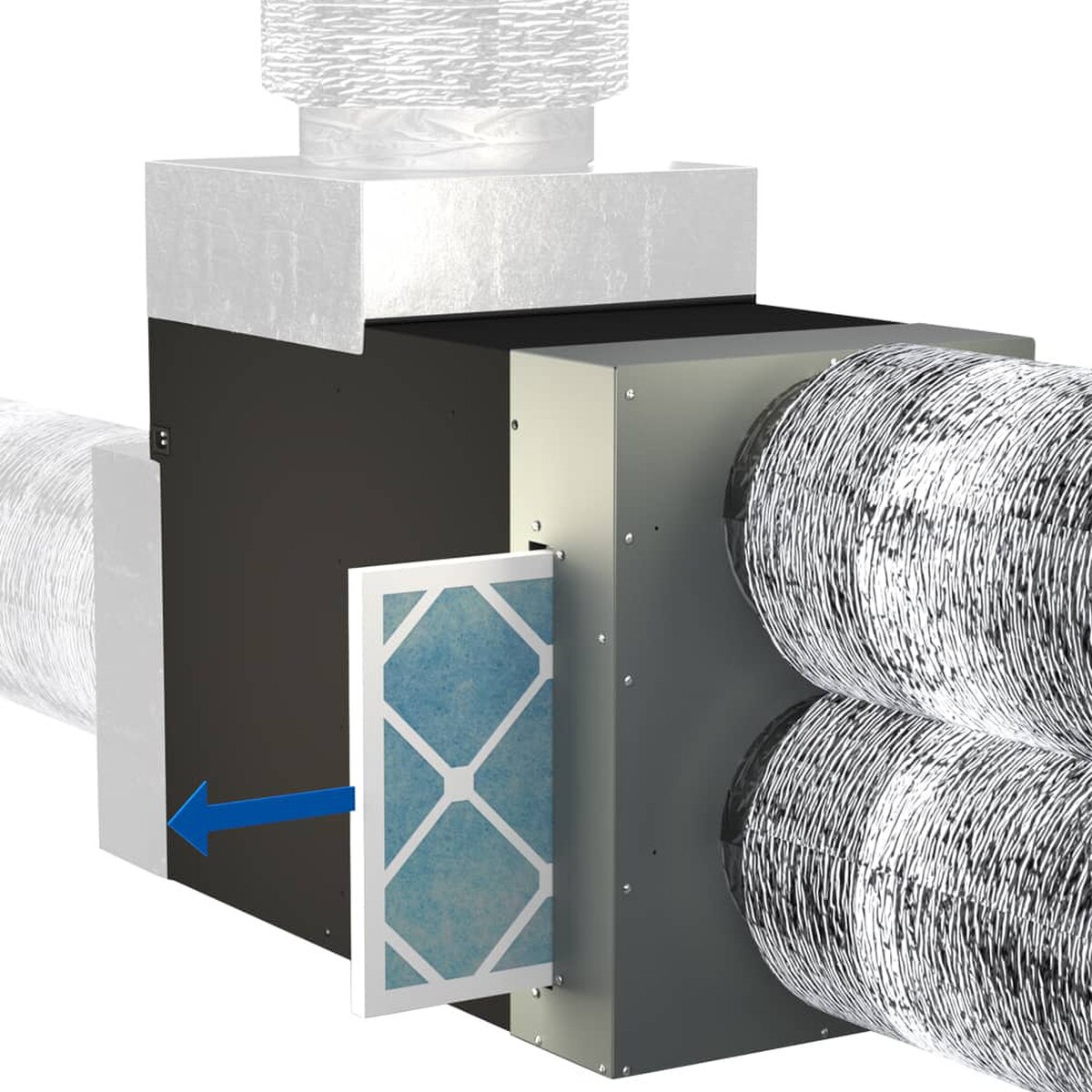

- Provides quick access to removable air filter
- Designed for easy hook-up to 8" ducting
- Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
- Heavy gauge plated steel brackets
- Switched power to match the cooling unit
- One or both openings may be ducted (total of 100 equivalent feet)

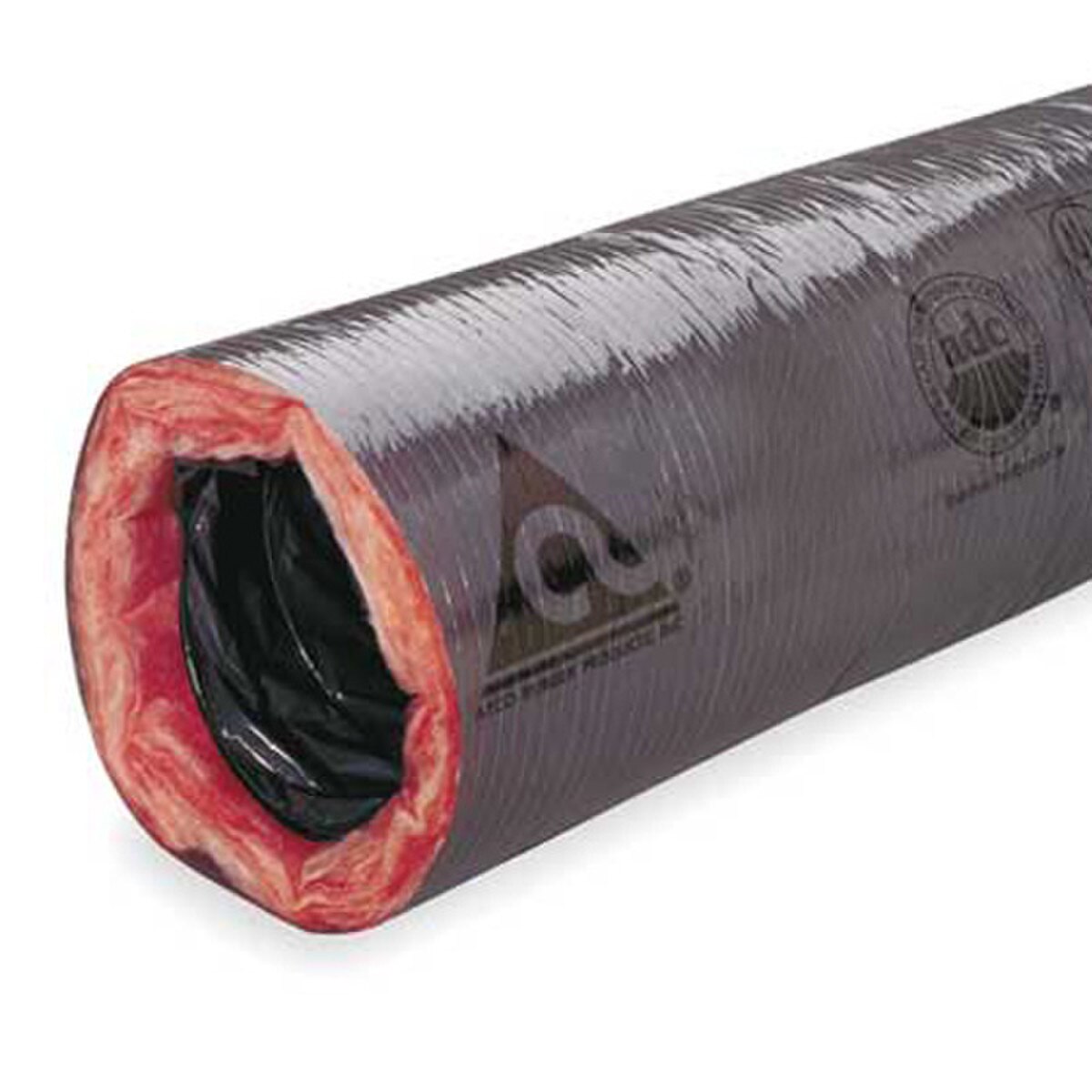

- Includes 50 feet of flexible insulated 8-inch ducting
- Cold-rolled, thick-gauge steel
Brand: CellarPro
Size: 16 1/4w x 8.0625d x 22h (in)
Weight: 50 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
