CellarPro 6200/8200 VS Duct HOOD (Hot Side) with Inline Fan #27350

(0) Write A Review
Price: $450.00
Availability: In Stock
Usually Ships w/i 2-3 Days
Shipping Information:
FedEx / USPS / Saver
CellarPro 6200/8200 VS Duct HOOD (Hot Side) with Inline Fan (P/N 27350). Duct openings are designed to attach to two 8-inch ducts for condenser intake and exhaust. Removable slot plate provides easy access to removable air filter. Inline fan receives switched power from the cooling unit.

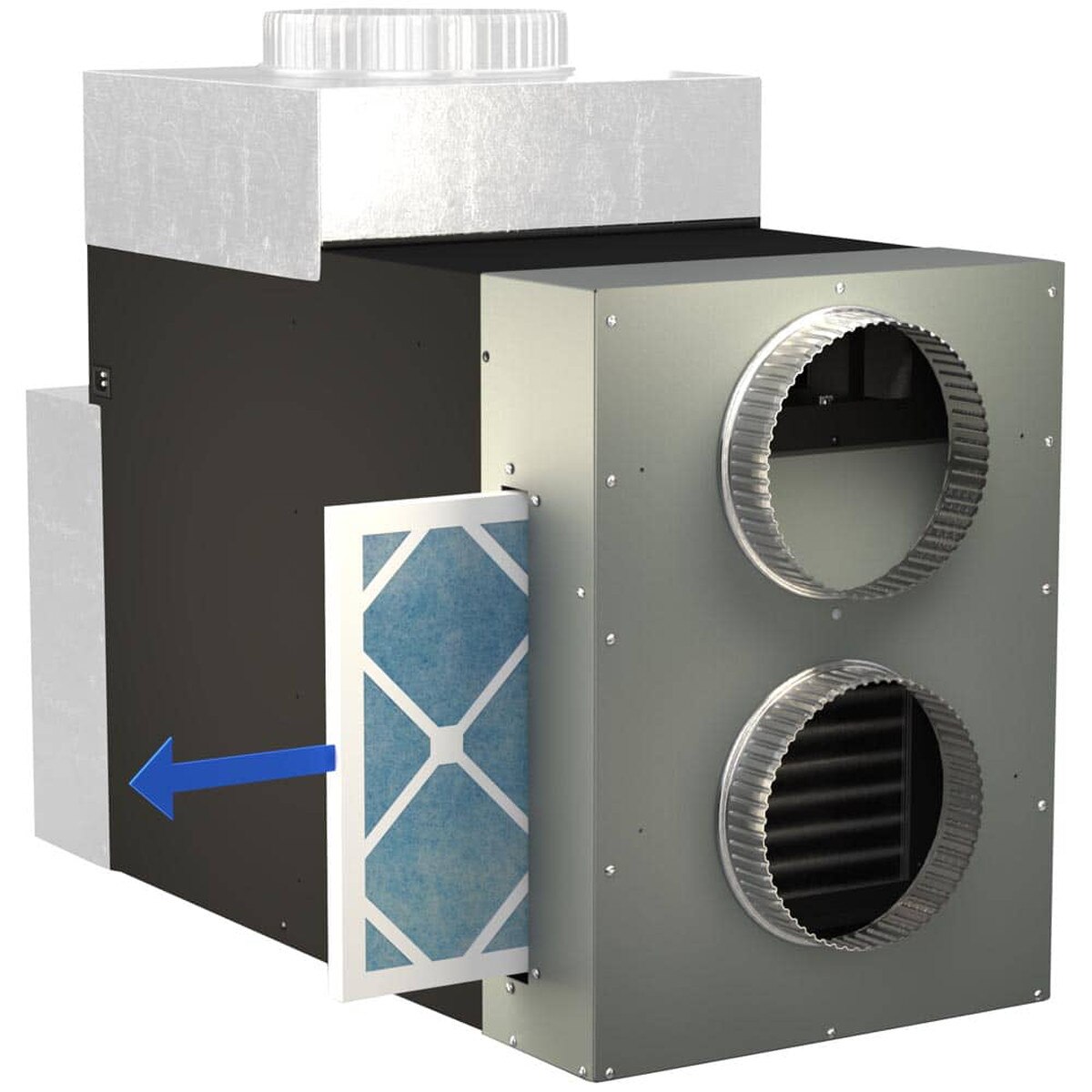

Shown at left: front duct kit (right) AND rear duct kit (left). The front duct kit is sold separately.

Kit includes: Hot side cuct hood and 240 CFM 8-inch inline fan. Ducting (8-inch diameter) is not included in this kit.

The high fan speed setting is required when using our rear duct hood. The diameter of the ducting must be 8-inches or greater from start to finish, and must not be reduced.
Custom rear duct hood and inline fan with switched power for CellarPro 6200 / 8200 VS cooling units. With this kit, the hot air intake/exhaust each can be ducted up to 100 equivalent feet (50 feet per opening).
  • Attaches easily to the rear of 6200 and 8200 wine cooling units
  • Provides quick access to removable air filter
  • Designed for easy hook-up to 8" ducting
  • Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • One or both openings may be ducted (total of 100 equivalent feet)
  • 8-inch ducting not included
  • Cold-rolled, thick-gauge steel
Brand: CellarPro

Size: 16 1/4w x 8.0625d x 22h (in)

Weight: 30 lbs

Capacity: 100 Equivalent Feet

Warranty:
1 Year
