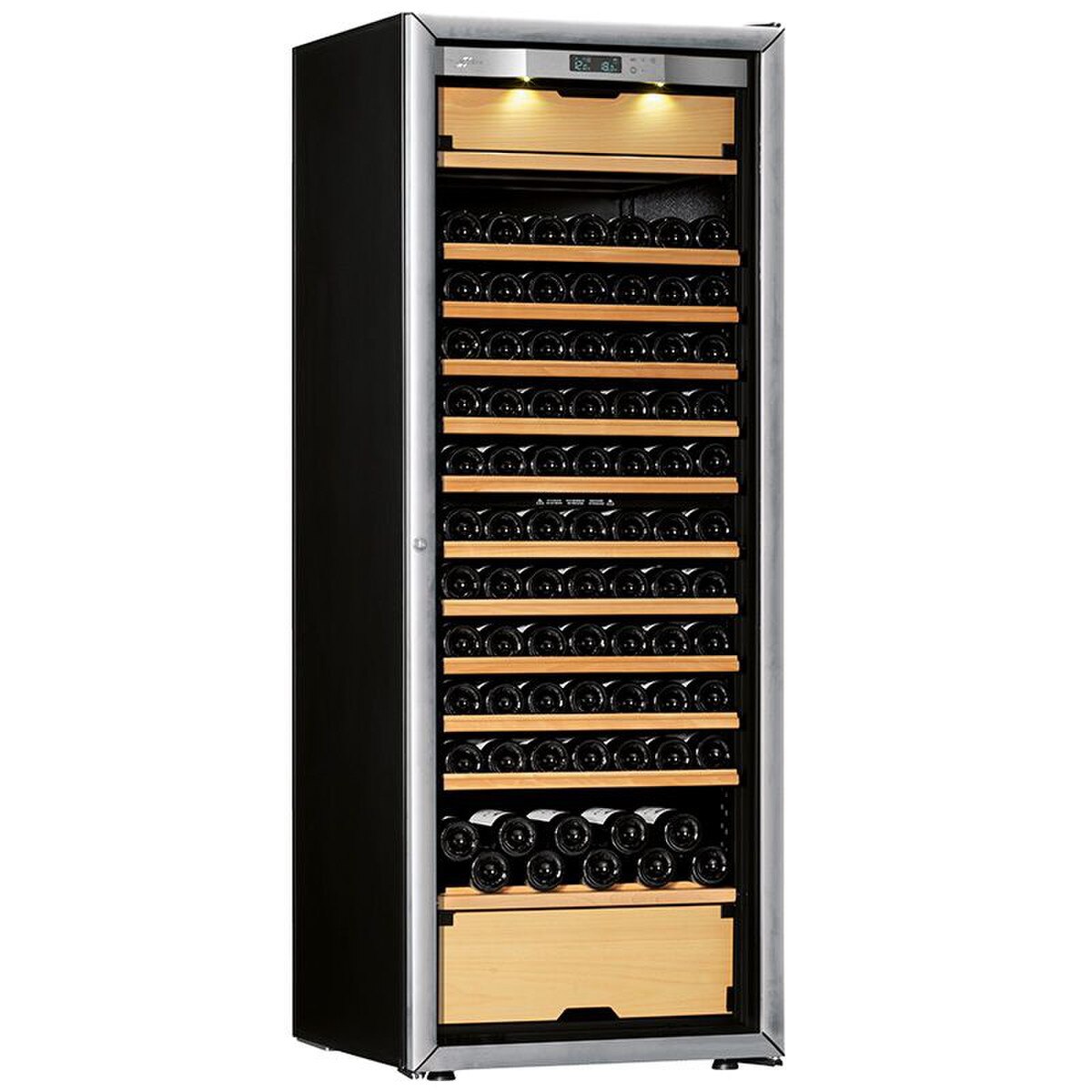

Transtherm Castel Wine Cabinet Glass Door Brushed Aluminum Fully Shelved NEW #17050
Transtherm Castel Wine Cabinet Glass Door Brushed Aluminum Fully Shelved NEW (#17050). Holds 165 bottles as configured. Max. capacity: 209 bottles. The digital thermostat allows you to set and monitor your wine collection at the touch of a button. Its humidity control system not only reduces excess humidity, but also allows you to increase the humidity level by adding water to the system. The integrated heater element allows the wine cabinet to be placed in extreme environments ranging from 32 to 95°F.
Transtherm Castel wine cabinets have 3 temperature zones: one large compartment for wine storage, plus two smaller sections for chilling white wine and sparkling wine.

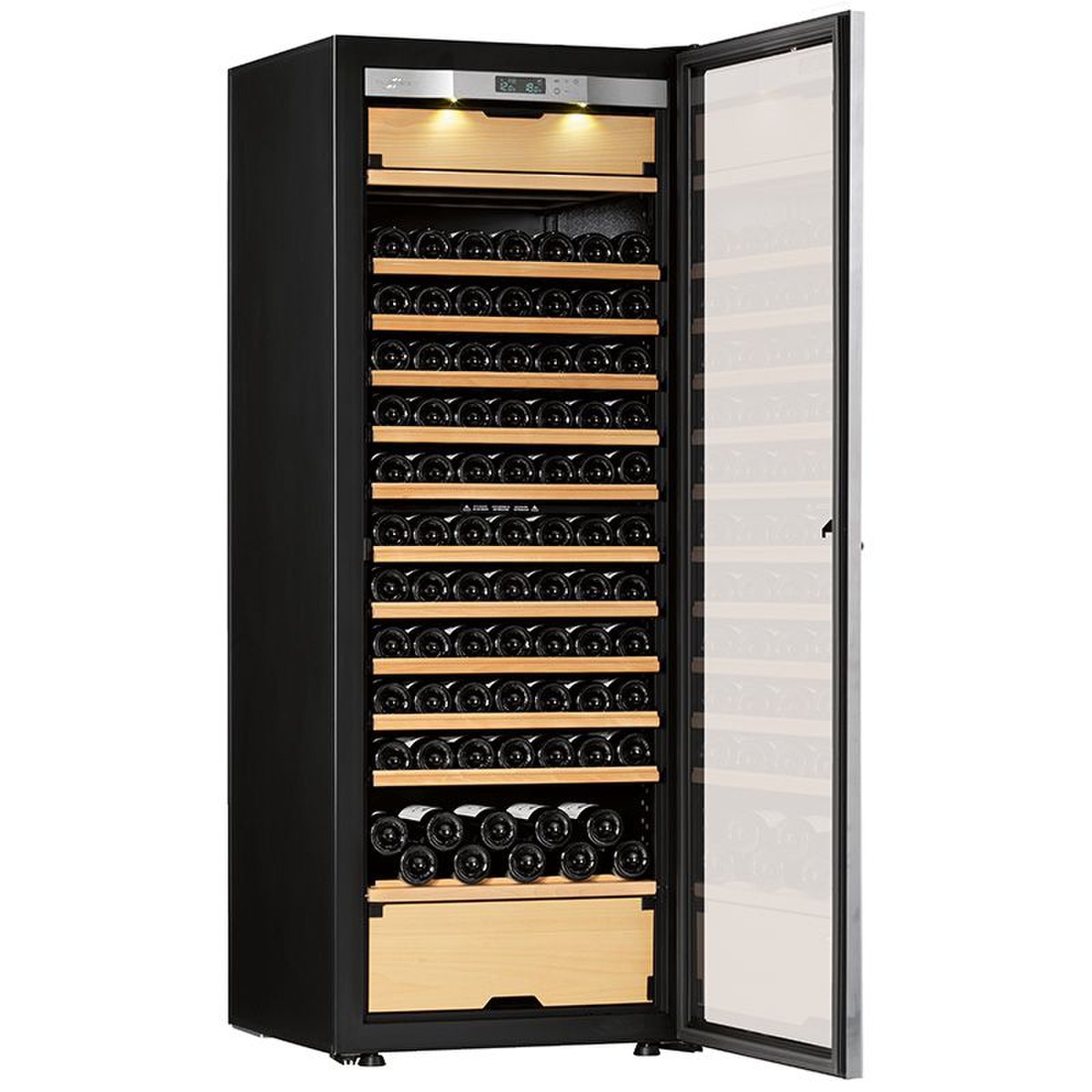

In the main compartment, fully-shelved Castels include 10 adjustable rolling shelves (12 bottles per shelf) and 1 half shelf on the bottom. Using this configuration, the wine cabinet holds 165 bottles.
Placement Requirements: Castel wine cabinets require 3 inches of clearance behind the cabinets, as well as 2 inches of clearance on the sides and above the cabinets, and are designed to operate in environments ranging between 0-35°C/32-95°F. Transtherm cabinets use 120V / 60Hz power. Single cabinets require a 15-Amp circuit, while double cabinets require two (2) 15-amp circuits.
- 3 temperature zones for storing red wine and chilling white wine and sparkling wine
- Electronic temperature regulation system maintains a maximum temperature variation of 2-3F inside the wine cabinet
- Integrated lighting control operates in multiple modes
- Multiple alarms include temperature and humidity alerts
- Heating element allows Castel wine cabinets to operate in unconditioned locations from 32 to 95 degrees F
- Inner material has been upgraded from thermoformed polystyrene to aluminum

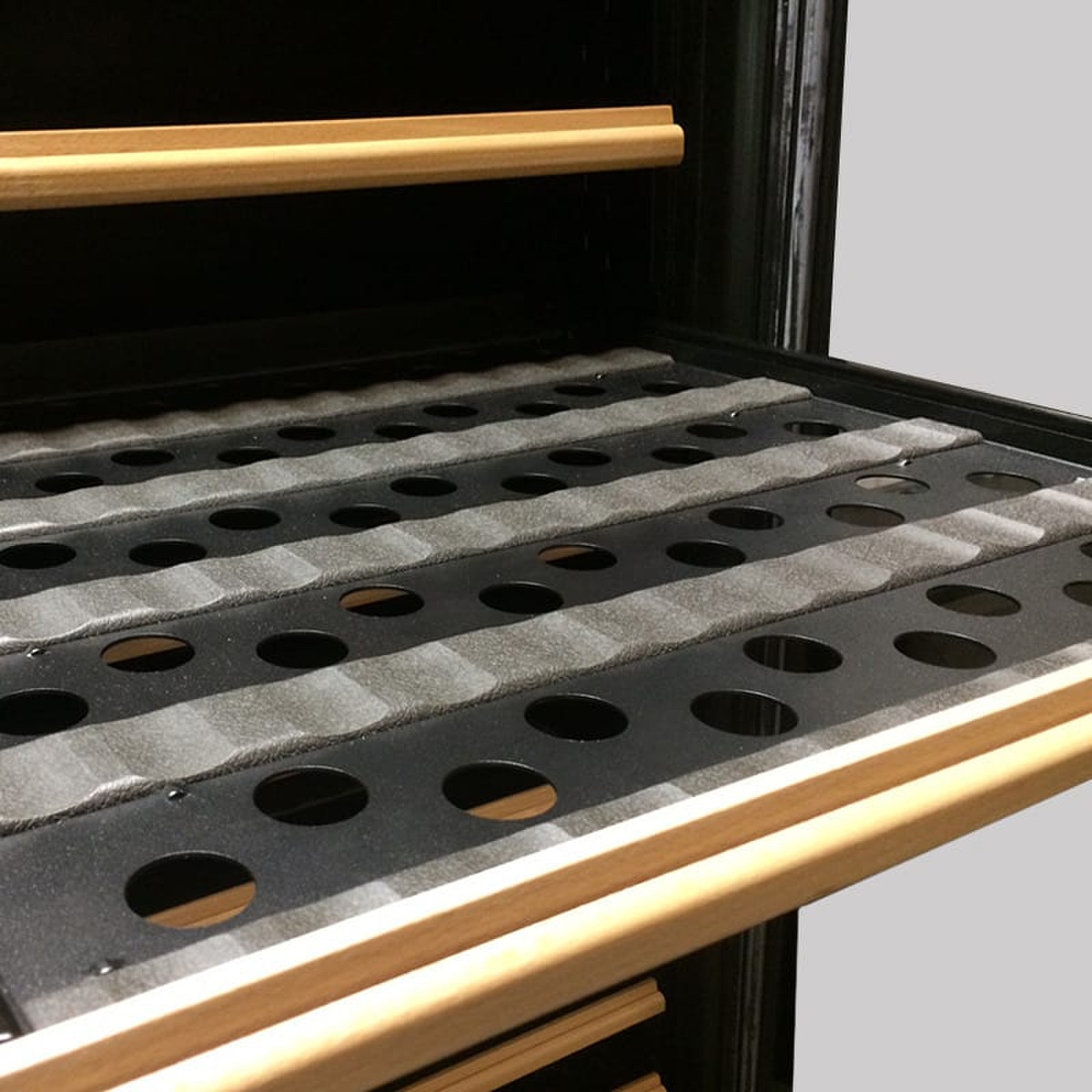

- New adjustable shelves can be adjusted to achieve the perfect height

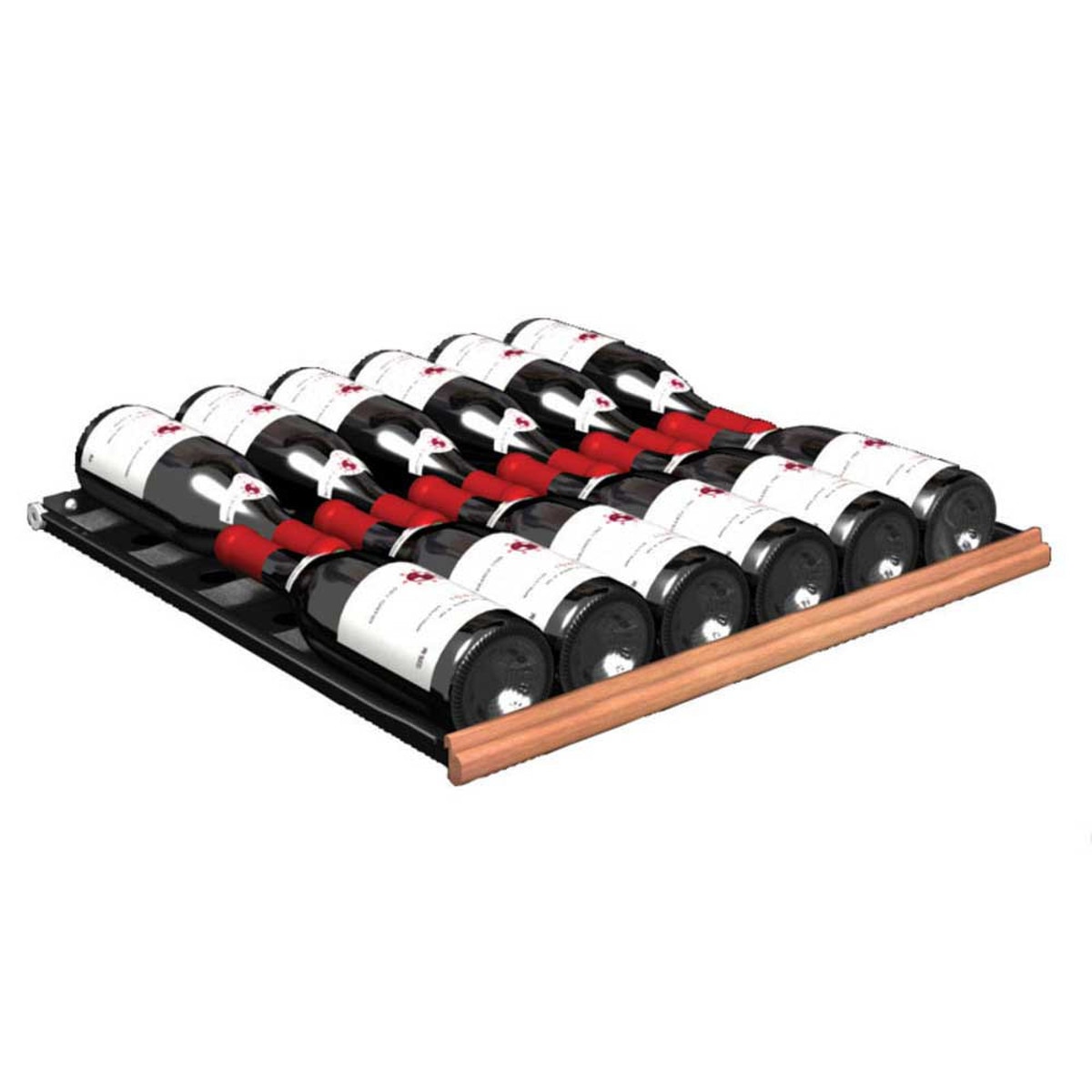

- Transtherm rolling shelves have low-profile grooves designed to easily accommodate all bottle sizes
- Silent operation measured at 37 dBA
- Removable door handle made from steel and aluminum (also reversible on glass doors)
- Premium high-density expanded foam insulation insulation is 4. 5cm thick
- Thermal pump (a Transtherm exclusive) recycles condensation and maintains humidity between 55% - 80%
- Natural ventilation avoids mold and bad odors
- Absence of vibrations through slow and balanced compressors that are disassociated from the cabinet's body
Size: 26 3/4w x 26 3/4d x 72h (in)
Weight: 252 lbs
120V / 60Hz; Requires 15-Amp Dedicated Circuit
Capacity: Up to 165 bottles
1-Year Limited Warranty - Parts and Labor
5-Year Limited Warranty - Compressor
Owner's Manual (pdf)
Shelf Configuration (pdf)
Door Reversal Instructions (pdf)
