CellarPro 2000 VS Duct KIT (Cold Side) Low RH #27104

(0) Write A Review
Price: $625.00
Availability: In Stock
Usually Ships w/i 2-3 Days
Shipping Information:
FedEx / USPS / Saver

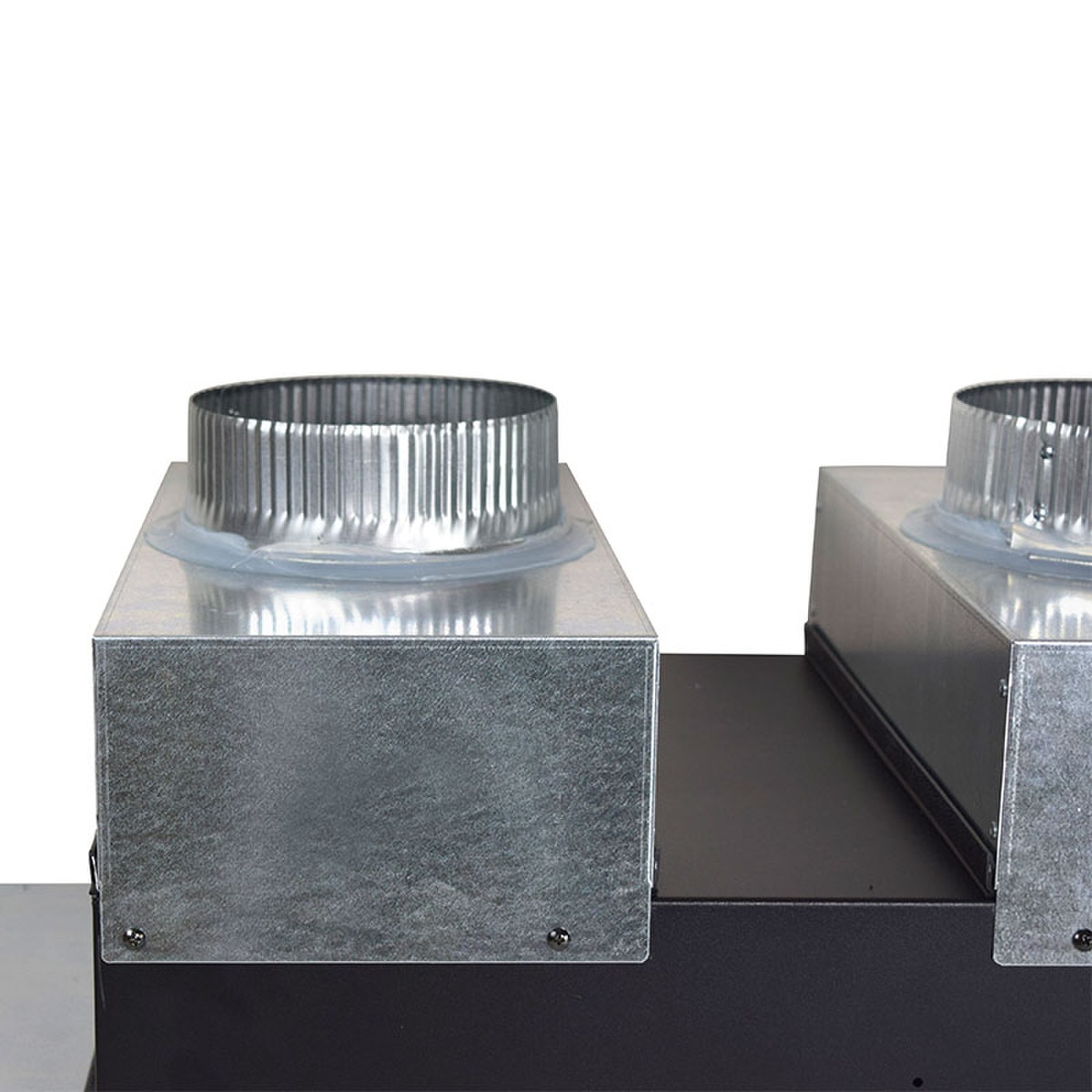

CellarPro 2000 VS Duct KIT (Cold Side) Low RH (P/N 27104). Duct openings are designed to attach to two 6-inch ducts for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.

The exhaust exits from the top, and the intake returns from the front.

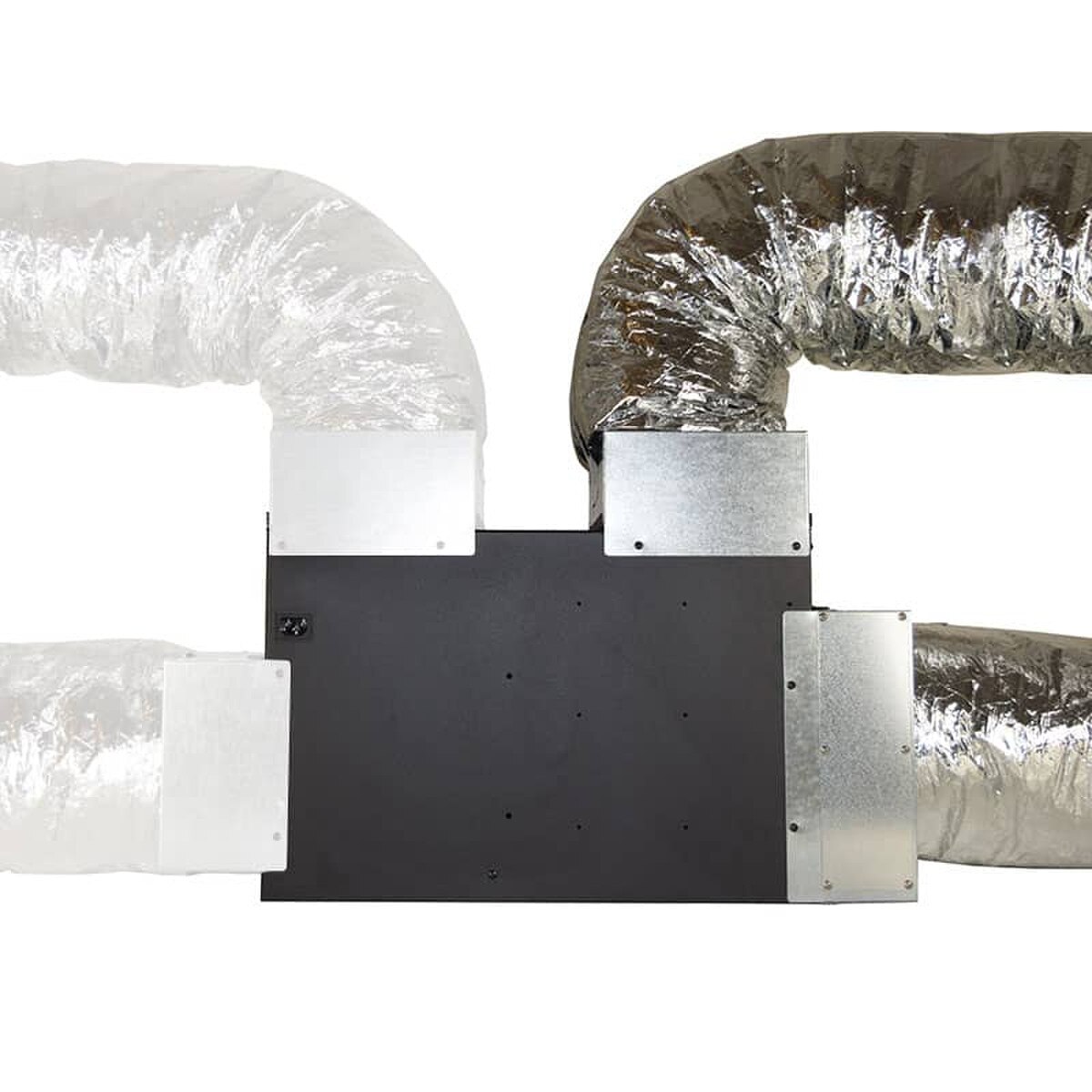

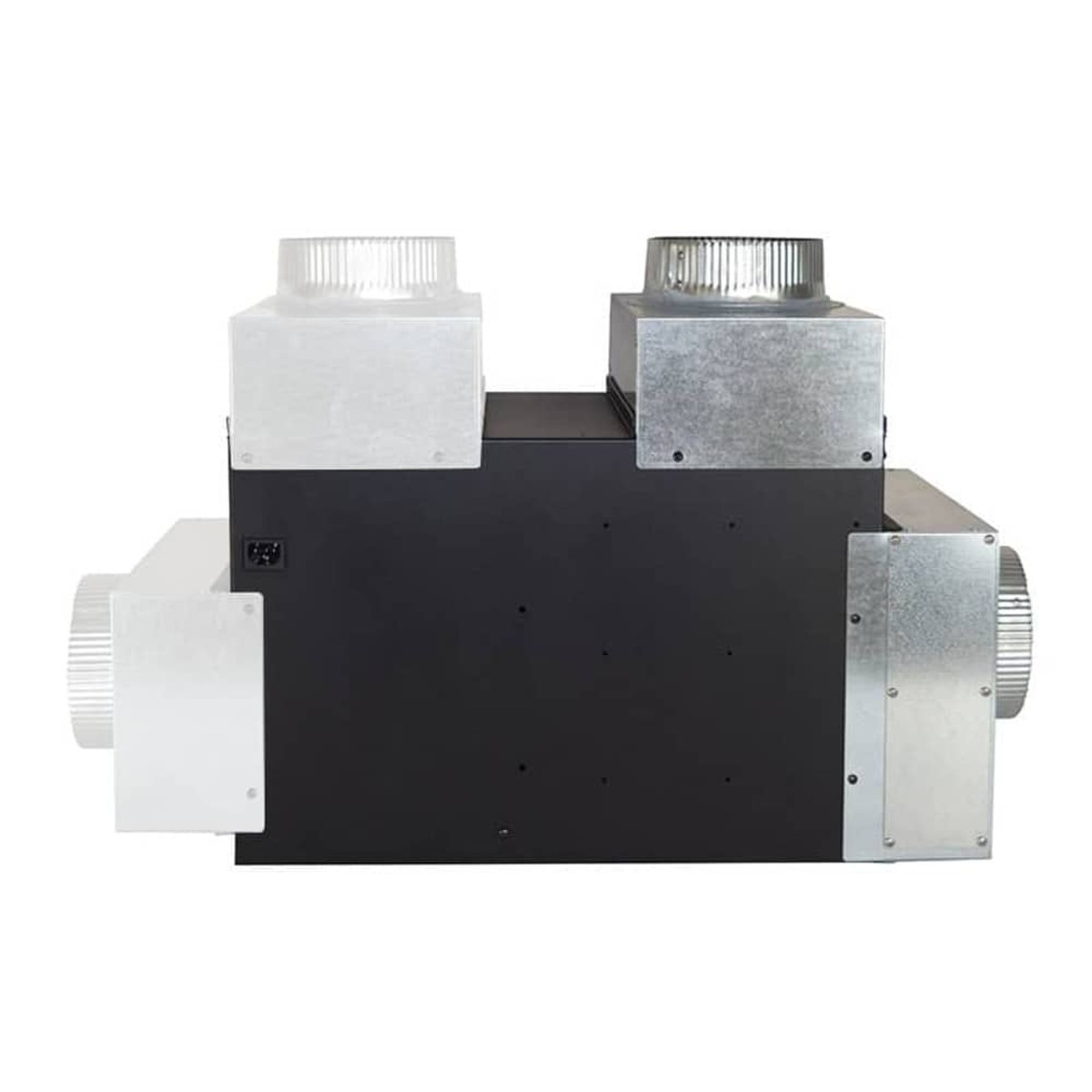

Shown at left: cold side duct kit (left) AND hot side duct kit (right). The hot side duct kit must be purchased separately.

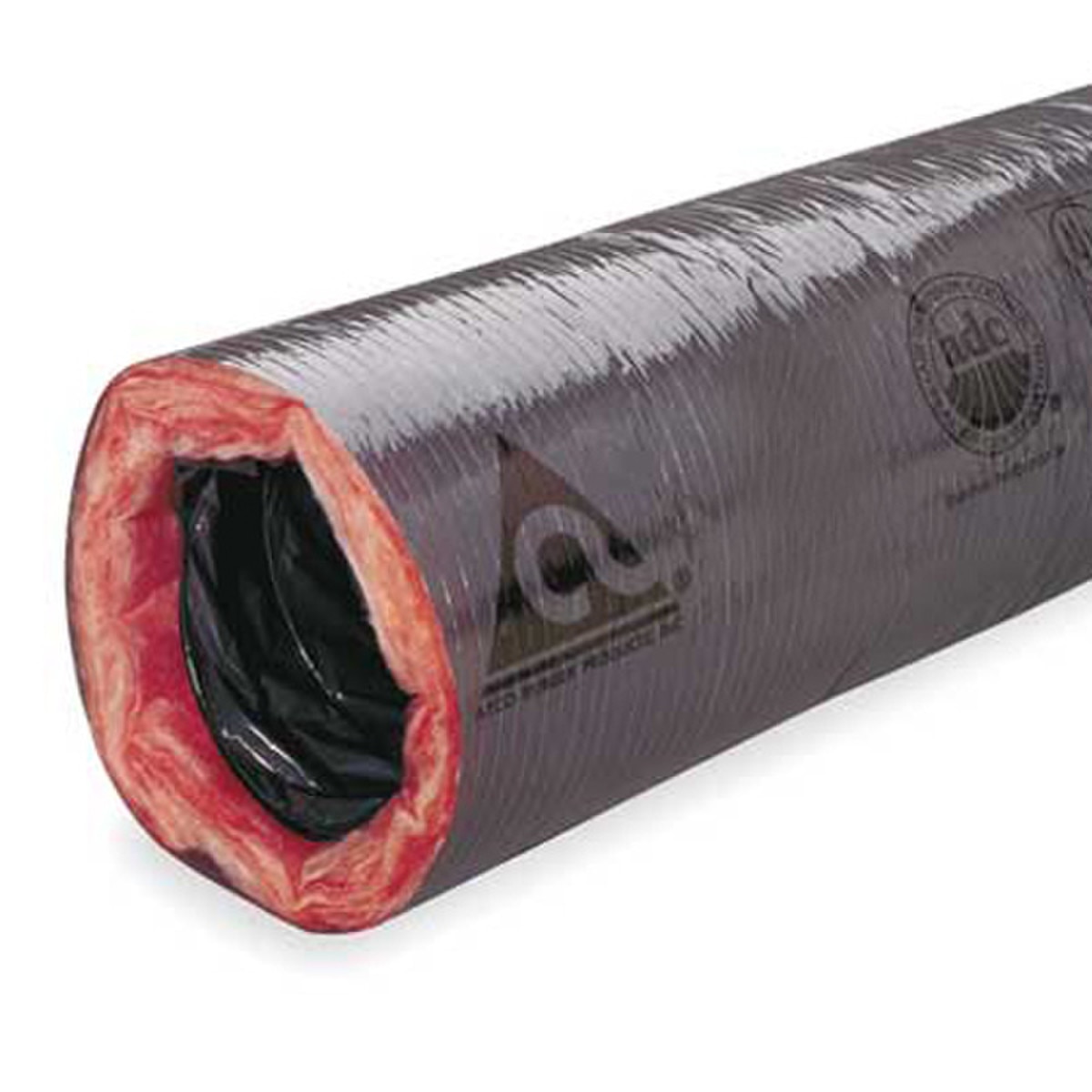

Kit includes: Duct hoods for cold side intake and exhaust, 50 feet (2x25) of 6-inch insulated (R-6) ducting, remote display and bottle probe.

The high fan speed setting is required when our unit is ducted.

Bottle Probe Operating Instructions:.
  • When measuring liquid temperatures, the (HY) differential should be set at 1 degree (so that the wine liquid doesn't fluctuate more than 1 degree.)
  • When measuring air temperatures, the (HY) differential should be set at 4 degrees (the cooling unit will burn out prematurely if the unit cycles on'off every time the air temperature changes by 1 degree.)
  • The probe or bottle/probe must be located in a location with good air movement in order to correctly register the temperature changes inside the cellar.
  • When measuring air temperature with ducted systems, the ideal location for the bottle probe is in the return air register; when measuring air temperature with through-the-wall systems, the ideal location for the bottle probe is near the return air grill; when measuring liquid temperatures in bottles, the ideal location of the bottle is near the top of the racks with good airflow.
  • In all cases, it is recommended to check the actual cellar temperature against the display temperature when the bottle probe is first setup and subsequently whenever the location moves.
  • Refer to our Owners Manual for instructions how to change the HY differential


Please note: This kit is recommended for low humidity, conditioned environments.Please use our high humidity duct kit if the system will be used in a warm, high humidity or unconditioned environment.

Be sure to refer to our ducting heat loss table and our duct correction table when sizing the cooling unit.
This cold side kit is designed to work with CellarPro 2000VS cooling units, allowing the cold air intake and exhaust to be ducted up to 50 equivalent feet (25 feet per opening).

Please note: the high-humidity duct kit must be used if the cooling unit will be installed in a warm, moderate, unconditioned or high humidity environment. Our high-humidity kit includes insulation on the hood, inside the unit and on its face to prevent moisture buildup and damage.
  • Attaches easily to the front (intake) and top (exhaust) of 2000VS refrigeration systems
  • Provides access to cooling unit control panel and switches
  • Designed for easy hook-up to 6" ducting
  • Both openings must be ducted to/from the cellar
  • Ducting can reach up to 50 equivalent feet (25 per opening)
  • Includes our remote probe with 10' cord which plugs into face of the cooling unit on one end, and measures air or liquid temperature inside the cellar on the other end

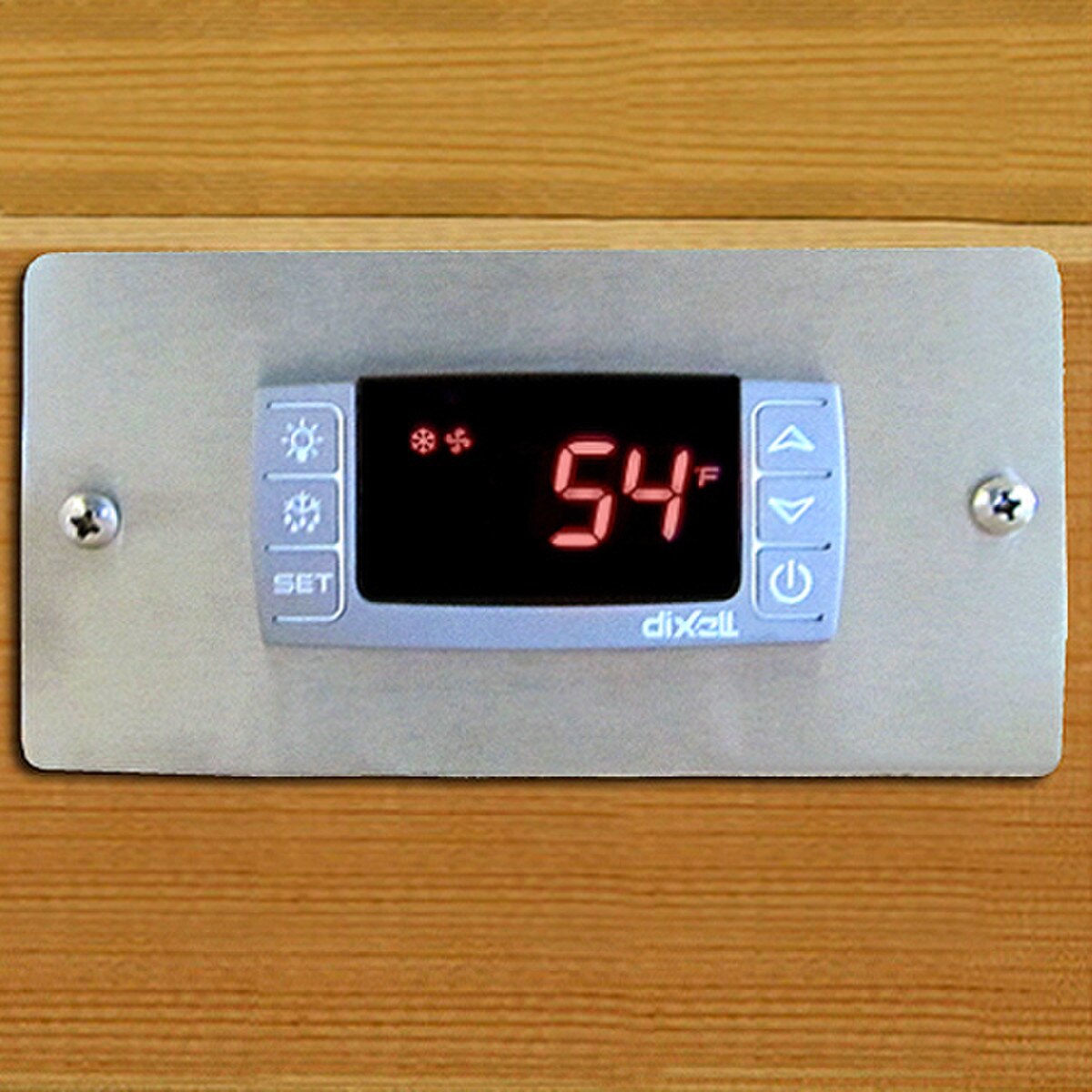

  • Includes our remote control display kit, which can be installed inside or outside the cellar
  • Designed to be used in Low Humidity environments
Brand: CellarPro

Size: As installed: 14 3/16w x 3 5/8d x 7 1/2h (in)

Weight: 35 lbs

Capacity: 50 Equivalent Feet

Warranty:
1 Year
