CellarPro 3400H Houdini Duct HOOD HOT SIDE with Inline Fan Factory Installed #36031

0 Write A Review
Price: $450.00
Availability: On Backorder
In Stock Date: 6/13/2022
Shipping Information:
FedEx / USPS / Saver

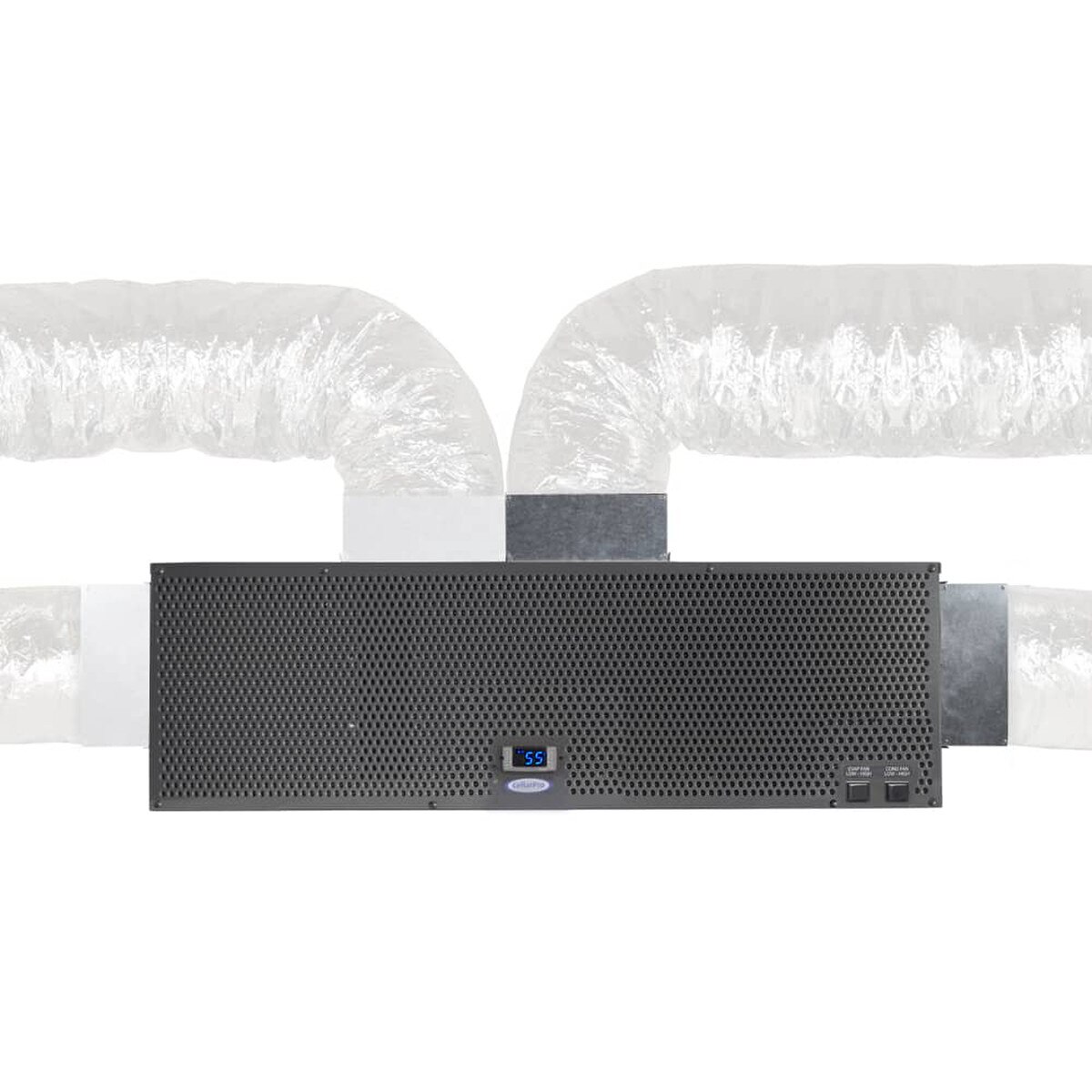

CellarPro 3400H Houdini Duct HOOD HOT SIDE with Inline Fan Factory Installed (P/N 36031). These duct hoods are designed exclusively for the hot side of CellarPro's 3400H Houdini cooling unit, as follows:
  • Attach to the hot side airflows (intake and exhaust), allowing the cooling unit to push its exhaust and/or pull its fresh air from remote locations (but not from the cellar), mitigating tight installations with insufficient space around the cooling unit, as follows:
    • Fresh air intake: can be ducted from the top (shown), the front, or the right side of the cooling unit
    • Hot air exhaust: can be ducted from the top (shown), the front, or the rear of the cooling unit
Each bundle includes:
  • 2 hoods (1 for intake and 1 for exhaust)
  • Ducting and grills sold separately

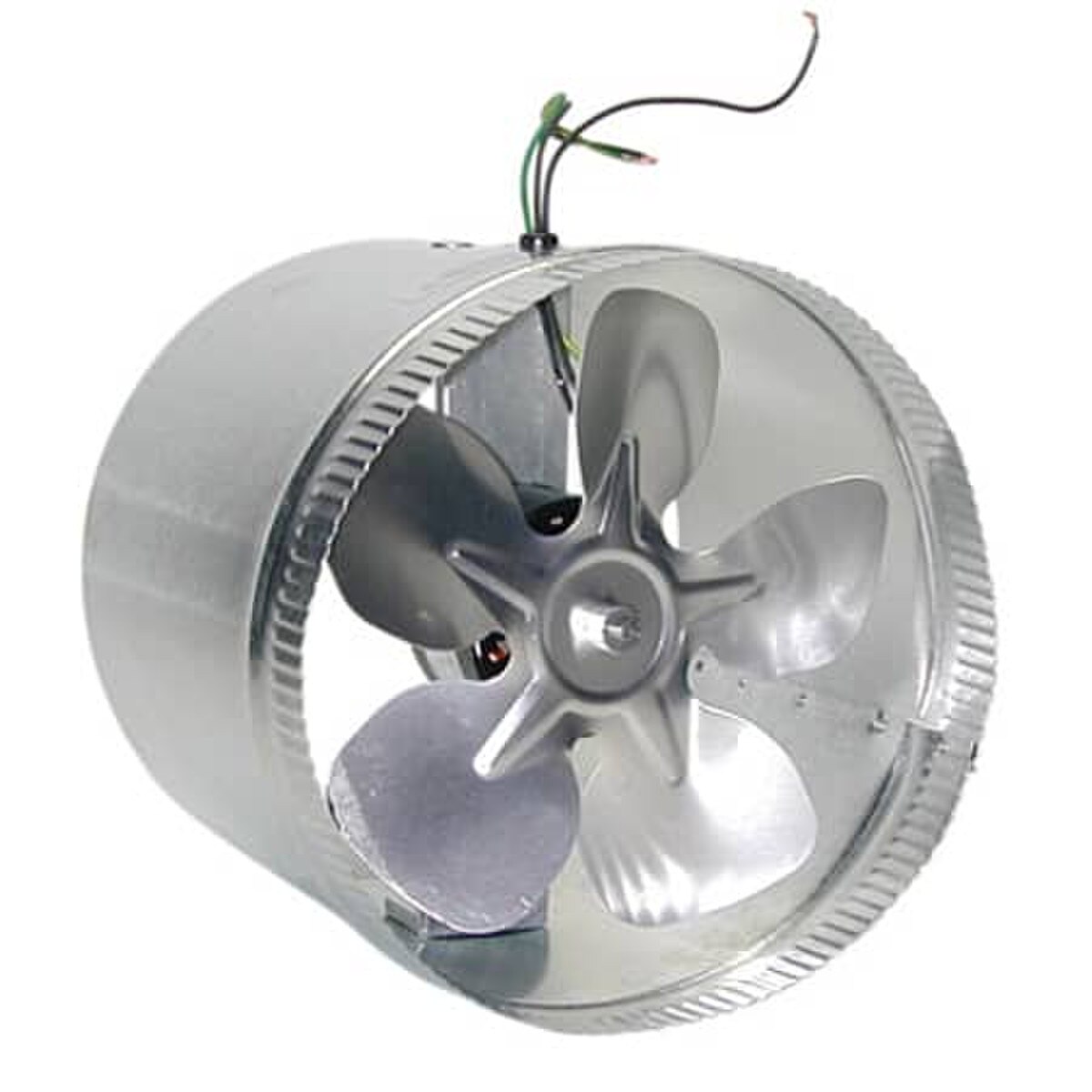

  • 1 inline fan with wiring for switched power from the cooling unit
Please note:
  • Insulated flex ducting is not included with this bundle. If you'd like to purchase the bundle WITH ducting, please order item #36027 instead
  • Ducting must be 8-inch diameter or equivalent from start to finish
  • The high fan speed must be used when ducting our cooling unit
The maximum length of ducting is 200 equivalent feet with the fan.
Allows the hot side of CellarPro 3400H Houdini cooling units to be ducted up to 200 equivalent feet (100 feet per duct) using 8-inch ducting (sold separately) with no reductions from start to finish.
  • Designed to work with hot-side airflow openings on the 3400H Houdini cooling unit
  • Requires ducting 8-inch diameter (not included)
  • Includes 8' Inline fan with wiring for switched power
Brand: CellarPro

Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)

Weight: 4 lbs

Power/Rating
115V, 60 Hz, 0.6 amps (Inline Fan)

Capacity: 200 Equivalent Feet

Warranty:
1 Year

The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with hot-side airflows. Click on one of the following links for more information:
Filters & Grills
  • Use our filter & grill guide to find the cooling unit filter or duct filter and/or duct grill that is appropriate for your cooling unit.
