Configuration Scenarios For Split Recessed Ceiling Mount Systems
Split Recessed Ceiling Mount Configurations
Download a pdf version of wine cellar cooling unit configuration options.

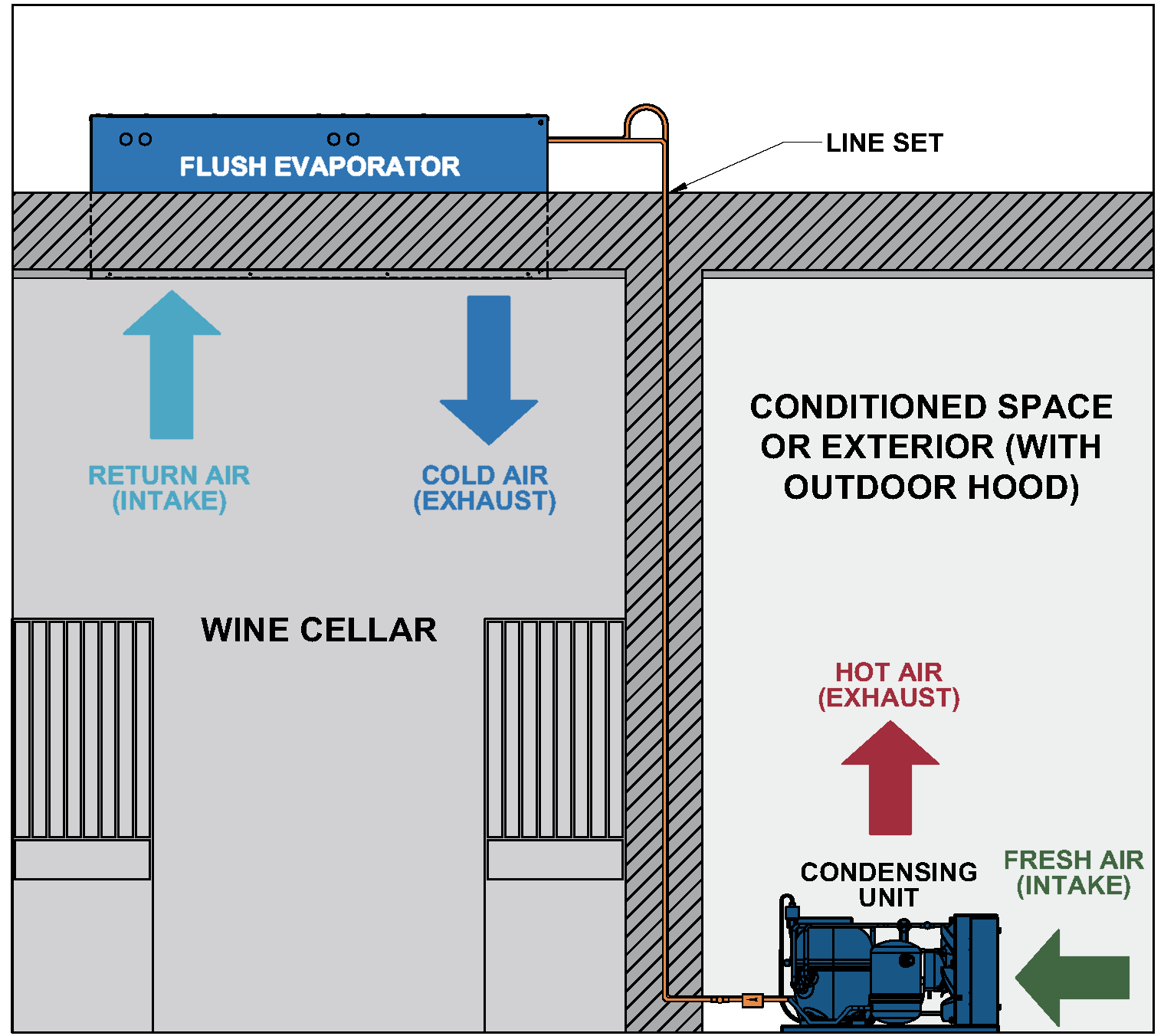

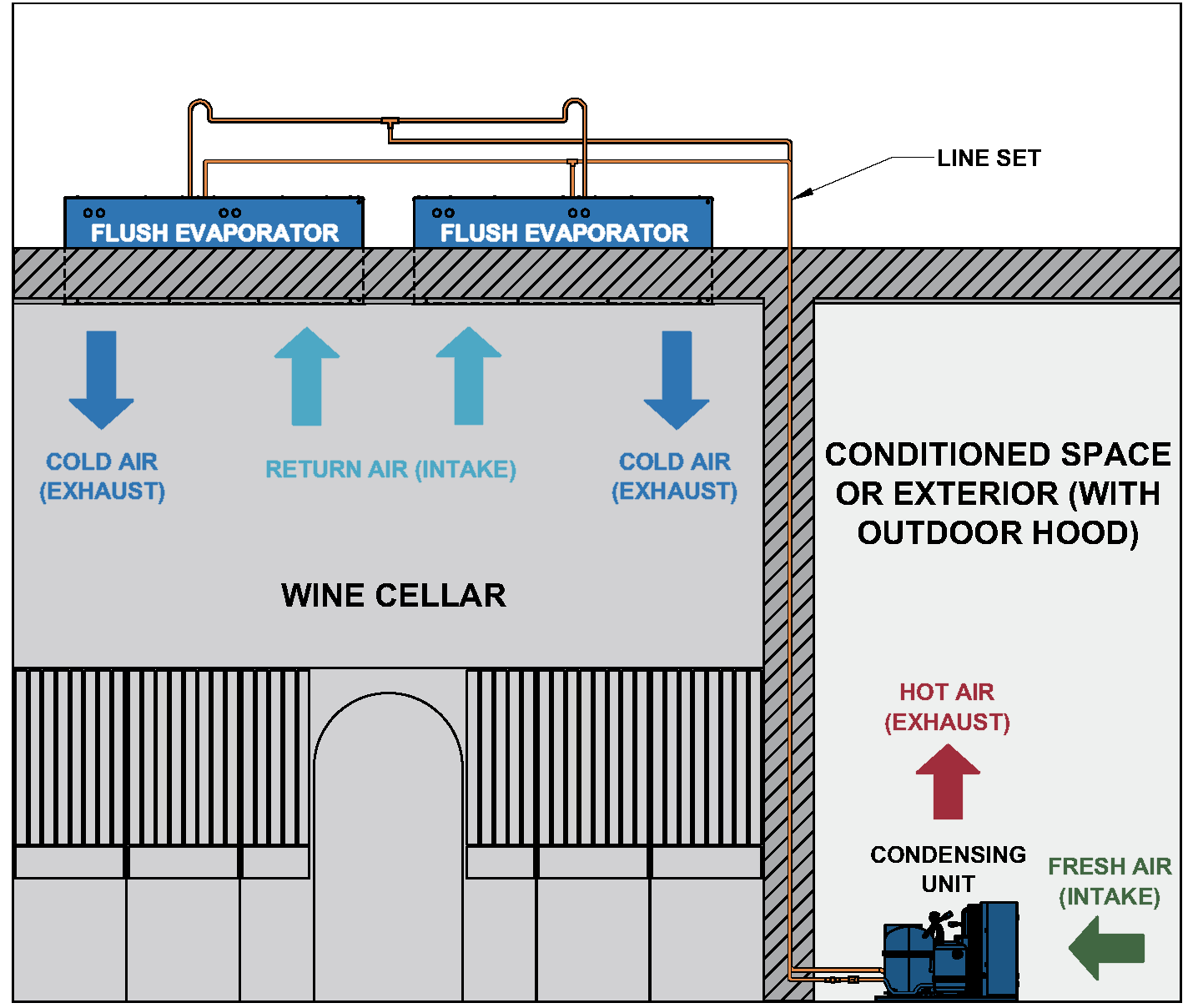

| 1. Flush Configuration 3000-4000Scmr | 2. Flush Configuration 6000-8000Scmr | |
 |  |

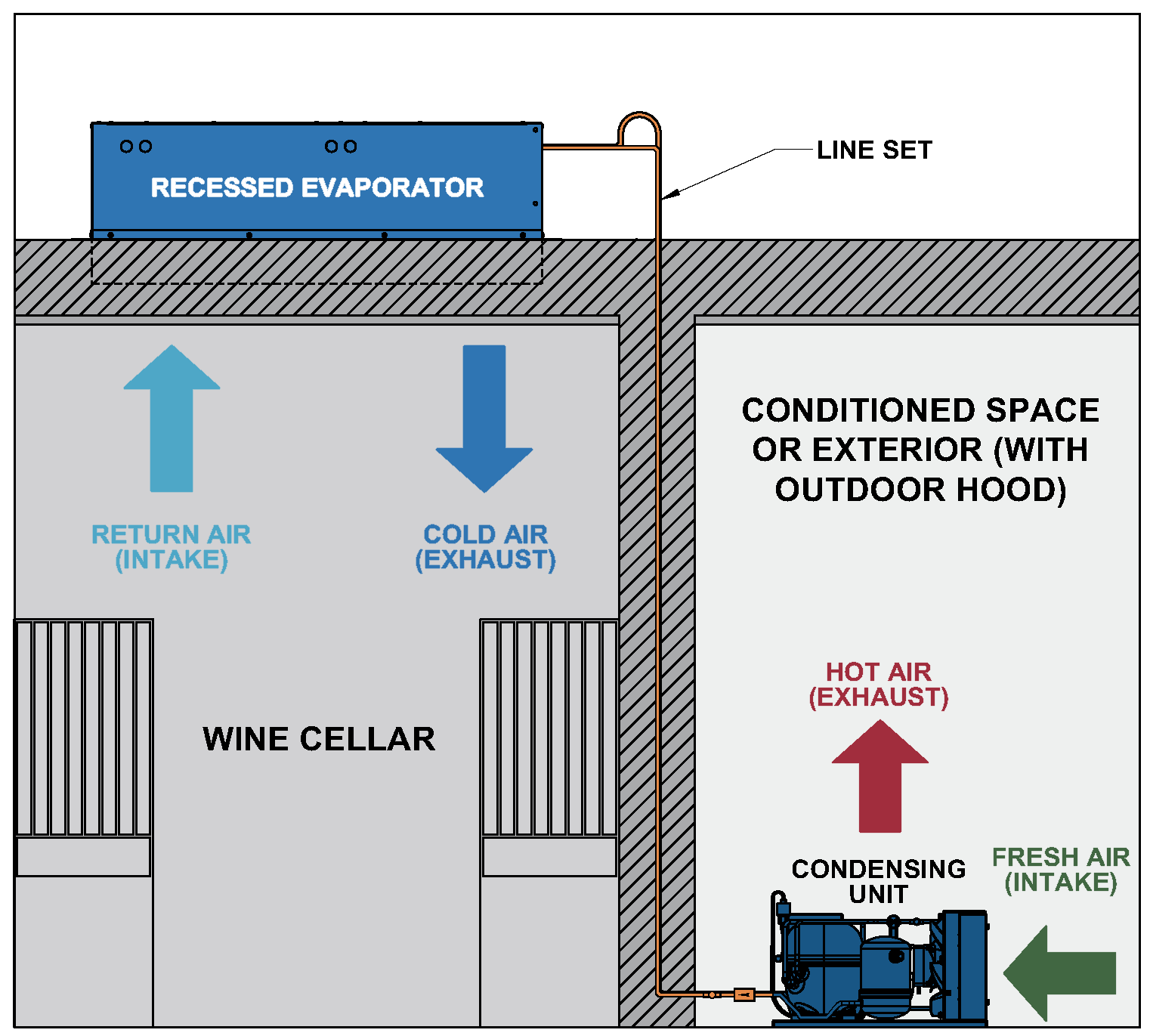

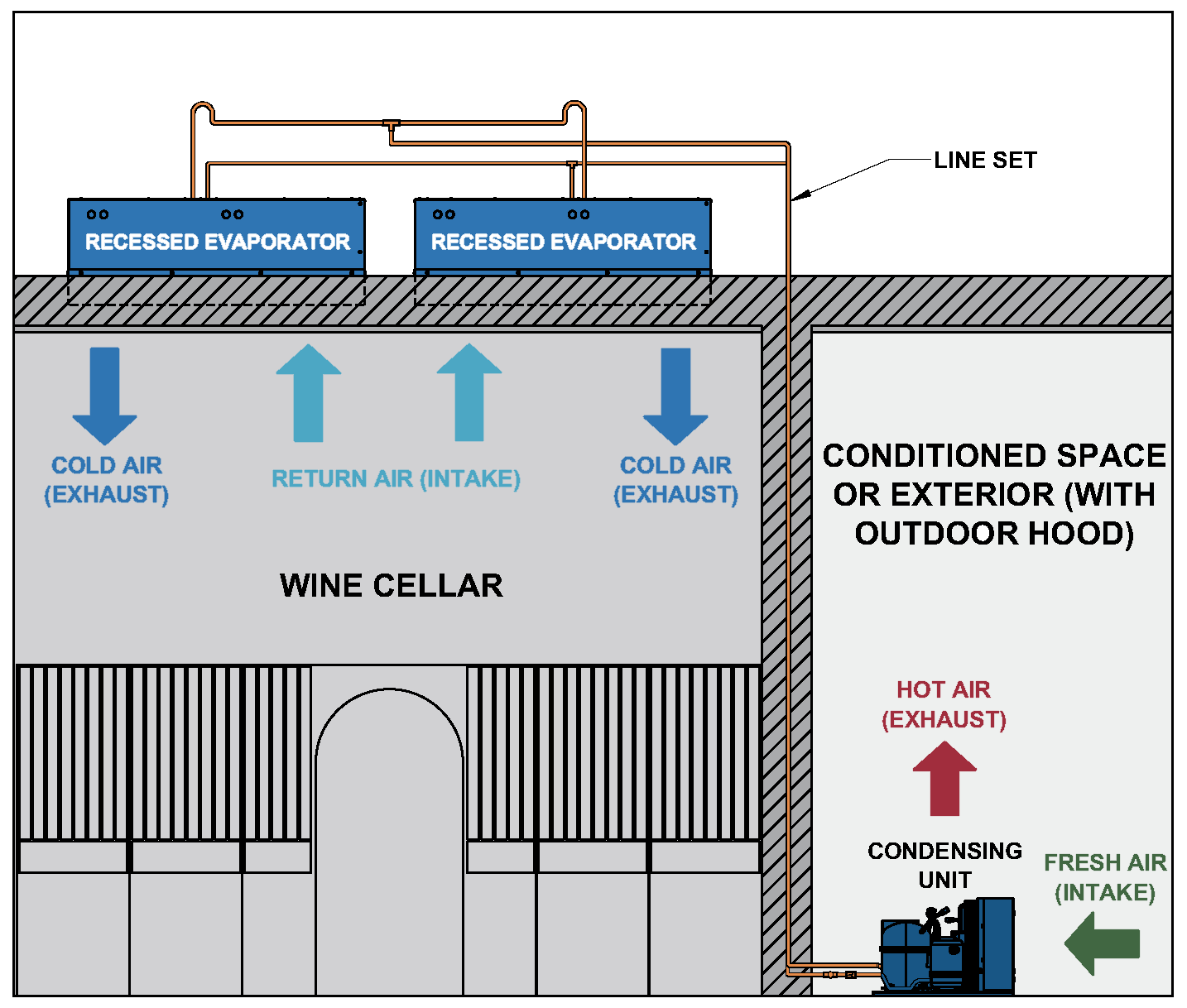

| 3. Recessed Configuration 3000-4000Scmr | 4. Recessed Configuration 6000-8000Scmr | |
 |  |

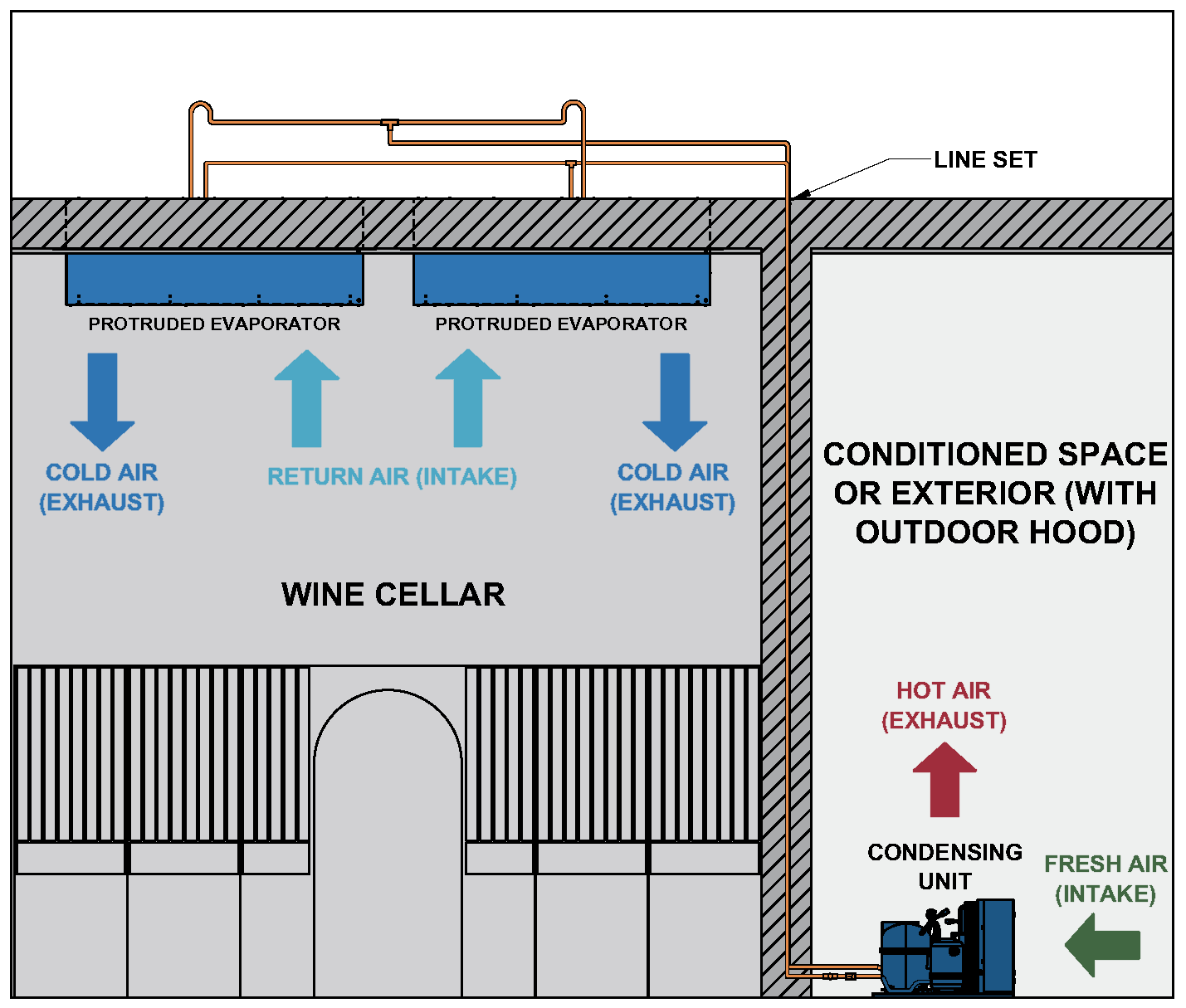

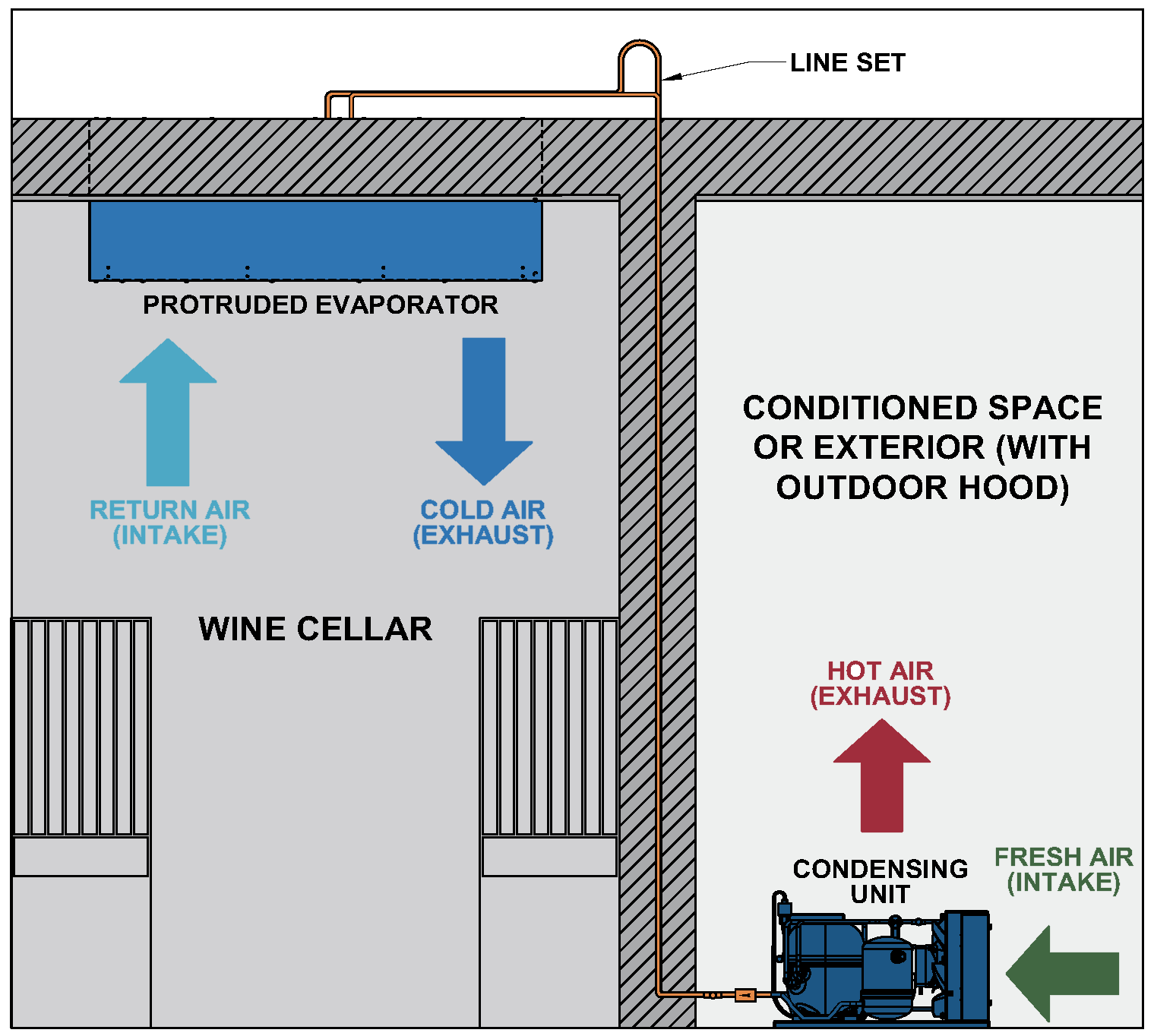

| 5. Protruded Configuration 3000-4000Scmr | 6. Protruded Configuration 6000-8000Scmr | |
 |  |
