Sample Wine Cellar Kits - Standard Height

The sample drawings below were designed for an 8 x 8 x 8 (feet) wine cellar with 1,084 bottle capacity using our standard height wine rack kits (72"h). This design assumes the wine racks are constructed from premium redwood (unstained); the cost is approximately $4-6 per bottle plus shipping and handling.

Click here to learn more about leading wine cellar refrigeration equipment manufacturers CellarPro Cooling Systems and WhisperKOOL

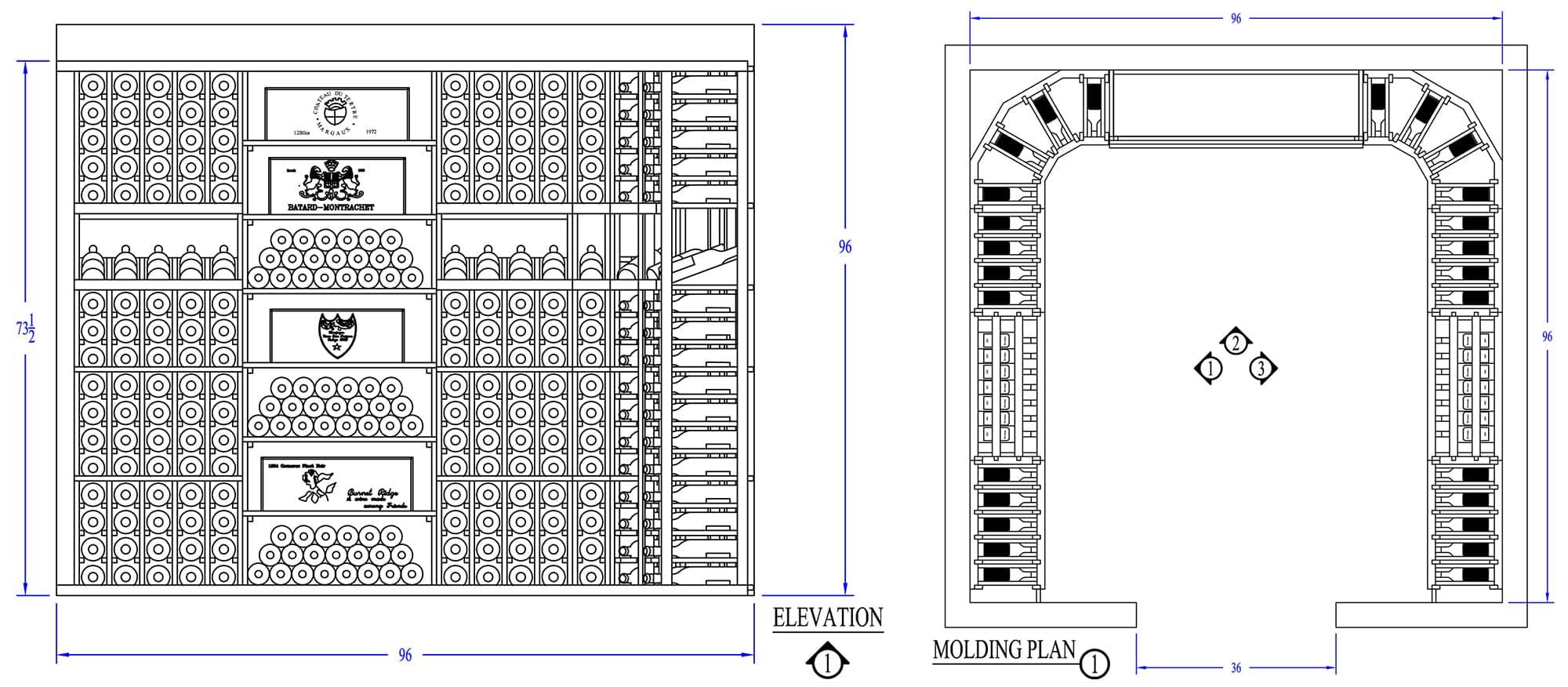

Wine Cellar Sample Drawing: Elevation 1

  • Curved corner wine racks maximize efficiency
  • Ample space in the center of the wine cellar allows easy access
  • Beautiful archway and tabletop are centered across from the door as the focal point
  • Bulk storage space is provided on the left and right walls
  • Display racking for prized bottles tracks all the way around the wine cellar
  • Rectangular bins are versatile enough to store loose bottles of every size - including magnums and unopened cases
  • Additional case storage is available atop the racks

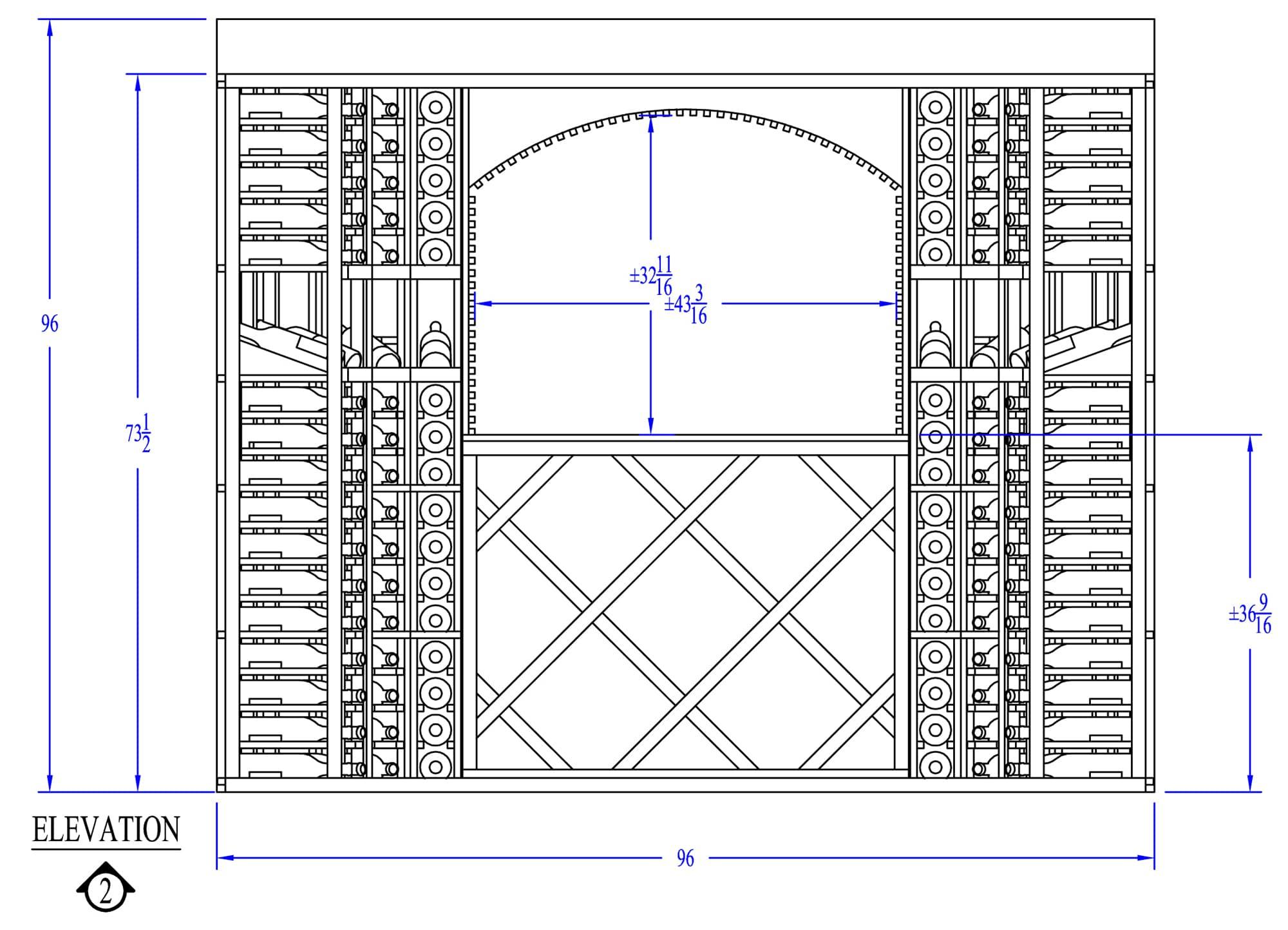

Wine Cellar Sample Drawing: Elevation 2

  • Beautiful archway and tabletop provides a beautiful focal point for the entire wine cellar
  • The backdrop below the archway (above the tabletop) is perfect for displaying wine cellar art. Let us know if you'd like to purchase artwork and or lighting for your wine cellar
  • Diamond bins provide a stunning visual element below the archway, and are versatile enough to store loose bottles of every size
  • Display racking for prized bottles (at rows 11-12) tracks all the way around the wine cellar

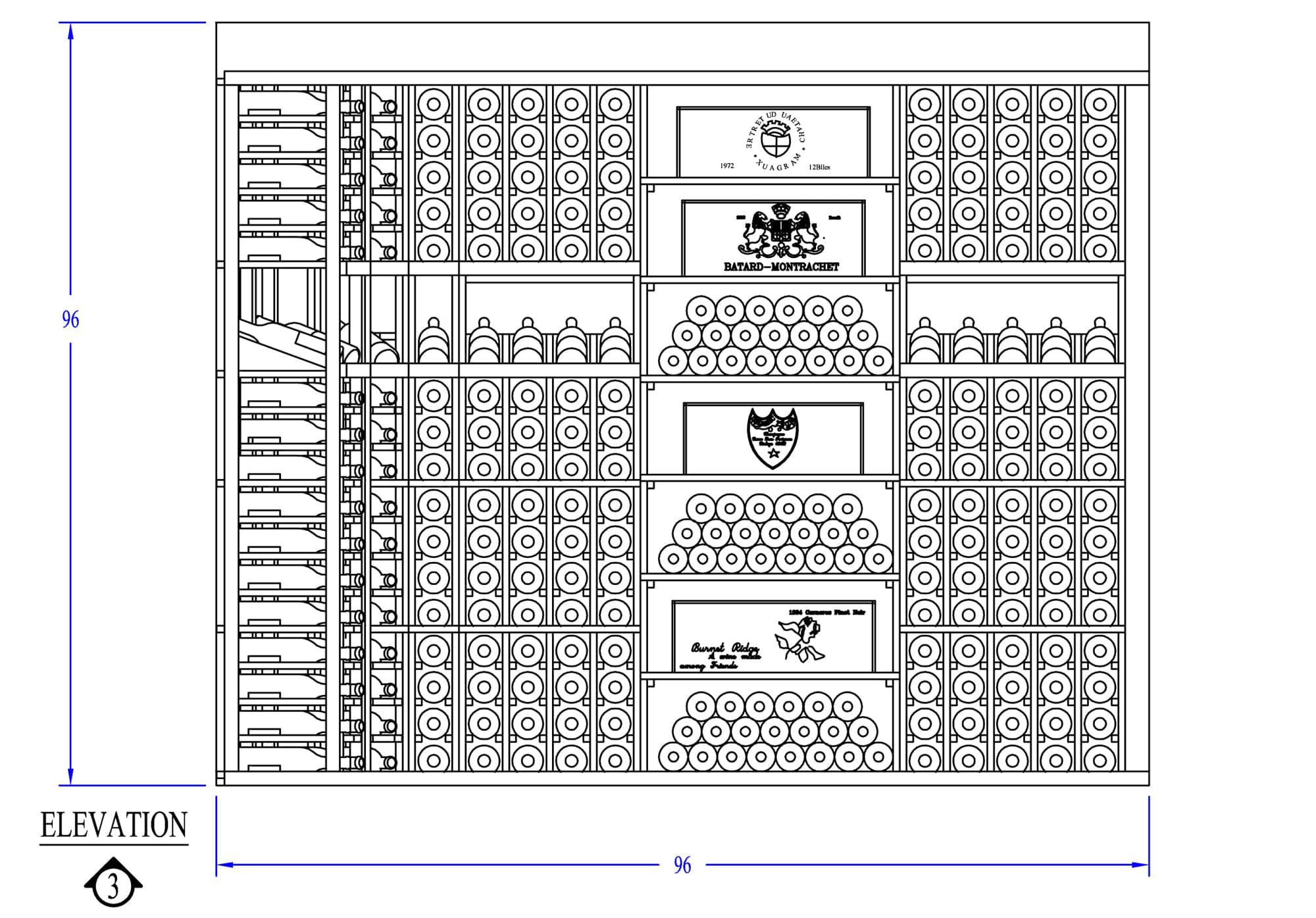

Wine Cellar Sample Drawing: Elevation 3

  • Display racking for prized bottles (at rows 11-12) tracks all the way around the wine cellar
  • Rectangular bins are versatile enough to store loose bottles of every size - including magnums and unopened cases
  • Additional case storage is available atop the wine racks
