Sample Wine Cellar Kits - Adjustable Height

The sample drawings below were designed for an 8 x 8 x 8 (feet) wine cellar with 924 bottle capacity using our adjustable height wine rack kits. This design assumes the wine racks are constructed from premium redwood (unstained); the cost is approximately $5-7 per bottle plus shipping and handling.

Click here to learn more about leading wine cellar refrigeration equipment manufacturers CellarPro Cooling Systems and WhisperKOOL

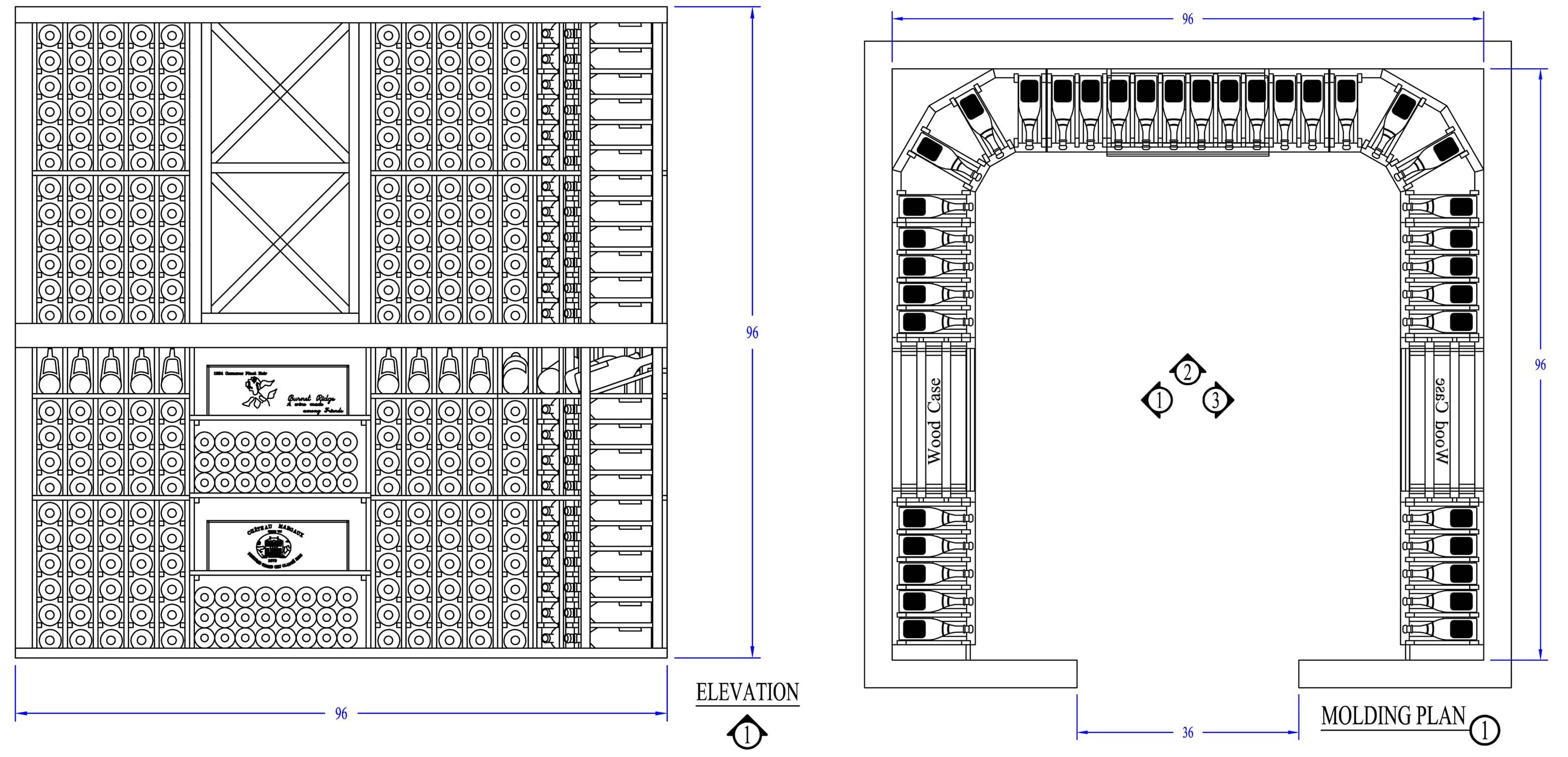

Wine Cellar Sample Drawing: Elevation 1

  • Floor-to-ceiling wine racks provide a truly custom look
  • Curved corners wine racks maximize efficiency
  • Ample space in the center of the wine cellar allows easy access
  • Beautiful archway and tabletop are centered across from the door as the focal point for the wine cellar
  • Vertical display racking above the arch provides additional space to display prized bottles
  • Bulk storage space is provided on the left and right walls
  • Display racking for prized bottles (at rows 11-12) tracks all the way around the wine cellar
  • Rectangular bins are versatile enough to store loose bottles of every size - including magnums and unopened cases

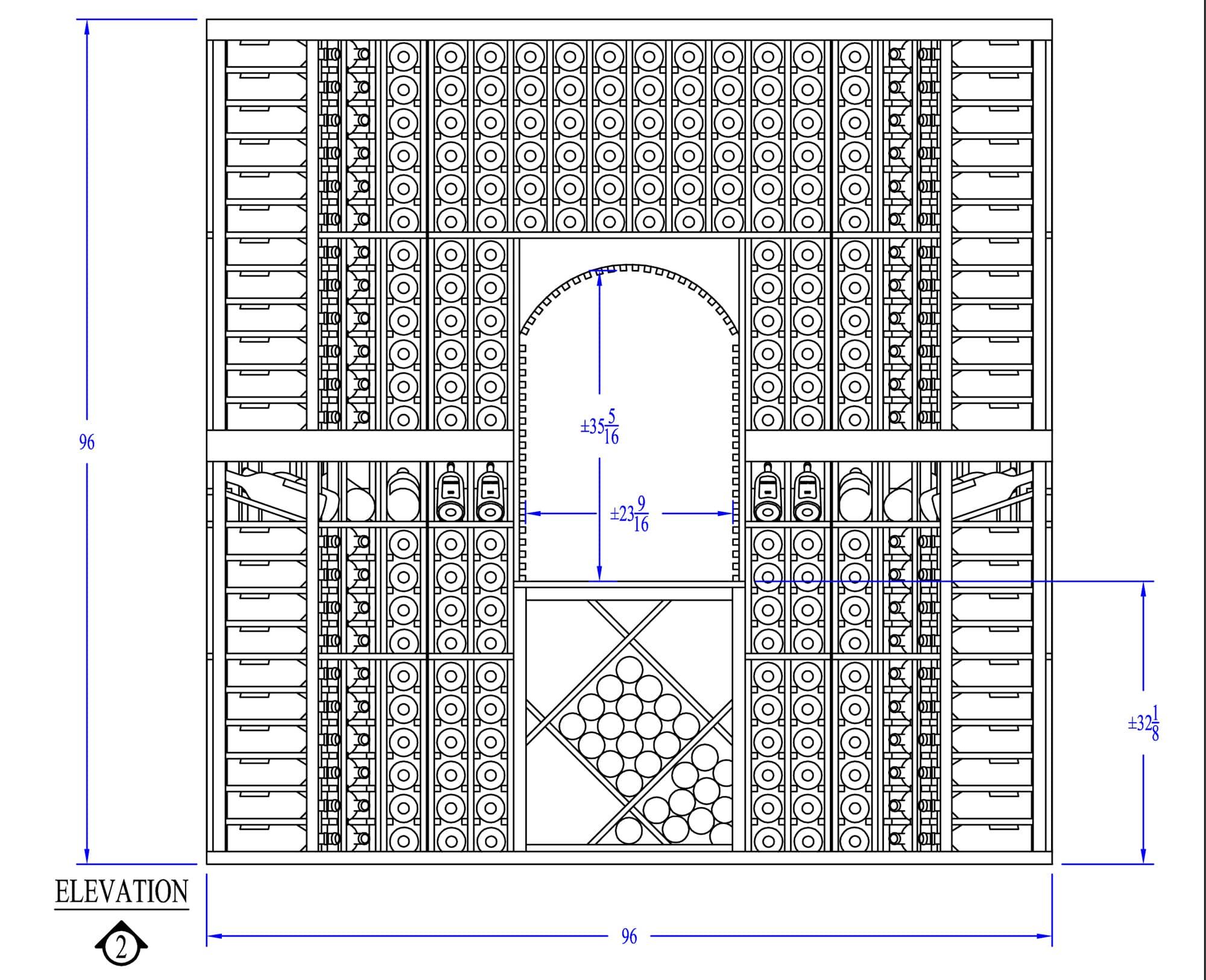

Wine Cellar Sample Drawing: Elevation 2

  • Beautiful archway and tabletop provides a beautiful focal point for the entire wine cellar
  • The backdrop below the archway (above the tabletop) is perfect for displaying wine cellar art. Let us know if you'd like to purchase artwork and/or lighting for your wine cellar.
  • Diamond bins provide a stunning visual element below the archway, and are versatile enough to store loose bottles of every size
  • Display racking for prized bottles (at rows 11-12) tracks all the way around the wine cellar
  • Vertical display racking above the arch provides additional space to display prized bottles

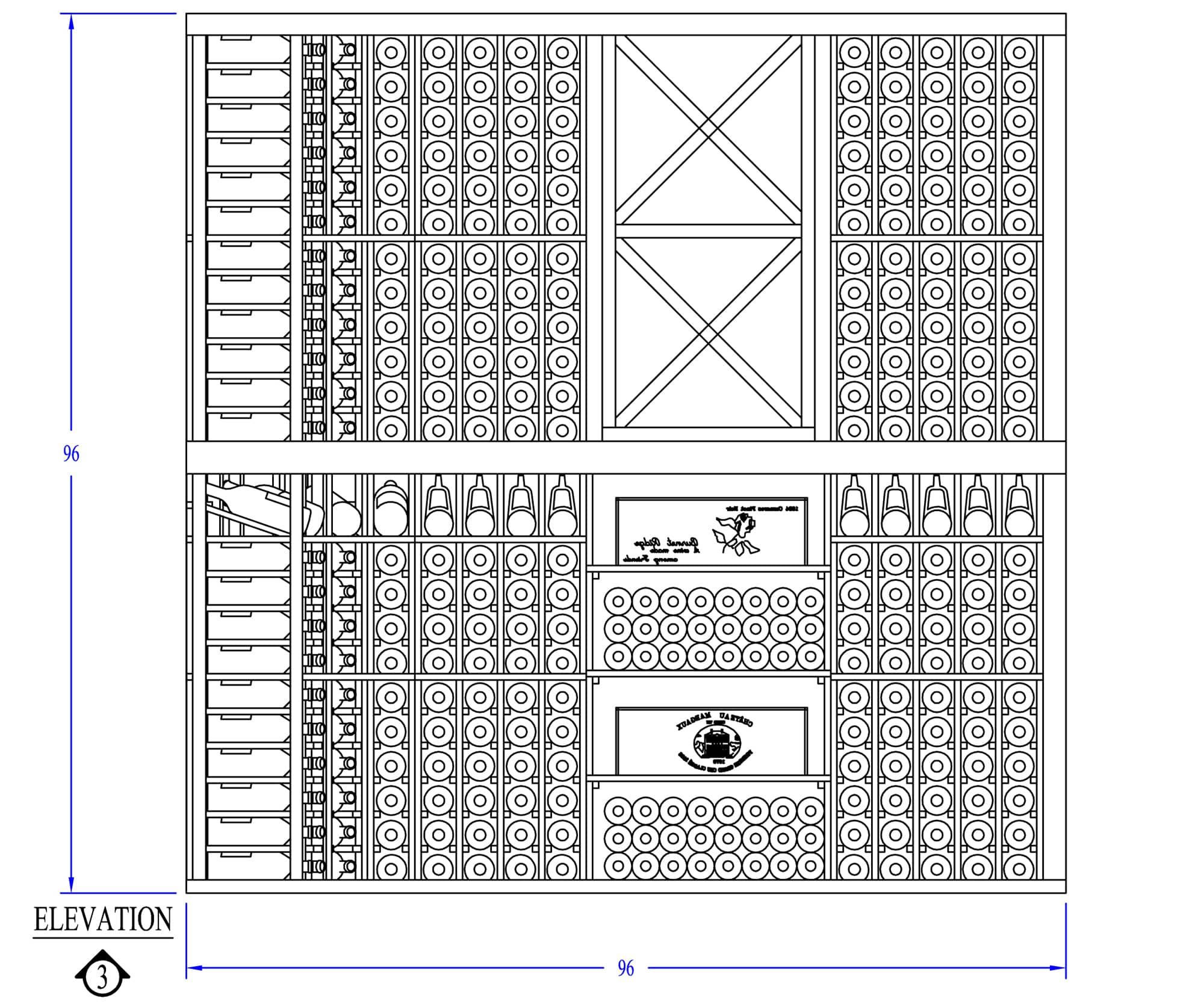

Wine Cellar Sample Drawing: Elevation 3

  • Display racking for prized bottles (at rows 11-12) tracks all the way around the wine cellar
  • Rectangular bins are versatile enough to store loose bottles of every size - including magnums and unopened cases
  • Floor-to-ceiling racking is achieved by combining our unique modular wine racks
