WhisperKOOL Ducted Split Quantum 12000 #35661

SKU: 35661 WKool Quantum 12000
$10,138.00
Made to Order

Usually Ships w/i 1-2 Weeks

Shipping Information:

Curbside - $350

WhisperKOOL Ducted Split Quantum 12000 Wine Cooling Unit (P/N 35661). Cool your wine cellar and maintain ideal wine storage conditions with this fully ducted split system from WhisperKOOL.

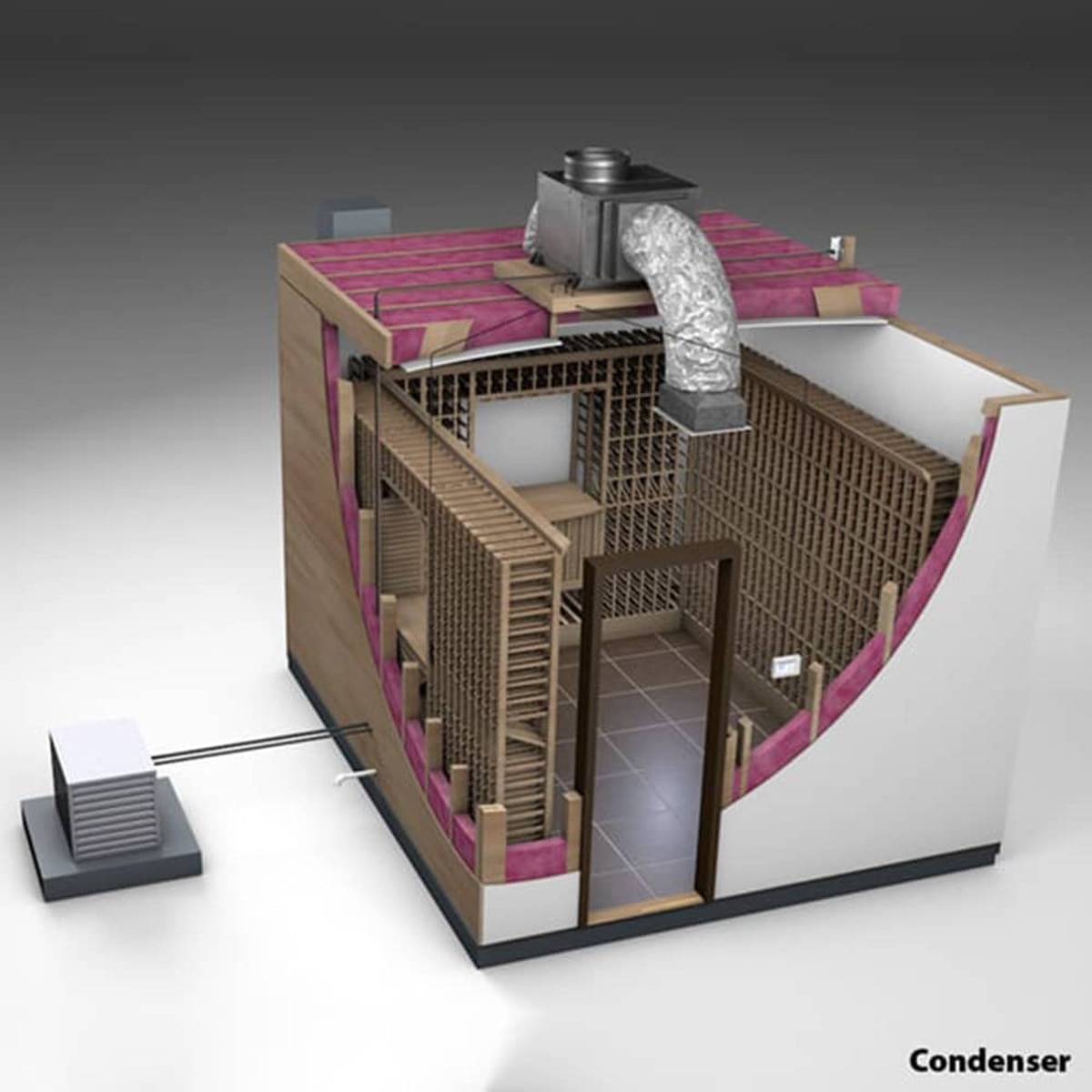

  • Fully ducted split system allows the evaporator to be located remote from the cellar

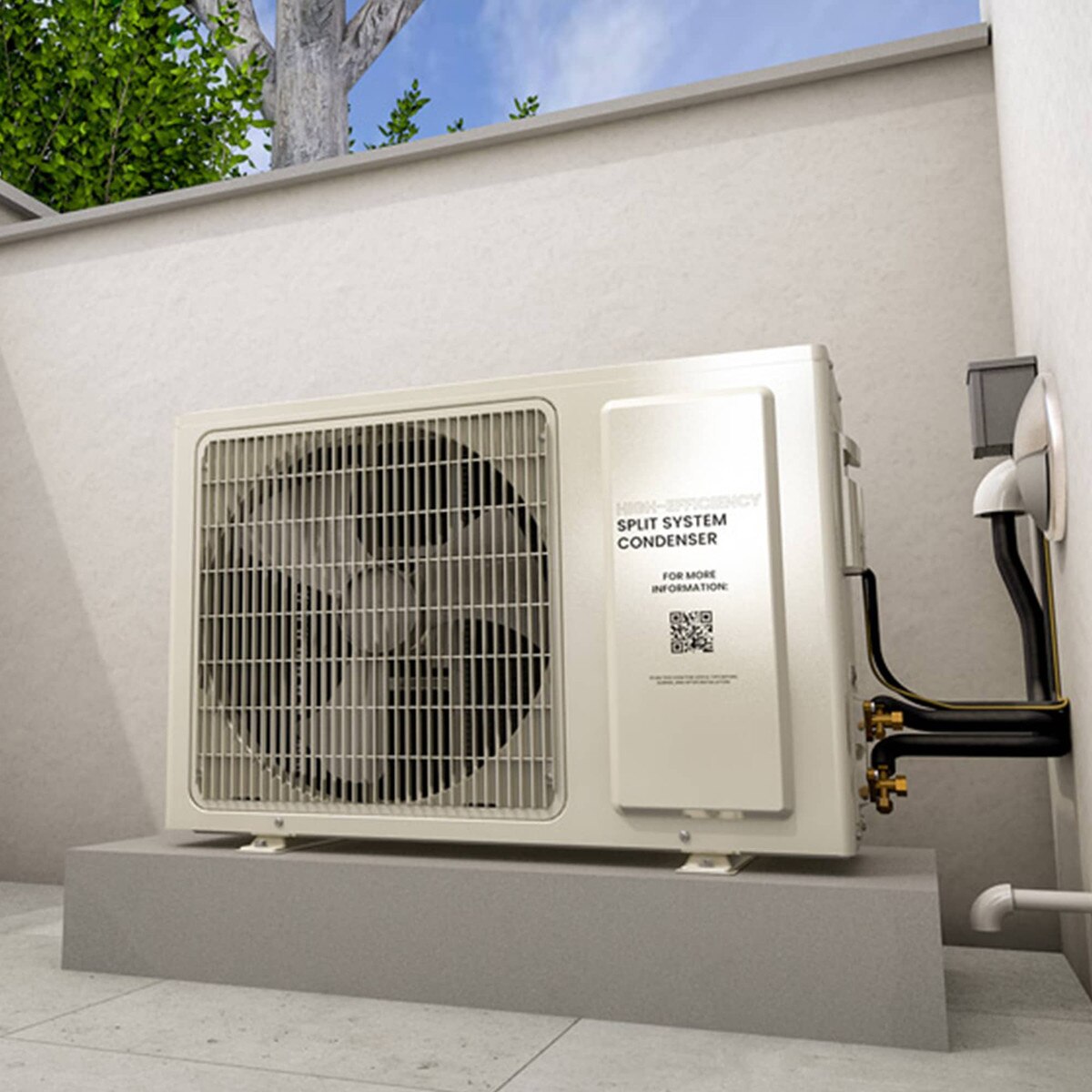

  • Split condensing unit allows the heat and noise to be separated from living space, and can be placed outdoors with the purchase of our exterior housing
  • 55F temperature differential, with up to 110F condenser intake temperature

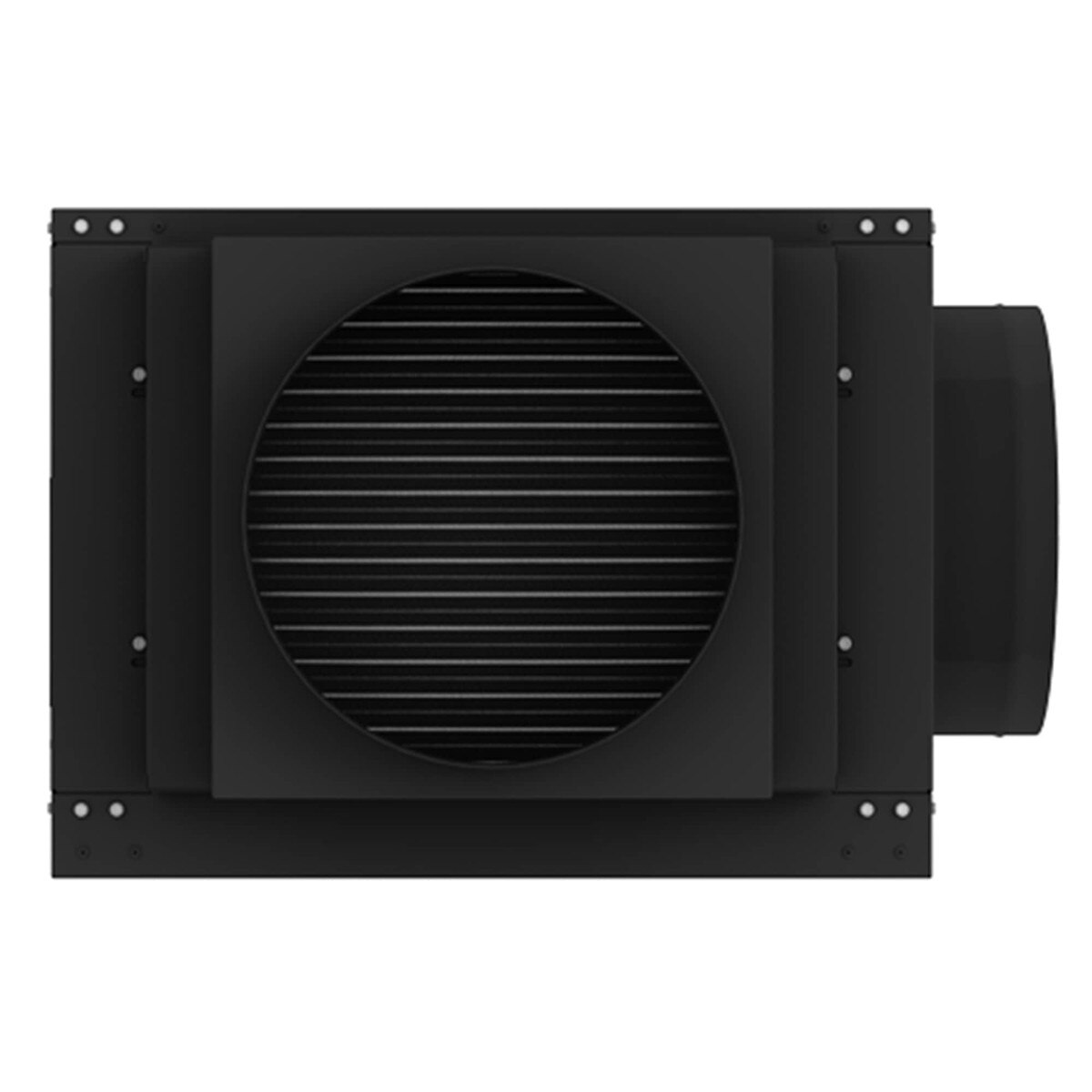

  • Achieve maximum configuration options with interchangeable airflow panels on the evaporator
  • Includes a pump system to remove condensation
  • Includes cold-weather start kit

BTUH: 15,849
Capacity*: Up to 4000 Cu Ft.

* Assumes an environment that is fully insulated and sealed with a proper vapor barrier. Heat load calculations should always be performed prior to selecting a cooling unit.

Manufacturer's Notes:

  • A qualified HVAC-R technician is required for installation. Failure to have the system installed by a qualified technician will void the warranty.

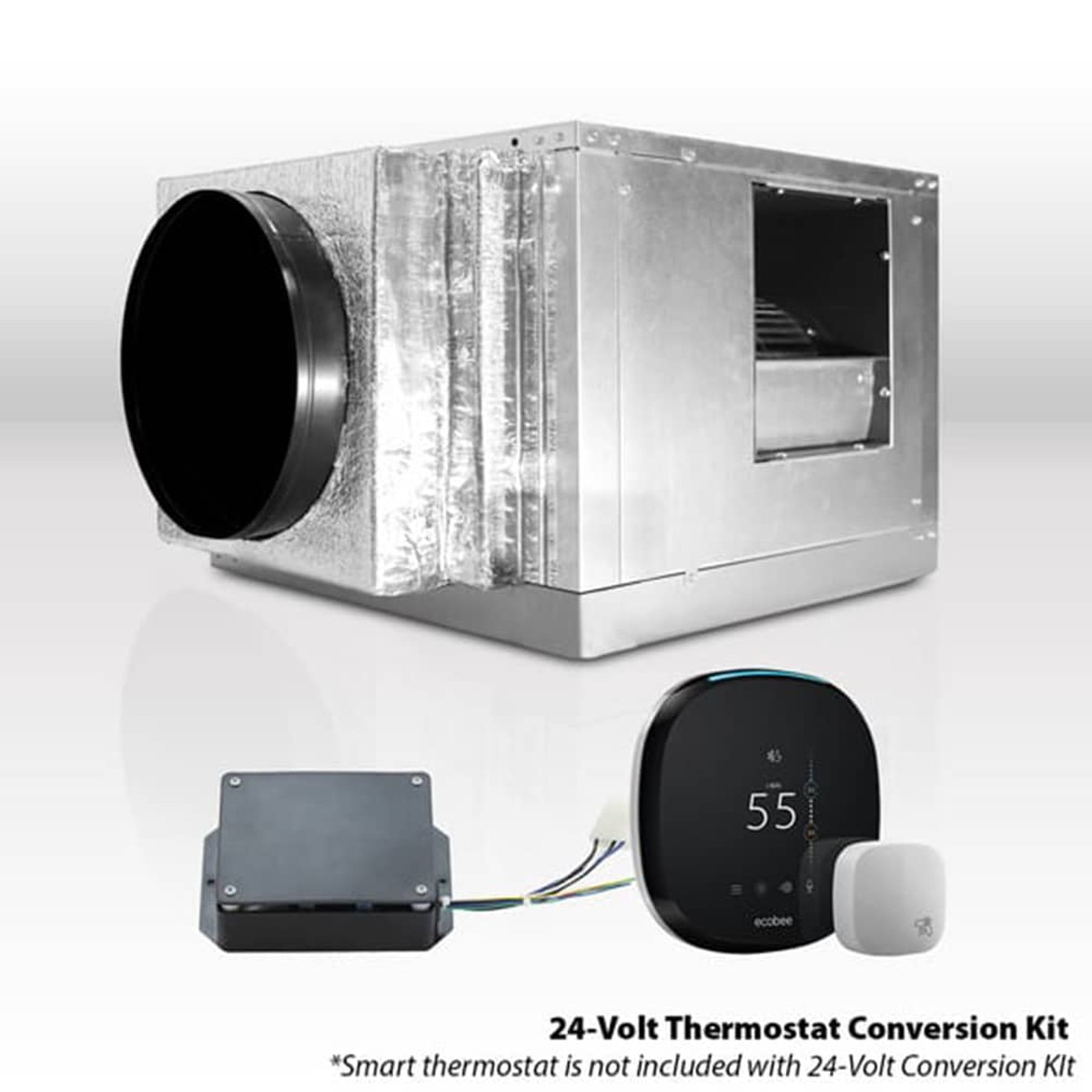

  • WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.

15,849 BTUH.
The Quantum V2 Series cooling units are our newest, most advanced cooling systems. The fully ducted split systems come in two sizes, 9,572 BTUs and 15,849 BTUs. Simple to install by a certified technician, our pump-down technology does not require any wiring from the condensing unit to the evaporator unit.

  • Fully ducted split system allows the evaporator to be located remote from the cellar
  • Split condensing unit allows the heat and noise to be separated from living space, and can be placed outdoors with the purchase of our exterior housing
  • 55F temperature differential, with up to 110F condenser intake temperature
  • Achieve maximum configuration options with interchangeable airflow panels on the evaporator
  • Includes a pump system to remove condensation
  • Includes cold-weather start kit

Brand: WhisperKOOL

Size:

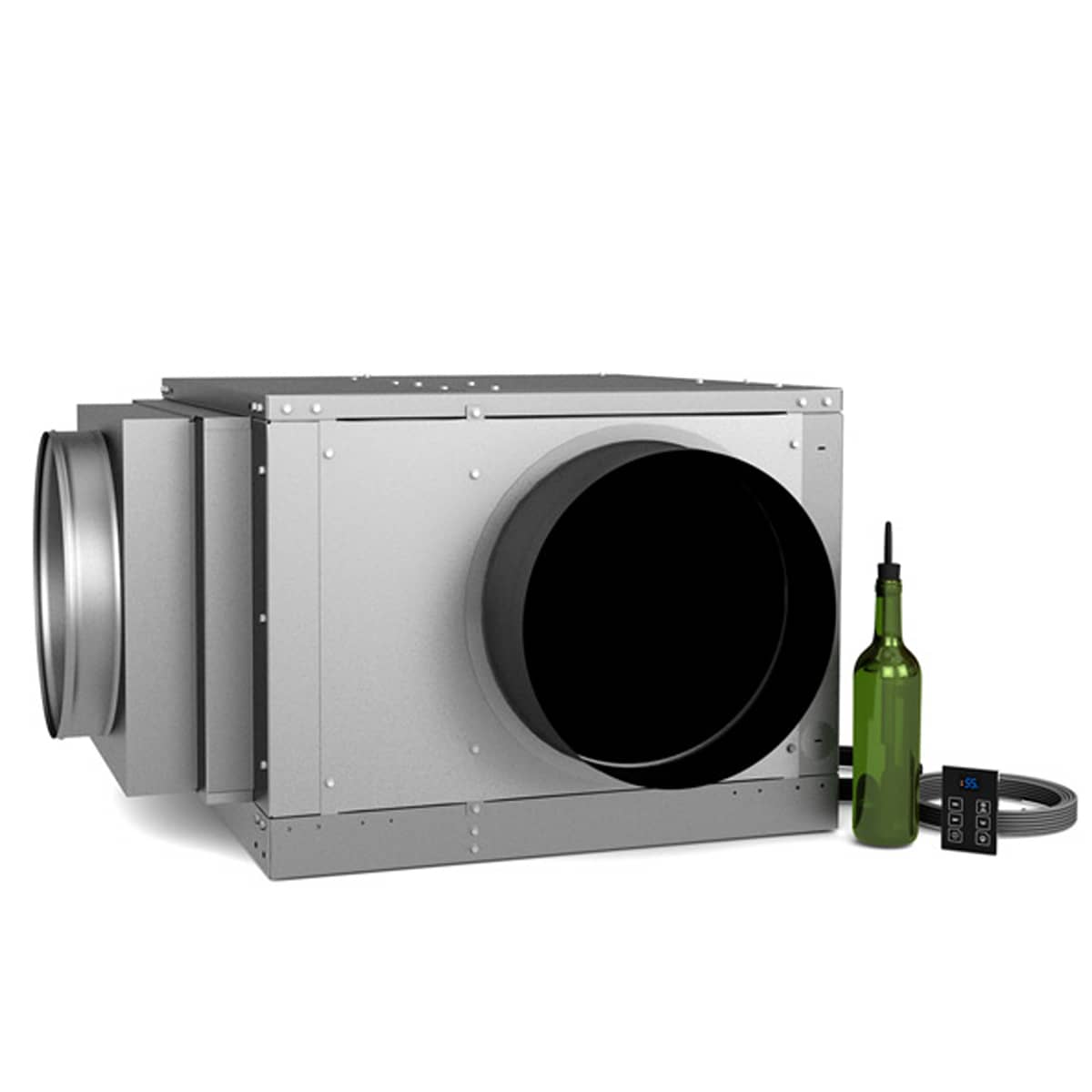

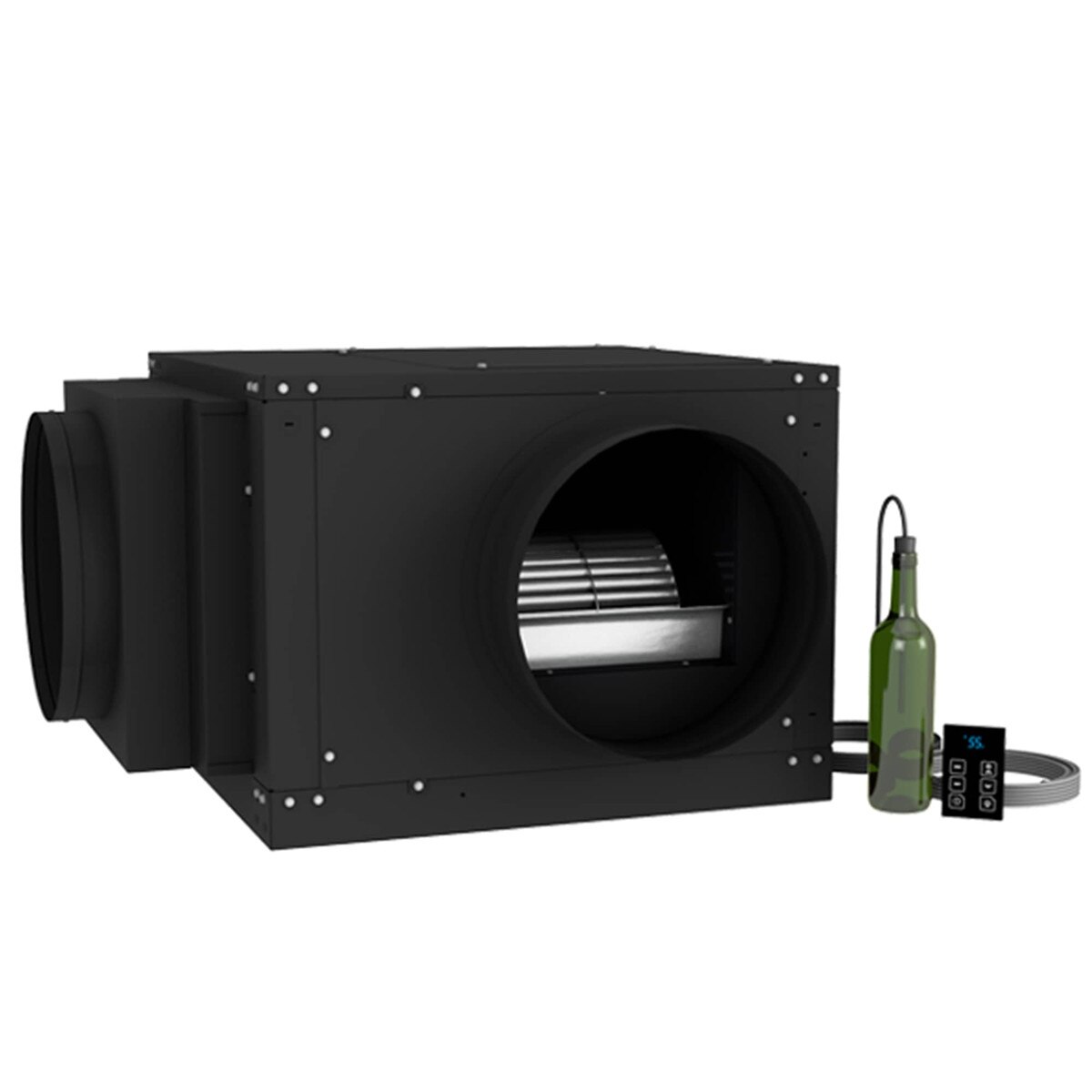

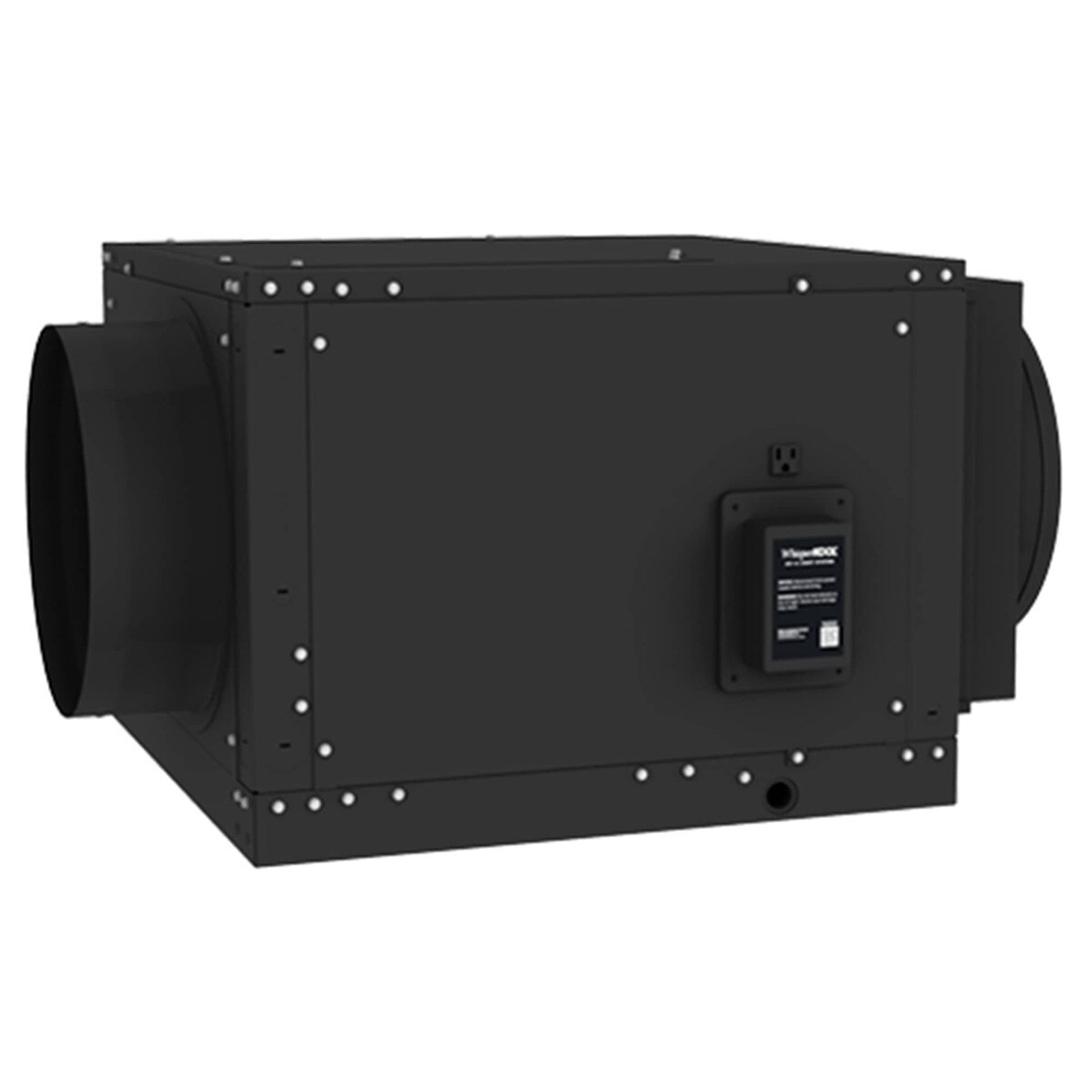

Evaporator - 31w x 29 1/2d x 19 3/4h (in)

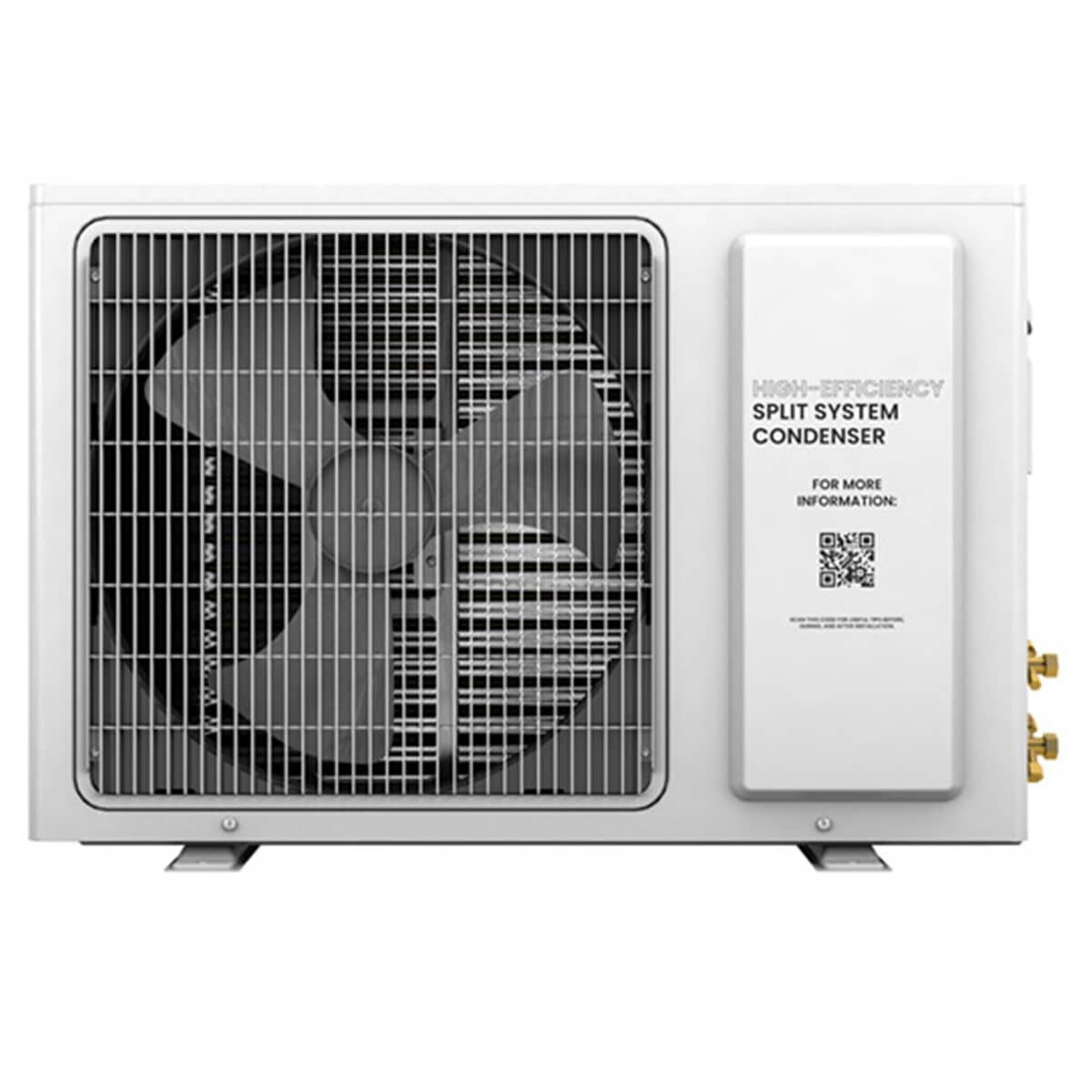

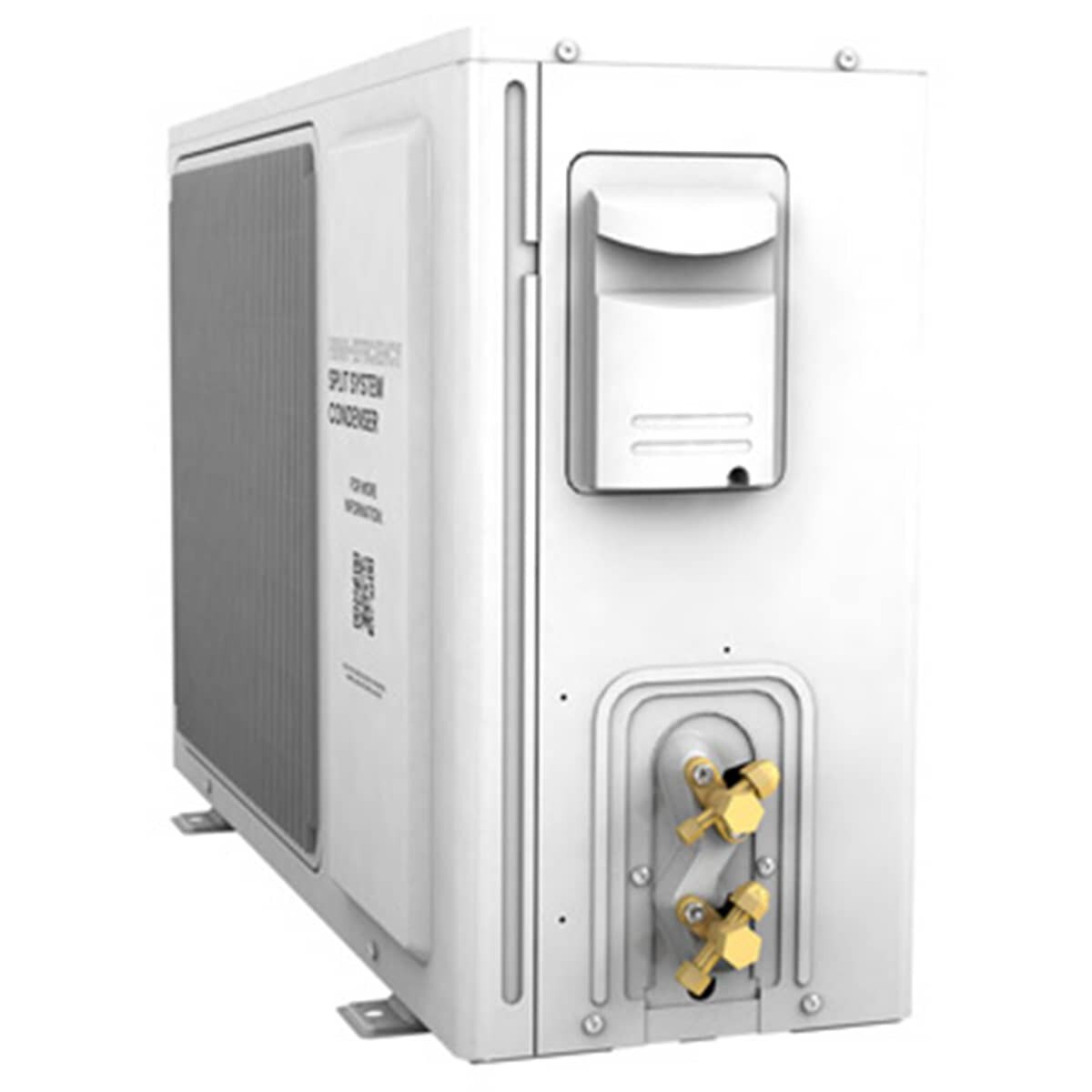

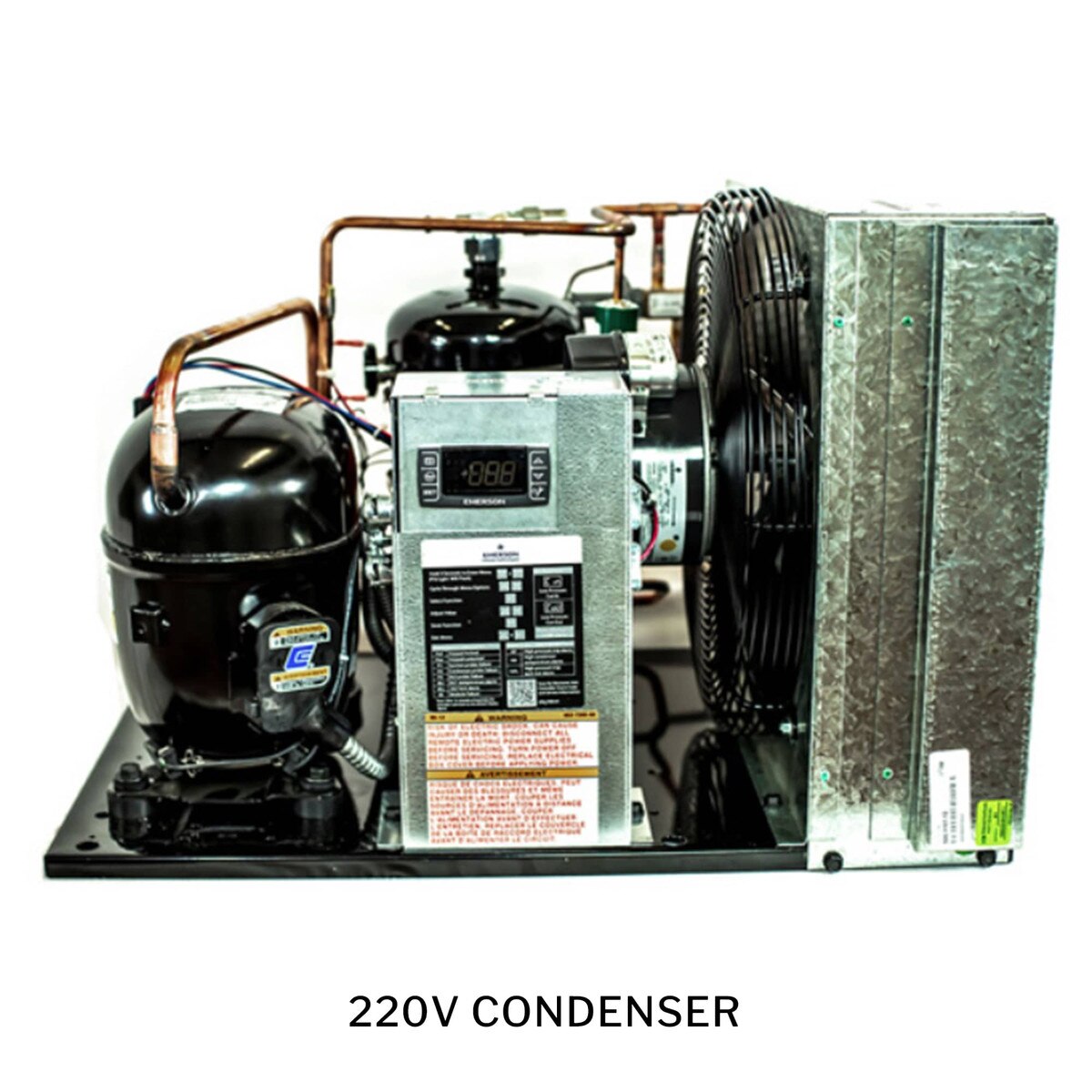

Condenser - 19w x 24d x 16 1/4h (in)

Weight:
Evaporator - 96 lbs,
Condenser - 85 lbs

Power/Rating:
Evaporator - 115V (15-amp dedicated circuit required), 3.2 Running Amps

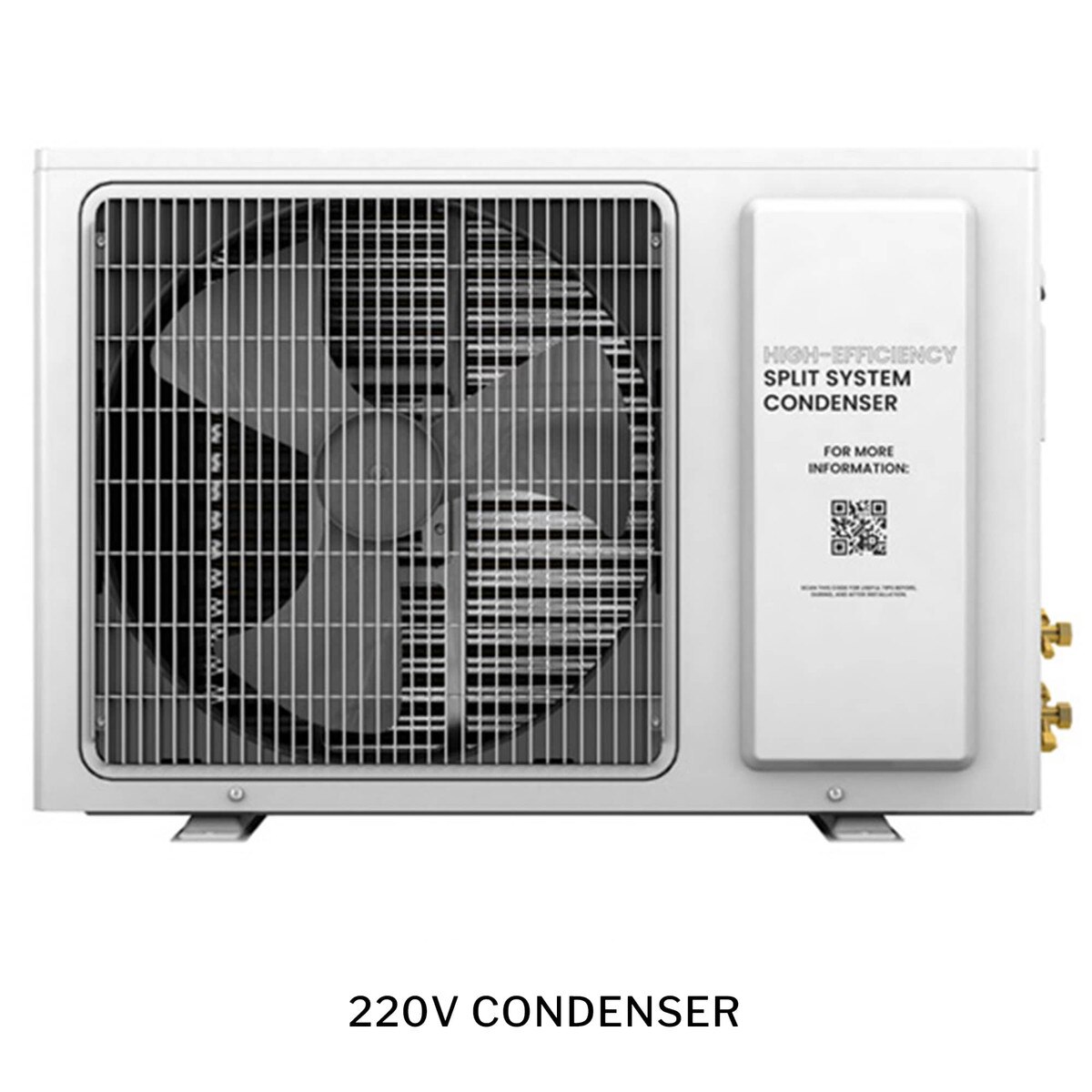

Condenser - 230V (15-amp dedicated circuit required), LRA 56 / RLA 12

Capacity*: 4000 Cu Ft

* Assumes an environment that is fully insulated and sealed with a proper vapor barrier. Heat load calculations should always be performed prior to selecting a cooling unit

Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement

Drain Line: 3/4" ID

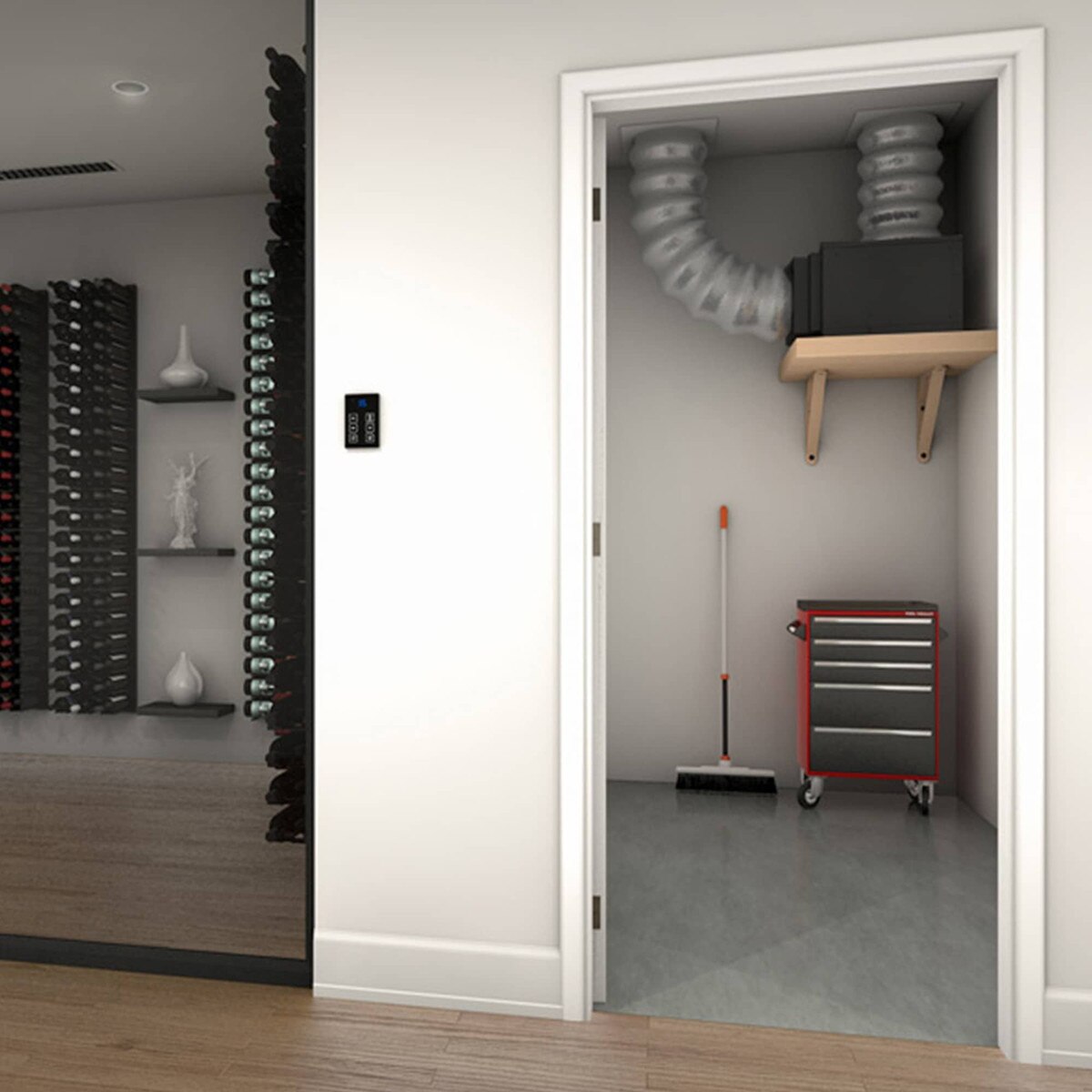

Ducting: 14" diameter; Evaporator can be installed up to 25 duct feet away from the cellar

Line Set:
Liquid Line - 3/8"
Suction Line (less than 50') - 3/4"
Suction Line (greater than 50') - 7/8"

Condensing unit can be placed up to 100 line feet away from the evaporator.
