WhisperKOOL Extreme 8000tiR + Ducting Plenums #7356
Details
WhisperKOOL Extreme 8000tiR Cooling Unit with Ducting Plenums (P/N 8000tiR). This fully featured line also includes WhisperKOOL's most advanced controller to keep all of the cellar vitals in check. Utilizing a series of monitoring probes inside the unit, the controller is able to ensure efficient high performance and long cooling unit life. Acceptable for mounting through exterior walls and can operate in a 110F exhaust environments.

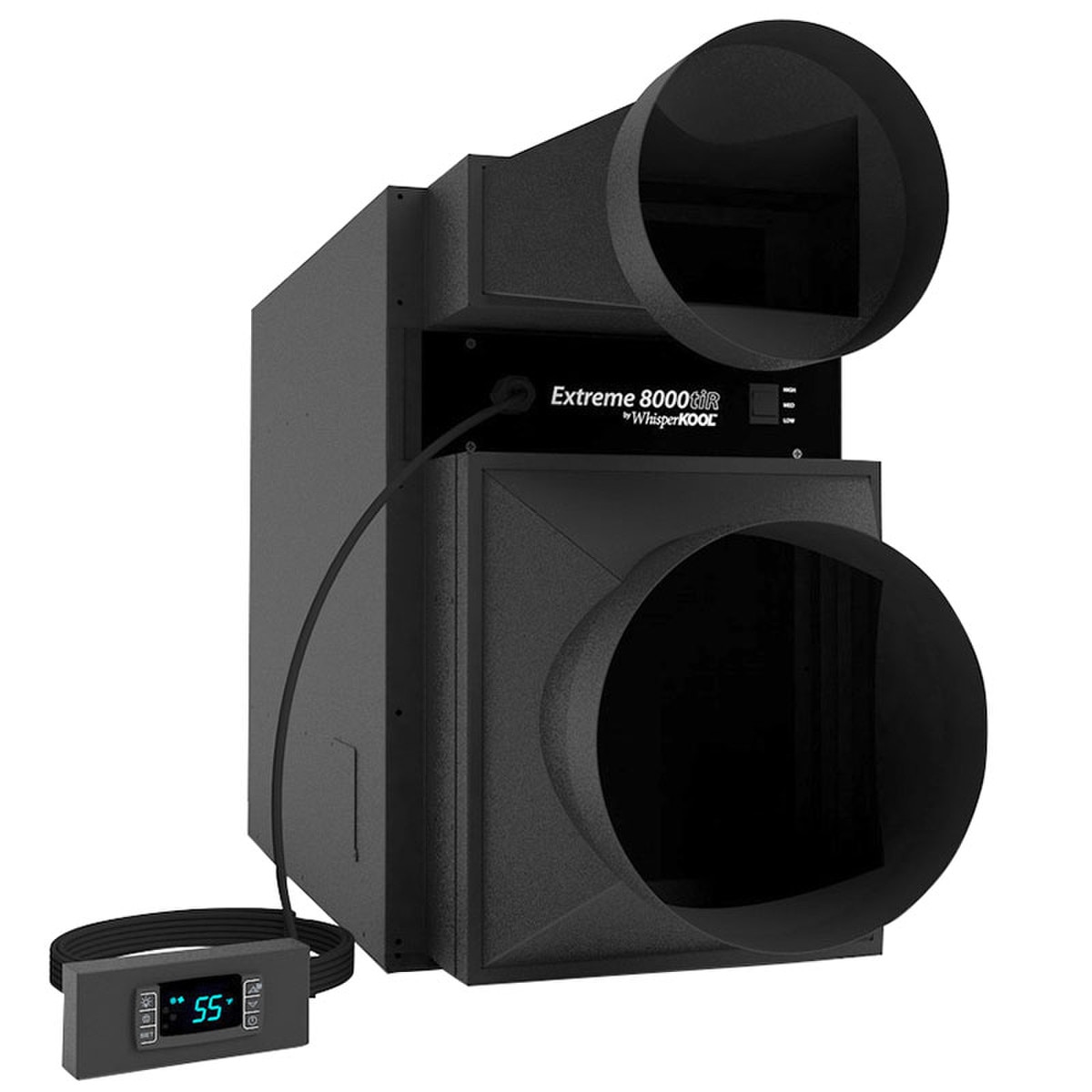

This series features an advanced liquid temperature controller with a remote LED display (which can be placed up to 300 line feet from the unit) and electronic thermostat.
Maintain 55F and 50-70% relative humidity in a properly insulated wine cellars up to 800 cu ft* (3500tiR), 1250 cu. Ft.* (5000tiR) or 2000 cu. Ft.* (8000tiR) in size.
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
Configuration
PLEASE NOTE: WhisperKOOL does not provide smart thermostat. By selecting the 24V Thermostat Conversion Kit, you have acknowledged that the system will not be built with the standard WhisperKOOL control or liquid measuring bottle probe. You will have to source and purchase your own 24V smart thermostat to run the equipment. The WhisperKOOL Customer Satisfaction Team does not provide technical support for smart thermostats.
Features
5760 BTUH.

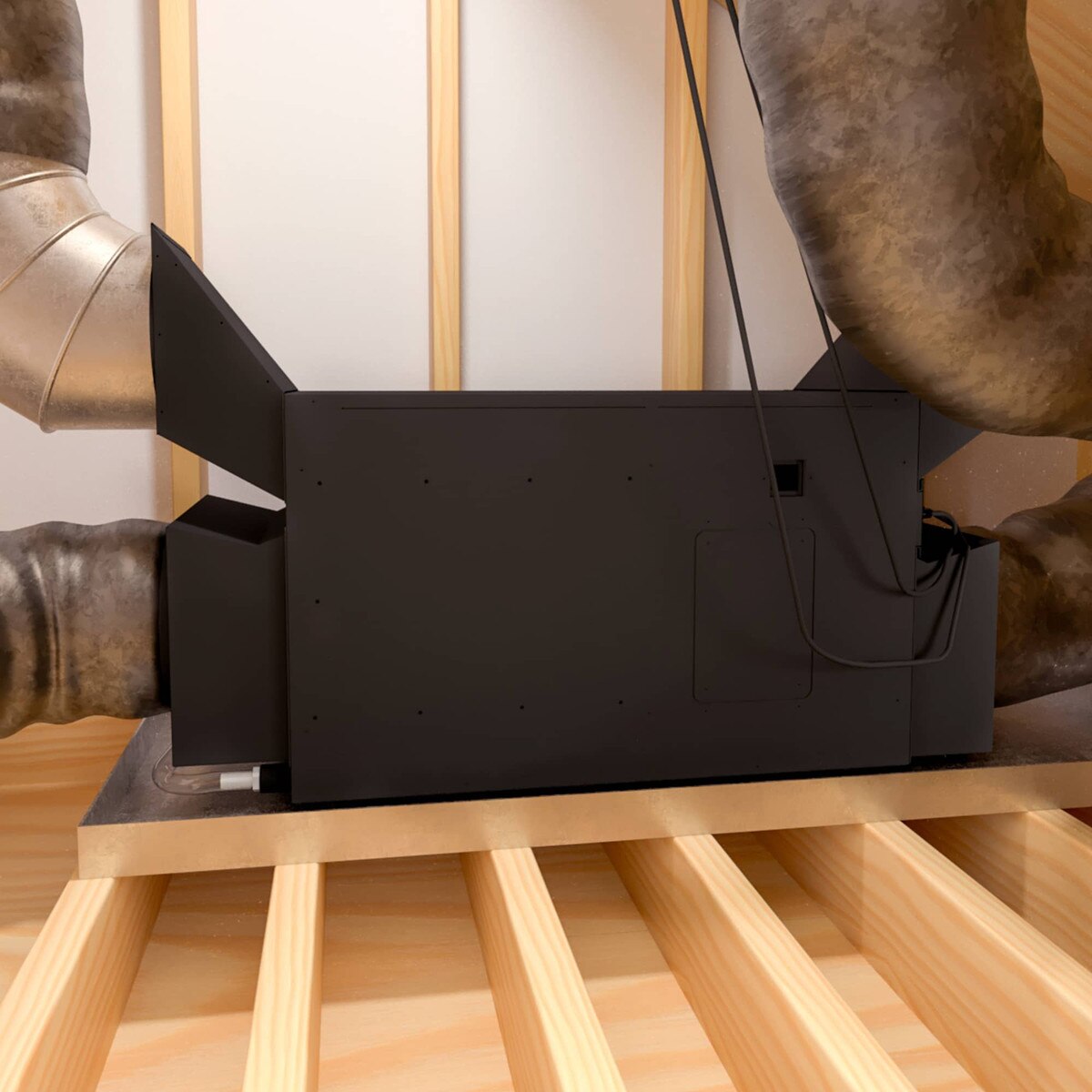

The Fully Ducted Extreme Series units can be positioned up to 25 ducted feet from the cellar, creating a noise-free cellar environment.
- Can be located up to 25 feet from the cellar
- Operates in extreme environments
- Remote digital LED readout with 50 ft communication line

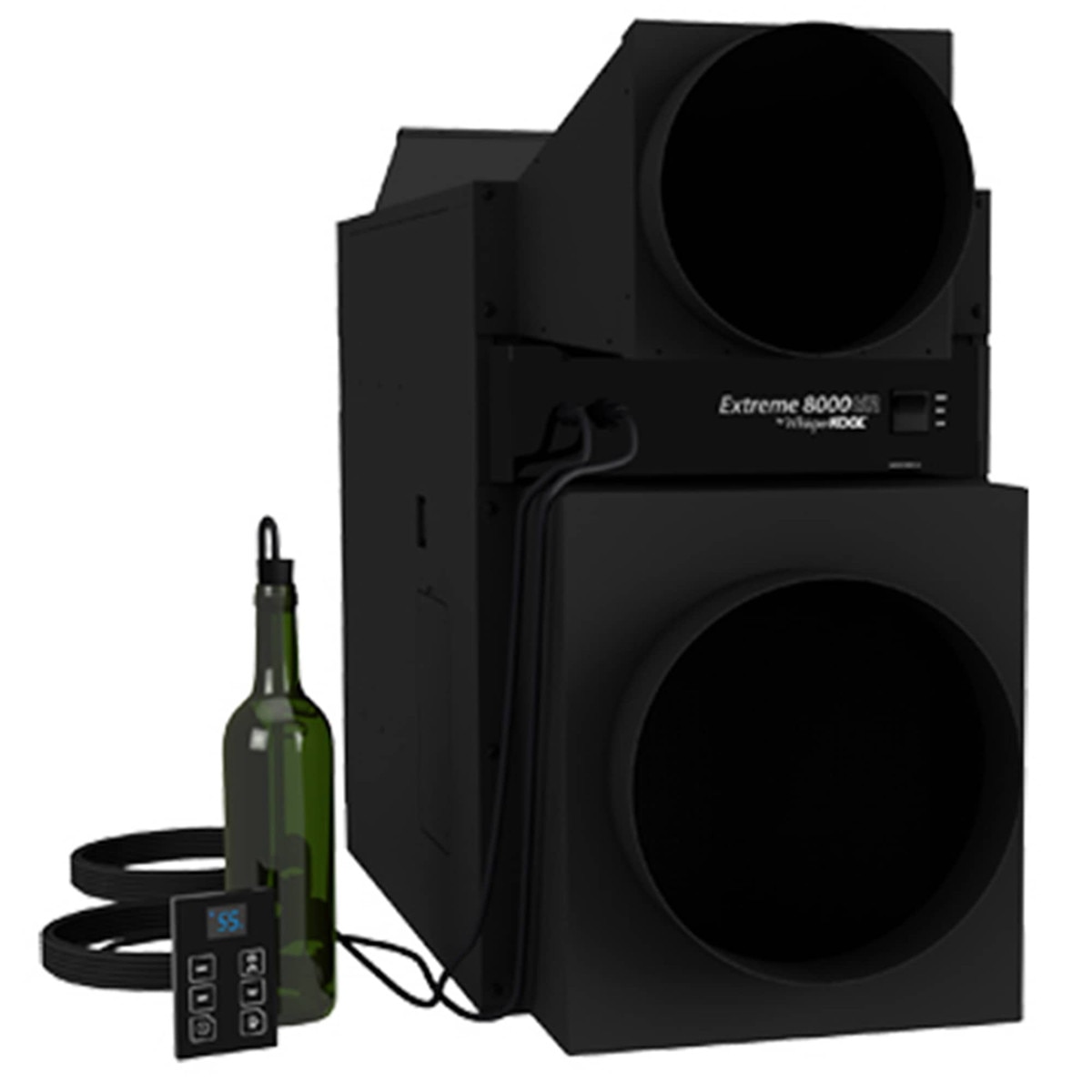

- Liquid bottle probe
- Advanced electronic control system
- Liquid bottle probe
- Humidity control
- Energy saving mode
- 55F temperature differential
- Two year parts and labor warranty
Specs & Resources
Brand: WhisperKOOL
Size: 14 1/4w x 41 1/2d x 26 3/4h (in)
Weight: 150 lbs
Power/Rating:
Starting Amps: 36
Running Amps: 10
Capacity: 2000 Cu Ft*
Material: Metal
Warranty:
WhisperKOOL Warranty Policy
Warranty Replacement Agreement
Click on one of the following links for more information:
Owners Manual
Owners Manual (24V)
Spec Sheet
Maintenance Checklist
Noise level - 66 decibels
Temp Delta: 55 degrees F
Capacity: 5760 BTUH, for wine cellars up to 2000 Cu Ft*
* When the cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
