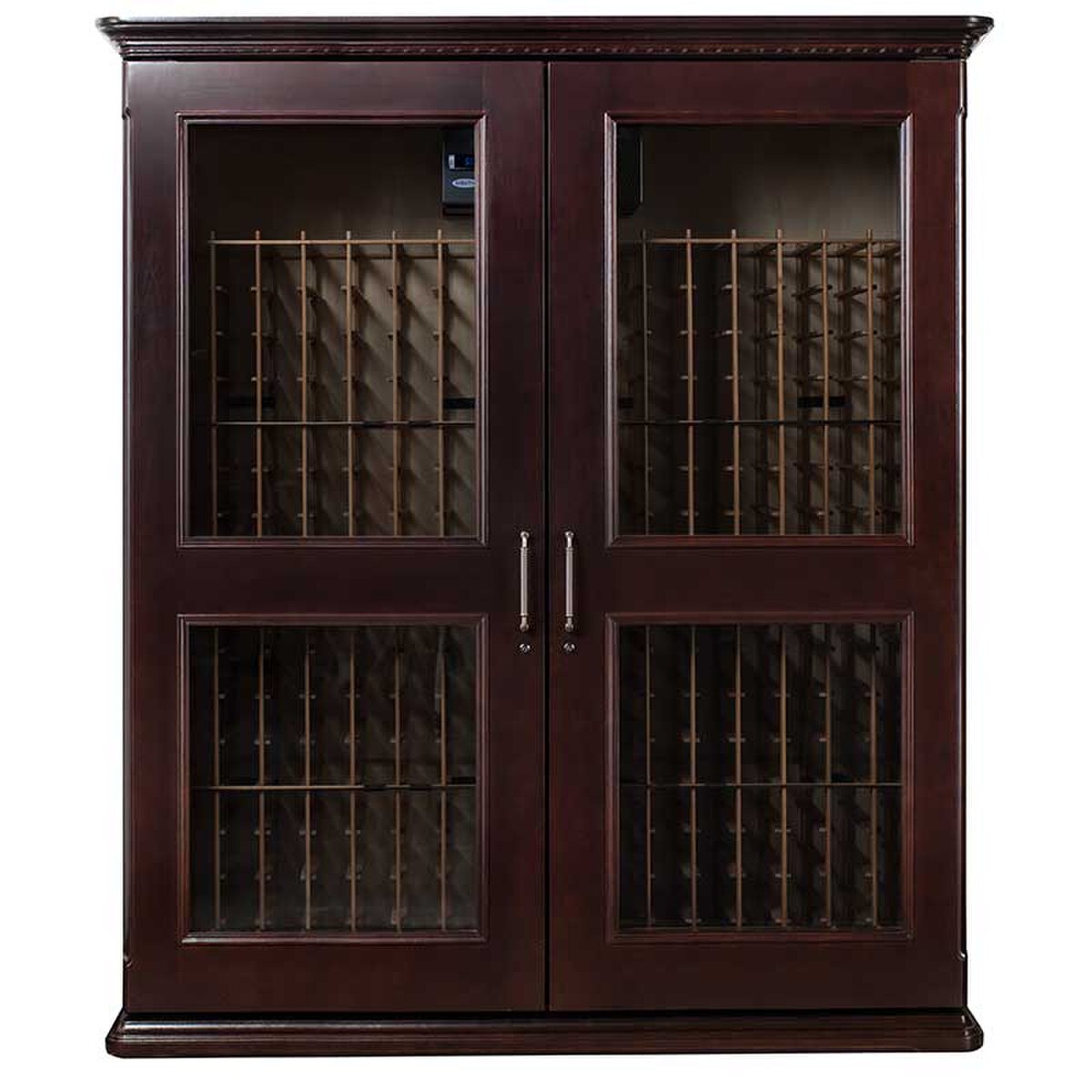

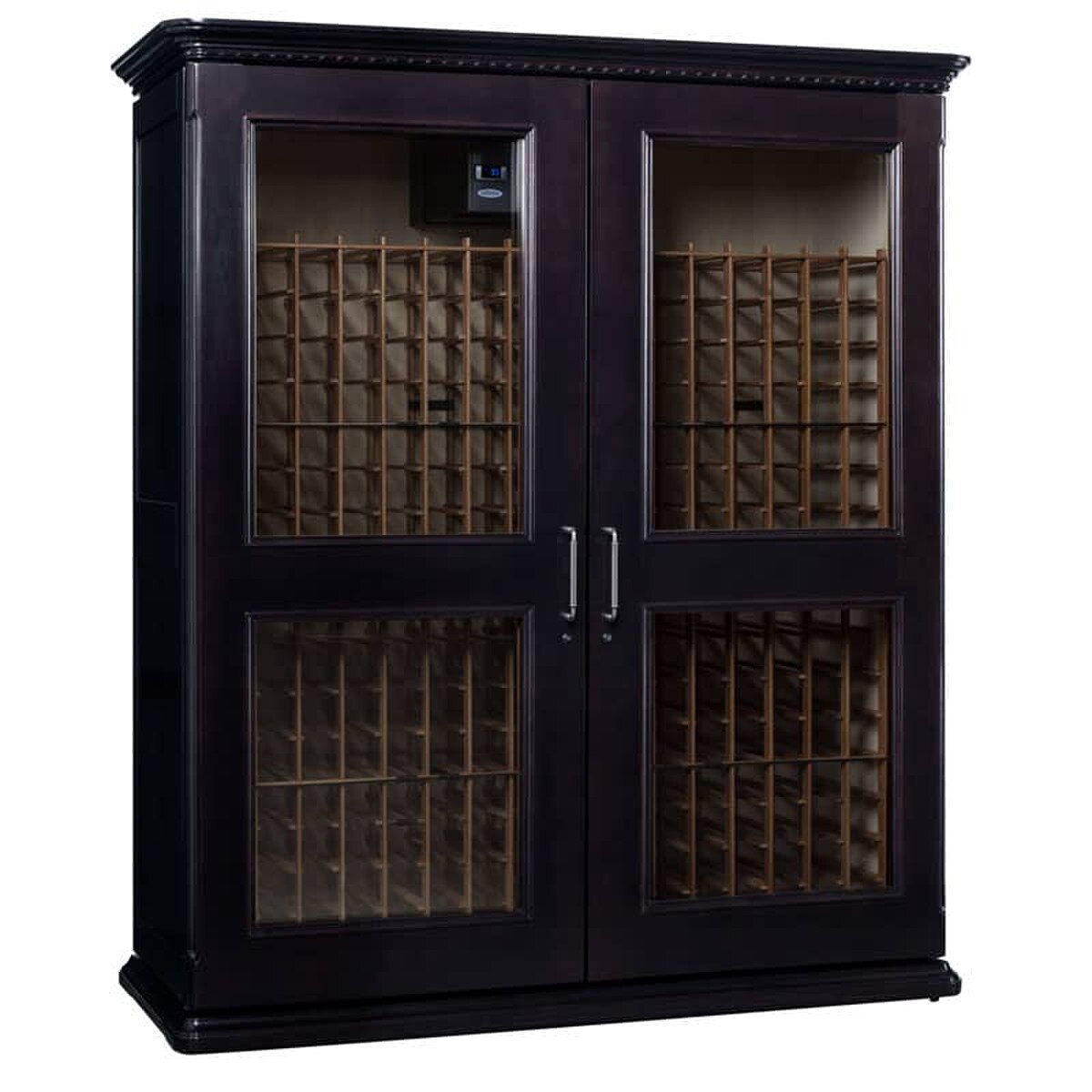

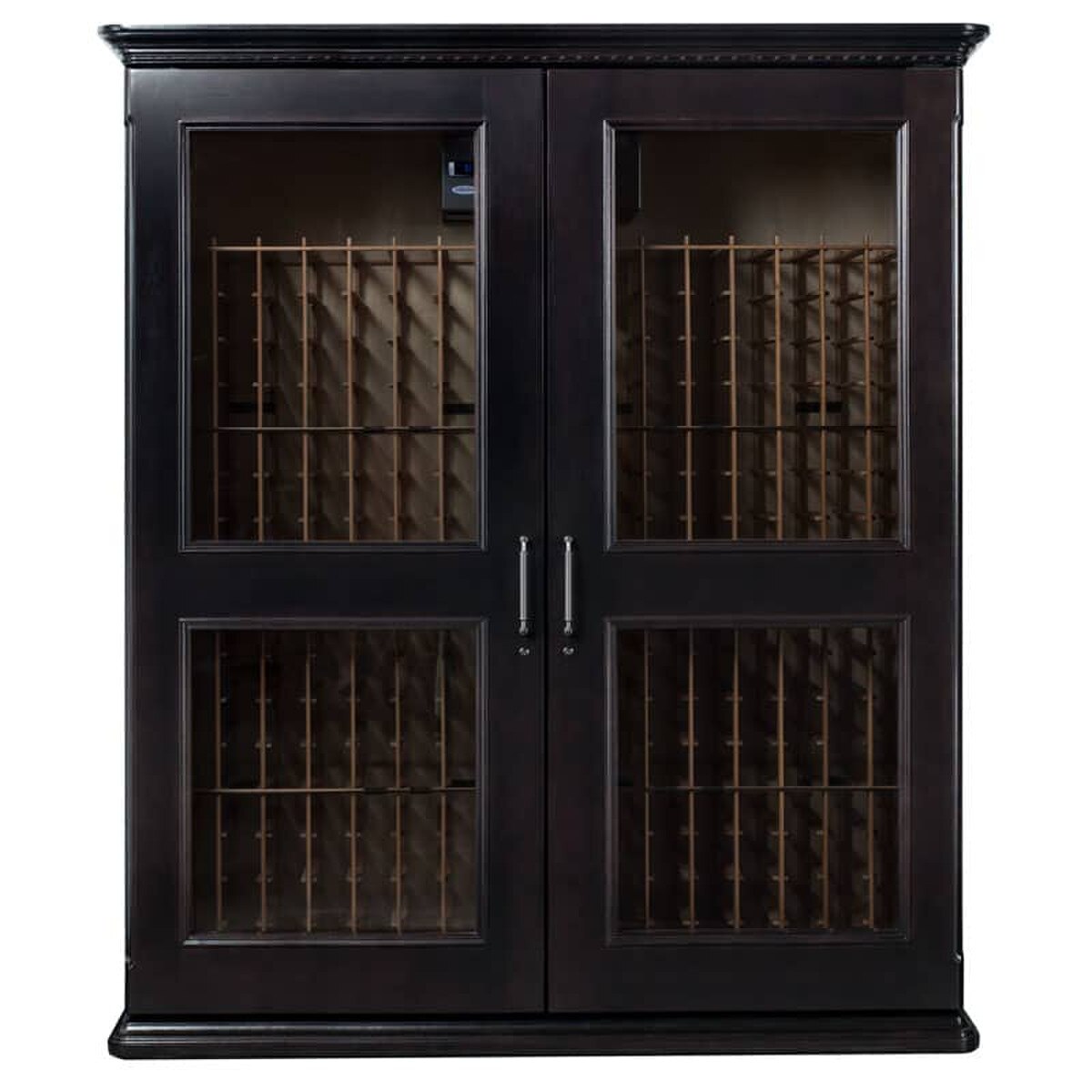

Le Cache Euro 5200 Chocolate #753

• SB/0™ Technology (top-vent exhaust): The cooling unit exhausts heat through the top of the cabinet rather than the rear, so it can sit flush against a wall with no rear clearance required. This directly affects where you can place a 79"-wide, 550 lb cabinet in a finished room.
• Foil-backed polyisocyanurate insulation: A closed-cell rigid foam with a higher R-value per inch than standard fiberglass, combined with a foil vapor barrier. This helps maintain stable internal humidity as well as temperature - relevant if the cabinet is in a climate-controlled room that still sees seasonal swings.
• Adjustable humidity control: Actively manages interior humidity, not just temperature. This is the functional difference between this cabinet and a wine cooler or refrigerator, which cool air but don't regulate moisture and will dry out corks over time.
• CellarPro cooling unit options: Choose between the 1800QT-HE and 1800XT-HE based on the room's thermal load. The 1800QT-HE is the quietest option. Review the Cooling Unit Selection Guide before ordering.

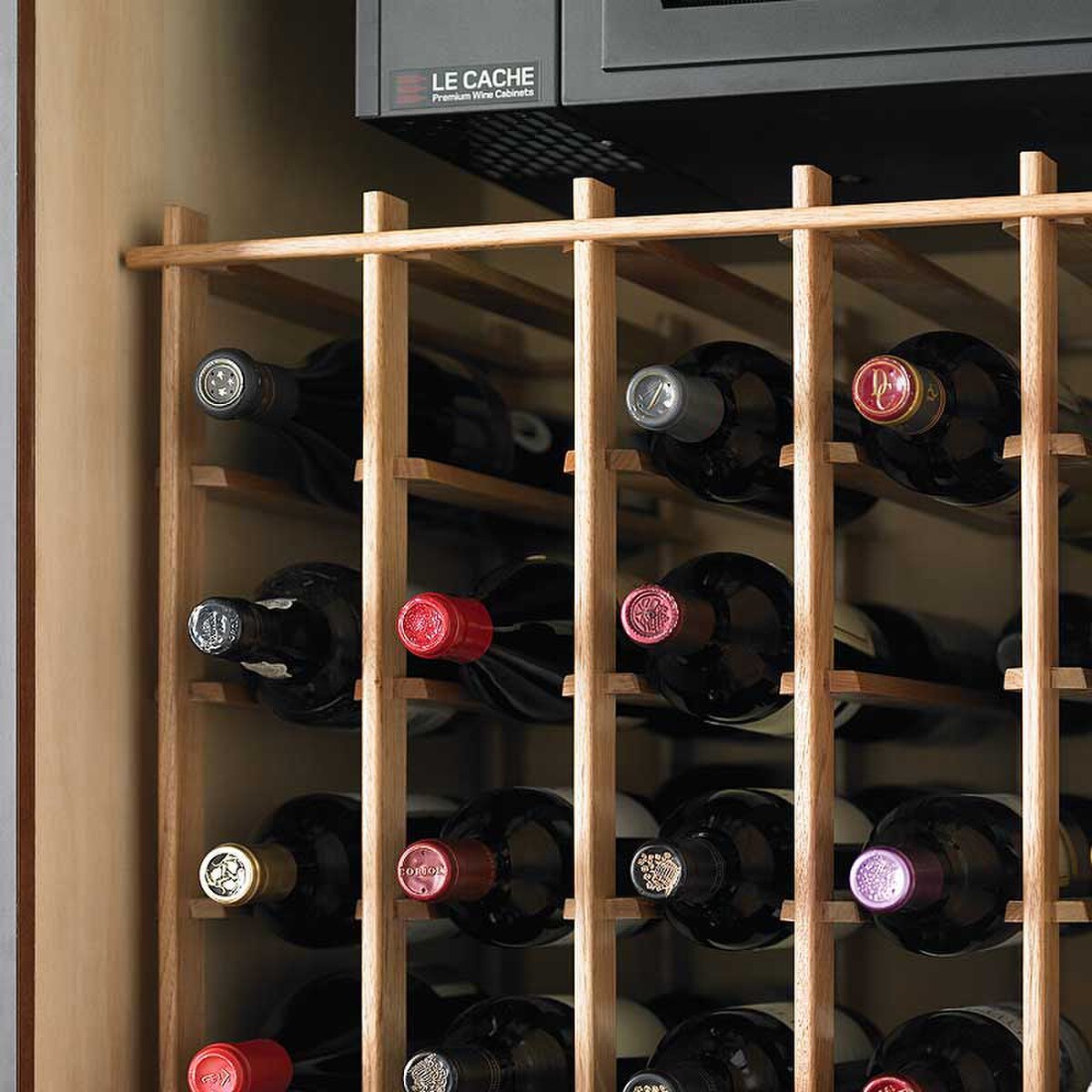

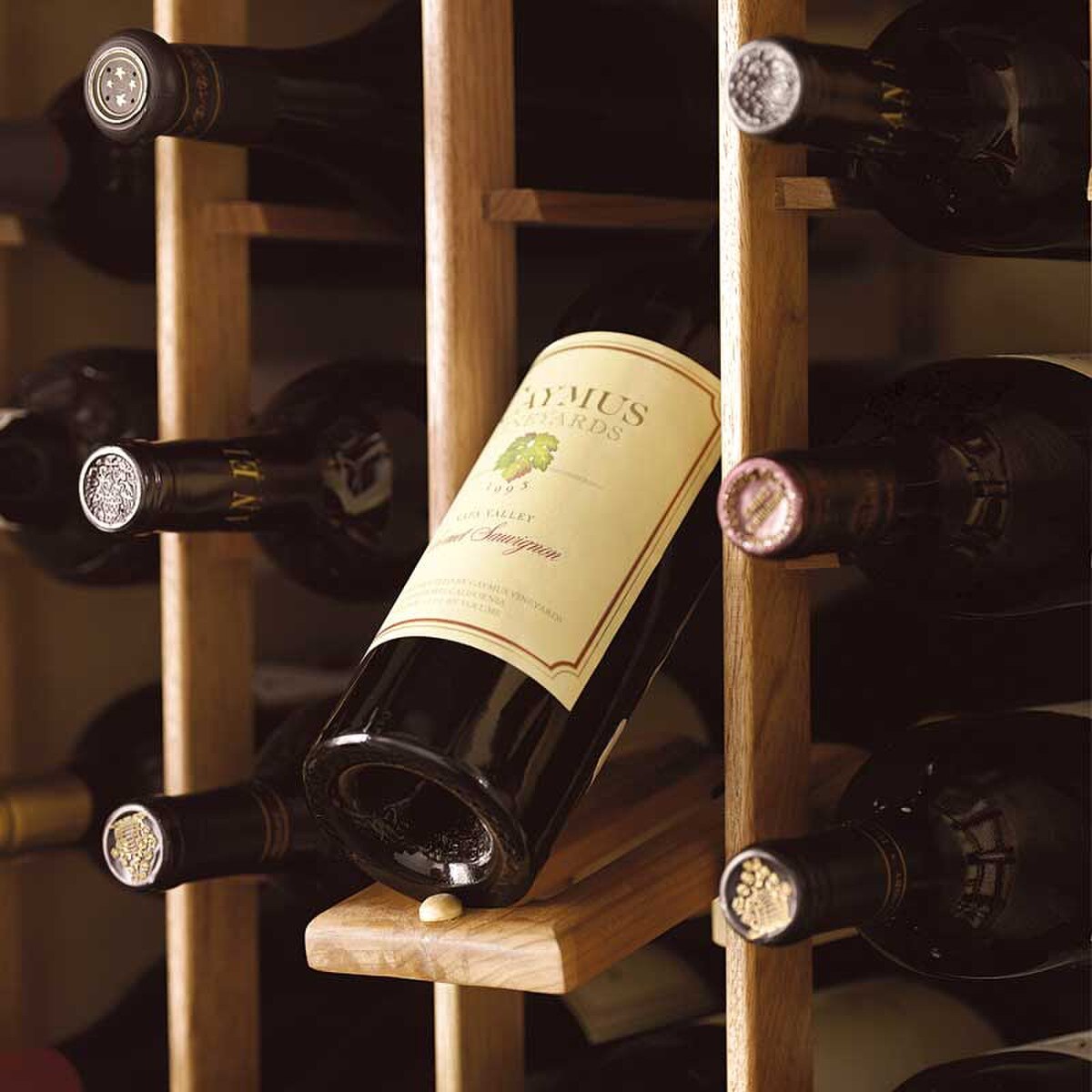

• Double-deep all-wood interlock racking with 3.8" slots: 544 racked bottle slots sized to fit oversized Burgundy and Champagne formats, plus approximately 78 bottles of bulk space. Total rated capacity is 622 bottles.

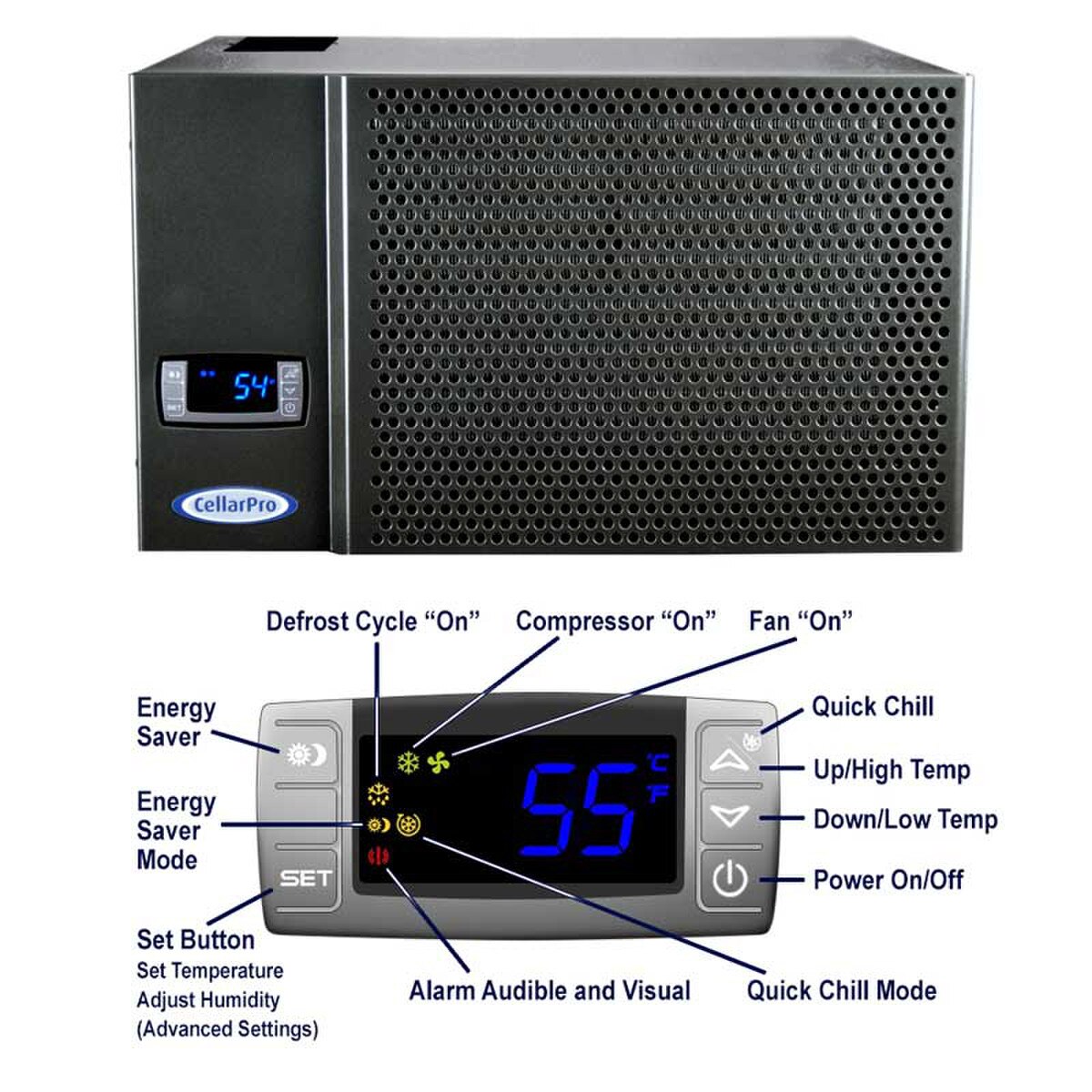

• Electronic thermostat with digital display, Energy-Saver mode and Quick-Chill mode, plus audible and visual alarms if temperature drifts out of range
• Double-pane tinted glass provides UV filtering without blocking the view of the collection; security locks on both doors
• Warranty coverage: 5 years on the CellarPro cooling system, 2 years on the cabinet; an optional extended warranty is also available.

Pairs Well With

• The optional bottle probe accessory - it measures actual bottle temperature rather than cabinet air temperature, which is more accurate for tracking aging conditions over time

Brand: Le Cache

UPC: 077757007538

Size: 79w x 31d x 91h (in)

Weight: 550 lbs

Capacity: 622 bottles
Double-Deep Storage
Racked Slots: 544 bottles (3 3/4-inch Slots)
Bulk Space: approximately 78 bottles (stacked)

Material: Cherry

Power/Rating:
115V AC / 60 Hz
Running / Startup Amps (compressor)
- CellarPro 1800QT-HE: 2.9 Amps / 20.1 Amps
- CellarPro 1800XT-HE: 3.0 Amps / 20.1 Amps
Thermal Load Calculations

Warranty:
2 Years (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty

What These Specs Mean

• Running vs. Startup Amps: Running amps reflect the unit's electrical draw during normal operation. Startup amps reflect the brief increase in current when the compressor starts. Refer to the cooling unit installation instructions for circuit requirements.
• Cooling Unit Options: The CellarPro 1800QT-HE is the quietest available option. Other compatible models provide additional cooling capacity for installations with higher thermal loads. Use the Cooling Unit Selection Guide to identify the correct model for the installation conditions.

Resources

• Owner's Manual
• Cooling Unit Selection Guide
• Placement Requirements
• Wine Cabinet Delivery & Inspection Instructions
• Wine Cabinet Filter: Top View
• Top View Drawings
• Adjustable Humidity Performance Chart
• Wine Cabinet Monthly Operating Cost
• Cooling Unit Sound Performance
• Interactive Product Demo

Watch Product Video

PLACEMENT & VENTILATION

Before choosing a location for your Le Cache wine cabinet, make sure the installation meets the following requirements.

BASIC PLACEMENT REQUIREMENTS

• Power: Standard grounded outlet on a dedicated circuit
• Room Temperature: 50–95°F
• Floor: Hard, level surface capable of supporting the fully loaded cabinet
• Door Clearance: Allow approximately 1 inch of additional width in front of the cabinet for the doors to open 90°
• Ventilation: Requirements vary depending on the cabinet and cooling configuration

VENTILATION REQUIREMENTS

Proper ventilation is essential. The cooling unit exhausts warm air, which must be able to dissipate without being drawn back into the unit. Poor ventilation can prevent the cabinet from reaching the desired temperature and may cause the cooling unit to overheat or run continuously.

SUMMARY

1. UPRIGHT CABINET / TOP-VENTED

Our upright wine cabinets with top-vented cooling are designed so the cabinet can be placed directly against the rear wall.

Warm air exhausts through the top of the cabinet, while return air enters from above. Sufficient clearance above and around the cabinet is therefore required.

Minimum clearance above the cabinet:

• 18 inches: Contemporary, Carolina, Loft, Vault and Semi-Custom wine cabinets
• 12 inches: European Country, Mission and Gallery wine cabinets

Important: The sides of the cabinet must remain open so that warm air can dissipate. Top-vented upright cabinets should not be placed in a corner, enclosed space, alcove or closet unless a Front-Vent Hood is used.

2. UPRIGHT CABINET / REAR-VENTED

Upright wine cabinets can also be configured with rear-vented cooling, with return air entering from behind the cabinet. This configuration is useful when sufficient clearance above the cabinet is not available.

Requirements:

• The cabinet must be positioned 3–4 inches away from the rear wall.
• If the rear of the cabinet is not accessible, allow at least 7 1/2 inches above the cabinet so the cooling-unit air filter can be removed and replaced.
• If the rear of the cabinet is accessible, allow at least 3 inches above the cabinet for airflow. We also recommend an air deflector to direct warm exhaust air to the left of the cabinet.

Important: The sides of the cabinet must remain open. Rear-vented upright cabinets should not be placed in a corner, enclosed space, alcove or closet unless a Front-Vent Hood is used.

3. UPRIGHT CABINET / TOP-VENTED + FRONT-VENT HOOD

A Front-Vent Hood can be added to a top-vented upright cabinet when:

• The cabinet will be placed flush against the rear wall but does not have the required clearance above for a standard top-vented installation
• The cabinet will be installed in an alcove, closet or other enclosed space

Allow at least 7 1/2 inches above the cabinet for removal of the hood and air filter.

Compatibility:

• Contemporary, Loft and Vault: The Front-Vent Hood may be used with or without the decorative grille.
• European Country, Mission, Carolina and Gallery: The Front-Vent Hood may be used without the decorative grille. The grille will not fit with the crown moldings.

4. CREDENZA

Credenzas do not require clearance above the cabinet; however, because both intake and exhaust ventilation occur behind the cabinet, credenzas require 3–4 inches of clearance behind the cabinet, and the sides must remain open for proper ventilation.

POWER REQUIREMENTS

The cooling unit plugs into a standard grounded wall outlet. The power cord extends approximately 6 1/2 feet from the rear of the cabinet.

The outlet must be on a dedicated circuit. The cooling unit components draw 3 amps, and the electrical outlet on the side of the cooling unit is also rated for 3 amps.

Do not share the circuit with another motor- or compressor-driven appliance such as a refrigerator, wine cooler, air conditioner or garage door opener.

We recommend using a surge protector rated for at least 15 amps to protect the cooling unit from power surges.

If an extension cord is necessary, use a grounded cord with 14-gauge wire or heavier, and keep it as short as possible.

FLOOR & WEIGHT REQUIREMENTS

A fully loaded wine cabinet is extremely heavy. Make sure the floor can support the combined weight of the cabinet and wine.

The cabinet should also be placed on a hard, level surface. On thick carpeting, the cabinet may settle unevenly over time, which can affect door alignment.

If installing on thick carpet, place a carpet board beneath the cabinet. You may purchase one from Le Cache or have a local hardware store cut a 3/4-inch plywood board to the width x depth of the cabinet.

DOOR SWING CLEARANCE

When opened to 90 degrees, the doors extend approximately 1 inch beyond the width of the cabinet.

For cabinets without moldings, allow for this additional space when planning the installation. The extra clearance is required in front of the cabinet for the doors to open fully.

What is the actual bottle capacity and will it accommodate oversized bottles?

A: The Euro 5200 has a total capacity of 622 bottles consisting of 544 racked slots and approximately 78 bottles in bulk storage. The all-wood interlock racks feature 3.8-inch universal slots which are designed to fit oversized bottles like Champagne and Pinot Noir without scraping labels.

Can this cabinet be placed flush against a wall?

A: Yes. This model features SB/0™ Technology which allows the cabinet to be placed flush against the wall. It utilizes a top-vent exhaust system so you do not need to leave extra clearance behind the unit for airflow making it easier to integrate into dining rooms or living spaces.

How loud is the cooling system during operation?

A: The cabinet is equipped with CellarPro cooling units known for being among the quietest in the industry. Depending on the specific motor selected (QTL, QT or XT) the unit is designed for library-quiet performance. It also includes vibration isolation to protect aging wine from mechanical disturbance.

Does the Euro 5200 manage humidity as well as temperature?

A: Yes. Unlike standard wine coolers this cabinet features adjustable humidity control alongside its electronic thermostat. It uses a high-performance air filtration system and digital display to maintain the stable environment necessary for long-term aging.

What are the electrical requirements for installation?

A: The unit runs on a standard 115V AC / 60 Hz circuit. Depending on the cooling unit configuration the running amps range from 2.4 to 3.0 Amps with startup draws between 14.2 and 20.1 Amps. It is recommended to use a dedicated circuit for optimal performance.

What kind of warranty coverage is included?

A: Le Cache provides a 5-year warranty on the cooling system and a 2-year warranty on the entire cabinet structure. This ensures long-term reliability for your collection. Optional extended warranties are also available for additional peace of mind.
