CellarPro 3400H Houdini Duct KIT COLD SIDE #36025
Allows CellarPro 3400H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) on the cold side using 8-inch ducting with no reductions from start to finish.
Allows CellarPro 3400H Houdini cooling units to be ducted up to 100 equivalent feet (50 feet per duct) on the cold side using 8-inch ducting with no reductions from start to finish.

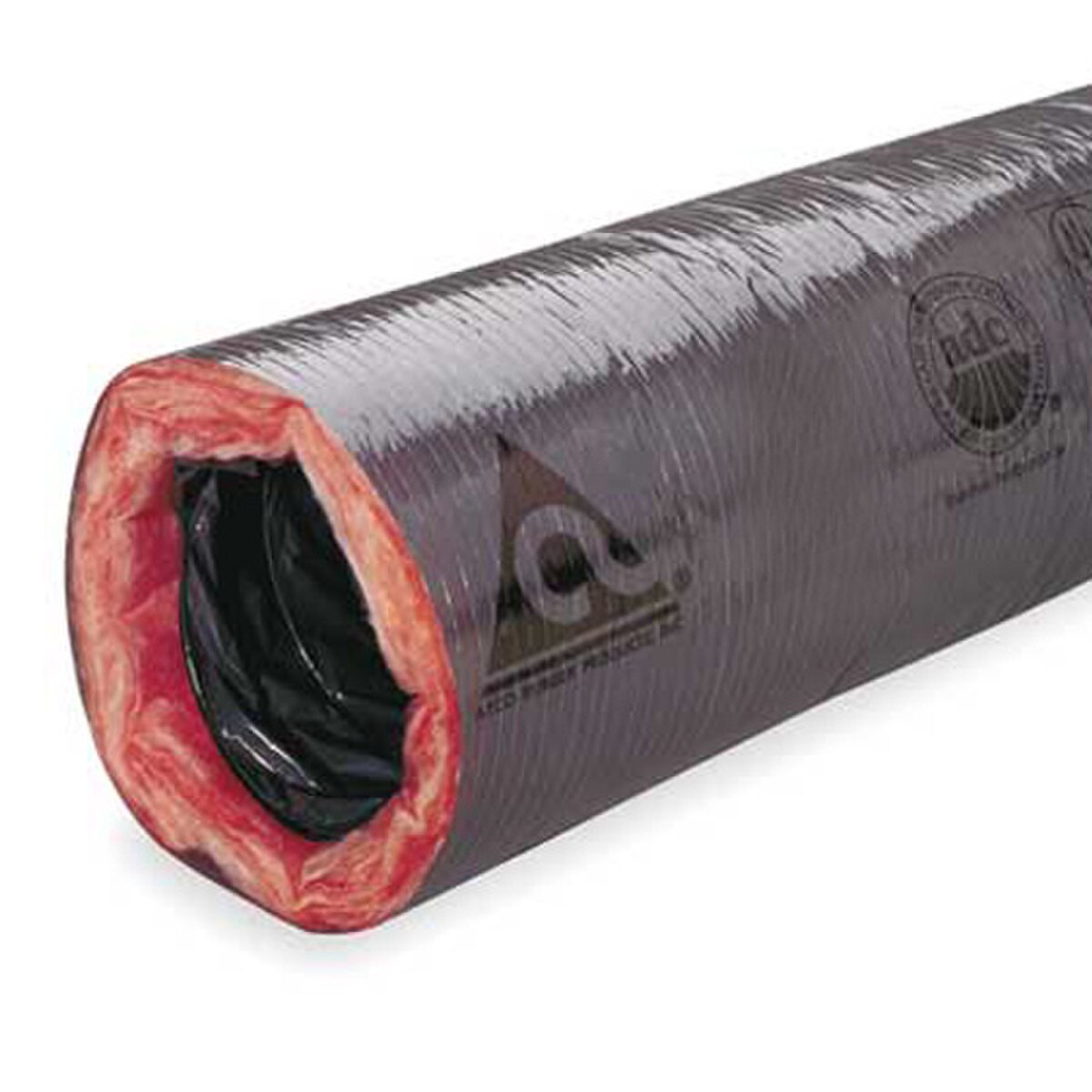

- 50 feet of 8-inch insulated ducting (R-6)
- Designed to work with cold-side airflow openings on the 3400H Houdini cooling unit

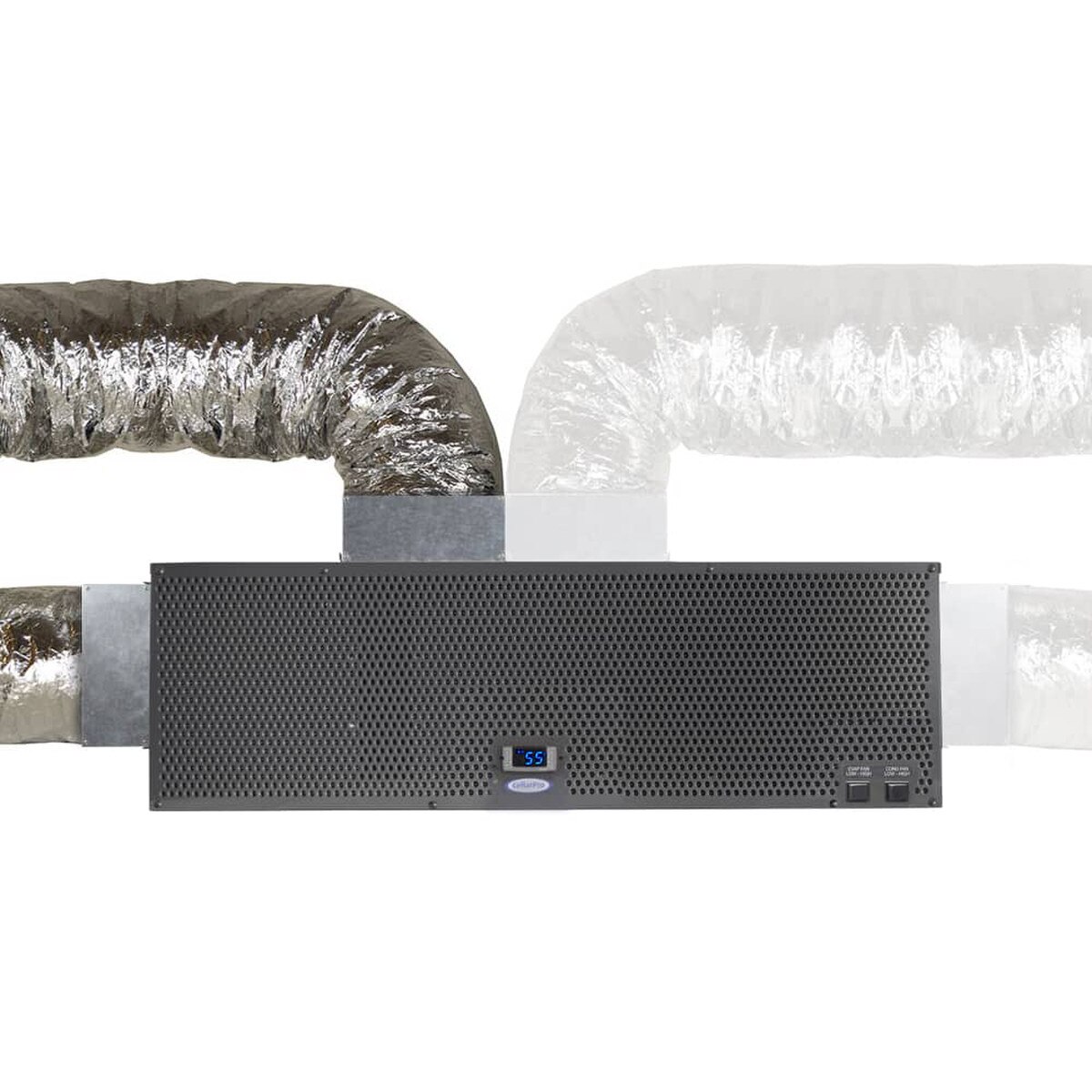

CellarPro 3400H Houdini Duct KIT COLD SIDE (P/N 36025). These duct kits are designed for use with CellarPro's 3400H Houdini cooling unit, as follows:
- Attach to the cold side airflows (intake and exhaust), allowing the cooling unit to be located remotely (ie away from the cellar), as follows:
- Cold air return: may be ducted from the left, bottom, front, or top
- Cold air exhaust: may be ducted from the bottom, front, or top
- 2 hoods (1 for intake and 1 for exhaust on the cold side)
- 2 insulated flex ducts (25' each)
- Ducting must be 8-inch diameter or equivalent from start to finish
- If the control panel will not be conveniently accessible, we recommend adding our remote display/control unit #1603 (sold separately)
- If you want ducting on BOTH the cold side and the hot side, you will need to purchase the hot-side kit
- The high fan speed MUST be used when ducting our cooling unit.
Brand: CellarPro
Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)
Weight: 26 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:
Size: 9 1/2 w x 10 3/4 d x 6 3/8 h (inches)
Weight: 26 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
The height of the hood (4 1/8 inches) plus the height of the 8-inch duct collars (2 1/4 inches) is 6 3/8 inches. The hood is designed to attach to the cooling unit for use with any of the airflows - hot or cold, intake or exhaust. Click on one of the following links for more information:
Please refer to the following resources before purchasing this kit:
- This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
