Configuration Scenarios For Air Handler Split Recessed Ceiling Mount Systems
Air Handler Split Recessed Ceiling Mount Configurations
Download a pdf version of wine cellar cooling unit configuration options.

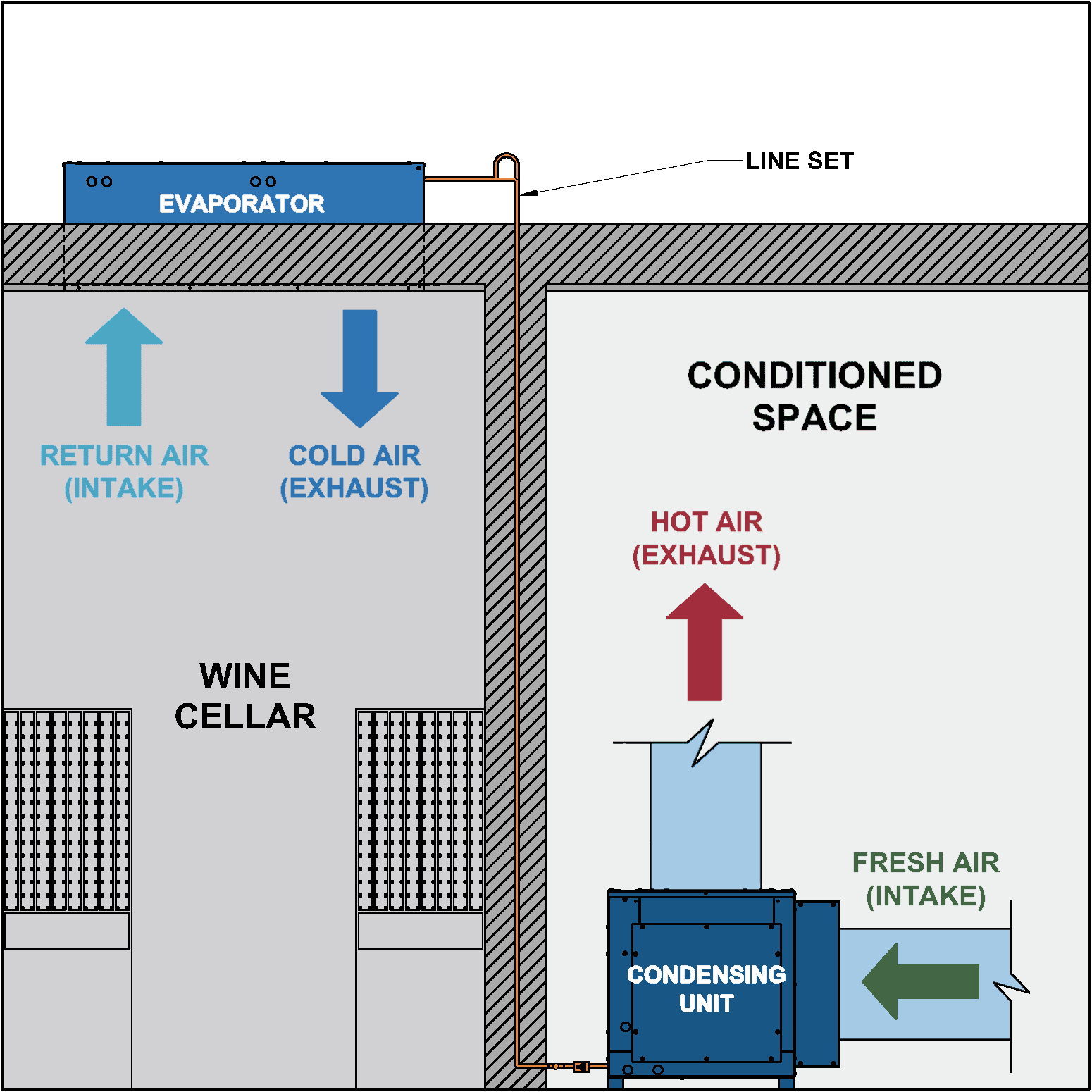

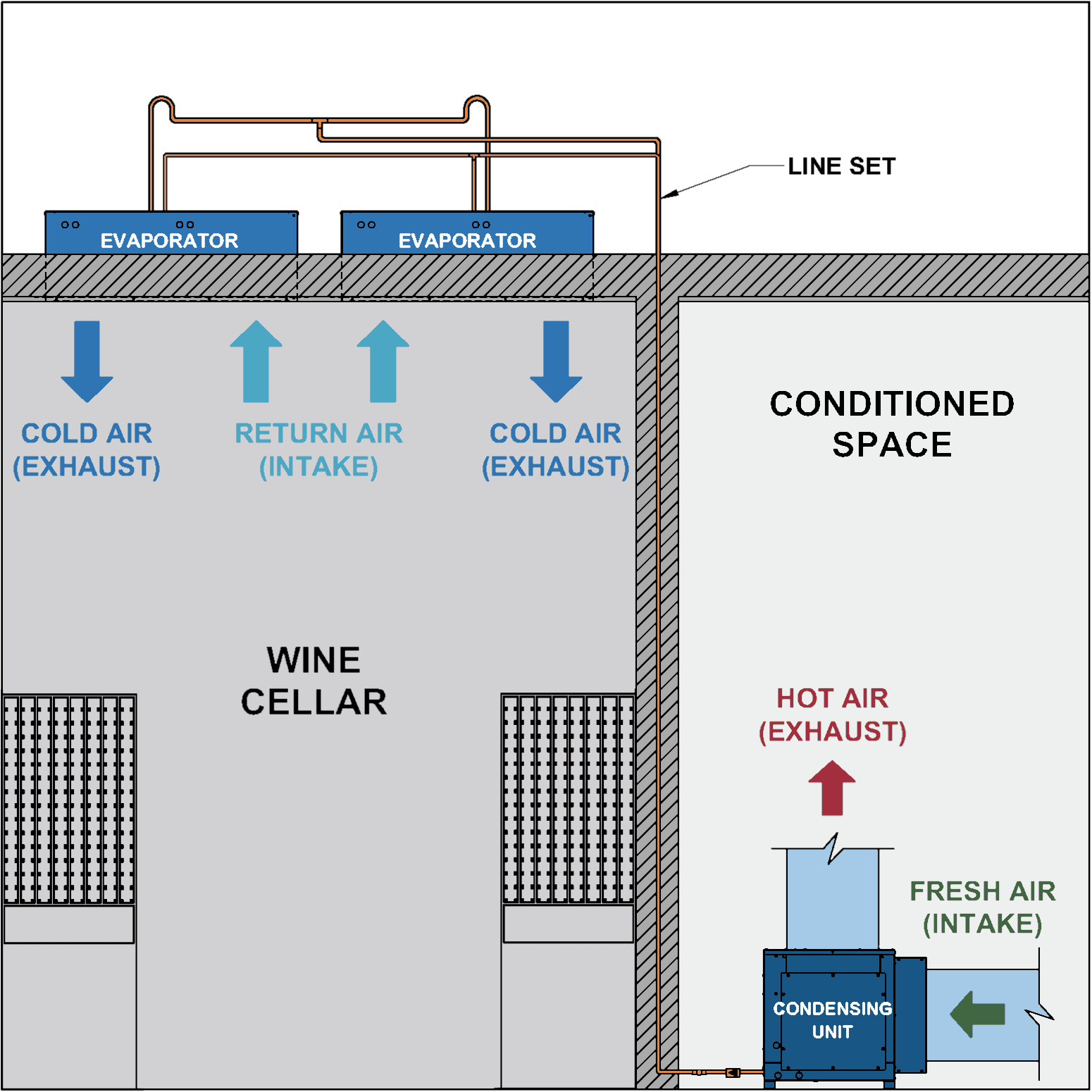

| 1. Flush Configuration AH3000-AH4000Scmr | 2. Flush Configuration AH6000-AH8000Scmr | |
 |  |

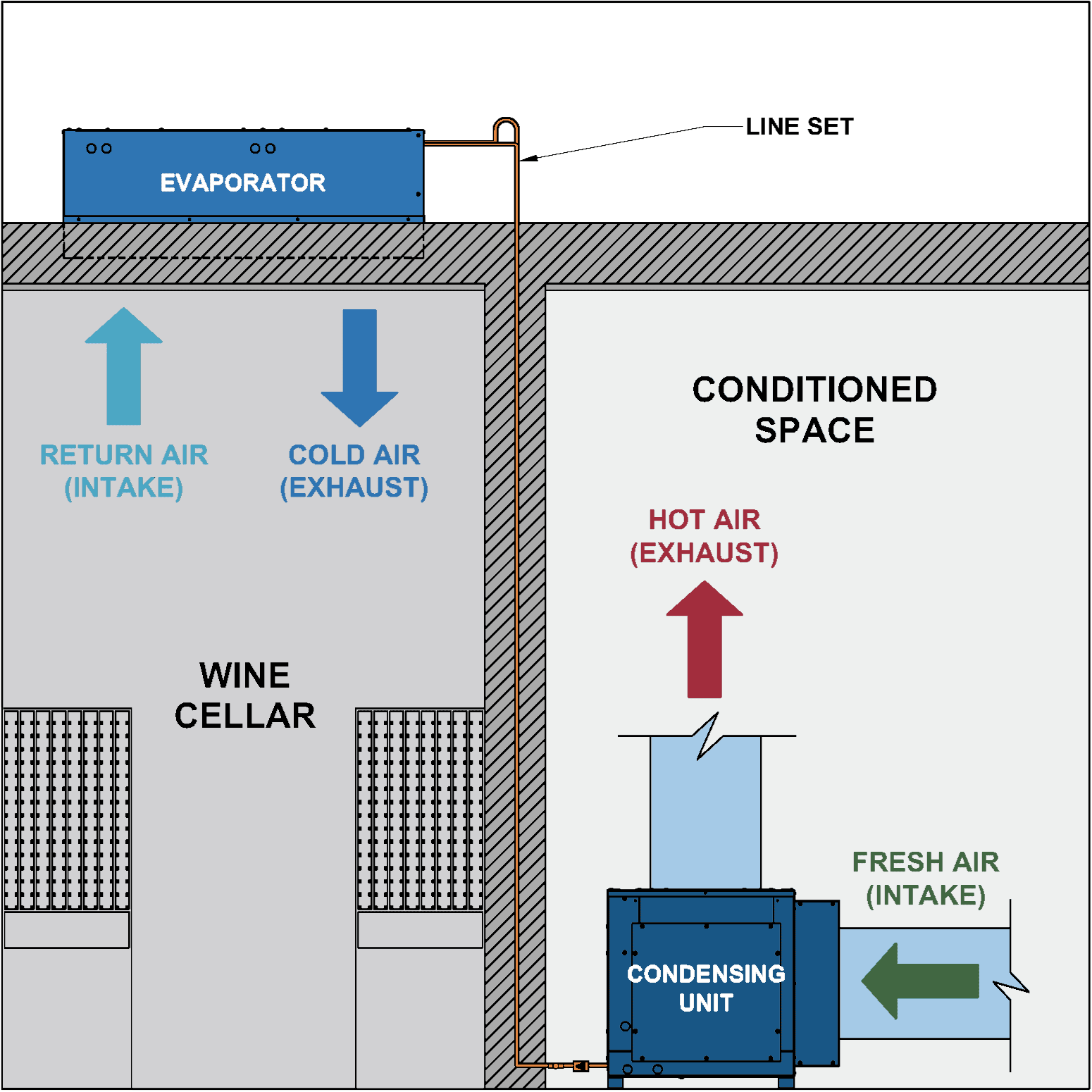

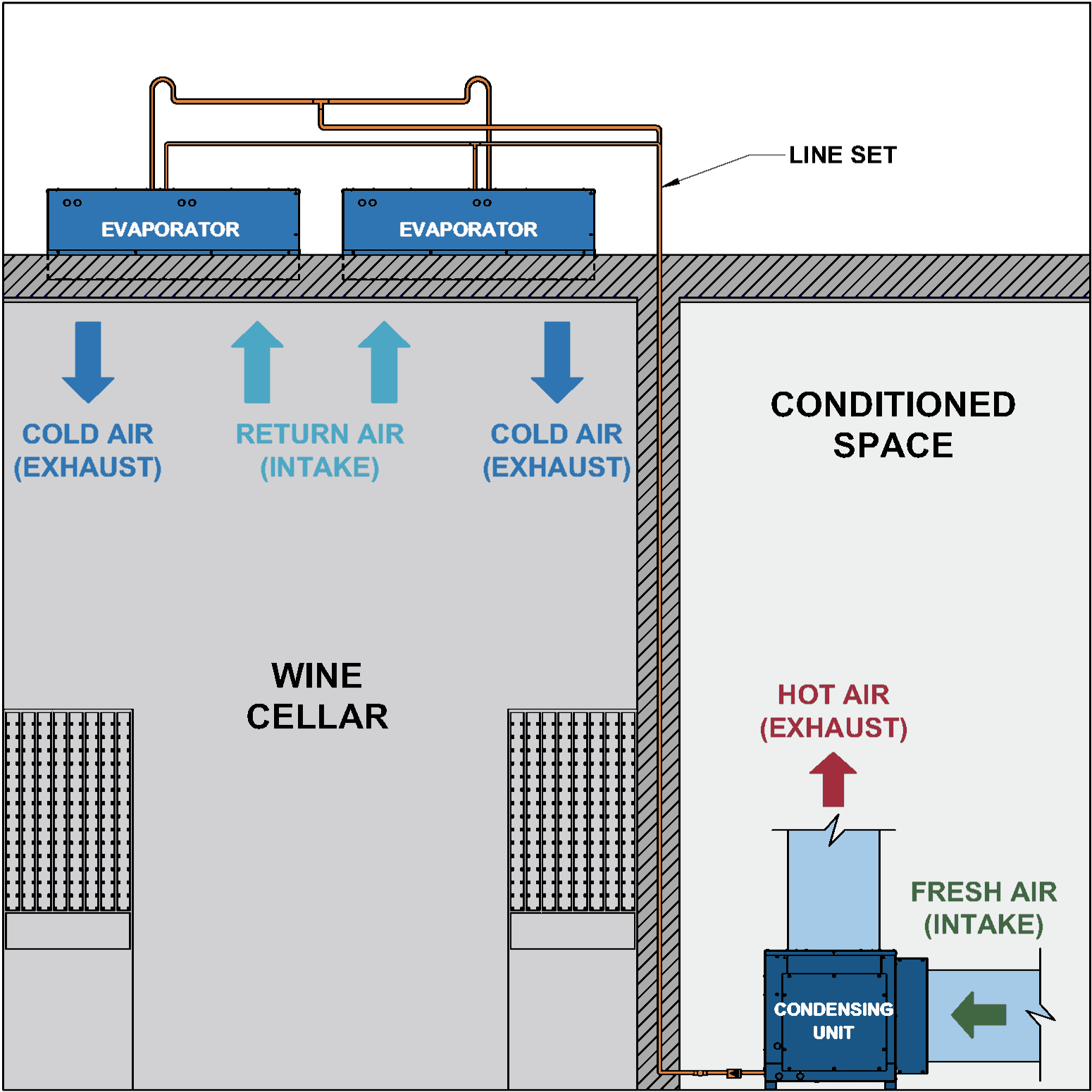

| 3. Recessed Configuration AH3000-AH4000Scmr | 4. Recessed Configuration AH6000-AH8000Scmr | |
 |  |

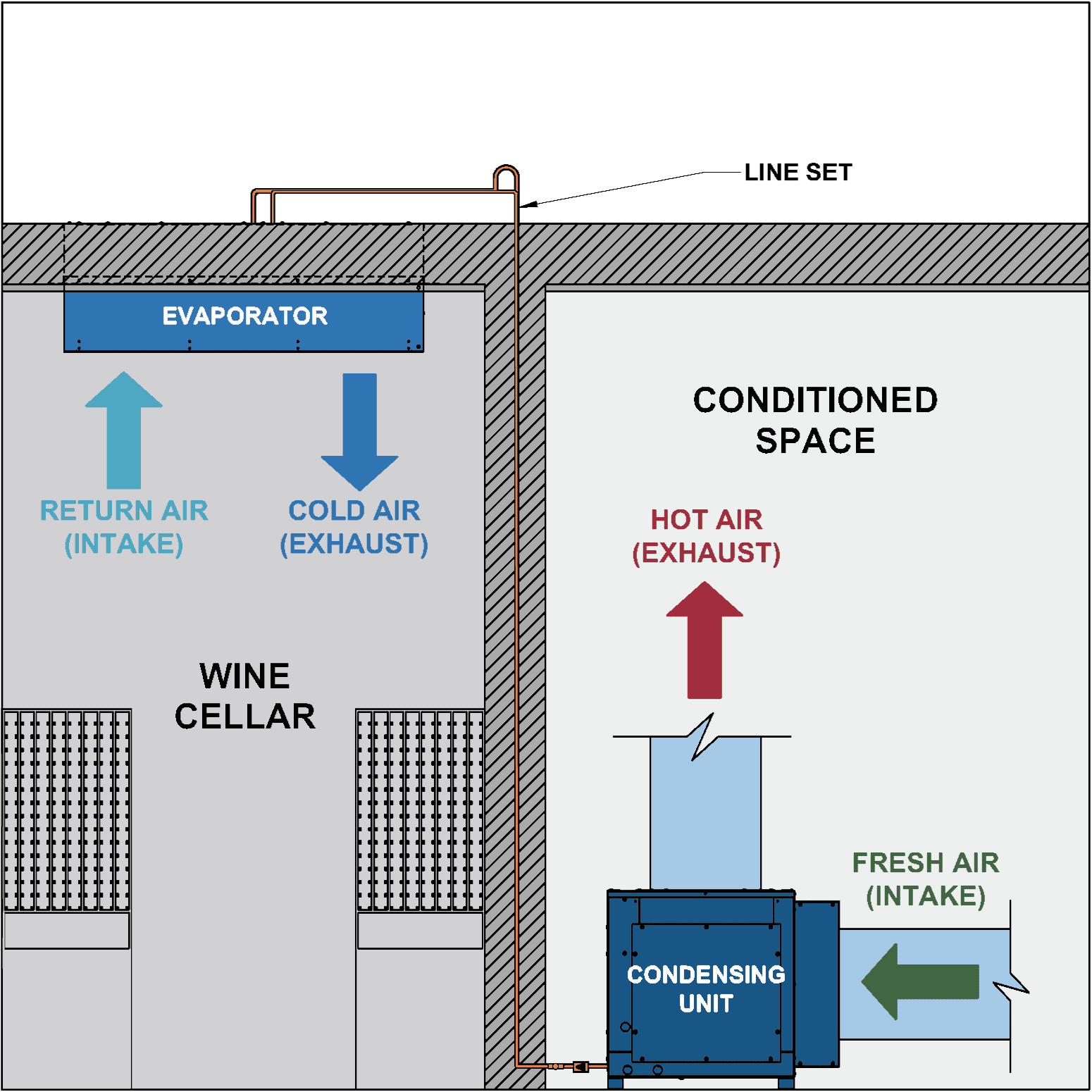

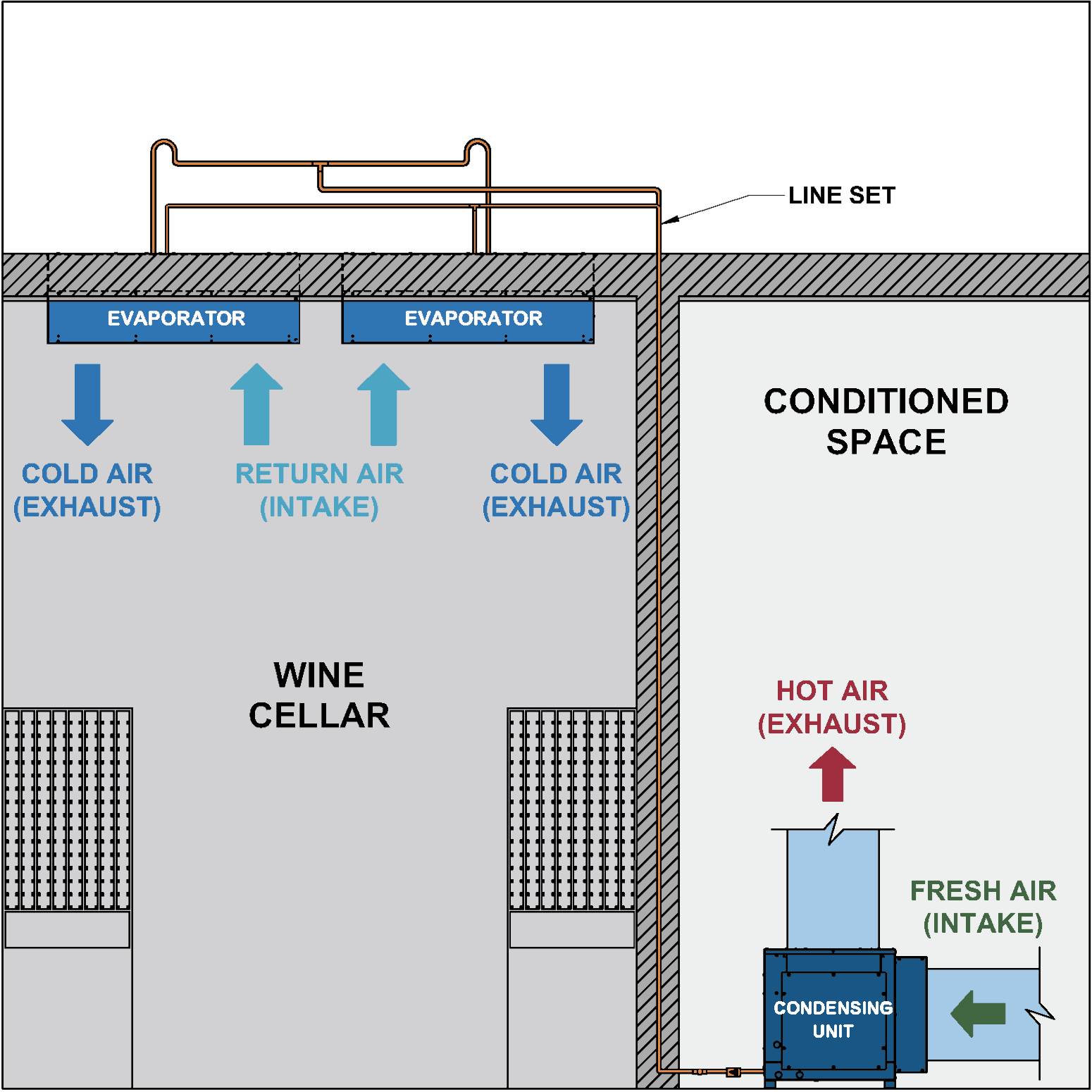

| 5. Protruded Configuration AH3000-4000Scmr | 6. Protruded Configuration AH6000-8000Scmr | |
 |  |
