Air Handler Series Configuration Options
Air Handler Configurations
Download a pdf version of wine cellar cooling unit configuration options.

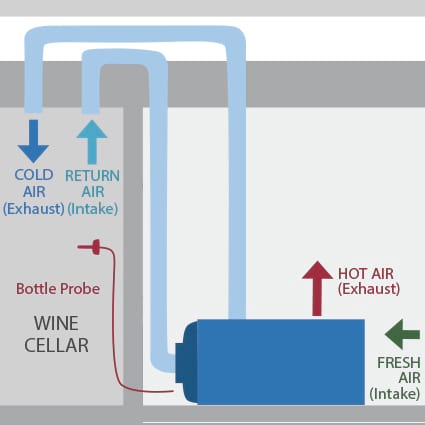

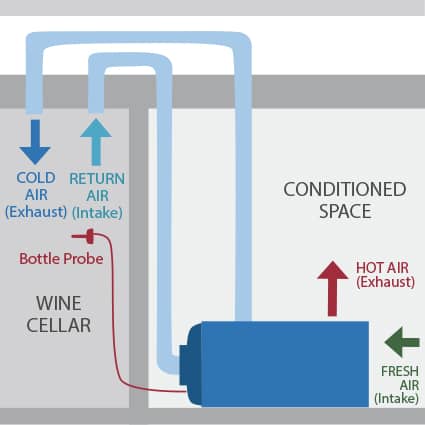

| 1. Floor Mount / No Ducting Hot exhaust and/or fresh intake can also be ducted. | 2. Floor Mount / Front Ducted * Hot exhaust and/or fresh intake can also be ducted. | |
 |  | |
| 3. Split Configuration / No Ducting Hot exhaust and/or fresh intake can also be ducted. | 4. Split Configuration / Front Ducted Hot exhaust and/or fresh intake can also be ducted. | |
 |  | |

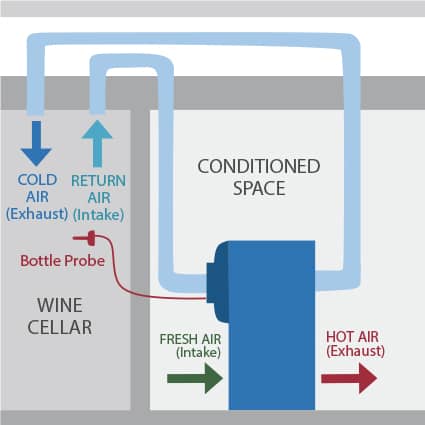

* Horizontal or upright configurations available
