3/4200VS & 3/4000S Duct KIT Cold Low RH #1476

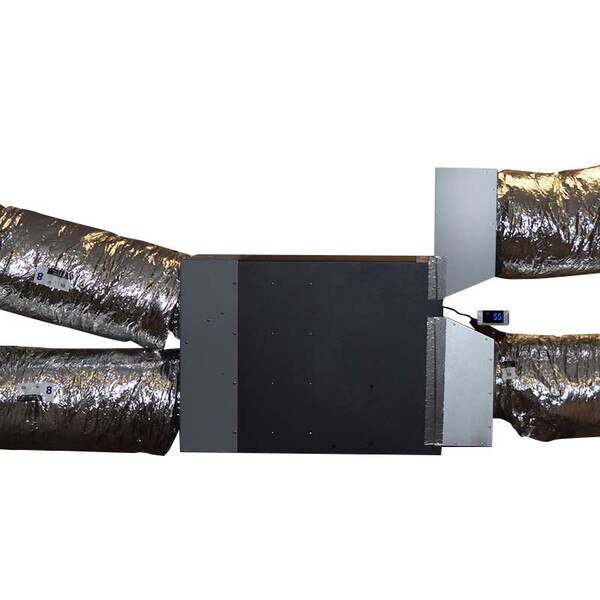

CellarPro 3200VS/4200VS & 3000S/4000S Split Duct KIT (Cold Side) Low RH (P/N 1476). Duct openings are designed to attach to 2 insulated 8-inch ducting (included) for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.
Requires 9 inches of additional height at the front of the cooling unit. The high fan speed setting is required when our unit is ducted.

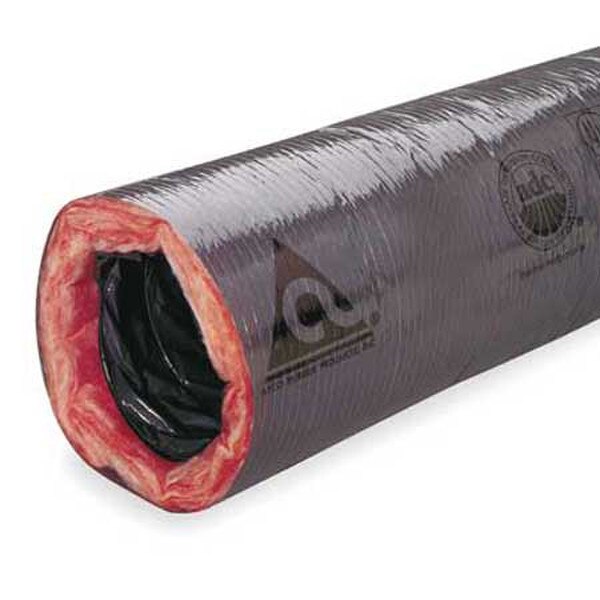

Kit includes: Duct hood, 50 feet (2x25) of 8-inch insulated (R-6) ducting, remote display and bottle probe.
The high fan speed setting is required when the unit is ducted.
Please refer to the following resources before purchasing this kit:
- This kit may only be used in conditioned, low humidity environments. Use our Low RH vs High RH Duct Kit Chart to determine whether this kit is appropriate for your installation. In some cases, the high-humidity duct hood may be required, and in some cases, the conditions are too extreme for any of our cold-side duct kits.
- Use our ducting heat loss table and our duct correction table to correctly adjust the sizing of your cooling unit, because ducting will add to the thermal load of the cellar.
- Refer to our Bottle Probe Operating Instructions to correctly set the cooling unit depending on how you're using the Bottle Probe
Custom duct kit for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
Only recommended for use in a conditioned and low-humidity environment. Please use our high-humidity duct kit if the system will be used in an unconditioned space with warm temperatures and/or,moderate , unconditioned or high humidity conditions.
- Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
- Designed to be used in Low Humidity environments

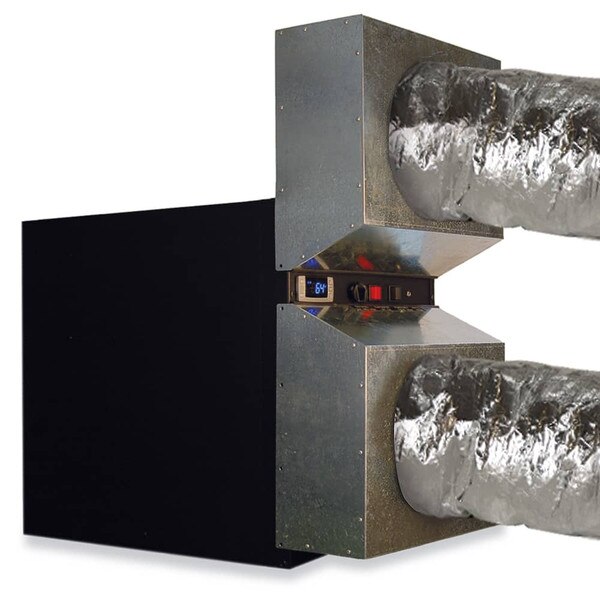

- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to insulated 8" ducting (included)
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Maintains accurate temperatures inside the wine cellar
- Includes our remote thermostat bottle probe (measures air or liquid temperatures)
- Includes our remote control display kit
Brand: CellarPro
UPC: 077757014765
Size: 14 1/4w x 4 3/4d x 27 1/2h (in)
Weight: 35 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
Ratings & Reviews
2 Reviews
new wine closet
This kit has enabled me to install the chiller in the attic space outside the wine room. Inlet & outlet are in the ceiling. with no chiller to interfere with the racking. This is attached to a 4200VSI unit that is not in service as of yet. I'm installing sliding doors this weekend & racks in three weeks.
Andrew
9/4/2014
Works great.
I miscalculated the location. Of the adjacent room, so I was forced to get this kit. It came with everything necessary and worked out great. I have the unit sitting in the furnace room and everything venting correctly. I did hire an hvac professional to be sure the vents were run correctly, but only took him an hour.
George
5/9/2018
