CP 3200/4200 VS & Split Duct KIT Cold Side Low RH RETROFIT #18100
Custom duct kit for CellarPro 3200 / 4200 VS and 3000S / 4000S Split Refrigeration Systems. With this kit, the cold air intake/exhaust can be ducted up to 100 equivalent feet (50 feet per opening).
Only recommended for use in conditioned, low humidity environments. Please use our high-humidity duct kit if the system will be used in a warm, moderate , unconditioned or high humidity environment.
Only recommended for use in conditioned, low humidity environments. Please use our high-humidity duct kit if the system will be used in a warm, moderate , unconditioned or high humidity environment.
- Attaches easily to the front of 3200/4200 VS and 3000S/4000S Split refrigeration systems
- Designed to be used in Low Humidity environments
- Provides access to cooling unit control panel and switches
- Designed for easy hook-up to insulated 8" ducting
- Both openings must be ducted (total of 100 equivalent feet) to/from the cellar
- Maintains accurate temperatures inside the wine cellar
- Includes our remote thermostat bottle probe (measures air or liquid temperatures)
- Includes our remote control display kit

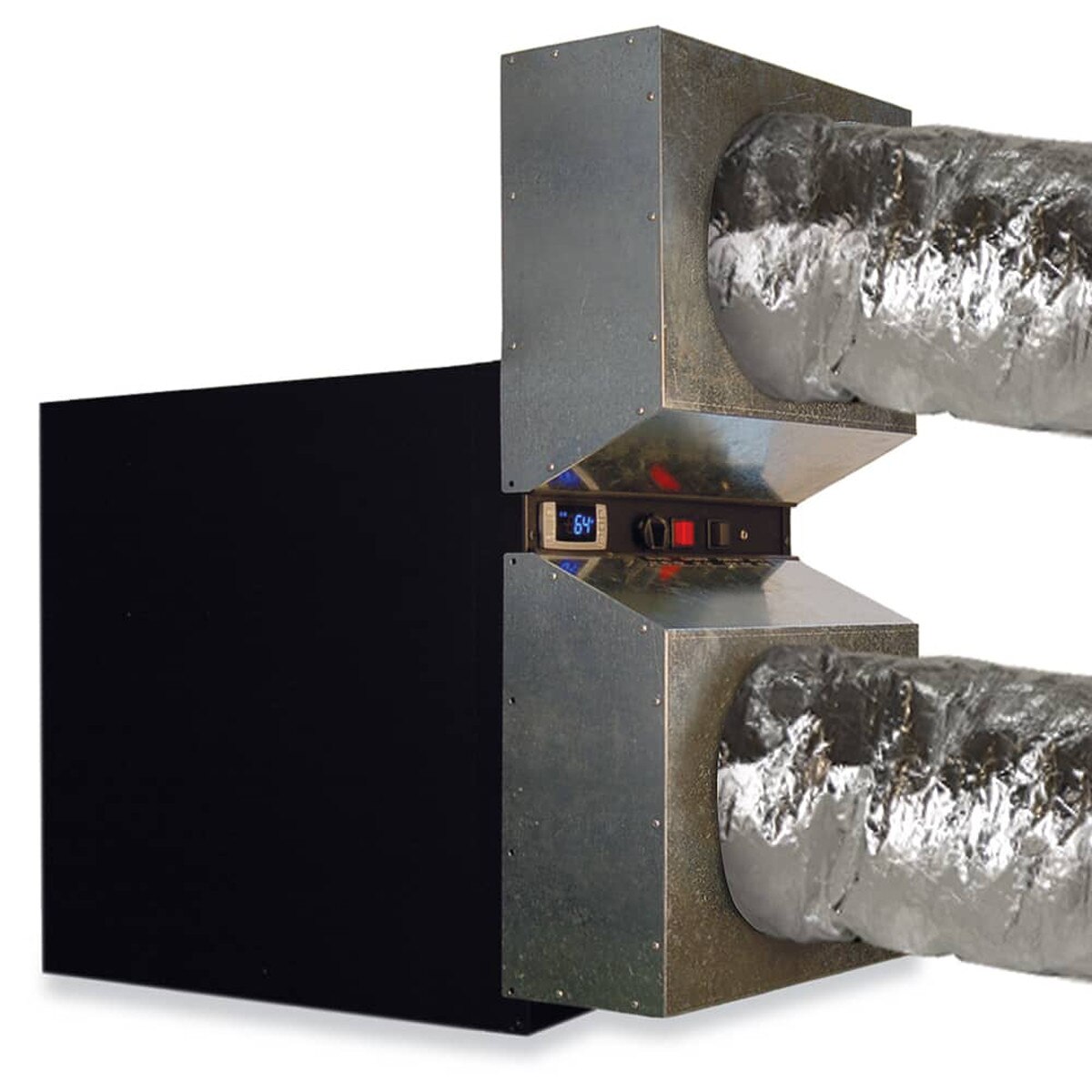

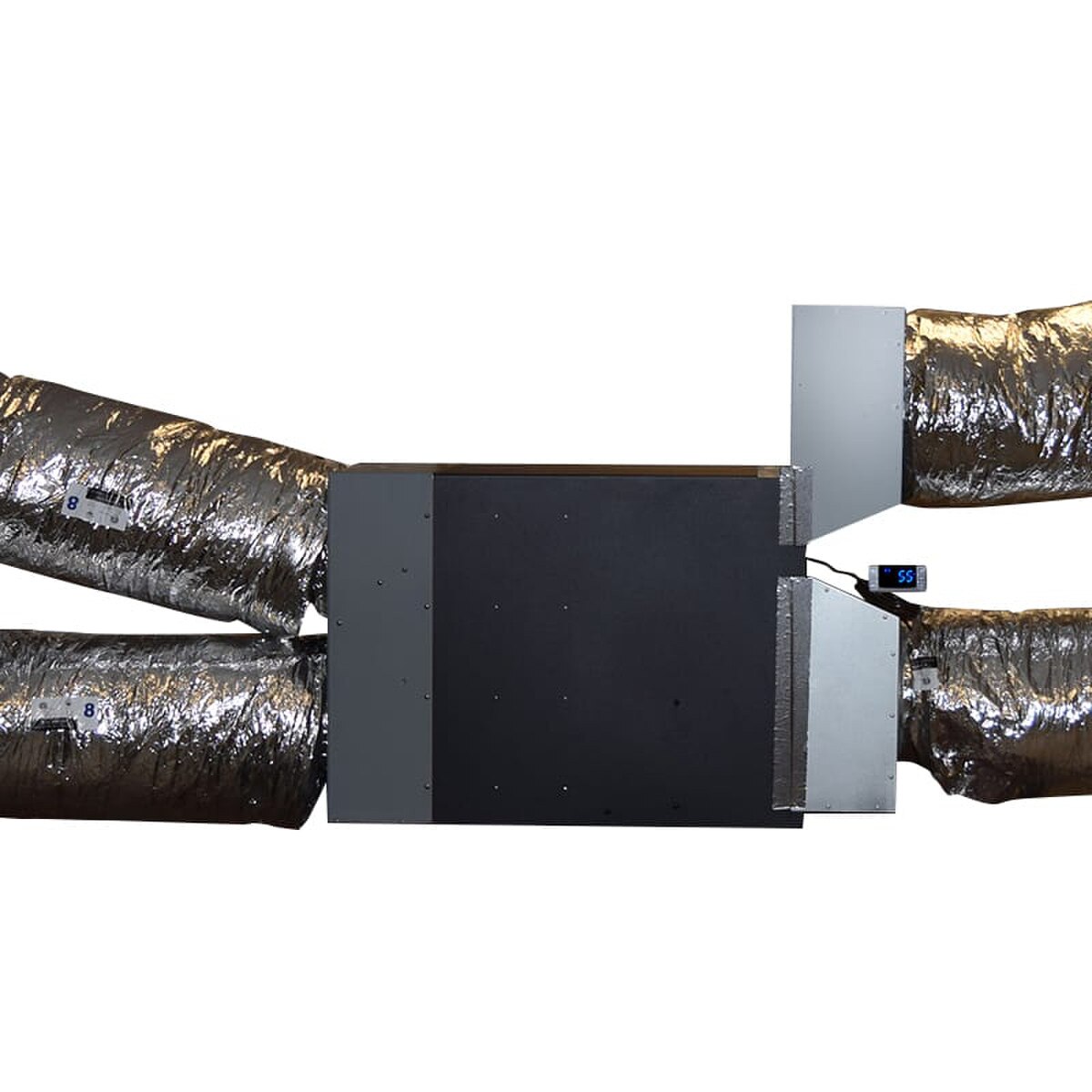

CellarPro 3200/4200 VS & Split Duct KIT RETROFIT (Cold Side) LOW RH RETROFIT (P/N 18100). Duct openings are designed to attach to 2 insulated 8-inch ducting (included) for evaporator intake and exhaust. Custom design allows access to controls and switches on the face of the cooling unit.
Requires 9 inches of additional height at the front of the cooling unit. The high fan speed setting is required when our unit is ducted.
Kit includes: Duct hood, 50 feet (2x25) of 8-inch insulated (R-6) ducting, remote display and bottle probe.
The high fan speed setting is required when the unit is ducted.
Requires 9 inches of additional height at the front of the cooling unit. The high fan speed setting is required when our unit is ducted.
Kit includes: Duct hood, 50 feet (2x25) of 8-inch insulated (R-6) ducting, remote display and bottle probe.
The high fan speed setting is required when the unit is ducted.
Brand: CellarPro
Size: 14 1/4w x 4 3/4d x 27 1/2h (in)
Weight: 42 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
Size: 14 1/4w x 4 3/4d x 27 1/2h (in)
Weight: 42 lbs
Capacity: 100 Equivalent Feet
Warranty:
1 Year
Click on one of the following links for more information:
- Front Duct Hood Cut Sheet
- Framing Diagram
- Installation Diagrams
- Front Ducted 3000S / 4000S Cut Sheet
- Front Ducted 3200VS / 4200VS Cut Sheet
- Split Systems As Ducted
- 3200VS / 4200VS As Ducted
- Ducting Installation Best Practices
