CP VS Duct HOOD Hot Side with Inline Fan #7433

SKU: 7433 Duct HOOD 3200/4200 Hot W/FAN
$515.00
In Stock

Usually Ships w/i 2-3 Days

Shipping Information:

UPS / USPS / FedEx

Designed for 3200 and 4200 VS cooling units, this custom duct hood and inline fan allow the hot air intake/exhaust to be ducted up to 200 equivalent feet (100 feet per opening).

  • Attaches easily to the rear of 3200 and 4200 wine cooling units
  • Provides quick access to removable air filter
  • Designed for easy hook-up to 8" ducting (not included)

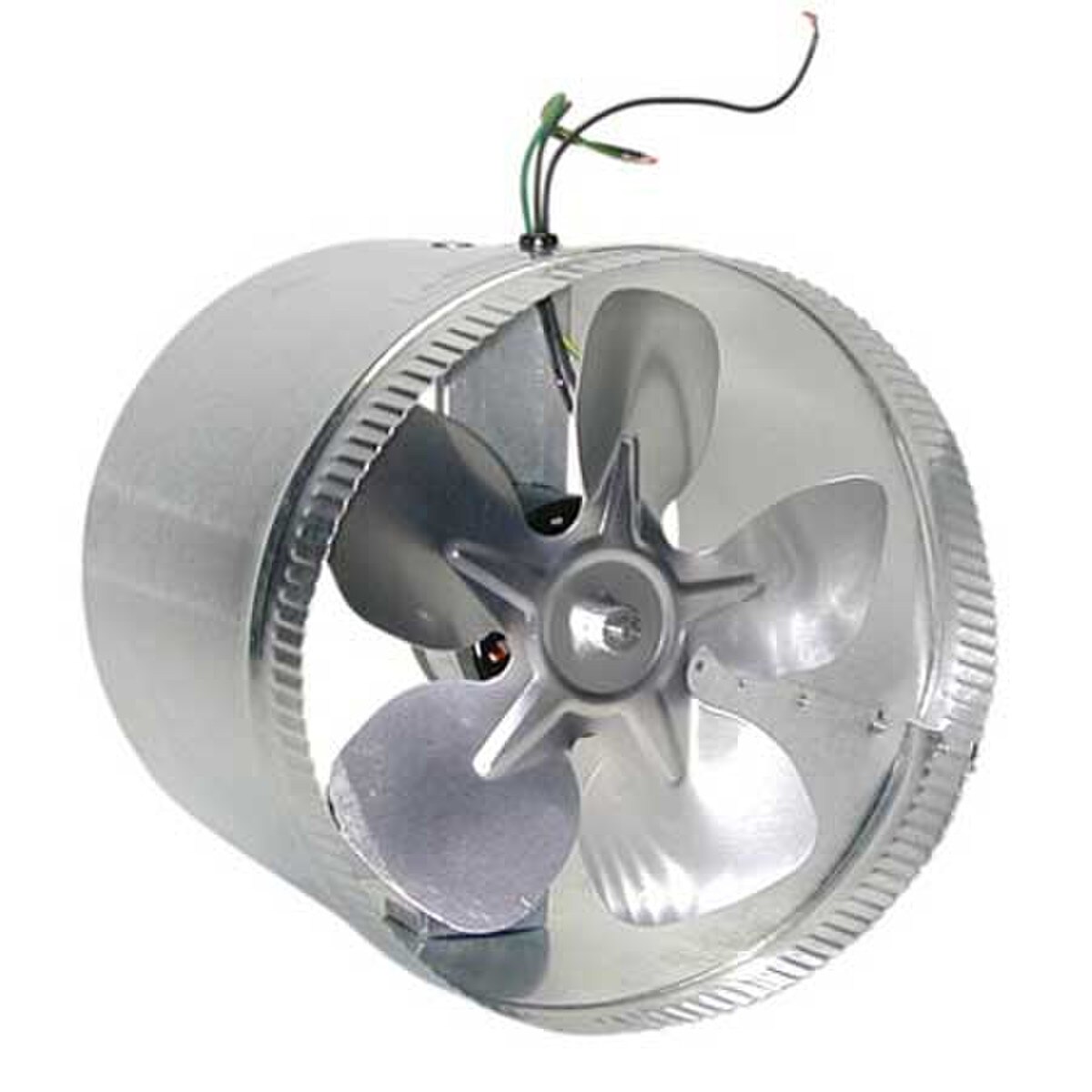

  • Inline fan (3000RPM, 240 CFM) has a permanently lubricated, impedance protected motor
  • Heavy gauge plated steel brackets
  • Switched power to match the cooling unit
  • One or both openings may be ducted (total of 200 equivalent feet)
  • 8-inch ducting not included

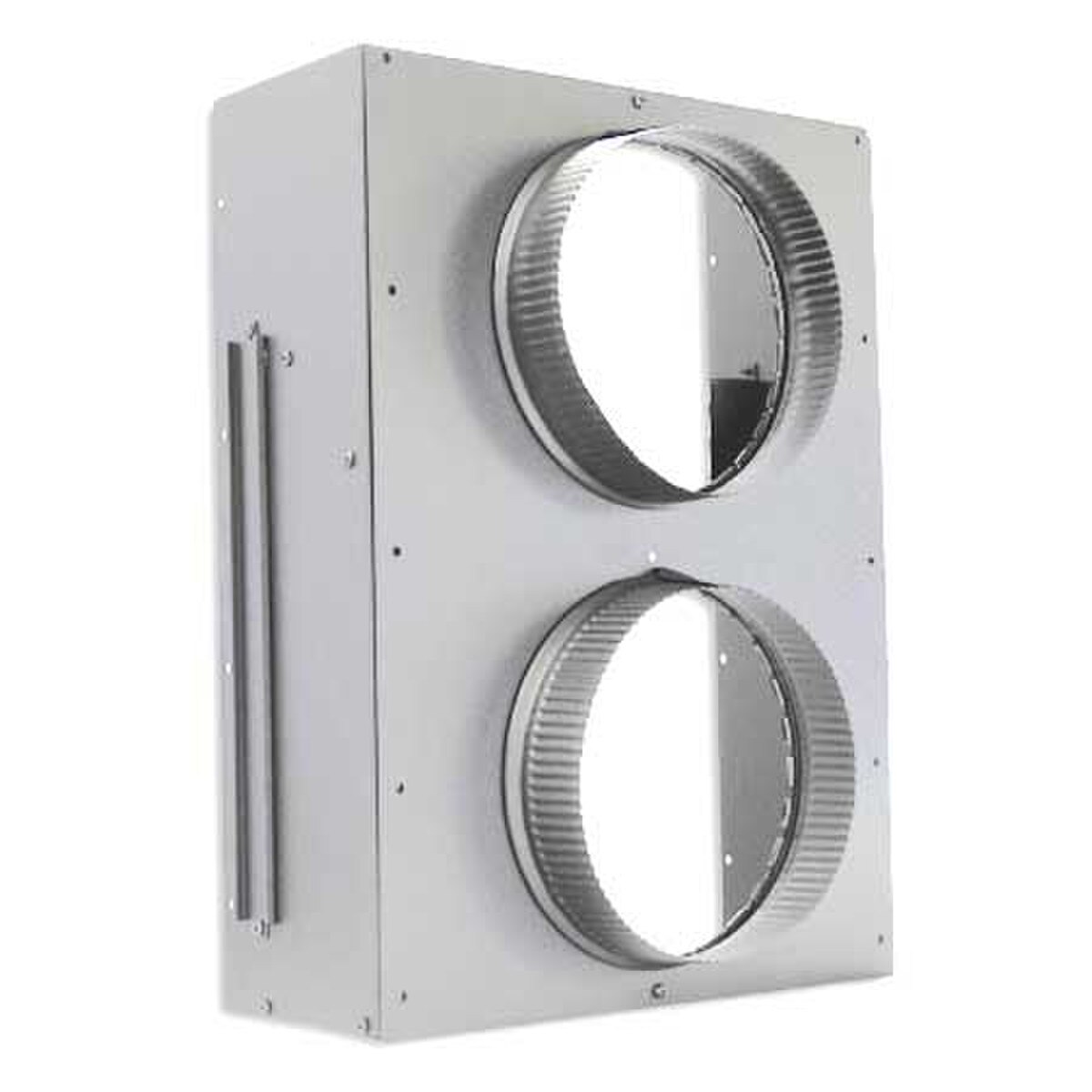

CellarPro 3200/4200 Rear Duct Hood with Inline Fan (P/N 7433). Duct openings are designed to attach to two 8" ducts for condenser intake and exhaust. Removable slot plate provides easy access to our air filter. Inline fan receives switched power from the cooling unit.

Kit includes: Rear vent cover and 240 CFM 8-inch inline fan. Ducting is NOT included in this kit.

Please note: The high fan speed setting is required whenever the cooling unit is ducted. The diameter of the ducting must be 8-inches or greater from start to finish, and must not be reduced.

Brand: CellarPro

Size: 14 1/2w x 8d x 19 3/4h (in)

Weight: 15 lbs

Power/Rating:
120V, 60Hz, 0.60 Amp

Capacity: 200 Equivalent Feet

Warranty:
1 Year

Click on one of the following links for more information:

The depth of the hood includes 2 1/4 (in) for the 8-inch dia. duct adapters. The hood is designed to slide over the rear of the cooling unit, and will overlap the cooling unit by approximately 1 inch.
